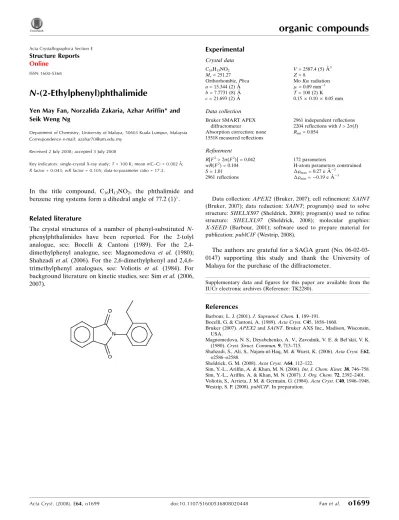

N (2 Ethyl­phen­yl)phthalimide

N

-(2-Ethylphenyl)phthalimide

Yen May Fan, Norzalida Zakaria, Azhar Ariffin* and Seik Weng Ng

Department of Chemistry, University of Malaya, 50603 Kuala Lumpur, Malaysia Correspondence e-mail: [email protected]

Received 2 July 2008; accepted 3 July 2008

Key indicators: single-crystal X-ray study;T= 100 K; mean(C–C) = 0.002 A˚;

Rfactor = 0.043;wRfactor = 0.105; data-to-parameter ratio = 17.2.

In the title compound, C16H13NO2, the phthalimide and benzene ring systems form a dihedral angle of 77.2 (1)_.

Related literature

The crystal structures of a number of phenyl-substituted N -phenylphthalimides have been reported. For the 2-tolyl analogue, see: Bocelli & Cantoni (1989). For the 2,4-dimethylphenyl analogue, see: Magnomedova et al. (1980); Shahzadi et al.(2006). For the 2,6-dimethylphenyl and 2,4,6-trimethylphenyl analogues, see: Voliotis et al. (1984). For background literature on kinetic studies, see: Simet al.(2006, 2007).

Experimental

Crystal data

C16H13NO2

Mr= 251.27

Orthorhombic,Pbca a= 15.344 (2) A˚

b= 7.7731 (8) A˚

c= 21.693 (2) A˚

V= 2587.4 (5) A˚3

Z= 8

MoKradiation

= 0.09 mm 1

T= 100 (2) K 0.150.100.05 mm

Data collection

Bruker SMART APEX diffractometer

Absorption correction: none 15518 measured reflections

2961 independent reflections 2204 reflections withI> 2(I)

Rint= 0.054

Refinement

R[F2_{> 2(F}2_{)] = 0.042}

wR(F2_{) = 0.104}

S= 1.01 2961 reflections

172 parameters

H-atom parameters constrained

max= 0.27 e A˚ 3

min= 0.19 e A˚ 3

Data collection:APEX2(Bruker, 2007); cell refinement:SAINT (Bruker, 2007); data reduction:SAINT; program(s) used to solve structure:SHELXS97(Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: X-SEED (Barbour, 2001); software used to prepare material for publication:publCIF(Westrip, 2008).

The authors are grateful for a SAGA grant (No. 06-02-03-0147) supporting this study and thank the University of Malaya for the purchase of the diffractometer.

Supplementary data and figures for this paper are available from the IUCr electronic archives (Reference: TK2280).

References

Barbour, L. J. (2001).J. Supramol. Chem.1, 189–191. Bocelli, G. & Cantoni, A. (1989).Acta Cryst.C45, 1658–1660.

Bruker (2007).APEX2andSAINT. Bruker AXS Inc., Madison, Wisconsin, USA.

Magnomedova, N. S., Dzyabchenko, A. V., Zavodnik, V. E. & Bel’skii, V. K. (1980).Cryst. Struct. Commun.9, 713–715.

Shahzadi, S., Ali, S., Najam-ul-Haq, M. & Wurst, K. (2006).Acta Cryst.E62, o2586–o2588.

Sheldrick, G. M. (2008).Acta Cryst.A64, 112–122.

Sim, Y.-L., Ariffin, A. & Khan, M. N. (2006).Int. J. Chem. Kinet.38, 746–758. Sim, Y.-L., Ariffin, A. & Khan, M. N. (2007).J. Org. Chem.72, 2392–2401. Voliotis, S., Arrieta, J. M. & Germain, G. (1984).Acta Cryst.C40, 1946–1948. Westrip, S. P. (2008).publCIF. In preparation.

Acta Crystallographica Section E

Structure Reports

Online

supporting information

Acta Cryst. (2008). E64, o1699 [doi:10.1107/S1600536808020448]

N-(2-Ethylphenyl)phthalimide

Yen May Fan, Norzalida Zakaria, Azhar Ariffin and Seik Weng Ng

S1. Comment

In our studies aimed at understanding the nature of intramolecular general base (IGB) and intramolecular general acid

(IGA) catalysis in the hydrolysis of N-substituted phthalimides, we required the preparation of N-phenylphthalimides

having a substituent at either the ortho- and/or the para-position. The title compound (I, Fig. 1) is an such an example. In

(I), the phthalimido and phenylene portions are flat and are inclined at an angle of 77.2 (1)°.

S2. Experimental

Phthalic anhydride (5.0 g, 33.8 mmol) and o-ethylaniline (4.91 g, 40.5 mmol) were dissolved in glacial acetic acid (15

ml). The mixture was heated at 393–413 K for 4 h; the completion of the reaction was monitored by thin layer

chromatography. The mixture was quenched with water. The solid that separated was collected and recrystallized twice

from ethanol to give colorless crystals of (I) in 90% yield.

S3. Refinement

Carbon-bound H-atoms were placed in calculated positions (C—H 0.95 to 0.99 Å) and were included in the refinement in

the riding model approximation, with U(H) set to 1.2–1.5U(C).

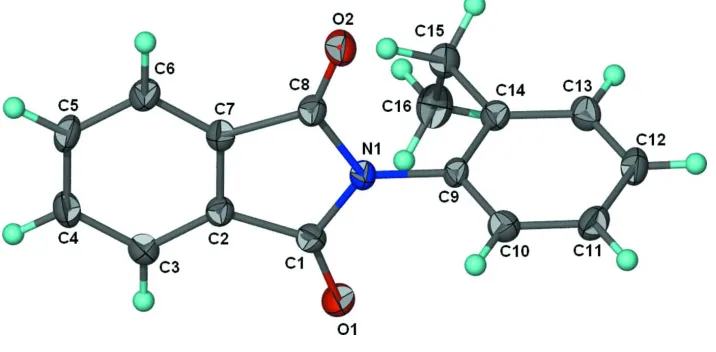

Figure 1

Molecular structure of (I) drawn at the 70% probability level showing atom labelling. Hydrogen atoms are drawn as

N-(2-Ethylphenyl)phthalimide

Crystal data

C16H13NO2 Mr = 251.27

Orthorhombic, Pbca

Hall symbol: -P 2ac 2ab

a = 15.344 (2) Å

b = 7.7731 (8) Å

c = 21.693 (2) Å

V = 2587.4 (5) Å3

Z = 8

F(000) = 1056

Dx = 1.290 Mg m−3

Mo Kα radiation, λ = 0.71073 Å Cell parameters from 2189 reflections

θ = 2.3–24.0°

µ = 0.09 mm−1 T = 100 K

Irregular block, colourless 0.15 × 0.10 × 0.05 mm

Data collection

Bruker SMART APEX diffractometer

Radiation source: fine-focus sealed tube Graphite monochromator

ω scans

15518 measured reflections 2961 independent reflections

2204 reflections with I > 2σ(I)

Rint = 0.054

θmax = 27.5°, θmin = 2.3° h = −19→11

k = −10→10

l = −28→28

Refinement

Refinement on F2

Least-squares matrix: full

R[F2 _{> 2σ(F}2_{)] = 0.042} wR(F2_{) = 0.104} S = 1.01 2961 reflections 172 parameters 0 restraints

Primary atom site location: structure-invariant direct methods

Secondary atom site location: difference Fourier map

Hydrogen site location: inferred from neighbouring sites

H-atom parameters constrained

w = 1/[σ2_(F

o2) + (0.0466P)2 + 0.7719P]

where P = (Fo2 + 2Fc2)/3

(Δ/σ)max = 0.001

Δρmax = 0.27 e Å−3

Δρmin = −0.19 e Å−3

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2₎

x y z Uiso*/Ueq

O1 0.48223 (7) 0.23894 (15) 0.51820 (5) 0.0271 (3) O2 0.35501 (7) 0.02107 (14) 0.69268 (5) 0.0251 (3) N1 0.44007 (8) 0.11973 (15) 0.61157 (5) 0.0171 (3) C1 0.42560 (10) 0.19354 (18) 0.55323 (6) 0.0181 (3) C2 0.32925 (9) 0.20247 (18) 0.54575 (6) 0.0166 (3) C3 0.28005 (10) 0.2658 (2) 0.49751 (7) 0.0204 (3)

H3 0.3066 0.3137 0.4619 0.024*

C4 0.18974 (10) 0.2565 (2) 0.50335 (7) 0.0217 (3)

H4 0.1538 0.2979 0.4709 0.026*

C5 0.15121 (10) 0.1874 (2) 0.55597 (7) 0.0226 (3)

H5 0.0895 0.1819 0.5586 0.027*

C6 0.20135 (10) 0.12648 (19) 0.60476 (7) 0.0203 (3)

H6 0.1752 0.0812 0.6410 0.024*

C9 0.52461 (9) 0.09843 (18) 0.63950 (6) 0.0162 (3) C10 0.57623 (10) −0.03944 (19) 0.62150 (7) 0.0201 (3) H10 0.5564 −0.1168 0.5907 0.024* C11 0.65713 (10) −0.0634 (2) 0.64893 (7) 0.0221 (3) H11 0.6929 −0.1572 0.6368 0.027* C12 0.68547 (10) 0.0498 (2) 0.69407 (7) 0.0222 (3)

H12 0.7405 0.0330 0.7132 0.027*

C13 0.63332 (10) 0.18808 (19) 0.71133 (7) 0.0208 (3)

H13 0.6535 0.2653 0.7421 0.025*

C14 0.55168 (10) 0.21587 (18) 0.68431 (6) 0.0174 (3) C15 0.49902 (10) 0.37245 (19) 0.70174 (7) 0.0215 (3) H15A 0.5072 0.3970 0.7462 0.026* H15B 0.4364 0.3489 0.6947 0.026* C16 0.52646 (11) 0.5296 (2) 0.66405 (8) 0.0293 (4) H16A 0.4912 0.6290 0.6763 0.044* H16B 0.5175 0.5061 0.6201 0.044* H16C 0.5882 0.5542 0.6716 0.044*
