BLAZE EB400CT/EB600CTII

(1)

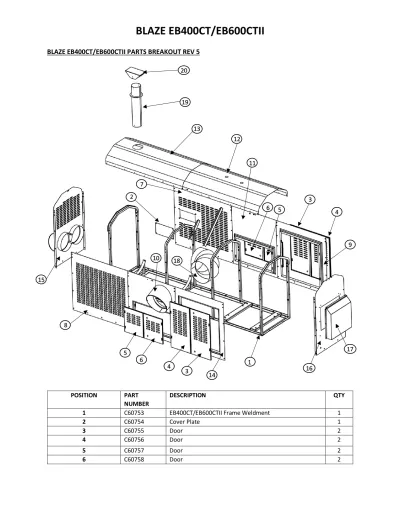

BLAZE EB400CT/EB600CTII PARTS BREAKOUT REV 5

POSITION PART

NUMBER

DESCRIPTION QTY

1 C60753 EB400CT/EB600CTII Frame Weldment 1

2 C60754 Cover Plate 1 3 C60755 Door 2 4 C60756 Door 2 5 C60757 Door 2 6 C60758 Door 2 16 20 19 12 13 1 2 4 3 6 ₅ 7 8 9 10 11 14 15 17 18 4 3 5 6

(2)

7 C60759 Panel Assembly 1 8 C60760 Panel Assembly 1 9 C60761 Panel Assembly 1 10 C60762 Panel Assembly 1 11 C60763 Panel Assembly 1 12 C60764 Roof Assembly 1 13 C60765 Roof Assembly 1

14 C60766 Panel Assembly – Configuration A 1

15 C60767 Outlet Panel Assembly 1

16 C60768 Genset Inlet Panel 1

17 C60769 RAD Grill 1

18 C60770 Inlet Elbow 1

19 C60771 Chimney Assembly 1

20 C60772 Top Cap 1

21 C60773 Control Panel Frame 1

22 C60260/

C60261

Genset Frame Assembly (For NPE32-1S4 Generator)/ Genset Frame Assembly (For NPE32-A/4 Generator)

1

Position PART# DESCRIPTION QTY

1 CE1022 Trailer for EB400CT/EB600CTII 1 2 CE1023 Tank for EB400CT/EB600CTII 1

1 2

(3)

EB400CT/EB600CTII FUEL TANK BREAK OUT REV 2 (CE1023)

POSITION PART # DESCRIPTION QTY

1 C60222 PLUG 3/4" NPT 5

2 C60221 CAP GUARDIAN 2 1/2" NPT F. 1

3 C60227 EVENT/PRESSURE VENT 9 PSI (UN) 451L & + 1

4 C60265 ROCHESTER 12'' X 1.5'' NPT 1

5 C60228 PLUG 1 1/4" NPT 1

6 C60225 PLUG 3/8" NPT 4

7 C60229 ADAPTER 1" - 3/8"NPT (2 SIDE) 4

8 C60262 FLOAT SWITCH 2-LEVEL 1

9 C60705 RLA RUBBER HOSE 3/8" + 2 FITTING 3/8" NPT 2

10 C60231 CHECK VALVE 3/8" NPT F. 2

(4)

Please call for genset parts on units with the following serial numbers: Model Serial Number

EB400CT B400-19-9503 EB400CT B400-19-9508 EB400CT B400-19-9502 EB400CT B400-19-9501 EB400CT B400-19-9533 EB400CT B400-19-9534 EB400CT B400-19-9507 EB400CT B400-19-9500 EB400CT B400-19-9540 EB400CT B400-19-9541 EB400CT B400-19-9545 EB400CT B400-19-9546 EB400CT B400-19-9547 EB400CT B400-19-9548 EB400CT B400-19-9549 EB400CT B400-19-9550 EB400CT B400-19-9551 EB400CT B400-19-9552 EB400CT B400-19-9555 EB400CT B400-19-9556 EB400CT B400-19-9618 EB400CT B400-19-9601 EB400CT B400-19-9617 EB400CT B400-19-9559

(5)

D1005 GENSET (C40169)

Crankcase

POSITION PART# DESCRIPTION QTY

10 C60266 COMP.CRANKCASE 1 20 C60267 CAP,SEALING 4 30 C60268 CAP,SEALING 1 40 C60269 PLUG 3 50 C60270 PLUG 1 60 C60271 PLUG 3 70 C60272 PLUG 2 80 C60273 PLUG, EXPANSION 3 90 C60274 PLUG, EXPANSION 1 100 C60275 PIN,STRAIGHT 2 110 C60276 PIN,STRAIGHT 2 120 C60277 PIN,STRAIGHT 2 130 C60278 PIN,PIPE 2 140 C60279 PIN,PIPE 1 150 C60280 PLUG,FUEL CAMSHAFT 1 160 C60281 PIN(START SPRING) 1 170 C60282 PLUG 1 180 C60283 BUSHING(GEAR,GOBERNOR) 1 190 C60284 PLUG 1 200 C60285 PACKING 1 220 C60286 COCK,ASSY(DRAIN) 1

(6)

230 C60287 BOLT,FLANGE 1

240 C60288 PACKING 1

Oil Pan

10 C60289 KIT OIL PAN 1

30 C60290 BOLT,SEMS 20 35 C60291 BOLT,SEMS 2 40 C60292 PLUG(DRAIN) 1 50 C60293 PACKING 1 60 C60294 PLUG,DRAIN 1 70 C60295 GASKET 1 80 C60296 FILTER,OIL 1 90 C60297 BOLT,SEMS 1 100 C60298 O RING 1

(7)

Cylinder Head

10 C60299 HOOK,ENGINE 1 20 C60300 HOOK,ENGINE 1 30 C60301 BOLT,SEMS 2 40 C60302 COMP.CYLINDER HEAD 1 50 C60303 CAP,SEALING 1 60 C60304 PLUG 2 70 C60305 GUIDE,INLET VALVE 3 80 C60306 GUIDE,EXHAUST VALVE 3 90 C60307 CAP,SEALING 2 100 C60308 BOLT,HEAD(CYLINDER) 14 110 C60309 GASKET,CYLINDER HEAD 1

(8)

Gearcase

10 C60310 COMP.CASE,GEAR 1 20 C60311 PLUG 5 30 C60312 JOINT,PIPE 1 40 C60313 SPRING 1 50 C60314 VALVE(RELIEF) 1 60 C60315 COVER 1 70 C60316 BOLT 1 80 C60317 O RING 1 90 C60318 O RING 1

100 C60319 ASSY ROTOR,OIL PUMP 1 100 C60320 ROTOR,ASSY(OIL PUMP) 1 110 C60321 COVER,OIL PUMP 1 110 C60322 COVER 1 120 C60323 SCREW,CSK-HD 0.005 5 120 C60324 SCREW,BINDING(PHILLIPS) 5 130 C60325 GASKET,GEAR CASE 1 140 C60326 BOLT,SEMS 3 150 C60327 BOLT,SEMS 4 160 C60328 BOLT,SEMS 2 170 C60329 BOLT 1

(9)

180 C60330 BOLT 2 190 C60331 BOLT 1 200 C60332 STUD 1 210 C60333 NUT,FLANGE 1 220 C60334 SEAL,OIL 1 230 C60335 STUD 2 240 C60336 PLUG(OIL FILLER) 1 250 C60337 O RING 1 260 C60338 COVER,GEAR CASE 1 Head Cover

10 C60339 ASSY COVER,CYL.HEAD 1 10 C60340 ASSY COVER,CYL.HEAD 1 30 C60341 GASKET,HEAD COVER 1 40 C60342 COMP VALVE,BREATHER 1 50 C60343 COVER,BREATHER 1 60 C60344 SCREW,SEMS(PAN HEAD) 4 70 C60345 PIPE,WATER RETURN 1 80 C60346 NUT,CAP 3 90 C60347 PACKING 3 100 C60348 TUBE,BREATHER 1

(10)

110 C60349 CLAMPHOSE 1

120 C60350 BAND,PIPE 1

130 C60351 PLUG(OIL FILLER) 1

140 C60352 O RING 1

Oil Filter

10 C60353 CARTRIDGE OIL FILTER 1

(11)

10 C60354 GAUGE,OIL 1

20 C60355 PLUG,OIL GAUGE 1

Main Bearing Case

10 C60356 CASE,BRG,ASSY(WHEEL) 1 10 C60357 ASSY BRG CASE 1 20 C60358 BOLT,BEARING CASE 2 25 C60359 METAL,CRANKSHAFT 1 25 C60360 METAL,CRANKSHAFT 1 25 C60361 METAL,CRANKSHAFT 1 30 C60362 GASKET(BRG.CASE) 1 30 C60363 GASKET(BRG.CASE) 1 40 C60364 COVER(CASE,BRG) 1 50 C60365 SEAL,OIL 1 60 C60366 GASKET 1 70 C60367 BOLT 8 70 C60368 BOLT 8 80 C60369 BOLT 9 80 C60370 BOLT 9 90 C60371 ASSY BRG.CASE,MAIN 1 100 C60372 BOLT,BEARING CASE 2

(12)

105 C60373 METAL,CRANKSHAFT 1 105 C60374 METAL,CRANKSHAFT 1 105 C60375 METAL,CRANKSHAFT 1 110 C60376 BOLT(CASE,BRG) 2 120 C60377 ASSY BRG.CASE,MAIN 1 130 C60378 BOLT,BEARING CASE 2 140 C60379 METAL,CRANKSHAFT 1 140 C60380 METAL,CRANKSHAFT 1 140 C60381 METAL,CRANKSHAFT 1

CAM shaft and idle gear shaft

10 C60382 TAPPET 6 20 C60383 PUSH ROD 6 30 C60384 ASSY CAMSHAFT 1 40 C60385 BALL 1/4 1 50 C60386 GEAR,CAM 1 60 C60387 FEATHER KEY 1 70 C60388 STOPPER,CAMSHAFT 1 70 C60389 STOPPER(CAMSHAFT) 1 80 C60390 BOLT,SEMS 2 90 C60391 COMP GEAR,IDLE 1 0.6 1 100 C60392 BUSH,IDLE GEAR 1

(13)

110 C60393 COLLAR,IDLE GEAR 1 120 C60394 COLLAR,IDLE GEAR 1 130 C60395 CIR CLIP,IDLE GEAR 1 140 C60396 SHAFT,IDLE GEAR 1

150 C60397 BOLT,SEMS 3

Piston and crankshaft

10 C60398 PISTON 3 10 C60399 PISTON(05) 3 20 C60400 RING,PISTON,ASSY 3 20 C60401 RING,PISTON,ASSY 3 30 C60402 PIN,PISTON 3 40 C60403 CIRCLIP(PIN,PISTON) 6 50 C60404 ROD,CONNECTING,ASSY 3 0.526 3 60 C60405 BUSH,PISTON PIN 3 70 C60406 BOLT(CONNECTING ROD) 6 80 C60407 METAL(PIN,CRANK) 3 80 C60408 METAL,CRANKPIN 3 80 C60409 METAL,CRANKPIN 3

(14)

90 C60410 COMP.CRANKSHAFT 1 110 C60411 GEAR(CRANKSHAFT) 1

120 C60412 KEY 1

130 C60413 GEAR(OIL PUMP DRIVE) 1 140 C60414 SLEEVE,CRANKSHAFT 1 150 C60415 COLLAR(CRANKSHAFT) 1 160 C60416 RING 1 170 C60417 METAL(CRANKSHAFT) 1 170 C60418 METAL(CRANKSHAFT) 1 170 C60419 METAL(CRANKSHAFT) 2 200 C60420 METAL,SIDE 2 200 C60421 METAL,SIDE 2 200 C60422 METAL,SIDE 2 210 C60423 METAL,SIDE 2 210 C60424 METAL,SIDE 2 210 C60425 METAL,SIDE 2 Flywheel

10 C60426 COMP.FLYWHEEL 1

20 C60427 GEAR,RING 1

(15)

40 C60429 HOUSING,FLYWHEEL 1

50 C60430 BOLT 8

60 C60431 COVER 1

80 C60433 WASHER,PLAIN 1

Fuel camshaft and governor shaft

10 C60434 CAMSHAFT,FUEL 1 20 C60435 BEARING,BALL 1 30 C60436 BEARING,BALL 1 40 C60437 GEAR,INJECTION PUMP 1 70 C60438 NUT 1 80 C60439 KEY,WOODRUFF 1 100 C60440 STOPPER,FUEL.C/SHAFT 1 110 C60441 BOLT,SEMS 2 120 C60442 ASSY SHAFT,GOVERNOR 1 130 C60443 SHAFT,GOVERNOR 1 140 C60444 HOLDER,GOVERNOR GEAR 1 150 C60445 GEAR,GOVERNOR 1

(16)

160 C60446 COLLAR,GOV.WEIGHT 1 170 C60447 COMP.WEIGHT,GOVERNOR 2 180 C60448 WASHER 2 190 C60449 BEARING 2 200 C60450 WASHER,GOVERNOR WEI. 4 210 C60451 SHAFT,GOV. WEIGHT 2 220 C60452 SLEEVE,GOVERNOR 1 230 C60453 BEARING,BALL 1 240 C60454 CIR-CLIP,GOV.SHAFT 1 250 C60455 SCREW,SET 1 Idle apparatus

10 C60456 ASSY APPARATUS,IDLE 1 20 C60457 ASSY BOLT,ADJUSTING 1 30 C60458 NUT 1 40 C60459 NUT 1 50 C60460 PACKING 2 60 C60461 CAP 1 65 C60462 BOLT,ASSY(ADJUSTING) 1 70 C60463 BOLT,ADJUSTING 1 80 C60464 NUT(LOCK) 1 80 C60465 NUT(LOCK) 1 90 C60466 NUT 1

(17)

90 C60467 NUT,CAP,ASSY 1 98 C60468 CIRCLIP,INT 1 100 C60469 PACKING 1 110 C60470 GASKET 1 110 C60471 PACKING 1 Stop Solenoid

10 C60472 ASSY SOLENOID,STOP 1 20 C60473 BOLT,SCOKET HEAD 2

(18)

Injection Pump

10 C60474 JOINT,EYE 1 20 C60475 ASSY PUMP,INJECTION 1 30 C60476 SHIM,INJECTION 1 30 C60477 SHIM,INJECTION 1 30 C60478 SHIM(INJECTION PUMP) 1 30 C60479 SHIM(INJECTION PUMP) 1 30 C60480 SHIM(INJECTION PUMP) 1 40 C60481 BOLT,SOCKET HEAD 2 50 C60482 STUD 2 60 C60483 NUT,CAP 2 70 C60484 WASHER,SPRING LOCK 2 80 C60485 BOLT,JOINT 1 90 C60486 GASKET 2 100 C60487 SCREW 1 110 C60488 GASKET 1 120 C60489 PLUG 1 130 C60490 GASKET 1

(19)

Governor

10 C60491 SPRING,START 1 20 C60492 SPRING,GOVERNOR 1 30 C60493 ASSY LEVER,FORK 1 40 C60494 COMP.LEVER,FORK 1 50 C60495 SHAFT,FORK LEVER 1 60 C60496 WASHER,PLAIN 1 70 C60497 BEARING,MINIATURIZE 1 80 C60498 CIR-CLIP,EXTERNAL 1 90 C60499 COVER,FORK LEV. SHAFT 1

100 C60500 GASKET 2

120 C60502 COLLAR 1

(20)

Speed Control Plate

10 C60504 ASSY PLATE,CONTROL 1 20 C60505 LEVER,SPEED CONTROL 1 30 C60506 LEVER,SPEED CONTROL 1 35 C60507 LEVER,SPEED CONTROL 1 40 C60508 O RING 1 50 C60509 PIN,SPRING 2 60 C60510 WASHER,PLAIN 2 70 C60511 NUT 2 80 C60512 COMP.LEVER,GOVERNOR 1 90 C60513 LEVER,ENGINE STOP 1 100 C60514 SEAL,OIL 1 110 C60515 SPRING,RETURN 1 120 C60516 SHAFT,STOP LEVER 1 130 C60517 GASKET 1 140 C60518 BOLT,SEMS 1 150 C60519 HEX.BOLT 1 160 C60520 PACKING 1 170 C60521 STUD 2 180 C60522 NUT,FLANGE 2 190 C60523 BOLT,ADJUSTING 1

(21)

200 C60524 BOLT,ADJUSTING 2

210 C60525 HEX.NUT 3

Nozzle holder and glow plug

10 C60526 ASSY PIPE,OVER FLOW 1

20 C60527 SCREW, BLEATHER 1

30 C60528 PACKING 1

40 C60529 ASSY PIPE,OVER FLOW 1 45 C60530 PIPE,FUEL OVER FLOW 1

50 C60531 CLIP,PIPE 2 60 C60532 KIT HOLDER,NOZZLE 3 65 C60533 NUT 3 70 C60534 GASKET 3 80 C60535 SEAL HEAT 3 90 C60536 PIPE,INJECTION 1 100 C60537 PIPE,INJECTION 1 110 C60538 PIPE,INJECTION 1 120 C60539 CLAMP,PIPE 2 130 C60540 CLAMP,PIPE 2 140 C60541 SCREW,SEMS(PAN HEAD) 2 150 C60542 PLUG,GLOW 3

(22)

160 C60543 CORD,GLOW PLUG 1

170 C60544 NUT,FLANGE 3

Fuel Filter

10 C60545 FILTER,ASSY(FUEL) 1 20 C60546 ELEMENT,FILTER 1 30 C60547 ASSY COVER,FILTER 1 40 C60548 JOINT,PIPE 1 50 C60549 JOINT,PIPE 1 60 C60550 PLUG,FILTER BREATHER 1 70 C60551 RING 1 80 C60552 MARK,FORM 1 90 C60553 HOLDER,FUEL FILTER 1 100 C60554 BOLT,SEMS 2

(23)

Fuel Pump

10 C60555/ C60556/ C60872 ASSY PUMP,FUEL 1 Cover

(24)

10 C60557 COVER 1

20 C60558 GASKET,FUEL PUMP 1

40 C60560 COVER,HYDRAULIC PUMP 1

Alternator and Pulley

10 C60561/ C60562/ C60873 ASSY ALTERNATOR 1 20 C60563 STAY,DYNAMO 1

30 C60564 BOLT,W SEMS(LARGE WASHER) 1

40 C60565 HEX.BOLT 1 50 C60566 WASHER,PLAIN 1 60 C60567 WASHER,SPRING LOCK 1 70 C60568 BOLT,SEMS 1 80 C60569 COVER,BELT 1 90 C60570 PULLEY,FAN 1 100 C60571 PULLEY,FAN DRIVE 1 110 C60572 BOLT(FAN DRIVE) 1 120 C60573 V BELT 1

(25)

Starter

10 C60574 ASSY STARTER 1

30 C60576 HEX.NUT 1

40 C60577 WASHER,SPRING LOCK 1

(26)

10 C60578 W-SWITCH OIL PRESSURE 1

10 C60579 SWITCH,OIL 1

20 C60580 PLUG 1

Water flange and thermostat

10 C60581 COMP FLANGE,WATER 1 20 C60582 PIPE,WATER RETURN 1 30 C60583 PLUG 1 40 C60584 GASKET,WATER FLANGE 1 50 C60585 BOLT,SEMS 3 60 C60586 BOLT,SEMS 1 70 C60587 PIPE,WATER RETURN 1 80 C60588 CLAMP,HOSE 2 90 C60589 ASSY THERMOSTAT 1 100 C60590 COVER(THERMOSTAT) 1 110 C60591 GASKET,THEMOSTAT 1 120 C60592 BOLT,SEMS 2 130 C60593 ASSY THERMOSWITCH 1 140 C60594 ADAPTER 1 150 C60595 GASKET 1

(27)

Water pump

10 C60596 PUMP,WATER,ASSY 1

20 C60597 FLANGE,WATER PUMP 1 40 C60598 ASSY SEAL MECHANICAL 1 50 C60599 IMPELLER,WATER PUMP 1 60 C60600 PIPE,WATER RETURN 1 70 C60601 GASKET,WATER PUMP 1 80 C60602 BOLT,SEMS 4 90 C60603 BOLT,SEMS 2 Radiator

(28)

POSITION PART# DESCRIPTION QTY 10 C60604 ASSY RADIATOR 1 20 C60605 CAP,RADIATOR 1 30 C60606 SHROUD,FAN 1 40 C60607 PLUG,DRAIN 2 50 C60608 O RING 2

60 C60609 PIPE,WATER OVER FLOW 1 70 C60610 LABEL,INSTRUCTION 1 80 C60611 PIPE,WATER 1 90 C60612 PIPE,WATER 1 100 C60613 CLAMP,HOSE 4 110 C60614 BOLT,SEMS 2 120 C60615 WASHER 4 130 C60616 CUSHION 2 140 C60617 CUSHION 2 150 C60618 PIN,SNAP 2 160 C60619 SUPPORT,RADIATOR 1 170 C60620 SUPPORT(RADIATOR) 1 180 C60621 STAY,RADIATOR 2 190 C60622 STAY,RADIATOR 1 200 C60623 BOLT,SEMS 2 210 C60624 BOLT,SEMS 2 220 C60625 COVER,FAN 1 230 C60626 HEX.BOLT 4 240 C60627 HEX.NUT 4 250 C60628 WASHER,SPRING LOCK 4 260 C60629 WASHER, 8 270 C60630 SUPPORT,RADIATOR 1 280 C60631 SUPPORT,RADIATOR 1 290 C60632 BOLT 2 300 C60633 STAY,RADIATOR 1 310 C60634 BOLT,SEMS 2 320 C60635 CUCHION,RUBBER 1 330 C60636 HEX.NUT 2 340 C60637 WASHER,SPRING LOCK 2

(29)

Water Pipe

10 C60638 PIPE,WATER 1

20 C60639 PIPE,WATER 1

30 C60640 CLAMP,HOSE 2

(30)

10 C60641 FAN 1

30 C60643 COLLAR,FAN 1

Valve and rocker arm

10 C60644 VALVE,INLET 3 20 C60645 VALVE,EXHAUST 3 30 C60646 SPRING,VALVE 6 40 C60647 RETAINER,VALVE SP. 6 50 C60648 COLLET,VALVE SPRING 6 60 C60649 SEAL,VALVE STEM 6 70 C60650 CAP,VALVE 6 80 C60651 SHAFT,ROCKER ARM 1 90 C60652 BOLT,FLANGE 2 100 C60653 BRACKET(ARM,ROCKER) 3 110 C60654 PIN,SPRING 1 120 C60655 WASHER,R-ARM.SHAFT 2 130 C60656 WASHER,PLAIN 2 140 C60657 SPRING,ROCKER ARM 2 160 C60658 ARM,ROCKER,ASSY 6 170 C60659 SCREW,ADJUSTING 6 180 C60660 NUT 6

(31)

190 C60661 STUD 3

200 C60662 NUT 3

210 C60664 WASHER,PLAIN 3

Inlet Manifold

10 C60665 ASSY MANIFOLD INLET 1 10 C60666 ASSY MANIFOLD INLET 1 20 C60667 JOINT,BREATHER PIPE 1 30 C60668 GASKET(INMANIFOLD) 1

(32)

Muffler

10 C60672 ASSY MUFFLER 1 40 C60673 GASKET,EXMANIFOLD 1 50 C60674 NUT 6 60 C60675 STUD 3 70 C60676 STUD 3 Other Components Air Cleaner

PART# DESCRIPTION QTY

C60677 AIR CLEANER ASSEMBLY 1 C60678 INLET HOOD, PLASTIC 1

C60679 HOSE, AIR INLET 1

C60680 MOUNTING BAND, PLASTIC 1 C60681 BRKT A/C MOUNTING 05 SERIES 1 C60682 2" Bfly Valve, with 1.75" / 44mm Hose, 12V 1 C60683 Solid State Electronic Control Module, 12/24V 1 C60684 POSITIVE AIRFLOW SHUTOFF VALVE CONTROL HARNESS 1

Battery Disconnect

C60685 BATTERY CABLE 2

(33)

C60687 Master Disconnect Switch Lever Operated, SPST 1 C60688 Lockable lever for battery disconnect 1 C60689 Battery Switch Mounting Bracket 1 C60690 Battery Boot for 2-2/0 GA Red Alternator Type 2

Alternator

C80932 Junction Box Assembly for D1005 Generator 1 C80933 Ring spacer vol. 8 - 10 - C80934 Exciter stay bolt -

C80935 Kit USB2DxR -

C80936 Drive end bracket MD35/3 (not painted) 1 C80937 Drive end bracket MD35/4 (not painted) 1 C80938 Drive end bracket MD35/5 (not painted) 1 C80939 Frame and stator 1S_4C, H=160, 12M-400V-50Hz (not painted) 2 C80940 Terminal board 6 pin M6 3

22 17 18 23 24 21 19 20 7 6 5 10 8 14 15 13 16 2 ₁₂ 11 4 3 1 9

(34)

C80941 Terminal board 8 pin M6 3 C80942 Cable grommet, diam. 50 mm 4 C80943 Exciter stator H=20 8 P 5 C80944 Non drive end bracket (not painted) 6

C80945 Rear seal 7

C80946 Disc bloking ring-spacer, SAE 8-10 8 C80947 Disc bloking ring-spacer, SAE 6,5-7,5-11,5 8

C80948 Disc SAE 6,5 9

C80949 Disc SAE 7,5 9

C80950 Disc SAE 8 9

C80951 Disc SAE 10 9

C80952 Disc SAE 11,5 9

C80953 Kit coupling disc plates SAE 6,5 10 C80954 Kit coupling disc plates SAE 7,5 10 C80955 Kit coupling disc plates SAE 8 10 C80956 Kit coupling disc plates SAE 10 10 C80957 Kit coupling disc plates SAE 11,5 10 C80958 Clamp diam. 76x22 11 C80959 Plastic fan NPE 32C 12 C80960 Exciter armature H=20 8 P + diodes 13 C80961 Sector for rotating diode bridge T30 14 C80962 Rear bearing 6305-2RS C3 15 C80963 Rotor assy 1S_4C, MD35 16 C80964 Electronic regulator DSR 17 C80965 Regulator holding panel (not painted) 18 C80966 Main panel (not painted) 19 C80967 Side panel - Regulator support (not painted) 20 C80968 Side panel - closed (not painted) 21 C80969 Terminal box lid (not painted) 22 C80970 Cable grommet DG36 23 C80971 PVC rubber profile (L= 0.60 m) 24

Engine Mounting

C60691 MTG LEG 2

C60692 SHOCK MOUNT 40 DURO 4

Coolant Bottle

(35)

C60694 OVERFLOW MOUNTING BRK 1

Fuel

C60695 BRKT FUEL FILTER 1

C60696 BRKT FUEL PUMP 1

Block Heater

C60697 BLOCK HEATER 1

Control Panel

C60698 4510 AUTO START WITH CURRANT, RTC 1 C60699 Harness 03/05, 6ft w/DPS 3110 1 C60700 TEMP SWITCH 230F 3/8"-19 BSPT NO 1 C60701 KEY SWITCH only FOR 3110 PANEL 1 C60702 Nylon washer for MI-983-KS 1

Generator

(36)

POSITION PART# DESCRIPTION QTY

1 C70084 Latch, CAM, Zinc 4 2 C70089 Nut Plate for Hinge 8 3 C70085 ¼ TURN LATCH, WITH RUBBER WASHER & NUT 2 4 C40173 Wing knob quarter turn lock 2 5 C70088 Right Side Hinge 4

6 C60119 Left Side Hinge 4

6 6 5 6 5 3 4 3 4 2 1 ₂ ₁

(37)

1 C60713 Weather Protective Cover 1 2 C60714 Self test ground fault circuit interrupter 1 3 C60715 FD Blank PVC box deep 1 4 C60720 Emergency Stop Push Button 1

1 C60263 Isolator 4 2 C60264 Spacer 4 2 1 1 2 3 4

(38)

1 C60870 Off Road Light Bar 6.5" 36W 3 2 C60871 Off Road Light Bar 12" 72W 1

1 C60710 1” x 16” Unit Strap 1 2 C60711 2” PVC Pipe 2 3 C70097 Hex bolt, 3/8"-16 X 2" 2 4 C40170 Battery 1 2 1 3 4 1 2

(39)

1 C60716 Genset Drain Plug 1 1 C60717 Genset Drain Plug Cap 1/2” 1 2 C60718 Terminal Posts Red 1 3 C60719 Terminal Posts Black 1

The following units are fitted with the control panel configuration - A : B400-19-9503 B400-19-9550 B400-19-9663 B400-19-9508 B400-19-9551 B400-19-9648 B400-19-9502 B400-19-9552 B400-19-9630 B400-19-9501 B400-19-9555 B400-19-9591 B400-19-9533 B400-19-9556 B400-19-9589 B400-19-9534 B400-19-9618 B400-19-9638 B400-19-9507 B400-19-9601 B400-19-9704 B400-19-9500 B400-19-9617 B400-19-9705 B400-19-9540 B400-19-9559 B400-19-9615 B400-19-9541 B400-19-9584 B400-19-9686 B400-19-9545 B400-19-9585 B400-19-9546 B400-19-9684 B400-19-9547 B400-19-9691 B400-19-9548 B400-19-9560 B400-19-9549 B400-19-9650 1 2 3

(40)

Control Panel Configuration – A

1 C70065 2 POSITION SWITCH 2

2 C40192 Toggle Switch 1

3 C60724 DSE Controller 1

Control Panel Configuration - A

1 2 3 4 5 6 7 8 9 10 11 13 20 12 16 14 15 17 18 19 21 22 1 3 2

(41)

1 C40179 PVC Junction Box 1

3 C40180 Panel with white epoxy 1 4 C70050 Terminal Block Rail 1

5 C40181 Socket - Relay 2

6 C40183 Socket - Timer 1

7 C40185 Timer 1

8 C60726 Wiring Duct 3

9 C70049 Terminal Block Blank Marker 10

10 C40189 End Barrier 1

11 C40187 Terminal Block 10

12 C40188 End Anchors 3

13 C40184 Relay 2

14 C40186 2 POLE RELAY 120 VAC, 10 AMP ( R1, R2, R3 ) 2 15 C40190 1 1/2 PVC STRAP 2 HOLE 1 16 C40181 2 POLE RELAY BASE ( R1, R2 ,R3 & T1 ) 2

18 C60729 Fuse 15A 1

19 C60730 Fuse Holder 1

20 C60776 Ground Screw 1

21 C70067 N.O. CONTACT BLOCK 2 22 C70071 N.C. CONTACT BLOCK 1

All other units are fitted with the control panel configuration - B :

Control Panel Configuration - B 1 2

(42)

Control Panel Configuration – B

1 C40179 PVC Junction Box 1

3 C40180 Panel with white epoxy 1 4 C70050 Terminal Block Rail 1

5 C40181 Socket - Relay 4

6 C40183 Socket - Timer 1

7 C40185 Timer 1

8 C60726 Wiring Duct 3

9 C70049 Terminal Block Blank Marker 10

10 C40189 End Barrier 1

11 C40187 Terminal Block 10

12 C40188 End Anchors 3

13 C40184 Relay 4

14 C60727 Relay form A12V 1

15 C40190 1 1/2 PVC STRAP 2 HOLE 1 16 C60728 Push In Wire Connector 1

17 C40192 Toggle Switch 1 18 C60729 Fuse 15A 1 19 C60730 Fuse Holder 1 20 C60776 Ground Screw 1 1 10 13 19 2 7 11 18 17 4 6 1 9 14 16 3 5 8 12 15 ₂₀

(43)

1 C60855 Rain cap 1

2 C40195 Beacon light SAE 1

1 2 2 3 6 5 1 4

(44)

1 C40175 47" Fuel line from tank to filter head 1 2 C40176 30" Fuel line from burner to tank 1

3 C40177 55" Fuel line from tank to generator 1 4 C40178 70" Fuel line generator to tank return 1 5 C60002 1/2" 90-degree angle connector 4 6 C60003 3/8" 90-degree angle connector 1

1 C80972 08FP08FP MINI BALL VALVE 1 2 C80973 08FJ-08MP FM SWIVEL TO NPTF MA 1 3 C80974 08MH-08MP MALE FLARE TO NPTF 1 4 C80975 90* MJIC X MALE MET ADJ ELB 1 5 C80976 DB708-650 PUSH-ON HOSE - RUBBER 1 6 C80977 DC08-08FJ FEM. SWIVEL FLARE 1

7 C80978 ASSEMBLY 1

1 5

2

4 ₃ ₆

(45)

1 C81011 3' 1/0 Welding Cable - Black 1 2 C81010 3' 1/0 Welding Cable - Red 1

3 C81012 Lugs 2

1 C50033 Element 3KW 208V 3000W 1 2

3

1

(46)

1 C81014 1P 30A 250V Fuse Holder 2

2 C81015 15A T.D. Fuse 2

3 C81016 2P 30A Fuse Holder 1

4 C81017 20A T.D Fuse 2

5 C81023 14-3C SJTOOW/SJEOOW 300V 5’

6 C50250 3/8" two screw connector 3 N/A C81013 #14 Black SEW-2 5 ft.

1 3 2 4 5 6

(47)

Blaze EB400CT Decal Kit Break Out Rev1

Blaze EB600CTII Decal Kit Break Out Rev0

p/n C60747 X4 p/n C60743 X2 p/n C60748 p/n C60745 p/n C60746 p/n C60778 p/n C60779 p/n C60744 X2 p/n C60735 X2 p/n C80925 X2 p/n C60736 p/n C60737 p/n C60738 p/n C60777 X2 p/n C60780 Complete Kit p/n C60745 p/n C60737 p/n C60893 p/n C60747 X4 p/n C60743 X2 p/n C60748 p/n C60746 p/n C60892 p/n C60744 X2 p/n C60735 X2 p/n C80925 X2 p/n C60736 p/n C60737 p/n C60738 p/n C60890 Complete Kit p/n C60891 X2 p/n C60745
