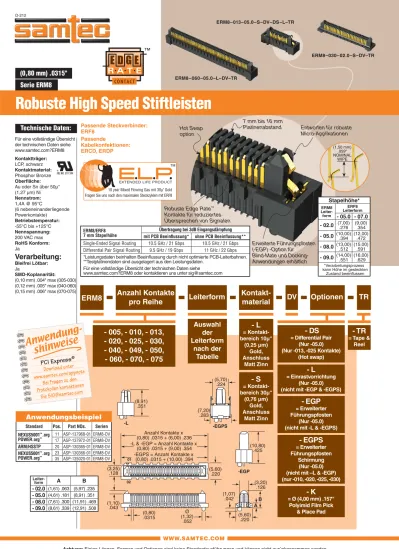

Robuste High Speed Stiftleisten

(1)

(0,80 mm) .0315"

Serie ERM8

7 mm bis 16 mm Platinenabstand Hot Swap option Entworfen für robuste Micro-Applikationen ERM8–060–05.0–L–DV–TR ERM8–013–05.0–S–DV–DS–L–TR ERM8–030–02.0–S–DV–TR

Robuste Edge Rate™

Kontakte für reduziertes Übersprechen von Signalen

Erweiterte Führungspfosten (-EGP) -Option für Blind-Mate und Docking-Anwendungen erhältlich

Achtung: Einige Längen, Formen und Optionen sind keine Standardausführungen und können nicht zurückgenommen werden

WWW.SAMTEC.COM

Für eine vollständige Übersicht der technischen Daten siehe www.samtec.com?ERM8 Kontaktträger: LCP, schwarz Kontaktmaterial: Phosphor Bronze Oberfl äche: Au oder Sn über 50µ" (1,27 µm) Ni Nennstrom: 1,4A @ 95°C (6 nebeneinanderliegende Powerkontakte) Betriebstemperatur: -55°C bis +125°C Nennspannung: 200 VAC max RoHS Konform: Ja

Verarbeitung:

Bleifrei Lötbar: Ja SMD-Koplanarität: (0,10 mm) .004" max (005-030) (0,12 mm) .005" max (040-060) (0,15 mm) .006" max (070-075)

ERM8

Anzahl Kontakte

pro Reihe

Leiterform

Technische Daten:

D-212

- 005, - 010, - 013,

- 020, - 025, - 030,

- 040, - 049, - 050,

- 060, - 070, - 075

Kontakt-material

DV

TR

Passende Steckverbinder: ERF8 Passende Kabelkonfektionen: ERCD, ERDP

- L

= Kontakt-bereich 10µ" (0,25 µm) Gold, Anschluss Matt Zinn

- S

= Kontakt-bereich 30µ" (0,76 µm) Gold, Anschluss Matt Zinn

Optionen

Auswahl

der

Leiterform

nach der

Tabelle

™

- DS

= Differential Pair (Nur -05.0) (Nur -013, -025 Kontakte) (Hot swap)

- L

= Einrastvorrichtung (Nur -05.0) (nicht mit -EGP & -EGPS)

- EGP

= Erweiterter Führungspfosten

(Nur -05.0) (nicht mit -L & -EGPS)

- EGPS

= Erweiterter Führungspfosten

Schirmung (Nur -05.0) (nicht mit –L & -EGP) (nur -010, -020, -025, -030)

- K

= Ø (4,00 mm) .157"

Polyimid Film Pick & Place Pad

- TR

= Tape & Reel

PCI Express

®

Download unter

www.samtec.com/appnote

Bei Fragen zu den

Protokollen kontaktier

en

Sie SIG@samtec

.com

Anwendung-shinweise

Anwendungsbeispiel

Standard Pos. Part NOs. Serien NEXUS5001™_.org

POWER.org™

11 ASP-137968-01 ERM8-DV 17 ASP-137972-01 ERM8-DV

ARM/HSSTP 20 ASP-130365-01 ERM8-DV

NEXUS5001™_.org POWER.org™ 23 ASP-130366-01 ERM8-DV 35 ASP-135020-01 ERM8-DV Leiter-form A B - 02.0 (1,61) .063 (5,97) .235 - 05.0 (4,61) .181 (8,91) .351 - 08.0 (7,61) .300 (11,91) .469 - 09.0 (8,61) .339 (12,91) .508 (1,50 mm) .059" NOMINAL WIPE

Robuste High Speed Stiftleisten

(0,80) .0315

-L & -EGP = Anzahl Kontakte x (0,80) .0315 + (9,00) .354

(1,07) .042

02 01

-EGPS = Anzahl Kontakte x (0,80) .0315 + (10,00) .394 B A (5,60) .220 (3,20) .126 (10,80) .425 (3,25) .128 (1,10) .043 (7,20) .283 (5,70) .224 (5,60) .220 (8,91) .351 Ø (1,32) .052 Anzahl Kontakte x (0,80) .0315 + (6,00) .236 -L -EGP -EGPS EXTENDED LIFE PRODUCT

10 year Mixed Flowing Gas mit 30µ" Gold TM

Fragen Sie uns nach den maximalen Steckzyklen mit ERF8

ERM8/ERF8 7 mm Stapelhöhe

Übertragung bei 3dB Eingangsdämpfung mit PCB Beeinfl ussung* ohne PCB Beeinfl ussung**

Single-Ended Signal Routing 10.5 GHz / 21 Gbps 10.5 GHz / 21 Gbps Differential Pair Signal Routing 9.5 GHz / 19 Gbps 11 GHz / 22 Gbps *Leistungsdaten beinhalten Beeinfl ussung durch nicht optimierte PCB-Leiterbahnen. **Testplatinendaten sind ausgelagert aus den Leistungsdaten.

Für eine vollständige Übersicht der technischen Daten siehe www.samtec.com?ERM8 oder kontaktieren uns unter [email protected]

Stapelhöhe* ERM8 Leiter-form ERF8 Leiterform - 05.0 - 07.0 - 02.0 (7,00) _.276 (9,00) _.354 - 05.0(10,00) _.394 (12,00) _.472 - 08.0(13,00) _.512 (15,00) _.591 - 09.0(14,00) _.551 (16,00) _.629 *Verarbeitungsprozess kann Höhe im gesteckten

(2)

DO NOT SCALE FROM THIS PRINT

ERM8-XXX-XX.X-X-DV-XXXX-TR

No OF POSITIONS (PER ROW) -005, -010, -011, -013, -020, -025, -030, -035, -040, -049, -050, -060, -070, -075,-100

(-100 AVAILABLE ON -09.0 LEAD STYLE ONLY)

LEAD STYLE -02.0 = 2mm -05.0 = 5mm -08.0 = 8mm -09.0 = 9mm ***-15.0 = 15mm PLATING SPECIFICATION

-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL

-DV: DOUBLE VERTICALROW SPECIFICATION

-K: POLYIMIDE FILM PAD (FOR -EGP & EGPS OPTIONS USE K-DOT-.157-.250-.005)

(FOR ALL OTHER OPTIONS USE K-500-300) -DS: DIFFERENTIAL PAIR (HOT SWAP) (AVAILABLE ONLY ON -05.0 LEAD STYLE) (SEE TABLE 4 FOR POSITION AVAILABILITY) -L : LATCHES

(AVAILABLE ONLY ON -05.0, -08.0, -09.0 & ***-15.0 LEAD STYLES. -L ON -08.0 & -09.0 NOT TOOLED)

(SEE TABLE FOR AVAILABILITY)

(NOT AVAILABLE WITH -EGP, -L2, -W, -EGP, -EGPS OPTIONS

*** -L2: LATCHES WITH LONG WELD TAB (AVAILABLE ONLY ON -05.0, -08.0 & .09.0 LEAD STYLES)(NOT AVAILABLE WITH -L, -E, -W, -EGP AND -EGPS OPTIONS)

*** -E: EXTENDED GUIDE POSTS, WITH LONG WELD TAB (AVAILABLE ONLY ON -05.0, -08.0 & .09.0 LEAD STYLES, NOT AVAILABLE WITH -L OPTION, SEE NOTE 6)

*** -W: WELD TAB (AVAILABLE ONLY ON -05.0, -08.0 & .09.0 LEAD STYLES)

-EGP: EXTENDED GUIDE POSTS

(AVAILABLE ONLY ON -05.0 LEAD STYLE) (NOT AVAILABLE WITH -L OPTION) -EGPS: EXTENDED GUIDE POST SHIELD (AVAILABLE ONLY ON -05.0 LEAD STYLE) (NOT AVAILABLE WITH -L OPTION) (-10, -20, -25, & -30 POSITIONS ONLY)

TAPE & REEL

(STANDARD PACKAGING) (SEE NOTES 4 & 7)

** = NOT RELEASED FOR PRODUCTION *** = NOT TOOLED OPTIONS 1.10 .043 REF 1.32 .052 REF 0.23 .009 REF "A" "A" ERM8-XXX-XX.X-DV-01 (SEE TABLE 3) (SEE TABLE 5)"B" REF 3.25 .128

REF

(SEE TABLE 5)"A" REF

5.60 .220 REF (SEE TABLE 5)"C" 0.800 .031 (TOL. NON-ACCUM) 60 59 01 02 POSITION #1 INDICATOR C C

(SEE TABLE 5)"D" REF 1.50 .059

(SEE TABLE 8)"N" (SEE TABLE 5) "C" 0.800 .0315 (TYP) (TOL. NON-ACCUM) 3° MAX SWAY 'R' CL CL C C "F" REF (SEE TABLE 6) "E" 1.07 .042 REF 4.64+0.18_-0.13 .183+.007_-.005 0.65 .025 3.200+0.050_-0.060 .1260+.0020_-.0024 0.9 .03 REF

SECTION "A"-"A"

SCALE 4 : 1

T-1MXX-XX.X-X (SEE TABLE 3) CL C C C C SEE TABLE 1 1.10 .043 REF 1.32 .052 REF

DETAIL 'R'

SCALE 4 : 1

CL CL

BOTTOM VIEW

(ERM8-030-09.0-X-DV-XX SHOWN) (DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1) -A PIN

VOID CORES CORE SUPPORTFEATURE PRESENT IN

LAST 5 POSITIONS ON EACH END

C

FIG 1

(ERM8-030-02.0-X-DV-XX SHOWN) (SOME CENTER FEATURES REMOVED FOR CLARITY)

DESIGNED AND DIMENSIONED

IN MILLIMETERS [INCHES]

***

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN MILLIMETERS [INCHES]. TOLERANCES ARE: DECIMALS ANGLES X.X: 0.3 [.01] 2 X.XX: 0.13 [.005] X.XXX: 0.050 [.0020] MATERIAL:

0.8MM EDGE RATE TERMINAL ASSEMBLY

ERM8-XXX-XX.X-X-DV-XXXX-TR

DWG. NO. DESCRIPTION: PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO SAMTEC, INC. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF SAMTEC, INC. DO NOT SCALE DRAWING

6 1

SHEET SCALE: 2:1 INSULATOR: LCP, COLOR: BLACK

TERMINAL: PHOS BRONZE LATCH: BeCu

SHIELD: PHOS BRONZE

NOTES:

1. REPRESENTS A CRITICAL DIMENSION. 2. BURR ALLOWANCE: 0.038[.0015] MAX.

3. MINIMUM PUSHOUT FORCE: TERMINAL 2.22 N [.5 LB.], WELD TAB 4.45 N [1 LB.] 4. FOR QUANTITY UP TO 49 PIECES, NO LEADER, TRAILER, OR

EIA-481-D REEL WILL BE SUPPLIED. FOR QUANTITY OF 50-124 PIECES, NO LEADER OR TRAILER WILL BE SUPPLIED.

5. "F" DIMENSION DOES NOT APPLY TO -EGP & -EGPS OPTION, SEE FIG. 5 & 6. 6. NOTE DELETED.

7. -TR PACKAGING NOT AVAILABLE ON THE 100 POSITION.

520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail [email protected] code 55322

REVISION AB

(3)

(SEE SHT 1, TABLE 5)"A" 4.00 .157 0.50[.020]"H" CL CL C

FIG 2

-K OPTION

(FOR -EGP, -E OR -ES OPTIONS USE K-DOT-.157-.250-.005) (USE K-500-300 FOR ALL OTHER OPTIONS)

(ERM8-030-XX.X-X-DV-K SHOWN) (SOME CENTER FEATURES REMOVED FOR CLARITY)

C 0.46 .018 TABLE 6) "G" (SEE SHT 1, "J" REF (SEE TABLE 7) (SEE TABLE 7)"L" 0.30 .012 REF (SEE TABLE 7)"K" 2.10 .082 2 MAX SWAY (EITHER DIRECTION) "N" "N" "P" "P" ERM8-XXX-XX.X-DV-L (SEE TABLE 3) GROUND[LONG PIN] SIGNAL[SHORT PIN] SIGNAL[SHORT PIN] C C CL C WT-XX-XX-X (SEE TABLE 3) C T-1M48-XX.X-X

(SEE TABLE 3) GROUND[LONG PIN]

(SEE TABLE 7) "M" 0.50[.020] CL C

FIG 4

-K WITH -L, -L2 OR -W OPTIONS (ERM8-025-05.0-X-DV-K-L SHOWN) (SAME AS FIG 2, EXCEPT AS SHOWN) (SOME CENTER FEATURES REMOVED FOR CLARITY)

0.64 .025

REF (SEE TABLE 3)

"T" REF (SEE TABLE 3)"S" REF 3.20 .126 REF 1.35 .053 REF (SIGNAL PINS)

SECTION "N"-"N"

CL 0.62 .025 REF (GROUND PINS)

SECTION "P"-"P"

CL 3° MAX SWAY T-1M37-XX.X-X IN PROCESS VIEW 0.11±0.076 .004±.003 C C FIG 3 -DS WITH -L OR -L2 OPTIONS (-DS AVAILABLE ON -05.0 LEADSTYLE ONLY)

(-L AVAILABLE ON -05.0, -08.0, -09.0 & ***-15.0 LEAD STYLES ONLY. -L ON -08.0 & -09.0 NOT TOOLED)

(ERM8-025-05.0-X-DV-DS-L SHOWN) (SAME AS FIG 1, EXCEPT AS SHOWN) (SOME CENTER FEATURES REMOVED FOR CLARITY)

***

*** *** ***

SHEET OF 0.8MM EDGE RATE TERMINAL ASSEMBLY BY:

ERM8-XXX-XX.X-X-DV-XXXX-TR

THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO SAMTEC, INC. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF SAMTEC, INC.

DO NOT SCALE DRAWING

KNOWLDEN 9/27/2005 2 6

SHEET SCALE: 2:1

REVISION AB

F:\DWG\MISC\MKTG\ERM8-XXX-XX.X-X-DV-XXXX-TR-MKT.SLDDRW

(4)

(SEE SHT 2, TABLE 7)C "L" _{(EITHER DIRECTION)}2 MAX SWAY ERM8-XXX-05.0-DV-EGP (SEE TABLE 3) C WT-XX-XX-X (SEE TABLE 3) 10.805 .425 REF (SEE SHT 2, TABLE 3)"T" (SEE SHT 2, TABLE 3)"S"

(SEE SHT 2, TABLE 7)"J" REF

FIG 5

-EGP AND -E OPTIONS (AVAILABLE ON -05.0 LEAD STYLE ONLY)

(ERM8-030-05.0-X-DV-EGP SHOWN) (SAME AS FIG 3, EXCEPT AS SHOWN) (SOME CENTER FEATURES REMOVED FOR CLARITY)

C

ERM8-XXX-XX.X-X-DV-XXXX-TR

6 3

SHEET SCALE: 2:1

REVISION AB

(5)

(SEE TABLE 9)"P" "B" "B" CL "Q" REF (SEE TABLE 9) 9.87 .389 "R" REF (SEE TABLE 9) 0.64 .025 REF (TYP) ERM8-XXX-05.0-DV-EGPS (SEE TABLE 3) SH29-XX-02-X CL "L" (SEE SHT 2,TABLE 7) 0.25 .010 (TYP) REF 2 MAX SWAY (EITHER DIRECTION)

SECTION "B"-"B"

C C CL 5.70 .224 REF 7.20 .283 REF 0.64 .025 REF 6.80 .268 5.95 .234 REF

(SEE SHT 2, TABLE 3)"S" REF

(SEE SHT 2, TABLE 3)"T" 10.805 .4254 REF CL C

FIG 6

-EGPS OPTIONS

(AVAILABLE ON -05.0 LEAD STYLE ONLY) (ERM8-030-05.0-X-DV-EGPS SHOWN) (SAME AS FIG 5, EXCEPT AS SHOWN)

SHEET OF 0.8MM EDGE RATE TERMINAL ASSEMBLY BY:

ERM8-XXX-XX.X-X-DV-XXXX-TR

KNOWLDEN9/27/2005 4 6

SHEET SCALE: 3:1

REVISION AB

(6)

"J" REF (SEE SHT 2, TABLE 7) "B" REF (SEE SHT 2, TABLE 5) "D" (SEE SHT 2, TABLE 5) "S" "S" "T" "T"

FIG 7

(***ERM8-030-15.0-X-DV SHOWN) (SOME CENTER FEATURES REMOVED FOR CLARITY)

***NOT TOOLED "E" (SEE SHT 1, TABLE 6) "F" (SEE SHT 1, TABLE 6) 0.64 .025 4.64+0.18_-0.13 .183+.007_-.005 1.07 .042 REF 3.20+0.050_-0.060 .126+.002_-.002

SECTION "S"-"S"

C C C ERM8-XXX-05.0-DV-S ERM8H-XXX-10.0-DV T-1M88-01.0-X C SEE TABLE 1

SECTION "T"-"T"

WT-66-02-X (2 PLCS) "K" (SEE SHT 2, TABLE 7) "L" (SEE SHT 2, TABLE 7) 2.10 .082 0.30 .012 REF (TYP) 2 MAX SWAY (EITHER DIRECTION) "U" "U"

FIG 8

(***ERM8-030-15.0-X-DV-L SHOWN) (SAME AS FIG. 7, EXCEPT AS SHOWN)

***NOT TOOLED C C C C 0.64 .025 REF 1.40 .055 REF

SECTION "U"-"U"

WT-66-01-X (2 PLCS)

ERM8-XXX-XX.X-X-DV-XXXX-TR

SHEET SCALE: 2:1

REVISION AB

(7)

(-02.0 SHOWN) (-05.0 SHOWN)

(-08.0 SHOWN)

(-09.0 SHOWN) OPTION SHOWN)(-05.0 WITH -EGPS _{(***-15.0 WITH -L}

OPTION SHOWN) SHEET OF BY:

ERM8-XXX-XX.X-X-DV-XXXX-TR

KNOWLDEN 9/27/2005 6 6

SHEET SCALE: 2:1

REVISION AB

(8)

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

1.10 .043 (TYP) 0.500 .0197 (TYP) 4.90 .193 1.50 .059 (2 PLCS) 1.45±0.08 .057±.003 NPTH (2 PLCS) "B" "C" 0.83±0.08 .033±.003 PTH (2 PLCS) (-L AND -EGP OPTIONS ONLY)

TO BE SOLDERED USING PASTE-IN-HOLE TECHNOLOGY

"A" 0.800 .031 (TYP)

(TOL. NON-ACCUM) _'A'

CL CL PIN 2 PIN 59 PIN 1 CONNECTOR OUTLINE CONNECTOR OUTLINE (-L AND -EGP OPTIONS ONLY)

PIN 60 G

5.60 .220 REF 4.90 .193 (TYP) REF

(-L AND -EGP OPTIONS ONLY)

3.40 .134 (TYP) REF

DETAIL 'A'

SCALE 6 : 1

CONNECTOR OUTLINE

FIG. 1

ALL OPTIONS EXCEPT - EGPS (-030 POSITION SHOWN)

(ALL DIMENSIONS ARE SYMMETRIC ABOUT THE CENTERLINE) NOTES:

1. CONNECTOR ENVELOPE DIMENSIONS. OTHER COMPONENTS PLACED ON PCB SHALL AVOID THIS ZONE.

RECOMMENDED PCB LAYOUT FOR ERM8-XXX-XX.X-DV-XXXX-FOOTPRINT

PROPRIETARY NOTE THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO SAMTEC, INC. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF SAMTEC, INC.

REVISION G

F:\DWG\MISC\Mktg\Footprnt\ERM8-XXX-XX.X-DV-XXXX-FOOTPRINT.SLDDRW

520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail: [email protected] code: 55322

(9)

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

1.10 .043 (TYP) 0.500 .0197 (TYP) 4.90 .193 "C" "A" 0.800 .031 (TYP) (TOL. NON-ACCUM) 2.24 .088 (2 PLCS)

(-L AND -EGP OPTION ONLY)

CL CL PIN 2 PIN 60 PIN 59 PIN 1 NOTE: STENCIL TO BE 0.15[.006] THICK.

(ALL DIMENSIONS ARE SYMMETRIC ABOUT THE CENTERLINE)

FIG. 2

(-030 POSITION SHOWN)

SHEET OF

RECOMMENDED STENCIL LAYOUT FOR ERM8-XXX-XX.X-DV-XXXX-FOOTPRINT

4 2

REVISION G

(10)

"E" "C"

5.95 .234

0.83±0.08 .033±.003 PTH (6 PLCS) (-EGPS OPTION ONLY) TO BE SOLDERED USING PASTE-IN-HOLE TECHNOLOGY 1.45±0.08 .057±.003 NPTH (2 PLCS) "B" "D" 6.80 .268 (SEE NOTE 1) PIN 1 PIN 2 PIN 60 PIN 59 CL CL CONNECTOR OUTLINE (-EGPS OPTION) (SEE NOTE 1)

FIG. 3

-EGPS OPTION (-030 POSITION SHOWN) (SAME AS FIG.1, EXCEPT AS SHOWN)

(ALL DIMENSIONS ARE SYMMETRIC ABOUT THE CENTERLINE)

G

RECOMMENDED PCB LAYOUT FOR ERM8-XXX-XX.X-DV-XXXX-FOOTPRINT

REVISION G

(11)

"E"

5.95 .234 "C"

2.24 .088 (6 PLCS) (-EGPS OPTION ONLY)

PIN 1 PIN 2 PIN 60 PIN 59 CL CL

FIG. 4

-EGPS OPTION (-030 POSITION SHOWN) (SAME AS FIG.2, EXCEPT AS SHOWN)

(ALL DIMENSIONS ARE SYMMETRIC ABOUT THE CENTERLINE) NOTE:

STENCIL TO BE 0.15[.006] THICK.

SHEET OF PROPRIETARY NOTE

4 4
