A scalable and adaptable consumer oriented network in the home.

(1)

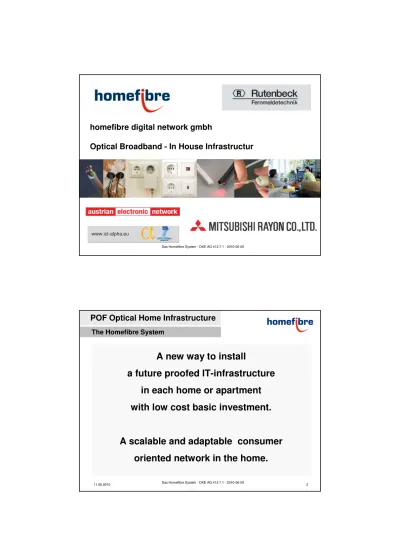

Das Homefibre System - DKE AG 412.7.1 - 2010-06-09

Optical Broadband - In House Infrastructur

www.ict-alpha.eu

A new way to install

a future proofed IT-infrastructure

in each home or apartment

with low cost basic investment.

A scalable and adaptable consumer

oriented network in the home.

POF Optical Home Infrastructure

(2)

11.06.2010 3

The optical basic infrastructure

with high added value

for the end-user,

the builder,

the installer,

And for the service provider.

The Homefibre System

Wohnzimmer Zimmer Zimmer Küche Büro Wohnzimmer Zimmer Zimmer Küche Büro

Today:

Several separated outlets & interfaces,

The Homefibre System

Tomorrow:

One integrated,

exklusive Network

• Optical Inteface at each Main Power Outlet

• Easy installation; visible light

• Radiation free – immunity agains EMI

• For New Constructions and Retrofitting

• Modular und Scalable Up Grade…

(3)

11.06.2010

5

= RJ 45 Datenauslass

= Datenverteiler / Patch Panel = Cat5 od. Cat6 Kabel

UTP/STP Cat5/Cat6 Structured Cabling

= Wall Outlet with POF Media Converter POF-RJ45 Fast Ethernet

= Distribution Cabinet with POF Switch = POF – SI Cable (e.g. RH 4002)

POF Optical Home Infrastructure

(4)

11.06.2010

7

= POF Datenanschluss mit integriertem Switch

= Leerdose mit POF Vorverkabelung

= Datenverteiler mit POF Switch = POF – SI Kabel (e.g. RH 4002)

POF advanced Home Network

11.06.2010

8

= POF Datenanschluss mit integriertem Switch = Leerdose mit POF Vorverkabelung

= Datenverteiler mit POF Switch & Cat6 Switch

= POF – SI Kabel (e.g. RH 4002) = Cat6 Datendose

POF Optical Home Infrastructure

(5)

11.06.2010 9

The IP-TV Ready Multimedia Installation:

The concept of the opto-electrical installation takes advantage of the

electrical installation and wiring process.

POF cable will be installed together with the electrical wires.

For daisy chain installation from one outlet to the other, loops of POF cable

will be laid behind the power outlets.

If activated optical switches will be used to create a star – tree architecture.

The POF cabel will be installed together with the electrical wires to the main

switching cabinet. In the cabinet a small space, usually 1 rail, is reserved for

POF switches and gateways.

According the actual need of the customer switches and outlets can be

activated and installed easily.

POF Optical Home Infrastructure

T P P WR SD L/ A 3 2 145 T P P WR SD L/ A 3 2 145 xDSL

POTS Telephone Outlet

Telefon Distr. Box Modem POF Switch

Installed POF Cable POF-Cabling Alternative xDSL TP PW RSDL/A 32154 TP PW RSDL/A 32154 POF to 1 RJ45 Outlet POF to 2 RJ45 Outlet Possible outlets

(6)

11.06.2010 11

Various Installation Options

11.06.2010 11 T P P WR SD L/ A 3 2 145 T P P WR SD L/ A 3 2 145 xDSL

11.06.2010 12

Various Installation Options

(7)

Das Homefibre System - DKE AG 412.7.1 - 2010-06-09 11.06.2010 1313 T P P WR SD L/ A 3 2 145 T P P WR SD L/ A 3 2 145 xDSL

Optimal Backbone Technologie

The combined installation of electrical wires and optical cable (POF) offers

multiple network access for today and future network applications

POF Optical Home Infrastructure

(8)

15

11.06.2010 15

Sensor &/or Camera

for IP Network

Gateway:

POF – Wireless High Speed

POF – Femto-Cell

POF – Optical Wireless

POF - IR

Optical Switch - & / or

Touch Screen

Panel

Advanced and extended network applications benefit from the

optical core-network and can be integrated in various places of

the installation

11.06.2010 1616 OMC100 SDA IP-TV STB TV Laptop IP-TV STB TV PC & Play Station PC

Cluster

Switch

Cluster

Switch

POF Optical Home Infrastructure

(9)

11.06.2010 17

The Opto – Electrical Installation

Electrical Raw Installation combined with POF Optical Home Network

Die Opto – Elektro Installation Nachrüstung

POF Optical Home Infrastructure

(10)

Products

100 Mps Ethernet 803.3.u

OMC 100 D

Dongle

OMC 100 UP

Optical Wall Outlet Media Converter

OMC 100 SDA

Socket Adapter

OMS 121 UP

Optical Wall Outlet Media Converter Switch

OMC 100 REG

Rail-Mount Media Converter

POF Switches 100 Mbps Ethernet 802.3.FX

OMS 113

POF Switch 100Mbps 3 POF 1 RJ45

OMS 105

POF Switch 100Mbps 5 POF

OMS 126

POF Switch 100Mbps 6 POF 1 RJ45 1 Gbps 1 SFP 1 Gbps

POF Optical Home Infrastructure

(11)

21 POF

REG mounted

Media

Converter

Products & System Solutions

xDSL Router, Modem IP-TV Internet OMC100 D IP-TV STB TV IP-TV STB TV IP-TV STB TV OMS113-220 or OMS113-150

Description Type Amount Price

Optical 3 Port Switch + RJ45 / Fast Ethernet OMS 113 (150 or 220) 1

Optical Media Converter Socket Adapter 100 Mbps OMC 100 SDA (150 or 220) 3

Optical POF Media Converter Socket Adapter

POF Optical Home Infrastructure

(12)

Das Homefibre System - DKE AG 412.7.1 - 2010-06-09 xDSL FTTH

CPE Internet & IP-TV

IP-TV STB TV IP-TV STB TV OMS 105 POF Cable GH 4002 2,2 mm PC PC PC & Play Station Home Server PC TP PW R SD L/A 3 2 1 45 TP PW R SD L/A 3 2 1 45

Description Type Amount Price

Optical 5 Port Switch 100Mbps OMS 105 S 1

Optical 2 Port in-wall Switch 100 Mbps OMS 112 S UP 4

Optical in-wall Media Converter 100Mbps OMC 100 UP 1

Optical Cable GH4002-1,5 or 2,2mm

white

about 100m

OMS 121 UP OMC 1OO UP

Products & System Solutions

Das Homefibre System - DKE AG 412.7.1 - 2010-06-09 Modem Router IP-TV STB TV IP-TV STB TV TV OMS 126 S Home ServerHome Server xDSL xDSL IP-TV STB TV TV POF Cable ESKA OPTOHOME RH 4002 PC & Play Station PC & Play Station PC PC IP-TV STB TV TV PC & Play Station PC & Play Station PC PC TP PWR SD L/A 3 2 1 45678 TP PWR SD L/A 3 2 1 45678 OMC 100 SDA OMS 121 UP OMC 100 UP OWA 100 OL

POF Optical Home Infrastructure

(13)

Das Homefibre System - DKE AG 412.7.1 - 2010-06-09 24 – Port Gigabit Switch Broadband Access

DVB-IP Sat 5. Obergeschoss 4. Obergeschoss 3. Obergeschoss 2. Obergeschoss 1. Obergeschoss Erdgeschoss

Variante 2

Variante 2 Übersicht Vertikale Zuleitung

Hotel Architecture

6-Port POF Switch 6-Port POF Switch

Variante 2a

12m 12m 12m 12m 12m Variante 2a Geschossverteilung

Verteilung erfolgt von Zentralverteiler im Geschoss

5m

5m 5m

5m

POF Optical Home Infrastructure

(14)

Power(all Devices) Operation Used Device

6 W no load (idle) OMS105-220(mit 2 OMC100SDA) 6 W bandwidth test OMS105-220(mit 2 OMC100SDA) 3 W no load (idle) POF (2 OMC100SDA) 3 W bandwidth test POF (2 OMC100SDA) 7 W no load (idle) Ruckuss Point to Point 7 W bandwidth test Ruckuss Point to Point 8 W no load (idle) 5 OMC100SDA + OMS105-220 10 W bandwidth test 5 OMC100SDA + OMS105-220

Measuring Device (BaseTech):

Power Consumption Comparison

1) POF – Point to Point needs les than ½ power of one

wireless link.

2) An entire system with 5-port switch and 5 media

converter has almost the same power as point to point

wireless.

11.06.2010 28 80x160 8 0 x 1 6 0 80x160 80x160 6 0 x1 2 0 6 0 x1 2 0 60x120 6 0 x1 2 0 Drucker Server Präsentation Beamer PC PC PC PC TV TV Printer Serverr Router Modem Switch Door

Besprechung

Büro

Aufenthalt

Server etc..

TV TV Stereo TV TV PC VoIP VoIP VoIP Door Router Modem PVR

Wohnzimmer

Schlafen

Kind

Küche

Office

Home

Easy adaptation from office to home

(15)

POF = a reliable fixed data

link for self-installation

Easy to terminate !

Easy first operation control !

Easy to install (almost everywhere) !

Stable and reliable !

EMI free and EMI retardant !

Flexible Installation & Architecture

Allows a maximum coverage of outlets

POF = a ideal media for

retrofit and new installation

of a home network

POF PC Internet IP-Telephony VoIP C P E IP – TV STB TV TV POF IP – TV STB CPE, Switch oder

Access Router

1 23 4

CPE, Switch oder Access Router 1 23 4 TV TV
