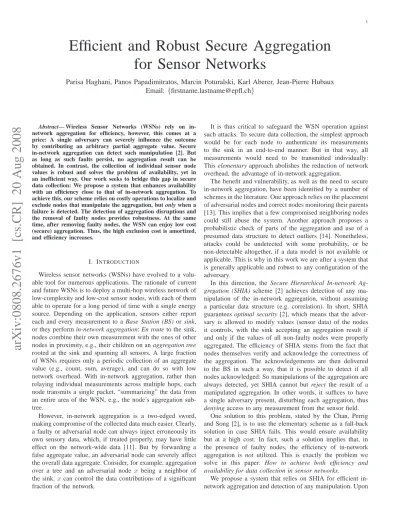

arXiv:0808.2676v1 [cs.CR] 20 Aug 2008
Efficient and Robust Secure Aggregation
for Sensor Networks
Parisa Haghani, Panos Papadimitratos, Marcin Poturalski, Karl Aberer, Jean-Pierre Hubaux
Email:
{
[email protected]
}
Abstract— Wireless Sensor Networks (WSNs) rely on in-network aggregation for efficiency, however, this comes at a price: A single adversary can severely influence the outcome by contributing an arbitrary partial aggregate value. Secure in-network aggregation can detect such manipulation [2]. But as long as such faults persist, no aggregation result can be obtained. In contrast, the collection of individual sensor node values is robust and solves the problem of availability, yet in an inefficient way. Our work seeks to bridge this gap in secure data collection: We propose a system that enhances availability with an efficiency close to that of in-network aggregation. To achieve this, our scheme relies on costly operations to localize and exclude nodes that manipulate the aggregation, but only when a failure is detected. The detection of aggregation disruptions and the removal of faulty nodes provides robustness. At the same time, after removing faulty nodes, the WSN can enjoy low cost (secure) aggregation. Thus, the high exclusion cost is amortized, and efficiency increases.
I. INTRODUCTION
Wireless sensor networks (WSNs) have evolved to a valu-able tool for numerous applications. The rationale of current and future WSNs is to deploy a multi-hop wireless network of low-complexity and low-cost sensor nodes, with each of them able to operate for a long period of time with a single energy source. Depending on the application, sensors either report each and every measurement to a Base Station (BS) or sink, or they perform in-network aggregation: En route to the sink, nodes combine their own measurement with the ones of other nodes in proximity, e.g., their children on an aggregation tree rooted at the sink and spanning all sensors. A large fraction of WSNs requires only a periodic collection of an aggregate value (e.g., count, sum, average), and can do so with low network overhead. With in-network aggregation, rather than relaying individual measurements across multiple hops, each node transmits a single packet, “summarizing” the data from an entire area of the WSN, e.g., the node’s aggregation sub-tree.
However, in-network aggregation is a two-edged sword, making compromise of the collected data much easier. Clearly, a faulty or adversarial node can always inject erroneously its own sensory data, which, if treated properly, may have little effect on the network-wide data [11]. But by forwarding a false aggregate value, an adversarial node can severely affect the overall data aggregate. Consider, for example, aggregation over a tree and an adversarial node x being a neighbor of the sink.xcan control the data contributions of a significant fraction of the network.
It is thus critical to safeguard the WSN operation against such attacks. To secure data collection, the simplest approach would be for each node to authenticate its measurements to the sink in an end-to-end manner. But in that way, all measurements would need to be transmitted individually: This elementary approach abolishes the reduction of network overhead, the advantage of in-network aggregation.
The benefit and vulnerability, as well as the need to secure in-network aggregation, have been identified by a number of schemes in the literature. One approach relies on the placement of adversarial nodes and correct nodes monitoring their parents [13]. This implies that a few compromised neighboring nodes could still abuse the system. Another approach proposes a probabilistic check of parts of the aggregation and use of a presumed data structure to detect outliers [14]. Nonetheless, attacks could be undetected with some probability, or be non-detectable altogether, if a data model is not available or applicable. This is why in this work we are after a system that is generally applicable and robust to any configuration of the adversary.
In this direction, the Secure Hierarchical In-network Ag-gregation (SHIA) scheme [2] achieves detection of any ma-nipulation of the in-network aggregation, without assuming a particular data structure (e.g. correlation). In short, SHIA guarantees optimal security [2], which means that the adver-sary is allowed to modify values (sensor data) of the nodes it controls, with the sink accepting an aggregation result if and only if the values of all non-faulty nodes were properly aggregated. The efficiency of SHIA stems from the fact that nodes themselves verify and acknowledge the correctness of the aggregation. The acknowledgements are then delivered to the BS in such a way, that it is possible to detect if all nodes acknowledged: So manipulations of the aggregation are always detected, yet SHIA cannot but reject the result of a manipulated aggregation. In other words, it suffices to have a single adversary present, disturbing each aggregation, thus denying access to any measurement from the sensor field.
One solution to this problem, stated by the Chan, Perrig and Song [2], is to use the elementary scheme as a fall-back solution in case SHIA fails. This would ensure availability but at a high cost. In fact, such a solution implies that, in the presence of faulty nodes, the efficiency of in-network aggregation is not utilized. This is exactly the problem we solve in this paper: How to achieve both efficiency and availability for data collection in sensor networks.
We propose a system that relies on SHIA for efficient in-network aggregation and detection of any manipulation. Upon
detection, we invoke more expensive protocols that localize and exclude nodes deemed faulty. Our protocols deliver the SHIA acknowledgments to the BS using “onion” authenti-cation, enabling identification of non-acknowledging nodes and successively localizing those misbehaving with only low uncertainty. This way, and without relying on any assumptions on the data model or the faulty nodes configuration, our system can revert to efficient in-network aggregation after the exclusion of faulty nodes, and thus perform numerous cost-effective data extractions, rather than a series of expensive elementary data collections. To the best of our knowledge, this is the first work to provide this generalization on secure in-network aggregation, that is, state the requirement for robust, highly available and at the same time efficient data collection. Our solution to this problem, specified in Sec. II, is presented in Sec. III and analyzed in Sec. IV, before a discussion on related and future work and conclusions.
II. ASSUMPTIONS, MODEL,ANDSPECIFICATION
A. System Model
We consider a WSN comprisingnsensor nodes, each with a unique identifier s, and a single base station (BS). We assume that the network is well connected, i.e. every node has a considerable number of neighbors, at most dmax. Each node s shares a symmetric key Ks with the BS, and one symmetric key Ks,t with each neighbor t. These keys are either preloaded or established at deployment time using one of the methods in the literature, e.g., [3]. Communication between neighborssandtis always authenticated usingKs,t. A data link broadcast/multicast from s can be authenticated using theKs,v1, . . . , Ks,vk keys shared with thevineighbors. Unless noted otherwise, such a local authenticated broadcast is used. In addition, the BS can perform a symmetric-key based network-wide authenticated broadcast using a protocol such as µTESLA [8].
The goal of the WSN is to calculate an aggregate agr (e.g. sum, mean) of node measurements, in a process we call an aggregation session or, for simplicity, aggregation. Each aggregationA is identified by a unique session identifierNA, selected by the BS. An aggregation is terminated by the BS, which declares it either successful, with an aggregation value valA returned, or failed and no value returned.
The node measurements lie in a rangeM; we refer to each valA(s) ∈ M as the node’s value and consider valA(s), in general, independent of any valA(t) for any t 6= s during the same aggregation A. Data extraction is performed across the aggregation tree (TA) rooted at the BS; for simplicity, the BS has a single child. It also knows the whole TA, whereas nodes know their parent and children inTA. In Sec. III-D we propose a tree construction protocol with the robustness sought for our scheme. We can schedule the node actions during aggregation according to the method in [4], with children of a node responding before it does. This method is used both by SHIA and our protocols. For compliance with other works, we assume that an aggregation treeTAis in place for the first aggregation. If A is deemed failed, a new aggregation tree T′
A is constructed, to be used in the subsequent aggregation
session, which does not include the nodes deemed faulty. The cost of an aggregation is defined as the maximum edge congestion, that is, the number of bytes transmitted over a link due to the protocol activity.
B. Adversary Model
We assume that the adversary can compromise sensor nodes, obtaining their cryptographic keys and controlling their functionality; it can thus induce arbitrary deviations from the protocol, even in a coordinated manner among compromised nodes. We refer to nodes that deviate from the protocol (including benign failures) as faulty nodes, and nodes that do not as correct. However, the contribution of an arbitrary own value valA(s) different than its actual measurement is not considered as a deviation: Without any assumptions on data correlations,s is the only node responsible and able to perform this measurement. We assume that faulty nodes are aware of the treeTA, and that the BS is always correct (i.e., cannot be compromised by the adversary).
We are not concerned with jamming and denial of ser-vice (DoS) in various protocol layers [5], [12], Sybil/Node replication attacks [6], [7] or “wormhole” formation [1], [10]; these attacks are beyond the scope of this work, and countermeasures against them can coexist with our protocols. However, notification of the BS upon detection of a jamming attack by correct nodes is needed; otherwise, a jammed node could be unnecessarily excluded by the BS.
C. Specification
We are interested in protocols that can perform a sequence of aggregations {A1, A2, . . . , Aj} in a WSN with na faulty nodes, and satisfy the following properties:
Security:
– At mostna aggregations fail.
– For every successful aggregation A ∈
{A1, A2, . . . Aj}, with VA being a multi-set of values contributed by correct nodes in the aggregation treeTA, andVA′ a multi-set of arbitrary values in range M equal in size to the number of faulty nodes inTA, it holds that
valA=agr(VA+VA′)
Efficiency:
– At mostna aggregations have communication com-plexity ofO(n).
– For any other aggregationA, the cost isO(hA∆A), with hA the height and ∆A is the maximum node degree forTA.
This specification allows the adversary to disrupt at most na aggregation sessions, which is at most one per faulty node. A disrupted aggregation is allowed to be relatively expensive and not produce an aggregation value – intuitively, it is sacrificed to cope with the faulty nodes that caused the disturbance. A successful aggregation, however, should output a result complying with optimal security [2] and should also be relatively inexpensive.
SHIA failure ALS.I ALS.II misbehaving
nodes not found
ATR
misbehaving nodes found success
next aggregation
Fig. 1. Scheme overview
III. PROPOSEDSCHEME
In this section, we present our solution, illustrated in Fig. 1. The system operates in three stages. First, data aggregation and manipulation detection are performed by SHIA [2], due to its efficiency and effectiveness. If successful, the system proceeds to the next aggregation. Otherwise, at a second stage, the Adversary Localizer Scheme (ALS) is launched: the ALS.I phase localizes, i.e., marks, nodes that disrupted the aggregation value, and ALS.II marks nodes that disrupted the acknowledgement collection during stage one (SHIA). At the third stage, the Aggregation Tree Reconstruction (ATR) protocol is invoked, which constructs a new aggregation tree excluding the marked nodes. Gradually, after a series of failed aggregations, all the faulty nodes will be excluded, allowing undisrupted in-network aggregation and thus efficient operation.
Below, we use the following cryptographic primitives: H, a collision-resistant hash function, and MAC, a Message Authentication Code.AuthK(m)denotes messagem authen-ticated using the symmetric keyK, e.g.<m,MAC(m)K>. A. Stage One: SHIA
We present the naive version of SHIA in detail, as our ALS protocol relies on its functionality rather than using it simply as a “black-box”. ALS can be also adapted to the improved SHIA version. The SHIA algorithm focuses on the sum aggregate and consists of three phases: query dissemination, aggregate-commit and result checking. The base station (BS) initiates the aggregation, generating a nonce N that identifies the aggregation session and broadcasting it to the network, as part of a query (along with other possibly useful data) in an authenticated manner.
Then, in the aggregate-commit phase, every node calculates a label, based on the labels of its children and its own value, and sends it to its parent node. The label is a <count, value, commitment>tuple, with countthe number of nodes in the subtree rooted at the node, value the sum of all the nodes values in the subtree, and commitment the cryptographic commitment tree over the data values and the aggregation process in the subtree.1 For a leaf node s, the
label has the format: <1, val(s), s>. For an internal node t, suppose its children have the following labels, l1, l2, ..., lq, where li = <ci, vi, hi>; among these is also t’s value, formatted as a leaf node’s label: <1, val(t), t>. Then, the label of t is <c, v, h>, with c = Pci, v = Pvi, and
1For brevity, we omit thecomplementfield, for details see [2].
h = H[Nkckvkl1kl2k...klq]. Nodes store the labels of their children, as they will be used later on. This phase ends with the BS receiving the label<c, v, h>of its single childb. The aggregate v will be declared as the aggregation value if the result-checking phase, described next, is successful.
In the result-checking phase, the BS disseminates, using an authenticated broadcast, N and the <c, v, h> label. Every node uses this label to verify if its value was aggregated correctly. To do this, each nodes is provided with the labels of its off-path nodes, that is, the set of all the siblings of the nodes on the path from s to the root of the tree. These are forwarded across the aggregation tree: a parenttprovides every child s with the labels of s’s siblings (which it stored during the previous phase), along with every off-path label received from its parent.
With all off-path labels at hand,srecomputes the labels of all its ancestors in the aggregation tree all the way to the root, and compares the result to<c, v, h> provided by the BS. As proved in [2], they match only if all the nodes on the path from s to the root aggregated s’s value correctly (although this does not guarantee that the values of other nodes were not mistreated). If so,s acknowledges the result. We observe here the following simple fact:
Fact 1: If a node and its child both follow the SHIA protocol, either they both acknowledge or neither do.
A nodesacknowledges by releasing an authentication code (ack): MACKs(NkOK), where OK is a unique message identifier and Ks is the key shared between node s and the BS. Leaf nodes send their ack while intermediate nodes wait for acks from all their children, compute the XOR of those acks with their own ack, and forward the resultant aggregated ack to their parent.
Once the BS has received the aggregated ack messageAb from b, it can verify whether all nodes acknowledged the aggregation value: It calculates the ack of every sensor (using the key shared with the node), XOR’es them and compares the result toAb. In case of equality, all nodes acknowledged, and the BS declares the aggregation successful. Otherwise, our ALS protocol is triggered.
B. Stage Two: Adversary Localizer Scheme, Part I
ALS.I marks nodes that misbehaved in the aggregate-commit phase of SHIA or the dissemination of off-path values. ALS.I consists of two phases:
1) Hierarchical Collection of Confirmations: The BS initi-ates this phase by sending an authenticated broadcast contain-ing N and informing all nodes that ALS.I is taking place. If a node had not acknowledged the result (as determined by SHIA), it does not respond. Otherwise, a leaf node s sends a confirmation Ms = AuthKs(N) to its parent. An internal node t waits for its children, u1, u2, ..., uk (the order is based on their identifiers) to send their confirma-tions. Then, t sends up the following confirmation: Mt = AuthKt(N, Mu1, Mu2, ..., Muk). If t does not receive any messages from itsrthchild,M
ur is replaced with a predefined message Mnr, indicating “no message received from this child”. See Fig. 2 for illustration.
s1 s2 s3 t Ms1= AuthKs1(N) Ms3= AuthKs3(N) b
BS
Mt= AuthKt(N, Ms1, Mnr, M') Mc 1 Mc2 Mb= AuthKb(N, Mc1, Mc2)Fig. 2. ALS.I: Hierarchical Collection of Confirmations. Nodess1 and s3 acknowledge, nodes2 does not. Notetis faulty: it encapsulates Ms
1,
andMnrcorrectly, but modifies the message ofs3. The collection continues, until nodebprovides the final confirmation to the BS.
2) Recursive Processing of Confirmations: The above pro-cedure results in message Mb reaching the BS. If no message is received, then b, the single child of the BS, is marked. Otherwise, the message is processed in a recursive manner. As the aggregation tree is known to the BS, it knows thatMb should be authenticated using Kb. If it is, and the message begins with N, and the proper number of child messages (equal to the number of b’s children) can be extracted from it, the message is regarded as legitimate, and the recursive procedure is applied to each child message. Otherwise the message is regarded as illegitimate. Note that the specialMnr message is also regarded as illegitimate. In that case, the BS marks the node to which this message corresponds to and its parent (in the farther recursive executions, when the BS is not the parent); the recursive execution stops. The recursive procedure also stops when it reaches a leaf node. See Fig. 3 for an illustration.
C. Stage Two: Adversary Localizer Scheme, Part II
It is possible that ALS.I does not localize any faulty nodes, even though SHIA declared a failed aggregation. This can happen when all correct nodes acknowledge, which implies a correctly done aggregation but a faulty node disrupting the aggregation of acks. On the positive side, in such a situation the BS can be sure of a correct aggregation result. However, the not removed faulty node could disrupt a subsequent aggregation, something unacceptable according to our problem statement.
The ALS.II scheme addresses this problem. To implement ALS.II, we need to slightly modify SHIA, making every node store the ack messages it received from its children. ALS.II delivers them to the BS, using the same mechanism as the Hierarchical Collection of Confirmations in ALS.I. Then, the BS identifies inconsistencies, through an algorithm based on Recursive Processing of Confirmations.
Mt = AuthKt (N, Ms1, Mnr, Ms3, M') 1. verify auth. 2. verify nonce 3. verify count
Ms 1= AuthKs1( N, Mu 1, Mu2) Ms3= AuthKs3(N) illegitimate markt, s2
4. process child messages recursively
continue recursive processing illegitimate
markt, s4
Fig. 3. ALS.I: Recursive Processing of Confirmations: recursive procedure steps, explained in the box, and unfolding of the recursion.
As we show in Lemma 1 of Sec. IV, if ALS.II is triggered, all (correct) nodes acknowledge the aggregation result. Under this assumption, the topology-aware BS can calculate for every nodeswhat the ack message sent by this node should be: We denote this valueAs.
1) Hierarchical Collection of acks: The BS initiates this phase by broadcasting an authenticated message con-taining N, informing the nodes that ALS.II is taking place. A leaf node s does not send anything. An inter-nal node t, with non-leaf children u1, u2, ..., uq, sends up Mt = AuthKu(N, Mu1, Mu2, ..., Muq, Au1, ..., Auq), where
Mu1, Mu2, ..., Muq are the messagest received from its chil-dren in this phase, and Au1, Au2, ..., Auq are ack messages that it received from them in the SHIA result-check phase.
2) Recursive Processing and Ack Analysis: Upon receiving Mb from its child b, the BS recursively processes it to find the source(s) of discrepancy. As in ALS.I, if the message of node t illegitimate, meaning that it is not authenticated with Kb, it does not begin withN, or the proper number (of non-leaf children). of child messages and ack messages cannot be extracted from it, bothtand its parent are marked. There are only two significant differences from ALS.I. First, if for some nodeuthe ack messageAuequalsAu, then the corresponding child messageMu is not further processed. Second, the BS is looking for ack inconsistencies, which have two variations: (i) for nodetwhich has a leaf nodes as a child,Asis different from MACKs(NkOK), the ack of nodes (Fig. 4a); (ii) for nodetwhich has a childs, which has the childrenu1, ..., uq, the value As is not equal to MACKs(NkOK)⊗(
N
Aui) (Fig. 4b). If an ack inconsistency is detected, bothtandsare marked, but the recursive procedure is continued (if possible).
D. Stage Three: Aggregation Tree Reconstruction
The Aggregation Tree (Re)Construction (ATR) protocol, in addition to the tree construction, allows the BS to exclude nodes inBL, a black list, from the new tree T′
A and provides the BS with the knowledge of T′
A. The primary requirement for ATR is that its output,T′
A, is identical to the parts of the tree nodes know. This way, a faulty node is not be able to mislead the ALS protocols marking a correct node.
Due to space limitations, we do not describe ATR in full detail here. We present ATR in a basic form that achieves
t
s
Mt= AuthKt(...As...)
(a) type (i) inconsistency As6=MACKs(NkOK) u1 u2 t s Mt= AuthKt(...As...) Ms= AuthKs(...Au1, Au2)
(b) type (ii) inconsistency As6=MACKs(NkOK)⊗Au
1⊗Au2
Fig. 4. ALS.II: ack inconsistencies
our system objectives. More advanced and efficient vari-ants are left for future work. The BS initiates ATR, via a neighboring node b, by sending a tree establishment (TE) message<N, BL, n>, protected by a network-wide broadcast authenticator AuthBcast[8].
As the TE message is flooded, it is authenticated in a hop by hop manner by data-link broadcast authentication. Each v maintains s from which it first receives a fresh TE as its parent, and confirms to s that it is its child. After s hears from its k children, namely v1, . . . , vk, it sends its response to the BS:AuthKs(N, s,(v1, . . . , vk)), orAuthKs(N, s), if it is a leaf. The responses are propagated upwards to the BS. After sending its own response, the node acts as a relay for the responses of its children and up tonresponses or until the response collection concludes; these constraints are added to keep the cost bounded, but might result in loss of legitimate responses. A faulty node cannot create any inconsistency between the tree at BS and the nodes if responses are lost or dropped. Even if the faulty node eliminated a subtree, it would at most prevent aggregation from a part of the network, but no correct node would be blacklisted and thus permanently excluded.
1) Highly Resilient ATR: To ensure that the new tree ATR covers all nodes, we sketch here a different protocol, whose initial phase must run before any aggregation takes place. After each node s ran a secure neighbor discovery, it floods its neighbor list (NLs) across the network; a fresh NLs is relayed by each node only once. Upon receipt of the neighbor lists from all nodes, the BS constructs the network connectivity graph, rejecting links not announced by both neighbors. The BS then calculates locally TA. At the end of this initial phase, as well as after any subsequent reconstruction, the BS simply distributes the newly calculated aggregation tree across the network. It suffices that each node relays the message containing TAonce at most.
We emphasize that the costly NL collection is performed in general only once, at the initial phase of ATR. To ensure resilience to DoS attacks, nodes need to authenticate each NL they relay. Otherwise, faulty nodes could flood the net-work with bogus neighbor lists. To achieve this, public key cryptography is needed; recent implementations, e.g., see [9] and references within, attest to its feasibility for WSNs. Each respondings signs its NLs. The scheme cannot be exploited by clogging/energy consumption DoS attacks: Correct nodes immediately ignore messages coming from a neighbor that
forwarded one invalid-signed NL, as the forwarder should have checked its validity already.
IV. ANALYSIS
In this section, we show that the proposed scheme satisfies the specification. We will use the following notions: a node misbehaves in an aggregation session if it does not follow the protocol. Otherwise, it behaves correctly in an aggregation session. A correct node by definition behaves correctly all the time, where as a faulty node does not always misbehave.
Lemma 1: If some correct node does not acknowledge in the SHIA result-checking phase, then ALS.I marks at least one misbehaving node.
Proof: First, we show that some node will be marked. As some correct nodesdoes not send a confirmation message, if the recursive procedure reaches the point of evaluating the legitimateness of Ms, both s and its parent will be marked, because it is not possible for the adversary to forgeMs. On the other hand, if the BS stops the recursive procedure at some ancestor of s, then this ancestor is marked.
Next, recall that nodes are always marked in pairs: child s and parentt.2 This happens if Ms, the confirmation message of s as extracted from Mt, is illegitimate. We show that at least one of these nodes is misbehaving. Note first, that asMs is extracted fromMt, nodethas acknowledged. Consider two cases:
(i) Nodesis behaving correctly. Eitherssent up a legitimate confirmation and t has modified it inMt(misbehavior). Or,sdid not send a confirmation message, which means it is not acknowledging. Ast is acknowledging, we can conclude from Fact 1 that tis misbehaving.
(ii) Nodet is behaving correctly. Then either s sent to t an illegitimate confirmation message (misbehavior), ortdid not receive a confirmation froms, which meanssis not acknowledging. We use Fact 1 again to conclude that s is misbehaving.
Note: Due to adversarial behavior, the aggregation, at stage 1 (SHIA), may take place over a tree different fromTA, the one the BS is aware of and utilizes for ALS. However, as all neighbor communications are authenticated, and a correct node is aware of its parent and children inTA, the only difference between these trees can be a faulty node changing its parent to some other faulty node. This allows us to apply Fact 1.
Lemma 2: If ALS.I is executed and it does not mark any nodes, then ALS.II marks at least one misbehaving node.
Proof: Based on Lemma 1, we can assume that all correct nodes acknowledge the SHIA result.
First, if a node tand its child sare marked because of an illegitimate message of s, then one of them is misbehaving. Indeed, ifsis behaving correctly it must have sent a legitimate message to t, andthad to misbehave by modifying it. Ift is behaving correctly, then the message it received fromsmust be illegitimate, which is only possible ifs is misbehaving.
2The only exception is whentis the BS and only case (ii) of the proof
Second, if an ack inconsistency is found, then one of the marked nodessorthas to misbehave. Indeed, if the inconsis-tency is of type (i), either the leafshas “acknowledged” with an incorrect ack or not at all, which is misbehaving because all nodes should acknowledge, or t is reportingAs different from what it actually received froms. If the inconsistency is of type (ii), then either sdid not send totthe aggregated ack it should have calculated (based on what it received form its children and its own ack), ort is reportingAs different from what it received from s.
If all the messages are legitimate, and no ack inconsistencies are found, a simple induction on the structure of the aggrega-tion tree shows that, forb, the single child of the BS,Ab, the aggregated ack that the BS received in SHIA, is equal toAb, which is a contradiction with the fact that SHIA failed and ALS.I is executed.
Theorem 1: Our scheme satisfies the specification. Proof: First we prove that at mostnaaggregations fail. If an aggregation fails, ALS is executed, and by Lemmas 1 and 2, at least one misbehaving and thus faulty node is marked and removed from the aggregation tree in the ATR phase. Thus, after at most na failures, only correct nodes remain in the aggregation tree, and all subsequent aggregation sessions will be successful.
Security. If an aggregation is successful, then SHIA has not
detected any misbehavior. We can thus refer to theorem 13 of [2] to obtain the desired condition onvalA.
Efficiency. In successful aggregations, only SHIA is
exe-cuted, and we can refer to the naive counterpart of theorem 15 from [2] to get the desired cost O(hA∆A). In a failed aggre-gation session, ALS is executed and the tree is reconstructed. A simple inductive argument shows that the cost of ALS is O(n). Indeed, in both ALS.I and ALS.II, each node u sends up to its parent a message that has size O(|Tu|), whereTu is subtree rooted atu. The cost of ATR comprises the request, of sizeO(dmax)and the forwarding of at mostnresponses each of sizeO(dmax); thusO(n). The cost for the highly resilient ATR is the forwarding of at mostnNLs each of sizeO(dmax). Thus, NL collection costO(n). TheTAmessage size isO(n), forwarded once; thus,O(n)overall.
V. DISCUSSION ANDCONCLUSION
Our scheme builds on the Secure Hierarchical In-Network Aggregation [2], in order to achieve not only secure but also efficient WSN data collection over a series of aggregations. We have described a basic version of our scheme, sufficient to satisfy the stated specification. However, there are a number of enhancements and extensions that could be integrated in the proposed system. For example, our scheme could interop-erate the improved SHIA approach, yielding a more efficient, O(log2n), successful aggregation.
Moreover, improvement can be achieved by changing the aggregation result from failure to success if ALS.II is executed. Or, including node values in the ALS.I confirmation message would allow the BS to obtain a partial view of the sensor field state. Moreover, ALS.I and ALS.II could be combined into a single phase, with benefits dependent on the nature of
failures. Furthermore, the ATR protocol could be refined to improve its efficiency. To analyze such improvements (e.g., in the constants of the cost bounds), as well as factors such as cryptographic cost, simulations and experiments, will be part of our future work.
Finally, we discuss the exclusion of correct nodes. Thanks to the “onion” authentication of ALS.I, unlike the elementary approach, faulty nodes can at most modify confirmation mes-sages of their children, but not those of other nodes in their subtree. However, the BS cannot distinguish between a child that provides an illegitimate message/inconsistent ack and a parent that modifies it. As a result, our scheme marks and then excludes both. In the worst case,(∆−1)nacorrect nodes could be excluded. This bound could be improved tona, by allowing at most one child removal per parent and aggregation. This however would not necessarily guarantee a better performance on the average. Overall, the removal of correct nodes might eventually lead to a disconnected network: As they are in the proximity of faulty nodes, this could occur even if the adversary compromises only partially a node cut set. A less aggressive node exclusion could partially alleviate this: The BS maintains a “reputation” for all nodes, with marked nodes having their rating decreased and being excluded once they drop below a threshold. Moreover, ATR could be modified, so that marked and not yet excluded nodes are not neighbors in the new tree. The additional cost would be that the adversary disrupts more thannasessions; evaluating this trade-off is also part of our future work.
REFERENCES
[1] S. Brands and D. Chaum, “Distance-Bounding Protocols,” Springer
LNCS 839, pp. 344–359, 1994.
[2] H. Chan, A. Perrig, and D. Song, “Secure hierarchical in-network aggregation in sensor networks.” in ACM Conference on Computer and
Communications Security, 2006, pp. 278–287.
[3] L. Eschenauer and V. Gligor, “A Key-Management Scheme for Dis-tributed Sensor Networks,” in Proc. of the 9th ACM CCS, 2002. [4] S. Madden, M. J. Franklin, J. M. Hellerstein, and W. Hong, “Tag: A
tiny aggregation service for ad-hoc sensor networks.” in OSDI, 2002. [5] J. McCune, E. Shi, A. Perrig, and M. Reiter, “Detection of
Denial-Of-Message Attacks on Sensor Network Broadcasts,” in Proc. of IEEE
Symposium on Security and Privacy, 2005.
[6] J. Newsome, E. Shi, D. Song, and A. Perrig, “The Sybil Attack in Sensor Networks: Analysis and Defenses,” in Proc. of the 3rd IPSN, 2004. [7] B. Parno, A. Perrig, and V. Gligor, “Distributed Detection of Node
Replication Attacks in Sensor Networks,” in Proc. of IEEE Symposium
on Security and Privacy, 2005.
[8] A. Perrig, R. Szewczyk, J. D. Tygar, V. Wen, and D. E. Culler, “Spins: Security protocols for sensor networks.” Wireless Networks, vol. 8, no. 5, pp. 521–534, 2002.
[9] K. Piotrowski, P. Langendoerfer, and S. Peter, “How Public Key Cryp-tography Influences Wireless Sensor Node Lifetime,” in Proc. of the 4th
ACM SASN, 2006.
[10] R. Poovendran and L. Lazos, “A Graph Theoretic Framework for Preventing the Wormhole Attack in Wireless Ad Hoc Networks,”
ACM/Kluwer Wireless Networks, vol. 13, no. 1, pp. 27–59, 2005.
[11] D. Wagner, “Resilient aggregation in sensor networks.” in SASN, 2004, pp. 78–87.
[12] A. Wood and J. Stankovic, “Denial of Service in Sensor Networks,”
IEEE Computer, vol. 35, no. 10, pp. 54–62, 2003.
[13] K. Wu, D. Dreef, B. Sun, and Y. Xiao, “Secure data aggregation without persistent cryptographic operations in wireless sensor networks.” Ad Hoc
Networks, vol. 5, no. 1, pp. 100–111, 2007.
[14] Y. Yang, X. Wang, S. Zhu, and G. Cao, “Sdap: : a secure hop-by-hop data aggregation protocol for sensor networks.” in MobiHoc, 2006, pp. 356–367.
