Now, suppliers can also select EDI as a method for receiving Change and Cancel Orders.

(1)

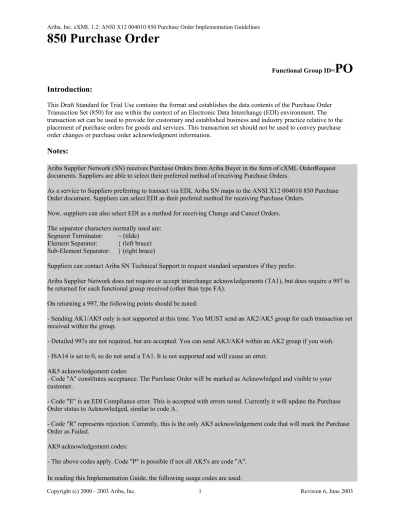

850 Purchase Order

Functional Group ID=

PO

Introduction:

This Draft Standard for Trial Use contains the format and establishes the data contents of the Purchase Order Transaction Set (850) for use within the context of an Electronic Data Interchange (EDI) environment. The transaction set can be used to provide for customary and established business and industry practice relative to the placement of purchase orders for goods and services. This transaction set should not be used to convey purchase order changes or purchase order acknowledgment information.

Notes:

Ariba Supplier Network (SN) receives Purchase Orders from Ariba Buyer in the form of cXML OrderRequest documents. Suppliers are able to select their preferred method of receiving Purchase Orders.

As a service to Suppliers preferring to transact via EDI, Ariba SN maps to the ANSI X12 004010 850 Purchase Order document. Suppliers can select EDI as their prefered method for receiving Purchase Orders.

Now, suppliers can also select EDI as a method for receiving Change and Cancel Orders. The separator characters normally used are:

Segment Terminator: ~ (tilde) Element Separator: { (left brace) Sub-Element Separator: } (right brace)

Suppliers can contact Ariba SN Technical Support to request standard separators if they prefer.

Ariba Supplier Network does not require or accept interchange acknowledgements (TA1), but does require a 997 to be returned for each functional group received (other than type FA).

On returning a 997, the following points should be noted:

- Sending AK1/AK9 only is not supported at this time. You MUST send an AK2/AK5 group for each transaction set received within the group.

- Detailed 997s are not required, but are accepted. You can send AK3/AK4 within an AK2 group if you wish. - ISA14 is set to 0, so do not send a TA1. It is not supported and will cause an error.

AK5 acknowledgement codes:

- Code "A" constitutes acceptance. The Purchase Order will be marked as Acknowledged and visible to your customer.

(2)

Status Segment Element

--- --- ---

Mandatory M M

Must Use Must Use M (Required)

Recommended A A (Advised)

Dependant D D

Not Recommended NR NR

Not Used X X

Mandatory means that X12 says it is mandatory, so the guideline is bound by that rule. Must Use means that X12 says it is optional, but Ariba SN requires it.

Recommended means that X12 says it is optional, and Ariba SN considers it optional, but recommends that it be used.

Dependant means that X12 has its usage dependant on other segments or elements, or by semantic notes, or that Ariba SN describes semantics on which its dependency lies.

Not Recommended is the opposite of Recommended. The information might be technically allowed, but is probably ignored.

Not Used segments and elements are not even shown in the guideline. In cases there they made need to be shown for consistency, they are marked with an X.

Heading:

Page Pos. Seg. Base User Loop Notes and No. No. ID Name Status Status Max.Use Repeat Comments

5 010 ST Transaction Set Header M M 1 6 020 BEG Beginning Segment for Purchase Order M M 1 8 040 CUR Currency O Must Use 1 9 050 REF Reference Identification O >1 10 060 PER Administrative Communications Contact O 3 12 110 CSH Sales Requirements O 1

LOOP ID - SAC 1

13 120 SAC Shipping Charges O 1

15 125 CUR Currency O 1

16 285 TXI Tax Information O 1

LOOP ID - N9 1

17 295 N9 Reference Identification - Payment of

Purchase Order O 1

18 297 DTM Date/Time Reference O Must Use 1

LOOP ID - N9 1

19 295 N9 Reference Identification - Comments O 1 20 300 MSG Message Text O Must Use 1000

LOOP ID - N9 998

21 295 N9 Reference Identification - Extrinsics O 1

22 300 MSG Message Text O 1000

LOOP ID - N1 1

23 310 N1 Bill-To Name O 1

24 320 N2 Additional Name Information O 2 25 330 N3 Address Information O 2

(3)

27 360 PER Administrative Communications Contact O >1

LOOP ID - N1 1

29 310 N1 Ship-To Name O 1

30 320 N2 Additional Name Information O 2

31 330 N3 Address Information O 2

32 340 N4 Geographic Location O 1 33 360 PER Administrative Communications Contact O >1

LOOP ID - N1 10

35 310 N1 Detailed Contact Information - Name O 1 37 320 N2 Additional Name Information O 2 38 330 N3 Address Information O 2

39 340 N4 Geographic Location O 1

40 360 PER Administrative Communications Contact O >1

Detail:

LOOP ID - PO1 100000

42 010 PO1 Baseline Item Data M M 1 n1

44 020 CUR Currency of Unit Price O 1

LOOP ID - PID 1000

45 050 PID Product/Item Description O 1

LOOP ID - PID 1000

47 050 PID Product/Item Description - Classification Details

O 1

49 100 REF Reference Identification - Requisition ID O 1 50 100 REF Reference Identification - Supplier ID O 1 51 110 PER Administrative Communications Contact O 3

LOOP ID - SAC 1

53 130 SAC Shipping Charge O 1

55 135 CUR Currency O Must Use 1

LOOP ID - SAC 20

56 130 SAC Account Distribution O 1

58 135 CUR Currency O 1

59 210 DTM Requested Delivery Date O 1

60 291 TXI Tax Information O 1

LOOP ID - N9 1

61 330 N9 Reference Identification - URL O 1

62 340 MSG Message Text O 1000

(4)

71 400 PER Administrative Communications Contact O 3

LOOP ID - N1 10

73 350 N1 Name - Detailed Contact Information O 1 75 360 N2 Additional Name Information O 2

76 370 N3 Address Information O 2

78 400 PER Administrative Communications Contact O 3

Summary:

LOOP ID - CTT 1

80 010 CTT Transaction Totals O 1 n2

81 020 AMT Monetary Amount O Must Use 1 n3

82 030 SE Transaction Set Trailer M M 1

Transaction Set Notes

1. PO102 is required.

2. The number of line items (CTT01) is the accumulation of the number of PO1 segments. If used, hash total (CTT02) is the sum of the value of quantities ordered (PO102) for each PO1 segment.

3. If AMT is used in the summary area, then AMT01 will = TT and AMT02 will indicate total transaction amount as calculated by the sender.

(5)

Segment:

ST

Transaction Set Header

Position: 010

Loop:

Level: Heading Usage: Mandatory

Max Use: 1

Purpose: To indicate the start of a transaction set and to assign a control number Syntax Notes:

Semantic Notes: 1 The transaction set identifier (ST01) is used by the translation routines of the interchange partners to select the appropriate transaction set definition (e.g., 810 selects the Invoice Transaction Set).

Comments:

Notes:

Example: ST*850*0065~

Data Element Summary

Ref. Data Base User

Des. Element Name Attributes Attributes

ST01 143 Transaction Set Identifier Code M ID 3/3 M

Code uniquely identifying a Transaction Set

850 Purchase Order

ST02 329 Transaction Set Control Number M AN 4/9 M

Identifying control number that must be unique within the transaction set functional group assigned by the originator for a transaction set

(6)

BEG

Beginning Segment for Purchase Order

Position: 020

Loop:

Level: Heading Usage: Mandatory

Max Use: 1

Purpose: To indicate the beginning of the Purchase Order Transaction Set and transmit identifying numbers and dates

Syntax Notes:

Semantic Notes: 1 BEG05 is the date assigned by the purchaser to purchase order. Comments:

Notes:

Examples:

BEG*00*NE*DO364**20000415~ (new order)

BEG*05*KN*ERP64390-V2**20020928~ (change order)

BEG*05*IN*ERP64390-V3**20020928~ (change order - internal) BEG*03*KN*R159116**20020719~ (cancel order)

BEG01 353 Transaction Set Purpose Code M ID 2/2 M

Code identifying purpose of transaction set

Ariba sends purchase orders as either "new", "update", or "delete". Orders being updated are replacing a previous order. Some updates are marked as information only

(BEG02='IN').

type (new | update | delete) "new"

00 Original

type="new"

03 Delete

type="delete"

This is available only if EDI is selected for routing

"Change/Cancel Orders". If the customer sends a "Cancel Order" from Ariba Buyer, then BEG01='03' and BEG03 contains the order number to be deleted.

REF*PO (1/050) contains another copy of the purchase order number, supporting up to 30 characters.

Code 03 for Delete is chosen to parallel the cXML type attribute value "delete".

05 Replace

type="update"

This is available only if EDI is selected for routing

"Change/Cancel Orders". If the customer submits a change order through Ariba Buyer, the effect is to copy all of the data and line items from an existing order and then to create a new order having the amendments.

(7)

The "Change Order" is not a manifest listing of changes, but is rather a complete replacement of an earlier order. Typically the new order number will be the original order number with something like '-V2' appended. BEG01='05' to attest to this fact. The original order number being replaced is found in REF*PW (1/050). Ariba Buyer does not at this time send a revision number. Note that BEG03 contains an order number up to 22 characters in length. Some orders from Ariba Buyer have had longer order numbers. When BEG01='05' or '03', REF*PO (1/050) is populated with a second copy of the order number with up to 30 characters. Although the cXML type attribute value is "update", code 05 for Replace is used to better represent the action being taken. It is necessary to completely replace an order previously received.

BEG02 92 Purchase Order Type Code M ID 2/2 M

Code specifying the type of Purchase Order

Determines the purchase order type from Ariba. An order update has a version number and can be marked as internal by the customer. Internal orders are identified with BEG02='IN'.

<OrderRequestHeader> type="new"

IN Information Copy

Used with BEG01=05 only to indicate that this order update is for information only. The buyer has made some internal changes to their PO. Such a PO update is sent for version number

accountability only. There are no changes affecting fulfillment.

OrderRequestHeader

isInternalVersion (yes) #IMPLIED

KN Purchase Order

Procurement instrument within the small purchasing threshold

Used with BEG01='03' or '05' only. When BEG01='00', this field continues to use 'NE' for backward compatibility.

NE New Order

Used with BEG01='00' only to indicate a new purchase order.

BEG03 324 Purchase Order Number M AN 1/22 M

Identifying number for Purchase Order assigned by the orderer/purchaser Ariba sends the PO Number from the Buyer.

orderID %string; #REQUIRED

BEG05 373 Date M DT 8/8 M

Date expressed as CCYYMMDD Ariba sends the PO Date from the Buyer

(8)

Segment:

CUR

Currency

Position: 040

Loop:

Level: Heading

Usage: Optional (Must Use)

Max Use: 1

Purpose: To specify the currency (dollars, pounds, francs, etc.) used in a transaction Syntax Notes: 1 If CUR08 is present, then CUR07 is required.

2 If CUR09 is present, then CUR07 is required.

3 If CUR10 is present, then at least one of CUR11 or CUR12 is required. 4 If CUR11 is present, then CUR10 is required.

14 If CUR21 is present, then CUR19 is required. Semantic Notes:

Comments: 1 See Figures Appendix for examples detailing the use of the CUR segment. Usage Notes:

Mandatory

Notes:

Example: CUR*BY*USD~

Ariba sends the default currency for the order. This currency specifically represents the total amount of the order found in AMT[3/020]

<Money>

currency %isoCurrencyCode; #REQUIRED

CUR01 98 Entity Identifier Code M ID 2/3 M

Code identifying an organizational entity, a physical location, property or an individual

BY Buying Party (Purchaser)

CUR02 100 Currency Code M ID 3/3 M

Code (Standard ISO) for country in whose currency the charges are specified

These currencies serve as examples; they are not the only codes used. The currency code is ISO 4217 compliant and Ariba SN writes here whatever is collected from any Ariba Procurement Platform.

X12 also expects ISO 4217 conformance here, the same as %isoCurrencyCode;

See http://www.unece.org/trade/rec/rec09en.htm

CAD Canadian Dollars

GBP British Pound

USD US Dollars

(9)

Segment:

REF

Reference Identification

Position: 050

Loop:

Level: Heading Usage: Optional Max Use: >1

Purpose: To specify identifying information

Syntax Notes: 1 At least one of REF02 or REF03 is required.

2 If either C04003 or C04004 is present, then the other is required. 3 If either C04005 or C04006 is present, then the other is required. Semantic Notes: 1 REF04 contains data relating to the value cited in REF02.

Comments:

Usage Notes:

Used/Optional

REF01 128 Reference Identification Qualifier M ID 2/3 M

Code qualifying the Reference Identification

PO Purchase Order Number

Example: REF*PO*DO364~

This is available to support purchase order numbers longer than 22 characters. Some purchase orders coming from Ariba Buyer have longer numbers which are truncated in BEG03. The purchase order number up to 30 characters is shown in this reference.

For backward compatibility, this REF is used only where BEG01='03' or '05', and to state the current order number. In a future release, it will always appear.

orderNumber %string; #IMPLIED

PP Purchase Order Revision Number

Example: REF*PP*2~

Reserved for Ariba Buyer to be sending the PO revision number. Ariba Buyer does not currently support this attribute. This is a placeholder for it.

PW Prior purchase order number

Used only with BEG01='05' to state the purchase order number being replaced.

RQ Purchase Requisition Number

(10)

PER

Administrative Communications Contact

Position: 060

Loop:

Level: Heading Usage: Optional

Max Use: 3

Purpose: To identify a person or office to whom administrative communications should be directed Syntax Notes: 1 If either PER03 or PER04 is present, then the other is required.

2 If either PER05 or PER06 is present, then the other is required. 3 If either PER07 or PER08 is present, then the other is required. Semantic Notes:

Comments:

Usage Notes:

Used/Optional Notes:

Example:

PER*BL*Tech Support*TE*18005551313*EM*[email protected]~ PER*CR*Customer

Service*TE*18005551212*FX*13122842587*EM*[email protected]~ Contact information from the Order Header is mapped here briefly. Contacts that involve a PostalAddress or extensive details will appear in an N1 loop. We are limited here to only three PER segments, so this section is reserved for short and quick contact information.

PER01 366 Contact Function Code M ID 2/2 M

Code identifying the major duty or responsibility of the person or group named

AE Corporate Purchasing Agent

role="purchasingAgent"

AM Administrator

role="administrator"

BD Buyer Name or Department

BL Technical Department

role="technicalSupport"

CN General Contact

role unspecified

CR Customer Relations

role="customerService"

EB Entered By

role="endUser"

SH Shipper Contact

SR Sales Representative or Department role="sales"

SU Supplier Contact

PER02 93 Name O AN 1/60 M

Free-form name Required Name tag.

(11)

PER03 365 Communication Number Qualifier X ID 2/2 O

Code identifying the type of communication number

EM Electronic Mail

FX Facsimile

TE Telephone

UR Uniform Resource Locator (URL)

PER04 364 Communication Number X AN 1/80 O

Complete communications number including country or area code when applicable

EM Electronic Mail

FX Facsimile

TE Telephone

EM Electronic Mail

FX Facsimile

TE Telephone

(12)

Segment:

CSH

Sales Requirements

Position: 110

Loop:

Max Use: 1

Purpose: To specify general conditions or requirements of the sale Syntax Notes: 1 If CSH02 is present, then CSH03 is required.

2 If either CSH06 or CSH07 is present, then the other is required. 3 If either CSH09 or CSH10 is present, then the other is required.

Semantic Notes: 1 CSH03 is the maximum monetary amount value which the order must not exceed. 2 CSH04 is the account number to which the purchase amount is charged.

3 CSH05 is the date specified by the sender to be shown on the invoice. 4 CSH06 identifies the source of the code value in CSH07.

Comments:

Usage Notes:

Example: CSH*SC~

Present with CSH01="SC" if the Buyer has specified a "Ship Complete" requirement. This implies that the Buyer is prepared to wait if necessary for complete fulfillment of an order. Partial fulfillment will not be accepted.

shipComplete(yes) #IMPLIED ="yes"

CSH01 563 Sales Requirement Code O ID 1/2 O

Code to identify a specific requirement or agreement of sale

(13)

Segment:

SAC

Shipping Charges

Position: 120

Loop: SAC Optional Level: Heading Usage: Optional

Max Use: 1

Purpose: To request or identify a service, promotion, allowance, or charge; to specify the amount or percentage for the service, promotion, allowance, or charge

Syntax Notes: 1 At least one of SAC02 or SAC03 is required.

2 If either SAC03 or SAC04 is present, then the other is required. 3 If either SAC06 or SAC07 is present, then the other is required. 4 If either SAC09 or SAC10 is present, then the other is required. 5 If SAC11 is present, then SAC10 is required.

6 If SAC13 is present, then at least one of SAC02 or SAC04 is required. 7 If SAC14 is present, then SAC13 is required.

8 If SAC16 is present, then SAC15 is required.

Semantic Notes: 1 If SAC01 is "A" or "C", then at least one of SAC05, SAC07, or SAC08 is required. 2 SAC05 is the total amount for the service, promotion, allowance, or charge.

If SAC05 is present with SAC07 or SAC08, then SAC05 takes precedence. 3 SAC08 is the allowance or charge rate per unit.

4 SAC10 and SAC11 is the quantity basis when the allowance or charge quantity is different from the purchase order or invoice quantity.

SAC10 and SAC11 used together indicate a quantity range, which could be a dollar amount, that is applicable to service, promotion, allowance, or charge.

5 SAC13 is used in conjunction with SAC02 or SAC04 to provide a specific reference number as identified by the code used.

6 SAC14 is used in conjunction with SAC13 to identify an option when there is more than one option of the promotion.

7 SAC16 is used to identify the language being used in SAC15.

Comments: 1 SAC04 may be used to uniquely identify the service, promotion, allowance, or charge. In addition, it may be used in conjunction to further the code in SAC02. 2 In some business applications, it is necessary to advise the trading partner of the

actual dollar amount that a particular allowance, charge, or promotion was based on to reduce ambiguity. This amount is commonly referred to as "Dollar Basis

Amount". It is represented in the SAC segment in SAC10 using the qualifier "DO" - Dollars in SAC09.

Usage Notes:

Used/Optional

Notes:

Example: SAC*C*G830***4680********21428339882**Fed-Ex 2 day*en~ In the header section, this represents a shipping cost in the order to the supplier. There can be one of these for the entire order, or one per line item. This context represents one for the order.

(14)

#PCDATA

SAC13 127 Reference Identification X AN 1/30 O

Reference information as defined for a particular Transaction Set or as specified by the Reference Identification Qualifier

SAC15 352 Description X AN 1/80 M

A free-form description to clarify the related data elements and their content

Ariba SN can only accept one Description here. cXML allows for a ShortName to be included with the Description. If the Description text is longer than 80 characters, and a ShortName is available, then Ariba SN will map the ShortName here.

#PCDATA .. <ShortName>

SAC16 819 Language Code O ID 2/3 M

Code designating the language used in text, from a standard code list maintained by the International Standards Organization (ISO 639)

(15)

Segment:

CUR

Currency

Position: 125

Loop: SAC Optional Level: Heading Usage: Optional

Max Use: 1

Purpose: To specify the currency (dollars, pounds, francs, etc.) used in a transaction Syntax Notes: 1 If CUR08 is present, then CUR07 is required.

14 If CUR21 is present, then CUR19 is required. Semantic Notes:

Comments: 1 See Figures Appendix for examples detailing the use of the CUR segment. Usage Notes:

Used/Optional

Notes:

Example: CUR*BY*USD~

CUR01 98 Entity Identifier Code M ID 2/3 M

CUR02 100 Currency Code M ID 3/3 M

Code (Standard ISO) for country in whose currency the charges are specified See Note on Currency Codes with CUR[1/040].

Currency codes shown here are examples. Any ISO4217 code can be sent. http://www.unece.org/trade/rec/rec09en.htm

CAD Canadian Dollars

GBP British Pound

USD US Dollars

(16)

Segment:

TXI

Tax Information

Position: 285

Loop:

Max Use: 1

Purpose: To specify tax information

Syntax Notes: 1 At least one of TXI02 TXI03 or TXI06 is required.

2 If either TXI04 or TXI05 is present, then the other is required. 3 If TXI08 is present, then TXI03 is required.

Semantic Notes: 1 TXI02 is the monetary amount of the tax. 2 TXI03 is the tax percent expressed as a decimal.

3 TXI07 is a code indicating the relationship of the price or amount to the associated segment.

Comments:

Usage Notes:

Used/Optional

Notes:

Example: TXI*TX*27.18~

cXML supplies tax information with an amount and a description. Ariba sends the tax amount here. Taxes can be present at both the header and line item levels. Taxes at the line item level are used to show a per line item breakdown.

TXI01 963 Tax Type Code M ID 2/2 M

Code specifying the type of tax

TX All Taxes

Total of all applicable taxes

TXI02 782 Monetary Amount X R 1/18 M

(17)

Segment:

N9

Reference Identification - Payment of Purchase Order

Position: 295

Loop: N9 Optional Level: Heading Usage: Optional

Max Use: 1

Purpose: To transmit identifying information as specified by the Reference Identification Qualifier Syntax Notes: 1 At least one of N902 or N903 is required.

2 If N906 is present, then N905 is required.

3 If either C04003 or C04004 is present, then the other is required. 4 If either C04005 or C04006 is present, then the other is required. Semantic Notes: 1 N906 reflects the time zone which the time reflects.

2 N907 contains data relating to the value cited in N902. Comments:

Usage Notes:

Used/Optional

Notes:

Example: N9*PSM*4510294818443233*Visa - Purchases~

Procurement card information is here. The expiry date goes in the DTM segment with special formatting.

N901 128 Reference Identification Qualifier M ID 2/3 M

PSM Credit Card

N902 127 Reference Identification X AN 1/30 M

<PCard>

number %number; #REQUIRED

N903 369 Free-form Description X AN 1/45 O

Free-form descriptive text

<PCard>

(18)

Segment:

DTM

Date/Time Reference

Position: 297

Loop: N9 Optional Level: Heading

Usage: Optional (Must Use)

Max Use: 1

Purpose: To specify pertinent dates and times

Syntax Notes: 1 At least one of DTM02 DTM03 or DTM05 is required. 2 If DTM04 is present, then DTM03 is required.

3 If either DTM05 or DTM06 is present, then the other is required. Semantic Notes:

Comments:

Usage Notes:

Mandatory

Notes:

Example: DTM*036****UN*0432~ (This card expires in April 2032)

Procurement card expiry date is here. The expiration date is often used as a check on the credit card number. They are traditionally stored as YYMM, but not necessarily. cXML 1.1 does not specify the syntax of the expiry date, so it will usually be "Unstructured" (DTM05="UN"). Supplies should be able to submit DTM06 "as is" for verification purposes.

DTM01 374 Date/Time Qualifier M ID 3/3 M

Code specifying type of date or time, or both date and time

036 Expiration

Date coverage expires

DTM05 1250 Date Time Period Format Qualifier X ID 2/3 M

Code indicating the date format, time format, or date and time format

Normally this will be "UN". If cXML specifies that the expiry date is specifically YYMM, then DTM05 will be "YM".

UN Unstructured

YM Year and Month Expressed in Format YYMM

DTM06 1251 Date Time Period X AN 1/35 M

Expression of a date, a time, or range of dates, times or dates and times Expiry date as YYMM

<PCard>

(19)

Segment:

N9

Reference Identification - Comments

Position: 295

Max Use: 1

Usage Notes:

Used/Optional

Notes:

Example: N9*L1*Comment*en~

cXML provides one block of comments at the header level, which is mapped here. cXML also has the ability to include an attachment here, but attachments are not mapped to X12

L1 Letters or Notes

N902 127 Reference Identification X AN 1/30 M

Always set to "Comment". Ariba writes a constant here because X12 requires that either N902 or N903 is used, and the description is optional in cXML. By writing a constant, Ariba avoids any compliance issues with X12.

This is the language code attribute sent by cXML to describe the language used for the comment. The code is ISO 639 compliant. Note that this code is optional and can be supplied in lower case.

Comments

(20)

Segment:

MSG

Message Text

Position: 300

Loop: N9 Optional Level: Heading

Usage: Optional (Must Use) Max Use: 1000

Purpose: To provide a free-form format that allows the transmission of text information Syntax Notes: 1 If MSG03 is present, then MSG02 is required.

Semantic Notes: 1 MSG03 is the number of lines to advance before printing.

Comments: 1 MSG02 is not related to the specific characteristics of a printer, but identifies top of page, advance a line, etc.

2 If MSG02 is "AA - Advance the specified number of lines before print" then MSG03 is required.

Usage Notes:

Mandatory

Notes:

Example: MSG*Be sure printer ink cartridges are properly sealed to avoid spillage.~ The actual comment text. The X12 mapping will try to preserve the line breaks from the cXML as best it can. Each line break will automatically incur a new MSG segment, with the exception of a blank line. If one line goes over the capacity of MSG01 then the line is word-broken and a new MSG segment is created to continue the line. If the number of lines exceed the occurrence limit of MSG, then the remainder of the comment text will be truncated.

Any imbedded Attachments will be dropped. However, Ariba might include a text representation that it is present. For example:

MSG*See the attached word document. [Attachment "specs.doc"]~

<Comments> #PCDATA <Attachment>

MSG01 933 Free-Form Message Text M AN 1/264 M

Free-form message text

MSG02 934 Printer Carriage Control Code X ID 2/2 O

A field to be used for the control of the line feed of the receiving printer

If a line was broken by the limitation of MSG01, and a new segment is created for continuation, then MSG02="LC", otherwise it is not used.

(21)

Segment:

N9

Reference Identification - Extrinsics

Position: 295

Max Use: 1

Usage Notes:

Used/Optional

Notes:

Example: N9*ZZ**Packing Instructions~

Extrinsic information is well-formed XML provided by the buyer to define extra

information outside the scope of cXML's specifications. The content here is user-defined, and in X12 should be regarded as comment information.

There are three rules to consider when looking at extrinsic information:

1. It is defined by the specific implementation of the Buyer and the Buyer's ERP system to any Ariba B2B Procurement Platform. Two different Buyers might send the same information in two distinct ways at this level. You cannot depend on the precise format. 2. Neither Ariba nor cXML control the exact content and formatting of Extrinsics. The implementation is user-defined, and popular implementations thereof often migrate their way into future versions of cXML. Treat this as comment information.

3. While every effort is made to preserve the integrity of Extrinsic information in the X12 implementation, it simply cannot be guaranteed. Non-printable characters cannot be transported and any occurrences of our X12 control characters (i.e.. SegTerm, ElemSep, CompSep) MUST BE TRANSLATED. Supplier side EDI Implementers should make their respective departments aware of this.

ZZ Mutually Defined

Required name attribute to identify the Extrinsic.

(22)

Segment:

MSG

Message Text

Position: 300

Loop: N9 Optional Level: Heading Usage: Optional Max Use: 1000

Purpose: To provide a free-form format that allows the transmission of text information Syntax Notes: 1 If MSG03 is present, then MSG02 is required.

Semantic Notes: 1 MSG03 is the number of lines to advance before printing.

Comments: 1 MSG02 is not related to the specific characteristics of a printer, but identifies top of page, advance a line, etc.

2 If MSG02 is "AA - Advance the specified number of lines before print" then MSG03 is required.

Usage Notes:

Used/Optional

Notes:

Example: MSG*<Packing><UnitsPerCarton>512</UnitsPerCarton></Packing>~ MSG carries the actual Extrinsic data as accurately as possible. Where new lines are started in cXML, new MSG segments are created (except for blank lines) in order to preserve its integrity. If a line exceeds the capacity of MSG01, then a new MSG segment is created and the Extrinsic text continues.

<Extrinsic> ANY

MSG01 933 Free-Form Message Text M AN 1/264 M

Free-form message text Actual Extrinsic text.

MSG02 934 Printer Carriage Control Code X ID 2/2 O

A field to be used for the control of the line feed of the receiving printer

If a line from cXML is broken by MSG01's limitation, a new MSG segment is created with MSG02="LC"

(23)

Segment:

N1

Bill-To Name

Position: 310

Max Use: 1

Purpose: To identify a party by type of organization, name, and code Syntax Notes: 1 At least one of N102 or N103 is required.

2 If either N103 or N104 is present, then the other is required. Semantic Notes:

Comments: 1 This segment, used alone, provides the most efficient method of providing organizational identification. To obtain this efficiency the "ID Code" (N104) must provide a key to the table maintained by the transaction processing party.

2 N105 and N106 further define the type of entity in N101. Usage Notes:

Used/Optional

Notes:

Example: N1*BT*Corporate Office*92*001~ Header Level Bill-To Address Information This is mandatory and sent only at the header level.

N101 98 Entity Identifier Code M ID 2/3 M

BT Bill-to-Party

N102 93 Name X AN 1/60 M

Free-form name

Name associated by Buyer to this BillTo Address

N103 66 Identification Code Qualifier X ID 1/2 O

Code designating the system/method of code structure used for Identification Code (67)

92 Assigned by Buyer or Buyer's Agent

N104 67 Identification Code X AN 2/80 O

Code identifying a party or other code

Address ID sent by the Buyer to identify this Bill-To, if it is present.

(24)

N2

Additional Name Information

Position: 320

Max Use: 2

Purpose: To specify additional names or those longer than 35 characters in length Syntax Notes:

Semantic Notes: Comments:

Usage Notes:

Example:

N2*Roxanne Barber*Accounts Payable~ N2*The Buyer, Inc.~

In a PostalAddress, cXML considers DeliverTo to be optional, but can send many. Ariba implements up to the first four here: two Name elements across two N2 segments. The first two iterations of DeliverTo will occupy the first N2 segment and the third and fourth iterations, if present, will occupy the second N2. Any further DeliverTo iterations will be ignored.

N201 93 Name M AN 1/60 M

Free-form name

N202 93 Name O AN 1/60 O

(25)

Segment:

N3

Address Information

Position: 330

Max Use: 2

Purpose: To specify the location of the named party Syntax Notes:

Usage Notes:

Used/Optional

Notes:

Example: N3*1 Buyer Parkway~ Street address information.

cXML requires one <Street> tag but can send many. Like the N2 above, Ariba SN implements up to the first four: two elements across two segments.

N301 166 Address Information M AN 1/55 M

Address information

N302 166 Address Information O AN 1/55 O

(26)

Segment:

N4

Geographic Location

Position: 340

Max Use: 1

Purpose: To specify the geographic place of the named party Syntax Notes: 1 If N406 is present, then N405 is required. Semantic Notes:

Comments: 1 A combination of either N401 through N404, or N405 and N406 may be adequate to specify a location.

2 N402 is required only if city name (N401) is in the U.S. or Canada. Usage Notes:

Used/Optional

Notes:

Example: N4*Chicago*IL*35101*US~

Geographic information from the PostalAddress

cXML guarantees a City and Country. The State or Province code and the Postal Code are optional.

N401 19 City Name O AN 2/30 M

Free-form text for city name

N402 156 State or Province Code O ID 2/2 O

Code (Standard State/Province) as defined by appropriate government agency http://www.usps.gov/ncsc/lookups/abbr_state.txt

http://www.canadapost.ca/CPC2/addrm/addrguide/prov_symbols.html

N403 116 Postal Code O ID 3/15 O

Code defining international postal zone code excluding punctuation and blanks (zip code for United States)

A US Zip Code can be five or nine digits. There will not be a separator present if the full nine digit code is sent. A Canadian Postal Code is always formatted "A9A9A9". There will not be a separator in the middle.

N404 26 Country Code O ID 2/3 M

Code identifying the country

Country code is ISO-3166 compliant. You can see a list here along with their respective currency codes:

http://www.unece.org/trade/rec/rec09en.htm

(27)

Segment:

PER

Position: 360

Loop: N1 Optional Level: Heading Usage: Optional Max Use: >1

Comments:

Usage Notes:

Example:

PER*AP*AP Purchases

(Roxanne)*TE*13125551111*FX*13125552222*EM*[email protected]~ Contact information of Telephone, Fax, Email, and URL. cXML requires none, and only one of each is allowed.

Each contact tag carries a name to identify itself. Where possible, Ariba SN groups those with the same name together. If all four pieces are supplied, or if they carry distinct names, then multiple PER segments are required.

The telephone number supplied with either Phone or Fax is broken down by components by cXML. The number will be formatted appropriately here.

Note that a URL will be limited to the maximum length of the Communication Number element.

AP Accounts Payable Department

PER02 93 Name O AN 1/60 O

Free-form name

EM Electronic Mail

FX Facsimile

TE Telephone

(28)

EM Electronic Mail

FX Facsimile

TE Telephone

(29)

Segment:

N1

Ship-To Name

Position: 310

Max Use: 1

Used/Optional

Notes:

Example: N1*ST*San Jose Office*92*152~ Header Level Ship-To Address Information

This is optional at the header level. Ariba will send ShipTo Information either at the header OR at the line item level, but not both. If it is absent here then it is required at the line item level.

ST Ship To

N102 93 Name X AN 1/60 M

Free-form name

Name associated by Buyer to this ShipTo Address

N103 66 Identification Code Qualifier X ID 1/2 O

Code designating the system/method of code structure used for Identification Code (67)

92 Assigned by Buyer or Buyer's Agent

N104 67 Identification Code X AN 2/80 O

Code identifying a party or other code

Address ID sent by the Buyer to identify this ShipTo, if it is present.

(30)

N2

Position: 320

Max Use: 2

Usage Notes:

Example:

N2*Maria Valenzuela*B1-2462~ N2*The Buyer, Inc.~

In a PostalAddress, cXML considers DeliverTo to be optional, but can send many. Ariba implements up to the first four here: two Name elements across two N2 segments. The first two iterations of DeliverTo will occupy the first N2 segment and the third and fourth iterations, if present, will occupy the second N2. Any further DeliverTo iterations will be ignored.

N201 93 Name M AN 1/60 M

Free-form name

N202 93 Name O AN 1/60 O

(31)

Segment:

N3

Position: 330

Max Use: 2

Usage Notes:

Example:

N3*1500 Buyer Way~ Street address information.

cXML requires one <Street> tag but can send many. Like the N2 above, Ariba SN implements up to the first four: two elements across two segments.

Address information

(32)

Segment:

N4

Position: 340

Max Use: 1

Used/Optional

Notes:

Example: N4*San Jose*CA*951103492*US~ Geographic information from the PostalAddress

cXML guarantees a City and Country. The State or Province code and the Postal Code are optional.

N401 19 City Name O AN 2/30 M

A US Zip Code can be five or nine digits. There will not be a separator present if the full nine digit code is sent. Canadian postal codes are six characters with no space.

(33)

Segment:

PER

Position: 360

Comments:

Usage Notes:

Used/Optional

Notes:

Example: PER*RE*Maria -

Primary*TE*14085551414*FX*14085551616*EM*[email protected]~ Contact information of Telephone, Fax, Email, and URL. cXML requires none, and only one of each is allowed.

Each contact tag carries a name to identify itself. Where possible, Ariba SN groups those with the same name together. If all four pieces are supplied, or if they carry distinct names, then multiple PER segments are required.

The telephone number supplied with either Phone or Fax is broken down by components by cXML. The number will be formatted appropriately here.

Note that a URL will be limited to the maximum length of the Communication Number element.

RE Receiving Contact

PER02 93 Name O AN 1/60 O

Free-form name

EM Electronic Mail

FX Facsimile

TE Telephone

(34)

EM Electronic Mail

FX Facsimile

TE Telephone

(35)

Segment:

N1

Detailed Contact Information - Name

Position: 310

Max Use: 1

Used/Optional

Notes:

Example: N1*NG*Administration~

This section of N1 allows for detailed contact information, beyond what can be specified in the PER[1/060] at the top, which is only intended for brief information.

Any contact that includes a PostalAddress must be specified here, along with contacts requiring a variety of name tags for a specified role.

<Name>

60 Salesperson

Identification of individual that sold the product e.g. SSN, salesperson id, etc.

role="sales"

A9 Sales Office

A business entity whose main activity is, or a location at which, the sale of goods or

services takes place role="customerService"

role="buyerCorporate"

CA Carrier

role="carrierCorporate"

EN End User

(36)

role="remitTo"

SF Ship From

role="shipFrom"

SO Sold To If Different From Bill To

role="soldTo"

SU Supplier/Manufacturer

role="supplierCorporate"

N102 93 Name X AN 1/60 O

(37)

Segment:

N2

Position: 320

Max Use: 2

Usage Notes:

Used/Optional

Notes:

Example: N2*Elmira Gulch*2nd floor~

Ariba SN accepts up to four DeliverTo tags from cXML: two elements across two segments.

N201 93 Name M AN 1/60 M

Free-form name

N202 93 Name O AN 1/60 O

(38)

Segment:

N3

Position: 330

Max Use: 2

Usage Notes:

Used/Optional

Notes:

N3*The Buyer, Inc.*1 Buyer Parkway~

In cXML, Street is required if PostalAddress is present. Ariba SN maps a maximum of four Street tags here: two elements across two segments.

Address information

(39)

Segment:

N4

Position: 340

Max Use: 1

Used/Optional

Notes:

N4*Chicago*IL*34592*US~ Geographic part of the address

N401 19 City Name O AN 2/30 M

(40)

PER

Position: 360

Comments:

Usage Notes:

Example:

PER*AM*Elmira - Admin*TE*18005551515*EM*[email protected]~ PER*AM**TE*18005552727*UR*http://admin.thebuyer.com~

Several PER's are allowed. The contact communications fragments are merged according to their name attributes. Those with the same name are placed in the same segment.

Code identifying the major duty or responsibility of the person or group named The code used here depends on the role specified in N101.

AE Corporate Purchasing Agent

role="purchasingAgent"

AM Administrator

role="administrator"

BD Buyer Name or Department

BL Technical Department

role="technicalSupport"

CN General Contact

role unspecified

CR Customer Relations

role="customerService"

EB Entered By

role="endUser"

SH Shipper Contact

SR Sales Representative or Department role="sales"

SU Supplier Contact

PER02 93 Name O AN 1/60 O

Free-form name

<Phone> .. <Fax> .. <Email> .. <URL> name %string; #IMPLIED
