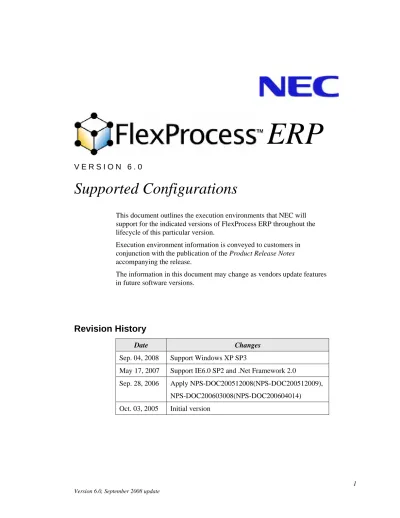

ERP
V E R S I O N 6 . 0
Supported Configurations
This document outlines the execution environments that NEC will
support for the indicated versions of FlexProcess ERP throughout the
lifecycle of this particular version.
Execution environment information is conveyed to customers in
conjunction with the publication of the
Product Release Notes
accompanying the release.
The information in this document may change as vendors update features
in future software versions.
Revision History
Date
Changes
Sep. 04, 2008
Support Windows XP SP3
May 17, 2007
Support IE6.0 SP2 and .Net Framework 2.0
Sep. 28, 2006
Apply NPS-DOC200512008(NPS-DOC200512009),
NPS-DOC200603008(NPS-DOC200604014)
Oct. 03, 2005
Initial version
Supported Configurations
Support Level Definitions
・
Certified:
NEC has fully tested and certified both FlexProcess ERP
on the specified environment and fully supports product usage.
・
Supported:
The specified environment is fully supported by NEC, but
NEC has not fully tested FlexProcess ERP in this environment.
・
Projected:
The specified environment is fully supported by NEC,
although NEC has not completed FlexProcess ERP testing in
this environment.
・
Not Supported:
NEC does not support product usage in the specified
environment. NEC has not tested or has tested and not approved
FlexProcess ERP in the specified environment. Any environment not
noted is considered
not supported
.
・
Required:
The specified software or hardware is mandatory in order
to run FlexProcess ERP.
Application Release Levels
The information in this document applies to the following release levels for
each FlexProcess application:
Production, Inventory, Planning, Customer Order
Management (COM), Costing, Resource
Accounting, Financials and Purchasing
Supported Configurations
PC Client Configurations
ERP 6.0
Base (a)
ERP 6.0
Advanced
Functions (b)
ERP 6.0
Planning &
Costing (c)
Microsoft Windows XP Professional
w/ Service Pack 2
Microsoft Windows XP Professional
w/ Service Pack 3
Microsoft Internet Explorer 6.0
w/ Service Pack 1 and 2
Microsoft Windows Server 2003
w/ Terminal Services
w/o Service
Pack and w/ Service Pack 1 (d)
(a)
FlexProcess Base includes all FlexProcess ERP applications except Advanced Functions, Planning,
and Costing.
(b)
FlexProcess Advanced Functions include: COM Order Entry, COM Invoice Generator Launch, and
Autoreservations.
(c)
It is possible to use Planning and Costing from the Windows Server 2003 Terminal Services Client,
but due to the CPU and memory usage of these applications, NEC recommends that you contact NEC
FlexProcess Support before using this configuration. For more information about setting up Windows
Server 2003 Terminal Services, see the FlexProcess Installation Guide.
(d)
Citrix MetaFrame Presentation Server 3.0
or Citrix Presentation Server 4.0
using Citrix ICA Client,
in conjunction with Windows Server 2003 Terminal Services, is an optional component that provides
the ability to run FlexProcess through an internet browser. It also provides security enhancements for
Windows Server 2003 Terminal Services.
Supported Configurations
Database Server Support
Server Platform
ERP 6.0
Microsoft SQL Server 2000
w/ Service Pack 4
Character Set(s):
Latin1_General (Code Page 1252)
Japanese (Code Page 932)
Simplified Chinese(Code Page 936)
Intel / Windows
Server 2003 (a)
Intel / Windows
Server 2003 (a)(b)
Oracle9i Standard Edition 9.2.0
32-bit version
Character Set(s):
WE8ISO8859P1
JA16SJIS
ZHS16GBK
HP 9000 / HP-UX (c)
Intel / Windows
Server 2003 (a)(b)
Oracle9i Enterprise Edition 9.2.0
32-bit version
Character Set(s):
WE8ISO8859P1
JA16SJIS
ZHS16GBK
HP 9000 / HP-UX (c)
Intel / Windows
Server 2003 (a)
Oracle10g Standard Edition 10.1.0
32-bit version
Character Set(s):
WE8ISO8859P1
JA16SJIS
ZHS16GBK
HP 9000 / HP-UX (c)
Intel / Windows
Server 2003 (a)
Oracle10g Enterprise Edition 10.1.0
32-bit version
Character Set(s):
Supported Configurations
Oracle10g Standard Edition 10.2.0
32-bit version
Character Set(s):
WE8ISO8859P1
JA16SJIS
ZHS16GBK
Intel / Windows
Server 2003 (a)
HP 9000 / HP-UX (c)
Intel / Windows
Server 2003 (a)
Oracle10g Enterprise Edition 10.2.0
32-bit version
Character Set(s):
WE8ISO8859P1
JA16SJIS
ZHS16GBK
HP 9000 / HP-UX (c)
(a)
Windows Server 2003 on the Intel platform is certified or supported.
(b)
Oracle9i 9.2.0.3.0 or higher is supported on Windows Server 2003.
(c)
HP-UX Version 11.0 on the HP 9000 platform is certified or supported.
Supported Configurations
Middle-Tier Server Support
ERP 6.0 (a)
Microsoft Windows Server 2003
w/o Service Pack and w/ Service Pack 1
Supported Configurations
Other Software Support
ERP 6.0
Microsoft Office XP w/ Service Pack 3
Microsoft Office 2003 w/ Service Pack 1 and w/ Service Pack
2
Microsoft Visio 2002 or 2003
Microsoft Visual Studio 6.0 w/ Service Pack 6
Microsoft Visual Studio .NET 2003
Microsoft Internet Information Services 6.0 (a)
Microsoft .NET Framework 1.1 w/ Service Pack 1 and
Microsoft .NET Framework 2.0 (e)
Microsoft Windows Server 2003 w/ Terminal Services (b)
Citrix MetaFrame Presentation Server 3.0(b) and Citrix Presentation
Server 4.0(c)
ObjectStore 6.1 w/ Service Pack 1
(d)
Supported Configurations
(b)
Citrix MetaFrame Presentation Server 3.0 using Citrix ICA Client, in conjunction with Windows
Server 2003 Terminal Services, is an optional component that provides the ability to run FlexProcess
through an internet browser. It also provides security enhancements for Windows Server 2003
Terminal Services.
(c)
You need to be careful of a security policy if you install the Citrix Presentation Server 4.0 and launch
FlexProcess as a Published Application. If you are running the ObjectStore server on the same PC as
FlexProcess, it is required to have the "Create Global Object" user right in local security policy. You
have to configure the same right as well as the Published Application in Citrix Management Console.
You can also refer to FlexProcess Installation Guide, "Chapter 7: Third-Party Software - Running
ObjectStore from a local server".
(d)
Required for Planning and Costing. ObjectStore 6.1 SP1 is delivered as part of FlexProcess Version
6.0.
Supported Configurations
ODBC with FlexProcess Version 6.0
FlexProcess only uses ODBC to access Microsoft SQL Server and Oracle
databases. Each type of database requires a unique driver. The drivers listed
below are certified.
Microsoft SQL
Server
- For Microsoft SQL Server 2000:
use the Microsoft
SQL Server ODBC driver version
2000.85.1022.00 or higher.
Oracle
- For Oracle9i 9.2.0:
use the Oracle9i 9.2.0 ODBC
driver version 9.2.0.1.0 or higher.
- For Oracle10g 10.1.0:
use the Oracle ODBC
driver version
10.1.0.2 10.2.0
or higher.
Oracle Database Client Support
If you are using an Oracle database, you must have certain utilities on each
client. Installing an older version could result in poor performance when
connecting to the Oracle databases.
Conversion from Prior Releases of FlexProcess
Upgrade of FlexProcess databases from the following version levels of
FlexProcess is certified:
・
FlexProcess
-
Version 4.0
-
Version 5.0
-
Version 5.1
Please
contact NEC FlexProcess Support
to confirm which level of patch is
certified for each release.
Supported Configurations
