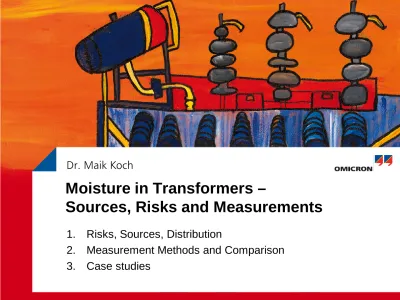

Moisture in Transformers –
Sources, Risks and Measurements
Dr. Maik Koch1. Risks, Sources, Distribution
2. Measurement Methods and Comparison 3. Case studies
Temperature / °C 50 70 90 110 130 0,1 1 10 100 1000 Li fe ex p ec ta n c e / a Dry 1% 2% 3% 4%
Risks of Water in Transformers
1. Dielectric strength decreases
- PD inception voltage - Breakdown voltage
2. Accelerated aging of cellulose
Depolymerization by hydrolysis
Short circuit current forces may destroy winding
L. E. Lundgaard, “Aging of oil-impregnated paper in power transformers”, IEEE Transactions on Power Delivery, Jan. 2004
x
B reak do w n v ol ta ge / k V 0 20 40 60 80 100 0 20 40 60 80 100 Moisture saturation / % HOSO FR3 Midel 7131 Midel eN NN3000X HOSO FR3 Midel 7131 Midel eN NN3000XRisks of Water: Bubbling
External player
3. Bubble evolution
from wet paper
PD or breakdown may occur
Sources of Water
Breathing
Leaky seals
Installation, repair
Water from aging Residual moisture
How Wet Are Transformers?
0 1 2 3 4 5 6 7 0 10 20 30 40 50M
o
is
tu
re
c
o
n
te
n
t
/ %
Age / years D1.0 M1.5 R3.0 P3.0 WCO WSO• 61 Transformers, some measured several times
• 6 different measurement techniques
0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 Solvent and free water Increasing pressure and/or temperature Strongly bound monolayer
Less strongly bound water layers and capillary adsorbed water
Adsorpt ion Desorp tion Relative humidity (%) W at er c on ten t (% ) Page: 6
Water Absorption in Oil and Cellulose
20 30 40 50 60 70 80 0 200 400 600 800 20 30 40 50 60 70 80 0 200 400 600 800 M oi s tur e S at ur at ion [ppm ] Oil 1 Oil 1 Oil 4 Oil 4 Oommen Oommen NN 0,49 Silicone Silicone Temperature [°C] Capillar condensation Physical adsorption Chemical adsorption H H H H H O O O O O H H H H H H H C H H H O O O H H H H H O O O H H H O O H H O H
Oil: Saturated hydrocarbons
• Nonpolar molecules very low water solubility (ppm)
• Increases with aromatics, aging products (acids)
Cellulose: Glucose rings with OH-groups
• Polar and therefore hygroscopic, • Water receptivity 2000-fold to oil
Moisture Distribution
© OMICRON Seite 7
[Ryzhenko, V. Sokolov, V.: Effect of Moisture on Dielectric Withstand Strength of Winding Insulations in Power Transformers. Electrical Stations (Electric Power Plants) No. 9, 1981]
125/95°C 85/65°C Temp. 1,4/2,1% 2,4/2,9% Moisture 270/420 441/1105 DP
T+
T–
Oil 16 ppm 1,1 kg H2O cellulose W = 3 % 210 kg waterExample:
150 MVA, 7 t cellulose, 70 t Mineral oil, Temperature 40°C Important to know how wet the paper/pressboard is, rather than the oil!
Moisture in Transformers –
Sources, Risks and Measurements
Dr. Maik Koch
1. Risks, Sources, Distribution
2. Measurement Methods and Comparison 3. Case studies
History of Moisture Estimation Methods
1935 Karl Fischer titration
• Determination of water in liquids and solids • Regular testing of oil samples
Equilibrium Diagrams
1960 Fabre Pichon,
based on ppm, often redrawn Various uncertainties
1995+ first on-line RS probes RS instead of ppm
Dielectric Response Analysis
1927 Schering bridge C/DF/PF at 50/60Hz 1991 RVM – today not used 1995 PDC 1999 FDS 2007 Combination PDC+FDS Frequency Di s s ip a ti o n f a c to r
Karl Fischer Titration
• Reference for other methods• Measures water content • Water relative to weight
[µg, %, ppm]
Possible errors:
• Transportation to laboratory • Sample preparation
• Titration system
• Measurement of bound water depends on heating temperature and time
Scattered results obtained by Round Robin Tests
5,8 16,2 15,2 8,9 12,2 19,8 7,5 0 5 10 15 20 25 US B C D E F G M oi s tur e i n oi l ( ppm )
Sample A Sample B Sample C 4,7 5,8 32,8 6,7 16,2 54,8 11,2 15,2 44,3 3,5 8,9 9,512,1 12,2 19,8 4,8 7,5 40 0 10 20 30 40 50 60 M oi s tur e i n oi l / p pm 340 35,3 39,8 A B C D E G F D ev iat ion f rom av er a ge / % -40 -20 0 20 40 60 80 A B C D E F G w it hout s a m p le C
Round Robin Test on Oil Samples
Comparability is dissatisfying!
Calculation of Moisture in Paper:
Equilibrium Diagrams
1. Onsite oil sampling, transportation to laboratory 2. Moisture content determination (ppm)
3. Application of an equilibrium diagram
Sampling Uncertainty of KFT Equilibrium conditions Literature sources Absorption capacity Aging
Aging
Capacitive Probes
20 30 40 50 60 70 80 0 200 400 600 800 20 30 40 50 60 70 80 0 200 400 600 800 M oi s tur e S at ur at ion [ppm ] Oil 1 Oil 1 Oil 4 Oil 4 Oommen Oommen NN 0,49 Silicone SiliconeBased on moisture equilibrium Moisture relative to saturation • Hygroscopic polymer film • Change of capacity
• Result: 0-100 % or 0-1 aw Possible errors:
• Diffusion of aging byproducts • Corrosion of electrodes
Calibration necessary
Cw,S = 122 ppm
Cw,S = 280 ppm
Calculation of ppm (μg/g) by oil specific coefficients
Example: Cw,rel = 10%, 40°C • New Oil: Cw = 12 ppm • Aged oil: Cw = 28 ppm
Calibration to oil essential
upper porous electrode
bottom electrode , glass substrate polymer film
Equilibrium Based on Moisture
Saturation
Aging of oil can be excluded
Onsite and on-line application
01.06.2003 05.06.2003 09.06.2003 13.06.2003 17.06.2003 0 5 10 15 20 25 30 35 40 45 50 55 60 65 0 2 4 6 8 10 T o p o il t e m pe ra tur e / ° C Time, date Oil temperature RS in cellulose RS in oil R el at iv e s at u rat ion / %
Moisture relative to saturation / % 0 1 2 3 4 5 0 10 20 30 40 M o is tu re in ag ed K raf t p ape r / % Aged KP 21°C Aged KP 40°C Aged KP 60°C Aged KP 80°C 2,2 4,1 Equilibrium conditions:
Long time constant
Only elevated temperatures
Not for factory test
Dielectric Response Analysis
© OMICRON Page 16 Tank Guard HV-winding LV-winding Voltage source Main insulation~
Current meter Frequency/Hz 0.0001 0.01 0.1 1.0 10 0.002 0.010 0.100 1.000 1000 0.001 5.000 DF 0.12 0.0024 50 0.0036New Moderate Aged
?
Interpretation and Analysis
© OMICRON Page 17 f/Hz 0.001 0.01 0.1 1.0 10 100 D is s ipat ion fac tor 0.0001 0.001 0.01 0.1 1 10 0.0001 Overall response 1%, 1pS/m, X30, Y15 1000 Oil: carbon, soot, hmw acids Pressboard: water, lmw acids Insulation geometry Pressboard, connections, guardingAutomatic Moisture Calculation
Oil conductivity
Water content
Saturation Assessment
Page: 20 October 13
Combined FDS-PDC Test
C ur rent [ nA ] Time [s] Trans- formation Frequency [Hz] D is s ipat ion f ac tor 0,001 0,001 1 1000 1000 1 100 1 Frequency [Hz] D is s ipat ion f ac tor 1000 1 0,001 0,1 0 2 4 6 8 10 12 14 PDC Combined T im e n eed / h 0,0001 0,001 0,01 0,1 1 10 100 1000 F requ en c y r an ge / H z FDS • f > 0,1 Hz frequency domain • f < 1 Hz time domain 22 min for 1 kHz - 1 mHz 2:50 h for 1 kHz - 0,1 mHzPage: 21 October 13
Moisture Content and Age
0 1 2 3 4 5 6 7 0 10 20 30 40 50
M
o
is
tu
re
c
o
n
te
n
t
/ %
Age / years D1.0 M1.5 R3.0 P3.0 WCO WSO DIRANA MODSWater content Water saturation
Dielectric Response: Equilibrium:
Dielectric Response Analysis
Seite 22
Different data bases
However good agreement
Differences for aged transformers
0 1 2 3 4 5 25 22 25 25 22 32 22 55 78 21 21 16 20 9 25 29 30 55 25 25 21 DIRANA MODS W at er c ont ent / % Temperature / °C
Equilibrium Methods
© OMICRON Seite 23
High moisture content using moisture content in oil ppm Reasonable agreement between moisture saturation and
Relative Deviation
• Good agreement of dielectric response analysis with
paper samples
© OMICRON Seite 24-40%
-20%
0%
20%
40%
60%
Moisture in Transformers –
Sources, Risks and Measurements
Dr. Maik Koch
1. Risks, Sources, Distribution
2. Measurement Methods and Comparison 3. Case studies
Page: 26 October 31, 2013
New Transformers
• Very different DF curves B / A
• Same moisture content 0,4 % / 0,4%
• Different oil conductivity 0,94 pS/m / 0,06 pS/m • PI would undervalue A • Stop at 1 or 2 mHz would
make analysis impossible 0.001 0.01 0.1 1 10 100 1000 Frequency / Hz D is s ipat ion f ac tor 0.0001 0.01 0.03 0.1 0.3 0.7 0.003 A B
Page: 27 October 31, 2013
Transformer in Meiningen/Austria
Manufactured in 1967 Rated power 133 MVA 230/115/48 kV
Cooling: Oil forced/air forced
Technical data
Page: 28 October 31, 2013
Measurement Instruments
Onsite oil samples
Capacitive probe Vaisala HMP 228: RH = 10,1% KF titration CW = 19 ppm 0 1 2 3 4 5 6 0 10 20 30 40
Moisture relative to saturation [%]
M oi s tur e i n K raf t p ap er [ % ] 21°C 40°C 60°C 80°C Dielectric measurements FDS, PDC Analysis by DIRANA
Drying History
• On-line drying with oil circulation for 1,5 years
0 1 2 3 4 5 2005 2006 2007 2008 2009 2010 2011 M oi st ur e co nt ent / % Year Dirana CHL Dirana CLT RS equilibrium PPM equilibrium
Page: 31 October 31, 2013
Heavily Aged Transformer
III. Dielektrische Messverfahren: Praxis0 1 2 3 4 5 6 M oi s tur e c ont ent / % Contradictory results Oil sampling
Moisture in cellulose derived from oil
Dielectric methods
Moisture in cellulose from dielectric properties (PDC, FDS, Dirana)
Manufactured in 1950
Oil: Shell K6SX from 1965, acidity 0,5 mg KOH / g oil,
conductivity 1300pS/m @ 21°C DP 593 top / 718 bottom
DP from furane analysis: 237
O il ppm Oil R S P DC F DS DI RA NA
Proved by paper samples
Moisture in cellulose by KF titration
K
Moisture in Transformers - Sources,
Risks and Measurements
Maik Koch
1. Measurement Methods
2. Comparison
Drying in the Manufacturing
Process
• Vacuum ovens costly • Bottleneck in process
• Drying time depends on ambient humidity and raw material
Optimizing drying time saves energy and costs!
Progress of Oven Drying
• without vacuum is the lowest moisture content limited • lower values can be reached with vacuum
0 1 2 3 4 5 0 50 100 150
Drying Time [min] Without
vacuum vacuum With
0.3 0.8
Summary
• Utilities approach 1
– Regular oil sampling(ppm, preferably RS) – Dielectric response test
after indication
• Utilities approach 2
– Regular DR analysis along with other electrical tests
– Comparison to RS equilibrium for confirmation Dry Moderately wet Wet Extremely wet 0 1 2 3 4 5 6 7 0 10 20 30 40 50 M oi s tur e c ont ent / % Age / years D1.0 M1.5 R3.0 P3.0 WCO WSO
