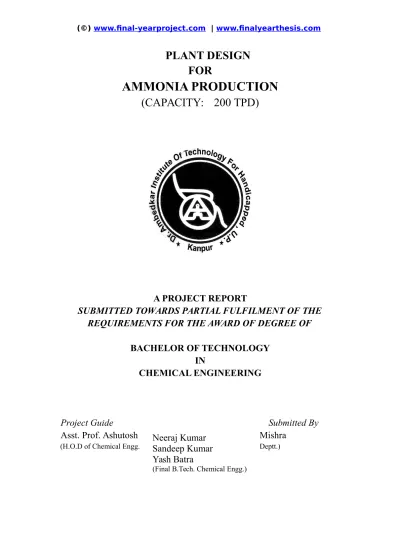

PLANT DESIGN

FOR

AMMONIA PRODUCTION

(CAPACITY: 200 TPD)

A PROJECT REPORT

SUBMITTED TOWARDS PARTIAL FULFILMENT OF THE

REQUIREMENTS FOR THE AWARD OF DEGREE OF

BACHELOR OF TECHNOLOGY

IN

CHEMICAL ENGINEERING

Project Guide Submitted By

Asst. Prof. Ashutosh

Mishra

(H.O.D of Chemical Engg.

Neeraj Kumar

_{Sandeep Kumar}

Deptt.)

Yash Batra

ACKNOWLEDGEMENT

We would like to convey our deepest gratitude to Asst. Prof. Ashutosh Mishra, who guided us through this project. His keen interest, motivation and advice helped us immensely in successfully completing this project. We would also like to thank him for allowing us to avail all the facilities of the Department necessary for this project.

We also wish to express our gratefulness towards all the faculty members for their guidance throughout the project.

Lastly, we can’t forget the contribution of the Lab Attendants in giving wings to our efforts.

Neeraj Kumar Sandeep Kumar Yash Batra

CERTIFICATE

This is to certify that the project entitled “PLANT DESIGN FOR MANUFACTURE OF AMMONIA (GAS BASED)” submitted by Neeraj Kumar, Sandeep Kumar and Yash Batra to the Department of Chemical Engineering, Dr. Ambedkar Institute of Technology for Handicapped, Kanpur, as the final year undergraduate project is a bonafide piece of work carried out by them under my guidance and supervision.

This work has not been submitted either in part or full in any other university for any purpose whatsoever.

Asst. Prof. Ashutosh Mishra

ABSTRACT

Sincere efforts have been made to cover as comprehensively as possible the various aspects of the stated problem. The report begins with an introduction of ammonia and its importance as regards an Indian viewpoint. It gives a list of various properties and uses of ammonia, which have been prepared after an extensive literature survey.

The report then describes the various processes that are available for its manufacture and then deals with the basic raw materials required for the ammonia manufacture i.e natural gas. It then covers the important aspects of process selection and the selected process is described in detail along with the relevant equations and flow diagrams.

After this, report incorporates a detailed material and energy balance of the process selected and also gives a list of the sizing of the equipment in the flow diagram according to the capacity. This is followed by a detailed chemical and mechanical design of some important equipment.

The report then gives some information on aspects such as PI & Control, safety, storage & handling, utilities, plant location & layout, pollution control, etc.

Finally, the report deals with the most important aspect of the economic viability and techno economic feasibility of the plant in the Indian environment.

INDEX

 Introduction  Physical Properties  Chemical Properties  Flow Sheet  Material Balance  Energy Balance  Process Design  CO2 Absorber  Ammonia Converter  CO2 Stripping Column  Process Utility  Catalyst Used  Plant Safety  Hazard Identification  Effluent treatment

 Storage handling and Transportation

 Site Selection and Plant Layout

 Cost Estimation

 Conclusion

Introduction

Ammonia is a chemical consisting of one atom of nitrogen and three atoms of hydrogen. It is designated in chemical notation as NH3.

Ammonia is extremely soluble in water and is frequently used as a water solution called aqua ammonia. Ammonia chemically combines with water to form ammonium hydroxide. Household ammonia is a diluted water solution containing 5 to 10 percent ammonia. On the other hand, anhydrous ammonia is essentially pure (over 99 percent) ammonia. "Anhydrous" is a Greek word meaning "without water;" therefore, anhydrous ammonia is the ammonia without water.

Refrigerant grade anhydrous ammonia is a clear, colourless liquid or gas, free from visible impurities. It is at least 99.95 percent pure ammonia. Water cannot have a content above 33 parts per million (ppm) and oil cannot have a content above 2 ppm. Preserving the purity of the ammonia is essential to ensure proper function of the refrigeration system.

Physical Properties

Anhydrous ammonia is a clear liquid that boils at a temperature of -28°F. In refrigeration systems, the liquid is stored in closed containers under pressure. When the pressure is released, the liquid evaporates rapidly, generally forming an invisible vapour or gas. The rapid evaporation causes the temperature of the liquid to drop until it reaches the normal boiling point of -28°F, a similar effect occurs when water evaporates off the skin, thus cooling it. This is why ammonia is used in refrigeration systems.

Liquid anhydrous ammonia weighs less than water. About eight gallons of ammonia weighs the same as five gallon of water

Liquid and gas ammonia expand and contract with changes in pressure and temperature. For example, if liquid anhydrous ammonia is in a partially filled, closed container it is heated from 0°F to 68°F, the volume of the liquid will increase by about 10 percent. If the tank is 90 percent full at 0°F, it will become 99 percent full at 68°F. At the same time, the pressure in the container will increase from 16 pounds per square inch (psi) to 110 psi.

Liquid ammonia will expand by 850 times when evaporating:

Anhydrous ammonia gas is considerably lighter than air and will rise in dry air. However, because of ammonias tremendous affinity for water, it reacts immediately with the humidity in the air and may remain close to the ground.

The odour threshold for ammonia is between 5 - 50 parts per million (ppm) of air. The permissible exposure limit (PEL) is 50 ppm averaged over an 8 hour shift. It is recommended that if an employee can smell it they ought to back off and determine if they need to be using respiratory protection.

Chemical Properties

Ammonia, especially in the presence of moisture, reacts with and corrodes copper, zinc, and many alloys. Only iron, steel, certain rubbers and plastics, and specific nonferrous alloys resistant to ammonia should be used for fabrications of anhydrous ammonia containers, fittings, and piping.

Ammonia will combine with mercury to form a fulminate which is an unstable explosive compound.

Anhydrous ammonia is classified by the Department of Transportation as non-flammable. However, ammonia vapour in high concentrations (16 to 25 percent by weight in air) will burn. It is unlikely that such concentrations will occur except in confined spaces or in the proximity of large spills. The fire hazard from ammonia is increased by the presence of oil or other combustible substances.

Anhydrous ammonia is an alkali. Summary of properties:

Boiling Point -28°F Weight per gallon of liquid at -28°F 5.69 pounds Weight per gallon of liquid at 60°F 5.15 pounds Specific gravity of the liquid (water=1) 0.619 Specific gravity of the gas (air=1) 0.588 Flammable limits in air 16-25% Ignition temperature 1204°F Vapour pressure at 0°F 16 psi Vapour pressure at 68°F 110 psi Vapour pressure at 100°F 198 psi

One cubic foot of liquid at 60°F expands to 850 cubic foot of gas

 Ammonia Melting point : -78o_C

 Ammonia Latent heat of fusion (1,013 bar, at triple point) : 331.37 kJ/kg

 Ammonia Liquid Density (1.013 bar at boiling point) : 682 kg/m3 _{(250 K : 669 kg/m}3₎

(300 K : 600 kg/m3_{) (400 K : 346 kg/m}3₎

 Ammonia Liquid Specific Heat Capacity (cp) (250 K : 4.52 kJ/kg.K) (300 K : 4.75

kJ/kg.K) (400 K : 6.91 kJ/kg.K)

 Ammonia Liquid/gas equivalent (1.013 bar and 15o_{C (59}o_{F)) : 947 vol/vol}

 Ammonia Liquid Dynamic Viscosity (250K : 245 106 _Ns/m2_{) (300K : 141 10}6 _Ns/m2₎

(400K : 38 106 _Ns/m2₎

 Ammonia Liquid Thermal Conductivity (250 K : 592 106 _{kW/m.K) (300 K : 477 10}6

kW/m.K) (400 K : 207 106 _kW/m.K)

 Ammonia Boiling point (1.013 bar) : -33.5o_C

 Ammonia Latent heat of vaporization (1.013 bar at boiling point) : 1371.2 kJ/kg

 Ammonia Vapour pressure (at 21o_{C or 70}o_{F) : 8.88 bar}

 Ammonia Critical point - Critical temperature : 132.4o_{C - Critical pressure : 112.8 bar}

 Ammonia Gas Density (1.013 bar at boiling point) : 0.86 kg/m3

 Ammonia Gas Density (1.013 bar and 15o_{C (59}o_{F)) : 0.73 kg/m}3

 Ammonia Gas Compressibility Factor (Z) (the ratio of the actual volume of the gas to the volume determined according to the perfect gas law) (1.013 bar and 15o_{C (59}o_{F)) :}

0.9929

 Ammonia Gas Specific Gravity (air = 1) (1.013 bar and 21o_{C (70}o_{F)) : 0.597}

 Ammonia Gas Specific volume (1.013 bar and 21o_{C (70}o_{F)) : 1.411 m}3_/kg

 Ammonia Gas Specific Heat Capacity at constant pressure (cp) (1.013 bar and 15oC

(59o_{F)) : 0.037 kJ/(mol.K)}

 Ammonia Gas Specific Heat Capacity at constant volume (cv) (1.013 bar and 15oC

 Ammonia Gas Ratio of Specific Heats (Gamma: cp/cv) (1.013 bar and 15oC (59oF)) :

1.309623

 Ammonia Gas Dynamic Viscosity (1.013 bar and 0o_{C (32}o_{F)) : 0.000098 Poise}

 Ammonia Gas Thermal conductivity (1.013 bar and 0o_{C (32}o_{F)) : 22.19 mW/(m.K)}

 Ammonia Gas Solubility in water (1.013 bar and 0o_{C (32}o_{F)) : 862 vol/vol}

Ammonia product

Separator PGR

Ammonia convertor

CO2 removal system Absorber & Stripper CO2 Steam Air Methanator Compressor Purge gas Natural gas

MATERIAL BALANCE

Natural gas composition (as supplied by ONGC):

Component Vol % CH4 89.96 C2H6 4.09 C3H8 2.3 i-C4H10 0.46 n-C4H10 0.6 i-C5H12 0.2 n-C5H12 0.2 CO2 0.35 N2 1.84 Sulphur content : 5 ppm

(Data taken from IFFCO Kalol plant manual) Calculating from above data

Mole fraction of carbon , xC : 0.219

Mole fraction of hydrogen , xH : 0.781

Main reaction of primary reformer is

CH4 + H2O CO + 3H2 ΔH = +ve

CO + H2O CO2 + H2 ΔH = -ve

Inlet temperature of primary reformer: 500°C Outlet temperature of primary reformer: 800°C Let flow rate of inlet stream: F1 (mol/s)

Composition of primary reformer outlet:

xH2 0.337 xCO2 0.051 xH2O 0.489 xCO 0.087 xCH4 0.0357 Steam added = 3 × xC × F1 = 0.657F0

Let outlet flow rate = F2 mol/s

Balancing carbon at inlet and outlet of primary reformer 0.219F1 = (0.087+0.051+0.0357) F2

0.219F1 = 0.1737F2

F2 = 1.261×F1 …………. (1)

Inlet temperature: 800°C

Reactions taking place here are:

CH4 + H2O CO + 3H2 ΔH = +ve

CH4 + ½ O2 CO + 2H2 ΔH = -ve

H2 + ½ O2 H2O ΔH = -ve

CO+ ½ O2 CO2 ΔH = -ve

Air is added here so that complete conversion of CH4 takes place

Let air added = A mol/s So,

0.21 × A = 2× xCH4 ×F2

A = 0.34 F2 = 0.429F1 … (2)

Composition at secondary reformer outlet

xH2 0.365 xCO2 0.055 xN2 0.1446 xCO 0.0735 xCH4 0.0012 xinert 0.0007 xsteam 0.36

Balancing carbon at inlet and outlet of secondary reformer: (0.087+0.051+0.0357)F2 = (0.0735+0.055+0.0012) F3

F3 = 1.339 ×F2 = 1.689×F1 ……… (3)

Inlet temperature: 400°C CO + H2O CO2 + H2 Outlet composition of HTSC: xH2 0.418 xCO2 0.108 xN2 0.145 xCO 0.02 xCH4 0.0012 xinert 0.0007 xsteam 0.3 Balancing carbon: 0.1297 F3 = (0.02+.108+.0012) F4 F4 = 1.004F3 = 1.689F1 ………. (4)

LOW TEMPERTURE SHIFT CONVERTOR:

Inlet temperature: 200°C CO + H2O CO2 + H2 Outlet composition of LTSC: xH2 0.436 xCO2 0.126 xN2 0.145 xCO 0.002 xCH4 0.0012 xinert 0.0012 xsteam 0.289 Balancing carbon, We get …. F5 = F4 = 1.689F1 ……….. (5)

Recycle gas, R

Purge gas, Pg

NH3

Fci Fco

Recycle comp Convertor Separator

P.G.R Make up gas, M

CONDENSER:

Outlet from LTSC goes to condenser, where steam gets condensed out and rest of the gases go to CO2 absorber section. At inlet of condenser: xH2 0.436 0.736F1 xCO2 0.126 0.213 F1 xN2 0.145 0.245 F1 xCO 0.002 0.003 F1 xCH4 0.0012 0.0012 F1 xinert 0.0012 0.0012 F1 xsteam 0.289 0.488 F1 SYNTHESIS LOOP:

Component Purge ( Pg) Recycle (R) At convertor inlet, (Fci) H2 0.721 0.618 0.645 N2 0.0898 0.205 0.215 NH3 0.0955 0.0257 0.019 Inerts 0.0932 0.151 0.1199

Applying mass balance for completer loop, M (xinert)M = Pg(xinert)Pg

M (xN2)M = Pg(xN2)Pg + ½ (Pg(xNH3)Pg +136.2)

M (xH2)M = Pg(xH2)Pg + 3/2 (Pg(xNH3)Pg +136.2)

Adding all these,

M = 1.095Pg +272.4 ………….. (6)

Also at separator,

Fco = Pg + R + 136.2 ………….. (7)

At recycle point,

Fci = M+ R ………….. (8)

Taking 14% conversion per pass for the reactor at 200 atm pressure and 500°C, Fco = Fci (xN2)Fci×0.86 + Fci (xH2)Fci×0.86 + Fci (xNH3)Fci + Fci (xN2)Fci×0.28 + Fci (xinert)Fci

On solving,

Fco = 0.9387×Fci …………. (9)

Also at recycle,

R(xNH3)R = Fci(xNH3)Fci

Fci = 1.35×R ………….. (10)

Stream Flow rate (Mol/s) R 2136.12 M 747.64 Fci 2883.76 Pg 434.18 Fco 2706.98

Make up gas to synthesis loop comes from methanator.

METHANATOR

Outlet composition of this is same as that at inlet of synthesis loop. Components Mole fraction Flow rate (Mol/s) H2 0.737 552.88 N2 0.249 186.54 CH4 0.007 5.15 Inert (CO, CO2, & Ar)

0.004 3 Steam 0.003 2.25

Inlet flow rate for methanator can be calculated using inlet composition for methanator and balancing flow rate of nitrogen (as nitrogen remains unaffected in methanator).

Components Mole fraction Flow rate (Mol/s) H2 0.745 562.54 N2 0.247 186.54 CH4 0.002 1.51 Inert 0.001 0.75 CO 0.004 3.02 CO2 0.001 0.75 CO2 ABSORBER:

In CO2 absorber, only Carbon dioxide is absorbed and rest of the gases remain unaffected.

Inlet and outlet compositions for CO2 absorber,

Components Inlet mole fraction Outlet mole fraction Outlet flow rate (Mol/s) H2 0.687 0.745 562.54 N2 0.228 0.247 186.54 CH4 0.002 0.002 1.51 Inert 0.004 0.001 0.75 CO 0.078 0.004 3.02 CO2 0.001 0.001 0.75

Let inlet flow rate: Fa

Balancing hydrogen in CO2 absorber,

Fa = 818.98 mol/s

CO2 removed in CO2 absorber = 0.078×818.98 - 0.75

= 63.13 mol/s

CONDENSOR:

Steam formed in LTSC & HTSC is removed in this unit. Outlet for condenser is inlet for the absorber. As other gases do not get affected, so we can balance flow rate for any other gas. From earlier calculations,

xH2 0.436 0.736F1 xCO2 0.126 0.213 F1 xN2 0.145 0.245 F1 xCO 0.002 0.003 F1 xCH4 0.0012 0.0012 F1 xinert 0.0012 0.0012 F1 xsteam 0.289 0.488 F1

Equating flow of hydrogen 0.736×F1 = 562.64

F1 = 764.46 mol/s

Using relations (1), (2), (3), (4) and (5) F2 = 963.98 mol/s

F3 = F4 = F5 = 1291.8 mol/s

Air added in secondary reformer, A = 327.95 mol/s Steam added in primary reformer = 502.25 mol/s

ENERGY BALANCE

Reactions taking place in primary reformer are: CH4 + H2O CO + 3H2 ΔH298 = +206 kJ/mol CO + H2O CO2 + H2 ΔH298 = - 41 kJ/mol Inlet temperature : 500°C Outlet temperature : 800°C ΔH1073 = ΔH298 +



 1073 298 Cpi xi Thus ,

Heat required by first reaction : Flow rate of methane × (ΔH1073 )1

= 1.87× 107 _J/s

Heat liberated by second reaction : Flow rate of carbon monoxide × (ΔH1073 )2

= 7.55 × 105 _J/s

Enthalpy content of outlet stream :

 (F .x .Cp.1073) = 4.05× 107 _J/s

Enthalpy content of inlet stream :

 (F .x .Cp.773) = 3.81× 107 _J/s

Additional heat required,

4.05× 107 _{+ 1.87× 10}7 _{- 7.55 × 10}5 _{- 3.81× 10}7 _J/s

= 2.03 ×107 _J/s

Part of this heat is provided by the steam (at 30 atm) Steam enthalpy = 2802.3 kJ/Kg = 50491.9 J/mol Enthalpy content in steam = 2.53 × 106 _J/s

Rest of heating is done in convection zone of primary reformer using natural gas, Heat utility of convection zone: (2.03 – 0.253) × 107 _J/s

= 1.78 × 107 _J/s

Calorific value of natural gas = 39383.2 kJ/m3

Amount of natural gas required

= 3.94 78 . 1 m3_{/s = 0.451 m}3_/s SECONDARY REFORMER:

Air added in secondary reformer = 327.95 mol/s

This is pre-heated to 800°C before being fed to secondary reformer. Heat required for heating air from 30°C to 800°C = 7×106 _J/s

Again natural gas is used for heating purpose,

Amount of natural gas required : (7×106_{) / (3.94×10}7_{) = 0.178 m}3_/s

CH4 + H2O CO + 3H2 ΔH = +ve

H2 + ½ O2 H2O ΔH = - ve

CO+ ½ O2 CO2 ΔH = - ve

Heat required by reaction 1 at 1073 K = 0.34 × 107 _J/s

Heat liberated by reaction 2 at 1073 K = 0.49 × 107 _J/s

Heat liberated by reaction 3 at 1073 K = 0.221 × 107 _J/s

Heat released due to the 3 reactions = 0.371 × 107 _J/s

This heat increases temperature of outlet gas. Let this temperature be T 0.371×107 _{=  (F .x .Cp.(T-1073) )}

solving , T = 1151.7 K

Outlet temperature of secondary reformer = 1151.7 K

Effluent from secondary reformer is cooled to 693 K before being fed to HTSC. This heat is utilized for producing steam at 373 K and 1 atm.

Steam produced: s T Cp H     ΔH = heat recovered = (F .x .Cp.(1151-693) ) = 2.22×107 _J/s 4.067 × 107 J/kmol

Steam produced = 0.547 kmol/s

HIGH TEMPERATURE SHIFT CONVERTOR:

Inlet temperature: 693 K

CO + H2O CO2 + H2 ΔH = -ve

Heat released by the reaction: 0.133 ×107 _J/s

Let outlet temperature of HTSC = T

H =  (F .x .Cp.(T-693) ) T = 723.38 K

Outlet temperature of HTSC = 723.38 K

HEAT RECOVERY BETWEEN HTSC & LTSC:

Inlet temperature of LTSC = 473 K

Heat removed = (F .x .Cp.(723.38-473)) = 1.093 ×107 _J/s

This heat is utilized for producing steam at 373 K and 1 atm. Amount of steam produced :

s T Cp H     = 269.33 mol/s

LOW TEMPERATURE SHIFT CONVERTOR:

Inlet temperature : 473 K

CO + H2O CO2 + H2 ΔH = -ve

Heat released by this reaction in LTSC = 0.0422 ×107 _J/s

Let outlet temperature of LTSC = T

 (F .x .Cp.(T-473)) = 0.0422 ×107

T = 483 K

CONDENSER:

Exit stream from LTSC contains steam which is an unwanted load on absorber. In condenser, steam is condensed at 373 K ( this is inlet temperature of absorber).

Exit gases ( other than steam) are also cooled from 483 to 373 K through a heat exchanger

H =  (F .x .Cp.(483-373)) = 4.66 ×107 _J/s

METHANATOR:

Inlet temperature : 623 K

After absorber, gases are heated from 373 K to 623 K . Heat required =  (F .x .Cp.(623-373)) = 0.554 × 107 _J/s

Steam is used for heating,

Amount of steam utilized: s H

 

= 133 mol/s Reaction taking place in methanator is :

CO2 + 3H2 CH4 + H2O

Heat released by this reaction in the methanator = 5.4 ×107 _J/s

Let outlet temperature = T 5.4 ×107 _{=  (F .x .Cp.(T-623))}

MEA 0.001 CO2

Gas in Gas out

CO2 rich MEA to stripper

PROCESS DESIGN

CO2 ABSORBER

Gas flow rate at bottom Gb = 818.98 mol/s = 7.2 Kg/s Gas flow rate at the top Gt = 755.19 mol/s = 4.43 Kg/s Yt =0.001 Yb =0.0845 PROPERTIES Gas density g = 0.487 kg/m3 Liquid density l = 934.4 kg/m3` Gas viscosity g= 0.0175 cP Liquid viscosity l = 0.299 cP Gas diffusivity Dg = 1.65X10-5m2/s Liquid diffusivity Dl = 1.96X10-5m2/s

Gas heat capacity Cpg = 2.094 kJ/kg K

Liquid heat capacity Cpl = 4.145 kJ/kg K

Equilibrium data for absorption of CO2 in MEA

X mol CO2 /mol inerts Y mol CO2/mol MEA sol

0.1 0 0.2 0.002 0.25 0.004 0.3 0.008 0.35 0.016 0.4 0.03 0.45 0.052 0.48 0.08

0.49 0.09 From Graph (Lin/Gin)min = 0.217 (Lin/Gin)actual = 1.5×0.217= 0.3255 Lin = 0.325×755.19 = 266.578 mol/s Top Section Lt = Ls (1+Xt) = 266.578 mol/s Bottom Section Lb = 266.578(1+Xb) = 361.4798 mol/s

(as Xb = 0.356 , from graph)

14.5 wt% MEA souliton has molecular wt.= 20.08 kg/kmol Lt = 5.35 kg/s

Lb = 7.258 kg/s

Thus amount of MEA required for absorber = 5.35 kg/s with 0.1% of CO2 coming from

stripper.

CALCULATION OF COLOUMN DIAMETER

Choosing 38 mm pall rings (metal) Void fraction = 0.95

Packing factor Fp = 28 Surface area a = 128 m2_/m3

At the bottom (L/G)×(gl) = 0 .023 At the top (L/G)×(g/l) = 0.0275

Hence choosing the larger value of 0.027 (at top) From Graph

Gf2Fpl0.2gl) = 0.01 (for 200 N/m2 per m pressure)

Where

Gf = gas superficial velocity Fp = packing factor = 28

= correction factor for density = 1

l = viscosity of liquid in cp = 0.299

g = density of gas = 0.487 kg/m3

l = density of liquid = 934.4 kg/m3 g = acceleration due to gravity On substituting we obtain Gf = 6.047 kg/m2 s Operating G = 0.85Gf = 5.1399 kg/m2s Ac = Gt/G Ac = 4.43/5.375 Ac = 0.86 m2 Di = 1.047 m Design dia =1.05 m

Evaluation of tower height

Z = HOGNOG

HOG = Hg + m(Gm/Lm)Hl

Hg = 0.017D1.24Z0.33Scg0.5/(Lf1f2f3)0.5 = parameter for a given packing = 75 D = column diameter

Scg = Schmidt no for gas phase =2.1778

L = liquid rate = 6.2 kg/m2_s f1 = (l/w) = 0.8243 f2 = (l/w) =1.0885 f3 = (w/l) = 1.0611 Substituting we get Hg = 0.822Z0.33

Liquid phase transfer unit

Hl = (C/3.28)Scl0.5(Z/3.05)0.15

= correlation parameter for a given packing = 0.11 C = correlation parameter for high gas flow rates = 0.5 Scl = Schmidt no for liquid phase = .00163

Z = tower height On substitution Hl= .000573Z0.15

m = slope of the equilibrium curve =0.27 Lm = 266.578 mol/s Gm = 755.19 mol/s HOG = 0.822×Z0.33 + 0.00044×Z0.15 NOG =



_{ } 0845 . 0 001 . 0 y y dy - ½ ln[(1-yb)/(1-yt))

NOG = 4.78

Z = 3.93Z0.33 _{+ 0.0021Z}0.15

By iterations, Z = 7.70 m

Height of bed in absorber = 7.7 m Pressure drop = 1540 N/m2 y y* 1/(y-y*) .001 0 1000 .01 0.0005 105.283 .02 .001 52.63 .03 .0015 35.08 .04 .0025 26.26 .05 .004 21.74 .06 .006 18.5 .07 .009 16.4 .08 .0125 14.8 .084 .0145 14.38

AMMONIA CONVERTOR

Let  fraction of feed goes to first bed and rest of 1- fraction mixes with effluent from 1st

bed as quench gas to maintain temperature of gas at 500°C.

Also it is assumed that conversion in first bed is from 0 to 8 % , whereas in second converter conversion of 14 % is achieved.

Heat liberated after first bed = α F × 0.08 × 0.215 × 2 ×46 ×103 _{=1582.4 α F}

After first Bed:

H2 (0.645×0.92) α F = 0.5934 α F N2 (0.215×0.92) α F = 0.1972 α F NH3 (2×0.215×0.08+0.02 ) α F = 0.0544 α F Inert 0.12 α F Total = 0.9656 α F Mole fraction Cp (J/mol-K ) H2 0.614 29.572

N2 0.205 31.258

NH3 0.056 50.431

Inert 0.1242 20.796

For the gas mixture, Cp = 30.66 J/mol-K 0.9656 α F × Cp× ∆T = 1582.4 α F

∆T = 53C

(T1)out = 480+53 = 533°C

0.9656 α F ×Cp×806 +(1- α) F ×Cp×626 = F(0.9656 α+1- α) Cp×753 α = 0.71

2 nd _{bed inlet:} H2 0.5934 × α F + (1- α) F×0.645 = 0.608 F N2 0.1978 × α F + (1- α) F ×0.215 = 0.208 F NH3 0.0544 × α F + (1- α) F ×0.02 = 0.0444 F Inert 0.12 F = 0.12 F Flow rate = 0.9752 F

Inlet mole fraction H2 0.623

N2 0.208

NH3 0.045

Inert 0.0123

Heat liberated = [( F NH3)out – (F NH3)in] ×46×103

= (2706.98×0.087 - 0.0444×2883.76) ×46×103

= 4162.54×103 _J/s

Out flow rate = 2706.98 mol/s Cp = 30.5 J/mol-K 2706.98 ×30.5 ×∆T = 4162.54×103 ∆T= 50.4 0_C Final Temp = 530.4 0_C Heat Exchanger 0.71×F×(753-626) = 2706.98×(803.5-T) 812.87- T = (0.71×2883.76×127)/2706.98 = 707.44 K

Volume of catalyst bed:

V1×CAo / FAo = г

Space velocity = 15000 hr-1 _{( at standard conditions )}

Space time = 0.0747 s

Space time at operating condition =( г/ CAo) × C’Ao

CAo = (1×0.215)/(0.0821×273)

= 9.6 mol/m3

C’Ao = (200×.215)/ (.0821×773)

= 678.4 mol/m3

Space time at operating conditions = 0.0747×678.4/ 9.6 = 5.28 s

V1×CAo / FAo = 5.28

Volume of first catalyst bed:

V1 = (5.28×0.215×2883.76×0.71)/(678.4)

= 3.375 m3

Volume of second catalyst bed :

V2 = (5.28×0.205×0.9752×2883.76)/(646.85)

= 4.695 m3

Volume of first bed: 3.375 m3

CO

2

STRIPPING COLUMN

Liquid flow rate into stripping column = 266.578 mol/s Molecular weight of liquid (15.3% MEA in H2O) = 20.08

Steam X1 = 0.001 kmol CO2 Y1=0 steam kmol CO2 kmol Kmol MEA Equilibrium data: X Y 0.001 0.003167 0.002 0.006347 0.05 0.17713 0.1 0.403061 0.15 0.701183 0.2 1.112676 0.25 1.717391 0.3 2.693182 0.35 4.532787 0.356 4.869114 CO2 + steam X2 = .356 kmol CO2/kmol MEA

For minimum steam rate from graphY2 = 0.75 steam kmol CO2 kmol Minimum Gs = Ls(X2-X1)/(Y2-Y1) = 266.578*(.356-.001)/(1.1-0) = 86 mol steam/sec

for 1.5 times minimum, steam flow rate = 126.2 mole/sec therefore Y2 = 1.1

also, x1 = 0.001, y1 = 0

x2 = 0.356, y2 = 1.1

we make a y-x plot to determine total number of stages which are found to be 4.8

TOWER DIAMETER L G G L   = 0.045  = 0.0744*t + 0.01173  = 0.0304*t + 0.015

reference: Page 169 Mass transfer operations by R E Treybal

let t = 0.75 m  = 0.06753  = 0.0378 CF = [0.06753 log 2 . 0 ) 02 . 0 04 . 0 ]( 0378 . 0 556 . 0 1  0.04

= 0.1339 VF = CF 5 . 0 ) ( G G L     = 4.1554 m/s

we use 80% of floding velocity

V = 3.32 m/s

An = Q/V = 2.33/3.32 = 0.7 m2

tray area used by one downspout = 8.8%

At = 0.7/(1-0.088) = 0.7685 m2  D = 0.989 m Diameter = 1.00 m height of tower = 5 * 0.75 = 3.75 m Hieght of tower = 3.75 + 2 = 5.75 m

PROCESS UTILITY

Feed Gas Compression:

 Natural gas fuel heater  Feed gas Compressor  Start-up Compressor

 Natural gas knock-out drum

Reforming:



Process air saturator



Primary Reformer



Stem super heater



Reactant preheater



Combustion air heater



Boiler



Feed heater



Process air heater



First make gas boiler



Second gas make boiler



Make gas steam super heater



Saturator DMW heater



Saturator effluent cooler



Flue gas fan



Sulphur catch



Secondary reformer



Flue gas stack



Steam drum



Continuous blow down drum



Intermittent blow down drum



NOX reduction unit.

CO Shift:

 Make gas BFW heater  HT shift MG BFW heater  HT shift steam super heater  Naphtha Vaporiser

 Feed gas Heater  Saturator circuit heater  LP boiler  HT sift converter  LT shift converter.

CO

2

Removal:

 CO2 absorber  MEA regenerator  Flash column  MEA filter

 MEA make up filter  Activated carbon filter  Deaerator feed heater  Lean MEA cooler  Rich/lean exchanger  Syngas trim cooler  Semi-lean pump  MEA make up pump  MEA filter pump  Condensate pump

 Process condensate pump  Lean solution pump

 Semi rich solution pump  Water make up pump  Hydraulic turbine

 MEA solution storage tank

Methanation and Syngas Drying:

 Methanator exchanger  Methanator start-up heater  Syngas cooler

 Adsorber regeneration heater  Methanator

 Syngas adsorber

Ammonia Synthesis:

 NH3 converter start up heater

 NH3 loop BFW heater

 NH3 loop hot interchanger

 NH3 loop cooler

 NH3 loop cold interchanger

 NH3 loop chillers

 Ammonia product heater  Product ammonia pump  Absorber bottoms pump  NH3 converter

 NH3 converter cartridge

 NH3 flash vessels

 LP NH3 absorber

Purge Gas Treatment:

 NH3 absorber

 NH3 still

 NH3 absorber feed water cooler

 NH3 solution interchanger

 NH3 still condenser

Synthesis Gas Compression:

 Synthesis gas compressor  NH3 loop circulator

Process Air Compression:

 Process air compressor

Refrigeration:

 Refrigeration condenser  Refrigeration compressor  Refrigeration receiver

CATALYST USED

1. Desulphurization

Supported cobalt-molybdenum (Comox) or nickel-molybdenum (Nimox) catalyst is used for hydrogenation of organic sulphur compounds in hydrocarbon feedstock to H2S which is then removed.

H2S is absorbed in a ZnO bed.

Temperature: 350-400 o_C

Pressure: 40 Kg/cm2

Catalyst name: ZnO

Shape and size: Extruded rods or globules 3-5 mm dia. Bulk density: 1.05-1.15 Kg/lit

Typical chemical composition (% by wt): ZnO 95

R2O3 5

Fe2O3 + Al2O3

Special features:

 Low attrition loss.  Gains strength in use.

 High H2S absorption efficiency.

2. Primary reformer

Temperature: 700-800 o_C

Pressure: 30-40 Kg/cm2

Catalyst name: supported nickel catalyst

Shape and size: Raschig rings (16×6×16 or 18×8×16 mm) Bulk density: .05-1.15 Kg/lit

Typical chemical composition (% by wt): NiO 18

CaO 18 Al2O3 74

Special features:

 Highly pure and refractory.

 Al2O3 supports high activity and stability and long life

3. Secondary reformer

Temperature: 950 o_C

Pressure: 30-40 Kg/cm2

Catalyst name: supported nickel catalyst

Shape and size: Raschig rings (16×6×16 or 18×8×16 mm) Bulk density: 1.1-1.2 Kg/lit

Typical chemical composition (% by wt): NiO 12

CaO 12 Al2O3 76

Special features:

 High thermal shock resistance free of carry over problem  High activity

 Excellent mechanical stability  Long life

4. High temperature shift converter

Temperature: 340-450 o_C

Pressure: 30-40 Kg/cm2

Shape and size: solid cylindrical tablets (6×6 or 10×6 or 10×10 mm) Bulk density: 1.0-1.1 Kg/lit

Typical chemical composition (% by wt): Fe2O3 90

Cr2O3 10

S 0.015 Special features:

 Extremely low Sulphur content with very low desulphurization time  High and stable activity and strength

5. Low temperature shift converter

Temperature: 200-250 o_C

Pressure: 30-40 Kg/cm2

Catalyst name: supported copper catalyst

Shape and size: solid cylindrical tablets (6×4 mm) Bulk density: 1.25-1.3 Kg/lit

Typical chemical composition (% by wt): CuO 25

ZnO 25 Al2O3 35

Fe2O3 + TiO2 5

Special features:

 High and stable activity and strength

 High resistance to poisons and steam condensation

Temperature: 300-400 o_C

Pressure: 30-40 Kg/cm2

Catalyst name: nickel supported on alumina catalyst Shape and size: solid cylindrical tablets (6×4 mm) Bulk density: 1.25-1.3 Kg/lit

Typical chemical composition (% by wt): NiO 20

R2O3 80

Special features:

 Excellent thermal and mechanical stability  High activity and long life.

7. Ammonia synthesis

Temperature: 400-500 o_C

Pressure: upto 1000 atm

Catalyst name: doubly promoted iron catalyst Shape and size: solid cylindrical tablets (1.5-12 mm) Bulk density: 2.1-2.3 Kg/lit

Typical chemical composition (% by wt): Fe2O3 91 Al2O3 3 CaO 3 MgO 1 K2O 1 SiO2 0.5 Special features:

 Product of Indian magnetite with high activity and mechanical strength and stability

8. Catalyst poisoning:

The active surface is sensitive to poisons.

Two classes of poisons are recognized: a) Permanent b) Temporary

The permanent poison contains sulphur, phosphorus, arsenic, and chlorine and is represented by such compounds as H2S and HCl. The temporary poisons contain oxygen and are

represented by such compounds as CO, CO2, O2, and H2O.

If exposure to temporary poisons does not last more than three to six days, the catalyst can usually be brought back to normal activity simply by exposing it to pure synthesis gas. In the presence of high concentration of hydrogen, the oxygenated compounds that make up the temporary poisons are converted to H2O, which effectively blankets the active surfaces of the

catalyst. Thus, temporary poisons are all about equivalent on an oxygen basis, with 100 ppm O2 having same effect as 100 ppm CO2 or 200 ppm H2O or CO.

PLANT SAFETY

Historical data show that the major accidents in ammonia plants are explosions and fires. In addition there is also a potential of toxic hazard due to the handling and storage of liquid ammonia.

The following credible major hazards events are identified in an ammonia production plant: 1. Fire/explosion hazard due to leaks from the hydrocarbon feed system.

2. Fire/explosion hazard due to leaks of synthesis gas in the CO removal/synthesis gas compression areas (75% hydrogen).

3. Toxic hazard from the release of liquid ammonia from the synthesis loop.

In ammonia storage the release of liquid ammonia (by sabotage) is a credible major hazard event.

Confined explosions in ammonia plants appear to be limited to explosions equivalent to a few hundred kg TNT. Such explosions are normally not fatal for humans at 50-60m distance, and thus in most cases not severe for people outside the plant fence. The same is true for fireballs equivalent to 500kg hydrogen. Fires and explosions are usually not a hazard or only a minor hazard to the local population although potentially most severe for the plant operators. Appropriate precautions to protect both the operators and the local population are taken in the design and operation of the plants.

The toxic hazard of a potential large release of liquid ammonia (ie. from a storage tank) may be much more serious for the local population. An emergency plan for this event, covering the operators and the local population must be maintained.

Human health:

Ammonia is toxic by inhalation, corrosive to all parts of the body and liquid splashes can cause severe cold burns.

Skin Contact:

Liquid ammonia splashes may produce severe cold burns to skin. Vapour in presence of moisture is an irritant to the skin.

Eye Contact:

Liquid ammonia splashes may cause permanent damage to eyes with the full effects not being apparent for several days. Vapours can cause irritation and watering of eyes and at high concentrations can cause severe damage.

Ingestion:

Will immediately cause severe corrosion and damage to the gastro-intestinal tract. Inhalation:

Ammonia odour threshold 5-25ppm. Concentrations in the range 50-100ppm may cause slight irritation following prolonged exposure. Immediate eye, nose and throat irritation may occur with ammonia levels between 400-700ppm with symptoms of slight upper respiratory tract irritation persisting beyond the period of exposure. At higher concentrations, above 1000ppm, severe eye and upper respiratory tract irritation can develop following a short period of exposure. Exposure to ammonia in excess of 2000ppm for even short periods may result in severe lung damage and could be fatal. Fluid build up on the lung (pulmonary œdema) may occur up to 48 hours after exposure and could prove fatal. Exposure to concentrations grossly in excess of the occupational exposure limit may lead to permanent respiratory impairment.

Long term effects:

No evidence of adverse effects at exposure below occupational exposure limits.

Environment:

Free (non-ionised) ammonia in surface water is toxic to aquatic life, however the ammonium ion which predominates in most waters is not toxic. In the event of water contamination with ammonia, ammonium salts which may be formed will not present a toxic hazard. Increases in pH above 7.5 leads to an increased level of non-ionised ammonia.

Studies in fish have shown that repeated exposures produce adverse effects on growth rate at concentrations greater than 0.0024mg/l.

Other:

Fire, heating and explosion

Flammable but difficult to ignite in open air. In enclosed space ammonia air mixtures may be flammable/explosive.

Danger of tank or cylinder bursting when heated.

Large leaks of liquid ammonia may produce a dense cloud, restricting visibility.

FIRST-AID MEASURES

Speed is essential. Remove affected person from further exposure. Give immediate first aid and obtain medical attention.

Skin Contact

Drench with large quantities of water. In case of frost bite (freeze burns) clothing may adhere to the skin. Defrost with care using comfortable warm water. Remove clothing and wash affected parts. Obtain immediate medical attention.

Eye Contact

Immediately irrigate the eyes with eyewash solution or clean water for at least 10 minutes. Continue irrigation until medical attention can be obtained. Hold eyelids open during flushing.

Ingestion

Do not induce vomiting. If the person is conscious, wash out mouth with water and give 2 or 3 glasses of water to drink. Obtain immediate medical attention.

Inhalation

Move the injured person to fresh air at once. Keep the patient warm and at rest.

Administer oxygen if competent person is available. Apply artificial respiration, if breathing has stopped or shows sign of failing. Obtain immediate medical attention. Further medical advice

Keep under medical review for possibility of rapid or delayed tracheal, bronchial and pulmonary edema. Progressive ocular damage may arise.

Ammonia vapour and liquid spills are difficult to ignite, particularly in the open air. In an enclosed space, mixtures of ammonia and air within the limits (16-27%), might cause explosion if ignited. Cold, dense cloud of ammonia may impair visibility.

 Attempt to isolate source of leak.  Use foam, dry powder or CO2.

 Use water sprays to cool fire-exposed containers and structures, to disperse vapours and to protect personnel. Do not spray water into liquid ammonia.

 Wear self-contained breathing apparatus and full protective clothing.

ACCIDENTAL RELEASE MEASURES

 Those dealing with major releases should wear full protective clothing including respiratory protection.

 Evacuate the area down-wind of the release, if it is safe to do so. If not, then stay indoors, close all windows and switch off any extraction fans or electrical fires.

 Isolate source of leak as quickly as possible by trained personnel.  Ventilate area of spill or leak to disperse vapours.

 Remove ignition sources.

 Consider covering with foam to reduce evaporation.  Contain spillages if possible.

 Use water sprays to combat gas clouds. Do not apply water directly into large ammonia spills.

 Take care to avoid the contamination of watercourses.

 Inform appropriate authority in case of accidental contamination of watercourses or drains.

HANDLING AND STORAGE Handling:

 Avoid skin and eye contact and inhalation of vapours.  Provide adequate ventilation.

 Control atmospheric levels in compliance with occupational exposure limits.  Wear full protective equipment where there is a risk of leaks or splashes.

 Store containers tightly closed in a cool, well ventilated area.

 Keep away from heat, ignition sources and incompatible substances.  Do not permit smoking in the storage area.

 Follow appropriate Industry or National codes for bulk and container (cylinder) storage.

EXPOSURE CONTROL / PERSONAL PROTECTION

Recommended occupational exposure limits:

ACGIH [4] occupational exposure limits for ammonia and other components associated with ammonia production are given in the table below. All the figures are

ppmv:-Component TLV-TWA (8hr) TLV-STEL (15min)

NH3 NO2 SO2 H2S CO CO2 25 3 2 10 50 5000 35 5 5 15 400 30000

The figures are subject to updating and may vary between countries.

Precautionary and engineering measures

 Provide local exhaust ventilation where appropriate.

 Provide safety showers and eye washing facility at any location where skin or eye contact can occur.

Personal Protection:

 Wear suitable breathing apparatus if exposure levels exceed the recommended limits.

EFFLUENT TREATMENT

EMISSIONS TO AIR

From steam reforming plants with a fired primary reformer emissions to air come from the following sources:

 Flue-gas from the primary reformer  Vent gas from CO2 removal

 Breathing gas from oil buffers (seals/compressors)  Fugitive emissions (from flanges, stuffing boxes etc.)

 Purge and flash gases from the synthesis section (usually added to the primary reformer fuel)

 Non-continuous emissions (venting and flaring)

1. Flue-gas from the primary reformer:

The flue-gas volume, at 3% (dry gas base) oxygen, for a gas-based conventional steam reforming plant producing 200t/d, is approximately 26,667 Nm3_{/h, containing about 8%}

CO2 (dry gas base), corresponding to 500kg CO2/t NH3. The flue-gas volume from excess

air reforming may be lower. The other pollutants in the flue-gas are:

NOx: 200-400mg/Nm3, (98-195ppmv), or 0.6-1.3kg/t NH3 expressed as NO2

SO2: 0.1-2mg/Nm3, (<0.01kg/t), depending on fuel

CO: <10mg/Nm3_{, (<0.03kg/t)}

The NOx emission depends on several factors and the following features reduce the

emission:

 Low combustion air and fuel gas preheat

 Steam/inert injection

 Low ammonia content in injected purge-gas

 Low excess oxygen

 Low NOx burners

 Post-combustion measures

The SO2 emission comes from the sulphur in the fuel gas and can be calculated by a

2. Vent gases from CO2 removal:

More or less of the CO2 product may have to be vented, depending on the CO2

requirements of other production facilities on the site. In some cases, high purity CO2 is

used, while an air- CO2 mixture from a stripping column is vented. The CO2 contains

small traces of synthesis gas and absorption solvent vapour.

3. Breathing gas from oil buffers:

This contains traces of NH3, synthesis gas and lube oil.

4. Fugitive emissions:

The diffuse emissions from flanges, stuffing boxes etc. should be minimized.

5. Purge and flash gases:

The purge and flash gases from the synthesis section are usually washed with water to remove/recover ammonia, and the purge gas may be treated in a recovery unit, before routing the off-gases to the primary reformer fuel gas system. The off-gases are thus combusted and end up as part of the flue-gas. It is important to remove the ammonia as far as possible, as it will contribute considerably to the flue-gas NOx emission.

6. Non-continuous emissions:

Emission of NOx during flaring synthesis gas at start-up or trip situations is estimated to

be 10-20kg/hour as NO2 [1]. Some plants without a flare, vent to the atmosphere.

EMISSIONS TO WATER

Pollution problems related to water, during normal operation, may occur due to process condensates or due to scrubbing of waste gases containing ammonia.

Process condensate is found primarily in the condensation section prior to the CO2 removal,

in the order of 1m3 _{per ton NH}

3 produced. Without treatment this condensate can contain up

to 1kg of ammonia and 1kg methanol per m3_{. More than 95% of the dissolved gases can be}

recovered by stripping with process steam and are recycled to the process. The stripped condensate can be re-used as boiler feed water make-up after treatment by ion exchange. Total recycle is obtained in this way. In some cases the process condensate is used for feed-gas saturation and thus recycled to the process.

Usually the ammonia absorbed from purge and flash gases is recovered in a closed loop so that no aqueous ammonia emissions occur. Emissions to water from the production plant during normal operation can thus be fully avoided.

SOLID WASTES

The ammonia processes do not normally produce solid wastes. Spent catalysts and sieves have to be removed and valuable metals are recovered from them.

Environmental Hazards Associated with Emissions and Wastes:

The production of ammonia is relatively clean compared to many other chemical processes. During the normal operation of a reforming plant, only the NOx and CO2 emissions have to be

considered. In partial oxidation plants with oil-fired auxiliary boilers the reduction of SO2

emissions can be achieved by using low sulphur fuel oil. Generally the emissions from modern ammonia plants have little environmental impact.

EMISSION MONITORING

The following emissions to air should be monitored as part of a proper supervision: a) NOx in flue-gases.

b) SO2 in flue-gases (may be calculated by mass balance instead of monitoring emission,

if S input is known).

The other emissions to air need not be monitored. CO2 emission can be calculated from fuel

specification and energy consumption, CO emission is fixed by the operating conditions and usually stable and low. Non-continuous and fugitive emissions are difficult to measure. The frequency of monitoring depends on local circumstances and the operating stability of the actual plant. Under normal operating conditions, measurements once a month are usually sufficient.

Methods for discontinuous and continuous measurements of NOx, SO2 and H2S are available

and are to a large extent standardized at national level. Chemiluminescence or photometry are the most widely used methods for NOx. SO2 is determined by InfraRed (IR) absorption

techniques. Traces of H2S are measured by lead acetate.

Emissions to water from new plants are virtually zero as process condensates are recycled and monitoring is not normally required. In existing plants without recycle of process condensate, the ammonia and methanol content should be monitored.

Emissions to Air

An extractive gas sampling system for continuous gas monitoring will typically comprise:  A coarse filter (heated if necessary) which may be in the stack or duct or outside.  A heated line to convey the sample gas from the stack but this may not be necessary if

probe dilution is used.

 A cooler may be used to reduce moisture.  A further drier installed before the analyser.

 A pump, situated before or after the analyser, as appropriate, to pull the gas from the stack or duct.

 A fine filter may be put immediately before the analyser.

A description of available methods for monitoring emissions is given:

ONLINE METHODS

Infra red spectrometry:

In the simplest form of IR spectrometry, the equipment consists of an optical filter, the sample cell and a detector. When the wavelength of the radiation is not selected using a prism or diffraction grating, the instrument is known as a non-dispersive infra red gas analyzer (NDIR). In a single-beam instrument a filter selects the part of the spectral range most characteristic of the substance. In a twin-beam instrument, (the most commonly used for on-line analysis) the radiation from the source is split and a comparison is made of the two beams after one has passed through a reference cell and the other through the sample gas.

The two beams are brought together onto a half-silvered mirror or rotating chopper which alternately allows each beam to reach a detector cell which compares the heat received, by capacitance or resistance measurements. The twin-beam method is preferred in an on-line system as it overcomes some of the problems associated with drift due to small changes in detector sensitivity and in the optical and spectral properties of the optical filter. However, regular zeroing and calibration are needed to correct zero and range drift.

Chemiluminescence:

These instruments use the property of fluorescence, which can take place with some chemical reactions. By selecting two gases to react under carefully controlled conditions, the chemiluminescence can be measured to determine the concentration of reacting gases.

NOx measurement makes use of the reaction:

NO + O3 ——-> NO2 + O2 + kv

The sample gas is passed through a catalytic converter to change any nitrogen dioxide to nitric oxide and is then reduced in pressure and reacted with ozone. The

chemiluminescence (kv) is measured by a photomultiplier tube after passing through an appropriate band pass filter.

MANUAL METHODS

Sulphur dioxide:

Standard methods rely on the solubility and acidic nature of the gas. An oxidizing agent is generally used to convert the SO2 to SO3. National standard methods include

the use of hydrogen peroxide solution as the oxidizing agent with titration against standard alkali or gravimetric analysis using barium chloride and hydrochloric acid to precipitate the sulphate. An alternative to this uses a sample collected in hydrogen peroxide solution and titration against barium perchlorate with thorin as indicator. A method which draws the filtered gas through a standard solution of iodine in potassium iodide is also used. The unreacted iodine is determined by titration with sodium thiosulphate and the SO2 calculated from the amount of iodine used to oxidise

the SO2.

All the methods have errors associated with the interferences and the user should be knowledgeable about the method and its suitability.

Oxides of nitrogen

Carbon monoxide/carbon dioxide:

These gases are generally measured by solution absorption into liquid reagents specific for each gas.

Emissions to Water:

Whilst emissions to water are likely to be intermittent and of a low level, it is likely that any site operating an ammonia plant will have at least one overall consent for emissions to water and a requirement for plant monitoring. Typical monitoring methods may rely on flow proportioned sample collection or high frequency spot sampling and flow measurement. In either case the samples obtained may be analyzed as follows:

Ammonia/Ammoniacal N :

The spectrophotometric method for ammonia relies on the reaction in which monochloramine is reacted with phenol to form an indophenol blue compound. This method is particularly suitable for the determination of ammonia in cooling waters derived from saline sources (dock, estuarine or sea water) and may be used in continuous flow colorimetry.

Ion selective electrodes can also be used and are suitable for saline applications as well as pure water.

Note that free ammonia exists in equilibrium with NH4+ as follows:– NH4+ + H2O is in equilibrium with NH3 + H3O+

and that the equilibrium depends on pH. The above method determines the NH4+

ammonia. Free ammonia is particularly toxic to fish and should an incident occur, it may be more important to relate the NH4+ result to free ammonia. Any suitable pH

determination may be used and the free ammonia estimated as given in “Hampson B L, J Cons Int Explor, Mer, 1977,37. 11” and “Whitfield M, J Mar Biol. Ass UK, 1974,54, 562”.

Manual laboratory based methods may be used for spot checks using Kjeldahl methods for the determination of organic and ammoniacal nitrogen in a mineralized sample.

Methanol:

The spectrophotometric method for methanol relies on the oxidation reactions of potassium permanganate under acid conditions to give formaldehyde. The formaldehyde is reacted with acetylacetone in the presence of excess ammonium salt, to form diacetyldihydrolutidine. The method may be used in continuous flow colorimetry or gas chromatography.

Achievable Emission Levels for New Plants :

The following emission levels can be achieved for new ammonia plants. These levels relate to steady-state production, not accounting for peaks which can occur during the unsteady transient conditions of start-up and shut-down and during emergencies.

Emissions to air ppmv mg/Nm3 _{kg/t of product} NOx (as NO2 at 3% O2) 75 150 0.45 Emissions to water NH3 or NH4 (as N) 0.1kg/t of product Waste material

Spent catalysts etc. <0.2kg/t of product

In new reforming plants the total energy consumption should not exceed 32.5 GJ (HHV)/t and process condensate recycle should be a pre-requisite.

COST OF POLLUTION CONTROL MEASURES

The costs of pollution control measures in the fertilizer industry are difficult to generalize as they depend on a number of factors such as:

 The emission target or standard to be met

 The type of process, the degree of integration with other processes on site, production volumes, type of raw materials being used etc.

 whether the plant is new so that the design can be optimised with respect to pollution abatement, or whether the plant is an existing one requiring revamping or end-of-pipe pollution abatement equipment

Generally, it is more economical to incorporate the pollution abatement system at the process design stage rather than revamping or “adding-on” equipment at later stage.

STORAGE, HANDLING AND TRANSOPRTATION OF AMMONIA

Storage:

Ammonia is stored in :

 Cylindrical pressure vessels with dished ends called Bulets.  Spherical pressure vessels – Horton Sphere.

 Cylindrical, flat bottom – Atmospheric storage tanks.

The choice of type of storage depends upon the quantity of ammonia to be stored.

Choice of Storage:

Large quantities of ammonia in storage constitute a potential hazard. Storage under pressure involves considerable amounts of potential energy and because any escaping liquid is above its atmospheric boiling point, large quantities of gaseous ammonia will be released immediately into the atmosphere. Refrigerated storage, however, involves little potential energy and if the ammonia is cooled to its atmospheric boiling point, there will be no spontaneous production of gas from spilled liquid. Gas will, of course, still be released partly due to the difference in partial pressure between the ammonia and the atmosphere, and partly due to the heat gain from the surroundings. However, the amount of gas liberated in this manner can be minimized by good binding.

For these reasons, a spill from an atmospheric storage tank constitutes lesser hazard than a spill from a pressure tank. All ammonia storage installations are required to be

intrinsically safe. Nevertheless, the possibility of a spill cannot be excluded when selecting a storage facility, and on a congested site, or on a site close to public roads, hospitals, schools, or private dwellings, it would be advisable to choose potentially less dangerous atmospheric storage.

It is unlikely that spheres greater than 3,000 tons capacity and working at pressure in the order of 3.3kg/cm2 _{gauge will ever be built even if the building of such spheres were}

economically attractive.

Handling and Transportation of Ammonia:

Anhydrous ammonia is transported in liquid form under pressure either in small cylinders, or in road and rail tankers. A number of small ships are also in service capable of carrying quantities upto 1,000 tons in pressure tanks. Recently, a number of marine carriers have commenced shipping large quantities (upto 8,000 tons) of ammonia at atmospheric pressure in refrigerated tanks specially built for the purpose. This practice is likely to grow.

The transfer of liquid between storage and carrier presents the greatest safety hazard. All known serious accidents in the past few years have occurred during transfer operations. Stringent safety precautions must be enforced at filling points.

SITE SELECTION AND PLANT LAYOUT

SITE SELECTION

The location of the plant can have a turning effect on the overall viability of a process plant, and the scope for future expansion. Many factors must be considered when selecting a suitable plant site. The most important factors are as follows:

1. Location, with respect to the marketing area 2. Raw material supply

3. Transport facilities 4. Availability of labour 5. Availability of suitable land

6. Environmental impact and effluent disposal 7. Local community consideration

8. Climate

9. Political and strategic consideration

Location with Respect to Marketing Area:

For materials that are produced in bulk quantities where the cost of the product per tonne is relatively low and the cost of transport a significant fraction of the sales price, the plant should be located close to the primary market. This consideration will be less important for low volume production, high-priced products like Pharmaceuticals.

Raw Materials:

The availability and price of suitable raw materials will often determine the site location. Plants producing bulk chemicals are best located close to the source of the major raw material where this is also close to the marketing area.

Transport:

The transport of materials and products to and from the plant will be an overriding consideration in site selection. If practicable, a site should be selected such that is close to at least two major forms of transport: road, rail, waterway (canal or river), or a sea port. Road transport is being increasingly used, and is suitable for long- distance transport of bulk chemicals. Air transport is convenient and efficient for the movement personnel and essential equipment and supplies, and the proximity of the site to a major airport should be considered.

Availability of Labour:

Labour will be needed for construction of the plant and its operation. Skilled construction workers will usually be brought in from outside the site area, but there should be an adequate

pool of unskilled labour availability locally and labour suitable for training to operate the plant. Skilled tradesmen will be needed for plant maintenance. Local trade union customs and restrictive practices will have to be considered when assessing the availability and suitability of the local labour for recruitment and training.

Availability of Utilities (Services):

Chemical processes invariably require large quantities of water for cooling and general process use, and the plant must be located near a source of water of suitable quality. Process water may be drawn from a river, from wells, or purchased from a local authority. At some sites, the cooling water required can be taken from a river or lake, or from the sea; at other locations cooling towers will be needed.

Electrical power will be needed at all sites. Electrochemical processes that require large quantities of power; need to be located close to a cheap source of power. A competitively priced fuel must be available on site for steam and power generation.

Environmental Impact and Effluent Disposal:

All industrial processes produce waste products, and full consideration must be given to the difficulties and cost of their disposal. The disposal of toxic and harmful effluents will be covered by local regulations, and the appropriate authorities must be consulted during the initial site survey to determine he standards that must be met. An environmental impact assessment should be made for each new project or major modification or addition or an existing process.

Local Community Considerations:

The proposed plant must be fit in with and be acceptable to the local community. Full consideration must be given to the safe location of the plant so that it does not impose a significant additional risk to the community. On a new site, the local community must be able to provide adequate facilities for the plant personnel: schools, banks, housing, and recreational and cultural facilities.

Availability of Land:

Sufficient suitable land must be available for the proposed plant and for future expansion. The land should ideally be flat, well drained and have suitable load-bearing characteristics. A full site evaluation would be made to determine the need for piling or other special foundations.

Climate:

Adverse climatic conditions at a site will increase costs. Abnormally low temperatures will require the provision of additional insulation and special heating for equipment and pipe runs. Stronger structures will be needed at locations subject to high winds (cyclone/hurricane) or earthquakes.

Political and Strategic Considerations:

Capital grants, tax concessions, and other inducements are often given by governments to direct new investment to preferred locations such as areas of high unemployment. The overriding of such grants can be the overriding considerations in site selection.

In addition to the main plant, we also have to consider the associated services which have to be amalgamated within a particular plant site. Canteens, parks, general utilities, emergency medical services and places for storage must also be taken into consideration while deciding on a particular site.

Actual Site Selection:

The plant has to be located at a place where cost of raw materials is less. Another factor which has to be considered is demand for product in vicinity of production area. Reliance in partnership with Canadian firm “Niko Resources” has discovered significant gas reserves in

Krishna Godavari basin estimated at 7 trillion cubic feet. Also demand for fertilizers in this

region is also high. According to FAI (2000) data, consumption of N + P2O5 + K2O is 154.9

kg/ha. This reserve is one of the biggest Natural Gas reserve of India and will amount to around 50% of India’s total Natural Gas consumption.

We hence propose the site for the new Ammonia plant to be Kakinada Industrial Area,Andhra Pradesh. The major reasons in support of this selection are as follows:

Available Market:

According to FAI (Fertilizer Association of India) reports, the region wise consumption of Nitrogen based Fertilizers in the Southern Region is around 26% of the total consumption of India, while only around 10% of the total Ammonia Production Capacity lies in the Southern Region. So Southern Region has to import it from other Regions. Hence a suitable market is present.

Availability of Raw Materials:

The huge reserves of Natural Gas at the Krishna River Basin in Andhra Pradesh, provides a suitable source of our major raw material.

Availability of Transport, Labor & Utilities:

As the area is itself an industrial area, so infrastructure for all these is sufficient. Cheap labour is easily available. Power and other utilities are also available at a reduced rate.

The area being an industrial area, the procurement of land should not be a problem.

Political considerations:

As Andhra Pradesh is a Industrially Oriented state, so there are no problems. Infact the state encourages setup of industries and gives some special exemptions like lower taxes, etc.

PLANT LAYOUT

The economic construction and operation of a process unit will depend on how well the plant equipment specified on the process flow sheet and laid out. The principal factors to be considered are:

1. Economic consideration: construction and operation cost. 2. The process requirement

3. Convenience of operation 4. convenience of maintenance 5. Safety

6. Future expansion

Costs:

The cost of construction can be minimized by adopting a layout that gives shortest run of connecting pipes between equipment, and adopting the least amount of structural steel work. However, this will not necessarily be the best arrangement for operation and maintenance.

Process Requirement:

All the required equipment have to be placed properly within process. Even the installation of the auxiliaries should be done in such a way that it will occupy the least space.

Operation:

Equipment that needs to have frequent operation should be located convenient to the control room. Valves, sample points, and instruments should be located at convenient position and height. Sufficient working space and headroom must be provided to allow easy access to equipment.

Maintenance:

Heat exchangers need to be sited so that the tube bundles can be easily withdrawn for cleaning and tube replacement. Vessels that require frequent replacement of catalyst or
