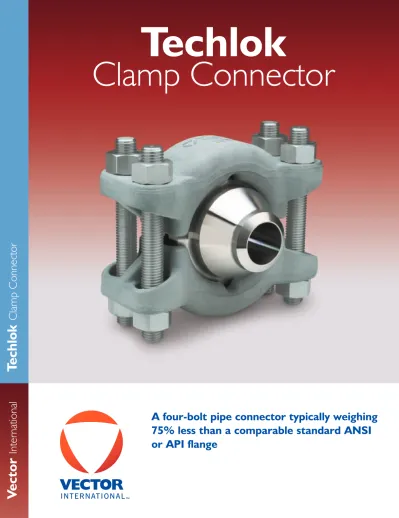

A four-bolt pipe connector typically weighing
75% less than a comparable standard ANSI
or API flange
Techlok
Clamp Connector
V
e
c
to
r
In
te
rn
at
io
n
al
T
e
c
h
lo
k
C
la
m
p
C
o
n
n
e
ct
o
r
A radially-bolted mechanical pipe connection
which allows quick make-up and break-out and
is ideal where space, weight and joint integrity
are critical requirements.
Techlok Clamp Connectors are the most effective and economical pipe connection
system available today. Typically several Techlok joints can be installed in the time it
takes to assemble a single standard ANSI or API flange.
Conventional ANSI or API flanges with their eight to 24 bolts require accurate
alignment to ensure a seal, whereas Techlok Clamp Connectors have only four bolts,
no alignment problems and require less bolt loads.
As is well known, external bending forces are an inevitable part of any piping
system, resulting in high stresses being placed on pipe joints. Independent strain gauge
and destructive tests have shown the Techlok connector can withstand considerable
bending moments/forces and axial loading under pressure without leaking or the bolts
becoming loose, greatly reducing maintenance costs at the same time as being highly
beneficial to the environment.
High pressure systems are not a problem, with Techlok connectors working in
applications where pressures of 30,000psi and above are found; and when it comes to
offshore applications where topside loading is critical, Techlok’s low weight is a real
advantage - a factor applicable in any industry where weight and overall installation cost
is a consideration.
Corrosive applications
In more corrosive applications where the specifications demand the use of exotic
materials, the sheer size difference between conventional flanges and Techlok Clamp
Connectors (typically 75%) ensures operators and contractors a real competitive
advantage when determining capex/opex budgets.
But it’s not just size and weight that makes Techlok the natural choice.
Unlike conventional ANSI flanges, Techlok Clamp Connectors are bolted radially to
the pipe, not along its axis. This means that the clamp can be orientated in any position
around the pipe, and together with their greatly reduced size, this eliminates clearance
problems and enables critical components like valve hand wheels to be aligned to their
optimum positions before fully tightening the clamp bolts.
Techlok
Clamp Connector
2
Saving up to 75% weight/space
Hibernia topside platform Atlantic Canada
3
Some of the Benefits
As well as high performance, leak-free, competitive price and greater efficiency
Techlok connectors have many other advantages over conventional flanges:
•
Up to 75% lighter and significantly smaller than a comparable ANSI or API flange
•
Close piping and hook-up arrangements with typically 25% smaller clamp diameter
•
Typically 40% shorter connection length
•
Easier fabrication and installation with no bolt holes to align
•
On sizes up to and including 36”, only 4 bolts to tighten rather than up to 24 on a
conventional flange
•
The clamp can be rotated round the hub for easy bolt orientation and tightening
•
Ancillary components such as valves and piping layouts can be installed without
worrying about bolt hole alignment
•
Quicker and easier make-up and breakout minimises maintenance downtime
•
Lower bolt torque: typically 50% less than that for a ring joint flange
•
Sealing integrity is unaffected by over-tensioning bolts
•
Short make and break times - several Techlok connectors can usually be assembled
or disassembled in the time it takes for a single ANSI or API flange connection
•
It is not usually necessary to re-tighten bolts once in service
•
In most cases only one clamp size is required for each nominal pipe size
•
Unlike spiral-wound gaskets, reusable sealrings give greater flexibility for
hydro-testing and commissioning prior to service
•
Reduced inventory
•
Readily available machining details for interface with associated equipment such as
valves, pumps and metering equipment
•
Available in all materials to suit the piping specification
Fully Assembled
Pressure Energised Seal Prior to Assembly
Self Energised Seal
The Techlok advantage
The heart of Techlok’s success is the energised seal. Techlok clamp connectors do not
rely on the conventional flange’s gaskets and correctly tensioned bolting to maintain the
integrity of the seal. The four basic elements of the Techlok clamp connector are hubs,
sealring, clamps and bolting. When bolting the assembly, the hubs are drawn together by
the twin wedge action of the two clamp segments compressing on the seal ring to make
the first-stage self-energising seal.
The applied bolting loads are transmitted to the clamps through almost 360º contact
with the hubs. And as the bolts are transversely mounted they are almost completely
isolated from the operating loads, resulting in a strong, reliable yet compact connection.
In service the sealring becomes even more effective as internal pressure reinforces the
metal-to-metal seal to the extent that its strength can normally exceed the burst pressure of
the connected pipe.
Techlok Components
Hubs
A critical feature of Techlok hubs is their conical seat which creates the
interference with the sealring lips to make the seal. Hubs are
manufactured from the same generic material as the piping
system on which they are to be utilised. They are then either
welded to the pipe or machined integrally onto associated
equipment such as valves.
Butt weld hubs are supplied with standard ANSI B16.25
weld profiles. Blind hubs are also
available for blanking off a pipe
section or for pressure
vessel closures.
Clamps
The two Techlok clamp segments make
virtually 360º contact round the hubs. The seal is
made when the bolts are tightened, drawing the
two clamp halves together and clamping the hubs
against the sealring. The clamp bolt holes have
spherical seats to accept the spherically faced nuts
to ensure a perfect fit.
Bolting
Techlok clamp connectors come complete with
standard size nuts and bolts in a variety of coatings
to suit every type of piping application. Each
connector requires only four bolts (which
encompasses a 100% safety / redundancy factor)
and the nuts are spherically-faced to eliminate
bending stresses in the bolts during assembly.
Sealring
The key to the Techlok system is its
sealring. Techlok’s sealring has a central rib
section and two seal lips tapered to match the
conical seat profile of the hubs. It is these lips
which make the pressure-energised seal.
Deformation remains essentially elastic throughout, making the
sealring reusable.
The rib provides a positive stop during make-up, preventing the lips
from being crushed by over tightening and also transferring compressive
and bending loads from one hub to the other.
Sealrings are manufactured from high strength steel compatible with the hub
materials. Typically, precipitation-hardening stainless steels such as grades 630 or 660,
or Alloy 718 are specified for corrosion resistant applications, while low alloy steels are
used for carbon steel pipes. Coating the sealring with a lubricant such as PTFE prevents
the surfaces galling during make-up and enhances reusability.
4
Techlok's sealring has many advantages
over conventional gaskets. For example:
•
Assured joint integrity first time – every time
•
The gasket forces and seal diameter are
minimal, meaning that the load capacity of the
components is maximised
•
The proven reliability of the pressure-energised
bore seal makes Techlok connectors compact
and up to 75% lighter than comparably rated
flanges
•
The lack of a conventional flange gasket gives a
gas-tight metal-to-metal seal
Techlok
Techlok
Techlok
Compression
Tension
Bending
As is well known, external bending forces
are an inevitable part of any piping system,
resulting in high stresses being placed on pipe
joints. Independent strain gauge and
destructive tests have shown the Techlok
connector can withstand considerable bending
moments/forces and axial loading under
pressure without leaking or the bolts
becoming loose, greatly reducing maintenance
costs at the same time as being highly
beneficial to the environment.
Quality Assurance
As one of the earliest members of First Point Assessment Ltd (FPAL) Vector’s
quality and delivery performance is consistently monitored by this independent
authority that acts on behalf of the major operators and their contractors in the
North Sea.
As well as meeting the current industry Standard for Interchangeability Techlok
connectors can also be supplied to meet other design codes and regulations
including:
•
ASME B31.3/ASME VIII Div1 and Div2
•
API6A/ISO 10423
•
PD 5500
•
UK Offshore Regulations
•
Customer’s special requirements
•
Country Codes
•
NORSOK
•
PED (Pressure Equipment Directive)
Independent quality audit assessments have been
carried out by the following operators and
contractors on Vector’s design and manufacturing
facilities;
•
ABB Offshore Systems
•
Saudi Aramco
•
Amec
•
NPCC
•
AECL (Nuclear)
•
BP
•
ExxonMobil (The Netherlands & North Sea)
•
Kvaerner Engineering
•
Maersk Oil & Gas
•
ConocoPhillips
•
Shell Exploration & Production
•
GE Canada (Nuclear)
•
Dominion Bridge (Nuclear)
•
Statoil
•
J Ray McDermott
•
Nemo Engineering AS
5
Type Approval Testing
The Techlok range of connectors has been subjected to
extensive strain gauge and destructive testing under independent
conditions both in-house and at recognised test centres, and,
after combined pressure and external load type testing, carries
Type Approval by Bureau Veritas.
API Fire Testing
It is important to analyse product performance correctly when specifying pipe
connectors. Extensive testing has shown the Techlok range of clamp connectors will
suit most applications.
Successful strain gauge testing under full load conditions, fire testing to API 6FB
parts 1 and 2, independent testing and witnessing resulting in Bureau Veritas Type
Approval, and extensive Finite Element Analysis during the fire test programme, make
Techlok today the most comprehensively tested clamp connector available
Weld-O-Hubs
Weld-O-Hubs
Techlok Weld-O-Hubs enable pipework branch connections to be made with a
single weld, and provide full reinforcement for the pipe run integral with the
Techlok hub.
Weld-O-Hubs are available in all materials to suit piping requirements, in the
standard size range 1" to 6".
D
40°
A
A
PIPE RUN OR MANIFOLD
SECTION A-A PIPING) E MAX (TO SUIT A B 40° C Nominal Pipe Size Size Designation Clamp Size Ring Size Hub O/D ‘A’ Back Face O/D ‘B’ Lip O/D ‘C’ Length O/D ‘D’ Sealring Bore ‘E’
ins. ins. ins. ins. ins. ins. ins. ins. ins.
1/2 1in/4 1 4 50.8 38.2 7.95 75 12.6 1/2 1in/5 1 5 50.8 38.2 7.95 75 15.8 3/4 1in/5 1 5 50.8 38.2 7.95 75 15.8 3/4 1in/7 1 7 50.8 38.2 7.95 75 22.9 1 1in/5 1 5 50.8 38.2 7.95 75 15.8 1 1in/7 1 7 50.8 38.2 7.95 75 22.9 1 1in/11 1 11 50.8 38.2 7.95 75 28.4 1–1/2 1–1/2in/11 1–1/2 11 79.4 60.5 12.70 110 28.4 1–1/2 1–1/2in/14 1–1/2 14 79.4 60.5 11.10 110 40.7 2 2in/11 2 11 92.1 73.2 12.70 125 28.4 2 2in/14 2 14 92.1 73.2 11.10 125 40.7 2 2in/20 2 20 92.1 73.2 11.10 125 52.2 3 3in/20 3 20 127.0 101.7 12.70 150 52.2 3 3in/23 3 23 127.0 101.7 12.70 150 60.1 3 3in/25 3 25 127.0 101.7 12.70 150 67.6 3 3in/27 3 27 127.0 101.7 12.70 150 77.5 4 4in/25 4 25 152.4 127.2 12.70 175 67.6 4 4in/31 4 31 152.4 127.2 12.70 175 82.3 4 4in/34 4 34 152.4 127.2 12.70 175 93.4 4 4in/40 4 40 152.4 127.2 12.70 175 102.9 6 6in/40R* 6 40 235.0 197.1 23.79 220 102.9 6 6in/46R* 6 46 235.0 197.1 23.79 220 120.2 6 6in/52 6 52 235.0 197.1 20.62 220 134.5 6 6in/62 6 62 235.0 197.1 19.05 220 153.5 8 8in/52R* 8 52 292.1 254.2 23.79 250 134.5 8 8in/62 8 62 292.1 254.2 19.05 250 153.5 8 8in/72 8 72 292.1 254.2 19.05 250 183.5 8 8in/76 8 76 292.1 254.2 19.05 250 196.2 8 8in/82 8 82 292.1 254.2 19.05 250 208.9
•
Pipe connections can be made with just a single weld
•
Provides full reinforcement with pipe runs integral with the hub
•
Available in all materials to suit piping requirements
•
Standard sizes available from 1" to 6"
•
Also available Weld-O-Flange for the SPO Compact Flange
Techlok Clampsets Clamp Size Clamp ID Bolt Centres Clamp OD Overall Length Clamp Width Lug Sepa-ration Clamp
Clearance Bolt Dia.
Bolt Length
Bolt Lug
Width Bolt Pitch
Assembly
Clearance Clamp Wt.
A B C D E F G H I J K L
ins mm ins mm ins mm ins mm ins mm ins mm ins mm ins mm ins mm ins mm ins mm ins mm Lbs Kg
Standard Series 1in 1.69 43 3.25 83 2.81 71 4.25 108 1.38 35 2.19 56 2.63 67 0.50 13 3.50 89 2.25 57 1.25 32 1.9 48 4.2 1.9 1.5in 2.69 68 5.00 127 4.50 114 6.50 165 2.00 51 3.25 83 4.00 102 0.63 16 5.00 127 3.13 80 1.63 41 3.0 76 9.9 4.5 2in 3.20 81 5.75 146 5.50 140 7.50 191 2.00 51 3.52 89 4.50 114 0.75 19 5.25 133 3.38 86 1.81 46 3.6 91 13.2 6.0 3in 4.38 111 7.50 191 6.88 175 9.25 235 2.38 61 4.60 117 5.25 133 0.75 19 6.50 165 3.38 86 1.81 46 4.6 117 23.6 10.7 4in 5.38 137 8.50 216 8.25 210 10.50 267 2.38 61 5.40 137 6.00 152 0.88 22 7.50 191 4.00 102 2.06 52 5.4 137 28.7 13.0 5in 6.88 175 10.25 260 9.88 251 12.38 315 3.13 80 6.13 156 7.25 184 1.00 25 8.25 210 4.50 114 2.31 59 6.9 175 41.0 18.6 6in 8.38 213 12.63 321 12.00 305 15.25 387 3.75 95 6.88 175 8.75 222 1.13 29 10.63 270 5.25 133 2.44 62 8.0 203 70.3 31.9 8in 10.63 270 15.25 387 14.50 368 18.50 470 3.75 95 7.88 200 9.88 251 1.25 32 12.00 305 5.75 146 2.88 73 9.4 239 110.0 49.9
Light Duty Series
L14in 16.38 416 22.25 565 21.50 546 26.00 660 5.00 127 10.88 276 14.75 375 1.63 41 17.00 432 7.38 188 3.63 92 13.3 338 275.6 125.0 L16in 18.63 473 24.00 610 23.50 597 27.75 705 5.00 127 13.00 330 16.25 413 1.75 44 19.50 495 7.63 194 3.88 99 14.5 368 308.6 140.0 L18in 20.88 530 25.75 654 26.00 660 29.50 749 5.00 127 14.38 365 17.50 445 1.88 48 21.50 546 8.00 203 4.13 105 15.9 404 352.7 160.0 L20in 23.63 600 28.31 719 29.38 746 32.25 819 5.00 127 17.13 435 19.50 495 2.00 51 24.75 629 8.50 216 4.38 111 17.7 450 418.9 190.0 L24in 28.31 719 34.25 870 34.75 883 38.88 988 6.25 159 18.38 467 22.50 572 2.25 57 27.00 686 9.50 241 5.00 127 21.4 544 661.4 300.0
Heavy Duty Series
H2in 4.13 105 7.25 184 6.88 175 9.00 229 2.88 73 4.88 124 5.63 143 0.88 22 7.50 191 3.75 95 2.00 51 4.6 117 24.3 11.0 H3in 4.88 124 8.00 203 7.75 197 10.00 254 3.00 76 5.43 138 6.13 156 0.88 22 7.50 191 4.00 102 2.06 52 5.1 130 33.1 15.0 H4in 6.13 156 9.56 243 9.00 229 11.75 298 3.00 76 5.75 146 7.00 178 1.00 25 8.25 210 4.38 111 2.31 59 5.9 150 39.9 18.1 H8in 10.13 257 16.00 406 14.75 375 18.63 473 4.50 114 7.50 191 10.75 273 1.38 35 12.00 305 5.88 149 3.13 80 9.8 249 138 62.6 H10in 12.25 311 18.25 464 17.63 448 22.50 572 5.50 140 10.50 267 12.75 324 1.63 41 15.63 397 7.25 184 3.63 92 11.4 290 243 110.2 H12in 14.63 372 21.00 533 20.38 518 25.00 635 5.75 146 11.25 286 14.25 362 1.75 44 17.00 432 7.50 191 3.75 95 13.0 330 320 145.2 H14in 17.13 435 24.75 629 23.00 584 29.25 743 6.13 156 11.25 286 16.25 413 1.88 48 17.25 438 8.25 210 4.25 108 14.6 371 430 195.1 H16in 19.69 500 29.25 743 27.19 691 34.25 870 7.63 194 13.50 343 19.13 486 2.25 57 22.00 559 9.63 245 5.00 127 16.9 429 683 309.8 H18in 20.69 526 29.25 743 27.69 703 34.25 870 7.63 194 14.00 356 19.63 499 2.25 57 22.00 559 9.63 245 5.00 127 17.3 439 650 294.8 H20in 23.69 602 32.00 813 30.38 772 37.63 956 7.50 191 18.00 457 21.50 546 2.25 57 26.00 660 10.00 254 5.00 127 18.8 478 860 390.1 H22in 24.69 627 32.00 813 32.25 819 37.63 956 7.50 191 18.00 457 21.50 546 2.25 57 26.00 660 10.00 254 5.00 127 19.9 506 816 370.1 H24in 28.19 716 36.00 914 36.13 918 40.50 1029 7.00 178 19.40 493 23.75 603 2.25 57 27.00 686 10.50 267 5.00 127 22.1 561 1047 474.9 H26in 29.94 761 38.75 984 37.85 961 46.50 1181 8.00 203 19.60 498 27.00 686 2.50 64 28.00 711 10.50 267 5.50 140 23.1 587 1155 523.9
Techlok Clampsets
78
Heavy Duty Butt Weld and Blind Hubs
Heavy Duty Butt Weld and Blind Hubs
N.P.S
(DN)
Pipe
Sched-ule
Techlok
Designa-tion Hub
/ S.Ring
Pipe
Hub
Hub
Hub
Lip
Blind Hub
BW Hub
Blind Hub
O.Dia.
I.Dia.
O.Dia.
Length
Backface
Dia
Thickness
Thickness
Wt.
Wt.
‘A’
‘B’
‘C’
‘D’
‘E’
‘F’
‘G’
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
Lbs.
Kg
Lbs.
Kg
2” (DN 50) Std 40 40S H2in20 2.07 52.5 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 6.2 2.8 7 3.2 2.38 60.3 XS 80 80S H2in20 1.94 49.3 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 6.5 2.9 7 3.2 160 H2in16 1.69 42.9 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 7.1 3.2 7 3.2 XXS H2in14 1.50 38.2 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 7.5 3.4 7 3.2 3” (DN 75) Std 40 40S H3in27 3.07 77.9 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 7.3 3.3 11 5 3.50 88.9 XS 80 80S H3in27 2.90 73.7 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 8 3.6 11 5 160 H3in25 2.62 66.6 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 9.2 4.2 11 5 XXS H3in23 2.30 58.4 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 10.3 4.7 11 5 4” (DN 100) Std 40 40S H4in40 4.03 102.3 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 11.9 5.4 21.9 10 4.50 114.3 XS 80 80S H4in40 3.83 97.2 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 13 5.9 21.9 10 120 H4in34 3.62 92.1 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 14.3 6.5 21.9 10 160 H4in34 3.44 87.3 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 15.5 7 21.9 10 XXS H4in31 3.15 80.1 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 17.2 7.8 21.9 10 8” (DN 200) Std 40 40S H8in82 7.98 202.7 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 31.6 14.3 73.3 33.2 8.63 219.1 XS 80 80S H8in76 7.63 193.7 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 38.3 17.4 73.3 33.2 100 H8in76 7.44 189.0 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 40.3 18.3 73.3 33.2 120 H8in72 7.19 182.6 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 45.4 20.6 73.3 33.2 140 H8in72 7.00 177.8 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 47.2 21.4 73.3 33.2 XXS H8in67 6.88 174.6 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 50.1 22.7 73.3 33.2 160 H8in67 6.81 173.1 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 50.7 23 73.3 33.2 10” (DN 250) Std 40 40S H10in102 10.02 254.5 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 49.9 22.6 119.2 54.1 10.75 273.1 XS 60 80S H10in97 9.75 247.7 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 57.5 26.1 119.2 54.1 80 H10in97 9.56 242.9 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 60.7 27.6 119.2 54.1 100 H10in94 9.31 236.6 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 67.6 30.7 119.2 54.1 120 H10in92 9.06 230.2 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 71.4 32.4 119.2 54.1 XXS140 H10in87 8.75 222.3 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 80.5 36.5 119.2 54.1 160 H10in84 8.50 215.9 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 86.2 39.1 119.2 54.1 12” (DN 300) Std 40s H12in120 12.00 304.8 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 77.1 35 184.5 83.7 12.75 323.9 40 H12in120 11.94 303.2 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 78.8 35.8 184.5 83.7 XS 80S H12in116 11.75 298.5 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 85.4 38.7 184.5 83.7 80 H12in116 11.38 289.0 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 94.4 42.8 184.5 83.7 100 H12in112 11.06 281.0 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 104.3 47.3 184.5 83.7 XXS 120 H12in106 10.75 273.1 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 112.9 51.2 184.5 83.7 140 H12in106 10.50 266.7 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 118.3 53.7 184.5 83.7 160 H12in102 10.13 257.2 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 129.3 58.7 184.5 83.7 14” (DN 350) 40 H14in134 13.12 333.3 18.50 469.9 7.25 184.2 16.50 419.1 1.19 30.1 4.50 114.3 124.7 56.6 290.8 131.9 14.00 355.6 XS H14in130 13.00 330.2 18.50 469.9 7.25 184.2 16.50 419.1 1.19 30.1 4.50 114.3 133.2 60.4 290.8 131.9 80 H14in124 12.50 317.5 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 153.3 69.5 291.8 132.3 100 H14in124 12.12 307.9 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 163.8 74.3 291.8 132.3 120 H14in120 11.81 300.1 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 177.3 80.4 291.8 132.3 140 H14in116 11.50 292.1 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 187.2 84.9 291.8 132.3 160 H14in112 11.19 284.2 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 197 89.4 289.8 131.5 16” (DN 400) XS 40 H16in152 15.00 381.0 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 194.8 88.4 431.2 195.6 16.00 406.4 60 H16in152 14.69 373.1 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 206.3 93.6 431.2 195.6 80 H16in144 14.31 363.6 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 229.1 103.9 431.2 195.6 100 H16in140 13.94 354.0 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 247.5 112.3 431.2 195.6 120 H16in137 13.56 344.5 21.00 533.4 7.88 200.0 19.00 482.6 1.63 41.3 5.00 127.0 260.5 118.2 430.1 195.1 140 H16in134 13.12 333.3 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 279.4 126.8 431.2 195.6 160 H16in130 12.81 325.4 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 293.9 133.3 431.2 195.6 18” (DN 450) 40 H18in170 16.88 428.7 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 176 79.8 476.1 215.9 18.00 457.2 60 H18in170 16.50 419.1 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 191.7 86.9 476.1 215.9 80 H18in160 16.13 409.6 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 219.8 99.7 476.1 215.9 100 H18in160 15.69 398.5 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 238.1 108 476.1 215.9 120 H18in152 15.25 387.4 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 262.8 119.2 476.1 215.9 140 H18in152 14.88 377.9 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 276.4 125.4 476.1 215.9 160 H18in144 14.44 366.7 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 299.2 135.7 476.1 215.9 20” (DN 500) 40 H20in192 18.81 477.9 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 262.7 119.2 681.4 309.1 20.00 508 60 H20in185 18.38 466.8 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 295.1 133.9 681.4 309.1 80 H20in180 17.94 455.6 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 327.6 148.6 681.4 309.1 100 H20in180 17.44 442.9 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 351.9 159.6 681.4 309.1 120 H20in170 17.00 431.8 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 386.5 175.3 681.4 309.1 140 H20in170 16.50 419.1 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 408.7 185.4 681.4 309.1 160 H20in160 16.06 408.0 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 440.3 199.7 681.4 309.1 22” (DN 550) 40 H22in210 20.75 527.1 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 219.8 99.7 732 332 22.00 558.8 60 H22in210 20.25 514.4 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 247 112 732 332 80 H22in200 19.75 501.7 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 295.2 133.9 732 332 100 H22in192 19.25 489.0 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 333.3 151.2 732 332 120 H22in192 18.75 476.3 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 358.9 162.8 732 332 140 H22in185 18.25 463.6 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 391.8 177.7 732 332 160 H22in180 17.75 450.9 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 424.8 192.7 732 332 24” (DN 600) 40 H24in225 22.62 574.7 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 360.3 163.4 1040.2 471.9 24.00 609.6 60 H24in220 22.06 560.4 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 409.6 185.8 1040.2 471.9 80 H24in220 21.56 547.7 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 441.6 200.3 1040.2 471.9 100 H24in210 20.94 531.8 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 496.8 225.4 1040.2 471.9 120 H24in210 20.38 517.6 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 527.4 239.2 1040.2 471.9 140 H24in200 19.88 504.9 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 573 259.9 1040.2 471.9 160 H24in200 19.31 490.6 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 600.1 272.2 1040.2 471.9 26” (DN 650) Std H26in254 25.25 641.4 31.12 793.8 10.00 254.0 29.25 743.0 1.63 41.3 6.50 165.1 360.8 163.7 1279.8 580.5 26.00 660.4 XS H26in254 25.00 635.0 31.12 793.8 10.00 254.0 29.25 743.0 1.63 41.3 6.50 165.1 382.2 173.3 1279.8 580.5
9
Heavy Duty Butt Weld and Blind Hubs
cont’d
Heavy Duty Butt Weld and Blind Hubs
N.P.S
(DN)
Pipe
Sched-ule
Techlok
Designa-tion Hub
/ S.Ring
Pipe
Hub
Hub
Hub
Lip
Blind Hub
BW Hub
Blind Hub
O.Dia.
I.Dia.
O.Dia.
Length
Backface
Dia
Thickness
Thickness
Wt.
Wt.
‘A’
‘B’
‘C’
‘D’
‘E’
‘F’
‘G’
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
Lbs.
Kg
Lbs.
Kg
2” (DN 50) Std 40 40S H2in20 2.07 52.5 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 6.2 2.8 7 3.2 2.38 60.3 XS 80 80S H2in20 1.94 49.3 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 6.5 2.9 7 3.2 160 H2in16 1.69 42.9 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 7.1 3.2 7 3.2 XXS H2in14 1.50 38.2 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 7.5 3.4 7 3.2 3” (DN 75) Std 40 40S H3in27 3.07 77.9 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 7.3 3.3 11 5 3.50 88.9 XS 80 80S H3in27 2.90 73.7 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 8 3.6 11 5 160 H3in25 2.62 66.6 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 9.2 4.2 11 5 XXS H3in23 2.30 58.4 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 10.3 4.7 11 5 4” (DN 100) Std 40 40S H4in40 4.03 102.3 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 11.9 5.4 21.9 10 4.50 114.3 XS 80 80S H4in40 3.83 97.2 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 13 5.9 21.9 10 120 H4in34 3.62 92.1 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 14.3 6.5 21.9 10 160 H4in34 3.44 87.3 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 15.5 7 21.9 10 XXS H4in31 3.15 80.1 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 17.2 7.8 21.9 10 8” (DN 200) Std 40 40S H8in82 7.98 202.7 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 31.6 14.3 73.3 33.2 8.63 219.1 XS 80 80S H8in76 7.63 193.7 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 38.3 17.4 73.3 33.2 100 H8in76 7.44 189.0 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 40.3 18.3 73.3 33.2 120 H8in72 7.19 182.6 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 45.4 20.6 73.3 33.2 140 H8in72 7.00 177.8 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 47.2 21.4 73.3 33.2 XXS H8in67 6.88 174.6 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 50.1 22.7 73.3 33.2 160 H8in67 6.81 173.1 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 50.7 23 73.3 33.2 10” (DN 250) Std 40 40S H10in102 10.02 254.5 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 49.9 22.6 119.2 54.1 10.75 273.1 XS 60 80S H10in97 9.75 247.7 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 57.5 26.1 119.2 54.1 80 H10in97 9.56 242.9 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 60.7 27.6 119.2 54.1 100 H10in94 9.31 236.6 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 67.6 30.7 119.2 54.1 120 H10in92 9.06 230.2 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 71.4 32.4 119.2 54.1 XXS140 H10in87 8.75 222.3 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 80.5 36.5 119.2 54.1 160 H10in84 8.50 215.9 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 86.2 39.1 119.2 54.1 12” (DN 300) Std 40s H12in120 12.00 304.8 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 77.1 35 184.5 83.7 12.75 323.9 40 H12in120 11.94 303.2 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 78.8 35.8 184.5 83.7 XS 80S H12in116 11.75 298.5 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 85.4 38.7 184.5 83.7 80 H12in116 11.38 289.0 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 94.4 42.8 184.5 83.7 100 H12in112 11.06 281.0 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 104.3 47.3 184.5 83.7 XXS 120 H12in106 10.75 273.1 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 112.9 51.2 184.5 83.7 140 H12in106 10.50 266.7 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 118.3 53.7 184.5 83.7 160 H12in102 10.13 257.2 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 129.3 58.7 184.5 83.7 14” (DN 350) 40 H14in134 13.12 333.3 18.50 469.9 7.25 184.2 16.50 419.1 1.19 30.1 4.50 114.3 124.7 56.6 290.8 131.9 14.00 355.6 XS H14in130 13.00 330.2 18.50 469.9 7.25 184.2 16.50 419.1 1.19 30.1 4.50 114.3 133.2 60.4 290.8 131.9 80 H14in124 12.50 317.5 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 153.3 69.5 291.8 132.3 100 H14in124 12.12 307.9 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 163.8 74.3 291.8 132.3 120 H14in120 11.81 300.1 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 177.3 80.4 291.8 132.3 140 H14in116 11.50 292.1 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 187.2 84.9 291.8 132.3 160 H14in112 11.19 284.2 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 197 89.4 289.8 131.5 16” (DN 400) XS 40 H16in152 15.00 381.0 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 194.8 88.4 431.2 195.6 16.00 406.4 60 H16in152 14.69 373.1 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 206.3 93.6 431.2 195.6 80 H16in144 14.31 363.6 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 229.1 103.9 431.2 195.6 100 H16in140 13.94 354.0 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 247.5 112.3 431.2 195.6 120 H16in137 13.56 344.5 21.00 533.4 7.88 200.0 19.00 482.6 1.63 41.3 5.00 127.0 260.5 118.2 430.1 195.1 140 H16in134 13.12 333.3 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 279.4 126.8 431.2 195.6 160 H16in130 12.81 325.4 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 293.9 133.3 431.2 195.6 18” (DN 450) 40 H18in170 16.88 428.7 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 176 79.8 476.1 215.9 18.00 457.2 60 H18in170 16.50 419.1 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 191.7 86.9 476.1 215.9 80 H18in160 16.13 409.6 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 219.8 99.7 476.1 215.9 100 H18in160 15.69 398.5 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 238.1 108 476.1 215.9 120 H18in152 15.25 387.4 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 262.8 119.2 476.1 215.9 140 H18in152 14.88 377.9 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 276.4 125.4 476.1 215.9 160 H18in144 14.44 366.7 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 299.2 135.7 476.1 215.9 20” (DN 500) 40 H20in192 18.81 477.9 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 262.7 119.2 681.4 309.1 20.00 508 60 H20in185 18.38 466.8 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 295.1 133.9 681.4 309.1 80 H20in180 17.94 455.6 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 327.6 148.6 681.4 309.1 100 H20in180 17.44 442.9 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 351.9 159.6 681.4 309.1 120 H20in170 17.00 431.8 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 386.5 175.3 681.4 309.1 140 H20in170 16.50 419.1 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 408.7 185.4 681.4 309.1 160 H20in160 16.06 408.0 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 440.3 199.7 681.4 309.1 22” (DN 550) 40 H22in210 20.75 527.1 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 219.8 99.7 732 332 22.00 558.8 60 H22in210 20.25 514.4 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 247 112 732 332 80 H22in200 19.75 501.7 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 295.2 133.9 732 332 100 H22in192 19.25 489.0 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 333.3 151.2 732 332 120 H22in192 18.75 476.3 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 358.9 162.8 732 332 140 H22in185 18.25 463.6 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 391.8 177.7 732 332 160 H22in180 17.75 450.9 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 424.8 192.7 732 332 24” (DN 600) 40 H24in225 22.62 574.7 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 360.3 163.4 1040.2 471.9 24.00 609.6 60 H24in220 22.06 560.4 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 409.6 185.8 1040.2 471.9 80 H24in220 21.56 547.7 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 441.6 200.3 1040.2 471.9 100 H24in210 20.94 531.8 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 496.8 225.4 1040.2 471.9 120 H24in210 20.38 517.6 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 527.4 239.2 1040.2 471.9 140 H24in200 19.88 504.9 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 573 259.9 1040.2 471.9 160 H24in200 19.31 490.6 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 600.1 272.2 1040.2 471.9 26” (DN 650) Std H26in254 25.25 641.4 31.12 793.8 10.00 254.0 29.25 743.0 1.63 41.3 6.50 165.1 360.8 163.7 1279.8 580.5 26.00 660.4 XS H26in254 25.00 635.0 31.12 793.8 10.00 254.0 29.25 743.0 1.63 41.3 6.50 165.1 382.2 173.3 1279.8 580.5
Heavy Duty Butt Weld and Blind Hubs
N.P.S
(DN)
Pipe
Sched-ule
Techlok
Designa-tion Hub
/ S.Ring
Pipe
Hub
Hub
Hub
Lip
Blind Hub
BW Hub
Blind Hub
O.Dia.
I.Dia.
O.Dia.
Length
Backface
Dia
Thickness
Thickness
Wt.
Wt.
‘A’
‘B’
‘C’
‘D’
‘E’
‘F’
‘G’
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
Lbs.
Kg
Lbs.
Kg
2” (DN 50) Std 40 40S H2in20 2.07 52.5 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 6.2 2.8 7 3.2 2.38 60.3 XS 80 80S H2in20 1.94 49.3 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 6.5 2.9 7 3.2 160 H2in16 1.69 42.9 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 7.1 3.2 7 3.2 XXS H2in14 1.50 38.2 4.75 120.7 3.25 82.6 3.75 95.3 0.63 15.9 1.88 47.6 7.5 3.4 7 3.2 3” (DN 75) Std 40 40S H3in27 3.07 77.9 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 7.3 3.3 11 5 3.50 88.9 XS 80 80S H3in27 2.90 73.7 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 8 3.6 11 5 160 H3in25 2.62 66.6 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 9.2 4.2 11 5 XXS H3in23 2.30 58.4 5.50 139.7 3.50 88.9 4.50 114.3 0.63 15.9 2.13 54.0 10.3 4.7 11 5 4” (DN 100) Std 40 40S H4in40 4.03 102.3 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 11.9 5.4 21.9 10 4.50 114.3 XS 80 80S H4in40 3.83 97.2 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 13 5.9 21.9 10 120 H4in34 3.62 92.1 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 14.3 6.5 21.9 10 160 H4in34 3.44 87.3 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 15.5 7 21.9 10 XXS H4in31 3.15 80.1 6.75 171.5 4.00 101.6 5.75 146.1 0.63 15.9 2.75 69.8 17.2 7.8 21.9 10 8” (DN 200) Std 40 40S H8in82 7.98 202.7 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 31.6 14.3 73.3 33.2 8.63 219.1 XS 80 80S H8in76 7.63 193.7 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 38.3 17.4 73.3 33.2 100 H8in76 7.44 189.0 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 40.3 18.3 73.3 33.2 120 H8in72 7.19 182.6 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 45.4 20.6 73.3 33.2 140 H8in72 7.00 177.8 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 47.2 21.4 73.3 33.2 XXS H8in67 6.88 174.6 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 50.1 22.7 73.3 33.2 160 H8in67 6.81 173.1 11.50 292.1 5.00 127.0 9.50 241.3 1.00 25.4 3.19 81.0 50.7 23 73.3 33.2 10” (DN 250) Std 40 40S H10in102 10.02 254.5 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 49.9 22.6 119.2 54.1 10.75 273.1 XS 60 80S H10in97 9.75 247.7 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 57.5 26.1 119.2 54.1 80 H10in97 9.56 242.9 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 60.7 27.6 119.2 54.1 100 H10in94 9.31 236.6 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 67.6 30.7 119.2 54.1 120 H10in92 9.06 230.2 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 71.4 32.4 119.2 54.1 XXS140 H10in87 8.75 222.3 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 80.5 36.5 119.2 54.1 160 H10in84 8.50 215.9 13.63 346.1 6.00 152.4 11.63 295.3 1.25 31.8 3.50 88.9 86.2 39.1 119.2 54.1 12” (DN 300) Std 40s H12in120 12.00 304.8 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 77.1 35 184.5 83.7 12.75 323.9 40 H12in120 11.94 303.2 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 78.8 35.8 184.5 83.7 XS 80S H12in116 11.75 298.5 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 85.4 38.7 184.5 83.7 80 H12in116 11.38 289.0 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 94.4 42.8 184.5 83.7 100 H12in112 11.06 281.0 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 104.3 47.3 184.5 83.7 XXS 120 H12in106 10.75 273.1 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 112.9 51.2 184.5 83.7 140 H12in106 10.50 266.7 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 118.3 53.7 184.5 83.7 160 H12in102 10.13 257.2 16.00 406.4 6.63 168.3 14.00 355.6 1.38 34.9 4.00 101.6 129.3 58.7 184.5 83.7 14” (DN 350) 40 H14in134 13.12 333.3 18.50 469.9 7.25 184.2 16.50 419.1 1.19 30.1 4.50 114.3 124.7 56.6 290.8 131.9 14.00 355.6 XS H14in130 13.00 330.2 18.50 469.9 7.25 184.2 16.50 419.1 1.19 30.1 4.50 114.3 133.2 60.4 290.8 131.9 80 H14in124 12.50 317.5 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 153.3 69.5 291.8 132.3 100 H14in124 12.12 307.9 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 163.8 74.3 291.8 132.3 120 H14in120 11.81 300.1 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 177.3 80.4 291.8 132.3 140 H14in116 11.50 292.1 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 187.2 84.9 291.8 132.3 160 H14in112 11.19 284.2 18.50 469.9 7.25 184.2 16.50 419.1 1.25 31.8 4.50 114.3 197 89.4 289.8 131.5 16” (DN 400) XS 40 H16in152 15.00 381.0 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 194.8 88.4 431.2 195.6 16.00 406.4 60 H16in152 14.69 373.1 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 206.3 93.6 431.2 195.6 80 H16in144 14.31 363.6 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 229.1 103.9 431.2 195.6 100 H16in140 13.94 354.0 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 247.5 112.3 431.2 195.6 120 H16in137 13.56 344.5 21.00 533.4 7.88 200.0 19.00 482.6 1.63 41.3 5.00 127.0 260.5 118.2 430.1 195.1 140 H16in134 13.12 333.3 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 279.4 126.8 431.2 195.6 160 H16in130 12.81 325.4 21.00 533.4 7.88 200.0 19.00 482.6 1.69 42.9 5.00 127.0 293.9 133.3 431.2 195.6 18” (DN 450) 40 H18in170 16.88 428.7 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 176 79.8 476.1 215.9 18.00 457.2 60 H18in170 16.50 419.1 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 191.7 86.9 476.1 215.9 80 H18in160 16.13 409.6 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 219.8 99.7 476.1 215.9 100 H18in160 15.69 398.5 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 238.1 108 476.1 215.9 120 H18in152 15.25 387.4 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 262.8 119.2 476.1 215.9 140 H18in152 14.88 377.9 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 276.4 125.4 476.1 215.9 160 H18in144 14.44 366.7 22.00 558.8 7.88 200.0 20.00 508.0 1.69 42.9 5.00 127.0 299.2 135.7 476.1 215.9 20” (DN 500) 40 H20in192 18.81 477.9 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 262.7 119.2 681.4 309.1 20.00 508 60 H20in185 18.38 466.8 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 295.1 133.9 681.4 309.1 80 H20in180 17.94 455.6 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 327.6 148.6 681.4 309.1 100 H20in180 17.44 442.9 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 351.9 159.6 681.4 309.1 120 H20in170 17.00 431.8 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 386.5 175.3 681.4 309.1 140 H20in170 16.50 419.1 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 408.7 185.4 681.4 309.1 160 H20in160 16.06 408.0 25.00 635.0 8.75 222.3 23.00 584.2 1.63 41.3 5.50 139.7 440.3 199.7 681.4 309.1 22” (DN 550) 40 H22in210 20.75 527.1 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 219.8 99.7 732 332 22.00 558.8 60 H22in210 20.25 514.4 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 247 112 732 332 80 H22in200 19.75 501.7 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 295.2 133.9 732 332 100 H22in192 19.25 489.0 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 333.3 151.2 732 332 120 H22in192 18.75 476.3 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 358.9 162.8 732 332 140 H22in185 18.25 463.6 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 391.8 177.7 732 332 160 H22in180 17.75 450.9 26.00 660.4 8.75 222.3 24.00 609.6 1.25 31.8 5.50 139.7 424.8 192.7 732 332 24” (DN 600) 40 H24in225 22.62 574.7 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 360.3 163.4 1040.2 471.9 24.00 609.6 60 H24in220 22.06 560.4 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 409.6 185.8 1040.2 471.9 80 H24in220 21.56 547.7 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 441.6 200.3 1040.2 471.9 100 H24in210 20.94 531.8 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 496.8 225.4 1040.2 471.9 120 H24in210 20.38 517.6 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 527.4 239.2 1040.2 471.9 140 H24in200 19.88 504.9 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 573 259.9 1040.2 471.9 160 H24in200 19.31 490.6 29.50 749.3 9.00 228.6 27.50 698.5 1.25 31.8 6.00 152.4 600.1 272.2 1040.2 471.9 26” (DN 650) Std H26in254 25.25 641.4 31.12 793.8 10.00 254.0 29.25 743.0 1.63 41.3 6.50 165.1 360.8 163.7 1279.8 580.5 26.00 660.4 XS H26in254 25.00 635.0 31.12 793.8 10.00 254.0 29.25 743.0 1.63 41.3 6.50 165.1 382.2 173.3 1279.8 580.5
Standard Butt Weld and Blind Hubs
Standard Butt Weld and Blind Hubs
N.P.S
(DN)
Pipe
Sched-ule
Techlok
Desig-nation
Hub /
S.Ring
Pipe
Hub
Hub
Hub
Lip
Blind Hub
BW Hub
Blind Hub
O.Dia.
I.Dia.
O.Dia.
Length
Backface
Dia
Thickness
Thickness
Wt.
Wt.
‘A’
‘B’
‘C’
‘D’
‘E’
‘F’
‘G’
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
Lbs.
Kg
Lbs.
Kg
1/2” (DN 15) Std 40 40S 1in5 0.62 15.8 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.6 0.3 0.8 0.4 0.84 21.3 XS 80 80S 1in5 0.55 13.9 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.6 0.3 0.8 0.4 160 1in4 0.47 11.8 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.6 0.3 0.8 0.4 XXS 1in4 0.25 6.4 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.6 0.3 0.8 0.4 3/4” (DN 20) Std 40 40S 1in7 0.82 20.9 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.5 0.2 0.8 0.4 1.05 26.7 XS 80 80S 1in7 0.74 18.8 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.6 0.3 0.8 0.4 160 1in5 0.61 15.6 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.7 0.3 0.8 0.4 XXS 1in4 0.43 11.0 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.7 0.3 0.8 0.4 1” (DN 25) Std 40 40S 1in11 1.05 26.6 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.5 0.2 0.8 0.4 1.32 33.4 XS 80 80S 1in11 0.96 24.3 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.5 0.2 0.8 0.4 160 1in7 0.82 20.7 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.6 0.3 0.8 0.4 XXS 1in5 0.60 15.2 2.00 50.8 1.75 44.5 1.50 38.1 0.31 8.0 1.31 33.4 0.7 0.3 0.8 0.4 1.5” (DN 40) Std 40 40S 1.5in14 1.61 40.9 3.13 79.4 2.38 60.3 2.38 60.3 0.44 11.1 1.63 41.3 1.6 0.7 2.4 1.1 1.90 48.3 XS 80 80S 1.5in13 1.50 38.1 3.13 79.4 2.38 60.3 2.38 60.3 0.50 12.7 1.63 41.3 1.9 0.8 2.5 1.1 160 1.5in13 1.34 34.0 3.13 79.4 2.38 60.3 2.38 60.3 0.50 12.7 1.63 41.3 2 0.9 2.5 1.1 XXS 1.5in11 1.10 27.9 3.13 79.4 2.38 60.3 2.38 60.3 0.50 12.7 1.63 41.3 2.4 1.1 2.5 1.1 2” (DN 50) Std 40 40S 2in20 2.07 52.5 3.63 92.1 2.75 69.9 2.88 73.0 0.44 11.1 1.75 44.5 2.2 1 3.7 1.7 2.38 60.3 XS 80 80S 2in20 1.94 49.3 3.63 92.1 2.75 69.9 2.88 73.0 0.44 11.1 1.75 44.5 2.5 1.1 3.7 1.7 160 2in16 1.69 42.9 3.63 92.1 2.75 69.9 2.88 73.0 0.44 11.1 1.75 44.5 3 1.4 3.7 1.7 XXS 2in14 1.50 38.2 3.63 92.1 2.75 69.9 2.88 73.0 0.44 11.1 1.75 44.5 3.4 1.5 3.7 1.7 3” (DN 75) Std 40 40S 3in27 3.07 77.9 5.00 127.0 3.25 82.6 4.00 101.6 0.50 12.7 1.88 47.6 4.7 2.1 7.7 3.5 3.50 88.9 XS 80 80S 3in27 2.90 73.7 5.00 127.0 3.25 82.6 4.00 101.6 0.50 12.7 1.88 47.6 5.2 2.4 7.7 3.5 160 3in25 2.62 66.6 5.00 127.0 3.25 82.6 4.00 101.6 0.50 12.7 1.88 47.6 6.3 2.9 7.7 3.5 XXS 3in23 2.30 58.4 5.00 127.0 3.25 82.6 4.00 101.6 0.50 12.7 1.88 47.6 7.4 3.3 7.7 3.5 4” (DN 100) Std 40 40S 4in40 4.03 102.3 6.00 152.4 3.63 92.1 5.00 127.0 0.50 12.7 2.13 54.0 6.7 3.1 13 5.9 4.50 114.3 XS 80 80S 4in40 3.83 97.2 6.00 152.4 3.63 92.1 5.00 127.0 0.50 12.7 2.13 54.0 7.7 3.5 13 5.9 120 4in34 3.62 92.1 6.00 152.4 3.63 92.1 5.00 127.0 0.50 12.7 2.13 54.0 8.9 4 13 5.9 160 4in34 3.44 87.3 6.00 152.4 3.63 92.1 5.00 127.0 0.50 12.7 2.13 54.0 10 4.5 13 5.9 XXS 4in31 3.15 80.1 6.00 152.4 3.63 92.1 5.00 127.0 0.50 12.7 2.13 54.0 11.5 5.2 13 5.9 5” (DN 125) Std 40 40S 5in52 5.05 128.2 7.50 190.5 4.38 111.1 6.50 165.1 0.63 15.9 2.75 69.9 13.3 6 27.8 12.6 5.56 141.3 XS 80 80S 5in52 4.81 122.3 7.50 190.5 4.38 111.1 6.50 165.1 0.63 15.9 2.75 69.9 14.8 6.7 27.8 12.6 160 5in46 4.31 109.6 7.50 190.5 4.38 111.1 6.50 165.1 0.63 15.9 2.75 69.9 19.2 8.7 27.8 12.6 XXS 5in40 4.06 103.2 7.50 190.5 4.38 111.1 6.50 165.1 0.63 15.9 2.75 69.9 21.9 9.9 27.8 12.6 6” (DN 150) Std 40 40S 6in62 6.07 154.1 9.25 235.0 4.63 117.5 7.75 196.9 0.75 19.1 2.88 73.0 20.4 9.2 42.6 19.3 6.63 168.3 XS 80 80S 6in56 5.76 146.3 9.25 235.0 4.63 117.5 7.75 196.9 0.81 20.6 2.88 73.0 24.9 11.3 43 19.5 120 6in54 5.50 139.7 9.25 235.0 4.63 117.5 7.75 196.9 0.81 20.6 2.88 73.0 27.7 12.6 43 19.5 160 6in52 5.19 131.8 9.25 235.0 4.63 117.5 7.75 196.9 0.81 20.6 2.88 73.0 30.7 13.9 43 19.5 XXS 6in52 4.90 124.4 9.25 235.0 4.63 117.5 7.75 196.9 0.81 20.6 2.88 73.0 32.7 14.8 43 19.5 8” (DN 200) Std 40 40S 8in82 7.98 202.7 11.50 292.1 5.38 136.5 10.00 254.0 0.75 19.1 3.19 81.0 33 15 76.2 34.6 8.63 219.1 XS 80 80S 8in76 7.63 193.7 11.50 292.1 5.38 136.5 10.00 254.0 0.75 19.1 3.19 81.0 40.3 18.3 76.2 34.6 100 8in76 7.44 189.0 11.50 292.1 5.38 136.5 10.00 254.0 0.75 19.1 3.19 81.0 42.4 19.2 76.2 34.6 120 8in72 7.19 182.6 11.50 292.1 5.38 136.5 10.00 254.0 0.75 19.1 3.19 81.0 47.8 21.7 76.2 34.6 140 8in72 7.00 177.8 11.50 292.1 5.38 136.5 10.00 254.0 0.75 19.1 3.19 81.0 49.9 22.6 76.2 34.6 XXS 8in67 6.88 174.6 11.50 292.1 5.38 136.5 10.00 254.0 0.75 19.1 3.19 81.0 52.9 24 76.2 34.6 160 8in67 6.81 173.1 11.50 292.1 5.38 136.5 10.00 254.0 0.75 19.1 3.19 81.0 53.6 24.3 76.2 34.6 10
Light Duty Butt Weld and Blind Hubs
Light Duty Butt Weld and Blind Hubs
N.P.S
(DN)
Pipe
Sched-ule
Techlok
Desig-nation
Hub /
S.Ring
Pipe
Hub
Hub
Hub
Lip
Blind Hub
BW Hub
Blind Hub
O.Dia.
I.Dia.
O.Dia.
Length
Backface
Dia
Thickness
Thickness
Wt.
Wt.
‘A’
‘B’
‘C’
‘D’
‘E’
‘F’
‘G’
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
ins.
mm
Lbs.
Kg
Lbs.
Kg
14” (DN 350) 40 L14in134 13.12 333.3 17.25 438.2 7.00 177.8 15.75 400.1 0.75 19.1 3.50 88.9 83.4 37.8 201.2 91.3 14.00 355.6 XS L14in130 13.00 330.2 17.25 438.2 7.00 177.8 15.75 400.1 0.75 19.1 3.50 88.9 91.7 41.6 201.2 91.3 80 L14in124 12.50 317.5 17.25 438.2 7.00 177.8 15.75 400.1 0.81 20.6 3.50 88.9 110.8 50.3 201.9 91.6 100 L14in124 12.12 307.9 17.25 438.2 7.00 177.8 15.75 400.1 0.81 20.6 3.50 88.9 120.8 54.8 201.9 91.6 120 L14in120 11.81 300.1 17.25 438.2 7.00 177.8 15.75 400.1 0.81 20.6 3.50 88.9 133.8 60.7 201.9 91.6 140 L14in116 11.50 292.1 17.25 438.2 7.00 177.8 15.75 400.1 0.81 20.6 3.50 88.9 143.3 65 201.9 91.6 160 L14in112 11.19 284.2 17.25 438.2 7.00 177.8 15.75 400.1 0.69 17.4 3.50 88.9 153.4 69.6 200.5 91 16” (DN 400) XS 40 L16in152 15.00 381.0 19.50 495.3 7.50 190.5 18.00 457.2 0.75 19.1 3.75 95.3 115.5 52.4 279.4 126.8 16.00 406.4 60 L16in152 14.69 373.1 19.50 495.3 7.50 190.5 18.00 457.2 0.75 19.1 3.75 95.3 126.3 57.3 279.4 126.8 80 L16in144 14.31 363.6 19.50 495.3 7.50 190.5 18.00 457.2 0.75 19.1 3.75 95.3 148.1 67.2 279.4 126.8 100 L16in140 13.94 354.0 19.50 495.3 7.50 190.5 18.00 457.2 0.75 19.1 3.75 95.3 165.6 75.1 279.4 126.8 120 L16in137 13.56 344.5 19.50 495.3 7.50 190.5 18.00 457.2 0.69 17.4 3.75 95.3 178.1 80.8 278.7 126.4 140 L16in134 13.12 333.3 19.50 495.3 7.50 190.5 18.00 457.2 0.75 19.1 3.75 95.3 195.7 88.8 279.4 126.8 160 L16in130 12.81 325.4 19.50 495.3 7.50 190.5 18.00 457.2 0.75 19.1 3.75 95.3 209.5 95 279.4 126.8 18” (DN 450) 40 L18in170 16.88 428.7 21.75 552.5 8.00 203.2 20.25 514.4 0.75 19.1 4.00 101.6 153.3 69.5 375.1 170.1 18.00 457.2 60 L18in170 16.50 419.1 21.75 552.5 8.00 203.2 20.25 514.4 0.75 19.1 4.00 101.6 169.3 76.8 375.1 170.1 80 L18in160 16.13 409.6 21.75 552.5 8.00 203.2 20.25 514.4 0.75 19.1 4.00 101.6 197.8 89.7 375.1 170.1 100 L18in160 15.69 398.5 21.75 552.5 8.00 203.2 20.25 514.4 0.75 19.1 4.00 101.6 216.5 98.2 375.1 170.1 120 L18in152 15.25 387.4 21.75 552.5 8.00 203.2 20.25 514.4 0.75 19.1 4.00 101.6 241.5 109.6 375.1 170.1 140 L18in152 14.88 377.9 21.75 552.5 8.00 203.2 20.25 514.4 0.75 19.1 4.00 101.6 255.4 115.9 375.1 170.1 160 L18in144 14.44 366.7 21.75 552.5 8.00 203.2 20.25 514.4 0.75 19.1 4.00 101.6 278.6 126.4 375.1 170.1 20” (DN 500) 40 L20in192 18.81 477.9 24.50 622.3 8.00 203.2 23.00 584.2 0.75 19.1 4.25 108.0 214 97.1 511.6 232.1 20.00 508 60 L20in185 18.38 466.8 24.50 622.3 8.00 203.2 23.00 584.2 0.75 19.1 4.25 108.0 243.8 110.6 511.6 232.1 80 L20in180 17.94 455.6 24.50 622.3 8.00 203.2 23.00 584.2 0.75 19.1 4.25 108.0 273.6 124.1 511.6 232.1 100 L20in180 17.44 442.9 24.50 622.3 8.00 203.2 23.00 584.2 0.75 19.1 4.25 108.0 294.6 133.8 511.6 232.1 120 L20in170 17.00 431.8 24.50 622.3 8.00 203.2 23.00 584.2 0.75 19.1 4.25 108.0 327 148.3 511.6 232.1 140 L20in170 16.50 419.1 24.50 622.3 8.00 203.2 23.00 584.2 0.75 19.1 4.25 108.0 346.5 157.2 511.6 232.1 160 L20in160 16.06 408.0 24.50 622.3 8.00 203.2 23.00 584.2 0.75 19.1 4.25 108.0 375.7 170.4 511.6 232.1 24” (DN 600) 40 L24in225 22.62 574.7 29.50 749.3 9.00 228.6 27.50 698.5 1.00 25.4 4.75 120.7 354.6 160.8 823.8 373.7 24.00 609.6 60 L24in220 22.06 560.4 29.50 749.3 9.00 228.6 27.50 698.5 1.00 25.4 4.75 120.7 403.9 183.2 823.8 373.7 80 L24in220 21.56 547.7 29.50 749.3 9.00 228.6 27.50 698.5 1.00 25.4 4.75 120.7 435.9 197.7 823.8 373.7 100 L24in210 20.94 531.8 29.50 749.3 9.00 228.6 27.50 698.5 1.00 25.4 4.75 120.7 491.1 222.8 823.8 373.7 120 L24in210 20.38 517.6 29.50 749.3 9.00 228.6 27.50 698.5 1.00 25.4 4.75 120.7 521.7 236.6 823.8 373.7 140 L24in200 19.88 504.9 29.50 749.3 9.00 228.6 27.50 698.5 1.00 25.4 4.75 120.7 567.2 257.3 823.8 373.7 160 L24in200 19.31 490.6 29.50 749.3 9.00 228.6 27.50 698.5 1.00 25.4 4.75 120.7 594.4 269.6 823.8 373.7 11
12
Techlok Pressure Temperature Ratings Heavy Duty
Pressure / Temperature Ratings
Nominal
Size
Techlok
Size
Code
Hub - A350
LF2
Hub - A182
F316L
Hub - UNS
31803
Hub - UNS
32760
Hub - AISI
4130
Hub - UNS
N06625
Hub - A694
F65
Hub - A182
F44
Clamp - Low
Alloy Steel
Clamp - Low
Alloy Steel
Clamp - Low
Alloy Steel
Clamp - Low
Alloy Steel
Clamp - Low
Alloy Steel
Clamp - Low
Alloy Steel
Clamp - Low
Alloy Steel
Clamp - Low
Alloy Steel
100ºF
50ºC
100ºF
50ºC
100ºF
50ºC
100ºF
50ºC
100ºF
50ºC
100ºF
50ºC
100ºF
50ºC
100ºF
50ºC
psi
Bar
psi
Bar
psi
Bar
psi
Bar
psi
Bar
psi
Bar
psi
Bar
psi
Bar
2” H2in13 14207 980 12600 843 19,792 1334 22350 1523 18,267 1,259 25200 973 15628 1077 14312 950 H2in14 13758 949 12245 819 19,234 1297 21720 1480 17,690 1,220 24490 946 15134 1043 13908 923 H2in16 12552 865 11277 754 17,714 1194 20003 1363 16,139 1,113 22554 871 13807 952 12809 850 H2in20 11542 796 10462 700 16,434 1108 18557 1265 14,840 1,023 20924 808 12696 875 11883 789 3” H3in20 13363 921 11850 792 18,614 1255 21020 1433 17,181 1,185 23700 915 14699 1013 13460 893 H3in23 12095 834 10821 724 16,998 1146 19194 1308 15,551 1,072 21642 836 13304 917 12291 816 H3in25 10739 740 9715 650 15,260 1029 17232 1175 13,808 952 19430 750 11813 814 11035 732 H3in27 7868 542 7216 483 11,335 764 12800 872 10,116 697 14432 557 8655 597 8196 544 4” H4in25 13359 921 11763 787 18,477 1246 20865 1422 17,176 1,184 23526 908 14695 1013 13361 887 H4in27 12120 836 10746 719 16,880 1138 19061 1299 15,583 1,074 19649 759 13332 919 12206 810 H4in31 11467 791 10208 683 16,035 1081 17543 1210 14,743 1,016 17543 677 12614 870 11595 769 H4in34 9211 635 8245 551 12,951 873 13784 950 11,843 817 13784 532 10132 699 9365 621 H4in40 6705 462 6115 409 9,605 648 10847 739 8,621 594 11166 431 7375 508 6946 461 8” H8in52 11765 811 10310 689 13,946 962 13946 962 13,960 962 13946 538 12941 892 11711 777 H8in56 10845 748 9505 636 11,976 826 11976 826 11,988 827 11976 462 11929 822 10796 716 H8in62 9087 627 8016 536 10,191 703 10191 703 10,201 703 10191 393 9996 689 9105 604 H8in64 7428 512 6596 441 8,938 616 8938 616 8,947 617 8938 345 8171 563 7492 497 H8in67 6117 422 5475 366 8,041 554 8041 554 7,865 542 8041 310 6729 464 6219 413 H8in72 4708 325 4271 286 6,709 452 7272 501 6,053 417 7272 281 5179 357 4851 322 10” H10in82 6926 478 6110 409 9,598 647 9660 666 8,905 614 9660 373 7618 525 6940 461 H10in84 6220 429 5507 368 8,650 583 9125 629 7,997 551 9125 352 6842 472 6255 415 H10in87 5090 351 4549 304 7,145 482 8069 550 6,545 451 8402 324 5599 386 5167 343 H10in94 3424 236 3103 208 4,875 329 5505 375 4,402 304 6207 240 3766 260 3525 234 H10in97 2595 179 2380 159 3,739 252 4222 288 3,336 230 4760 184 2854 197 2703 179 H10in102 1881 130 1753 117 2,754 186 3110 212 2,418 167 3507 135 2069 143 1992 132 12” H12in97 7170 494 6283 420 8,555 590 8555 590 8,563 590 8555 330 7887 544 7137 474 H12in102 6281 433 5523 369 7,963 549 7963 549 7,971 550 7963 307 6909 476 6274 416 H12in106 5040 347 4466 299 7,014 473 7265 501 6,480 447 7265 281 5544 382 5072 337 H12in112 3882 268 3471 232 5,452 368 6157 420 4,992 344 6655 257 4271 294 3943 262 H12in120 2449 169 2230 149 3,503 236 3956 270 3,149 217 4460 172 2694 186 2533 168 14” H14in106 8691 599 7772 520 9,054 624 9054 624 8,691 599 9054 350 8691 599 8827 586 H14in112 7837 540 6828 457 7,946 548 7946 548 7,960 549 7946 307 7960 549 7756 515 H14in116 6759 466 5917 396 7,275 502 7275 502 7,282 502 7275 281 7282 502 6721 446 H14in120 6290 434 5508 368 7,014 484 7014 484 7,027 484 7014 271 6919 477 6256 415 H14in124 5126 353 4528 303 6,418 442 6418 442 6,423 443 6418 248 5639 389 5143 341 H14in130 4115 284 3650 244 5,734 387 6006 414 5,291 365 6006 232 4526 312 4146 275 H14in134 3232 223 2888 193 4,536 306 5122 349 4,155 286 5581 215 3555 245 3280 218 16” H16in112 11226 774 9741 651 12,899 889 12899 889 12,912 890 12899 498 12349 851 11064 734 H16in120 10137 699 8784 587 11,386 785 11386 785 11,397 786 11386 440 11150 769 9977 662 H16in130 8108 559 7052 472 9,750 672 9750 672 9,760 673 9750 376 8919 615 8010 532 H16in134 7188 496 6266 419 9,061 625 9061 625 9,070 625 9061 350 7907 545 7117 472 H16in137 6526 450 5700 381 8,591 590 8591 592 8,391 579 8591 332 7179 495 6474 430 H16in140 6312 435 5516 369 8,443 576 8443 582 8,115 560 8443 326 6943 479 6265 416 H16in144 5424 374 4763 319 7,482 504 7886 544 6,974 481 7886 304 5966 411 5410 359 H16in152 4091 282 3620 242 5,686 383 6421 438 5,260 363 7148 276 4500 310 4112 273 18” H18in140 6793 468 6560 439 6,793 468 6793 468 6,793 468 6793 262 6793 468 6793 468 H18in144 6345 437 5833 390 6,345 437 6345 437 6,345 437 6345 245 6345 437 6345 429 H18in152 5422 374 4761 318 5,751 397 5751 397 5,751 397 5751 222 5751 397 5408 359 H18in160 4151 286 3666 245 5,237 361 5237 361 5,237 361 5237 202 4566 315 4164 276 H18in170 2726 188 2437 163 3,828 258 4323 295 3,505 242 4648 179 2999 207 2768 184 20” H20in152 6722 463 6716 461 6,716 463 6716 463 6,722 463 6716 259 6722 463 6716 463 H20in160 6121 422 6115 416 6,115 422 6115 422 6,121 422 6115 236 6121 422 6115 422 H20in170 5432 375 5375 359 5,426 374 5426 374 5,432 375 5426 209 5432 375 5426 374 H20in180 4645 320 4073 272 4,853 335 4853 335 4,858 335 4853 187 4858 335 4626 307 H20in185 3753 259 3306 221 4,510 311 4510 311 4,514 311 4510 174 4129 285 3756 249 H20in192 3011 208 2667 178 4,189 282 4256 293 3,871 267 4256 164 3312 228 3029 201 22” H22in160 6904 476 6037 404 6,897 476 6897 476 6,904 476 6897 266 6904 476 6857 455 H22in170 6127 422 5358 358 6,121 422 6121 422 6,127 422 6121 236 6127 422 6086 404 H22in180 5479 378 4791 320 5,473 377 5473 377 5,479 378 5473 211 5479 378 5442 361 H22in185 4564 315 3993 267 5,087 351 5087 351 5,092 351 5087 196 5020 346 4535 301 H22in192 3780 261 3315 222 4,800 331 4800 331 4,805 331 4800 185 4158 287 3765 250 H22in200 2896 200 2559 171 4,020 271 4453 306 3,723 257 4453 172 3186 220 2907 193 H22in210 1886 130 1690 113 2,655 179 2998 204 2,425 167 3380 131 2075 143 1920 127 24” H24in192 5641 389 4815 322 5,835 402 5835 402 5,841 403 5835 225 5841 403 5469 363 H24in200 5234 361 4467 299 5,415 373 5415 373 5,420 374 5415 209 5420 374 5074 337 H24in210 4752 328 4056 271 4,916 339 4916 339 4,921 339 4916 190 4921 339 4607 306 H24in220 3883 268 3398 227 4,487 309 4487 309 4,492 310 4487 173 4271 294 3860 256 H24in225 3200 221 3275 219 4,224 291 4224 291 4,114 284 4224 163 3520 243 3720 247 H24in232 2620 181 2309 154 3,627 262 4025 276 3,369 232 4025 155 2882 199 2623 174 26” H26in225 3985 275 3981 270 3,981 274 3981 274 3,985 275 3981 154 3985 275 3981 274 H26in232 3799 262 3707 248 3,795 262 3795 262 3,799 262 3795 147 3799 262 3795 262 H26in240 3476 240 3037 203 3,565 246 3565 246 3,568 246 3565 138 3568 246 3450 229 H26in244 2998 207 2627 176 3,424 236 3424 236 3,427 236 3424 132 3298 227 2984 198 H26in254 2136 147 1887 126 2,964 214 3164 218 2,746 189 3164 122 2350 162 2143 142 H26in264 1389 96 1244 83 1,954 141 2207 150 1,786 123 2488 96 1528 105 1413 94 H26in270 1059 73 959 64 1,506 109 1701 116 1,362 94 1918 74 1165 80 1089 72
