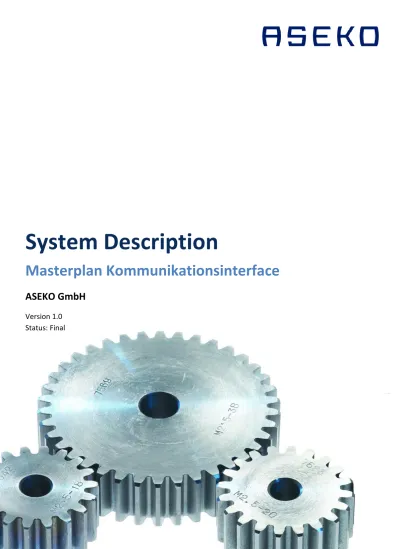

System Description
Masterplan Kommunikationsinterface
ASEKO GmbH
Version 1.0
Status: Final
0 Table of Contents
1 Introduction ... 2
2 Architecture ... 2
2.1 Connection tot he MKI solution ... 2
2.2 Inbound Communication Methods ... 2
2.3 Outbound Communication Methods ... 3
2.4 Authentification Method ... 3
2.5 Specification und Implementation of the Workflow-Mapping ... 3
2.6 Data Transfer, Message Syntax and Field Mapping ... 3
2.7 Value Mapping ... 3
2.8 Attachment Handling ... 4
2.9 Error Handling ... 4
2.10 Options ... 5
1 Introduction
The MKI ist an All-in-One Appliance for the integration of business processes and automization of workflows. The MKI supports the communication and synchronization of ITSM data, applications and systems.
2 Architecture
The customers/partners ITSM system is connected to the MKI via standardized connector.
2.1 Connection tot he MKI solution
To provision the connection to the ITSM application with the MKI inbound and outbound connectors are set up.
The connection is based on the Internet Protocol (IP).
The MKI uses asynchronous communication. In the following the communication methods are described.
The chosen communication method will be set up and tested
2.2 Inbound Communication Methods
Method
Selection
Simple Mail Transfer Protocol SMTP Simple Object Access Protocol SOAP Representational State Transfer REST File Transfer Protocol FTP Secure File Transfer Protocol SFTP
Method
Selection
Structured Query Language SQL Simple Object Access Protocol SOAP Representational State Transfer REST File Transfer Protocol FTP Secure File Transfer Protocol SFTP
2.3 Outbound Communication Methods
Method
Selection
Simple Mail Transfer Protocol SMTP Simple Object Access Protocol SOAP Representational State Transfer REST File Transfer Protocol FTP Secure File Transfer Protocol SFTP Structured Query Language SQL
Method
Selection
Simple Object Access Protocol SOAP File Transfer Protocol FTP Secure File Transfer Protocol SFTP
2.4 Authentification Method
Depending on the chosen communication method different kinds of authetification methods are available. These are defined after a communication method is selected.
2.5 Specification und Implementation of the Workflow-Mapping
The customer’s status codes are assigned to the partner workflows (mapping). There are 20 status codes available. The exact mapping will be specified in collaboration with the customer. The implementation will and testing of the communication will start only after acceptance of the specification.
2.6 Data Transfer, Message Syntax and Field Mapping
Data will be transfered as XML files. The translation of the customer specific syntax to the provider specific syntax (field mapping) will be set up in the system for up to 30 fields.
Other data structures (CSV, name value pair) are not part of the project – unless explicitly specified in a passage in this document.
2.7 Value Mapping
For some fields a value mapping is necessary. This will be defined during the project and set up appropriately.
2.8 Attachment Handling
Depending on the defined project scope for attachment handling, the following services will be provided by the MKI.
Selection
Method
Description
No attachments
No attachment handling will be implemented.
Only sending attachments
Attachments will be transferred from the linked system to the MKI. For limitation see below.
Only receiving attachments
All incoming attachments will be sent to the linked system.
X Sending and receiving attachments
Attachments can be sent and received from the linked system.
For SOAP and HTTPS POST connections base64-coding will be used. Mail Transfer will use multipart messaging.
Message size is limited to 10MB. Larger messages will be rejected. Additional filtering (e.g. no. of attachments, virus check) is not taking place.
2.9 Error Handling
Depending on the selected communication method different kinds of setups for the error handling are available.
SOAP:
Fire and Forgot
Retry and Move
Retry and Stop
An email notification is set up by default. After the 5th delivery attempt a warning email will be
sent, after the 10th delivery attempt an error email will be sent.
Additional requirements for the error handling have to be specified and are not part of the standard system.
2.10 Options
Method
Description
VPN Tunnel Securing the connection with VPN tunnelAn encrypted Virtual Private Network (VPN) connection will be set up. In the operating phase the VPN server is monitored, but not the VPN connection itself.
Implementing customer specific data
enrichment
Transaction can be enriched with data from other Masterplan modules. Expansions and additional requirements for the data enrichment need a detailed analysis and specification. Implementing
an enhanced error handling
Individual error handling for data base transactions will be implemented. The content of the error messages complies with the customer requirements. Error messages will be transmitted via the following protocols: SMTP, SFTP, HTTPS POST, SOAP. Additional requirements need a detailed analysis and specification.
3 Masterplan BI Suite
Within the Masterplan BU Suite the Masterplan Kommunikationsinterface is the universal ticket hub to the customer and partner systems.
