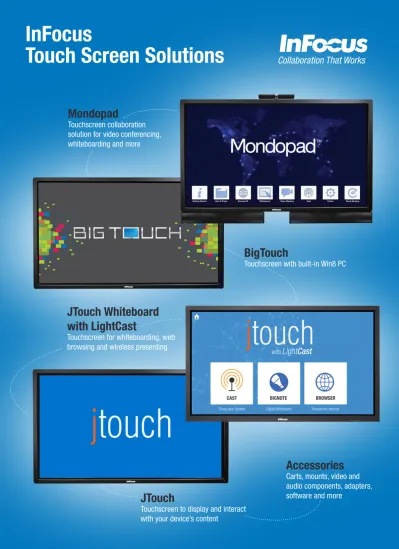

InFocus
Touch Screen Solutions
Mondopad
Touchscreen collaboration
solution for video conferencing,
whiteboarding and more
Accessories
Carts, mounts, video and
audio components, adapters,
software and more
BigTouch
Touchscreen with built-in Win8 PC
JTouch Whiteboard
with LightCast
Touchscreen for whiteboarding, web
browsing and wireless presenting
JTouch
Touchscreen to display and interact
with your device’s content
In-room and remote visual
collaboration made easy
InFocus Mondopad elegantly blends video calling,
whiteboarding and more into one giant touchscreen PC for
efficient face-to-face collaboration with people in any location.
Bridge communication gaps, strengthen teams, capture and
share information, and save time and money. You’ll never want
to meet without it.
Big, bright 1080p touch display everyone in the room can see
Native HD video calling and data sharing that’s crystal clear
Interactive whiteboard and on-screen annotation
BYOD-friendly to connect and share with any device
Built on a fast and flexible i7-based Windows PC
Wireless keyboard and mouse included
Display INF5720 INF5720AG INF7021 INF7021AG INF8021
Size 57” 70” 80”
Anti-Glare No Yes No Yes Yes & Gorilla Glass
Resolution Full HD 1920 × 1080
Technology LED edge lit LCD
Inputs HDMI x 2, VGA (HD15 VESA), component, RS232, 3.5mm stereo audio in, RCA stereo audio in, 3.5mm microphone in, USB Type-B for touch screen control Outputs RCA stereo audio out (for sound bars), 3.5mm stereo audio out
Touch Screen Edge-to-edge multi-touch system with support for 5 point gestures
PC INF5720 INF5720AG INF7021 INF7021AG INF8021
Processor Intel® Core i7-4770T, Q87 chipset with Intel vPro™ technology; Intel HD Graphics 4600
Memory 8 GB RAM
Hard Drive SSD 120GB
LAN (2×) 802.3 10/100/1000 Base-T with Wake on LAN
Wi-Fi Dual band 802.11 a/b/g/n MIMO PCIe half mini card, 2.4 GHz with Intel, AMT support
Input Connections
USB Type-A x 7 (4 on side of display, 1 on top of display (used by camera), 2 on PC), RJ45 x 2
USB Type-A x 6 (3 on side of display, 1 on top of display (used by camera), 2 on PC), RJ45 x 2
Output Connections HDMI out
Bluetooth 4.0
Operating System Windows 7 Pro 64bit
Included Software Mondopad Collaboration Software Suite, Microsoft Office Home & Business 32bit
Specifications*
Camera and microphones
Resolution: 1280 × 720 Frame rate: 30 fps
Lens and Field of View: 70° horizontal, 56° vertical, 1.6x zoom Audio support: 3 built-in unidirectional microphones Interface: USB 3.0
Tilt: Manual up/down and left/right ±40°
Soundbars
Power: 100 – 240 volts AC, 50 – 60Hz
Speaker Drivers (L&R): Two 3” and one 3/4” Aluminum Neodymium Tweeter (per side)
Power Output (RMS): 25 watts/channel @ 1% THD, 1KHz, 2-channels drive, 70 watts total system PEAK
Frequency Response: 90 Hz to 20 KHz
System
Product Weight
INF5720/INF5720AG: 63.3 kg INF7021/INF7021AG: 77.1 kg INF8021: 86.2 kg
Product Dimensions (W x D x H) INF5720 /INF5720AG: 1388 x 91 x 998 mm INF7021/INF7021AG: 1669 x 102 x 1143 mm INF8021: 1900 x 101 x 1278 mm
Accessories Included**: Wireless keyboard (where allowed), wireless mouse (where allowed), stylus, VGA cable, USB cable, security screws, security screw removal tool, power cord, remote, quick setup guide, sound bar assembly, camera assembly, foot assembly (feet not included with INF7021 or INF8021) Warranty: 2 years limited, extended warranties available Power Consumption:
INF5720: 250W max INF7021: 275W max INF8021: 350W max
Bring Your Own Device
Participants can securely connect and share content with Mondopad from PCs, Macs, Chromebooks, tablets or smartphones – making meetings more collaborative, productive and sustainable.
• Wirelessly cast your device’s screen to the Mondopad
• Control the Mondopad with your device, such as advancing slides or annotating
• People can video-call your Mondopad from a computer, tablet or smartphone
Learn more about Mondopad at www.infocus.com/mondopad
Video Connect to the World
Bring people together to collaborate anytime without expensive travel while still achieving the benefits of face-to-face interaction.
• Make and receive video calls right away with free InFocus 121 Basic video calling service for the first year
• Have instant 4-way conversations when you upgrade to InFocus 121 Premium video calling service
• If you have a video conference server or service, you can add Mondopad to it as a SIP endpoint or install the desktop client onto Mondopad, just like you would a PC
Whiteboard and Annotation
Mondopad’s whiteboard and annotation apps make it easy to brainstorm and capture and share ideas.
• Create a whiteboard on a canvas of up to 100 display screens in size
• Quickly and easily take notes on presentations, web pages, videos and more
• Save and email your drawings to meeting participants from the Mondopad 80˝
70˝ 57˝
The touch PC that demands an audience
Windows 8 combines the fun of a tablet with the productivity of
a PC, and the InFocus BigTouch amplifies that beautiful, fast and
fluid touch experience for your shared work space.
Windows 8 Pro experience on a 1080p touch display
Run all your Windows apps, even the older ones, in touch mode
Highly customizable for your needs and your PC applications
Intel Core i7 processor with fast solid state hard drive
Wireless mouse and keyboard included
System
Product Weight
INF5711/INF7011AG: 57 kg INF7011/INF7011AG: 70.3 kg INF8011: 79.4 kg
Product Dimensions (W x D x H) INF5711/INF5711AG: 1388 x 91 x 856 mm INF7011/INF7011AG: 1669 x 102 x 1041 mm INF8011: 1900 x 101 x 1176 mm
Accessories Included**: Wireless keyboard (where allowed), wireless mouse (where allowed), cleaning cloth, VGA cable, USB cable, security screws with removal tool, power cord, remote control, quick setup guide, feet/table stand assembly (feet not included with INF7011 or INF8011)
Warranty: 2 years limited, extended warranties available
Operating Temperature: 5 to 35°C at 0 to 3,048 m Noise: <40dBA @ 25°C
Power Consumption: INF5711: 250W max INF7011: 275W max INF8011: 350W max Energy Star: 5.1 for PC
The Tablet Experience…Magnified
Tablets are fun. Touch is intuitive. The InFocus BigTouch employs a beautiful 57-inch, 70-inch or 80-inch display that allows that enjoyable experience, and your content, to be seen and shared.
• Brilliant full HD (1920 x 1080) display shows off your content with incredible brightness, colour and clarity
• Five-point touch screen uses four sensors, one in each corner of the screen, to deliver exceptionally accurate touches, swipes and gestures
• Windows 8 gestures such as tap, slide, swipe, pinch, and rotate can be used to get a global view of everything on the screen and slide back and forth to find what you’re looking for
• Wireless keyboard and mouse also included to easily control the display from your seat
Whiteboard Like a Pro (optional)
Add our optional BigNote whiteboarding software to turn your BigTouch into a full-featured digital whiteboard with document annotation
• Wide assortment of pens, colours and shapes
• Whiteboard on up to 10 square feet of space
• Annotate on screen and save the changes
• BigNote files are cross-compatible with Mondopad’s whiteboard app
Maximize Windows 8 Touch Capabilities
Windows 8 was built for touch and online connectivity and now you can have the device that maximizes that experience on a large scale in the InFocus BigTouch.
• Use the 5-point touch display with intuitive Windows 8 gestures to interact with your content
• Personalize the Start screen with tiles that connect to a person, app, website, folder or whatever else is important to you
• Familiar Windows desktop that you’ve used before
• Use your apps, get more apps in the Windows Store, and arrange them all the way you want
• Multi-task by snapping two apps side-by-side
• Enhanced features to easily connect to your networks, access files in the cloud, encrypt data, and more
Display INF5711 INF5711AG INF7011 INF7011AG INF8011
Size 57” 70” 80”
Anti-Glare No Yes No Yes Yes & Gorilla Glass
Resolution Full HD 1920 × 1080
Technology LED edge lit LCD
Inputs HDMI x 2, VGA (HD15 VESA), component, RS232, 3.5mm stereo audio in, RCA stereo audio in, 3.5mm microphone in, USB Type-B for touch screen control
Outputs RCA stereo audio out, 3.5mm stereo audio out
Touch Screen Edge-to-edge multi-touch system with support for 5 point Windows 8 gestures
PC INF5711 INF5711AG INF7011 INF7011AG INF8011
Processor Intel® Core i7-4770T, Q87 chipset with Intel vPro™ technology; Intel HD Graphics 4600
Memory 8 GB of RAM
Hard Drive SSD 120GB
LAN (2×) 802.3 10/100/1000 Base-T with Wake on LAN
Wi-Fi Dual band 802.11 a/b/g/n MIMO PCIe half mini card, 2.4 GHz with Intel, AMT support Input Connections USB Type-A x 7 (4 on side of display, 1 on top of display, 2 on PC), Ethernet (RJ45 x 2) display, 1 on top of display, 2 USB Type-A x 6 (3 on side of
on PC), Ethernet (RJ45 x 2)
Output Connections HDMI out
Bluetooth 4.0
Operating System Windows 8 Pro
Specifications*
Learn more about BigTouch at www.infocus.com/bigtouch
80˝ 70˝ 57˝
Intelligent touch display for whiteboarding
and screen sharing
Display your content, take notes and access the web all from
one bright, colourful and affordable touchscreen display with
LightCast wireless technology.
1080p display with 6-point touch interactivity
Whiteboard with the built-in full-featured app
Display a computer and control it from the touchscreen
Display a mobile device wirelessly
Access the Internet with the built-in web browser
Interactive Whiteboard
Draw, write and capture the notes with the built-in full-featured interactive whiteboard app.
• A complete collection of pens, highlighters, shapes, lines and colours
• Create a whiteboard on a multi-screen canvas
• Paste backgrounds and images onto a whiteboard or wallpaper the entire canvas
• Save, email or print info captured on the whiteboard right from the display
• Up to six people can draw at the same time
Full Touch Control
Display your PC, Mac or Chromebook and control it from the display via touch.
• Display your computer via HDMI, VGA or component video
• Enable touch from your computer via USB
• Extend the reach of your computer’s USB ports with the 65-inch display’s easily-accessible 4-port USB hub
Cast Your Screen
Wirelessly share your device’s screen to the display.
• Works with Android, Windows, Chrome OS, and Apple iOS and OSX devices
• Cast using your device’s native Miracast (Android and Windows) or AirPlay (Apple) app
• Annotate on the content you’re sharing and save the notes using the LightCast Sender app on your computer or mobile device
Web Browser
Access your favorite online content and tools directly from the display’s built-in web browser – no other device needed.
• Quickly access your favorite web content, curriculum and file sharing platforms
• Easy access to favorites/bookmarks
• Connect the display to your network via LAN or WiFi
Display INF6501cAG
Size 65”
Resolution 1920 x 1080
Anti-Glare Yes
Technology LED edge-lit LCD
Computer Touch
Compatibility (via USB) PC, Mac, Chromebook
Inputs HDMI x 4, VGA, component, composite, USB hub (USB 3.0 x 4), LAN, 3.5mm audio in, RCA stereo audio in, RS232, USB-B port for touch screen control
Outputs RCA stereo audio out
Touch Screen Edge-to-edge IR 6-point touch system
Audio 10W x 2 integrated stereo speakers
LightCast Technology INF6501cAG
Wireless Display Protocol Miracast, AirPlay and InFocus LightCast Sender Casting Device Compatibility Android, Windows, Chrome OS, and Apple iOS and OSX Connectivity 802.11 b/g/n (2 dipole antenna), RJ-45 (10Base-TX), USB Type-A
Wireless Range Up to 91 m
Data Rate Wireless: Up to 150 Mbps LAN: 10/100
WiFi Compliant 802.11 b/g/n with MIMO
Security IEEE Standard 64/128 bit WEP/WPA/WPA2-PSK/WPA-Enterprise
Specifications*
System
Accessories Included: Power cord, VGA cable, USB Type-A to Type-B cable, remote control, user documentation
Warranty: 2 years Product Weight: 50.1 kg
Product Dimensions: 1529 x 84 x 925 mm Operating Conditions: 0 to 40° at 0 to 3,048 m Noise: < 40dBA at 25° C
Power Consumption: 210W
Learn more about LightCast at www.infocus.com/lightcast
Display INF6501aAG INF8001
Size 65” diagonal 80” diagonal
Resolution 1920 × 1080
Anti-Glare Yes Yes & Gorilla Glass
Technology LED edge-lit LCD LED edge-lit LCD
Computer Touch
Compatibility (via USB) PC, Mac, Chromebook
Input Connections HDMI, DVI, VGA (HD15 VESA), USB Type A x 4, 3.5mm stereo audio in, USB 3.0 Type B for touch screen control
HDMI x 2, VGA (HD15 VESA), RS232, 3.5mm stereo audio in,
RCA stereo audio in, 3.5mm microphone in, USB Type-B for touch screen control
Output Connections 3.5mm stereo audio out RCA stereo audio out, 3.5mm stereo audio out Touch Screen Edge-to-edge multi-touch system. Glass protection overlay for LCD surface.
USB Type A cable from touch system panel board to computer.
Touch Points 2-point 5-point
Specifications*
Large touchscreen displays to engage
your audience and fit your budget
The InFocus JTouch™ combines precise touchscreen
technology with a bright, colourful LCD display to engage
audiences in classrooms and beyond.
Giant 1080p touch display for a great price
Run all your Windows apps, even the older ones, in touch mode
Your content will be interactive, bright and crisp in any light
Accurate and responsive touch overlay with multi-touch capability
Multiple ways to quickly connect and display your notebook
System
Accessories Included: Power cord, remote control, user guide Warranty: 2 Years Product Weight: INF6501aAG: 50.1 kg INF8001: 78.5 kg Product Dimensions:
INF6501aAG: 1529 x 84 x 925 mm INF8001: 1900 x 101 x 1176 mm Operating Conditions: 5 to 35°C at 0 to 3,048 m Noise: <40dBA @ 25°C Power Consumption: INF6501aAG: 210W max INF8001: 350W max
InFocus Touch Display Comparison
Mondopad BigTouch JTouch Whiteboard with LightCast JTouch
57-inch | 70-inch | 80-inch 57-inch | 70-inch | 80-inch 65-inch 65-inch | 80-inch PC Built In (Windows 7)Standard (Windows 8)Standard (embedded LightCast technology)Sort Of N/A
Webcam, microphone,
and speaker bar Standard Optional N/A N/A
Videoconferencing software Standard (InFocus BigConnect software)Optional N/A N/A
Microsoft Office Standard (Purchase via Microsoft)Optional N/A N/A
Whiteboard Standard (InFocus BigNote software)Optional Standard (BigNote software installed on your PC)Optional
Learn more about JTouch at www.infocus.com/jtouch
80˝
©2015 InFocus Corporation. All rights reserved. Specifications are subject to change without further notice. InFocus, Collaboration That Works, Mondopad, BigTouch and JTouch are either trademarks or registered trademarks of InFocus Corporation in the United States and other countries. All trademarks are used with permission or are for identification purposes only and are the property of their respective companies. InFocus-Touchscreen-Solutions-Datasheet-EU-27JUL15.
Accessories for Touch Displays
* Product specifications, terms, and offerings are subject to change at any time without notice.
** Keyboard and/or mouse may not be shipped to all countries.
(on your PC) (except 65-inch)
Works with
JTouch
Audio and Video
Mondopad
BigTouch
w/LightCast
JTouch
Part NumberRealCam Pan/Tilt/Zoom Camera and Converter - True HD 1080p resolution
- Pan/tilt/zoom control with included remote - DVI-to-USB converter included (no drivers needed)
Yes Yes No No INF-SPTZ-2 Camera and Microphone Array
- 720p camera with 3 built-in microphones - Manual tilt up/down and left/right
Included Yes No No HW-CAMERA-2
Thunder Speakerphone
- Tabletop speaker and microphone for Mondopad or other communication device Yes Yes No No INA-TH150 SIP2Phone
- Mondopad audio bridge/adapter for an analog speakerphone Yes No No No INASIP2PHONE Mondopad Polycom Conference Link Cable
- Turns a Polycom speakerphone into the microphone and speakers
for a Mondopad Yes No No No
INF-POLYCBLE Soundbars
- Two 25-watt stereo soundbars tuned for voice and multi-media Included Yes No Yes HW-SOUNDBAR-4
Carts and Mounts
Large Mobile Cart
- Adjustable cart on wheels for easy mobility
- Fits any size display Yes Yes Yes Yes
INF-MCART-PL Pro Mobile Cart
- Adjustable cart on wheels for easy mobility - Fits 57-inch, 65-inch and 70-inch models
Yes Yes Yes Yes INF-MOBCARTPRO-B (Black) INF-MOBCARTPRO-S (Silver)
Mobile Cart
- Adjustable cart on wheels for a 57”, 65” or 70” display Yes Yes Yes Yes INF-MOBCART
Floor Stand
- Height adjustment: 4 - 6 feet Yes Yes Yes Yes INF-FLRSTND
Large Wall Mount
- Adjustable wall mount for any size display Yes Yes Yes Yes INF-WALLMNT3
Wall Mount
- Adjustable wall mount for 57”, 65” or 70” display Yes Yes Yes Yes INF-WALLMNT2
Lift Assist Mounts
- Raise and lower the display with spring-assisted ease
- Wall mount and mobile cart options for any size display Yes Yes Yes Yes
INA-MNTBB70, INA-MNTBB95, INA-CARTBB, INA-SUPPORTBB,
INA-VESABB
Software
BigConnect Video Calling Software
- Make video calls from your PC to other SIP end points Functionality included Yes No No INS-BCONNECT BigNote Whiteboard Software
- Add whiteboard and annotation functionality to a BigTouch or other PC - Pens, highlighters, shapes and lines in multiple colors
Functionality
included Yes Functionality included Yes INS-BIGNOTE
BigTouch-to-Mondopad Upgrade
- Add Mondopad software and Microsoft Office to a BigTouch Functionality included Yes No No INSMPWIN8SW
Services
121 Video Calling
- 121 Basic service for video calling between two devices
- 121 Premium service to add 4-way video calling and custom SIP address - 1-, 2-, and 3-year options
Yes No No No 8 SKUs ConX Video Meeting
- Host cloud-based video meetings that people can join from any SIP or H.323 device, web browser or audio-only phone - 6-, 12-, or 25-participant options
- 1-, 2- or 3-year options
Yes No No No 9 SKUs Training Services
- 2 hours or 4 hours of virtual training to help get the most from
Mondopad and video conferencing services Yes No No No
INF-VT2 (2-hour) INF-VT4 (4-hour)
Warranties
Extended Hardware Warranties
- Extends the warranty of the touch panel by 1 or 2 years Yes Yes Yes Yes 12 SKUs Software Maintenance Plans
- 1- or 2-year plans to ensure you have the most up-to-date Mondopad software Yes No No No
EPWSOFTPLAN1 EPWSOFTPLAN2 Premier Coverage Plans (hardware and software)
