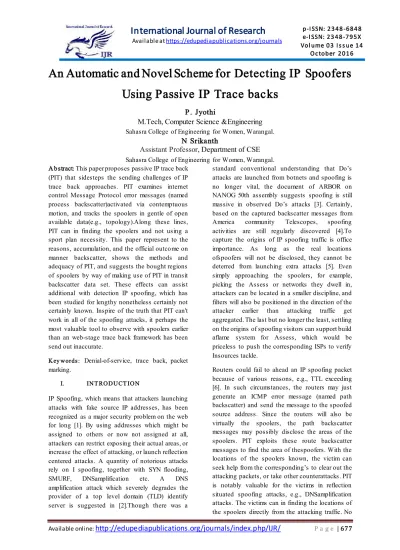

P a g e | 677An Automatic and Novel Scheme for Detecting IP Spoofers
Using Passive IP Trace backs
P. Jyothi
M.Tech, Computer Science &Engineering
Sahasra College of Engineering for Women, Warangal.N Srikanth
Assistant Professor
, Department of CSE
Sahasra College of Engineering for Women, Warangal. A b stract: This paper proposes passive IP trace back(PIT) that sidesteps the sending challenges of IP trace back approaches. PIT examines internet control Message Protocol error messages (named process backscatter)activated via contemptuous motion, and tracks the spoolers in gentle of open available data(e.g., topology).Along these lines, PIT can in finding the spoolers and not using a sport plan necessity. This paper represent to the reasons, accumulation, and the official outcome on manner backscatter, shows the methods and adequacy of PIT, and suggests the bought regions of spoolers by way of making use of PIT in transit backscatter data set. These effects can assist additional with detection IP spoofing, which has been studied for lengthy nonetheless certainly not certainly known. Inspire of the truth that PIT can't work in all of the spoofing attacks, it perhaps the most valuable tool to observe with spoolers earlier than an web-stage trace back framework has been send out inaccurate.
Key words: Denial-of-service, trace back, packet marking.
I. INT RODUCT ION
IP Spoofing, which means that attackers launching attacks with fake source IP addresses, has been recognized as a major security problem on the web for long [1]. By using addresses which might be assigned to others or now not assigned at all, attackers can restrict exposing their actual areas, or increase the effect of attacking, or launch reflection centered attacks. A quantity of notorious attacks rely on I spoofing, together with SYN flooding, SMURF, DNSamplification etc. A DNS amplification attack which severely degrades the provider of a top level domain (TLD) identify server is suggested in [2].Though there was a
standard conventional understanding that Do’s attacks are launched from botnets and spoofing is no longer vital, the document of ARBOR on NANOG 50th assembly suggests spoofing is still massive in observed Do’s attacks [3]. Certainly, based on the captured backscatter messages from America community Telescopes, spoofing activities are still regularly discovered [4].To capture the origins of IP spoofing traffic is office importance. As long as the real locations ofspoofers will not be disclosed, they cannot be deterred from launching extra attacks [5]. Even simply approaching the spoolers, for example, picking the Assess or networks they dwell in, attackers can be located in a smaller discipline, and filters will also be positioned in the direction of the attacker earlier than attacking traffic get aggregated. The last but no longer the least, settling on the origins of spoofing visitors can support build aflame system for Assess, which would be priceless to push the corresponding ISPs to verify Insources tackle.
Available online:
http://edupediapublications.org/journals/index.php/IJR/
P a g e | 678 longer all the packets reach their locations [7]. Anetwork device may fail to ahead packet due to various motives. Beneath precise stipulations, it will generate an ICMP error message, i.e., course backscatter messages. The trail backscatter messages shall be dispatched to the source IP tackle indicated within the fashioned packet. If the supply handle is cast, the messages will likely be dispatched to the node who absolutely owns the address. This means the victims of reflection established attacks, and the hosts whose addresses are utilized by spoolers, are probably to accumulate such messages. [2].
Even just approaching the spoolers, for example, determining the Assess or networks they reside in, attackers can be situated in a smaller area, and filters can be placed closer to the attacker before attacking traffic get aggregated. The last but not the least, identifying the origins of spoofing traffic can help build a prestige system for Assess, which would be helpful to push the corresponding ISPs to verify IP source address [3].
II. LITERA TURE SURVEY
1. Security issues within the TCP/IP Protocol Suite, S.M . Bellowing, A T&T Bell Lab o rato ries , an d M u rray Hill, New Jers ey 07974.
Here in this first, obviously, is that as a rule, relying on the IP supply handle for authentication is particularly hazardous. They have got described defenses in opposition to a style of character assaults. These attacks may just lead to the loss of the specific particular knowledge. The sort of assaults depend upon these flaws, together with strong sequence quantity spoofing, routing assaults, source tackle spoofing, and authentication assaults. They also refer defenses towards attacks, and with a discussion of huge-spectrum defenses reminiscent of encryption they conclude actual conduct. That, there are quantities of serious security weaknesses inherent within the protocols. [1]
2. Efficient Packet M arkin g fo r larg e -Scale IP Trace back, Michael T. Go odrich, division of in fo . & p c Science institution of Califo rn ia Irv in e, CA 92697-3425.
Overview: The method, which we name randomize-and-hyperlink is referred and makes use of significant checksum cords to “link” message fragments which predicates that is totally scalable,
for the checksums serve used each as associative addresses and information integrity verifiers. The most important purpose of a DOS assault is to furnish devour assets, so produce solutions to the IPtraceback concern must themselves now not make contributions to that intention. On this paper, the options that cut down the quantity of extra traffic on the net needed to remedy the tracebackchallenge or create an infrastructure for solving it. The methods used resulted in scale to assault timber containing hundreds of routers and don't require that a sufferer understand the topology of the assault tree a priori. With the aid of making use of authenticated dictionaries in a novel means, the methods used to attain the outcome do not require routers signal any setup messages in my view. [2]
3. Has h -es tab lis h ed IP Trace b ack, A lex C. No reen †, Craig Partrid g e, Lu is A . San ch ez, Ch ristine E. Jones, Fabric Tchakountio, Stephen T. Ken t, an d W . Timo th y Stray ed ,BBNtechnologies,10 Moulton avenue, Cambridge, M A 02138
Overview: on this paper, they provided each analytic and simulation outcome describing the approach are that outcomes effectiveness. Also observer the major hash-headquartered process for IPtraceback which generates audit trails for traffic within the network that is reward within the exact discipline, and might trace the beginning of a single IP packet coming and delivered via the community in the recent earlier. The urgent challenges for SPIE are in demand and growing the window of time wherein a packet is also successfully traced with the correct resultant lowering the amount of knowledge that ought to be saved for transformation handling. The goal is to illustrate that the system is effective, space-efficient (desiring close to 0.5%of the hyperlink potential per unit time in storage), additionally and starting in present or next generation routing hardware. [3]
Available online:
http://edupediapublications.org/journals/index.php/IJR/
P a g e | 679 Overview: in this paper the reason is to appreciateone of a kind approach, which permits to autonomously detecting the prevalence of route drips via solely inspecting the BGPknow-how available at the AS. The fundamental objective is a route leak will also be defined as security breach which can led to arises due to the fact of the infringement of the routing insurance policies that any two self-reliant methods (Assess) have agreed upon. The specific Route leaks are seemingly simple, but elaborate to resolve, due to the fact the Assess preserve their routing insurance policies private. The following practical led to abilities as no reliance on third party knowledge , no alterations required to manage-airplane protocols (e.g., to BGP); and permits noninvasive integration.[4]
5. Practical network aid for IP Trace back, Stefan Sav age, David Weth erill, A n n aKarlin an d To m A n derson, department of co mp u ter Scien ce an d En g ineering, institution o f W as h in g to n Seattle, W A , USA .
Overview: in this paper, they contribute to explain the precise method for tracing packet flooding that attacks within the web again within the path of their source. This work is inspiredvia the distinct undertaking which the elevated incidence and complexity of denial-of-provider attacks and by means of the predicament in tracing packets with improper, or “spoofed”, supply addresses. The objective of a improve implementation of this science that's incrementally deployable, backwards suitable and also May also be extra effectually implemented utilizing conventional technological know-how. The genuine outcomes is ultimately, prompt one potential deployment process such an algorithm founded on overloading current IP header fields and confirmed this implementation is strongly capable of completely tracing an assault after having bought best a few thousand packets. [5]
III. SYSTEM M ODEL
This paper introduces a method to, named Passive IP Trace back (PIT), to skip the difficulties in organization. Routers could fail to forward an IP spoofing packet on account that of specific explanations, e.g., TTL surpassing. In such cases, the switches could produce an ICMP lapse message (named means backscatter) and send the message
to the source address. On the grounds that the switches will also be near the spoolers, the best way backscatter messages could conceivably reveal thespoofers' field.
to discover the spoolers’ subject.
With the spoolers’ areas identified, the victim can appear for the assistance of the concerning ISP to filters by means of the attackers packets, or take one of a kind counterattack.
reflection founded spoofing attack, e.g., DNS amplification attack. The casualties can discover the spoolers’ areas especially from the attacking action. (t+1)
Fig.1 Block Diagram Let S is the Whole System Consists:
S= {V, E, P, G}. Where,
1. V is the set of all the network nodes.
2. E is the set of all the links between the nodes in the network.
3. P is path function which defines the path between the two nodes.
4. Let G is a graph.
Suppose, G (V, E) from each path backscatter, the node u, which generates the packet and the original destination v, where u and v are two nodes in the network. i.e. adv. and v ∈ V of the spoofing packet can be got. We denote the location of the spoofed, i.e., the nearest router or the origin by where, s∈ V.
Available online:
http://edupediapublications.org/journals/index.php/IJR/
P a g e | 680 2) We simply use the source AS of the message asthe location of the spoofed. If the message does not belong to the types, it is mapped into an AS tuple. 3) We determine whether the AS tuple can accurately locate the source AS of the attacker based on our proposed mechanisms. Then if the AS tuple can accurately locate the source AS of the message, the source AS of the spoofed is just this AS.
4) Then we also use the source AS the location of the spoofed.
We assume some Probability for Accurate Locating on Loop-Free for spoofed based on the Loop-free assumption, to accurately locate the attacker from a path backscatter message (vs.), there are three conditions:
LF-C1: the degree of the attacker sis 1; LF-C2: v is not s;
LF-C3: u is s.
Based on the Assumption I, the probability of LF − C1 is equal to the ratio of the network nodes whose degree is 1.To estimate our assumptions of probability, we introduce the power law of degree distribution from,
𝑓𝑑 ∝ 𝑑ℴ
Where fids the frequency of degree d, and O is the out degree exponent. Transform it to
𝑓𝑑 = 𝜆𝑑ℴ+ 𝑏𝑑
Where λ and bare two constants. Then,
𝑓1 = 𝜆 + 𝑏𝑑
Based on the Assumption II, the probability of LF − C2 is simply (N − 1)/N.
Based on the Assumption III, the probability of LF −C3 is equal to 1/ (1+len (path (u, v)).
Because sand are random chosen, the expectation of Len (path (ump)) is the effective diameter of the network i.e. =1+len (path ((ump)).Based on our three assumptions, these conditions are mutually independent. Thus, the expectation of the probability of accurate locating the attacker is
𝐸(𝑃𝐿𝐹 −𝑎𝑐𝑐𝑢𝑟𝑎𝑡𝑒) = 𝑁 − 1
𝑁 ∗
𝜆 + 𝑏𝑑 1 + 𝛿𝑒𝑓
This form gives some insight on the probability of accurate locating of spoofed. If the power law becomes stronger, λ will get larger and refill get smaller. Then the probability of accurate locating will be larger.
IV. CONCLUSION
In this task we have now acquired a new procedure, “backscatter analysis,” for estimating denial-of-service attack exercise within the online. Exploitation this process, now we have received decided standard Do’s attacks inside the web, distributed among many replacement domains and ISPs. The size and size of the attacks we tend to realize art enormous caudate, with a little kind of long attacks constituting a major fraction of the final attack measure. Additionally, we tend to peer an attractive sort of attacks directed at a couple of overseas countries, reception machines, and closer to unique internet contributions. We precise the best way to observe PIT when the topology and routing are each identified, or the routing is unknown, or neither of them are known. We presented two powerful algorithms to apply PIT in huge scale networks and proofed their correctness. REFERENCES
[1] S. M. Bellowing, “Security problems in the TCP/IP protocol suite,”ACM SIGCOMM Comput. Commun.Rev., vol. 19, no. 2, pp. 32–48,Apr. 1989. [2] M. T. Goodrich, “Efficient packet marking for large-scale IP trace-back,” in Proc. 9th ACM Conf. Comput.Commun. Secur. (CCS), 2002, pp. 117– 126.
[3] A. C. Noreen et al., “Hash-based IP trace back,” SIGCOMM Comput. Commun. Rev., vol. 31, no. 4, pp.3–14, Aug. 2001.
[4] L. Gao, “On inferring autonomous system relationships in the internet,”IEEE/ACM Trans. Netw., vol. 9, no. 6, pp. 733–745, Dec. 2001. [5] Practical Network Support for IP Trace back The UCSD Network Telescope. [Online]. Available:http://www.caida.org/projects/network_t elescope/48075.
Available online:
http://edupediapublications.org/journals/index.php/IJR/
P a g e | 681 Trans.Comput. Syst., vol. 24, no. 2, pp. 115–139,May 2006.
[7]. D. X. Song and A. Perrig, “Advanced andauthenticated marking schemes for IPtraceback,” in Proc. IEEE 20th Annu. JointConf. IEEE Comput. Commun. Soc.(INFOCOM), vol. 2. Apr. 2001, pp. 878–886.
[8]. K. Park and H. Lee, “On the effectiveness ofprobabilistic packet marking for IPtraceback under denial of service attack,” inProc. IEEE 20th Annu. Joint Conf. IEEEComput. Commun. Soc. (INFOCOM), vol.1. Apr. 2001, pp. 338–347. [9]. M. Adler, “Trade-offs in probabilistic packet marking for IP trace back,” J. ACM, vol.52, no. 2, pp. 217–244, Mar. 2005.
[10]. A. Belenky and N. Ansari, “IP tracebackwith deterministic packet marking,” IEEECommun. Lett., vol. 7, no. 4, pp. 162–164,Apr. 2003.
[11]. Y. Xiang, W. Zhou, and M. Guo, “Flexibledeterministic packet marking: An IPtraceback system to find the real source of attacks,” IEEE Trans. Parallel Distrib. Syst.,vol. 20, no. 4, pp. 567–580, Apr. 2009.
[12]. R. P. Laufer et al., “Towards stateless single-packet IP trace back,” in Proc. 32ndIEEE Conf. Local Comput. Netw. (LCN),Oct. 2007, pp. 548–
555. [Online]. Available:
