on parallel systems
Guillermo L. Taboada·Juan Touriño· Ramón Doallo
© Springer Science+Business Media, LLC 2009

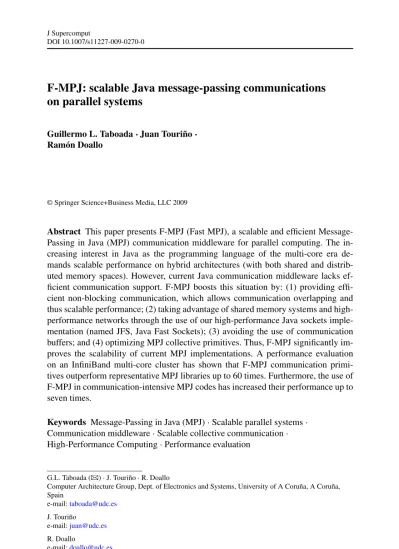

Abstract This paper presents F-MPJ (Fast MPJ), a scalable and efficient
Message-Passing in Java (MPJ) communication middleware for parallel computing. The in-creasing interest in Java as the programming language of the multi-core era de-mands scalable performance on hybrid architectures (with both shared and distrib-uted memory spaces). However, current Java communication middleware lacks ef-ficient communication support. F-MPJ boosts this situation by: (1) providing effi-cient non-blocking communication, which allows communication overlapping and thus scalable performance; (2) taking advantage of shared memory systems and high-performance networks through the use of our high-high-performance Java sockets imple-mentation (named JFS, Java Fast Sockets); (3) avoiding the use of communication buffers; and (4) optimizing MPJ collective primitives. Thus, F-MPJ significantly im-proves the scalability of current MPJ implementations. A performance evaluation on an InfiniBand multi-core cluster has shown that F-MPJ communication primi-tives outperform representative MPJ libraries up to 60 times. Furthermore, the use of F-MPJ in communication-intensive MPJ codes has increased their performance up to seven times.
Keywords Message-Passing in Java (MPJ)·Scalable parallel systems· Communication middleware·Scalable collective communication· High-Performance Computing·Performance evaluation
G.L. Taboada (
)·J. Touriño·R. DoalloComputer Architecture Group, Dept. of Electronics and Systems, University of A Coruña, A Coruña, Spain e-mail:[email protected] J. Touriño e-mail:[email protected] R. Doallo e-mail:[email protected]
1 Introduction
Java has become a leading programming language, especially for distributed pro-gramming, and is an emerging option for High-Performance Computing (HPC). The increasing interest on Java for parallel computing is based on its appealing charac-teristics: built-in networking and multithreading support, object orientation, platform independence, portability, security, and it is the main training language for computer science students and has a wide community of developers. Moreover, performance is no longer an obstacle. The gap between Java and native language performance has been narrowing for the last years, thanks to the Just-in-Time (JIT) compiler of the Java Virtual Machine (JVM) that obtains native performance from Java bytecode. Nevertheless, although the performance gap is usually small for sequential applica-tions, it can be particularly high for parallel applications when depending on commu-nications performance. The main reason is the lack of efficient Java communication middleware, which has hindered Java adoption for HPC.
Regarding HPC platforms, new deployments are increasing significantly the num-ber of cores installed in order to meet the ever growing computational power demand. This current trend to multi-core clusters underscores the importance of parallelism and multithreading capabilities [8]. Therefore, this scenario requires scalable paral-lel solutions, where communication efficiency is fundamental. This efficiency not only depends heavily on the network fabric, but more and more on the communica-tion middleware. Furthermore, hybrid systems (shared/distributed memory architec-tures) increase the complexity of communication protocols as they have to combine inter-node and intra-node communications, which may imply efficient communica-tion overlapping. Hence, Java represents an attractive choice for the development of communication middleware for these systems as it is a multithreaded language, sup-ports the heterogeneity of the systems and can rely on efficient communication mid-dleware that provides support on high-performance communication hardware. Thus, Java can take full advantage of hybrid architectures using intra-process communica-tion in shared memory and relying on efficient inter-node communicacommunica-tion. Moreover, Java can handle the increasing availability of computing resources thanks to its porta-bility and the use of scalable communication middleware. Therefore, as scalaporta-bility is a key factor to confront new challenges in parallel computing, we aim at providing such feature in Java message-passing middleware through the use of efficient non-blocking communications and high-speed networks support. Furthermore, MPJ col-lective primitives must implement scalable algorithms. Our F-MPJ (Fast MPJ) library addresses all these issues.
The structure of this paper is as follows: Sect.2presents background information and introduces related work. Section3describes the design of F-MPJ. The novel is-sues in its implementation, together with its communication algorithms operation, are shown in Sect.4. The implementation details on different underlying communication libraries are also covered in this section. Once the basic point-to-point communi-cation methods have been described, the development details of the message-passing collective primitives are presented in Sect.5. Comprehensive benchmark results from an F-MPJ evaluation on an InfiniBand multi-core cluster are shown in Sect.6. This evaluation consists of a microbenchmarking of point-to-point and collective
primi-2 Related work
Since the introduction of Java, there have been several implementations of Java mes-saging libraries for HPC [15]. These libraries have followed different implementation approaches: (1) using Java Remote Method Invocation (RMI), (2) wrapping an un-derlying native messaging library like MPI [13] through Java Native Interface (JNI), or (3) using low-level Java sockets. Each solution fits with specific situations, but presents associated trade-offs. Using a “pure” Java (100% Java) approach when bas-ing on Java RMI ensures portability, but it might not be the most efficient solution, especially in the presence of high-performance hardware. The use of JNI has porta-bility problems, although usually in exchange for higher performance. The use of a low-level API, Java sockets, requires an important programming effort, especially in order to provide scalable solutions, but it significantly outperforms RMI-based com-munication libraries.
Although most of the Java communication middleware is based on RMI, MPJ li-braries looking for efficient communication have followed the latter two approaches. Thus, mpiJava [1] is a wrapper library that resorts to MPI for communications. How-ever, although its performance is usually high, mpiJava currently only supports some native MPI implementations, as wrapping a wide number of functions and heteroge-neous runtime environments entails an important maintenance effort. Additionally, this implementation is not thread-safe, being unable to take advantage of multi-core systems through multithreading. As a result of these drawbacks, the mpiJava main-tenance has been superseded by the development of MPJ Express [3], a “pure” Java MPJ library based on mpiJava and implemented on top of the Java New I/O pack-age (Java NIO). MPJ Express is thread-safe and implements a pluggable architecture that combines the portability of the “pure” Java NIO communications with the high-performance Myrinet support (through the native Myrinet eXpress, MX, communi-cation library).
MPJ/Ibis [5] is another MPJ library. It has been implemented on top of Ibis [20], a parallel and distributed Java computing framework. Ibis can use either “pure” Java communications, or native communications on Myrinet. There are two low-level communication devices in Ibis: TCPIbis, based on Java IO sockets (TCP), and NIOIbis, which provides blocking and non-blocking communication through Java NIO sockets. Nevertheless, MPJ/Ibis is not thread-safe, does not take advantage of non-blocking communication, and its Myrinet support is based on the GM library, which shows poorer performance than the MX library.
The two latter libraries, MPJ Express and MPJ/Ibis, are the most active projects in terms of adoption by the HPC community, presence on academia and production environments, and available documentation. These projects are also stable and pub-licly available along with their source code. Therefore, they have been selected as representative MPJ libraries for the performance evaluation (Sect.6).
Additionally, there are several recent Java message-passing projects, such as Par-allel Java [12], Jcluster [21] and P2P-MPI [10], projects tailored to hybrid, heteroge-neous and grid computing systems, respectively. However, their analysis in the perfor-mance evaluation section was discarded as a preliminary evaluation of these libraries showed lower scalability than MPJ Express and MPJ/Ibis. Previous Java message-passing libraries, of which eleven projects are cited in [15], although raised many expectations in the past, are currently out-of-date and their interest is quite limited. However, it is worth mentioning MPJava [14] as it was the first Java message-passing library in taking advantage of the scalability and high-performance communications of Java NIO sockets. This important number of past and present projects is a result of the sustained interest in the use of Java for parallel computing.
3 Overview of the F-MPJ communication support
Figure1presents an overview of the F-MPJ layered design on representative HPC hardware. From top to bottom, it can be seen that a message-passing application in Java (MPJ application) calls F-MPJ point-to-point and collective primitives. These primitives implement the MPJ communications API on top of the xxdev layer, which has been designed as a pluggable architecture and provides a simple but pow-erful API. This design eases the development of new communication devices in or-der to provide custom implementations on top of specific native libraries and HPC hardware. Thus,xxdev is portable as it presents a single API and provides effi-cient communication on different system configurations. The use of pluggable low-level communication devices has been already proposed by MPJ Express in itsxdev
communication layer [2]. Thexxdev(eXtendedxdev) layer follows thexdev ap-proach although adding additional functionality (e.g., allowing the communication of
Currently, F-MPJ includes an implementation ofxxdevusing Java IO sockets,
iodev. This communication device accesses HPC hardware through JNI using either standard JVM IO sockets (TCP) or Java Fast Sockets (JFS) [16], a high-performance Java IO sockets (TCP) implementation, as it can be seen in Fig.1. For clarity pur-poses, we denote the sockets IO API as “Java IO sockets.” Two implementations of Java IO sockets are considered in this paper: the default JVM IO sockets and JFS.
The HPC systems supported are shared memory machines, high-speed network clusters such as Gigabit Ethernet, SCI, Myrinet and InfiniBand clusters, or hybrid shared/distributed memory systems, such as multi-core high-speed clusters. Figure1
also shows the different high-performance native libraries that provide communica-tion support over this HPC hardware. On SCI, Myrinet and InfiniBand the available libraries are IP emulations (SCIP, IPoMX and IPoIB) and high-performance native sockets libraries (SCI Sockets, Sockets-MX and Sockets Direct Protocol, SDP) avail-able. IP emulations usually provide wider support but at a higher communication overhead than high-performance native sockets. In fact, JVM IO sockets are usu-ally only supported by IP emulations. The native libraries accessed by JFS and the default JVM IO sockets are presented below the JNI layer. Thus, F-MPJ provides ef-ficient communication over high-performance native libraries through the use of JFS, if available. If JFS is not available, F-MPJ resorts to HPC hardware through the stan-dard JVM IO sockets and IP emulations, maintaining the portability of the solution. Furthermore, F-MPJ relies on these low-level native libraries for lost message de-tection and error recovery, although F-MPJ communication primitives return proper error codes on communication failures in order to reduce runtime errors. The design and implementation details of the F-MPJ operation are presented in the next section.
4 F-MPJ low-level communication device: xxdev
The low-levelxxdevAPI provides only basic point-to-point communications. Java IO sockets have been selected for thexxdevimplementation included in F-MPJ,
iodev, in order to take advantage of their simple operation and the high-speed net-works support of JFS, a Java IO sockets implementation. Thus,iodevcan rely either on JVM IO sockets or on JFS. This combination of a portable JVM-based implemen-tation with a custom solution for HPC native libraries provides both portability and high performance. Furthermore, Java IO sockets have also been selected as the per-formance evaluation presented in Sect.6has shown that MPJ/Ibis, library based on Java IO sockets, outperforms MPJ Express, implemented on top of Java NIO sockets. Although the better results of MPJ/Ibis could be due to its implementation itself, we have checked that the underlying socket implementation has an important impact on the overall performance. The use of RMI and asynchronous Java sockets [11] has also been discarded due to its high overhead and the lack of portability, respectively. Furthermore, both solutions do not provide high-speed networks support. However,
the use of Java IO sockets requires a significant effort in developing scalable non-blocking communications, features directly provided by Java NIO sockets, but not by Java IO sockets. Next subsections present thexxdev API, its communication protocols implementation and its efficient JFS support on HPC native libraries. 4.1 xxdev API design
ThexxdevAPI has been designed with the goal of being simple, providing only basic communication methods in order to ease the development ofxxdevdevices. A communication device is similar to an MPI communicator, but with reduced func-tionality. Thus, thexxdevAPI, presented in Listing1, is composed of 13 methods. Moreover, its API extends the MPJ ExpressxdevAPI, allowing the communica-tion of any serializable object instead of being limited to transfer only the custom MPJ Express buffer objects. ThenewInstancemethod instantiates the pluggable
xxdevdevice implementations. Theinitmethod first reads machine names, ports and ranks from a config file (passed as a parameter inargs), creates the connections, disables Nagle’s algorithm and increases socket buffer size (512 KB). Then, the iden-tification of the initialized device is broadcast through all the open connections. Fi-nally, the identifiers of the communication peers are gathered in order to complete the initialization. Theidmethod returns the identifier (id) of the device. Thefinish
method is the last method to be called and completes the device operation.
Thexxdev communication primitives only include point-to-point communica-tion, both blocking (send and recv, like MPI_Send and MPI_Recv) and non-blocking (isendandirecv, like MPI_Isend and MPI_Irecv). Synchronous com-munications are also embraced (ssendandissend). These methods use asdst
(destination) andsrc(source) parameters the ranks read from the config file. The
probemethod waits until a message matchingsrc,tagandcontextarrives. Its non-blocking version, iprobe, checks if the message has been received. The
peekmethod (blocking) returns the most recently completedRequestobject, use-ful for theRequest.iwaitanyimplementation. Listing2presents the API of the
Requestclass, whose wait methods are used to complete the non-blocking commu-nications. Despite the simplicity of thexxdevAPI, the F-MPJ library implements its communications exclusively on top of it, making an intensive use of non-blocking methods for communication overlapping.
4.2 The iodev low-level communication device
Theiodevdevice implements the low-level multiplexed, non-blocking communi-cation primitives on top of Java IO sockets. Iniodeveach process is connected to every other process through two TCP sockets, one for sending and another for re-ceiving. This is a design decision in order to reduce synchronization overheads when sending/receiving data to/from the same peer process. The access to these sockets, both for reading and writing, is controlled by locks, as several threads have read-/write access to these sockets.
Iniodevall communication methods are based on the non-blocking primitives
isend/irecv. Thus, blocking communication methods are implemented as a non-blocking primitive followed by aniwaitcall. In order to handle the non-blocking
Listing 1 Public interface of the xxdev.Device class
Listing 2 Public interface of thexxdev.Requestclass
communications their Request objects are internally stored in two sets named
pending_sendRequestSetandpending_recvRequestSet.
Aniodevmessage consists of a header plus data. The message header includes thedatatypesent, the source identificationsrc, the messagesize, thetag, the
contextandcontrolinformation. In order to reduce the overhead of multiple accesses to the network theiodevmessage header is buffered. Once the message header buffer has been filled in, it is written to the network. The message data is next sent to the network. Thus, only two accesses are required for each message, although for very short messages (<4 KB) the header and data are merged in order to perform a single socket write call. When the source of a message is equal to its destination the socket communication is replaced by an array copy.
Regarding message identification, iniodev a message is unequivocally iden-tified by the triplet src, tag and context, although the wildcard values
xxdev.Device.ANY_SRCandxxdev.Device.ANY_TAGskipsrcandtag
matching, respectively. Iniodevthe message reception is carried out by both the
input handler, a thread in charge of the message reception (also known in the literature as the progress engine), and theRequest.iwaitmethod. Usually, in message-passing libraries, both native and Java implementations, only theinput
Fig. 2 Request.iwait method pseudocode
handlerreceives messages. This presents a high reception overhead that consists of: (1) the reception of the message by theinput handler; (2) the notification of the reception to theRequestobject, which is in awaitstate; (3) waking up theRequestobject; and (4) context switching between theinput handlerand theRequest, in order to continue the process execution. However, in F-MPJ both theinput handlerthread and theRequest.waitmethod receive messages. Thus, ifRequest.iwaitreceives the message the overhead of theinput han-dlerreception is avoided.
Figure2 shows theRequest.iwaitpseudocode in order to illustrate its re-ception operation. It can be seen thatiodevimplements a polling strategy together with periodically issued yield calls, which decreaseiwaitthread priority in order to not monopolize system CPU. This strategy allows to reduce the message latency significantly in exchange for a moderate CPU overhead increase, compared with the approach where only theinput handlerreceives data. Thisiodevapproach yields significant benefits, especially in communication-intensive codes, as message latency reduction provides higher scalability than the availability of more CPU power. 4.3 iodev communication protocols
Theiodevdevice implements the eager and rendezvous protocols, targeted to short and long messages, respectively. The threshold between these protocols is config-urable and usually ranges from 128 to 512 KB.
4.3.1 iodev eager protocol
The eager protocol is targeted to short messages, typically below 128 KB. It is based on the assumption that the receiver has available storage space, so there is no ex-change of control messages before the actual data transfer. This strategy minimizes the overhead of control messages, that can be significant for short messages.
Figure3 shows eager protocol pseudocode. Regarding eagerisend operation, the sender writes the data under the assumption that the receiver will handle it. At the receiver side there are two possible scenarios for theinput handler (see
Fig. 3 iodev eager protocol pseudocode
pseudocode in Fig.3), depending on whether a matching receive has been already posted or not. Thus, if a matchingrecvRequestexists the message is copied into the destination buffer; otherwise, it will be stored in a temporary buffer, waiting for the correspondingirecvpost. Theinput handleris constantly running during
iodevoperation, from the initto thefinishcall. This behavior is controlled by a flag (running). Theirecvoperation (see Fig.3) also presents two scenar-ios, depending on whether the input handler has already received the message or not. Thisiodeveager protocol implementation reduces significantly F-MPJ short mes-sage overhead, allowing short mesmes-sage communication-intensive MPJ applications to increase significantly their scalability.
4.3.2 iodev rendezvous protocol
The rendezvous protocol is targeted to long messages, typically above 128 KB. It is based on the use of control messages in order to avoid buffering. Thus, the steps of the protocol are: (1) the source sends a ready-to-send message; (2) the destination replies with a ready-to-receive message; and (3) data is actually transferred. This strategy avoids buffering although increases protocol overhead. However, the impact of the control messages overhead is usually small for long messages.
Fig. 4 iodev rendezvous protocol pseudocode
Figure4shows rendezvous protocol pseudocode. Theisendoperation consists of writing a ready-to-send control message. At the receiver side there are three pos-sible scenarios for theinput handler(see pseudocode in Fig.4), depending on the incoming message: (1) a ready-to-send message; (2) a ready-to-receive message; or (3) a data message. In scenario (1) a ready-to-receive message reply is written if a matching receive has been posted; otherwise, the ready-to-send message is stored un-til such matching receive is posted. In (2) the actual transfer of the data is performed through a forked thread in order to avoidinput handlerblockade while writing data. In this case theinput handleris run by the sender process and therefore can access the source buffer. Finally, in (3) theinput handlerreceives the data. Theirecvoperation (see Fig.4) presents two scenarios, depending on whether the input handler has already received the ready-to-send message or not. Thus, it either replies back with a ready-to-receive message or stores the receive post, respectively. Thisiodevrendezvous protocol implementation contributes significantly to F-MPJ scalability as it prevents from message buffering and network congestion. Therefore, scalable Java communication performance can be achieved.
Listing 3 JFS extended API for communicating primitive data type arrays directly
Listing 4 JFS direct send of part of an int array
4.4 Java Fast Sockets support in iodev
The default sockets library used byiodev, JVM IO sockets, presents several disad-vantages for communication middleware: (1) this library has to resort to serialization, the process of transforming objects (except byte arrays) in byte series, for message communication; (2) as Java cannot serialize/deserialize array portions (except for parts of byte arrays) a new array must be created to store the portion to be serial-ized/deserialized; (3) JVM IO sockets perform an extra copy between the data in the JVM heap and native memory in order to transfer the data; and finally, (4) this socket library is usually not supported by high-performance native communication libraries, so it has to rely on IP emulations, a solution which presents a poorer performance.
However, in order to avoid these drawbacks, F-MPJ has integrated iniodevthe high-performance Java sockets library JFS (Java Fast Sockets) [16], in a portable and efficient way. Thus, JFS boosts F-MPJ communication efficiency by: (1) avoiding primitive data type array serialization through an extended API that allows direct communication of primitive data type arrays (see Listing3); (2) making unnecessary the data buffering when sending/receiving portions of primitive data type arrays using
offsetandlengthparameters (see JFS API in Listing3and its application in Listing4); (3) avoiding the copies between the JVM data and native memory thanks to JFS’s zero-copy protocol; and (4) providing efficient support on shared memory, and Gigabit Ethernet, SCI, Myrinet and InfiniBand networks through the use of the underlying libraries specified in Fig.1.
Listing4presents an example ofiodevcode that takes advantage of the efficient JFS methods when they are available, without compromising the portability of the
solution. This handling of JFS communications is of special interest in F-MPJ and, in general, in any communication middleware, as MPJ applications can benefit from the use of JFS without modifying their source code. The integration of JFS iniodev
has been done following this approach and thus preserving F-MPJ portability while taking full advantage of the underlying communication middleware. In fact, JFS, in the presence of two or more supported libraries, prioritizes them depending on their performance: usually shared memory communication first, then high-performance socket libraries, and finally the default “pure” Java implementation.
JFS significantly outperforms JVM IO sockets, especially in shared memory and hybrid shared/distributed memory architectures. Moreover, JFS is targeted to primi-tive data type array communications, frequently used in HPC applications. Therefore, F-MPJ benefits especially from the use of JFS, as will be experimentally assessed in Sect.6.
5 Implementation of Java message-passing collective primitives
Asiodevalready provides the basic point-to-point primitives, their implementa-tion in F-MPJ is direct. Nevertheless, collective primitives require the development of algorithms that involve multiple point-to-point communications. MPJ application developers use collective primitives for performing standard data movements (e.g., broadcast, scatter and gather) and basic computations among several processes (re-ductions). This greatly simplifies code development, enhancing programmers pro-ductivity together with MPJ programmability. Moreover, it relieves developers from communication optimization. Thus, collective algorithms must provide scalable per-formance, usually through overlapping communications in order to maximize the number of operations carried out in parallel. An unscalable algorithm can easily waste the performance provided by an efficient communication middleware.
5.1 MPJ collective algorithms
The design, implementation and runtime selection of efficient collective communi-cation operations have been extensively discussed in the context of native message-passing libraries [4,7,17,19], but not in MPJ. Therefore, F-MPJ has tried to adapt the research in native libraries to MPJ. As far as we know, this is the first project in this sense, as up to now MPJ library developments have been focused on providing production quality implementations of the full MPJ specification, rather than scalable performance for collective implementations.
The collective algorithms present in MPJ libraries can be classified in five types, namely Flat Tree (FT) or linear, Minimum-Spanning Tree (MST), Binomial Tree (BT), Bucket (BKT) or cyclic, and BiDirectional Exchange (BDE) or recursive dou-bling.
The simplest algorithm is FT, where all communications are performed sequen-tially. Figure 5 shows the pseudocode of the FT broadcast using either blocking primitives (from now on denoted as bFT) or exploiting non-blocking communica-tions (from now on nbFT) in order to overlap communicacommunica-tions. As a general rule,
Fig. 5 FT broadcast pseudocode
Fig. 6 MSTBcast pseudocode
Fig. 7 Minimum-spanning tree algorithm for broadcast
valid for all collective algorithms, the use of non-blocking primitives avoids unnec-essary waits and thus increases the scalability of the collective primitive. However, for the FT broadcast only the send operation can be overlapped. The variables used in the pseudocode are also present in the following figures. Thus,xis the message,
rootis the root process,meis the rank of each parallel process,pi thei-th process andnpesis the number of processes used.
Figures6and7present MST pseudocode and operation for the broadcast, which is initially invoked through MSTBcast(x,root,0,npes-1). The parameters
leftandrightindicate the indices of the left- and right-most processes in the current subtree. A variant of MST is BT, where for each step i (from 1 up to
Fig. 8 BKTAllgather and BDEAllgather pseudocode
Fig. 9 Bucket algorithm for allgather (BKTAllgather)
Figures8(left) and9show BKT allgather pseudocode and operation. In BKT all processes are organized like a ring and send at each step data to the process at their right. Thus, data eventually arrives to all nodes. F-MPJ implements an optimization posting allirecvrequests at BKT start-up. A subsequent synchronization (barrier) prevents early communication that incurs in buffering overhead when theirecv
has not already been posted. The communications overlapping is achieved through
isendcalls. Finally, the algorithm waits for the completion of all requests. Figures8
(right) and10present BDE allgather pseudocode and operation, which requires that
npesbe a power of two. In BDE the message size exchanged by each process pair is recursively doubled at each step until data eventually arrives to all nodes.
Although there is a wide variety of collective algorithms, current MPJ libraries mainly resort to FT implementations. Moreover, it is usually provided only one im-plementation per primitive. Nevertheless, F-MPJ is able to use up to three algorithms per primitive, selected at runtime. Next subsection presents the details of F-MPJ col-lectives implementation and a comparative analysis of algorithms present in MPJ collective primitives.
Fig. 10 Bidirectional exchange algorithm for allgather (BDEAllgather). In the 2nd step, bidirectional exchanges occur between the two pairs of processesp0andp2, andp1andp3
5.2 Analysis of the implementation of MPJ collective primitives
Table1 presents a complete list of the collective algorithms used in F-MPJ, MPJ Express and MPJ/Ibis. It can be seen that F-MPJ implements algorithms with usu-ally higher scalability than MPJ Express and MPJ/Ibis collective primitives, taking advantage of communications overlapping. Thus, MPJ/Ibis only uses non-blocking communications in alltoall and alltoallv primitives, and MPJ Express resorts to bFT, an algorithm with poor scalability, for broadcast (Bcast) and reduce. However, MPJ Express limits in the broadcast implementation the maximum number of transfers per process to four, making up a four-ary tree, in order to alleviate the communication overhead of the root process in bFT.
F-MPJ implements up to three algorithms per primitive. The algorithm selection depends on the message size, using the algorithms with the lowest latencies for short message communication and minimizing message buffering for long message com-munication. Table1indicates the selected algorithms using superscripts. The message size threshold used in this selection is configurable (32 KB by default) and indepen-dent for each primitive. The use of efficient communications and scalable algorithms in F-MPJ provides scalable MPJ performance, as will be assessed in the next section.
6 Performance evaluation
6.1 Experimental configuration
F-MPJ has been evaluated on the Finis Terrae supercomputer [9], ranked #209 in June 2008 TOP500 list [18] (14 TFlops). This system is an InfiniBand multi-core cluster that consists of 142 HP Integrity rx7640 nodes, each of them with 8 Mont-vale Itanium2 (IA64) dual-core processors at 1.6 GHz and 128 GB of memory. The InfiniBand NIC is a dual 4X IB port (16 Gbps of theoretical effective bandwidth). The native low-level communication middleware is SDP and Open Fabrics Enter-prise Distribution (OFED) 1.2 (see Sect.3and Fig.1for further details). The OS is SUSE Linux Enterprise Server 10. The evaluated MPJ libraries are F-MPJ with JFS 0.3.1, MPJ Express 0.27 and MPJ/Ibis 1.4. The JVM is BEA JRockit 5.0 (R27.5), the JVM 1.5 or higher (prerequisite for the evaluated MPJ libraries) that achieves the best performance on Linux IA64.
The evaluation presented in this section consists of a microbenchmarking of point-to-point primitives (Sect.6.2) and collective communications (Sect.6.3); and a ker-nel/application benchmarking of codes from the Java Grande Forum (JGF) Bench-mark Suite [6] (Sect.6.4).
Table 1 Collective algorithms used in representative MPJ libraries
Collective F-MPJ MPJ Express MPJ/Ibis
Barrier MST nbFTGather+ bFT bFTBcast Bcast MSTa bFT BT MSTScatter+BKTAllgatherb Scatter MSTa nbFT bFT nbFTb Scatterv MSTa nbFT bFT nbFTb Gather MSTa nbFT bFT nbFTb Gatherv MSTa nbFT bFT nbFTb
Allgather MSTGather+MSTBcasta nbFT BKT (double ring) BKTb
BDEc
Allgatherv MSTGatherv+MSTBcast nbFT BKT
Alltoall nbFT nbFT nbFT
Alltoallv nbFT nbFT nbFT
Reduce MSTa bFT BT (commutative)
BKTReduce_scatter+ bFT (non
commu-MSTGatherb tative operation)
Allreduce MSTReduce+MSTBcasta BT BDE
BKTReduce_scatter+ BKTAllgatherb BDEc
Reduce_scatter MSTReduce+MSTScatterva bFTReduce+ {BTReduceor
BKTb nbFTScatterv bFTReduce}+
BDEc bFTScatterv
Scan nbFT nbFT bFT
aSelected algorithm for short messages bSelected algorithm for long messages
cSelectable algorithm for long messages and npes power of two
6.2 Microbenchmarking of MPJ point-to-point primitives
In order to microbenchmark F-MPJ primitives performance it has been used our own microbenchmark suite [15]. Thus, the results shown are the half of the round trip time of a ping-pong test (point-to-point latency) or its corresponding bandwidth. Figure11
shows point-to-point latencies and bandwidths for MPJ byte and double arrays, data structures frequently used in parallel applications, for intra-node (shared memory) and inter-node (InfiniBand) communication. Moreover, the low-level native
munication performance of the shared memory protocol and the OFED InfiniBand driver is also shown for comparison purposes. The latency graphs serve to compare short message-performance, whereas the bandwidth graphs are useful to compare long message-performance. For clarity purposes, it has been used the JNI array nota-tion in order to denote byte and double arrays (B] and D], respectively).
F-MPJ, MPJ Express and MPJ/Ibis rely on different sockets implementations (JFS, Java NIO sockets and Java IO sockets, respectively), and thus it is not possible to compare directly the MPJ library processing overhead. However, as the sockets im-plementations share the same underlying layers, a fair comparison involves the analy-sis of the overhead of F-MPJ+JFS, MPJ Express+Java NIO and MPJ/Ibis+Java IO sockets. The processing overhead of the MPJ libraries plus socket implementa-tions can be estimated from Fig.11, where F-MPJ+JFS shows significantly lower overhead than MPJ Express+Java NIO and MPJ/Ibis+Java IO sockets, especially for short messages and double arrays (D]) communication.
F-MPJ handles D] transfers without serialization, obtaining the same results for B] and D] communication. As MPJ/Ibis and MPJ Express have to serialize double arrays, they present a significant performance penalty for D], especially for long messages. Thus, F-MPJ(D]) clearly outperforms MPJ/Ibis(D]) and MPJ Express(D]), showing up to 10 and 20 times higher performance, respectively. The impact of serialization overhead, the difference between D] and B] performance, is especially significant when the MPJ library obtains high B] bandwidths (MPJ/Ibis on intra-node and MPJ Express on inter-node). In these scenarios the serialization is the main performance bottleneck.
The byte array (B]) results are useful for evaluating the data transfer performance itself, without serialization overheads. In this scenario F-MPJ significantly outper-forms MPJ Express and MPJ/Ibis, especially for short messages, thanks to its lower start-up latency. Regarding long message intra-node performance, F-MPJ outper-forms MPJ/Ibis up to 40% and MPJ Express up to 5 times. Nevertheless, the results vary for inter-node transfers, where F-MPJ outperforms MPJ/Ibis up to 9 times and MPJ Express up to 70%. In these results the impact of the underlying communica-tion middleware is significant. Thus, the high-performance SDP library only supports F-MPJ and MPJ Express, which obtain significantly higher inter-node performance than MPJ/Ibis, only supported by the low performance IP emulation on InfiniBand (IPoIB).
The observed point-to-point communication efficiency of F-MPJ significantly im-proves MPJ collective primitives performance, as shown next.
6.3 Microbenchmarking of MPJ collective primitives
It has been evaluated the performance scalability of representative F-MPJ, MPJ/Ibis and MPJ Express collective primitives. Figure12presents the aggregated bandwidth for broadcast and sum reduction operations, both for short (1 KB) and long (1 MB) double array messages. The aggregated bandwidth metric has been selected as it takes into account the global amount of data transferred, message_size∗(npes−1)for both collectives. The broadcast and reduce primitives have been selected as representative data movement and computational primitives, respectively. Finally, the two message
sizes used are representative of short and long messages. The results have been ob-tained with a maximum of 8 cores per node as this configuration has shown the best performance. Thus, from now on the number of nodes used isnpes/8. MPJ/Ibis could not be run in our testbed using more than 32 cores due to an Ibis runtime ini-tialization error.
The presented results (Fig.12) show that F-MPJ significantly outperforms MPJ Express and MPJ/Ibis. Regarding broadcast, F-MPJ increases performance up to 5.8 and 16 times for short and long messages, respectively. The improvement of the F-MPJ reduce is up to 60 and 50 times for short and long messages, respectively. F-MPJ shows scalable performance for both collectives, obtaining usually the highest performance increases on 128 cores. The higher long message performance improve-ment of F-MPJ is mainly due to the serialization avoidance. Moreover, F-MPJ takes significant advantage of intra-node communication (up to 8 cores), especially for the broadcast. In fact, F-MPJ broadcast results are better with 8 cores (one node) than with 16 cores (two nodes), where the primitive operation involves the use of inter-node transfers. The lowest performance, especially for the reduce, has been obtained by MPJ Express, whereas MPJ/Ibis results are between F-MPJ and MPJ Express results, although closer to the latter. F-MPJ significantly improves MPJ collectives performance due to the efficient intra-node and inter-node point-to-point communi-cation, the serialization avoidance and the use of scalable algorithms (see Table1) based on non-blocking communications overlapping.
6.4 MPJ kernel/application performance analysis
The impact of the use of F-MPJ on representative MPJ kernels and applications is analyzed in this subsection. Two kernels and one application from the JGF Bench-mark Suite have been evaluated: Crypt, an encryption and decryption kernel; LUFact, an LU factorization kernel; and MolDyn, a molecular dynamics N-body parallel sim-ulation application. These MPJ codes have been selected as they show very poor scalability with MPJ Express and MPJ/Ibis, despite being load balanced parallel im-plementations. Hence, these are target codes for the evaluation of F-MPJ performance and scalability improvement.
Figure13presents Crypt and LUFact speedups. Regarding Crypt, F-MPJ clearly outperforms MPJ/Ibis and MPJ Express, up to 330%, in a scenario where the data transfers (byte arrays) do not involve serialization. Thus, both MPJ/Ibis and MPJ Express take advantage of the use of up to 32 cores. LUFact performs double and integer arrays broadcasts for each iteration of the factorization method. Therefore, the serialization overhead is important for this code. Thus, the use of F-MPJ has a higher impact on performance improvement than for Crypt. Figure13(down) shows that F-MPJ significantly outperforms MPJ/Ibis and MPJ Express for LUFact, up to eight times. This performance increase is due to the use of scalable algorithms and the serialization avoidance. Furthermore, F-MPJ presents its best results on 128 cores, whereas MPJ/Ibis and MPJ Express obtain their best performance on 16 and 8 cores, respectively.
The MolDyn application consists of six allreduce sum operations for each iteration of the simulation. The transferred data are integer and double arrays, so F-MPJ can
Fig. 13 Speedups of Crypt and LUFact JGF kernels
Fig. 14 Speedups of MolDyn JGF application
avoid serialization overhead. For its evaluation it has been used an enlarged size C version (18×18×18×4 elements). Figure14presents MPJ speedups, where F-MPJ outperforms MPJ/Ibis and MPJ Express up to 3.5 times. This application presents higher speedups than the kernels of Fig.13as it is a less communication intensive code, and the three libraries use scalable allreduce algorithms (see Table1). However,
the serialization overhead negatively affects MPJ/Ibis and MPJ Express MolDyn per-formance.
The use of F-MPJ increases significantly MPJ kernels and applications perfor-mance, especially for communication-intensive codes. Moreover, the scalable F-MPJ performance allows MPJ codes to take advantage of the use of a large number of cores (up to 128 in our experiments), a significantly higher value than that of MPJ/Ibis and MPJ Express.
7 Conclusions
This paper has presented F-MPJ, a scalable and efficient Java message-passing li-brary. The increasing interest in Java parallel solutions on multi-core systems de-mands efficient communication middleware. F-MPJ pursues to satisfy this need ob-taining scalable Java performance in parallel systems. The main contributions of this communication middleware are: (1) provides efficient MPJ non-blocking commu-nication based on Java IO sockets, allowing commucommu-nications overlapping; (2) it is efficiently coupled with JFS, our high-performance Java IO sockets implementa-tion, which provides shared memory and high-speed networks support and avoids the primitive data type array serialization. (3) F-MPJ avoids the use of communica-tion buffers; and (4) implements scalable Java message-passing collective primitives. F-MPJ has been evaluated on an InfiniBand multi-core cluster, outperforming signif-icantly two representative MPJ libraries, MPJ Express and MPJ/Ibis. Thus, the mi-crobenchmarking results showed a performance increase of up to 60 times for F-MPJ. Moreover, the subsequent kernels and application benchmarking obtained speedup increases of up to seven times for F-MPJ on 128 cores, depending on the communi-cation intensiveness of the analyzed MPJ benchmarks. F-MPJ has improved MPJ per-formance scalability, allowing Java message-passing codes that previously increased their speedups only up to 8–16 cores to take advantage of the use of 128 cores, im-proving significantly the performance and scalability of current MPJ libraries.
Further information, additional documentation and software downloads of this project are available from the F-MPJ and JFS Projects webpagehttp://jfs.des.udc.es. Acknowledgements This work was funded by the Ministry of Education and Science of Spain un-der Projects TIN2004-07797-C02 and TIN2007-67537-C03-2 and by the Galician Government (Xunta de Galicia) under Project PGIDIT06PXIB105228PR. We gratefully thank CESGA (Galician Supercomputing Center, Santiago de Compostela, Spain) for providing access to the Finis Terrae supercomputer.
