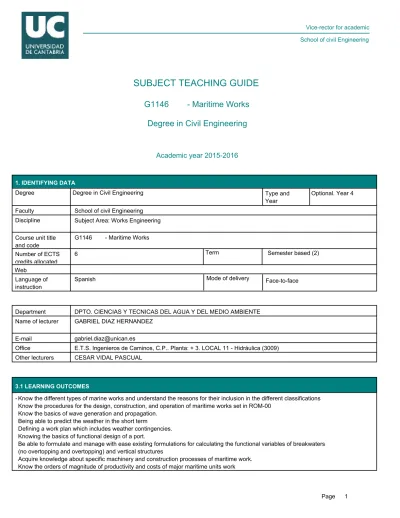

SUBJECT TEACHING GUIDE
Degree in Civil Engineering
G1146 - Maritime Works
Academic year 2015-2016
1. IDENTIFYING DATA
Degree Degree in Civil Engineering Type and Optional. Year 4 Year
School of civil Engineering Faculty
Subject Area: Works Engineering Discipline
G1146 - Maritime Works Course unit title
and code
6 Number of ECTS credits allocated
Term Semester based (2)
Web
Spanish Language of
instruction
Mode of delivery Face-to-face
DPTO. CIENCIAS Y TECNICAS DEL AGUA Y DEL MEDIO AMBIENTE Department
GABRIEL DIAZ HERNANDEZ Name of lecturer
[email protected] E-mail
E.T.S. Ingenieros de Caminos, C.P.. Planta: + 3. LOCAL 11 - Hidráulica (3009) Office
CESAR VIDAL PASCUAL Other lecturers
3.1 LEARNING OUTCOMES
Know the different types of marine works and understand the reasons for their inclusion in the different classifications Know the procedures for the design, construction, and operation of maritime works set in ROM-00
Know the basics of wave generation and propagation. Being able to predict the weather in the short term
Defining a work plan which includes weather contingencies. Knowing the basics of functional design of a port.
Be able to formulate and manage with ease existing formulations for calculating the functional variables of breakwaters (no overtopping and overtopping) and vertical structures
Acquire knowledge about specific machinery and construction processes of maritime work. Know the orders of magnitude of productivity and costs of major maritime units work
-1 Page
4. OBJECTIVES
The student will be able to identify the characteristics of the different types of marine works, to understand the functional needs of those most common marine works, used both in port engineering and coastal engineering.
Students will familiarize themselves with the machinery and construction processes of the marine works.
Students will be able to understand, predict and act accordingly against the risks for the construction, operation or maintenance of maritime works represent environmental variables such as wind, waves, currents and tides.
6. COURSE ORGANIZATION
CONTENTS 1 General types of maritime works (2h)
1.1. Introduction. Video of the construction of the port at Punta Langosteira 1.2. Classification of marine works.
1.3. Types of maritime works.
2 Spanish rules of design, construction, maintenance and decommissioning, introduction to ROM (4h) 21. Description ROM program.
2.2. Main contents of the program
3 Introduction to marine dynamics. Solicitations of marine works. (4h) 3.1. Wind, current, waves and sea level.
3.2. Direct effects of the wind on the marine works.
3.3. Genesis of ocean and coastal currents. Density currents. Astronomical tide. Meteorological tide. 3. 4. Introduction to sediment dynamics and its interaction with the marine works.
4 Short and long term description of waves (4h)
4.1. Concept wave and a wave parameters descriptors. 4.2. Physicist and mathematician wave (linear theory) concept. 4.3. Statistical description of waves in the short term.
4.4. Spectral description of waves. 4. 5. wave description (long term). 5 Wave generation (4h)
5.1. Cyclogenesis. Geostrophic wind. Vertical wind profile. Capillary and gravity waves.
5.2. Concept of fetch. Theoretical models of wave generation. Parametric and numerical models. 6 Risks induced by the waves in the sea works. Reliability in the construction and operation phases (4h)
6.1. Description of the concept of risk. Probabilistic design of marine works. 6.2. Introduction to ROM program. The ROM-00.
6.3. Determining the risk of failure of marine works. Systems analysis. Dimensions of the probability of failure of a system.
6.4. Estimating the probability of a failure mode of an element; Level III method.
6.5. Estimating the probability of a failure mode of an element; Method level II and level Methods I. 6.6. Probability of failure when the function of reliability depends on a dominant single variable. 6.7. Reliability under construction
7 Met-oceanographic variables prediction Operational models (4h) 7.1. Parameters and prediction forecast.
7.2. Data sources. 7.3. Prediction models.
7.4. Wave propagation in near field.
7.5. Operational systems for construction works and their exploitation (p. Eg. SAYOM / PATO). 8 General design elements maritime works. Plant design (6h)
8.1. Merchant ports. 8.2. Fishing Ports. 8.3. Marinas.
9 General design elements maritime works. Structural design of docks and piers (10h) 9.1. Functional design and structural breakwaters.
9.2. Functional design and structural vertical dikes. 9.3. Functional design and structural Springs. 9.4. Piloted structures.
3 Page
10 Construction methods piers and docks (4h) 10.1. Ground construction procedures. 10.2. Underwater procedures.
10.3. Major work units. 10.4. Running breakwaters. 10.5. Vertical dikes. 10.6. Dredging and filling. 10.7. Moorings and refloating. 10.8. Returns.
11 Specific machinery and equipment in marine works (4h) 11.1. Terrestrial machinery.
11.2. Naval equipment. 11.3. Underwater machinery. 11.4. Earth onboard machinery. 11.5. Platforms and barges. 11.6. Dredges and barges.
11.7. Procedures pouring loose materials. 11.8. Georeferencing underwater.
12 Monitoring and conservation of marine works (4h) 12.1. Settlement and compaction.
12.2. Rockfill embankments profiling and blocks. 12.3. Removal and replacement of blocks.
12.4. Measurement of shares springs and vertical dikes. 12.5. Use loads and fatigue.
12.6. Running bathymetry.
13 Approach to the costs of the main maritime labor units (2h) 13.1. Breakdown of work units.
13.2. Approximate unit costs. 13.3. Overall returns.
14 Historical review of cases of breakdowns during implementation and exploitation of marine works (4h) 15 Tutorship
%
7. ASSESSMENT METHODS AND CRITERIA
Description Type Final Eval. Reassessment
Partial exam Written exam No Yes 50,00
Final exam Written exam Yes Yes 50,00
100,00 TOTAL
Observations
The partial exam is discharging for the final exam, if approved, the final exam will only include parts 8-14.
Both test are recoverable, they may be individually recovered in the official period set by the University (September). If any part of the course are not approved the student will have to re-examined all the parts the following year, regardless of whether they have approved the partial test.
The partial exam will be averaged with the final test. A suspended in the partial partial note will not be taken into account. Practices are compulsory and will be required to make the exams. They will be corrected but will not be qualified nor taken into account for the final note.
'In connection with the resolutions adopted at the regular meeting of the School Board held on June 10, 2010, states that, with respect to evaluation activities having the character of recoverable,
• As a general criterion approved test will have a note of 5 or more / 10.
Note: According to the Royal Decree RD 1125/2003 on the European credit system and the grading system in the university degrees of official and valid throughout the national territory, the results obtained by the student in each of the subjects of the curriculum will be graded according to the following numerical scale of 0-10, with one decimal, which may be added corresponding qualitative rating:
0.0 to 4.9: Suspense (SS). 5.0 to 6.9: Approved (AP). 7.0 to 8.9: Notable (NT). 9.0 to 10: Outstanding (SB) '. Observations for part-time students
8. BIBLIOGRAPHY AND TEACHING MATERIALS
BASIC
Programa R.O.M. Puertos del estado
Krystian W. Pilarczyk. Dikes and revetments. A.A. Balkema. 1998.
Per Bruun. Design and construction of mounds for breakwaters and coastal protection. Elsevier. 1985.
Vicente Negro, Ovidio Varela, Jaime H. García y José Santos. Diseño de diques verticales. Colegio de Ingenieros de Caminos, Canales y Puertos. 2001.
Vicente Negro y Ovidio Varela. Diseño de diques rompeolas. Colegio de Ingenieros de Caminos, Canales y Puertos. 2002. Jonathan Simm and Ian Cruickshank. Construction risk in coastal engineering. Thomas Telford, 1998.
Turgut Sarpkaya and Michael Isaacson. Mechanics of wave forces on offshore structures. Van Nostrand Reinhold Company Inc. 1981.
Hans F. Burchath and Alberto Lamberti. Environmental design of low crested coastal defence structures (DELOS): Design guidelines. Pitagora Editrice Bologna. 2004.
H. Oumeraci, A. Kortenhaus, W. Alsop, M. de Groot, R. Crouch, H. Vrijling and H. Voortman. Probabilistic design tools for vertical breakwaters, PROVERBS. 2001
Port enginDesign and construction of ports and marine structures. McGraw-Hill Companies, 1971 - 611 páginaseering, Volumen 1. Per Bruun. Gulf Publishing Company, 1989
Port engineering: planning, construction, maintenance, and security. Gregory P. Tsinker. John Wiley & Sons, 2004 - 881 páginas
5 Page
