AppResponse Xpert 7

1 8.6.8 Release Notes

These release notes give an overview of the differences between Riverbed AppResponse Xpert Release 8.6.8 and the previous releases. These release notes also include warnings and important notes that you should review before you update from a previous release.

Note—The contents in these Release Notes were last updated on November 21, 2013. Because release notes are sometimes updated after the product documentation is distributed, visit the Riverbed website often to check for the latest version of these release notes. Go to support.riverbed.com, then navigate to the Product Updates page for AppResponse Xpert.

This section discusses the following: • 8.6.8 Includes All 8.6 Features

• Installing the 8.6.8 Software

• WARNING: Check for Patch Before You Connect an Expansion Chassis 300 to a 4300, 5100, or 6000 Appliance

• Serial Number Sticker in New Location

• ASA Boost on 6000, 5100, and 5000 Appliances

8.6.8 Includes All 8.6 Features

This 8.6.8 software release includes all 8.6 features and enhancements (see 8.6.2 Release Notes and 8.6.6 Release Notes) and some bug fixes. 8.6.8 is pre-installed on 1200, 2200, 3300, 3800, 4300, or 5100 appliances

manufactured on or after October 1, 2013.

Installing the 8.6.8 Software

For detailed Update and Upgrade instructions, see the AppResponse Xpert 8.6.8 Software Install Guide. To download the PDF, go to support.riverbed.com and navigate to SOFTWARE & DOCUMENTATION > OPNET >

AppResponse Xpert Appliance > 8.6.8.

WARNING: Check for Patch Before You Connect an Expansion Chassis 300

to a 4300, 5100, or 6000 Appliance

Before you connect an Expansion Chassis 300 to a 4300, 5100, or 6000 appliance running 8.6.8, you must do the following:

(10)

2) Check for the following patch and install it if it appears:

support.opnet.com/ace_live/insights/support/ Patches

patchA-s210-R868-EXP300-[version]

Note—When you run the exenroll CLI command for a new EXP-300 on ARX-4300 and ARX-5100 appliances, the CLI output includes the message

touch: not found. You can ignore the message. This a known issue that will be removed in future software releases.

Serial Number Sticker in New Location

The appliance serial number label has moved from a large sticker on the side of the appliances to a smaller sticker on the back of the appliance labeled S/N.

ASA Boost on 6000, 5100, and 5000 Appliances

The 8.6.2 release introduced an Application Stream Analysis Boost (ASA Boost) mode that is useful for monitoring traffic in high-throughput environments such as server farms or data centers.

Note—ASA Boost requires an ARX-5000 or higher appliance with the s210 JAR class installed. This feature is not supported on any other appliance model.

Without ASA Boost, the maximum possible throughput on a 5000, 5100, or 6000 appliance is ~1 million packets or ~6 gigabits per second (assuming an average packet size of 750 bytes). When ASA Boost Mode is enabled:

• An ARX-5000 or ARX-5100 appliance can process up to ~1.6 million packets or ~10 gigabits per second.

• An ARX-6000 appliance can process up to ~2 million packets or ~12 gigabits per second.

Note—These numbers are the maximum possible processing speeds; actual processing speeds in production environments can vary.

Running ASA Boost

Note the following:

• If packet captures and ASA Boost are both enabled, the appliance sets the packet capture size (that is, the maximum number of bytes saved per packet) to 128 bytes per packet.

(11)

11 When ASA Boost mode is turned off, the appliance reverts back to the previous Packet Size Limit (web UI > System > Capture >

Packet Size Limit).

• You cannot use ASA Boost if any of the following features are enabled: — Web Transaction Analysis

— NetFlow Monitoring Module — Database Performance Module — VoIP Monitoring Module

— CX-Tracer for AppResponse Xpert

Procedure 1-1 To enable ASA Boost on a 5000 (or higher) appliance:

1 Update the appliance to 8.6.

2 Install the ASA Boost patch:

2.1 In the console > Insights > Update Center, click Manage Servers and add the following URL:

support.opnet.com/ace_live/insights/support/ASABoost

2.2 When you return to the Update Center, install the following patch under this URL:

patchA5000-s210-R860_861-ASAboost-[version]

3 Make sure that all of the following options on the appliance are disabled:

• Web UI > System > Pages > Enable Page Analysis

• Web UI > System > Advanced > Collect Netflow Data

• Web UI > System > Advanced > Collect VoIP Data for Business Groups

• Web UI > System > Advanced > Collect VoIP Data for Business Groups > Connected Groups

• Database Performance Module Management Console

(http://<appresponse-xpert-appliance-ip>:2780) > “Manage software instances” page: For the asx instance, set Run Status to Stop and "Autostart at reboot" to No.

• Citrix insights (console > Insights > Citrix): Riverbed recommends that you delete these insights in the Insight Manager before you enable ASA Boost.

4 Open a CLI window, connect to the appliance, and enter the following command: ASAmode boost

(12)

ASAmode default

(13)

13

2 8.6.6 Release Notes

These release notes give an overview of the differences between Riverbed AppResponse Xpert release 8.6.6 and the previous release. These release notes also include warnings and important notes that you should review before you update from a previous release.

—

— Installing the 8.6.8 Software on page -13

Important Notes

This section includes the following notes:

• Release 8.6.6 is for ARX-6000 Appliances (and Connected Directors) Only

• Installing the 8.6.8 Software

Release 8.6.6 is for ARX-6000 Appliances (and Connected Directors) Only

The 8.6.6 software release is intended only for ARX-6000 hardware appliances, and directors with 6000 appliances in their domains. All new 6000 appliances are pre-installed with 8.6.6 or higher.

If you have a pre-8.6.6 director and you need to add a 6000 appliance to that director's domain, the recommended workflow is to update both the director and the 6000 appliance to 8.6.8.

Installing the 8.6.8 Software

See the AppResponse Xpert 8.6.8 Software Install Guide. To download the PDF, go to support.riverbed.com and navigate to

SOFTWARE & DOCUMENTATION > OPNET > AppResponse Xpert Appliance > 8.6.8.

ASA Boost

The 8.6.2 release introduced an Application Stream Analysis Boost (ASA Boost) mode that is useful for monitoring traffic in high-throughput environments such as server farms or data centers.

For more information, see ASA Boost on 6000, 5100, and 5000 Appliances on page -10.

(14)

(15)

15

3 8.6.2 Release Notes

AppResponse Xpert 8.6.2 is a software update to AppResponse Xpert 8.5. This release consists of fixes to issues found in previous releases and includes new features and enhancements.

This section discusses the following topics: • Installing the 8.6.2 Software on page -15

• Important Notes and Warnings on page -15

— WARNING: Check for Patch Before You Update a Director 100 on page -16

— WARNING: Check for Patch Before You Update an Appliance with VoIP Monitoring Module on page -16

— VLAN-Based Deduplication has been Removed from Web UI on page -16

• NetFlow Data Collection Module Enhancements on page -16 — J-Flow Data Collection on page -16

— sFlow Data Collection on page -17 — Tunnel Filtering on page -18

• Traffic Monitoring Enhancement: Layer-2 Encapsulation Support on page -20

• Web Transaction Analysis Enhancements on page -21 — Faster Request Processing on page -21

— “Individual Page View” Insight Enhancements on page -21

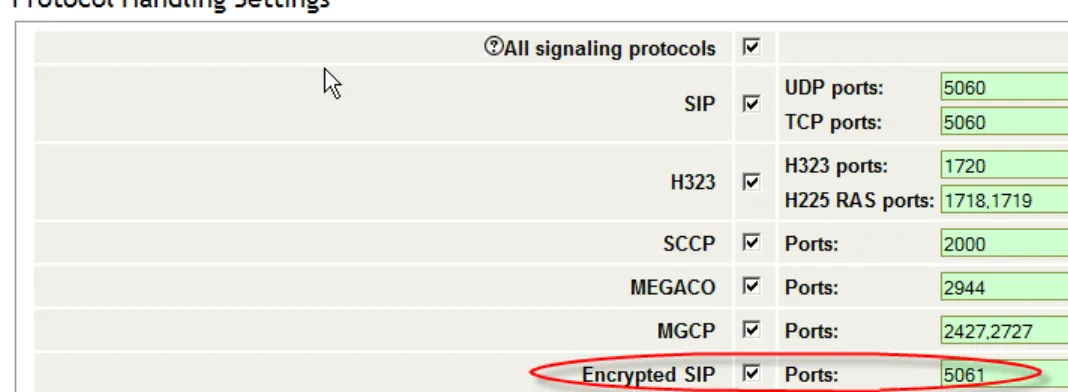

• VoIP Monitoring Module Enhancement: SIP/TLS Decryption on page -24

Installing the 8.6.2 Software

See the AppResponse Xpert 8.6.8 Software Install Guide. To download the PDF, go to support.riverbed.com and navigate to

SOFTWARE & DOCUMENTATION > OPNET > AppResponse Xpert Appliance > 8.6.2.

Important Notes and Warnings

This section includes the following notes and warnings:

(16)

• WARNING: Check for Patch Before You Update an Appliance with VoIP Monitoring Module on page -16

• VLAN-Based Deduplication has been Removed from Web UI on page -16

WARNING:

Check for Patch Before You Update a Director 100

Before you install 8.6.2 on a Director 100, you must check for the following patch and remove it if it is installed:

patchD-s100-R855-DataCollector-[version]

To remove this patch, go to the Java Console > Insights > Insights Manager. Then select this patch (if it is present in the table) and click Delete.

WARNING:

Check for Patch Before You Update an Appliance with VoIP Monitoring

Module

Before you install 8.6.2 on an 8.5.5 appliance with a VoIP Monitoring Module license, you must check for the following patch and remove it if it is installed:

patchA-R855-appl-voip100

To remove this patch, go to the Java Console > Insights > Insights Manager. Then select this patch (if it is present in the table) and click Delete.

VLAN-Based Deduplication has been Removed from Web UI

AppResponse Xpert 8.6 includes new functionality to automatically handle firewalls and other devices that change TCP sequence numbers for packets that travel through the device. In previous releases, the web UI included an option to handle these types of devices (web UI > System > Advanced >

Enable VLAN-based deduplication (on/off)). This option has been removed from the web UI because it is no longer necessary.

NetFlow Data Collection Module Enhancements

This release includes the following enhancements: • J-Flow Data Collection

• sFlow Data Collection

• Tunnel Filtering

J-Flow Data Collection

AppResponse Xpert can now collect J-Flow data. J-Flow support in

AppResponse Xpert is essentially identical to Netflow support: an appliance can collect ToS data, sampled/unsampled data, v5 and v9 data formats, and so on.

(17)

17 Note the following:

• You must configure Juniper devices to generate J-Flow data at one-minute intervals.

• J-Flow data is often sampled. If any of your devices are sending sampled data to the appliance, note the following:

— You must enable sampling correction on the appliance (web UI > System > Advanced > NetFlow Data Collection Options >

Correct for Sampled Data).

— Sampled data is not an exact measurement. Therefore, it is good practice to configure your devices to sample as frequently as possible.

• The following section of the documentation describes how to enable NetFlow for various combinations of QoS and sampling correction:

Modules User Guide >

NetFlow Data Collection Module > Collecting NetFlow Data >

Configuring NetFlow on Network Devices NetFlow Configuration Options (table) These configuration options also apply to J-Flow.

• The following section of the documentation describes the options for configuring NetFlow data collection on an appliance:

Configuring NetFlow Collection on an AppResponse Xpert Appliance >

NetFlow Data Collection Options in Web UI (table)

These configuration options also apply to J-Flow. There are no options specific to configuring J-Flow collection; an appliance collects J-Flow data on the same port as NetFlow and processes it in exactly the same way.

For specific information about configuring J-Flow data collection and forwarding on Juniper appliances, refer to the Juniper documentation.

sFlow Data Collection

AppResponse Xpert can now collect sFlow data. The workflow and best practices for collecting sFlow is similar to NetFlow, with the following exceptions:

• sFlow support in this release is limited to sFlow version 5 with Regular Flow Samples of type Header. You must configure your devices to export data in this format.

(18)

• The following are not supported in this release: any sFlow version earlier than version 5, Expanded Flow Samples, and Counter Samples (either Regular or Expanded)

• You must configure devices to generate sFlow data at one-minute intervals. • AppResponse Xpert cannot process sFlow and NetFlow data received over the same port. You must configure your devices to send sFlow and NetFlow data to different ports on the appliance. To view and edit these ports, go to web UI > System > Advanced > NetFlow Data Collection Options.

• sFlow data is always sampled. Therefore, note the following:

— You must enable sampling correction on the appliance (web UI > System > Advanced > NetFlow Data Collection Options >

Correct for Sampled Data).

— Sampled data is not an exact measurement. Therefore, it is good practice to configure your devices to sample as frequently as possible.

• The following section of the documentation describes the options for configuring NetFlow data collection on an appliance:

Configuring NetFlow Collection on an AppResponse Xpert Appliance >

NetFlow Data Collection Options in Web UI (table)

Aside from the separate fields for sFlow and NetFlow ports, all NetFlow data collection options in the web UI apply to sFlow as well. An appliance collects and processes sFlow data in exactly the same way as NetFlow.

Tunnel Filtering

AppResponse Xpert now supports filtering of tunnel-encapsulated flow data. A device can be an origination/termination for tunnel-encapsulated flows; this can result in double-counting of the same traffic for NetFlow data collected on that device.

To eliminate this possible double-counting, filter out the tunnel traffic as follows: 1) Log in to the web UI and go to the System > Advanced page.

(19)

19 2) Under NetFlow Data Collection Options, select "Collect NetFlow data

(on/off)" and then select "Enable tunnel interface protocol filters (on/off)." One default tunnel filter is already defined: exclude all traffic for the following protocols, to and from all interfaces whose names start with "Tunnel:”

— GRE (Generic Routing Encapsulation) — ESP (Encapsulation Security Protocol) — IPEIP (IP-within-IP Encapsulation Protocol) — ETHERIP (Ethernet-within-IP Encapsulation) — ENCAP (Encapsulation Header)

— APES (Any Private Encapsulation Scheme)

3) To define a new filter, click Add New Filter and specify the following: — Device name

— Interface name

— Tunnel Protocols (click '+' and Ctrl-click to add multiple protocols

AppResponse Xpert will filter out any traffic for the listed protocols reported in the ingress or egress direction of interfaces whose names match the configured patterns.

(20)

Traffic Monitoring Enhancement: Layer-2 Encapsulation Support

AppResponse Xpert can now decode packets that are encapsulated using any of the following protocols:

• MPLS • Cisco ISL • 802.3 LLC

• 802.1ad (also known as provider bridging, Stacked VLANs, QinQ, or Q-in-Q) By default, AppResponse Xpert uses the inner VLAN tag for grouping and deduplication. The following CLI commands allow you to change the tag used.

To use the outer tag (closer to the ethernet frame):

setNgfestats USE_OUTER_VLAN_TAG=1

To use the inner tag (closer to the application payload):

setNgfestats USE_OUTER_VLAN_TAG=0

Previously, packets that were encapsulated using any of these protocols were ignored.

(21)

21

Web Transaction Analysis Enhancements

This release includes the following enhancements: • Faster Request Processing

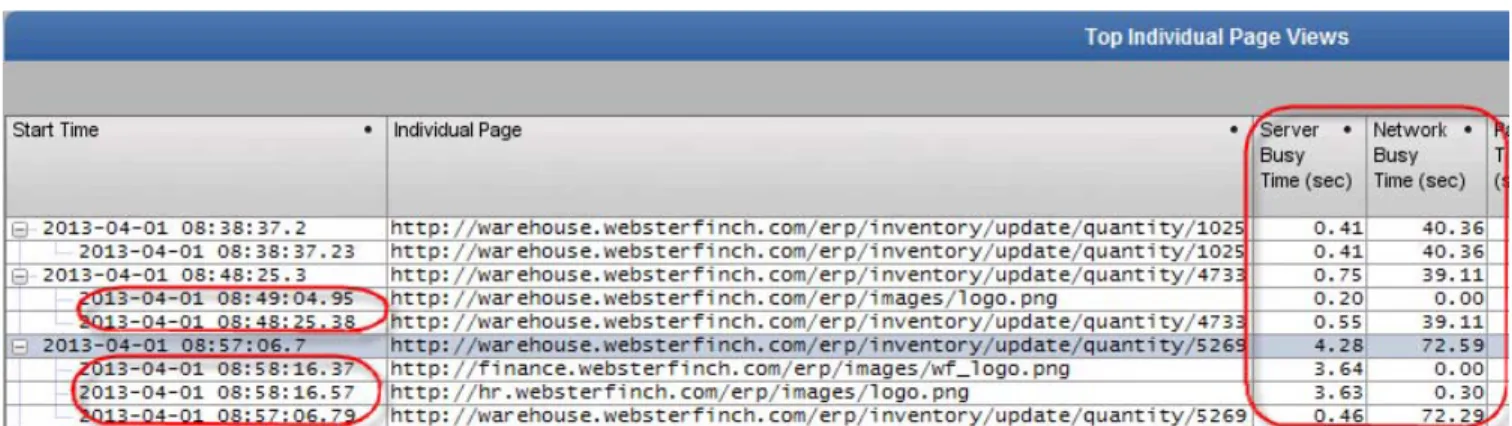

• “Individual Page View” Insight Enhancements

Faster Request Processing

The maximum possible processing rate for HTTP and HTTPS requests is 20-30% higher than in previous releases.

The Individual Page Views can now break down an individual view into its individual resources. This insight includes the following functionality:

“Individual Page View” Insight Enhancements

The enhanced Individual Page Views insight is available for 8.6 at the Update Center. The new version of this insight has the following enhancements: • The Top Individual Page Views table (bottom) includes drill-downs from

individual page views to the component resources in each view.

If the appliance did not see the full response to a resource request, the string

[partial] appears at the end of the resource URL.

• The Page Views table also has the following new metrics for page views and resources:

— Server Busy Time (per resource)

The time that the HTTP server spent processing an individual resource request. This time is measured from the resource request (last observed packet of HTTP request) to the initial response (first observed packet). — Server Busy Time (per page)

The total time that the HTTP server spent processing all resource requests in a page. Because the server might have processed multiple requests in parallel, the total-page-view busy time might be less than the sum of the busy times for all resources in the view.

— Network Busy Time (per resource)

Network transfer time for the full payload of an individual request or response, from the first observed packet to the last.

— Network Busy Time (per page)

Network transfer time for all resources in a page. Because the server might have processed multiple requests in parallel, the total-page-view busy time might be less than the sum of the busy times for all resources in the view.

(22)

Figure 3-1 New Metrics and Page-Resource Drilldowns in “Top Individual Page Views” Table

• A new Waterfall graph that shows the Server Busy Time for individual resources and for the entire page. This view is useful when you want to identify when server processing delays contribute significantly slow page times.

To open a Waterfall graph, right-click on a page view in the Individual Page Views table (bottom) and choose View Waterfall (Resource Timeline). As illustrated in Figure 3-2, a Waterfall graph enables you to see clearly the server processing delays (pink) for individual resources, as well as the intervals when the server processes multiple requests in parallel. The string [partial] indicates that the appliance did not see the full request/response (due to a connection reset, packet loss, or some other cause).

(23)

23

Note—This enhanced insight is not included in the 8.6 software JAR. To install this insight, go to the 8.6 Java console > Insights > Update Center and navigate to support.opnet.com/ace_live/insights >

(24)

VoIP Monitoring Module Enhancement: SIP/TLS Decryption

This release can now decrypt VoIP traffic that uses Session Initiation Protocol (SIP) signaling. To enable this functionality, do the following:

Procedure 3-1 SIP/TLS Decryption: Setup and Configuration

1 Log in to the 8.6 VoIP web UI (https://[appliance_name]:8443/voip) and go to the Administration Tools > Protocol Settings page.

2 Under Protocol Handling Settings > Encrypted SIP (Ports), enter the port(s) used to handle encrypted SIP traffic.

Figure 3-3 “Encrypted SIP” Setting in the VoIP Web UI

3 Click Apply at the bottom of this page to save your settings.

4 Log in to the main web UI (https://[appliance]:8443) and go to System > Pages.

5 Under Page Analysis Configuration, do the following:

5.1 Under Data Collection > Enable Page Analysis, verify that the Port(s) field does not include ports that overlap with those you specified for Encrypted SIP.

Note—It is good practice to include only the ports that handle HTTPS traffic under Enable Page Analysis. Do not include any ports that handle SIP traffic on this page.

SIP traffic on a port will not get decrypted if Enable Page Analysis is enabled for that port (HTTPS traffic will take precedence and SIP traffic will get ignored).

5.2 Under Page Analysis Configuration Parameters, verify that Enable SSL Decoding is enabled.

5.3 Under Private Key Configuration, add the private keys needed to decrypt the SIP traffic, as described in the following section of the AppResponse Xpert documentation:

(25)

25

5.4 Click Apply (at the bottom of the page).

6 Using an SSL client such as putty, log in to the appliance as a user with administrator privileges. Then enter the following from the command line: setNgfestats PCE_FLOW_TIMEOUT=300

Note—Although SIP/TLS decryption is now enabled, the appliance cannot decrypt traffic between a specific Lync client and server until it sees the initial handshake. Therefore, you will not see decrypted traffic for a Lync client until it logs out of the server and then logs back in.

(26)

(27)

27

4 8.6.2 Advanced Features

The 8.6.2 release includes the following advanced features: • Enhanced NetFlow Performance

• Web Transaction Analysis: Faster SSL Decryption

• ASA Boost

Note—These advanced features are supported only on appliances that already have the s210 Jar Class installed. To determine the Jar Class installed on your appliance, log in to the web UI and go to the System > Update page. If this page has no information about a Jar Class, or if the “Required Jar Class” is anything other than s210, these features are not supported.

Figure 4-1 “Required Jar Class” Field in Web UI > System > Updates Page

Enhanced NetFlow Performance

NetFlow performance has been enhanced in this release. On 3700 and higher appliances, NetFlow collection has been enhanced as follows:

• The appliance can collect data for up to 4,000 interfaces (increased from a maximum of 2,000 interfaces)

• The appliance can process up to 4 million traffic flows per minute (increased from 2 million flows per minute)

(28)

For 3170 and 3200 appliances, NetFlow collection has been enhanced as follows:

• The appliance can process ~50% more traffic flows than previously. (The collection threshold for interfaces is unchanged.)

Note—These numbers refer to appliances that are entirely dedicated to collecting NetFlow data, with all other data collection processes disabled.

Web Transaction Analysis: Faster SSL Decryption

SSL decryption is considerably faster than in previous releases, especially for web traffic that uses 2048-bit RSA keys. The overall increase in WTA

processing speed depends on the ratio of SSL to plain HTTP traffic, as well as the proportion of RSA key-exchange handshakes to SSL pages or requests.

ASA Boost

The 8.6.2 release introduced an ASA (Application Stream Analysis) Boost mode. This option is useful for monitoring traffic in high-throughput

environments such as server farms or data centers.

For more information, see ASA Boost on 6000, 5100, and 5000 Appliances on page -10.

AppResponse Xpert Release Notes Product Release 8.6.8

Riverbed Technology

199 Fremont Street

San Francisco, CA 94105 USA

AppResponse Xpert

8.6.8 Release Notes

Copyright and Contacts

Contents

1

8.6.8 Release Notes

8.6.8 Includes All 8.6 Features

Installing the 8.6.8 Software

WARNING: Check for Patch Before You Connect an Expansion Chassis 300

to a 4300, 5100, or 6000 Appliance

Serial Number Sticker in New Location

ASA Boost on 6000, 5100, and 5000 Appliances

Running ASA Boost

2

8.6.6 Release Notes

Important Notes

Release 8.6.6 is for ARX-6000 Appliances (and Connected Directors) Only

Installing the 8.6.8 Software

ASA Boost

3

8.6.2 Release Notes

Installing the 8.6.2 Software

Important Notes and Warnings

WARNING:

Check for Patch Before You Update a Director 100

WARNING:

Check for Patch Before You Update an Appliance with VoIP Monitoring

Module

VLAN-Based Deduplication has been Removed from Web UI

NetFlow Data Collection Module Enhancements

J-Flow Data Collection

sFlow Data Collection

Tunnel Filtering

Traffic Monitoring Enhancement: Layer-2 Encapsulation Support

Web Transaction Analysis Enhancements

Faster Request Processing

“Individual Page View” Insight Enhancements

VoIP Monitoring Module Enhancement: SIP/TLS Decryption

4

8.6.2 Advanced Features

Enhanced NetFlow Performance

Web Transaction Analysis: Faster SSL Decryption

ASA Boost
