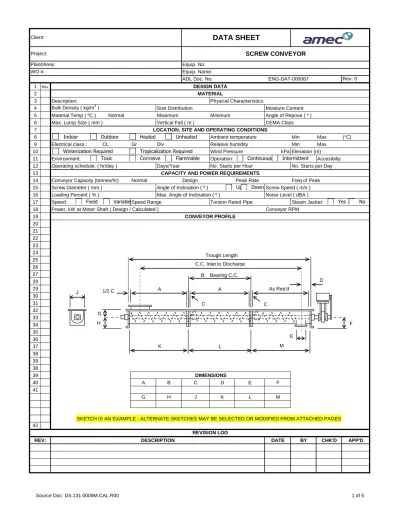

Rev: 0
1 Rev DESIGN DATA
2 MATERIAL
3 Description: Physical Characteristics:
4 Bulk Density ( kg/m3 ) Size Distribution Moisture Content
5 Material Temp ( ºC ) Normal Maximum Minimum Angle of Repose ( º )
6 Max. Lump Size ( mm ) Vertical Fall ( m ) CEMA Class
7 LOCATION, SITE AND OPERATING CONDITIONS
8 Ambient temperature Min Max (°C)
9 Electrical class.: CL Gr Div Relative humidity Min Max
10 Wind Pressure kPa Elevation (m)
11 Environment: Operation: Accesibilty
12 Operating schedule: ( hr/day ) Days/Year No. Starts per Hour No. Starts per Day
13 CAPACITY AND POWER REQUIREMENTS
14 Conveyor Capacity (tonnes/hr) Normal Design Peak Rate Freq of Peak
15 Screw Diameter ( mm ) Angle of Inclination ( º ) Screw Speed ( m/s )
16 Loading Percent ( % ) Max. Angle of Inclination ( º ) Noise Level ( dBA )
17 Speed: Speed Range Torsion Rated Pipe Steam Jacket:
18 Power, kW at Motor Shaft ( Design / Calculated ) Conveyor RPM
19 CONVEYOR PROFILE 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 38 39 40 A B C D E F 41 G H J K L M
SKETCH IS AN EXAMPLE - ALTERNATE SKETCHES MAY BE SELECTED OR MODIFIED FROM ATTACHED PAGES 42
DATE BY CHK'D APP'D
Client:
DATA SHEET
Project:
SCREW CONVEYOR
Plant/Area: Equip. No:
WO #: Equip. Name:
REVISION LOG
REV: DESCRIPTION
ADL Doc. No: ENG-DAT-000067
DIMENSIONS C.C. Inlet to Discharge B: Bearing C.C. 1/2 C Trough Length F A A As Req'd C D K L C M E G H J
Indoor Outdoor Heated Unheated
Winterization Required Tropicalization Required
Toxic Corrosive Flammable Continuous Intermittent
Fixed Variable Yes No
Up Down
Rev: 0
Client:
DATA SHEET
Project:
SCREW CONVEYOR
Plant/Area: Equip. No:
WO #: Equip. Name:
ADL Doc. No: ENG-DAT-000067
1 2
3 Manufacturer Manufacturer
4 Pitch Type Pitch Length ( mm ) Type Size
5 Pitch @ Inlet Pitch @ Outlet Trough Ends: Type
6 Pitch Direction Trough Length ( mm ) Total Trough Length (mm)
7 Flight Type Flight Coating Trough Connection Trough Expansion Joint
8 Flight Dia. ( mm ) Flight Shaft Dia. ( mm ) Trough Inlet Type Trough Outlet Type 9 Flight Length ( mm ) Total Flight Length ( m ) Inlet Thickness (mm) Outlet Thickness (mm)
10 Flight Thickness ( mm ) Inlet Opening Size (mm)
11 Cover Type Cover Thickness ( mm ) Trough End Bearing Type Bearing Manufacturer
12 Cover Attach. Clamp Type Bearing L-10 Life (hr) Seal Type
13 No. of Clamps Clamp Spacing Shaft Coupling type Hanger Type
14 Cover Seal Type Cover Seal Degree Support Foot Req'd Saddle Req'd
15 Hanger Bearing Type STRUCTURAL DIMENSIONS
16 Pipe Material Pipe Size / Sch Stringers (m) Material
17 Drive Shaft Material Shaft Diameter ( mm ) Legs (m) Material
18 Shaft Length ( mm ) Truss (m) Material
19 End Shaft Dia. ( mm ) End Shaft Length ( mm ) Truss Span (m) 20 Coupling Shaft Dia. ( mm ) Shaft Length (mm)
21 Coupling Bolts Material Coupling Bolts Dia. (mm) 22
23 Pillow Flange Hanger Material Thickness Weight
24 Blocks Bearings Bearings (mm) (kg)
25 Manufacturer Feed Spout
26 Type Feed Spout Liner
27 Size Feed Slide Gate
28 Series No. Discharge Spout
29 Seal Type Disch. Spout Liner
30 Housing Material Disch. Slide Gate
31 No. of Belts Flight
32 Lubrication Flight Wear Plate
33 L-10 Life Rating (hr) Trough
34 Adjusting Screws Trough Wear Plate
35 Hanger Type Trough Cover
36 Hanger Material
37 MOTOR
38 Manufacturer Metal Detector
39 Type Size ( kW ) RPM Manufacturer Model No
40 Frame Enclosure S.F. Safety Switches
41 Insulation Starter Type Manufacturer Model No. No. Req'd
42 Rating Control Plugged Chute
43 COUPLING
44 High Speed Low Speed FLUID COUPLING
45 Manufacturer / / Manufacturer
46 Type / Size / / Type Size Rating
48 Basic Rating / S.F. / / Recommended Filling Angle Slip
49 Max / Min Bore Dia(mm) / / Max Trans. Torque (kNm)
50 Number Required Output Shaft Coupling Type
51 Material: Casing Runner
52 Impeller 53 54 ACCESSORIES CONSTRUCTION SCREW TROUGH
PILLOW BLOCKS MATERIALS
Right Hand Left Hand Right & Left Hand
Rev: 0
Client:
DATA SHEET
Project:
SCREW CONVEYOR
Plant/Area: Equip. No:
WO #: Equip. Name:
ADL Doc. No: ENG-DAT-000067
1 V-BELT DRIVE SHEAVES
2 Manufacturer Manufacturer
3 Belt Section Type Belt Rating (kW/Belt) Speed Ratio No. of Grooves
4 S.F. No. Belts Req'd Outside Dia. Driver / Driven (mm) /
5 Centre Distance (mm) Belt Length (mm) Bore Dia. Driver / Driven (mm) /
6 Belt Speed (m/s) V-Belt Guard Hub Type: Driver / Driven /
7 CHAIN DRIVE SPROCKETS
8 Manufacturer Manufacturer
9 Chain Type / ANSI No.: / Outside Dia. Driver / Driven (mm) /
10 Ultimate Strength ( kN ) No. of Strands Bore Dia. Driver / Driven (mm) /
11 Pitch (mm) Hub Type: Driver / Driven /
12 No. of Teeth: Driver / Driven /
13 Speed Ratio
14
15 Water Quantity ( m3 /hr)
Pressure (kPag) Manufacturer
16 Water Quality Electric (kW) Gear Reducer Type Speed Ratio
17 Plant Air Quantity ( m3 /hr) Pressure (kPag) Service Factor Rating ( kW )
18 Instrument Air ( m3 /hr) Pressure (kPag) Variable Speed 19 Steam Quantity ( kg/hr ) Pressure (kPag)
20 Other
21 SPEED REDUCER DRIVE BASE
22 Manufacturer Manufacturer
23 Type Size Efficiency
24 Rating: Mech. / Thermal (kW) /
25 S.F. RPM: Input / Output / 26 Lubrication 27 NOTES 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 48 49 50 51 52 53 54 UTILITIES GEAR
F Trough Length C.C. Inlet to Discharge B: Bearing C.C. A A As Req'd C D K L C M E 1/2 C G H J C.C. Inlet to Discharge F Trough Length B: Bearing C.C. A A As Req'd C D K L C M E 1/2 C G H J C.C. Inlet to Inlet
HOLD DETAILS
2
Take-up
1
Driv
Skirt length say 3 m
3500
Take-up
Drive
Skirt length say 3 m
2 3 4 5 1 3500
