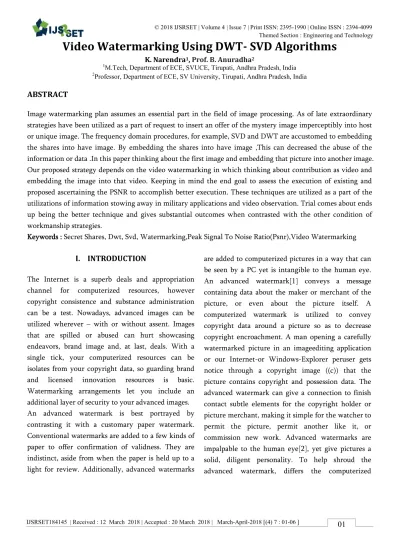

Video Watermarking Using DWT- SVD Algorithms

(1)

IJSRSET184145 | Received : 12 March 2018 | Accepted : 20 March 2018 | March-April-2018 [(4) 7 : 01-06 ]

01

Video Watermarking Using DWT- SVD Algorithms

K. Narendra1_,_{Prof. B. Anuradha}2

1_{M.Tech, Department of ECE, SVUCE, Tirupati, Andhra Pradesh, India} 2_{Professor, Department of ECE, SV University, Tirupati, Andhra Pradesh, India}

ABSTRACT

Image watermarking plan assumes an essential part in the field of image processing. As of late extraordinary strategies have been utilized as a part of request to insert an offer of the mystery image imperceptibly into host or unique image. The frequency domain procedures, for example, SVD and DWT are accustomed to embedding the shares into have image. By embedding the shares into have image ,This can decreased the abuse of the information or data .In this paper thinking about the first image and embedding that picture into another image. Our proposed strategy depends on the video watermarking in which thinking about contribution as video and embedding the image into that video. Keeping in mind the end goal to assess the execution of existing and proposed ascertaining the PSNR to accomplish better execution. These techniques are utilized as a part of the utilizations of information stowing away in military applications and video observation. Trial comes about ends up being the better technique and gives substantial outcomes when contrasted with the other condition of workmanship strategies.

Keywords : Secret Shares, Dwt, Svd, Watermarking,Peak Signal To Noise Ratio(Psnr),Video Watermarking

I. INTRODUCTION

The Internet is a superb deals and appropriation channel for computerized resources, however copyright consistence and substance administration can be a test. Nowadays, advanced images can be utilized wherever – with or without assent. Images that are spilled or abused can hurt showcasing endeavors, brand image and, at last, deals. With a single tick, your computerized resources can be isolates from your copyright data, so guarding brand and licensed innovation resources is basic. Watermarking arrangements let you include an additional layer of security to your advanced images. An advanced watermark is best portrayed by contrasting it with a customary paper watermark. Conventional watermarks are added to a few kinds of paper to offer confirmation of validness. They are indistinct, aside from when the paper is held up to a light for review. Additionally, advanced watermarks

(2)

watermark vitality inside the picture with the goal that it stays impalpable in both level and point by point[3] zones. The computerized watermark is vigorous, surviving numerous average picture alters and document arrange changes.

In most watermarking applications, the checked information is probably going to be prepared somehow before it achieves the watermark recipient. The handling could be lossy pressure, flag improvement, and so on . An installed watermark may unexpectedly or coincidentally be hindered by such handling. Different kinds of preparing might be connected with the express objective of ruining watermark gathering. In watermarking phrasing, an assault is any processingg that may hinder detection of the watermark or correspondence of the data passed on by the watermark.

The handled watermarked information is then called "assaulted information". An essential part of any Watermarking plan is its vigor against assaults. The idea of strength is naturally evident: A watermark is vigorous on the off chance that it can't be impeded without additionally rendering the assaulted information futile. Watermark impedance can be estimated by criteria, for example, miss likelihood, likelihood of bit blunder, or channel limit. For sight and sound, the value of the assaulted information can be checked by thinking about its perceptual quality or mutilation. Henceforth, 7 power can be assessed by at the same time thinking about watermark disability and the distortion[4] of the assaulted information. An assault prevails with regards to overcoming a watermarking plan on the off chance that it impedes the watermark past adequate points of confinement while keeping up the perceptual nature of the assaulted information.

II. RELATED WORK

Discrete Wavelet Transform (DWT)

The DWT separates a picture into four sections in particular a lower determination guess segment (LL) and also horizontal (HL), vertical (LH) and corner to

corner (HH) detail segments. The LL sub band is acquired after low-pass separating both the lines and sections and International Journal of Signal and Image Processing, contains an unpleasant portrayal of the picture. The HH subband is high-pass separated in the two headings and have the high-frequency segments along the diagonals. The HL and LH sub groups are the aftereffects of low-pass separating on one heading and high-pass sifting the other way. After the picture is handled by the wavelet change, a large portion of the data contained in the host picture is amassed into the LL picture. LH sub band contains generally the vertical detail data which compares to horizontal edges. HL band speaks to the even detail data from the vertical edges. The procedure can be rehashed[5] to acquire various scale wavelet decomposition.

DWT assumes a vital part in the image processing field. It has numerous uncommon points of interest over other customary changes, for example, Discrete Fourier Transform (DFT) and Discrete Cosine Transform (DCT). The DFT and DCT are full casing changes and thus any adjustment in the change coefficient[6] influences the whole picture. Notwithstanding, there are situations where the change is executed utilizing a piece based way to deal with lighten this issue. In view of these reasons, the wavelet based watermarking systems are getting more centrality. DWT is exceptionally valuable to distinguish the territories in the host picture where a watermark can be implanted viably. This property permits the misuse of the covering impact of the human visual framework. At the point when a DWT coefficient is changed, the area comparing to that coefficient alone is adjusted.

(3)

the human eye is less delicate to changes in such sub-bands. It enables the watermark[8] to be embedded without being seen by the human eye. In order to enhance the power and impalpability, watermark inserting is done in the middle of the road recurrence groups HL and LH.

Singular Value Decomposition (SVD)

SVD is a direct polynomial math change which is utilized for factorization of a genuine or complex framework with various applications in different fields of image processing. As a computerized image can be spoken to in a network frame with its entrances giving the intensity value of every pixel in the image, SVD of a picture M with measurements m x m is given by: USV=T M Where, U and V are orthogonal frameworks and S known as singular matrix is a corner to corner lattice conveying non-negative solitary estimations of framework M. The sections of U and V are called left and right particular vectors of M, separately. They essentially indicate the geometry subtle elements of the first picture. Left particular network i.e., U speaks to the flat points of interest and left singular matrix i.e., V speaks to the vertical subtle elements of the first image. The corner to corner estimations of matrix S are organized in diminishing request which means that the significance of the passages is diminishing from first singular value to the last one. This component is utilized in SVD based compression methods. There are two primary properties of SVD to utilize in computerized watermarking plans ,Small varieties in singular[9] values don't influence the nature of image,Singular estimations of a image have high dependability.

Figure 1 : A Set Of Color Images Used For Embedding Watermark

Figure 2 : A Set Of Watermarked Images

III. METHODOLOGY

Input Video

The video can be considered as input. The video ought to be in mpg design. In the wake of considering the contribution as video the video can be separated into frames. So that the many-sided quality gets lessened by the diminishing the video into frames. The entire processing done on that frame. These recordings read utilizing video peruser in the matlab. Embedding method

An advanced watermarking strategy is alluded to as spread-spectrum if the marked signal is gotten by an added substance modification. Spread-spectrum watermarks are known to be unobtrusively vigorous, yet in addition to have a low data limit because of host obstruction.

(4)

for the change. The nature of the remade watermarked image is figured as a component of the embedding framework parameters. The PSNR is utilized for picture quality estimation

Binary conversion

This changes over the shading picture to a binary picture. The yield picture BW replaces all pixels in the information picture with luminance more prominent than level with the esteem 1 (white) and replaces every other pixel with the esteem 0 (dark). Indicate level in the range [0,1]. This range is with respect to the flag levels feasible for the picture's class. In this manner, a level estimation of 0.5 is halfway amongst high contrast, paying little mind to class. To figure the level contention.

RGB conversion

Again changing over the binary Image to color image for review purposes . An advanced color image is a

computerized image that incorporates color

information for each pixel.A shading picture has three esteems (or channels) per pixel and they measure the force and chrominance of light. The genuine data put away in the computerized image information is the splendor data in each ghostly band.

Watermark Extraction

Watermark extraction expect to have some unique information, e.g. the first picture, eigenvectors, and so on. Watermark extraction is performed in two diverse ways – discrete wavelet transform is connected to the groups of unique and watermarked images and extraction by the retrogressive embedding equation is finished. The methods of an extraction after different assaults, by methods for a few different channels and the compression, that was connected to the watermarked image, are acknowledged in reason to check the watermark strength against assaults. The nature of the extricated watermark is ascertained utilizing the correlation coefficient.

In watermark discovery, one tries to discover[10] the watermark from the spectral image with no inserting data. The watermark ought to be perceptible for approved people and subtle for the rest. The strategy of watermark detection is fairly like the methodology of extraction. In any case, the proprietor of the first

image has an additional data for distinguishing purposes. Considering this reality, the discovery strategies are performed. The system of watermark recognition in light of the discrete wavelet change calculation is connected. This method can be considered as an assault with the aim to manufacture or degenerate the image.finally mystery picture gats separated from the video in the extraction stage. PSNR( Peak Signal To Noise Ratio)

PSNR, is a engineering term for the proportion between the most extreme conceivable power of a signal and the power of ruining noise that influences the constancy of its portrayal. Since many signs have a wide[11] unique range, PSNR is generally communicated as far as the logarithmic decibel scale. PSNR is most ordinarily used to quantify the nature of reproduction of lossy pressure codecs (e.g., for image compression). The flag for this situation is the first information, and the commotion is the blunder presented by compression. When contrasting pressure codecs, PSNR is an estimation[12] to human view of remaking quality. In spite of the fact that a higher PSNR by and large demonstrates that the recreation is of higher quality.

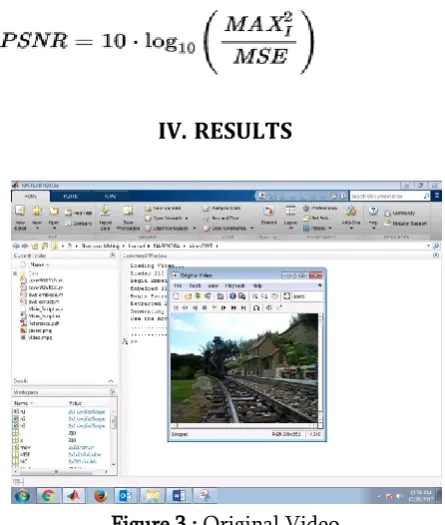

IV. RESULTS

(5)

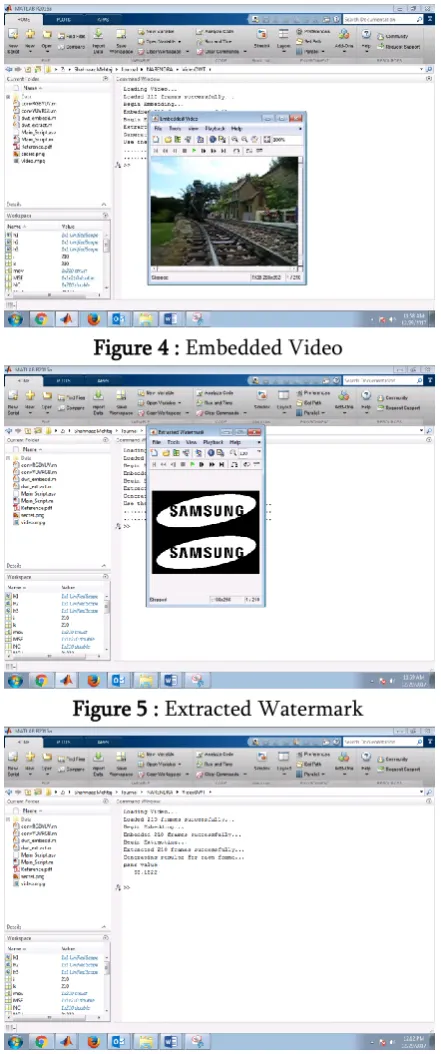

Figure 4 : Embedded Video

Figure 5 : Extracted Watermark

Figure 6 : Peak Signal To Noise Ratio

V. CONCLUSION

We proposed a watermark plot that satisfies the imperative of subtlety and power for shading pictures utilizing DWT, SVD, Boolean based secret sharing, Here ,when we embedd the image into image the procedure accomplishes bring down execution than inserting into video.embedding the image in the video gives much security than in image embedding. we propose the watermarking plan in view of video.

The secret image can be implanted into video utilizing DWT embedding and extricating .the execution additionally assessed as far as PSNR and accomplishes better execution. our strategy gives preferred and substantial outcomes over the other condition of workmanship strategies.

VI. REFERENCES

[1]. I.J. Cox, M.L. Miller and J. A. Bloom, J. Fridrich,

T. Kalker,Digital Watermarking and

Steganography, Second edition,

MorganKaufmann Publishers, 2008.

[2]. G. Ateniese, C. Blundo, A. De Santis and D. R. Stinson,“Visual cryptography for general access structures”, Informationand Computation 129 (1996), 86-106.

[3]. Young-Chang Hou and Zen-Yu Quan,

“Progressive VisualCryptography with

Unexpanded Shares”, IEEE Transactions

OnCircuits And Systems For Video Technology, Vol. 21, No. 11,November 2011, pp. 1760-1764. [4]. Rawat, S and Balasubramanian Raman, “A Blind

Watermarking Algorithm Based On Fractional Fourier TransformAnd Visual Cryptography,” Elsevier Signal Processing, Vol 92,2012, pp. 14801491.

[5]. M.S.Wang, W.C.Chen,”A Hybrid DWT-SVD

CopyrightProtection Scheme Based On K-Means Clustering And VisualCryptography”, Computer Standards &Interfaces, 31 (2009)757– 762.

[6]. W. P. Fang and J. C. Lin,“Progressive viewing and sharing ofsensitive images,” Patt. Recog. Image nal., vol. 16, no. 4, pp. 638–642, 2006.

[7]. Young-Chang Hou,Pei-Min Chen, An

AsymmetricWatermarking Scheme based on Visual Cryptography, IEEEProceedings of ICSP, 2000, pp. 992-995.

[8]. Chao KY, Lin JC. Secret image sharing: a Boolean operationsbased approach combining

benefits of polynomial based and

(6)

Recognition andArtificial Intelligence 2009; vol. 23p.p.263–285.

[9]. M.S.Wang, W.C.Chen,”A Hybrid DWT-SVD

CopyrightProtection Scheme Based On K-Means Clustering And VisualCryptography”, Computer Standards &Interfaces, 31 (2009)757– 762.

[10]. Sachin Kumar and Rajendra K. Sharma,” Threshold visualsecret sharing based on Boolean

operations”, SECURITY

ANDCOMMUNICATION NETWORKS

Security Comm. Networks2014; Vol7,p.p.653– 664.

[11]. A. G. M.Ulutas and V.V. Nabiyev, “A pvss scheme based onBoolean operations with improved contrast,” in in proc 2009int.Conf. on Network and Service Security. IEEE, 2009, pp. 1–5.
