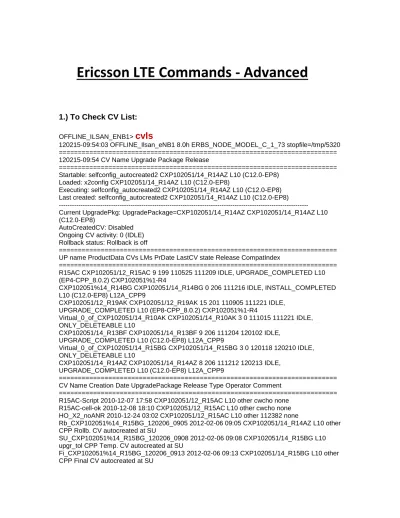

Ericsson LTE Commands - Advanced
1.) To Check CV List:
OFFLINE_ILSAN_ENB1> cvls120215-09:54:03 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= 120215-09:54 CV Name Upgrade Package Release
========================================================================= Startable: selfconfig_autocreated2 CXP102051/14_R14AZ L10 (C12.0-EP8)
Loaded: x2config CXP102051/14_R14AZ L10 (C12.0-EP8)
Executing: selfconfig_autocreated2 CXP102051/14_R14AZ L10 (C12.0-EP8) Last created: selfconfig_autocreated2 CXP102051/14_R14AZ L10 (C12.0-EP8) --- Current UpgradePkg: UpgradePackage=CXP102051/14_R14AZ CXP102051/14_R14AZ L10 (C12.0-EP8)
AutoCreatedCV: Disabled Ongoing CV activity: 0 (IDLE) Rollback status: Rollback is off
========================================================================= UP name ProductData CVs LMs PrDate LastCV state Release CompatIndex
========================================================================= R15AC CXP102051/12_R15AC 9 199 110525 111209 IDLE, UPGRADE_COMPLETED L10 (EP4-CPP_8.0.2) CXP102051%1-R4
CXP102051%14_R14BG CXP102051/14_R14BG 0 206 111216 IDLE, INSTALL_COMPLETED L10 (C12.0-EP8) L12A_CPP9
CXP102051/12_R19AK CXP102051/12_R19AK 15 201 110905 111221 IDLE, UPGRADE_COMPLETED L10 (EP8-CPP_8.0.2) CXP102051%1-R4
Virtual_0_of_CXP102051/14_R10AK CXP102051/14_R10AK 3 0 111015 111221 IDLE, ONLY_DELETEABLE L10
CXP102051/14_R13BF CXP102051/14_R13BF 9 206 111204 120102 IDLE, UPGRADE_COMPLETED L10 (C12.0-EP8) L12A_CPP9
Virtual_0_of_CXP102051/14_R15BG CXP102051/14_R15BG 3 0 120118 120210 IDLE, ONLY_DELETEABLE L10
CXP102051/14_R14AZ CXP102051/14_R14AZ 8 206 111212 120213 IDLE, UPGRADE_COMPLETED L10 (C12.0-EP8) L12A_CPP9
========================================================================= CV Name Creation Date UpgradePackage Release Type Operator Comment
========================================================================= R15AC-Script 2010-12-07 17:58 CXP102051/12_R15AC L10 other cwcho none
R15AC-cell-ok 2010-12-08 18:10 CXP102051/12_R15AC L10 other cwcho none HO_X2_noANR 2010-12-24 03:02 CXP102051/12_R15AC L10 other 112382 none
Rb_CXP102051%14_R15BG_120206_0905 2012-02-06 09:05 CXP102051/14_R14AZ L10 other CPP Rollb. CV autocreated at SU
SU_CXP102051%14_R15BG_120206_0908 2012-02-06 09:08 CXP102051/14_R15BG L10 upgr_tol CPP Temp. CV autocreated at SU
Fi_CXP102051%14_R15BG_120206_0913 2012-02-06 09:13 CXP102051/14_R15BG L10 other CPP Final CV autocreated at SU
selfconfig_autocreated1_1 2012-02-10 04:33 CXP102051/14_R15BG L10 other 112382 none selfconfig_autocreated1 2012-02-13 07:26 CXP102051/14_R14AZ L10 standard Selfconfig Autocreated by System
selfconfig_autocreated2 2012-02-13 11:08 CXP102051/14_R14AZ L10 standard Selfconfig Autocreated by System
========================================================================= >>> Total: 9 CV's, 7 UP's
2.) To Check Current CV:
OFFLINE_ILSAN_ENB1> cvcu120215-11:28:12 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= ==========================================
120215-11:28 CV Name Upgrade Package Release
========================================================================= ==========================================
Startable: selfconfig_autocreated2 CXP102051/14_R14AZ L10 (C12.0-EP8) Loaded: x2config CXP102051/14_R14AZ L10 (C12.0-EP8)
Executing: selfconfig_autocreated2 CXP102051/14_R14AZ L10 (C12.0-EP8) Last created: selfconfig_autocreated2 CXP102051/14_R14AZ L10 (C12.0-EP8) --- Current UpgradePkg: UpgradePackage=CXP102051/14_R14AZ CXP102051/14_R14AZ L10 (C12.0-EP8)
AutoCreatedCV: Disabled Ongoing CV activity: 0 (IDLE) Rollback status: Rollback is off
=========================================================================
3.) To Check Stored Upgrade Package:
OFFLINE_ILSAN_ENB1>
pr upgradepackage
120215-11:28:32 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= Proxy MO ========================================================================= 437 SwManagement=1,UpgradePackage=CXP102051%14_R14BG 470 SwManagement=1,UpgradePackage=Virtual_0_of_CXP102051/14_R10AK 760 SwManagement=1,UpgradePackage=R15AC 799 SwManagement=1,UpgradePackage=CXP102051/14_R14AZ 841 SwManagement=1,UpgradePackage=CXP102051/12_R19AK 876 SwManagement=1,UpgradePackage=CXP102051/14_R13BF 1008 SwManagement=1,UpgradePackage=Virtual_0_of_CXP102051/14_R15BG ========================================================================= Total: 7 MOs
4.) Get Primary NTP Server Address:
OFFLINE_ILSAN_ENB1>
get ManagedElementData=1 ntpServerAddressPrimary
120215-11:29:16 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= MO Attribute Value
ManagedElementData=1 ntpServerAddressPrimary 10.62.1.10
========================================================================= Total: 1 MOs
5.) Get Secondary NTP Server Address:
OFFLINE_ILSAN_ENB1>
get ManagedElementData=1 ntpServerAddressSecondary
120215-11:29:33 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= MO Attribute Value ========================================================================= ManagedElementData=1 ntpServerAddressSecondary 0.0.0.0 ========================================================================= Total: 1 MOs
6.) Get IP Sync Reference NTP Server address:
OFFLINE_ILSAN_ENB1>
get IpSyncRef=1 ntpServerIpAddress
120215-11:29:53 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= MO Attribute Value ========================================================================= IpAccessHostEt=1,IpSyncRef=1 ntpServerIpAddress 172.30.108.217 ========================================================================= Total: 1 MOs
7.) Get IP Sync Reference Details:
OFFLINE_ILSAN_ENB1>get IpSyncRef=1
120215-11:30:33 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= 1018 IpSystem=1,IpAccessHostEt=1,IpSyncRef=1 ========================================================================= IpSyncRefId 1 administrativeState 1 (UNLOCKED) availabilityStatus 2 (FAILED) cachedIpAddress ntpServerIpAddress 172.30.108.217 operationalState 0 (DISABLED) reservedBy [1] = >>> reservedBy = TransportNetwork=1,Synchronization=1 syncStatus 0 (NOT_REACHABLE) userLabel ========================================================================= Total: 1 MOs
8.) Get GigabitEthernet details:
OFFLINE_ILSAN_ENB1>
get GigaBitEthernet=1
120215-11:31:25 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= 101 Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1 =========================================================================
GigaBitEthernetId 1 activeLink 0 (PRIMARY_ACTIVE) actualSpeedDuplex 6 (ETH_1000_MB_FULL) administrativeState 1 (UNLOCKED) autoNegotiation true availabilityStatus 0 (NO_STATUS) configuredSpeedDuplex 6 (ETH_1000_MB_FULL) dscpPbitMap t[64] =
>>> Struct[0] has 2 members: >>> 1.dscp = 0
>>> 2.pbit = 0
>>> Struct[1] has 2 members: >>> 1.dscp = 1
>>> 2.pbit = 0
>>> Struct[2] has 2 members: >>> 1.dscp = 2
>>> 2.pbit = 0
>>> Struct[3] has 2 members: >>> 1.dscp = 3
>>> 2.pbit = 0
>>> Struct[4] has 2 members: >>> 1.dscp = 4
>>> 2.pbit = 0
>>> Struct[5] has 2 members: >>> 1.dscp = 5
>>> 2.pbit = 0
>>> Struct[6] has 2 members: >>> 1.dscp = 6
>>> 2.pbit = 0
>>> Struct[7] has 2 members: >>> 1.dscp = 7
>>> 2.pbit = 0
>>> Struct[8] has 2 members: >>> 1.dscp = 8
>>> 2.pbit = 0
>>> Struct[9] has 2 members: >>> 1.dscp = 9
>>> 2.pbit = 0
>>> Struct[10] has 2 members: >>> 1.dscp = 10
>>> 2.pbit = 1
>>> Struct[11] has 2 members: >>> 1.dscp = 11
>>> 2.pbit = 0
>>> Struct[12] has 2 members: >>> 1.dscp = 12
>>> 2.pbit = 1
>>> Struct[13] has 2 members: >>> 1.dscp = 13
>>> 2.pbit = 0
>>> Struct[14] has 2 members: >>> 1.dscp = 14
>>> 2.pbit = 1
>>> Struct[15] has 2 members: >>> 1.dscp = 15
>>> Struct[16] has 2 members: >>> 1.dscp = 16
>>> 2.pbit = 0
>>> Struct[17] has 2 members: >>> 1.dscp = 17
>>> 2.pbit = 0
>>> Struct[18] has 2 members: >>> 1.dscp = 18
>>> 2.pbit = 3
>>> Struct[19] has 2 members: >>> 1.dscp = 19
>>> 2.pbit = 0
>>> Struct[20] has 2 members: >>> 1.dscp = 20
>>> 2.pbit = 3
>>> Struct[21] has 2 members: >>> 1.dscp = 21
>>> 2.pbit = 0
>>> Struct[22] has 2 members: >>> 1.dscp = 22
>>> 2.pbit = 3
>>> Struct[23] has 2 members: >>> 1.dscp = 23
>>> 2.pbit = 0
>>> Struct[24] has 2 members: >>> 1.dscp = 24
>>> 2.pbit = 0
>>> Struct[25] has 2 members: >>> 1.dscp = 25
>>> 2.pbit = 0
>>> Struct[26] has 2 members: >>> 1.dscp = 26
>>> 2.pbit = 4
>>> Struct[27] has 2 members: >>> 1.dscp = 27
>>> 2.pbit = 0
>>> Struct[28] has 2 members: >>> 1.dscp = 28
>>> 2.pbit = 4
>>> Struct[29] has 2 members: >>> 1.dscp = 29
>>> 2.pbit = 0
>>> Struct[30] has 2 members: >>> 1.dscp = 30
>>> 2.pbit = 4
>>> Struct[31] has 2 members: >>> 1.dscp = 31
>>> 2.pbit = 0
>>> Struct[32] has 2 members: >>> 1.dscp = 32
>>> 2.pbit = 0
>>> Struct[33] has 2 members: >>> 1.dscp = 33
>>> 2.pbit = 0
>>> Struct[34] has 2 members: >>> 1.dscp = 34
>>> 1.dscp = 53 >>> 2.pbit = 0
>>> Struct[54] has 2 members: >>> 1.dscp = 54
>>> 2.pbit = 0
>>> Struct[55] has 2 members: >>> 1.dscp = 55
>>> 2.pbit = 0
>>> Struct[56] has 2 members: >>> 1.dscp = 56
>>> 2.pbit = 0
>>> Struct[57] has 2 members: >>> 1.dscp = 57
>>> 2.pbit = 0
>>> Struct[58] has 2 members: >>> 1.dscp = 58
>>> 2.pbit = 0
>>> Struct[59] has 2 members: >>> 1.dscp = 59
>>> 2.pbit = 0
>>> Struct[60] has 2 members: >>> 1.dscp = 60
>>> 2.pbit = 0
>>> Struct[61] has 2 members: >>> 1.dscp = 61
>>> 2.pbit = 0
>>> Struct[62] has 2 members: >>> 1.dscp = 62
>>> 2.pbit = 0
>>> Struct[63] has 2 members: >>> 1.dscp = 63 >>> 2.pbit = 0 frameFormat 0 (ETHERNET_2_DIX) link1State 1 (ENABLED) link2State 0 (DISABLED) linkType 0 (FRONT_PORTS) macAddressLink1 90:55:AE:B9:9D:67 macAddressLink2 masterMode true operationalState 1 (ENABLED) portNo 1 primaryLink 0 (LINK_ONE_PRIMARY_LINK_TWO_SECONDARY) protectiveMode false reservedBy [0] = sfpInformation Struct{3} >>> 1.sfpProductNumber = >>> 2.sfpState = 0 (VALID) >>> 3.sfpType = NOT_DEFINED sfpPort true shutDownTimeout 1800 statePropagationDelay 25 switchBackTimer 30 userLabel ========================================================================= Total: 1 MOs
9.) Get IP Interface Details:
OFFLINE_ILSAN_ENB1>
get IpInterface=1
120215-11:32:00 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= 102 Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterfa ce=1 ========================================================================= IpInterfaceId 1 accessControlListRef availabilityStatus 0 (NO_STATUS) defaultRouter0 192.168.73.73 defaultRouter0State 1 (ENABLED) defaultRouter1 0.0.0.0 defaultRouter1State 0 (DISABLED) defaultRouter2 0.0.0.0 defaultRouter2State 0 (DISABLED) defaultRouterPingInterval 4 defaultRouterTraffic 0 (TRAFFIC_DEF_ROUTER_0) froId 1 logging 0 (DISABLED) maxNoOfFailedPings 2 maxWaitForPingReply 3 mtu 1500 networkPrefixLength 29 noOfPingsBeforeOk 2 operationalState 1 (ENABLED) ownIpAddressActive 192.168.73.73 ownIpAddressPassive 0.0.0.0 reservedBy [1] = >>> reservedBy = IpOam=1,Ip=1,IpHostLink=1 rps false subnet 192.168.73.72 switchBackTimer 180 trafficSchedulerRef trafficType 0 (NOT_USED) userLabel vLan false vid 16 vlanRef ========================================================================= Total: 1 MOs
10.) Check SCTP Status:
OFFLINE_ILSAN_ENB1>lst sctp
120215-11:32:41 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= Proxy Adm State Op. State MO
========================================================================= 87 1 (ENABLED) TransportNetwork=1,Sctp=1
========================================================================= Total: 2 MOs
11.) Get Downlink Transport N/W Bandwidth:
OFFLINE_ILSAN_ENB1>
get ENodeBFunction=1 dlTransNwBandwidth
120215-11:34:29 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 =========================================================================\ MO Attribute Value ========================================================================= ENodeBFunction=1 dlTransNwBandwidth 1000 ========================================================================= Total: 1 MOs
12.) Get Uplink Transport N/W Bandwidth:
OFFLINE_ILSAN_ENB1>
get ENodeBFunction=1 ulTransNwBandwidth
120215-11:34:43 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5320 ========================================================================= MO Attribute Value ========================================================================= ENodeBFunction=1 ulTransNwBandwidth 1000 ========================================================================= Total: 1 MOs
13.) Check feature state of Downlink 64qam:
OFFLINE_ILSAN_ENB1>
get Dl64Qam=1 featureStateDl64Qam
120215-12:18:52 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5336 ========================================================================= MO Attribute Value
========================================================================= Licensing=1,OptionalFeatures=1,Dl64Qam=1 featureStateDl64Qam 1 (ACTIVATED)
========================================================================= Total: 1 MOs
14.)
Check Feature state of Uplink 16qam:
OFFLINE_ILSAN_ENB1>
get Ul16Qam=1 featureStateUl16Qam
120215-12:19:52 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5336 ========================================================================= MO Attribute Value
========================================================================= Licensing=1,OptionalFeatures=1,Ul16Qam=1 featureStateUl16Qam 1 (ACTIVATED)
========================================================================= Total: 1 MOs
15.) Check the status of RRC Connection Reestablishment:
OFFLINE_ILSAN_ENB1>get ENodeBFunction=1 rrcConnReestActive
120215-12:29:10 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5336 =========================================================================
MO Attribute Value
========================================================================= ENodeBFunction=1 rrcConnReestActive false
========================================================================= Total: 1 MOs
16.) Check the Number of RRC connections reserved for high priority UEs:
OFFLINE_ILSAN_ENB1>get AdmissionControl=1 nrOfRrcConnectedReserved
120215-12:29:29 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5336 ========================================================================= MO Attribute Value ========================================================================= AdmissionControl=1 nrOfRrcConnectedReserved 0 ========================================================================= Total: 1 MOs
17.) Print List of RRUs:
OFFLINE_ILSAN_ENB1>pr rrus
120215-15:19:10 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/4424 ========================================================================= Proxy MO ========================================================================= 160 Equipment=1,AuxPlugInUnit=RRUS-5 177 Equipment=1,AuxPlugInUnit=RRUS-1 198 Equipment=1,AuxPlugInUnit=RRUS-6 215 Equipment=1,AuxPlugInUnit=RRUS-2 232 Equipment=1,AuxPlugInUnit=RRUS-3 264 Equipment=1,AuxPlugInUnit=RRUS-4 888 SwManagement=1,PiuType=RRUSpreInstalledSW_* ========================================================================= ========== Total: 7 MOs
18.) Print List of rfBranch:
OFFLINE_ILSAN_ENB1>
pr RfBranch
120215-15:20:02 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/4424 ========================================================================= Proxy MO ========================================================================= 195 Equipment=1,AntennaUnitGroup=1,RfBranch=2 196 Equipment=1,AntennaUnitGroup=1,RfBranch=1 260 Equipment=1,AntennaUnitGroup=3,RfBranch=2 261 Equipment=1,AntennaUnitGroup=3,RfBranch=1 282 Equipment=1,AntennaUnitGroup=2,RfBranch=2 283 Equipment=1,AntennaUnitGroup=2,RfBranch=1 ========================================================================= Total: 6 MOs
19.) Print Antenna Unit Group:
OFFLINE_ILSAN_ENB1>
pr AntennaUnitGroup
120215-15:21:46 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/4424 ========================================================================= Proxy MO ========================================================================= 194 Equipment=1,AntennaUnitGroup=1 259 Equipment=1,AntennaUnitGroup=3 281 Equipment=1,AntennaUnitGroup=2 ========================================================================= Total: 3 MOs
20.) Get Sector Equipment Function:
OFFLINE_ILSAN_ENB1>
get SectorEquipmentFunction=S1
120215-15:32:27 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/4424 ========================================================================= 1184 SectorEquipmentFunction=S1 ========================================================================= SectorEquipmentFunctionId S1 administrativeState 1 (UNLOCKED) availabilityStatus 64 (DEGRADED) confOutputPower 40 fqBand 3 mixedModeRadio false operationalState 1 (ENABLED) reservedBy [1] = >>> reservedBy = ENodeBFunction=1,EUtranCellFDD=11 rfBranchRef [2] = >>> rfBranchRef = Equipment=1,AntennaUnitGroup=1,RfBranch=1 >>> rfBranchRef = Equipment=1,AntennaUnitGroup=1,RfBranch=2 sectorPower 40 userLabel ========================================================================= Total: 1 MOs
21.) Get rfBranch Details:
OFFLINE_ILSAN_ENB1>
get RfBranch
120215-15:33:47 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/4424 ========================================================================= 195 Equipment=1,AntennaUnitGroup=1,RfBranch=2 ========================================================================= RfBranchId 2 auPortRef [0] = dlAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 dlTrafficDelay i[1] = -1 reservedBy [1] = >>> reservedBy = SectorEquipmentFunction=S1 rfPortRef AuxPlugInUnit=RRUS-2,DeviceGroup=ru,RfPort=A tmaRef ulAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ulTrafficDelay i[1] = -1
userLabel ========================================================================= 196 Equipment=1,AntennaUnitGroup=1,RfBranch=1 ========================================================================= RfBranchId 1 auPortRef [0] = dlAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 dlTrafficDelay i[1] = -1 reservedBy [1] = >>> reservedBy = SectorEquipmentFunction=S1 rfPortRef AuxPlugInUnit=RRUS-1,DeviceGroup=ru,RfPort=A tmaRef ulAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ulTrafficDelay i[1] = -1 userLabel ========================================================================= 260 Equipment=1,AntennaUnitGroup=3,RfBranch=2 ========================================================================= RfBranchId 2 auPortRef [0] = dlAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 dlTrafficDelay i[1] = -1 reservedBy [1] = >>> reservedBy = SectorEquipmentFunction=S3 rfPortRef AuxPlugInUnit=RRUS-6,DeviceGroup=ru,RfPort=A tmaRef ulAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ulTrafficDelay i[1] = -1 userLabel ========================================================================= 261 Equipment=1,AntennaUnitGroup=3,RfBranch=1 ========================================================================= RfBranchId 1 auPortRef [0] = dlAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 dlTrafficDelay i[1] = -1 reservedBy [1] = >>> reservedBy = SectorEquipmentFunction=S3 rfPortRef AuxPlugInUnit=RRUS-5,DeviceGroup=ru,RfPort=A tmaRef ulAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ulTrafficDelay i[1] = -1 userLabel ========================================================================= 282 Equipment=1,AntennaUnitGroup=2,RfBranch=2 ========================================================================= RfBranchId 2 auPortRef [0] = dlAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 dlTrafficDelay i[1] = -1 reservedBy [1] = >>> reservedBy = SectorEquipmentFunction=S2 rfPortRef AuxPlugInUnit=RRUS-4,DeviceGroup=ru,RfPort=A tmaRef ulAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ulTrafficDelay i[1] = -1
userLabel ========================================================================= 283 Equipment=1,AntennaUnitGroup=2,RfBranch=1 ========================================================================= RfBranchId 1 auPortRef [0] = dlAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 dlTrafficDelay i[1] = -1 reservedBy [1] = >>> reservedBy = SectorEquipmentFunction=S2 rfPortRef AuxPlugInUnit=RRUS-3,DeviceGroup=ru,RfPort=A tmaRef ulAttenuation i[15] = 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ulTrafficDelay i[1] = -1 userLabel ========================================================================= Total: 6 MOs
22.) Get RBS Configuration Details:
OFFLINE_ILSAN_ENB1>
get RbsConfiguration=1
120216-11:20:22 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= 1150 ENodeBFunction=1,RbsConfiguration=1 ========================================================================= RbsConfigurationId 1 configFaultReason Struct{2} >>> 1.faultReason = 10 (UNDEFINED) >>> 2.faultInformation =
configurationReport 2011-05-25 22:29:26.977 IpSec:create <- Attribute = Value -> 2011-05-25 22:32:01.791 RbsConfiguration rbsConfigLevel = BASIC_CV
dhcpClientIdentifier ossCorbaNameServiceAddress 192.168.61.41 progressInformation 0 (CONFIGURATION_NOT_STARTED) progressLevel 0 rbsConfigLevel 1 (BASIC_CV) ========================================================================= Total: 1 MOs
23.) Check VSWR Supervision Status:
OFFLINE_ILSAN_ENB1>
get RfPort vswrSupervisionActive
120216-11:42:15 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value
========================================================================= AuxPlugInUnit=RRUS-5,DeviceGroup=ru,RfPort=B vswrSupervisionActive false
AuxPlugInUnit=RRUS-5,DeviceGroup=ru,RfPort=A vswrSupervisionActive false AuxPlugInUnit=RRUS-5,DeviceGroup=ru,RfPort=R vswrSupervisionActive false AuxPlugInUnit=RRUS-1,DeviceGroup=ru,RfPort=B vswrSupervisionActive false AuxPlugInUnit=RRUS-1,DeviceGroup=ru,RfPort=R vswrSupervisionActive false AuxPlugInUnit=RRUS-1,DeviceGroup=ru,RfPort=A vswrSupervisionActive false AuxPlugInUnit=RRUS-6,DeviceGroup=ru,RfPort=R vswrSupervisionActive false AuxPlugInUnit=RRUS-6,DeviceGroup=ru,RfPort=A vswrSupervisionActive false
AuxPlugInUnit=RRUS-6,DeviceGroup=ru,RfPort=B vswrSupervisionActive false AuxPlugInUnit=RRUS-2,DeviceGroup=ru,RfPort=B vswrSupervisionActive false AuxPlugInUnit=RRUS-2,DeviceGroup=ru,RfPort=R vswrSupervisionActive false AuxPlugInUnit=RRUS-2,DeviceGroup=ru,RfPort=A vswrSupervisionActive false AuxPlugInUnit=RRUS-3,DeviceGroup=ru,RfPort=A vswrSupervisionActive false AuxPlugInUnit=RRUS-3,DeviceGroup=ru,RfPort=R vswrSupervisionActive false AuxPlugInUnit=RRUS-3,DeviceGroup=ru,RfPort=B vswrSupervisionActive false AuxPlugInUnit=RRUS-4,DeviceGroup=ru,RfPort=R vswrSupervisionActive false AuxPlugInUnit=RRUS-4,DeviceGroup=ru,RfPort=A vswrSupervisionActive false AuxPlugInUnit=RRUS-4,DeviceGroup=ru,RfPort=B vswrSupervisionActive false
========================================================================= Total: 18 MOs
24.) Get EARFCN DL Value:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=13 earfcndl
120216-11:53:25 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value
========================================================================= EUtranCellFDD=13 earfcndl 1600
Total: 1 MOs
25.) Get EARFCN UL Value:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=13 earfcnul
120216-11:53:39 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=13 earfcnul 19600 ========================================================================= Total: 1 MOs
26.) Get TAC Value of an External Eutrancell:
OFFLINE_ILSAN_ENB1>
get ExternalEUtranCellFDD=31 tac
120216-11:58:50 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=31 tac 4 ========================================================================= Total: 1 MOs
27.) Get TAC Value of EUtranCell:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=13 tac
120216-13:21:04 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value
========================================================================= EUtranCellFDD=13 dlInterferenceManagementActive true
EUtranCellFDD=13 tac 4
EUtranCellFDD=13 ulInterferenceManagementActive true
========================================================================= Total: 1 MOs
28.) Check details of MME Termination Point:
OFFLINE_ILSAN_ENB1>get TermPointToMme=1
120216-13:40:41 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= 1156 ENodeBFunction=1,TermPointToMme=1 ========================================================================= ======================================== TermPointToMmeId 1 administrativeState 1 (UNLOCKED) availabilityStatus 0 (NO_STATUS) domainName gUMMEIList t[1] =
>>> Struct[0] has 5 members: >>> 1.mcc = 450 >>> 2.mmeCode = 1 >>> 3.mmeGI = 32769 >>> 4.mnc = 8 >>> 5.mncLength = 2 ipAddress1 20.1.1.110 ipAddress2 0.0.0.0 ipv6Address1 :: ipv6Address2 :: mmeCodeListLTERelated i[1] = 1 mmeCodeListOtherRATs i[0] = mmeGIListLTERelated i[1] = 32769 mmeName SamsungMme operationalState 1 (ENABLED) relativeMmeCapacity 10 servedPlmnIdList t[1] = >>> Struct[0] has 3 members: >>> 1.mcc = 450
>>> 2.mnc = 8 >>> 3.mncLength = 2
servedPlmnListLTERelated t[1] = >>> Struct[0] has 3 members: >>> 1.mcc = 450 >>> 2.mnc = 8 >>> 3.mncLength = 2 servedPlmnListOtherRATs t[0] = usedIpAddress 20.1.1.110 ========================================================================= Total: 1 MOs
29.) Get IP Address of MME Termination Point:
OFFLINE_ILSAN_ENB1>
get TermPointToMme ipAddress
120216-13:43:21 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 =========================================================================
MO Attribute Value ========================================================================= TermPointToMme=2 ipAddress1 20.1.1.100 TermPointToMme=2 ipAddress2 0.0.0.0 TermPointToMme=2 usedIpAddress 0.0.0.0 TermPointToMme=1 ipAddress1 20.1.1.110 TermPointToMme=1 ipAddress2 0.0.0.0 TermPointToMme=1 usedIpAddress 20.1.1.110 ========================================================================= Total: 2 MOs
30.) Get Eutrancell No. Of Rx Antennas:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=11 noOfRxAntennas
120216-13:53:53 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=11 noOfRxAntennas 2 ========================================================================= Total: 1 MOs
31.) Get Eutrancell No. Of Tx Antennas:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=11 noOfTxAntennas
120216-13:54:24 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=11 noOfTxAntennas 2 ========================================================================= Total: 1 MOs
32.) Get Eutrancell DL Channel BW:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=11 dlChannelBandwidth
120216-13:55:21 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=11 dlChannelBandwidth 10000 ========================================================================= Total: 1 MOs
33.) Get Eutrancell UL Channel BW:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=11 ulChannelBandwidth
120216-13:55:32 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value
EUtranCellFDD=11 ulChannelBandwidth 10000
========================================================================= Total: 1 MOs
34.) Get No. Of PUCCH CQI users of EUtrancell:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=11 noOfPucchCqiUsers
120216-14:04:45 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=11 noOfPucchCqiUsers 240 ========================================================================= Total: 1 MOs
35.) Get the No. Of PUCCH Sr Users of EUtrancell:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=11 noOfPucchSrUsers
120216-15:00:29 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=11 noOfPucchSrUsers 230 ========================================================================= Total: 1 MOs
36.) Get value of RACH Root Sequence of EUtrancell:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD=11 rachRootSequence
120216-15:35:08 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=11 rachRootSequence 384 ========================================================================= Total: 1 MOs
37.) Get value of Cell Reselection Priority of a Relation:
OFFLINE_ILSAN_ENB1>
get EUtranFreqRelation=_1600 cellReselectionPriority
120216-16:11:02 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 cellReselectionPriority 7 EUtranCellFDD=11,EUtranFreqRelation=_1600 cellReselectionPriority 7 EUtranCellFDD=13,EUtranFreqRelation=_1600 cellReselectionPriority 7 ========================================================================= Total: 3 MOs
38.) Get value of Connected Mode Mobility Prio:
OFFLINE_ILSAN_ENB1>
get EUtranFreqRelation=_1600 connectedModeMobilityPrio
120216-16:12:27 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 connectedModeMobilityPrio 7 EUtranCellFDD=11,EUtranFreqRelation=_1600 connectedModeMobilityPrio 7 EUtranCellFDD=13,EUtranFreqRelation=_1600 connectedModeMobilityPrio 7 ========================================================================= Total: 3 MOs
39.) Check Primary PLMN Reserved Status:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD primaryPlmnReserved
120216-16:14:00 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value
========================================================================= EUtranCellFDD=14 primaryPlmnReserved false
EUtranCellFDD=12 primaryPlmnReserved false EUtranCellFDD=11 primaryPlmnReserved false EUtranCellFDD=13 primaryPlmnReserved false
========================================================================= Total: 4 MOs
40.) Get Eutrancell part of sector power:
FFLINE_ILSAN_ENB1>
get EUtranCellFDD partOfSectorPower
120216-16:15:10 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=14 partOfSectorPower 100 EUtranCellFDD=12 partOfSectorPower 100 EUtranCellFDD=11 partOfSectorPower 100 EUtranCellFDD=13 partOfSectorPower 100 ========================================================================= Total: 4 MOs
41.) Get VID of IP Interface:
OFFLINE_ILSAN_ENB1>
get IpInterface vid
120216-16:17:10 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 vid 16 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 vid 15 ========================================================================= Total: 2 MOs
42.) Get default router of IP Interface:
OFFLINE_ILSAN_ENB1>
get IpInterface defaultRouter
120216-16:27:25 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/228 ========================================================================= MO Attribute Value ========================================================================= Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 defaultRouter0 192.168.73.73 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 defaultRouter0State 1 (ENABLED) Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 defaultRouter1 0.0.0.0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 defaultRouter1State 0 (DISABLED) Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 defaultRouter2 0.0.0.0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 defaultRouter2State 0 (DISABLED) Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 defaultRouterPingInterval 4 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=1 defaultRouterTraffic 0 (TRAFFIC_DEF_ROUTER_0) froId 1 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 defaultRouter0 192.168.72.73 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 defaultRouter0State 1 (ENABLED) Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 defaultRouter1 0.0.0.0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 defaultRouter1State 0 (DISABLED) Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 defaultRouter2 0.0.0.0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 defaultRouter2State 0 (DISABLED) Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 defaultRouterPingInterval 4 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminalIp=1,GigaBitEthernet=1,IpInterface=2 defaultRouterTraffic 0 (TRAFFIC_DEF_ROUTER_0) froId 2 ========================================================================= Total: 2 MOs
43.) Get EUtrancell configuration details:
OFFLINE_ILSAN_ENB1>lk EUtranCellFDD=11
120217-11:47:47 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5008 ========================================================================= Proxy Adm State Op. State MOs linked to 1125:EUtranCellFDD=11
========================================================================= 1125 1 (UNLOCKED) 1 (ENABLED) EUtranCellFDD=11
1131 EUtranCellFDD=11,HoOptFunction=1 1133 EUtranCellFDD=11,UeMeasControl=1
1148 EUtranCellFDD=11,EUtranFreqRelation=_1601 1132 EUtranCellFDD=11,EUtranFreqRelation=_1630 1145 EUtranCellFDD=11,UeMeasControl=1,ReportConfigA4=1 1143 EUtranCellFDD=11,UeMeasControl=1,ReportConfigA5=1 1142 EUtranCellFDD=11,UeMeasControl=1,ReportConfigA1Sec=1 1140 EUtranCellFDD=11,UeMeasControl=1,ReportConfigA1Prim=1 1139 EUtranCellFDD=11,UeMeasControl=1,ReportConfigB1Utra=1 1134 EUtranCellFDD=11,UeMeasControl=1,ReportConfigB2Utra=1 1135 EUtranCellFDD=11,UeMeasControl=1,ReportConfigB1Geran=1 1147 EUtranCellFDD=11,UeMeasControl=1,ReportConfigB2Geran=1 1136 EUtranCellFDD=11,UeMeasControl=1,ReportConfigB2Cdma2000=1 1137 EUtranCellFDD=11,UeMeasControl=1,ReportConfigEUtraBestCell=1 1146 EUtranCellFDD=11,UeMeasControl=1,ReportConfigEUtraBadCovSec=1 1141 EUtranCellFDD=11,UeMeasControl=1,ReportConfigEUtraBadCovPrim=1 1149 EUtranCellFDD=11,EUtranFreqRelation=_1601,EUtranCellRelation=31 1144 EUtranCellFDD=11,UeMeasControl=1,ReportConfigA5=1,ReportConfigA5Anr=1 1129 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-12 1127 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-13 1128 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-54-41 1130 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-55-51 1138 EUtranCellFDD=11,UeMeasControl=1,ReportConfigEUtraBestCell=1,ReportConfigEUtraBestCell Anr=1
1184 1 (UNLOCKED) 1 (ENABLED) SectorEquipmentFunction=S1 196 AntennaUnitGroup=1,RfBranch=1 195 AntennaUnitGroup=1,RfBranch=2 178 1 (ENABLED) AuxPlugInUnit=RRUS-1,RiPort=DATA_1 193 0 (DISABLED) AuxPlugInUnit=RRUS-1,RiPort=DATA_2 216 0 (DISABLED) AuxPlugInUnit=RRUS-2,RiPort=DATA_1 217 0 (DISABLED) AuxPlugInUnit=RRUS-2,RiPort=DATA_2
191 1 (UNLOCKED) 1 (ENABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,RfPort=A 182 0 (LOCKED) 1 (ENABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,RfPort=B 183 0 (LOCKED) 1 (ENABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,RfPort=R 225 1 (UNLOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,RfPort=A 221 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,RfPort=B 223 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,RfPort=R 188 0 (LOCKED) 1 (ENABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,AlarmPort=1 180 0 (LOCKED) 1 (ENABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,AlarmPort=2 187 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,AlarmPort=3 185 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,AlarmPort=4 181 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,AlarmPort=5 190 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,AlarmPort=6 186 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,AlarmPort=7 184 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-1,DeviceGroup=ru,AlarmPort=8 228 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,AlarmPort=1 226 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,AlarmPort=2 222 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,AlarmPort=3 231 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,AlarmPort=4 229 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,AlarmPort=5 227 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,AlarmPort=6 220 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,AlarmPort=7 230 0 (LOCKED) 0 (DISABLED) AuxPlugInUnit=RRUS-2,DeviceGroup=ru,AlarmPort=8
========================================================================= Total: 54 MOs
44.) Get license status of Coverage-Triggered Inter-Frequency Session
Continuity:
OFFLINE_ILSAN_ENB1>
get InterFrequencySessionContinuity=1
featureStateInterFrequencySessionContinuity
120220-10:23:45 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= Licensing=1,OptionalFeatures=1,InterFrequencySessionContinuity=1 featureStateInterFrequencySessionContinuity 1 (ACTIVATED) ========================================================================= Total: 1 MOs
45.) Get license status of Intra-LTE Handover:
OFFLINE_ILSAN_ENB1>
get IntraLTEHandover=1 featureStateIntraLTEHandover
120220-10:24:42 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= Licensing=1,OptionalFeatures=1,IntraLTEHandover=1 featureStateIntraLTEHandover 1 (ACTIVATED) ========================================================================= Total: 1 MOs
46.) Get License Status of Data Forwarding at Intra-eNodeB and X2
Handover:
OFFLINE_ILSAN_ENB1>
get IntraLTEHODataFwd=1 featureStateIntraLTEHODataFwd
120220-10:25:33 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= Licensing=1,OptionalFeatures=1,IntraLTEHODataFwd=1 featureStateIntraLTEHODataFwd 1 (ACTIVATED) ========================================================================= Total: 1 MOs
47.) Get status of Coverage Triggered Inter-Frequency H/O:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD covTriggerdBlindHoAllowed
120220-10:26:12 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value
========================================================================= EUtranCellFDD=14 covTriggerdBlindHoAllowed true
EUtranCellFDD=12 covTriggerdBlindHoAllowed true EUtranCellFDD=11 covTriggerdBlindHoAllowed true EUtranCellFDD=13 covTriggerdBlindHoAllowed true
========================================================================= Total: 4 MOs
48.) Get hysteresis value for eventA3:
OFFLINE_ILSAN_ENB1>
get ReportConfigEUtraBestCell hysteresisA3
120220-10:26:50 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=14,UeMeasControl=1,ReportConfigEUtraBestCell=1 hysteresisA3 10 EUtranCellFDD=14,UeMeasControl=1,ReportConfigEUtraBestCell=1,ReportConfigEUtraBestCell Anr=1 hysteresisA3 10 EUtranCellFDD=12,UeMeasControl=1,ReportConfigEUtraBestCell=1 hysteresisA3 10 EUtranCellFDD=12,UeMeasControl=1,ReportConfigEUtraBestCell=1,ReportConfigEUtraBestCell Anr=1 hysteresisA3 10 EUtranCellFDD=11,UeMeasControl=1,ReportConfigEUtraBestCell=1 hysteresisA3 10 EUtranCellFDD=11,UeMeasControl=1,ReportConfigEUtraBestCell=1,ReportConfigEUtraBestCell Anr=1 hysteresisA3 10 EUtranCellFDD=13,UeMeasControl=1,ReportConfigEUtraBestCell=1 hysteresisA3 30 EUtranCellFDD=13,UeMeasControl=1,ReportConfigEUtraBestCell=1,ReportConfigEUtraBestCell Anr=1 hysteresisA3 10 ========================================================================= Total: 8 MOs
49.) Get time-to-trigger value for eventA3:
OFFLINE_ILSAN_ENB1>
get ReportConfigEUtraBestCell=1 timeToTriggerA3
120220-10:27:32 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=14,UeMeasControl=1,ReportConfigEUtraBestCell=1 timeToTriggerA3 40 EUtranCellFDD=12,UeMeasControl=1,ReportConfigEUtraBestCell=1 timeToTriggerA3 40 EUtranCellFDD=11,UeMeasControl=1,ReportConfigEUtraBestCell=1 timeToTriggerA3 40 EUtranCellFDD=13,UeMeasControl=1,ReportConfigEUtraBestCell=1 timeToTriggerA3 40 ========================================================================= Total: 4 MOs
50.) Check status of ANR Feature removal:
OFFLINE_ILSAN_ENB1>
get EUtranCell isRemoveAllowed
120220-10:31:19 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtraNetwork=1,ExternalENodeBFunction=4508-54,ExternalEUtranCellFDD=4508-54-42 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-54,ExternalEUtranCellFDD=4508-54-43 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-54,ExternalEUtranCellFDD=4508-54-41 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-7,ExternalEUtranCellFDD=4508-7-77 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-7,ExternalEUtranCellFDD=4508-7-73 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-7,ExternalEUtranCellFDD=4508-7-71 isRemoveAllowed true
EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=31 isRemoveAllowed false EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=4508-3-32 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=4508-3-33 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-55,ExternalEUtranCellFDD=4508-55-51 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-55,ExternalEUtranCellFDD=4508-55-53 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-55,ExternalEUtranCellFDD=4508-55-52 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-314,ExternalEUtranCellFDD=4508-314-2 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-213,ExternalEUtranCellFDD=4508-213-0 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-56,ExternalEUtranCellFDD=4508-56-61 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-56,ExternalEUtranCellFDD=4508-56-62 isRemoveAllowed true EUtraNetwork=1,ExternalENodeBFunction=4508-56,ExternalEUtranCellFDD=4508-56-63 isRemoveAllowed true EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-13 isRemoveAllowed false EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-54-41 isRemoveAllowed false EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-12 isRemoveAllowed false EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-55-51 isRemoveAllowed false
EUtranCellFDD=11,EUtranFreqRelation=_1601,EUtranCellRelation=31 isRemoveAllowed false EUtranCellFDD=13,EUtranFreqRelation=_1600,EUtranCellRelation=4508-314-2
isRemoveAllowed true
EUtranCellFDD=13,EUtranFreqRelation=_1600,EUtranCellRelation=71 isRemoveAllowed false ========================================================================= Total: 24 MOs
51.) Get offset value of EUtrancell Relations:
OFFLINE_ILSAN_ENB1>
get EUtranCellRelation qOffsetCellEUtran
120220-10:33:03 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-13 qOffsetCellEUtran 0 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-54-41 qOffsetCellEUtran 0 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-12 qOffsetCellEUtran 0 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-55-51 qOffsetCellEUtran 0 EUtranCellFDD=11,EUtranFreqRelation=_1601,EUtranCellRelation=31 qOffsetCellEUtran 0 EUtranCellFDD=13,EUtranFreqRelation=_1600,EUtranCellRelation=4508-314-2 qOffsetCellEUtran 0 EUtranCellFDD=13,EUtranFreqRelation=_1600,EUtranCellRelation=71 qOffsetCellEUtran 0
========================================================================= Total: 7 MOs
52.) Check permission to change/delete the attributes of an ANR:
OFFLINE_ILSAN_ENB1>get EUtranCell ctrlMode
120220-10:34:27 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtraNetwork=1,ExternalENodeBFunction=4508-54,ExternalEUtranCellFDD=4508-54-42 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-54,ExternalEUtranCellFDD=4508-54-43 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-54,ExternalEUtranCellFDD=4508-54-41 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-7,ExternalEUtranCellFDD=4508-7-77 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-7,ExternalEUtranCellFDD=4508-7-73 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-7,ExternalEUtranCellFDD=4508-7-71 ctrlMode 1 (AUTO)
EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=31 ctrlMode 0 (MANUAL) EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=4508-3-32 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=4508-3-33 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-55,ExternalEUtranCellFDD=4508-55-51 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-55,ExternalEUtranCellFDD=4508-55-53 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-55,ExternalEUtranCellFDD=4508-55-52 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-314,ExternalEUtranCellFDD=4508-314-2 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-213,ExternalEUtranCellFDD=4508-213-0 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-56,ExternalEUtranCellFDD=4508-56-61 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-56,ExternalEUtranCellFDD=4508-56-62 ctrlMode 1 (AUTO) EUtraNetwork=1,ExternalENodeBFunction=4508-56,ExternalEUtranCellFDD=4508-56-63 ctrlMode 1 (AUTO) EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-13 ctrlMode 0 (MANUAL) EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-54-41 ctrlMode 1 (AUTO) EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-12 ctrlMode 0 (MANUAL) EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-55-51 ctrlMode 0 (MANUAL)
EUtranCellFDD=11,EUtranFreqRelation=_1601,EUtranCellRelation=31 ctrlMode 0 (MANUAL) EUtranCellFDD=13,EUtranFreqRelation=_1600,EUtranCellRelation=4508-314-2 ctrlMode 1 (AUTO)
========================================================================= Total: 24 MOs
53.) Check offset value for the neighbor cell:
OFFLINE_ILSAN_ENB1>
get EUtranCellRelation cellIndividualOffsetEUtran
120220-10:35:56 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-13 cellIndividualOffsetEUtran 0 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-54-41 cellIndividualOffsetEUtran 0 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-51-12 cellIndividualOffsetEUtran 0 EUtranCellFDD=11,EUtranFreqRelation=_1600,EUtranCellRelation=4508-55-51 cellIndividualOffsetEUtran 0 EUtranCellFDD=11,EUtranFreqRelation=_1601,EUtranCellRelation=31 cellIndividualOffsetEUtran 0 EUtranCellFDD=13,EUtranFreqRelation=_1600,EUtranCellRelation=4508-314-2 cellIndividualOffsetEUtran 0 EUtranCellFDD=13,EUtranFreqRelation=_1600,EUtranCellRelation=71 cellIndividualOffsetEUtran 0 ========================================================================= Total: 7 MOs54.) Check preferred way to transfer UE in connected mode to UTRAN FDD
frequency:
OFFLINE_ILSAN_ENB1>
get EUtranFreqRelation mobilityAction
120220-10:37:58 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value
========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 mobilityAction 1 (HANDOVER)
EUtranCellFDD=11,EUtranFreqRelation=_1600 mobilityAction 1 (HANDOVER) EUtranCellFDD=11,EUtranFreqRelation=_1630 mobilityAction 1 (HANDOVER) EUtranCellFDD=11,EUtranFreqRelation=_1601 mobilityAction 1 (HANDOVER) EUtranCellFDD=13,EUtranFreqRelation=_1600 mobilityAction 1 (HANDOVER)
========================================================================= Total: 5 MOs
55.) Check required minimum received RSRP Value for Cell Reselection
(with Offset Value) of EUtrancell:
OFFLINE_ILSAN_ENB1>
get EUtranCellFDD qRxLevMin
120220-10:39:10 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=14 qRxLevMin -140 EUtranCellFDD=14 qRxLevMinOffset 1000 EUtranCellFDD=12 qRxLevMin -140
EUtranCellFDD=12 qRxLevMinOffset 1000 EUtranCellFDD=11 qRxLevMin -140 EUtranCellFDD=11 qRxLevMinOffset 1000 EUtranCellFDD=13 qRxLevMin -140 EUtranCellFDD=13 qRxLevMinOffset 1000 ========================================================================= Total: 4 MOs
56.)
Check required minimum received RSRP Value for Cell Reselection of
EUtranFreqRelation:
OFFLINE_ILSAN_ENB1>
get EUtranFreqRelation qRxLevMin
120220-10:39:39 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 qRxLevMin -140 EUtranCellFDD=11,EUtranFreqRelation=_1600 qRxLevMin -140 EUtranCellFDD=11,EUtranFreqRelation=_1630 qRxLevMin -140 EUtranCellFDD=11,EUtranFreqRelation=_1601 qRxLevMin -140 EUtranCellFDD=13,EUtranFreqRelation=_1600 qRxLevMin -140 ========================================================================= Total: 5 MOs
57.)
Scaling of the TreselectionEUTRA parameter in high- mobility state:
OFFLINE_ILSAN_ENB1>get EUtranFreqRelation tReselectionEutraSfHigh
120220-10:41:08 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 tReselectionEutraSfHigh 100 EUtranCellFDD=11,EUtranFreqRelation=_1600 tReselectionEutraSfHigh 25 EUtranCellFDD=11,EUtranFreqRelation=_1630 tReselectionEutraSfHigh 25 EUtranCellFDD=11,EUtranFreqRelation=_1601 tReselectionEutraSfHigh 25 EUtranCellFDD=13,EUtranFreqRelation=_1600 tReselectionEutraSfHigh 25 ========================================================================= Total: 5 MOs
58.) Check value of parameter Pcompensation at cell reselection:
OFFLINE_ILSAN_ENB1>get EUtranFreqRelation pMax
120220-10:45:00 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 pMax 1000 EUtranCellFDD=11,EUtranFreqRelation=_1600 pMax 1000 EUtranCellFDD=11,EUtranFreqRelation=_1630 pMax 1000 EUtranCellFDD=11,EUtranFreqRelation=_1601 pMax 1000 EUtranCellFDD=13,EUtranFreqRelation=_1600 pMax 1000 ========================================================================= Total: 5 MOs
59.) Check value of UE Threshold while Reselecting a Higher Frequency:
OFFLINE_ILSAN_ENB1>get EUtranFreqRelation threshXHigh
120220-10:46:58 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 threshXHigh 4 EUtranCellFDD=12,EUtranFreqRelation=_1600 threshXHighQ 2 EUtranCellFDD=11,EUtranFreqRelation=_1600 threshXHigh 4 EUtranCellFDD=11,EUtranFreqRelation=_1600 threshXHighQ 2 EUtranCellFDD=11,EUtranFreqRelation=_1630 threshXHigh 4 EUtranCellFDD=11,EUtranFreqRelation=_1630 threshXHighQ 2 EUtranCellFDD=11,EUtranFreqRelation=_1601 threshXHigh 4 EUtranCellFDD=11,EUtranFreqRelation=_1601 threshXHighQ 2 EUtranCellFDD=13,EUtranFreqRelation=_1600 threshXHigh 4 EUtranCellFDD=13,EUtranFreqRelation=_1600 threshXHighQ 2 ========================================================================= Total: 5 MOs
60.) Check value of UE Threshold while Reselecting a Lower Frequency:
OFFLINE_ILSAN_ENB1>get EUtranFreqRelation threshXLow
120220-10:50:20 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 threshXLow 0 EUtranCellFDD=12,EUtranFreqRelation=_1600 threshXLowQ 0 EUtranCellFDD=11,EUtranFreqRelation=_1600 threshXLow 0 EUtranCellFDD=11,EUtranFreqRelation=_1600 threshXLowQ 0 EUtranCellFDD=11,EUtranFreqRelation=_1630 threshXLow 0 EUtranCellFDD=11,EUtranFreqRelation=_1630 threshXLowQ 0 EUtranCellFDD=11,EUtranFreqRelation=_1601 threshXLowQ 0 EUtranCellFDD=13,EUtranFreqRelation=_1600 threshXLow 0 EUtranCellFDD=13,EUtranFreqRelation=_1600 threshXLowQ 0 ========================================================================= Total: 5 MOs
61.) Get value of maximum allowed measurement bandwidth on a carrier
frequency:
OFFLINE_ILSAN_ENB1>
get EUtranFreqRelation allowedMeasBandwidth
120220-10:51:23 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value ========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 allowedMeasBandwidth 6 EUtranCellFDD=11,EUtranFreqRelation=_1600 allowedMeasBandwidth 6 EUtranCellFDD=11,EUtranFreqRelation=_1630 allowedMeasBandwidth 6 EUtranCellFDD=11,EUtranFreqRelation=_1601 allowedMeasBandwidth 6 EUtranCellFDD=13,EUtranFreqRelation=_1600 allowedMeasBandwidth 6 ========================================================================= Total: 5 MOs
62.) Get status of the Presence Antenna Port:
OFFLINE_ILSAN_ENB1>
get EUtranFreqRelation presenceAntennaPort1
120220-10:53:36 OFFLINE_Ilsan_eNB1 8.0h ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/5224 ========================================================================= MO Attribute Value
========================================================================= EUtranCellFDD=12,EUtranFreqRelation=_1600 presenceAntennaPort1 false
EUtranCellFDD=11,EUtranFreqRelation=_1600 presenceAntennaPort1 false EUtranCellFDD=11,EUtranFreqRelation=_1630 presenceAntennaPort1 false EUtranCellFDD=11,EUtranFreqRelation=_1601 presenceAntennaPort1 false EUtranCellFDD=13,EUtranFreqRelation=_1600 presenceAntennaPort1 false
========================================================================= Total: 5 MOs
63.) Block a EUtrancell:
ERBS168>
bl EUtranCellFDD=62
120221-11:31:27 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582 Block following 1 MOs ?
========================================================================= 884 ENodeBFunction=1,EUtranCellFDD=62
========================================================================= Block 1 MOs. Are you Sure [y/n] ? y
========================================================================= Id MO administrativeState Result
========================================================================= 884 EUtranCellFDD=62 0 >>> Set.
========================================================================= Total: 1 MOs attempted, 1 MOs set
64.) Deblock a EUtranCell:
ERBS168>
deb EUtranCellFDD=62
120221-11:33:24 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582 Deblock following 1 MOs ?
========================================================================= 884 ENodeBFunction=1,EUtranCellFDD=62
========================================================================= Deblock 1 MOs. Are you Sure [y/n] ? y
========================================================================= Id MO administrativeState Result
========================================================================= 884 EUtranCellFDD=62 1 >>> Set.
========================================================================= Total: 1 MOs attempted, 1 MOs set
65.) Ping Test: (Process No. 1)
ERBS168>
ping 10.0.0.167 ///10.0.0.167 is OAM Ip///
120221-11:38:59 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582 $ ping 10.0.0.167
* / 10.0.0.167 is alive
ERBS168>
ping 100.100.100.1 ///Default Router///
120221-16:20:18 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/18005 $ ping 100.100.100.1
* / 100.100.100.1 is alive
66.) Ping Test: (Process No. 2)
ERBS168>
facc IpAccessHostEt=1 ping 7.19.1.30 ///IP Address of MME///
120221-16:23:22 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/18005 Call Action ping on following 1 MOs ?========================================================================= 860 IpSystem=1,IpAccessHostEt=1
========================================================================= Call action ping on 1 MOs. Are you Sure [y/n] ? y
========================================================================= Proxy MO Action Nr of Params
========================================================================= 860 IpAccessHostEt=1 ping 1
>>> Return value = 7.19.1.30 is alive
========================================================================= Total: 1 MOs attempted, 1 MOs actioned
67.) Create a CV:
ERBS168>
cvmk Test_21_02_2012
120221-11:41:37 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582 ERBS168>
confb+
Confirmation of bl/deb/set/acc commands = disabled ERBS168>
acc 301 create
*** 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582
========================================================================= Proxy MO Action Nr of Params
========================================================================= 301 ConfigurationVersion=1 create 5
Parameter 1 of 5, configurationVersionName (string): Test_21_02_2012 Parameter 2 of 5, identity (string): Test_21_02_2012
Parameter 3 of 5, type (enumRef-ConfigurationVersionType):
Enter one of the following integers: 0:STANDARD, 1:UPGRADE, 2:MINIMAL, 3:TEST, 4:AUTOCREATE, 5:OTHER, 6:UPGRADE_TOLERATE_ERROR, 7:DOWNLOADED, 8:RESTORED: 5
Parameter 4 of 5, operatorName (string): nmsadm Parameter 5 of 5, comment (string): none
>>> Return value = null
========================================================================= Total: 1 MOs attempted, 1 MOs actioned
ERBS168>
68.) Set the CV as startable:
ERBS168>cvset Test_21_02_2012
120221-11:48:02 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582 ERBS168>
confb+
Confirmation of bl/deb/set/acc commands = disabled ERBS168>
acc 301 setstartable
*** 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582
========================================================================= Proxy MO Action Nr of Params
========================================================================= 301 ConfigurationVersion=1 setStartable 1
Parameter 1 of 1, configurationVersionName (string): Test_21_02_2012 >>> Return value = null
========================================================================= Total: 1 MOs attempted, 1 MOs actioned
ERBS168>
confb-
Confirmation of bl/deb/set/acc commands = enabled
69.) CV Create & Set Startable:
ERBS168>cvms Test2_21_02_2012
120221-11:54:35 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582 ERBS168>
confb+
Confirmation of bl/deb/set/acc commands = disabled ERBS168>
acc 301 create
*** 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582
========================================================================= Proxy MO Action Nr of Params
========================================================================= 301 ConfigurationVersion=1 create 5
Parameter 1 of 5, configurationVersionName (string): Test2_21_02_2012 Parameter 2 of 5, identity (string): Test2_21_02_2012
Parameter 3 of 5, type (enumRef-ConfigurationVersionType):
Enter one of the following integers: 0:STANDARD, 1:UPGRADE, 2:MINIMAL, 3:TEST, 4:AUTOCREATE, 5:OTHER, 6:UPGRADE_TOLERATE_ERROR, 7:DOWNLOADED, 8:RESTORED: 5
Parameter 4 of 5, operatorName (string): nmsadm Parameter 5 of 5, comment (string): none
>>> Return value = null
========================================================================= Total: 1 MOs attempted, 1 MOs actioned
ERBS168>
if $nr_of_mos_ok = 1
Enter commands (one per line), then type "fi" >
acc 301 setstartable
>
Test2_21_02_2012
>fi
ERBS168>
acc 301 setstartable
*** 10.0.0.167 8.0z ERBS_NODE_MODEL_C_1_73 stopfile=/tmp/27582
========================================================================= Proxy MO Action Nr of Params
