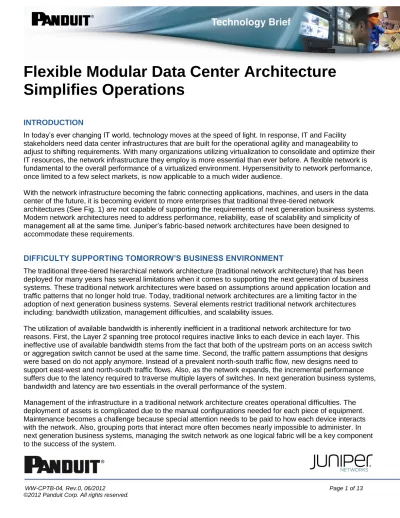

Flexible Modular Data Center Architecture

Simplifies Operations

INTRODUCTION

In today’s ever changing IT world, technology moves at the speed of light. In response, IT and Facility stakeholders need data center infrastructures that are built for the operational agility and manageability to adjust to shifting requirements. With many organizations utilizing virtualization to consolidate and optimize their IT resources, the network infrastructure they employ is more essential than ever before. A flexible network is fundamental to the overall performance of a virtualized environment. Hypersensitivity to network performance, once limited to a few select markets, is now applicable to a much wider audience.

With the network infrastructure becoming the fabric connecting applications, machines, and users in the data center of the future, it is becoming evident to more enterprises that traditional three-tiered network

architectures (See Fig. 1) are not capable of supporting the requirements of next generation business systems. Modern network architectures need to address performance, reliability, ease of scalability and simplicity of management all at the same time. Juniper’s fabric-based network architectures have been designed to accommodate these requirements.

DIFFICULTY SUPPORTING TOMORROW’S BUSINESS ENVIRONMENT

The traditional three-tiered hierarchical network architecture (traditional network architecture) that has been deployed for many years has several limitations when it comes to supporting the next generation of business systems. These traditional network architectures were based on assumptions around application location and traffic patterns that no longer hold true. Today, traditional network architectures are a limiting factor in the adoption of next generation business systems. Several elements restrict traditional network architectures including: bandwidth utilization, management difficulties, and scalability issues.

The utilization of available bandwidth is inherently inefficient in a traditional network architecture for two reasons. First, the Layer 2 spanning tree protocol requires inactive links to each device in each layer. This ineffective use of available bandwidth stems from the fact that both of the upstream ports on an access switch or aggregation switch cannot be used at the same time. Second, the traffic pattern assumptions that designs were based on do not apply anymore. Instead of a prevalent north-south traffic flow, new designs need to support east-west and north-south traffic flows. Also, as the network expands, the incremental performance suffers due to the latency required to traverse multiple layers of switches. In next generation business systems, bandwidth and latency are two essentials in the overall performance of the system.

(2)

Figure 1: Traditional Three-Tier Network Architecture

As the footprint expands in a traditional network architecture, it becomes increasingly more challenging and expensive to implement. Extending the reach of the network requires the purchase of additional access and aggregation switches which cause additional capital expense to be incurred. The addition of extra switches causes the network performance to suffer. As the network develops, it becomes progressively more difficult to expand the infrastructure.

Due to constraints on operation agility and performance, many enterprises are reconsidering the use of traditional network architectures. Enterprises need a network architecture that incorporates agility, modularity, efficiency and manageability. Success in achieving these benefits is the key to the implementation of next generation technologies.

Servers / NAS / iSCSI Storage Core Switches

Access Switches Aggregation Switches

WAN/Core Router

Fibre Channel Switches

Fibre Channel Storage

(3)

NEW ARCHITECTURE SIMPLIFIES DATA CENTERS

Fabric-based networks (See Fig. 2) represent the next technological advancement in network architecture. They offer a number of benefits to an organization over that of a traditional three-tiered architecture. These architectural benefits include: a single management view for the data center, a network that allows for higher bandwidth, consistent low latency, linear scalability, reduced power/ floor footprint, and simplified cabling.

Figure 2: Fabric-Based Network Architecture

(4)

As a network expands, it should not create a logistical nightmare in the process of scaling the architecture to meet the needs. Fabric-based networks were designed to optimize scalability. As the network grows, new nodes are easily added to the existing fabric. Also, the power consumption scales linearly as the fabric expands. It is relatively easy to migrate from an existing traditional network architecture environment to a fabric-based network architecture because the access or aggregation layer of that network can be directly connected to a network node of the fabric.

In the virtualized environments of tomorrow, IT and Facility stakeholders need to have a network infrastructure with the maximized performance, simplified management platform, and flexibility to scale. Fabric-based

networks address these needs by giving organizations the high performance, simple management, and the scalability needed to exceed operational requirements.

HOW JUNIPER AND PANDUIT ENABLE FABRIC-BASED ARCHITECTURES

The successful implementation of an advanced data center fabric-based network architecture like Juniper QFabric relies on a seamless orchestration of cabinet, cabling, cable management, and operational management solutions. With the Panduit complete physical infrastructure solution and Juniper QFabric network technology, a powerful modular data center architecture can be successfully implemented. Juniper QFabric Technology

QFabric technology is Juniper Networks’ next-generation data center switching architecture, intended to radically transform the economics and performance of networking in the modern data center. The QFabric family of products is designed to address the emerging requirements of modern data centers ranging in size from small high-performance computing (HPC) clusters, to large-scale virtualized and converged access enterprise data centers, to cloud-based mega data centers.

QFabric technology exploits the homogeneity and regular layout of a rack-based server and storage

infrastructure. A single QFabric System can scale to more than 6,000 10 GbE ports with consistent end-to-end latency of five microseconds under typical loads. The lossless QFabric architecture, which is suitable for lossless storage traffic, delivers non-blocking any-to-any connectivity, an STP-free environment for L2 deployments, and a scale-out architecture for both L2 and L3 use cases—all managed as a single device. QFabric architecture—the result of nearly three years of extensive R&D investments—is the networking industry’s first true network fabric, producing more than 100 different patent filings across multiple areas of innovation.

The QFabric architecture consists of four separate but interdependent components— QFabric Node, QFabric Interconnect, QFabric Director, and QFabric Management Switches— that work together to create a single high-performance, low latency fabric, unleashing the full power of the data center. By taking the basic attributes found in any switch fabric and breaking them out into these individual components, QFabric introduces a highly scalable solution that revolutionizes the data center network.

Each component plays a vital role in how the QFabric architecture works.

(5)

the fabric. The Node, which can also operate as an independent top-of-rack 10 GbE switch, provides compute, storage, services, and network access for the QFabric architecture.

 QFabric Interconnect: The Interconnect represents the typical backplane of a modular switch, connecting all Node edge devices in a full mesh topology. This topology provides the data plane connectivity between all Nodes, with the Interconnect acting as the high-performance backplane.

 QFabric Director: The Routing Engines embedded within a modular switch are externalized in the QFabric architecture via the Director, which provides control and management services for the fabric. Deployed in clusters to provide redundancy, Directors provide a single management interface to manage the scalable data plane provided by the Node and Interconnect devices.

 QFabric Management Switch: The QFabric Nodes and Interconnects are managed by the Directors via dedicated Gigabit Ethernet out-of band connections.

With all components working together, the QFabric architecture behaves as a single logical switch connecting compute, storage, and network service resources.

Juniper is offering two QFabric system options to address different customer deployment scenarios (See Fig.3):

 QFX3000-M is targeted at mid-tier data center, satellite data center, and container environments. The system scales from 48 to 768 10 GbE ports, delivers the simplicity and agility of QFabric with ultra-low latency (~3 µsec) in a space-optimized form factor which provides investment protection by allowing customers to start small and scale as their demands grow.

 QFX3000-G is targeted at large enterprise and cloud data centers. The system scales to 6144 10 GbE ports and delivers the simplicity and agility of QFabric with ultra-low latency (~5 µsec).

Figure 3: Juniper QFabric Equipment Options

QFX3000-M

QFX3000-G

Scale

Up to 16 nodes

Up to 768 10GbE ports

Up to 128 nodes

Up to 6,144 10GbE ports

Components

QFabric Nodes

QFX3500, QFX3600

QFabric Interconnect

QFX3600-I

QFX3008-I

(6)

Juniper QFabric Components

Figure 4 depicts a Juniper QFX3000-G QFabric configuration deployed in a Panduit Physical Infrastructure Solution.

Figure 4: Juniper QFabric Components

Juniper QFX3100 QFabric Director: Serves as the central Routing Engine for the QFabric Architecture, providing a single control and management services interface for the QFabric Architecture.

Juniper QFX3008-I QFabric Interconnect: Acts as the backplane of Juniper Networks QFabric architecture, connecting all QFX3500 QFabric Node edge devices in a full mesh topology.

Juniper QFX3500 Node Switch: Delivers a fabric-ready edge solution that contributes to a high-performance, low latency fabric, unleashing the power of the exponential data center.

(7)

Key Elements of the Panduit Unified Physical Infrastructure

SM

Solution

Panduit offers a complete solution for the infrastructure supporting fabric-based networks such as Juniper QFabric.

Panduit Cabinet and Cable Management Solutions

Panduit cabinet and cable management solutions help enable new data center architectures such as Juniper QFabric. Panduit cabinet and rack solutions support both 2-post and 4-post applications with sizes ranging from 42 RU to 52 RU. The cabinet solution also includes cable management and thermal management within/outside the cabinet. Panduit Thermal Ducting Solutions are specifically designed to work with the equipment used in a Juniper QFabric Network Architecture. Panduit pre-configured infrastructure solutions simplify and speed deployment, enhance thermal performance, and decrease energy usage. The figure below provides some of the highlights of Panduit cabinet and cable management component options that could make up its solutions.

(8)

Panduit High Speed Data Transport (HSDT) Solutions

Panduit fiber optic and copper cabling solutions for 10G, 40G and 100G Ethernet, and 8G, 16G, 32G Fibre Channel communications help enable new data center architectures like Juniper QFabric. Panduit Signature Core™ Fiber Optic Cabling System is a new Panduit innovative high performance fiber that balances both modal and chromatic dispersion allowing it to extend its reach beyond standard requirements. Panduit is paving the way in the relevant standard bodies to promote enhanced customer expectations through the use of this new technology. Signature Core™ extends the radius of QFabric to meet customer implementation

requirements.

Panduit copper technology incorporated into its SFP+ 10 Gb/s Direct Attach Copper (DAC) Cable Assemblies and TX6A™ 10Gig™ and TX6A-SD™ 10Gig™ UTP Copper Cable for 10GBASE-T provide enhanced

performance characteristics. Both copper and fiber products can be incorporated into the QuickNet™ Cabling System which offers factory terminated and test cable assemblies. This greatly speeds up the deployment of the solution as well as ensures expected performance.

Figure 6 features some of the product options that could be used in a Panduit HSDT Solution for Juniper QFabric.

(9)

Panduit Operational Management Solutions

Panduit operational management solutions help enable new data center architectures like Juniper QFabric and include solutions for grounding, identification and labeling products, installation tools and Panduit Physical Infrastructure Manager™ (PIM™) software and appliances. Panduit Advisory Services offer a broad array of assessment and optimization services to assist customers with the evaluation and deployment of Panduit Physical Infrastructure Solutions, such as a Juniper QFabric Network Architecture.

(10)

JUNIPER QFABRIC/PANDUIT CUSTOMER SCENARIO

The following customer scenario is for a mid to large size enterprise data center deployment using a Juniper QFabric architecture and the Panduit Unified Physical Infrastructure solution.

Scenario: The enterprise customer has an existing data center pod for a SAP ERP deployment. The company decided to consolidate various dev/test resources into a single pod to increase server utilization and to provide its engineers an in-house cloud environment. The IT organization just finished a VDI pilot program and decided to roll-out a deployment for 3000 users in the company. One of the main lines of business is experimenting with a Big Data initiative and needs access to a Hadoop cluster.

 Existing Infrastructure

o Existing POD for SAP deployment with 2 server racks and 2 storage racks

 New Initiatives

o Dev/Test Environment with 1000 vms  3 Blade Servers

 2 NAS filers o Hadoop cluster

 80 2 RU servers

 All with disk attached storage o VDI deployment with 3000 vms

 3 Blade Servers

 2 iSCSI based storage arrays

 Common Infrastructure

o Firewall Service Node/Load Balancer Service Node o Redundant 40G access to WAN/core

(11)

Design Approach

The IT architect maps the various application requirements into functional groups detailing the respective compute/server, storage (NAS as well as FC/iSCSI), and network services (firewall, load balancer, WAN bandwidth) resource needs.

Figure 8: Functional Group Connectivity in QFabric

For each of these functional groups the architect defines the level of fabric bandwidth that in turn drives the list of required QFabric nodes, the number of 40 GbE Fabric Connections, and the type of cabinet and cable management solution. For instance, a 6:1 Oversubscription Rate Server Group would require only two 40 GbE Fabric Connections per node. While a 3:1 Oversubscription Rate Server Group would require four 40 GbE Fabric Connections per node to achieve the required level of bandwidth.

Figure 9: Functional Groups and # of Nodes and Fabric Connections

Fabric

Functional Groups

Director 6:1 Server Group 3:1 Server Group SAN (FC) Storage Network Svcs - Services iSCSI Storage Network Svcs - WAN Fabric Connections

Nodes (Functional Group) #Nodes # Fabric Connections

SAP POD (6:1 Server Group) 2 4

Dev Test POD (3:1 Server Group) 2 8

Hadoop POD (6:1 Server Group) 2 4

VDI POD (6:1 Server Group) 2 8

Network Services – FW/Load Balancer (Network Svcs – Services)

2 8

Network Services – WAN Router (Network Svcs – WAN)

2 4

(12)

Juniper QFabric Logical View of Customer Layout

(13)

Customer Benefits

The customer realized several benefits throughout the deployment and operation of this Juniper QFabric Network Architecture using a Panduit Unified Physical Infrastructure solution. The joint Juniper/Panduit solution allowed for a simplified deployment, which insured a quicker installation timeframe. Once the solution was installed, the customer noticed a higher performing network, with more bandwidth and greatly reduced latency despite running various applications on the same fabric. The customer also recognized greater energy

efficiency throughout the deployment. The maintenance and operation of the network was greatly simplified which equaled less downtime and associated risks.

Conclusion

As virtualized environments are adopted by more enterprises, the pressure they apply on the network infrastructure will continue to cause IT and Facility Stakeholders to reconsider the network architecture they utilize. Juniper QFabric was created to optimize network performance to allow virtualized environments to function without the restrictions a traditional three-tiered network architecture can impose. In order for a Juniper QFabric network architecture to operate at the highest levels, it requires a physical infrastructure built to ensure superior performance. The Panduit Physical Infrastructure Solution provides Juniper QFabric the performance, flexibility and reliability to operate without constraints.

Next Steps

For more information, please contact Juniper Networks at www.juniper.net or Panduit at www.panduit.com.
