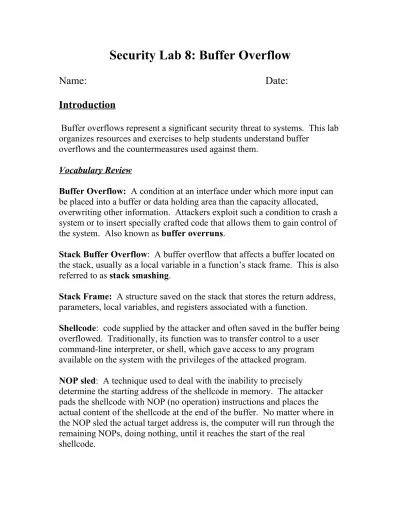

Security Lab 8: Buffer Overflow
Name:
Date:
Introduction
Buffer overflows represent a significant security threat to systems. This lab organizes resources and exercises to help students understand buffer
overflows and the countermeasures used against them. Vocabulary Review
Buffer Overflow: A condition at an interface under which more input can be placed into a buffer or data holding area than the capacity allocated, overwriting other information. Attackers exploit such a condition to crash a system or to insert specially crafted code that allows them to gain control of the system. Also known as buffer overruns.
Stack Buffer Overflow: A buffer overflow that affects a buffer located on the stack, usually as a local variable in a function’s stack frame. This is also referred to as stack smashing.
Stack Frame: A structure saved on the stack that stores the return address, parameters, local variables, and registers associated with a function.
Shellcode: code supplied by the attacker and often saved in the buffer being overflowed. Traditionally, its function was to transfer control to a user command-line interpreter, or shell, which gave access to any program available on the system with the privileges of the attacked program.
NOP sled: A technique used to deal with the inability to precisely determine the starting address of the shellcode in memory. The attacker pads the shellcode with NOP (no operation) instructions and places the actual content of the shellcode at the end of the buffer. No matter where in the NOP sled the actual target address is, the computer will run through the remaining NOPs, doing nothing, until it reaches the start of the real
Compile-Time Defenses: Compile-time defenses aim to prevent or detect buffer overflows by instrumenting programs when they are compiled. The following examples are all compile-time defenses against buffer overflows:
1) Develop software in a high-level language that does not permit buffer overflows.
2) Use safe coding techniques such as bounds checking 3) Use safe libraries
4) Use stack protection mechanisms like Stackguard (canary)
The disadvantage of all of these techniques is that they require code to be recompiled.
Run-Time Defenses: Run-time defenses aim to detect and abort attacks in existing programs. These defenses involve changes to the memory
management of the virtual address space of processes. The following examples are all run-time defenses against buffer overflows:
1) Executable address space protection – tag pages in virtual memory as being non-executable
2) Address space randomization
3) Guard pages separate critical regions of memory
The disadvantages of these techniques include hardware support problems and compiler support problems.
Defensive Programming: a form of defensive design intended to ensure the continuing function of a piece of software in spite of unforeseeable usage of said software. Also known as secure programming.
Injection Attack: a wide variety of program flaws related to invalid handling of input data.
Command Injection: an injection attack that constructs a command subsequently executed by the system with the privileges of the Web server.
Code Injection: an injection attack that includes code that is then executed by the attacked system.
Cross-site Scripting(XSS): a vulnerability that concerns input provided to a program by one user that is subsequently output to another user. The vulnerability involves the inclusion of script code in the HTML content of a Web page displayed by a user’s browser. XSS attacks illustrate a failure to handle both program input and program output correctly.
Fuzzing: a software testing technique that uses randomly generated data as inputs to a program.
Race Condition: when multiple processes and threads compete to gain uncontrolled access to some resource.
Deadlock: when an incorrect sequence of synchronization primitives results in processes waiting indefinitely for resources held by other processes.
Memory Leak: when a program fails to manage memory effectively, the available memory on the heap may steadily reduce until it is completely exhausted.
Environment Variables: a collection of string values inherited by each process from its parent that can affect the way a running process behaves. The PATH environment variable is an important example.
Privilege Escalation: when an attacker is able to execute code with the privileges and access rights of a compromised program or service that has privileges greater than those already available to the attacker.
Least Privilege: programs should execute with the least amount of privileges needed to complete their function.
The Shortest C Primer in the World
In order to complete the buffer overflow exercises, we must use the C programming language. For the most part, you will not have to type the programs yourself, but you will have to compile and run them. This primer aims to provide you with the bare minimum you need to compile and run C programs on your linux workstation.
Compiling C Source Code
Compiling C Source is fairly straight-forward. If you have a C source file called HelloWorld.c, then you will simply type:
cc -o HelloWorld HelloWorld.c
This command will produce a file named HelloWorld that is simply the compiled version of your source code file.
Running Compiled C Code
In order to run the HelloWorld program, simply type:
./HelloWorld
Unix Commands for Program Execution
In order to recreate some of these security scenarios, we will need to alter file permissions and ownership in the linux filesystem.
chmod changes the permissions of file
chmod 4755 buffer4
chown changes the owner of a file
Exercise 1: Finding Vulnerable Applications
All applications have vulnerabilities. These vulnerabilities are generally reported publicly via government and public agencies, private security groups, and vendors. Take five minutes to review the vulnerabilities listed on these Websites. In the space below, list and identify the different types of vulnerabilities revealed on the Websites.
US - Computer Emergency Readiness Team Website: http://www.us-cert.gov/cas/techalerts/index.html
Microsoft Security Advisory Website:
http://www.microsoft.com/technet/security/advisory/default.mspx
SysAdmin, Audit, Network, Security (SANS) http://www.sans.org/top25errors/
List examples of the vulnerabilities found below.
Exercise 2: Reading Bug Reports
The advisories reviewed above almost always eventually point to bug reports that identify the specific causes of errors. We will consider two different bug reports in this exercise: an open source report and a report for proprietary software.
Mozilla Bug Report:
https://bugzilla.mozilla.org/show_bug.cgi?id=485217
What was the problem encountered in the software? Was the problem the result of programmer error? Microsoft Bug Report:
http://www.microsoft.com/technet/security/bulletin/MS09-013.mspx What was the problem encountered in the software?
Was the problem the result of programmer error?
Compare the two bug reports. How do they compare in transparency, quality of information, and clarity?
Exercise 3: Buffer Overflow Example
1) Compile buffer1.c
cc -o buffer1 buffer1.c
What warning messages does the compiler produce?
2) Run buffer1 from the command line ./buffer1
3) The buffer1 program will accept two Strings from the user and compare these Strings. If the Strings are equal the program returns 1, else it returns 0. Enter the word start for both input Strings. Does the program return the correct result?
Enter the word start for the first String and end for the second String. Does the program return the correct result?
4) The buffer1 program only accepts Strings of 8 characters. The buffer overflow occurs when we enter Strings longer than 8 characters.
Enter the word start for the first String and the phrase badinputbadinput for the second String.
Does the program return the correct result? If not, why not?
5) Enter the start for the first String and the phrase evilinputevilinput for the second String.
Exercise 4: Stack Overflow Examples
1) Compile buffer2.c
cc -o buffer2 buffer2.c
2) Run the buffer2 program ./buffer2
3) Enter a short name like jason What does the program do?
4) Enter a long String like XXXXXXXXXXXXXXXXXXXXXXXX (32 Xs)
What does the program do? 5) Pipe a perl program into buffer2. perl -e 'print pack(“H*”,
“41424344454647485152535455565758616263646566676808 fcffbf948304080a4e4e4e4e4e0a”);' | ./buffer2
Exercise 5: Stack Overflow Attack
1) Compile buffer4.c
cc -o buffer4 buffer4.c
2) Change the owner of buffer4 program to root sudo chown root buffer4
3) Run the following command to make buffer4 a setuid program that runs as root.
sudo chmod 4755 buffer4
4) Review the shellcode contained in attack1 cat ./attack1
5) Type the following command to execute the attack: ./attack1 | ./buffer4
Discussion
What do buffer overflows and software errors in general say about the role of maintenance in software security?
Conclusion
This lab outlined some basic experiments with buffer overflows. Programming errors are a significant threat to high-quality secure IT systems.
Resources
http://www.us-cert.gov/cas/techalerts/index.html
http://www.microsoft.com/technet/security/advisory/default.mspx
https://bugzilla.mozilla.org/show_bug.cgi?id=485217
http://www.sans.org/top25errors/
