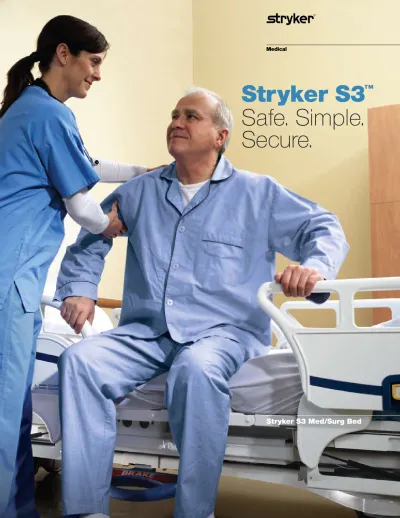

(1)

Medical

Stryker S3 Med/Surg Bed

Stryker S3

Safe. Simple.

Secure.

(2)

Easy Access Controls

Located on three sides of the bed, including the centrally-located foot end. Includes one-touch scale that allows accurate, repeatable readings with the patient or bed in any position.

Low-Bed Height

Industry-leading low-bed height and 500 lb weight capacity provide the safest and most comfortable platform for your patients.

Open Architecture

The Stryker S3 accepts any standard support surface including those for patient positioning, pressure redistribution and pulmonary therapy. The S3 accepts almost any form of traction, and is compatible with the vast majority of nurse call and networking systems.

Stryker S3

The standard of care

preferred by more

hospitals than any other.

Dual-pedestal Design

Dual-pedestal integrated lift system reduces pinch points while providing excellent stability and cleanability.

Siderails

Siderails are BackSmart™ designed with

one-hand operation and an intermediate support position for patient assistance during bed entry and exit.

Retractable Frame

Exclusive retractable frame allows proximal location to remain essentially unchanged when the head of the bed is raised, reducing the need for patient repositioning.

(3)

A Proven Design, Refined

Stryker S3 is safe.

Reduce the risk of falls with iBed™ Awareness

and the Chaperone® Bed Exit System. iBed Awareness monitors your smart

bed configurations, displaying amber or green indicators. The Chaperone

Bed Exit System monitors three zones, activating an alert when the patient

moves out of position. Chaperone is so effective that Stryker provides a

performance-based guarantee, pledging a fall reduction of at least 30 percent

within the first year of use.

Stryker S3 is simple.

Each control is intuitive, easy to access

and out of the way of bedside stands and other hospital equipment.

High-visibility data screen and one-touch scale provide information at a glance.

The open architecture of the Stryker S3 accepts any 35 x 84-inch support

surface including those for patient positioning, pressure redistribution, and

pulmonary therapy. It accepts almost any form of traction, and is compatible

with the vast majority of nurse call and networking systems.

Stryker S3 is secure.

Be everywhere at once and know the

status of all patient beds with Stryker S3. Stryker S3 can be a part of a

Connected Hospital® system that links beds, to patients, to caregivers, to

mobile devices using an open-architecture, cost-effective system. This

enables remote monitoring of Stryker beds in real time from multiple

locations, especially a nursing station, as well as instant notification of

a change in status.

The Stryker S3 is based on the patient platform that is preferred by

more hospitals than any other, the Secure

®

line of hospital beds. Years

of refinement and input from caregivers have evolved the Stryker S3

into the med/surg bed that makes everyday care safer and easier for you

and your patients.

BackSmart design makes

everyday tasks safer and easier.

The Stryker S3 bed reduces

risk of injury with siderails that

have an intermediate support

position for patient assistance

during bed entry and exit.

Retractable Bed Frame Exclusive retractable frame allows proximal location to remain essentially unchanged when the head of the bed is raised, reducing the need for patient repositioning.

(4)

Brake System

The larger, easier to activate, centrally located brake locks swivel and rotation on all four casters.

iBed Awareness

Exclusive local bed status system monitors important bed configurations and alerts you if parameters change.

Pump Holder and 110V Outlet

Convenient, integrated pump holder and optional 110V outlet help reduce trip hazards of loose cords.

Chaperone Bed Exit System

with Zone Control

®

For fall prevention, constantly track patient position using a patented, center-of-gravity, weight-based system.

How important is your choice of a med/surg bed?

With increasing reimbursement challenges for in-hospital injuries such as falls from a bed or

hospital-acquired pressure ulcers, the choice of a bed is vitally important. The average cost

to treat a hospital-acquired pressure ulcer is over $40,000.* The treatment for a fall from a

bed is over $24,000.* The Stryker S3 is designed to reduce the risk of falls, and can accept

surfaces that reduce the risk of pressure ulcers. The choice of a bed is critical to the

out-comes of your patients as well as the financial well-being of any health-care organization.

* Data adapted from the Federal Register.

Stryker S3

Designed to support

the way nurses work

every day.

Improved Ergonomics

Move the bed easily with smooth, convenient handles in both the headboard and footboard. Optional Zoom®

(5)

Zone One The largest zone; for patients who are expected to have significant movement without leaving the bed.

Zone Two The middle zone; for patients who should not sig-nificantly change their position but will move arms and legs.

Zone Three The smallest zone; for patients for whom very small movements warrant your immediate attention.

Save Time, Reduce Fall Risk

iBed Awareness

Patient falls are among every hospital’s top concerns. iBed Awareness is an exclusive

local bed status system that monitors important bed configurations and alerts you if

parameters change. The system monitors siderail positions, 30-degree Head Of Bed,

brakes, Chaperone Bed Exit System and low-bed height, displaying amber or green

indicators on the bed. It will also signal the hospital network or remote devices.

Chaperone Bed Exit System

Stryker’s patented Chaperone Bed Exit System with Zone Control senses the patient’s

position with an accurate three-zone system, and activates an alert when a patient

attempts to move out of a preset zone without assistance. Chaperone helps prevent

falls and reduces false alarms. Stryker also provides comprehensive fall prevention

educational program as part of the Chaperone Bed Exit System. The result is safer

patients and lower costs.

The Stryker S3 Signature Series bed can be ordered with customized colors, wood

laminate inserts and insignia, logo or award images to support the identity of your

health-care organization. The design, with soft, friendly edges, offers an aesthetic

that enhances the image of any hospital. Visit www.stryker.com/S3 to customize

your S3 Signature Series bed today.

A special series S3 med/surg

bed is now available for

veteran’s facilities. The S3

Patriot Series has patriotic

motifs and graphics to

dem-onstrate support for the men

and women of the military.

Stryker S3 Signature Series

The S3

Patriot Series

Wood Laminate Inserts Customized Colors

Zone Three Zone Two

(6)

œˆ˜ÌÊ,i«>Vi“i˜Ìà /À>Փ>]Ê ÝÌÀi“ˆÌˆiÃÊEÊivœÀ“ˆÌˆiÃÊ À>˜ˆœ“>݈œv>Vˆ> -«ˆ˜i ˆœœ}ˆVà -ÕÀ}ˆV>Ê*Àœ`ÕVÌà iÕÀœÊEÊ / ˜ÌiÀÛi˜Ìˆœ˜>Ê*>ˆ˜ >ۈ}>̈œ˜ ˜`œÃVœ«Þ œ““Õ˜ˆV>̈œ˜Ã “>}ˆ˜} *>̈i˜ÌÊ>˜`ˆ˜}Ê µÕˆ«“i˜Ì -Ê µÕˆ«“i˜Ì 3800 E. Centre Ave. Portage, MI 49002 U.S.A. t: 269 329 2100 f: 269 329 2311 toll free: 800 787 9537 www.stryker.com

The information presented in this brochure is intended to demonstrate a Stryker product. Always refer to the package insert, product label and/or user instructions before using any Stryker product. Products may not be available in all markets. Product availability is subject to the regulatory or medical practices that govern individual markets. Please contact your Stryker Account Manager if you have questions about the availability of Stryker products in your area. Products referenced with

designation are trademarks of Stryker.

Products referenced with

®

designation are registered trademarks of Stryker. PC/SCG-10M-0508, 07-SMD-2000

Mkt Lit-223-041708 Rev A Copyright © 2008 Stryker Printed in USA

Service and Technical Support

Three Quick-Response Service Options

Stryker can help you protect your products beyond the standard warranty with one of Stryker’s service agreements. Stryker’s service agreements are offered at attractive rates when new equipment is purchased.

Stryker Gold Service Agreement

Includes parts, labor, and travel, one preventative maintenance check per year per product, Joint Commission documentation

Stryker Silver Service Agreement

Includes parts, labor, and travel, Service Repair documentation

Stryker Preventative Maintenance Service Agreement

Includes one preventative maintenance check per year per product, Joint Commission documentation

Why You Should Choose a Stryker Service Agreement with Your Purchase • Diminish equipment downtime

• Stabilize maintenance budget • Ensure repairs within 24 – 72 hours • Increase patient throughput

Technical Support and Service Call Center

The Technical Support Center is available 8 a.m. to 6 p.m. EST, Monday through Friday. The Service Call Center is available from 8 a.m. to 8 p.m. EST, Monday through Friday. We guarantee a call back from a service representative within two hours.

Financing

Whether you choose a capital or operating lease, you get full use of the products immediately. Contract terms and payment options are customizable.

Rentals

Through a partnership with Universal Hospital Services (UHS) you can now rent Stryker products. You have access to state-of-the-art equipment to quickly meet your specific needs. Every piece of rental equipment is rigorously maintained, inspected and patient-ready.

Training

Protect your equipment investment with Stryker-certified maintenance and training. Contact Stryker’s technical support department or your Account Manager or Field Service Representative to schedule Stryker-certified training.

Contact Information

Visit www.stryker.com for more details on equipment and capabilities or call 1 800 STRYKER (1 800 787 9537) during standard business hours.
