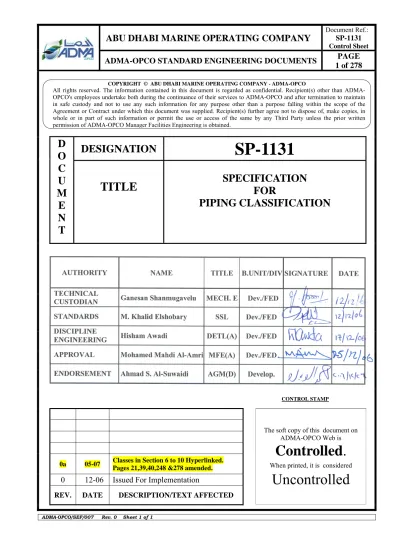

(1)Document Ref.:. ABU DHABI MARINE OPERATING COMPANY. SP-1131 Control Sheet. ADMA-OPCO STANDARD ENGINEERING DOCUMENTS. PAGE 1 of 278. COPYRIGHT © ABU DHABI MARINE OPERATING COMPANY - ADMA-OPCO. All rights reserved. The information contained in this document is regarded as confidential. Recipient(s) other than ADMAOPCO's employees undertake both during the continuance of their services to ADMA-OPCO and after termination to maintain in safe custody and not to use any such information for any purpose other than a purpose falling within the scope of the Agreement or Contract under which this document was supplied. Recipient(s) further agree not to dispose of, make copies, in whole or in part of such information or permit the use or access of the same by any Third Party unless the prior written permission of ADMA-OPCO Manager Facilities Engineering is obtained.. D O C U M E N T. DESIGNATION. SP-1131. TITLE. SPECIFICATION FOR PIPING CLASSIFICATION. AUTHORITY. NAME. TECHNICAL CUSTODIAN. Ganesan Shanmugavelu. STANDARDS. M. Khalid Elshobary. DISCIPLINE ENGINEERING. Hisham Awadi. TITLE. B.UNIT/DIV SIGNATURE. MECH. E. Dev./FED. SSL. Dev./FED. DETL(A). Dev./FED. APPROVAL. Mohamed Mahdi Al-Amri MFE(A). Dev./FED. ENDORSEMENT. Ahmad S. Al-Suwaidi. Develop.. AGM(D). DATE. CONTROL STAMP. The soft copy of this document on ADMA-OPCO Web is. 0a. 05-07. Classes in Section 6 to 10 Hyperlinked. Pages 21,39,40,248 &278 amended.. 0. 12-06. Issued For Implementation. REV.. DATE. ADMA-OPCO/SEF/007. Rev. 0. DESCRIPTION/TEXT AFFECTED Sheet 1 of 1. Controlled. When printed, it is considered. Uncontrolled.

(2) Liability for utilization by personnel/organizations outside ADMA-OPCO Whilst every effort has been made to ensure the accuracy of this document, neither ADMA-OPCO nor its employees will assume liability for any application or use outside ADMA-OPCO premises/assets.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 2.

(3) TABLE OF CONTENTS 1.. INTRODUCTION....................................................................................................................... 6 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8. 2.. SCOPE ........................................................................................................................... 6 COVERAGE ................................................................................................................. 6 EXCLUSIONS .............................................................................................................. 7 REFERENCED STANDARDS ................................................................................... 8 ABBREVIATIONS....................................................................................................... 8 DEFINITIONS.............................................................................................................. 8 USE OF LANGUAGE .................................................................................................. 9 LESSON LEARNT....................................................................................................... 9. QUALITY ASSURANCE ........................................................................................................ 10 2.1 2.2. QUALITY ASSURANCE SYSTEM......................................................................... 10 INSPECTION AND CERTIFICATION REQUIREMENTS ................................ 10. 3.. GOVERNING/BASE CODES................................................................................................. 11. 4.. DESIGN REQUIREMENTS................................................................................................... 13 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 4.10 4.11 4.12. GENERAL................................................................................................................... 13 MATERIALS .............................................................................................................. 13 PIPES ........................................................................................................................... 14 FITTINGS ................................................................................................................... 15 FLANGES AND SPECTACLE BLINDS................................................................. 16 VALVES ...................................................................................................................... 18 GASKETS ................................................................................................................... 19 BOLTING.................................................................................................................... 19 GALVANIZING ......................................................................................................... 19 CU-NI PIPING............................................................................................................ 20 COMPOSITE MATERIALS PIPING...................................................................... 20 CEMENT LINED PIPING ........................................................................................ 22. 5.. PIPING CLASS DESIGNATION SYSTEM......................................................................... 23. 6.. PIPING CLASS INDEX........................................................................................................... 26. 7.. PIPELINE CLASS INDEX...................................................................................................... 30. 8.. VALVE INDEX......................................................................................................................... 31. 9.. SERVICE INDEX ..................................................................................................................... 37. 10.. CROSS REFERENCE FOR EXISTING AND NEW PIPE CLASSES ............................ 42. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 3.

(4) 11.. PIPING AND PIPELINE CLASSES...................................................................................... 49 PIPING CLASS - AC0GA0................................................................................................. 50 PIPING CLASS - AC0NA0 ................................................................................................. 54 PIPING CLASS - AC0NA1 ................................................................................................. 58 PIPING CLASS - AC7GA0................................................................................................. 62 PIPING CLASS - AC8GA0................................................................................................. 66 PIPING CLASS - BC0GA0 ................................................................................................. 70 PIPING CLASS - BC0NA0 ................................................................................................. 74 PIPING CLASS - BC0NA1 ................................................................................................. 78 PIPING CLASS - CC0GA0................................................................................................. 82 PIPING CLASS - CC0NA0 ................................................................................................. 86 PIPING CLASS - CC0NA1 ................................................................................................. 90 PIPING CLASS - DC0GA0................................................................................................. 94 PIPING CLASS - DC0NA0 ................................................................................................. 98 PIPING CLASS - DC0NA1 ............................................................................................... 102 PIPING CLASS - EC5GA0 ............................................................................................... 106 PIPING CLASS - EC5NA0 ............................................................................................... 109 PIPING CLASS - EC5NA1 ............................................................................................... 112 PIPING CLASS - FC5GA0 ............................................................................................... 115 PIPING CLASS - FC5NA0 ............................................................................................... 118 PIPING CLASS - FC5NA1 ............................................................................................... 121 PIPING CLASS - AL0NA0 ............................................................................................... 124 PIPING CLASS - AL0NA1 ............................................................................................... 127 PIPING CLASS - BL0NA0 ............................................................................................... 130 PIPING CLASS - BL0NA1 ............................................................................................... 133 PIPING CLASS - CL0NA0 ............................................................................................... 136 PIPING CLASS - CL0NA1 ............................................................................................... 139 PIPING CLASS - FL0NA1................................................................................................ 142 PIPING CLASS - AS0GA0 ............................................................................................... 146 PIPING CLASS - BS0GA0................................................................................................ 149 PIPING CLASS - CS0GA0 ............................................................................................... 152 PIPING CLASS - DS0GA0 ............................................................................................... 155 PIPING CLASS - AS2GA0 ............................................................................................... 159 PIPING CLASS - BS2GA0................................................................................................ 162 PIPING CLASS - CS2GA0 ............................................................................................... 165 PIPING CLASS - DS2GA0 ............................................................................................... 168 PIPING CLASS - AS3NA0................................................................................................ 172 PIPING CLASS - AS3GA0 ............................................................................................... 175 PIPING CLASS - BS3GA0................................................................................................ 178 PIPING CLASS - BS3NA0 ................................................................................................ 181 PIPING CLASS - CS3GA0 ............................................................................................... 184 PIPING CLASS - CS3NA0................................................................................................ 187 PIPING CLASS - DS3GA0 ............................................................................................... 190 PIPING CLASS - DS3NA0................................................................................................ 194 PIPING CLASS - ES3GA0................................................................................................ 198 PIPING CLASS - ES3NA0 ................................................................................................ 201. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 4.

(5) PIPING CLASS - FS3GA0................................................................................................ 204 PIPING CLASS - FS3NA0 ................................................................................................ 207 PIPING CLASS - AS4NA0................................................................................................ 210 PIPING CLASS - BS4NA0 ................................................................................................ 213 PIPING CLASS - CS4NA0................................................................................................ 216 PIPING CLASS - DS4NA0................................................................................................ 219 PIPING CLASS - ES4NA0 ................................................................................................ 223 PIPING CLASS - FS4NA0 ................................................................................................ 226 PIPING CLASS - AN1NA0 ............................................................................................... 229 PIPING CLASS - BN1NA0 ............................................................................................... 232 PIPING CLASS - CN1NA0 ............................................................................................... 235 PIPING CLASS - DN1NA0 ............................................................................................... 238 PIPING CLASS - EN1NA0 ............................................................................................... 242 PIPING CLASS - FN1NA0 ............................................................................................... 245 PIPING CLASS - AN3GA0............................................................................................... 248 PIPING CLASS - AG0GA0............................................................................................... 252 PIPING CLASS - AP1GA0 ............................................................................................... 255 PIPELINE CLASS - EC5PA0........................................................................................... 258 PIPELINE CLASS - EC5LA0........................................................................................... 262 PIPELINE CLASS - FC5PA0 ........................................................................................... 266 APPENDIX-A: ABBREVIATIONS............................................................................................... 270 APPENDIX-B: DEFINITIONS ...................................................................................................... 273 APPENDIX-C: REFERENCED DOCUMENTS ......................................................................... 274. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 5.

(6) 1.. INTRODUCTION 1.1. Scope This Specification generally covers the selection of piping classes for use within ADMA-OPCO for offshore and onshore facilities, based on type of fluid conveyed and the design temperature and pressure limitations. For each project, a project specific piping classes, pipe wall thickness calculations, valve datasheets,.. etc shall be developed based on this document and the specific project requirement.. 1.2. Coverage This Specification covers the selection of following:. 1.2.1 Components a.. Pipes.. b. Nipples. c.. Elbows.. d. Tees. e.. Reducers and swages.. f.. Caps and plugs.. g.. Branch fittings (weldolet, sockolet, threadolet, nipolet).. h. Flanges & blind flanges. i.. Gaskets.. j.. Stud bolts.. k. Valves. l.. 0. 12-06. Rev.. Date. Spectacle blinds and spacer / blanks.. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 6.

(7) 1.2.2 Sizes Generally 1” NPS to 48” NPS size, both inclusive, is covered in this Specification. But details of sizes covered in the individual piping classes are as indicated in Section 11 However, the usage of piping size less than NPS 2” shall require ADMA-OPCO approval. 1.2.3 Materials a.. Carbon steel.. b. Stainless steel. c.. Alloy steel.. d. Non-ferrous alloys. e.. GRE.. f.. PVC.. g.. UPVC.. h. CPVC. 1.3. Exclusions This Specification does not cover the following:. 1.3.1 Submarine Pipelines and its fittings up to riser flange or isolation joint, which shall be in accordance with DNV OS-F101. 1.3.2 Onshore Pipelines and its fittings up to the isolation joints, which shall be in accordance with ASME B31.4 and ASME B31.8. 1.3.3 Heating, plumbing, ventilation and similar piping inside buildings. 1.3.4 Instrumentation tubing. 1.3.5 Instrument control valves / safety & relieve valves. 1.3.6 Motor operated valves. 1.3.7 Wellhead and X-mas tree equipment.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 7.

(8) 1.4. Referenced Standards. 1.4.1 General The latest edition (at the time of the contract award) of the Documents listed in Appendix-C shall to the extent specified herein, represent part of this Specification. The latest edition/revision of ADMA-OPCO Standards Engineering Documents shall be utilized as indicated in the Status List SL-001. 1. 4.2 Equivalent Standards Standard Documents equivalent to those referred to herein shall not be substituted without written approval from ADMA-OPCO. Approval of equivalent Standard Documents will not, in any way, remove responsibility from the Manufacturer/Supplier to meet the best practices and/or requirements of the Standard Engineering Documents referred to herein, in the event of conflict. Where differences and/or conflicting issues occur between the referenced documents themselves or the requirements of this Specification, the requirements of this Specification shall overrule unless otherwise advised by the ADMA-OPCO. However major conflictions shall be reported in writing to ADMA-OPCO technical custodian for arbitration/resolution. Where this Specification states no overriding requirements over the Standard Engineering Documents requirements, the later shall apply in full. The Manufacturer/Supplier shall equip himself with copies of all the referenced Standard Engineering Documents referred in Appendix-C of this Specification and shall make them readily available to all ADMA-OPCO, or nominated representative, personnel involved in the work. 1.5. Abbreviations The abbreviations used in this Specification are listed in Appendix-A.. 1.6. Definitions The definitions used in this Specification are listed in Appendix-B.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 8.

(9) 1.7. Use of Language Throughout this Specification, the words ‘will’, ‘may’, ‘should’ and ‘shall’, when used in the context of actions by ADMA-OPCO or others, have specific meanings as follows: a.. ‘Will’ is used normally in connection with an action by ADMA-OPCO and/or nominated representative, rather than by a Contractor or Manufacturer.. b. ‘May’ is used where alternatives are equally acceptable. c.. ‘Should’ is used where provision is preferred.. d. ‘Shall/Must’ is used where a provision is mandatory / vital. 1.8. Lesson Learnt Lessons learnt related to this work shall be, as appropriate, fed to ADMA-OPCO lessons learnt system.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 9.

(10) 2.. QUALITY ASSURANCE 2.1. Quality Assurance System. 2.1.1 Piping materials and components shall only be procured from Manufacturers/Suppliers approved by ADMA-OPCO. 2.1.2 The Manufacturer/Supplier shall operate Quality Management Systems (QMS) within his organizations, which ensure that the requirements of this Specification are fully achieved. The Manufacturer/Supplier’s quality management system shall be based on ADMAOPCO Specification SP-1009 or the latest issue of ISO 9001 Series and accredited by an international certifying agency.. 2.1.3. The Contractor’s quality manual shall provide details for the preparation of a quality plan, which shall include provisions for the QA/QC of services activities. Where an approved Contractor revises their Quality Management System that affect the ADMA-OPCO approved Quality / Inspection & Test Plan, then the revised Quality Plan / Inspection & Test Plan shall be submitted for ADMA-OPCO approval before initiating any service activities. 2.1.4 The effectiveness of the Manufacturer’s/Supplier’s quality management system may be subject to monitoring by ADMA-OPCO or its representative and may be audited following an agreed period of notice. 2.1.5 The Manufacturer/Supplier shall make regular QA audits on all their Suppliers. Details of these audits shall be made available to ADMA-OPCO when requested. 2.1.6 The Manufacturer/Supplier shall maintain sufficient Inspection and Quality Assurance staff, independent of the service provider management, to ensure that the QMS is correctly implemented and that all related documentation is available. 2.1.7 Using Sub-suppliers is not allowed for services/functions carried out by a Contractor without ADMA-OPCO approval. 2.2. Inspection and Certification Requirements. 2.2.1 Inspection and certification requirements shall be as stated in the ADMA-OPCO Code of Practice CP-102.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 10.

(11) 3.. GOVERNING/BASE CODES The pipe classes covered under this Specification is based on the applicable design codes followed in ADMA-OPCO. 3.1. The demarcation of design codes for pipeline and process plant design is shown in Figure - 1A below:. Figure – 1A: Piping and Pipelines Codes application battery limits. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 11.

(12) 3.2. The coverage of various piping and pipeline class and the limit of design code application as applicable in ADMA-OPCO is shown in Figure-1B below.. Figure – 1B: Piping And Pipelines Codes Application Battery Limits. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 12.

(13) 4.. DESIGN REQUIREMENTS 4.1. General. 4.1.1 Unless otherwise specified in this Specification, pipe and piping components shall be designed in accordance with ASME B31.3, ASME B31.4, ASME B31.8 and/or DNVOS-F101 as applicable. The pipework needs repair in future shall also follow this Specification. 4.1.2 Piping class rating 400 (B16.5) shall not be used. 4.1.3. Threaded piping is allowed only for utility services of Category D fluids.. 4.1.4. Small bore piping connections shall be designed in accordance with the requirements of ADMA-OPCO Code of Practice CP-111.. 4.1.5. Piping classes included in this document is developed with the following as the basis for pressure rating. The allowable pressure at corresponding temperatures is given in each piping class. The data given in some piping class in ‘italics’ indicate that these are not the maximum flange ratings pressure. Pressure Class. 4.2. Maximum pressure considered for developing pipe class included in this document. 150 300 600 900 1500. Maximum flange rating as per ASME B 16.5 for the corresponding pressure class and material at the applicable temperature.. 2500. 303 bar (4400 psi) for pipeline piping to comply with prevailing design pressure for oil lines. Materials. 4.2.1 All forgings shall be in normalized condition. 4.2.2 All material in carbon and low alloy steel, excluding screwed, galvanized and casting, shall have a maximum carbon content of 0.23%. For castings, a carbon content of 0.25% maximum may be permitted subject to ADMA-OPCO Integrity Assurance Authority approval. 4.2.3 All austenitic stainless steel and Inconel shall be in solution annealed condition. 4.2.4 Cast iron shall not be used in hydrocarbon services. 4.2.5 For “Sour Service” application, all material shall comply with NACE MR0175/ISO 15156 and ADMA-OPCO Specification SP-1000. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 13.

(14) 4.2.6 The Carbon Equivalent (CE) based on the Ladle Analysis shall not exceed 0.42, calculated by the following formula: Mn Cr + Mo + V Ni + Cu + + CE = C + 6 5 15 4.2.7 Impact testing on steels, wherever required, shall be in accordance with ASME B31.3. 4.2.8 Castings shall be in ‘Normalized’ or ‘Quenched and Tempered’ condition. Welds or weld repairs, if any, shall be subject to stress-relieving and shall be certified by ADMA-OPCO/TPA. Major repairs as defined in ASME B16.34 section 8.0 shall be mapped and submitted to ADMA-OPCO for review and approval prior to commencing any repairs. WPS & PQR along with PWHT and NDE procedures shall also be submitted for approval. Minor repairs as defined by ASME B16.34 may be mapped and repaired without need for prior notification but shall still be certified.. All major and minor repairs shall be subject to post weld heat treatment. 4.3. Pipes. 4.3.1 No pipe diameter smaller than 1” shall be used, unless otherwise approved by ADMAOPCO. 4.3.2 Pipe diameters of 1¼”, 2½”, 3½”, 5”, 7” and 9” shall not be used. Equipment supplied with connections of these sizes shall be adjusted to a standard size immediately adjacent to the equipment by means of suitable reduced fittings. Bushing shall not be used.. The use of non-standard pipe diameters like 26”, 28”, 32”, 34”, 38”, 44” & 46” shall be avoided though it is permitted to use in un-avoidable circumstances. The use of these sizes require prior approval from ADMA-OPCO. 4.3.3 The calculation of pipe wall thickness shall be in accordance with the code ASME B31.3 for piping classes and as per DNV standard for pipelines considering the corrosion allowance as well as mill tolerances as applicable. 4.3.4 Wherever practicable, metallic pipes shall be specified by reference to the ‘Nominal Pipe Size (NPS)’ and ‘Schedule No. (SCH)’ in accordance with ASME B36.10 & B36.19.. Note: Since ASME B36.19 is limited to only four schedule numbers (5S, 10S, 40S and 80S), relevant pipes may also be indicated by schedule reference to ASME B36.10, if required.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 14.

(15) 4.3.5 The minimum pipe sizes to be used shall be as follows.. Utility lines Process lines Branches – Offshore (flowing lines). : : :. 1 inch 1 inch 2 inch. However the usage of sizes less than 2” NPS shall be minimized unless the line sizes below 2” NPS are required for process reasons and to match the connection sizes of instruments and other components. The piping connections shall meet the requirements of ADMA-OPCO Code of Practice CP-111. 4.3.6 Generally, minimum pipe schedules shall be as follows, unless otherwise recommended.. Threaded Pipes Process pipework, (NB ≤ 2 inch). : :. 80 160. 4.3.7 Unless otherwise noted in the pipe classes, carbon steel pipes shall be of seamless construction for pipe sizes up to and including 16” NPS. Stainless steel, inconel and copper nickel pipes up to and including 12” NPS shall be seamless. 4.3.8 Welded pipes if used shall be supplied as submerged arc welded and the seam shall be fully radiographed. 4.3.9 Beveled ends shall be in accordance with ASME B16.25. 4.3.10 The pipe thicknesses given in the classes is selected in such a way to minimize the use of pipe thickness that is not easily available. 4.3.11 For SS/Inconel pipes above 16” NPS manufactured by EFW method, the NPS shall be submitted for ADMA-OPCO Integrity Assurance Authority approval. 4.4. Fittings. 4.4.1 All fittings shall comply with the requirements of ADMA-OPCO Standard STD-128 and the applicable piping class. 4.4.2 Unless otherwise noted in the piping class, the fittings shall be seamless and shall be in wrought/forged material. Fittings made from block forgings and machined to the required dimensions are not permitted. Free machining steels and fittings made from cold rolled steel bar stock are not permitted.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 15.

(16) 4.4.3 All fittings shall be “factory made”. Use of non factory made fittings including Mitre Bends are not permitted specially Segmental Mitre Bends, unless prior approval is obtained from ADMA-OPCO. 4.4.4 For process and utility services, reduction in pipe size shall be made using Reducers or Swages. Use of bushings is not permitted. 4.4.5 Short radius elbows shall generally not be permitted unless specifically warranted by space constraint. ADMA-OPCO approval is required for use of short radius elbows. 4.4.6 Threaded caps and plugs shall only be used downstream of isolation valves for vents and drain connection. 4.4.7 Cross and lateral tees are considered special type fittings and the selection of which requires prior approval from ADMA-OPCO. 4.4.8 The branch table indicated is not applicable for the hot tap connections. The branch for hot tap shall be as per ADMA-OPCO Specification SP-1005. 4.5. Flanges and Spectacle Blinds. 4.5.1 All flanges shall comply with the requirements of ADMA-OPCO Standard STD - 108 and applicable piping class. Orifice flanges shall be in accordance with ASME B16.36. 4.5.2 Flange bore and bore of spectacle blind shall match with the ID of the connected pipe. 4.5.3 The mating face of ring joint grove shall be harder than RTJ gasket by 30 to 40 Vickers hardness number. Flange facing finish for smooth, serrated and very smooth finish shall be as given below. a. Smooth finish – Ra 3.2 to 6.3 µm (125 – 250 µin) b. Serrated finish – Ra 3.2 to 12.5 µm (125 – 500 µin) c. Very smooth finish – Less than 1.6 µm Ra (63 µin) 4.5.4 Unless noted otherwise in the piping class, flat face flanges with full face gaskets shall be used when connecting to cast iron or non-metallic flanges. 4.5.5 In case SW flanges are needed, bore of SW flanges shall suit the corresponding pipe as per piping class. 4.5.6 Spectacle blinds, spacers and blanks shall have the same face finish as the connected flange faces. Spectacle blinds and spacer and blanks shall be as per ASME B16.48.. Lifting eyes or shackles shall be fitted with spectacle blinds and spacers blanks weighting more than 25 kg, to facilitate installation and removal. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 16.

(17) 4.5.7 Unless specified otherwise, two (2) Nos. jackscrews shall be provided for flange assembly for all RTJ flanges, blind & spacers and for 3” and above on spectacle blind assembles. 4.5.8 Drilling and tapping for jack screws on the flange shall be carried out by the manufacturer and shall be identified at the detailed design stage. 4.5.9 Size limit for use of spectacle blind shall be in accordance with the piping classes. Above this size limit, spacers/spades shall be selected. Spacer/Spade racks shall be made available & adjacent to spading point locations. 4.5.10 Spectacle blind fabricated from the plate material of the corresponding forging material given in the pipe class, shall be acceptable as an alternative to the forged material. 4.5.11 Use of integral forged flanged fittings long weld neck flanges, flangolets are permitted wherever necessary. 4.5.12 Orifice pressure tapping should be connected to the orifice flange with a weldolet or weldoflange using a full penetration weld as an improvement. However, the exact design details of the orifice flange shall be specified by the DEFINE stage consultant and approved by ADMA-OPCO. 4.5.13 The Manufacturer designed hub connectors shall be used in the following cases: a.. Where standard flanges are not available as in the case of pipes with nominal size larger than 12” NPS in piping classes with pressure rating 2500.. b. When the weight of the piping needs to be reduced by using hub joints in place of flanges in piping with pressure class 1500 and 2500. 4.5.14 Hub connectors shall be Grayloc, Techlok or equivalent approved by ADMA-OPCO. 4.5.15 Hub connectors shall be complete with two hubs, a clamp, a seal ring and bolting. All hub connector components shall be designed and their performance warranted by the same Manufacturer. Components from different manufacturers shall not be permitted in the same joint. 4.5.16 Manufacturers of hubbed valves and equipment shall supply hub connectors for their equipment including mating hubs to be welded to the pipe. 4.5.17 Hub connector installed in a pipeline shall comply with DNV OS-F101. Manufacturer of a pig launcher / receiver shall ensure that supplied hub for pig launcher / receiver shall be compatible with the hub of mating isolation valve. The connector shall be designed for passing all types of pipeline pigs on a regular basis, including intelligent, inspection and scrapper pigs, without causing damage to the connector or the pig. The connector bore shall provide an unobstructed profile for pigging operations. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 17.

(18) 4.6. Valves. 4.6.1 Gate valves shall comply with the requirements of ADMA-OPCO Standard STD-115 and applicable piping class. 4.6.2 Globe valves shall comply with the requirements of ADMA-OPCO Standard STD-119 (projected), and applicable piping class. 4.6.3 Needle valves shall comply with the requirements of ADMA-OPCO Standard STD114 (projected), and applicable piping class. 4.6.4 Ball valves shall comply with the requirements of ADMA-OPCO Standard STD-116, and applicable piping class.. All ball valves with renewable soft seat shall have a secondary metal seat. 4.6.5 Check valves shall comply with the requirements of ADMA-OPCO Standard STD-117, and applicable piping class. 4.6.6 Butterfly valves shall comply with the requirements of ADMA-OPCO Standard STD118, and applicable piping class. 4.6.7. All valves in hydrocarbon service shall be of fire safe design.. 4.6.8 Gear operator shall be provided for the valves in accordance with the requirements of applicable ADMA-OPCO Standards for valves. 4.6.9 Locking arrangement shall be provided where required, and the same shall be identified in the purchase order. 4.6.10 Soft seated ball valves with SW ends shall be supplied with pipe nipples welded to each end. 4.6.11 Requirement of full bore valves shall be identified in the individual P&ID’s and on the valve data sheets. 4.6.12 The valve packing selected shall be non-asbestos and compatible with the stem material. 4.6.13 All valves shall include a corrosion allowance as stipulated in the relevant piping class. 4.6.14 Forged valve body material in place of cast body mentioned in the attached piping classes acceptable.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 18.

(19) 4.7. Gaskets. 4.7.1 Gaskets shall comply with the requirements of ADMA-OPCO Standard STD-127 and applicable piping class. 4.7.2 Asbestos or asbestos filled materials shall not be used for gaskets. 4.7.3 For assembly of flanged joints of dissimilar metallurgy insulating gasket kit in phenolic resin complete with suitable bolting shall be used to avoid galvanic corrosion. 4.8. Bolting. 4.8.1 Bolting shall comply with the requirements of ADMA-OPCO Standard STD-126 and applicable piping class. 4.8.2 Machine bolt shall not be used for flange joints unless specifically required for the application. 4.8.3 Lower strength of sour service bolting material shall be taken into consideration in the flange joint design. 4.8.4 Wherever applicable, stud bolts shall be longer by one bolt diameter to suit hydraulic bolt tensioners. 4.9. Galvanizing. 4.9.1 Galvanizing, where specified in the piping class for pipes and components, implies application by hot-dip process to both inside and outside and shall conform to ASTM A153. 4.9.2 Galvanized small bore piping (2” NPS and below) shall be procured in galvanized condition with screwed ends. Where galvanizing is specified, the piping shall be galvanized both inside and outside. 4.9.3 Galvanized pipe work of 3” NPS and larger, shall be fabricated as normal carbon steel pipe work in convenient spool lengths and subject to hot dip galvanizing subsequent to fabrication. Any BW field joints shall be repaired by external galvanizing only. 4.9.4 Galvanized bolts/nuts shall be in accordance with ADMA-OPCO Specification SP-1015.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 19.

(20) 4.10. Cu-Ni Piping. 4.10.1 Cu-Ni pipes and fittings shall be in accordance with EEMUA publications as a minimum. a. All seamless pipe shall comply with Publication No. 144 Tubes b. Flanges, composite and solid shall comply with Publication No. 145 c. Fittings shall comply with Publication No. 146 4.10.2 Material for seamless 90/10 Cu/Ni Alloy shall be UNS 7060X* and the maximum design, pressures shall be as given in the corresponding classes.. * Alloy UNS 7060X is a modified form of the national designated alloys UNS 70600. 4.10.3 All material shall be clean, smooth and free from harmful defects and from deleterious films inside. 4.11. Composite Materials Piping. 4.11.1. GRE pipes and fittings shall be in accordance with API Spec.15LR and ADMAOPCO Specification SP-1027 as a minimum.. 4.11.2. All base materials (resins, curing agents, glass-fibre reinforcing materials, pigments and other materials) shall be new and free from contamination and imperfections.. 4.11.3. The resins system used for pipe wall, interior liner, fittings and adhesives shall be Epoxy, Polyester or Vinylester resins with suitable curing agents meetings the performance requirement and temperature limits, stated in this Specification and piping class sheets. Unless otherwise specified, GRE pipes and fittings shall be provided with spigot and socket ends.. 4.11.4. All pipes shall be entirely machine made Reinforced Thermosetting Resin Pressure Pipes (RTRP) manufactured by the filament winding process in accordance with ASTM D2996.. 4.11.5. Flanges, bends, reducers, tees, wyes and other fittings may be compression moulded, manufactured by the filament wound process, or manufactured from mitred section of pipe, using thermosetting epoxy resin and fiberglass reinforcement such that the resistance to chemical attack, the pressure rating, and the temperature rating, are equal to or better than that of the pipe.. 4.11.6. Dimensions, tolerances and surface finishes shall be measured in accordance with ASTM D3567.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 20.

(21) 4.11.7. The average wall thickness of the pipe shall not be less than the nominal wall thickness published in the manufacturer literature, current at the time of purchase. The minimum wall thickness at any point shall not be less than 87.5% of the nominal wall thickness, when measured in accordance with ASTM D 3567.. 4.11.8. Flanges shall be flat faced and flange drilling shall be in accordance with ASME B16.5 for pies up to 24” NPS.. Except for compression molded fittings, all pipes, fittings, and flanges surfaces that are exposed to the fluid shall have a smooth, uniform, resin-rich liner with a thickness of 0.51 mm + 0.13 mm. The interior liner shall be reinforced with nonwoven epoxy. 4.11.10 Outside surface must be rich in resin. The resin used for topcoat shall be pure thermosetting resin and shall be same as used for the reinforced wall. The thickness of the topcoat shall be at least 0. 3 mm. 4.11.9. 4.11.11 Jointing system of GRE piping shall be by means of adhesive bonding. 4.11.12 The adhesive cement shall be of an epoxy/polyester type, formulated to be resistant to the media transported, UV deterioration, and applicable to the service temperature and pressures. 4.11.13 The shelf life of the adhesive cement kit at 45ºC shall not be less than six months from the date of shipment or 12 months from the date of production. 4.11.14 The long-term hydrostatic strength of pipe shall be determined in accordance with Procedure A or B of ASTM D2992. The Manufacturer shall select the procedure and one representative size for these tests. Adhesive joints shall be included, using both the factory and field adhesives and their respective joining and curing procedures, if different. 4.11.15 Flanges shall be pressure rated and marked in accordance with ASTM D4024. The manufacturer shall test, on a one-time basis, three samples of minimum, median and maximum flange sizes of the manufacturing range at the plant for each pressure rating. 4.11.16 All pipe, fittings and flanges for a particular installation shall be manufactured or supplied by the same Manufacturer to avoid incompatibility due to intermixing of products from different manufacturers. 4.11.17 In line with ISO 14692-1 & ISO 14692-2, GRE piping materials Class 150 may be utilized for oily/non oily, produced water & general non HC water applications provided that the operating temperature does not exceed 90 oC.. 0a. 05-07. 0. 12-06. Rev.. Date. Clause 4.11.17 added Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 21.

(22) 4.12. Cement Lined Piping. 4.12.1 Internal cement lining of pipes and fittings shall be done as per BP GS 106-1. 4.12.2 All fittings (bends, tees, reducers etc.) shall have 150 mm (6”) long pup piece at each ends either bought out as such or pre-fabricated prior to cement lining, as per requirements and figures detailed in BP GS 106-1. 4.12.3 All fabricated CS spools shall be 100% hydro tested before cement mortar lining. 4.12.4 Material for internal lining of the pipes and fittings shall be sulphate resistant cement mortar and the procedure shall be as per BP GS 106-1. 4.12.5 The lining thickness shall be as specified in the description and table in clause 3.5.1 of BP GS 106-1. 4.12.6 Joining of cement-lined piping shall be by means of sleeves and a jointing compound shall be used. 4.12.7 The sleeve material, size, thickness etc. shall be as per BP Specification GS 106-1. 4.12.8 Sleeves shall be either loose supplied or shall be part of the pre-fabricated fittings as specified in the material requisition. 4.12.9 Jointing material shall be an epoxy pipe-jointing compound. The jointing compound Peridite or equivalent shall be used as jointing compound consisting of PS3654 Base, PZ2469 Hardener and PZ2470 Accelerator. Use of alternate cementing material that suit the jointing of the cement-lined items is permitted subject to prior approval by Company.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 22.

(23) 5.. PIPING CLASS DESIGNATION SYSTEM. The piping class shall be 4 or 5 digit Alphanumeric Code as follows:. A. C0. N. A1. Where: Special Requirements (Alphanumeric) Shows Differences in Piping Classes within the same rating and material (Refer Attached Table-2). Pressure Rating (Alphabet) A – 150 # E – 1500# B – 300 # F – 2500# C – 600 # G – 5000# D – 900 # H – 10000# W – 125# Basic Material (Alphanumeric) (Refer Attached Table-1). 0. 12-06. Rev.. Date. NACE Requirement (Alphabet) G – General (Non-NACE) Piping Class N – NACE Piping Class L – Non-NACE Pipeline Class P – NACE Pipeline Class. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 23.

(24) BASIC MATERIAL CODE TABLE-1 Material. Code. C1. ASTM A 53 Gr. B. C2. ASTM A 106 Gr. B. C3. API 5L X42. C4. API 5L X52. C5. API 5L X60. N5. C6. API 5L X65. G0. GRE. C7. API 5L Gr. B-Galvanized. G1. GRP. C8. Carbon Steel-Lined. G2. GRV. Non-Ferrous Metal. API 5L Gr. B. A0. N0. UNS N0 8825. N1. UNS N0 6625. N2. Copper Nickel 70/30. N3. Copper Nickel 90/10. N4. Duplex Stainless Steel. G3 ASTM A 333 Gr. 6 PVC. LTCS. L0. Alloy Steel. C9. Stainless Steel. Material. C0. RTR. Carbon Steel. Code. L1 ASTM A 335 Gr. P1. P0. PVC. P1. UPVC. P2 Where:. A1. LTCS = Low Temperature Carbon Steel. S0. ASTM A 312 TP-304. S1. ASTM A 312 TP-304L. RTR = Reinforced Thermosetting Plastic Resin. S2. ASTM A 312 TP-316. GRE = Glass Reinforced Epoxy. S3. ASTM A 312 TP-316L. S4. ASTM A 312 TP-321. GRP = Glass Reinforced Polyester GRV = Glass Reinforced Vinylester PVC = Poly Vinyl Chloride. S5. UPVC = Unplasticised Poly Vinyl Chloride. Note: Blank Codes will be utilized for future additions/update.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 24.

(25) SPECIAL REQUIREMENTS TABLE-2 Code. A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 B0 B1 B2. Description (Note-1). Base Pipe Class Corrosion allowance changed to 6mm from base pipe class. Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9 Note: 1. This number (A0 to Z9, total of 24x10 = 240 combinations excluding alphabets “I” and “O”) is used to differentiate the piping class within the same rating, basic material and NACE requirement. The codes will be assigned during the development of the piping classes. The description against these codes will be very general as indicated here as example. 2. Note: Blank Codes will be utilized for future additions/updates.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 25.

(26) 6.. Pipe Class. PIPING CLASS INDEX Pipe Material (Note 6.1). Maximum Pressure (Barg) (Note 6.2). Temp. Range. 19.6. -29°C to. AC0GA0 API 5L Gr. B. Service Facing NACE Corrosion Pressure Category and Face Requirement Allowance Class (Note 6.3) Finish. Type of Gasket. Stud Bolt. Non-NACE. 3 mm. 150 #. RF, CNAF, Flat A193 B7/ Serrated Ring A194 2H. +200°C. 19.6. -29°C to +200°C. NACE. 3 mm. 150 #. RF, Spiral Smooth Wound. A193 B7M/ A194 2HM. AC0NA1 API 5L Gr. B. 19.6. -29°C to +200°C. NACE. 6 mm. 150 #. RF, Spiral Smooth Wound. A193 B7M/ A194 2HM. AC7GA0 API 5L Gr. B, Galvanised. 19.6. -29°C to +200°C. Non-NACE. 3 mm. 150 #. RF, CNAF, Flat A193 B7/ Serrated Ring A194 2H. AC8GA0 API 5L Gr. B, Cement Lined. 19.6. -29°C to +200°C. Non-NACE. 3 mm. 150 #. RF, CNAF, Flat A193 B7/ Serrated Ring A194 2H. BC0GA0 API 5L Gr. B. 51.1. -29°C to +250°C. Non-NACE. 3 mm. 300 #. RF, Spiral Smooth Wound. A193 B7/ A194 2H. BC0NA0 API 5L Gr. B. 51.1. -29°C to +200°C. NACE. 3 mm. 300 #. RF, Spiral Smooth Wound. A193 B7M/ A194 2HM. BC0NA1 API 5L Gr. B. 51.1. -29°C to +200°C. NACE. 6 mm. 300 #. RF, Spiral Smooth Wound. A193 B7M/ A194 2HM. CC0GA0 API 5L Gr. B. 102.1. -29°C to +200°C. Non-NACE. 3 mm. 600 #. RTJ, Soft Iron A193 B7/ Very Octagonal A194 2H Smooth Ring. CC0NA0 API 5L Gr. B. 102.1. -29°C to +200°C. NACE. 3 mm. 600 #. RTJ, Soft Iron A193 B7M/ Very Octagonal A194 2HM Smooth Ring. CC0NA1 API 5L Gr. B. 102.1. -29°C to +200°C. NACE. 6 mm. 600 #. RTJ, Soft Iron A193 B7M/ Very Octagonal A194 2HM Smooth Ring. DC0GA0 API 5L Gr. B. 153.2. -29°C to +200°C. Non-NACE. 3 mm. 900 #. RTJ, Soft Iron A193 B7/ Very Octagonal A194 2H Smooth Ring. DC0NA0 API 5L Gr. B. 153.2. -29°C to +200°C. NACE. 3 mm. 900 #. RTJ, Soft Iron A193 B7M/ Very Octagonal A194 2HM Smooth Ring. DC0NA1 API 5L Gr. B. 153.2. -29°C to +200°C. NACE. 6 mm. 900 #. RTJ, Soft Iron A193 B7M/ Very Octagonal A194 2HM Smooth Ring. EC5GA0 API 5L X-60. 255.3. -29°C to +200°C. Non-NACE. 3 mm. 1500 #. RTJ, Soft Iron A193 B7/ Very Octagonal A194 2H Smooth Ring. EC5NA0 API 5L X-60. 255.3. -29°C to +200°C. NACE. 3 mm. 1500 #. RTJ, Soft Iron A193 B7M/ Very Octagonal A194 2HM Smooth Ring. 0. 12-06. Rev.. Date. Refer to each pipe class and ADMA-OPCO Code of Practice CP-111. AC0NA0 API 5L Gr. B. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 26.

(27) 6.. PIPING CLASS INDEX (CONT’D.). Pipe Class. Maximum Pressure (Barg) (Note 6.2). Pipe Material (Note 6.1). Temp. Range. Service Facing NACE Corrosion Pressure Category and Face Requirement Allowance Class (Note 6.3) Finish. Type of Gasket. Stud Bolt. 255.3. -29°C to +200°C. NACE. 6 mm. 1500 #. RTJ, Soft Iron A193 B7M/ Very Octagonal A194 2HM Smooth Ring. FC5GA0 API 5L X-60. 303.46. -29°C to +200°C. Non-NACE. 3 mm. 2500 #. RTJ, Soft Iron A193 B7/ Very Octagonal A194 2H Smooth Ring. FC5NA0 API 5L X-60. 303.46. -29°C to +200°C. NACE. 3 mm. 2500 #. RTJ, Soft Iron A193 B7M/ Very Octagonal A194 2HM Smooth Ring. FC5NA1 API 5L X-60. 310.86. -29°C to +200°C. NACE. 6 mm. 2500 #. RTJ, Soft Iron A193 B7M/ Very Octagonal A194 2HM Smooth Ring. NACE. 3 mm. 150 #. RF, Spiral Smooth Wound. A320 L7M/ A194 4M. NACE. 6 mm. 150 #. RF, Spiral Smooth Wound. A320 L7M/ A194 4M. NACE. 3 mm. 300 #. RF, Spiral Smooth Wound. A320 L7M/ A194 4M. NACE. 6 mm. 300 #. RF, Spiral Smooth Wound. A320 L7M/ A194 4M. NACE. 3 mm. 600 #. RTJ, Soft Iron A320 L7M/ Very Octagonal A194 4M Smooth Ring. NACE. 6 mm. 600 #. RTJ, Soft Iron A320 L7M/ Very Octagonal A194 4M Smooth Ring. NACE. 6 mm. 2500 #. RTJ, Soft Iron A320 L7M/ Very Octagonal A194 4M Smooth Ring. Non-NACE. 0 mm. 150 #. RF, Spiral Smooth Wound. Incoloy 925 Incoloy 925. Refer to each pipe class and ADMA-OPCO Code of Practice CP-111. EC5NA1 API 5L X-60. AL0NA0. A 333 Gr. 6. 19.6. -45°C to +200°C. AL0NA1. A 333 Gr. 6. 19.6. -45°C to +200°C. BL0NA0. A 333 Gr. 6. 51.1. -45°C to +200°C. BL0NA1. A 333 Gr. 6. 51.1. -45°C to +200°C. CL0NA0. A 333 Gr. 6. 102.1. -45°C to +200°C. CL0NA1. A 333 Gr. 6. 102.1. -45°C to +200°C. FL0NA1. A 333 Gr. 6. 325. -45°C to +200°C. AS0GA0 A 312 TP-304. 19. -29°C to +200°C. BS0GA0 A 312 TP-304. 49.6. -29°C to +200°C. Non-NACE. 0 mm. 300 #. RF, Spiral Smooth Wound. CS0GA0 A 312 TP-304. 99.3. -29°C to +200°C. Non-NACE. 0 mm. 600 #. RTJ, SS-304 Incoloy 925 Very Octagonal Smooth Ring. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 27.

(28) 6.. PIPING CLASS INDEX (CONT’D.). Pipe Class. Maximum Pressure (Barg) (Note 6.2). Pipe Material (Note 6.1). Temp. Range. Service Facing NACE Corrosion Pressure Category and Face Requirement Allowance Class (Note 6.3) Finish. Type of Gasket. Stud Bolt. 148.9. -29°C to +200°C. Non-NACE. 0 mm. 900 #. RTJ, SS-304 Incoloy 925 Very Octagonal Smooth Ring. AS2GA0 A 312 TP-316. 19. -29°C to +200°C. Non-NACE. 0 mm. 150 #. RF, Spiral Smooth Wound. Incoloy 925. BS2GA0 A 312 TP-316. 49.6. -29°C to +200°C. Non-NACE. 0 mm. 300 #. RF, Spiral Smooth Wound. Incoloy 925. CS2GA0 A 312 TP-316. 99.3. -29°C to +200°C. Non-NACE. 0 mm. 600 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. DS2GA0 A 312 TP-316. 148.9. -29°C to +200°C. Non-NACE. 0 mm. 900 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. NACE. 0 mm. 150 #. RF, Spiral Smooth Wound. Incoloy 925. Non-NACE. 0 mm. 150 #. RF, Spiral Smooth Wound. Incoloy 925. Non-NACE. 0 mm. 300 #. RF, Spiral Smooth Wound. Incoloy 925. NACE. 0 mm. 300 #. RF, Spiral Smooth Wound. Incoloy 925. Non-NACE. 0 mm. 600 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. NACE. 0 mm. 600 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. Non-NACE. 0 mm. 900 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. NACE. 0 mm. 900 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. Refer to each pipe class and ADMA-OPCO Code of Practice CP-111. DS0GA0 A 312 TP-304. AS3NA0. A 312 TP316L. 15.9. -29°C to +200°C. AS3GA0. A 312 TP316L. 15.9. -29°C to +200°C. BS3GA0. A 312 TP316L. 41.4. -29°C to +200°C. BS3NA0. A 312 TP316L. 41.4. -29°C to +200°C. CS3GA0. A 312 TP316L. 82.7. -29°C to +200°C. CS3NA0. A 312 TP316L. 82.7. -29°C to +200°C. DS3GA0. A 312 TP316L. 124.1. -29°C to +200°C. DS3NA0. A 312 TP316L. 124.1. -29°C to +200°C. ES3GA0. A 312 TP316L. 206.8. -29°C to +200°C. Non-NACE. 0 mm. 1500 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. ES3NA0. A 312 TP316L. 206.8. -29°C to +200°C. NACE. 0 mm. 1500 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 28.

(29) 6.. PIPING CLASS INDEX (CONT’D.) Maximum Pressure (Barg) (Note 6.2). Pipe Class. Pipe Material (Note 6.1). FS3GA0. A 312 TP316L. 344.7. -29°C to +200°C. Non-NACE. 0 mm. 2500 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. FS3NA0. A 312 TP316L. 344.7. -29°C to +200°C. NACE. 0 mm. 2500 #. RTJ, SS-316 Incoloy 925 Very Octagonal Smooth Ring. AS4NA0 A 312 TP-321. 19. -29°C to +200°C. NACE. 0 mm. 150 #. RF, Spiral Smooth Wound. Incoloy 925. BS4NA0 A 312 TP-321. 49.6. -29°C to +200°C. NACE. 0 mm. 300 #. RF, Spiral Smooth Wound. Incoloy 925. CS4NA0 A 312 TP-321. 99.3. -29°C to +200°C. NACE. 0 mm. 600 #. RTJ, SS-321 Incoloy 925 Very Octagonal Smooth Ring. DS4NA0 A 312 TP-321. 148.9. -29°C to +200°C. NACE. 0 mm. 900 #. RTJ, SS-321 Incoloy 925 Very Octagonal Smooth Ring. ES4NA0 A 312 TP-321. 248.2. -29°C to +200°C. NACE. 0 mm. 1500 #. RTJ, SS-321 Incoloy 925 Very Octagonal Smooth Ring. FS4NA0 A 312 TP-321. 413.7. -29°C to +200°C. NACE. 0 mm. 2500 #. RTJ, SS-321 Incoloy 925 Very Octagonal Smooth Ring. AN1NA0 UNS N06625. 20. -29°C to +200°C. NACE. 0 mm. 150 #. RF, Spiral Smooth wound. Incoloy 925. BN1NA0 UNS N06625. 51.7. -29°C to +200°C. NACE. 0 mm. 300 #. RF, Spiral Smooth wound. Incoloy 925. CN1NA0 UNS N06625. 103.4. -29°C to +200°C. NACE. 0 mm. 600 #. RTJ, Inconel Incoloy 925 Very Octagonal Smooth Ring. DN1NA0 UNS N06625. 155.4. -29°C to +200°C. NACE. 0 mm. 900 #. RTJ, Inconel Incoloy 925 Very Octagonal Smooth Ring. EN1NA0 UNS N06625. 258.6. -29°C to +200°C. NACE. 0 mm. 1500 #. RTJ, Inconel Incoloy 925 Very Octagonal Smooth Ring. FN1NA0 UNS N06625. 430.9. -29°C to +200°C. NACE. 0 mm. 2500 #. RTJ, Inconel Incoloy 925 Very Octagonal Smooth Ring. Cu-Ni 90/10. 16.0. -29°C to +75°C. Non-NACE. 0.5 mm. 150 #. RF, CNAF, Flat Monel 400 Smooth Ring. AN3GA0. 0. 12-06. Rev.. Date. Service Facing NACE Corrosion Pressure Category and Face Requirement Allowance Class (Note 6.3) Finish. Refer to each pipe class and ADMA-OPCO Code of Practice CP-111. Temp. Range. Type of Gasket. Stud Bolt. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 29.

(30) PIPING CLASS INDEX (CONT’D.). Pipe Class. Pipe Material (Note 6.1). Maximum Pressure (Barg) (Note 6.2). AG0GA0. GRE. 16.00. AP1GA0. UPVC. Temp. Range 0°C to +85°C 0°C to +85°C. Service NACE Facing Corrosion Pressure Category Requiremen and Face Allowance Class (Note 6.3) t Finish Refer to each piping class and ADMA-OPCO Code of Practice CP-111. 6.. Type of Gasket. Stud Bolt. Non-NACE. 0 mm. 150 #. FF, Neoprene Smooth Full Face. A193 B7/ A194 2H. Non-NACE. 0 mm. 150 #. RF, Neoprene Serrated Flat Ring. A193 B7/ A194 2H. Notes for Table 6: 6.1. The pipe class may be used beyond the temperature range given after reviewing the usability of each of the piping components included in the pipe class. In such a case the applicable pressure shall be selected based on the relevant codes and standards. 6.2. The maximum pressure given is at the minimum temperature of the temperature range mentioned. For temperatures higher than the minimum value, the corresponding allowable pressure is given in each pipe class. The maximum pressure given in piping classes are less than the maximum allowable pressure of flanges given in ASME B 16.5 for that flange rating. In such cases, the pressure temperature rating chart in the piping class is indicated in “italics”. 6.3. Service category indicates if the pipe class is suitable for the service category “A” or “B” as given in ADMA-OPCO Code of Practice CP-111. Since service category A has stringent requirement in CP-111, pipe class with service category-A is also suitable for fluids with service category-B.. Pipe Class. PIPELINE CLASS INDEX Maximum Pressure (Barg) (Note 6.2). Pipe Material (Note 6.1). Temp. Range. EC5PA0 API 5L X-60. 255.3. -29°C to +200°C. EC5LA0 API 5L X-60. 255.3. -29°C to +200°C. FC5PA0 API 5L X-60. 303.46. -29°C to +200°C. 0a. 05-07. 0. 12-06. Rev.. Date. Facing Service NACE Corrosion Pressure and Face Category Requirement Allowance Class Finish (Note 6.3). Refer to each pipeline Class and ADMA-OPCO Code of Practice CP-111. 7.. Type of Gasket. Stud Bolt. NACE. 3 mm. 1500 #. RTJ. Soft Iron A193 B7M/ Octagonal A194 2HM Ring Joint. Non-NACE. 3 mm. 1500 #. RTJ. Soft Iron A193 B7M/ Octagonal A194 2HM Ring Joint. NACE. 3 mm. 2500 #. RTJ. Soft Iron A193 B7M/ Octagonal A194 2HM Ring Joint. Notes 6.1 ,6.2 & 6.3 relocated to be after Table 6 Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 30.

(31) 1-3 AC0GA0 CS. AC0NA0. 150. AC0NA1. CS Galvanised CS Cement Lined. AC8GA0. 150. 150. BC0NA0. CS. 300. BC0NA1. CC0NA0. All. CS. 600. CC0NA1. 0. 12-06. Rev.. Date. (Note-8.1). Butterfly Valve. (Note-8.1). Check Valves. (Note-8.1). Ball Valve. (Note-8.1). (Note-8.1). Globe Valve. A 216 WCB- A 216 WCBGalvanised Galvanised Body, solid Body, solid SS SS 316 trim 316 trim. A 216 WCBA 216 WCBGalvanised Galvanised Body, solid SS Body, solid 316 trim, metal SS 316 trim seated. B 148 Gr. B 148 Gr. C95800 body, C95800 body, Aluminum Aluminum bronze trim bronze trim. N/A. B 148 Gr. B 148 Gr. C95800 body, C95800 body, Aluminum Aluminum bronze trim bronze trim. A 216 WCB A 216 WCB A 216 WCB A 216 WCB A 216 WCB Body, Solid SS Body, Solid Body, Solid SS Body, Solid Body, solid SS 316 trim SS 316 trim 316 trim SS 316 trim 316 trim, metal seated. Body - A 216 Body - A 216 Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – WCB, trim – WCB, trim – CS 4 & above CS with SS CS with SS CS with SS CS with SS with SS overlay, overlay overlay overlay overlay metal seated 1–3. CC0GA0. A 216 WCBGalvanised Body, solid SS 316 trim. Body - A 216 Body - A 216 Body - A 216 Body - A 216 Body - A 216 WCB Galv., WCB Galv., WCB Galv., WCB Galv., WCB Galv., trim 4 & above trim – CS with trim – CS trim – CS with trim – CS – CS with SS SS overlay with SS SS overlay with SS overlay, metal overlay overlay seated. 1–3. BC0GA0. A 216 WCB A 216 WCB A 216 WCB A 216 WCB A 216 WCB Body, Solid SS Body, Solid Body, Solid SS Body, Solid Body, Solid SS 316 trim SS 316 trim 316 trim SS 316 trim 316 trim, metal seated. 4 & above Body - A 216 Body - A 216 Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – WCB, trim – WCB, trim – CS CS with SS CS with SS CS with SS CS with SS with SS overlay, overlay overlay overlay overlay metal seated 1-3. AC7GA0. Gate Valve. Pressure Class. Material. Pipe Size. VALVE INDEX Pipe Class. 8.. A 216 WCB A 216 WCB A 216 WCB A 216 WCB A 216 WCB Body, Solid SS Body, Solid Body, Solid SS Body, Solid Body, solid SS 316 trim SS 316 trim 316 trim SS 316 trim 316 trim, metal seated. Body - A 216 Body - A 216 Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – WCB, trim – WCB, trim – CS 4 & above CS with SS CS with SS CS with SS CS with SS with SS overlay, overlay overlay overlay overlay metal seated. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 31.

(32) 900. DC0NA1. 1500. EC5NA1. A 216 WCB Body, Solid Inconel 625 trim. 2500. FC5NA1. AL0NA1. LTCS. 150. BL0NA1. LTCS. 0. 12-06. Rev.. Date. 300. A 216 WCB Body, Solid Inconel 625 trim. A 216 WCB Body, Solid Inconel 625 trim. A 216 WCB Body, Solid Inconel 625 trim. N/A. Body - A 216 Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – WCB, trim – 4 & above CS with CS with CS with CS with Inconel 625 Inconel 625 Inconel 625 Inconel 625 overlay overlay overlay overlay. N/A. N/A. A 352 LCB A 352 LCB A 352 LCB A 352 LCB Body, solid SS Body, solid Body, solid SS Body, solid 316 trim SS 316 trim 316 trim SS 316 trim. N/A. A 352 LCB A 352 LCB A 352 LCB A 352 LCB Body, trim – Body, trim – Body, trim – Body, trim – 4 & above LTCS with LTCS with LTCS with SSLTCS with SSSS-316 SS-316 316 overlay 316 overlay overlay overlay. N/A. A 352 LCB A 352 LCB A 352 LCB A 352 LCB Body, solid SS Body, solid Body, solid SS Body, solid 316 trim SS 316 trim 316 trim SS 316 trim. N/A. A 352 LCB A 352 LCB A 352 LCB A 352 LCB Body, trim – Body, trim – Body, trim – Body, trim – 4 & above LTCS with LTCS with LTCS with SSLTCS with SSSS-316 SS-316 316 overlay 316 overlay overlay overlay. N/A. (Note-8.1). Butterfly Valve. (Note-8.1). Check Valves. (Note-8.1). Ball Valve. N/A. 1–3 BL0NA0. (Note-8.1). Body - A 216 Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – WCB, trim – 4 & above CS with CS with CS with CS with Inconel 625 Inconel 625 Inconel 625 Inconel 625 overlay overlay overlay overlay. 1–3 AL0NA0. A 216 WCB Body, Solid Inconel 625 trim. N/A. FC5GA0 CS. A 216 WCB Body, Solid Inconel 625 trim. A 216 WCB Body, Solid Inconel 625 trim. 1–3 FC5NA0. Globe Valve. (Note-8.1). N/A. EC5GA0 CS. A 216 WCB Body, solid inconel 625 trim. Body - A 216 Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – WCB, trim – 4 & above CS with CS with CS with CS with Inconel 625 Inconel 625 Inconel 625 Inconel 625 overlay overlay overlay overlay 1–3. EC5NA0. A 216 WCB Body, solid inconel 625 trim. N/A. 1–3 CS. A 216 WCB Body, solid inconel 625 trim. A 216 WCB Body, solid inconel 625 trim. DC0GA0 DC0NA0. Gate Valve. Pipe Size. Pressure Class. Material. Pipe Class. 8. VALVE INDEX (CONT’D.). Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 32.

(33) CL0NA1. LTCS. 600. LTCS. A 352 LCB A 352 LCB A 352 LCB A 352 LCB Body, trim – Body, trim – Body, trim – Body, trim – 4 & above LTCS with LTCS with LTCS with SSLTCS with SSSS-316 SS-316 316 overlay 316 overlay overlay overlay. N/A. N/A. A 352 LCB Body, Solid Inconel trim. A 352 LCB Body, Solid Inconel trim. N/A. N/A. A 352 LCB A 352 LCB A 352 LCB Body, trim – Body, trim – Body, trim – LTCS with LTCS with LTCS with Inconel Inconel Inconel overlay overlay overlay. N/A. 2500 4 & above. A 352 LCB Body, Solid Inconel trim. AS0GA0. SS. 150. All sizes. A 351 CF8 A 351 CF8 A 351 CF8 A 351 CF8 Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. N/A. BS0GA0. SS. 300. All sizes. A 351 CF8 A 351 CF8 A 351 CF8 A 351 CF8 Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. N/A. CS0GA0. SS. 600. All sizes. A 351 CF8 A 351 CF8 A 351 CF8 A 351 CF8 Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. N/A. DS0GA0. SS. 900. All sizes. A 351 CF8 A 351 CF8 A 351 CF8 A 351 CF8 Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. N/A. SS. 150. All sizes. A 351 CF8M A 351 CF8M A 351 CF8M A 351 CF8M Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. N/A. SS. 300. All sizes. A 351 CF8M A 351 CF8M A 351 CF8M A 351 CF8M Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. N/A. SS. 600. All sizes. A 351 CF8M A 351 CF8M A 351 CF8M A 351 CF8M Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. N/A. AS2GA0 AS3NA0 AS3GA0 BS2GA0 BS3GA0 BS3NA0 CS2GA0 CS3GA0 CS3NA0. 0. 12-06. Rev.. Date. (Note-8.1). Butterfly Valve. (Note-8.1). Check Valves. (Note-8.1). Ball Valve. (Note-8.1). Globe Valve. N/A. 1–3 FL0NA1. (Note-8.1). A 352 LCB A 352 LCB A 352 LCB A 352 LCB Body, solid SS Body, solid Body, solid SS Body, solid 316 trim SS 316 trim 316 trim SS 316 trim. 1–3 CL0NA0. Gate Valve. Pipe Size. Pressure Class. Material. Pipe Class. 8. VALVE INDEX (CONT’D.). Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 33.

(34) 1500. All sizes. A 351 CF8M A 351 CF8M A 351 CF8M A 351 CF8M Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. N/A. SS. 2500. All sizes. A 351 CF8M A 351 CF8M A 351 CF8M Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim. N/A. AS4NA0. SS. 150. All sizes. SS 321 Body SS 321 Body SS 321 Body SS 321 Body and SS 321 and SS 321 and SS 321 and SS 321 trim trim trim trim. N/A. BS4NA0. SS. 300. All sizes. SS 321 Body SS 321 Body SS 321 Body SS 321 Body and SS 321 and SS 321 and SS 321 and SS 321 trim trim trim trim. N/A. CS4NA0. SS. 600. All sizes. SS 321 Body SS 321 Body SS 321 Body SS 321 Body and SS 321 and SS 321 and SS 321 and SS 321 trim trim trim trim. N/A. DS4NA0. SS. 900. All sizes. SS 321 Body SS 321 Body SS 321 Body SS 321 Body and SS 321 and SS 321 and SS 321 and SS 321 trim trim trim trim. N/A. ES4NA0. SS. 1500. All sizes. SS 321 Body SS 321 Body SS 321 Body SS 321 Body and SS 321 and SS 321 and SS 321 and SS 321 trim trim trim trim. N/A. FS4NA0. SS. 2500. All sizes. SS 321 Body SS 321 Body SS 321 Body and SS 321 and SS 321 and SS 321 trim trim trim. N/A. AN1NA0. 150. All sizes. Inconel Body Inconel Body Inconel Body Inconel Body and trim and trim and trim and trim. N/A. BN1NA0. 300. All sizes. Inconel Body Inconel Body Inconel Body Inconel Body and trim and trim and trim and trim. N/A. CN1NA0. 600. All sizes. Inconel Body Inconel Body Inconel Body Inconel Body and trim and trim and trim and trim. N/A. ES3GA0 ES3NA0 FS3GA0 FS3NA0. 0. 12-06. Rev.. Date. N/A. N/A. Check Valves. SS. DS3NA0. (Note-8.1). Butterfly Valve. (Note-8.1). (Note-8.1). Ball Valve. N/A. Inconel. (Note-8.1). A 351 CF8M A 351 CF8M A 351 CF8M A 351 CF8M Body, SS 316 Body, SS 316 Body, SS 316 Body, SS 316 trim trim trim trim. DS3GA0. Globe Valve. Pipe Size All sizes. Inconel. (Note-8.1). Pressure Class 900. DS2GA0. Gate Valve. Material SS. Inconel. Pipe Class. 8. VALVE INDEX (CONT’D.). Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 34.

(35) AN3GA0. AG0GA0. AP1GA0. N/A. 2500. All sizes. Inconel Body Inconel Body Inconel Body and trim and trim and trim. N/A. 150. All sizes. B 148 Gr. B 148 Gr. C95800 body, C95800 body, Aluminum Aluminum bronze trim bronze trim. All sizes. B 148 Gr. B 148 Gr. C95800 body, C95800 body, Aluminum Aluminum bronze trim bronze trim. 150. 150. All sizes. 1–3 CS. 1–3. 0. 12-06. Rev.. Date. N/A. B 148 Gr. B 148 Gr. C95800 body, C95800 body, Aluminum Aluminum bronze trim bronze trim N/A. N/A. A 216 WCB Body, Solid Inconel 625 trim. A 216 WCB Body, Solid Inconel 625 trim. N/A. N/A. Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – CS with CS with CS with Inconel 625 Inconel 625 Inconel 625 overlay overlay overlay. N/A. N/A. A 216 WCB Body, Solid Inconel 625 trim. A 216 WCB Body, Solid Inconel 625 trim. N/A. N/A. Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – CS with CS with CS with Inconel 625 Inconel 625 Inconel 625 overlay overlay overlay. N/A. 1500 4 & above. N/A. B 148 Gr. B 148 Gr. C95800 body, C95800 body, Aluminum Aluminum bronze trim bronze trim. PVC Body PVC Body and PVC Body and trim trim and trim. N/A. 1500 4 & above. CS. N/A. Check Valves. Inconel Body Inconel Body Inconel Body Inconel Body and trim and trim and trim and trim. (Note-8.1). Butterfly Valve. (Note-8.1). (Note-8.1). Ball Valve. All sizes. UPVC. EC5LA0. (Note-8.1). 1500. Globe Valve. Pipe Size. N/A. GRE. EC5PA0. (Note-8.1). Pressure Class. Inconel Body Inconel Body Inconel Body Inconel Body and trim and trim and trim and trim. Gate Valve. Material Inconel. FN1NA0. All sizes. Inconel. EN1NA0. 900. Inconel. DN1NA0. CopperNickel. Pipe Class. 8. VALVE INDEX (CONT’D.). A 216 WCB Body, Solid Inconel 625 trim. A 216 WCB Body, Solid Inconel 625 trim. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 35.

(36) FC5PA0. FC5PA0. CS. CS. 2500. 1500. 1–3. 4 & above. N/A. A 216 WCB Body, Solid Inconel 625 trim. A 216 WCB Body, Solid Inconel 625 trim. N/A. N/A. Body - A 216 Body - A 216 Body - A 216 WCB, trim – WCB, trim – WCB, trim – CS with CS with CS with Inconel 625 Inconel 625 Inconel 625 overlay overlay overlay. N/A. A 216 WCB Body, Solid Inconel 625 trim. (Note-8.1). Butterfly Valve. (Note-8.1). Check Valves. (Note-8.1). Ball Valve. (Note-8.1). Globe Valve. (Note-8.1). Gate Valve. Pipe Size. Pressure Class. Material. Pipe Class. 8. VALVE INDEX (CONT’D.). VALVE INDEX Notes. 8.1 Wherever cast body material is specified for valves of pipe sizes 2” NPS and below, equivalent forged body material is acceptable.. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 36.

(37) 9.. SERVICE INDEX. Fluid Code Fluid Description (Note-9.1). Pressure Rating. Basic Material. Pipe Class. AM. Amine (Note-9.2). 150. CS. AC0NA0, AC0NA1. AM. Amine (Note-9..2). 300. CS. BC0NA0, BC0NA1. CS. Chemical Sewer. 150. CS. AC0NA1. CW. Chilled Water. 150. CS. AC0GA0. ANF. Chemical Injection – Antifoaming Agent. 150(Note 9.3). SS. AS3GA0. BCD. Chemical Injection – Biocide. 150(Note 9.3). SS. AS3GA0. CRI. Chemical Injection – Corrosion Inhibitor. 150(Note 9.3). SS. AS3GA0. DMF. Chemical Injection – Demulsifier. 150(Note 9.3). SS. AS3GA0. MNL. Chemical Injection – Methanol. 150(Note 9.3). SS. AS3GA0. OSC. Chemical Injection – Oxygen Scavenger. 150. SS. AS3GA0. SHC. Chemical Injection – Sodium Hyper-Chlorite. 150. Note-9.4. Note-9.4. SCI. Chemical Injection – Scale Inhibitor. 150. SS. AS3GA0. CO. Crude Oil. 150. CS. AC0NA0, AC0NA1. CO. Crude Oil. 300. CS. BC0NA0, BC0NA1. CO. Crude Oil. 600. CS. CC0NA0, CC0NA1. CO. Crude Oil. 900. CS. DC0NA0, DC0NA1. CO. Crude Oil. 1500. CS. EC5NA0, EC5NA1. CO. Crude Oil. 2500. CS. FC5NA0, FC5NA1. DD. Deck drain (on offshore platform). 150. GRE. AG0GA0. DM. De-mineralised water. 150. SS. AS3GA0. DO. Diesel oil. 150. CS. AC0NA0. FW. Fire Water (Sea water). 150. Cu-Ni. AN3GA0. FW. Fire Water (Sea water). 150. GRE. AG0GA0. FW. Fire Water (Sea water) [Not to be used for offshore]. 150. CS-Cement Lined. AC8GA0. FL. Flare Gas. 150. CS/LTCS. AC0NA0, AC0NA1, AL0NA0, AL0NA1. FL. Flare Gas. 300. CS/LTCS. BC0NA0, BC0NA1, BL0NA0, BL0NA1. FG. Fuel Gas. 150. CS. AC0NA0, AC0NA1. FG. Fuel Gas. 300. CS. BC0NA0, BC0NA1. FG. Fuel Gas. 600. CS. CC0NA0, CC0NA1. FO. Fuel oil. 150. CS. AC0NA0, AC0NA1. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 37.

(38) 9. SERVICE INDEX (CONT’D.) Fluid Code Fluid Description. Pressure Rating. Materials. Class. GC. Gas condensate. 150. CS. AC0NA0, AC0NA1. GC. Gas condensate. 300. CS. BC0NA0, BC0NA1. GC. Gas condensate. 600. CS. CC0NA0, CC0NA1. GC. Gas condensate. 900. CS. DC0NA0, DC0NA1. GC. Gas condensate. 1500. CS. EC5NA0, EC5NA1. GC. Gas condensate. 2500. CS. FC5NA0, FC5NA1. ND. General drain (Non-corrosive and nonhydrocarbon). 150. CS. AC0GA0. NV. General vents (Non-corrosive and nonhydrocarbon). 150. CS. AC0GA0. GY. Glycol. 150. CS. AC0GA0. GY. Glycol. 300. CS. BC0GA0. GY. Glycol. 150. SS. AS3GA0. GY. Glycol. 300. SS. BS3GA0. HO. Healing oil. 150. CS. AC0GA0. HS. High Pressure Steam. 600. CS. CC0GA0. HC. Hydrocarbon condensate. 150. CS. AC0NA0, AC0NA1. HC. Hydrocarbon condensate. 300. CS. BC0NA0, BC0NA1. HC. Hydrocarbon condensate. 600. CS. CC0NA0, CC0NA1. HC. Hydrocarbon condensate (Low temperature). 150. LTCS. AL0NA0. HD. Hydrocarbon open drain. 150. CS. AC0NA0, AC0NA1. VH. Hydrocarbon vents. 150. CS. AC0NA0, AC0NA1. VH. Hydrocarbon vents (Low temperature). 150. LTCS. AL0NA0. VH. Hydrocarbon vents. 300. CS. BC0NA0, BC0NA1. VH. Hydrocarbon vents (Low temperature). 300. LTCS. BL0NA0. VH. Hydrocarbon vents. 600. CS. CC0NA0, CC0NA1. VH. Hydrocarbon vents. 900. CS. DC0NA0, DC0NA1. VH. Hydrocarbon vents. 1500. CS. EC5NA0, EC5NA1. VH. Hydrocarbon vents. 2500. CS. FC5NA0, FC5NA1. CD. Hydrocarbon closed drain. 150. CS. AC0NA0, AC0NA1. CD. Hydrocarbon closed drain. 300. CS. BC0NA0, BC0NA1. CD. Hydrocarbon closed drain. 600. CS. CC0NA0, CC0NA1. 0. 12-06. Rev.. Date. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 38.

(39) 9. SERVICE INDEX (CONT’D.) Fluid Code Fluid Description. 0a. Pressure Rating. Materials. Class. CD. Hydrocarcon closed drain. 900. CS. DC0NA0, DC0NA1. CD. Hydrocarcon closed drain. 1500. CS. EC5NA0, EC5NA1. CD. Hydrocarcon closed drain. 2500. CS. FC5NA0, FC5NA1. IA. Instrument Air. 150. SS. AS3GA0. LS. Low Pressure Steam. 150. CS. AC0GA0. LO. Lube oil. 150. SS. AS2GA0. LO. Lube oil. 300. SS. BS2GA0. LO. Lube oil. 600. SS. CS2GA0. MS. Medium Pressure Steam. 300. CS. BC0GA0. MH. Methanol (for injection). 150. SS. AS4NA0. MH. Methanol (for injection). 300. SS. BS4NA0. MH. Methanol (for injection). 600. SS. CS4NA0. MH. Methanol (for injection). 900. SS. DS4NA0. MH. Methanol (for injection). 1500. SS. ES4NA0. MH. Methanol (for injection). 2500. SS. FS4NA0. NG. Nitrogen. 150. CS. AC0GA0. NW. Non-oily water. 150. CS. AC0GA0. NW. Non-oily water. 150. GRE. AG0GA0. OW. Oily water. 150. GRE. AG0GA0. OW. Oily Water. 150. CS. AC0GA0. OW. Oily Water. 300. CS. BC0GA0. OW. Oily Water. 600. CS. CC0GA0. PA. Plant Air. 150. CS. AC0GA0. DW. Potable water / De-salinated water. 150. SS. AS0GA0. DW. Potable water / De-salinated water. 150. GRE. AG0GA0. PG. Process Gas. 150. CS. AC0NA0, AC0NA1. PG. Process Gas – Low temperature. 150. LTCS. AL0NA0, AL0NA1. PG. Process Gas. 150. SS. AS4NA0. PG. Process Gas. 150. Inconel. AN1NA0. PG. Process Gas. 300. CS. BC0NA0, BC0NA1. PG. Process Gas – Low temperature. 300. LTCS. AL0NA0, AL0NA1. PG. Process Gas. 300. SS. BS4NA0. PG. Process Gas. 300. Inconel. BN1NA0. 05-07. 0. 12-06. Rev.. Date. NW/OW for Class AG0GA0 Oily/Non Oily Water added. Issued For Implementation Description / Text Affected PIPING CLASSIFICATION. ADMA-OPCO ADMA-OPCO/SEF/008. Rev. 0. Sheet 1 of 1. SP-1131. PAGE 39.
