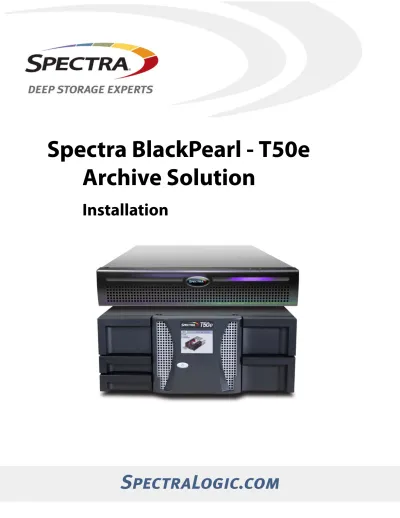

SpectraLogic.com
Spectra BlackPearl - T50e
Archive Solution
Copyright
Copyright © 2016 Spectra Logic Corporation. All rights reserved. This item and the information contained herein are the property of Spectra Logic Corporation.Notices
Except as expressly stated herein, Spectra Logic Corporation makes its products and associated documentation on an “AS IS” BASIS, WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, BOTH OF WHICH ARE EXPRESSLY DISCLAIMED. In no event shall Spectra Logic be liable for any loss of profits, loss of business, loss of use or data, interruption of business, or for indirect, special, incidental or consequential damages of any kind, even if Spectra Logic has been advised of the possibility of such damages arising from any defect or error. Information furnished in this manual is believed to be accurate and reliable. However, no responsibility is assumed by Spectra Logic for its use. Due to continuing research and development, Spectra Logic may revise this publication from time to time without notice, and reserves the right to change any product specification at any time without notice.Trademarks
BlackPearl, BlueScale, CC, Spectra, SpectraGuard, Spectra Logic, TeraPack, TFinity, TranScale, and Verde are registered trademarks of Spectra Logic Corporation. ArchiveGrade, ArcticBlue, Verde DP, and Verde DPE are trademarks of Spectra Logic Corporation. All rights reserved worldwide. All other trademarks and registered trademarks are the property of their respective owners.Part Number
90990122 Revision BRevision
History
Contacting
Spectra Logic
Revision Date Description
A March 2016 Initial release.
B April 2016 Added additional configuration steps.
To Obtain General Information
Spectra Logic Website: www.spectralogic.com
United States Headquarters European Office
Spectra Logic Corporation Phone: 1.800.833.1132 or 1.303.449.6400 International: 1.303.449.6400 Fax: 1.303.939.8844 Spectra Logic Europe Ltd. Phone: 44 (0) 870.112.2150 Fax: 44 (0) 870.112.2175
Spectra Logic Technical Support
Technical Support Portal: support.spectralogic.com
United States and Canada Phone:
Toll free US and Canada: 1.800.227.4637 International: 1.303.449.0160
Europe, Middle East, Africa Phone: 44 (0) 870.112.2185 Deutsch Sprechende Kunden Phone: 49 (0) 6028.9796.507 Email: [email protected] Mexico, Central and South America, Asia, Australia, and New Zealand
Phone: 1.303.449.0160 To Obtain Documentation
Contents
Contents
Chapter 1 – Prepare For Installation
5
R
ELATEDI
NFORMATION. . . . 5
C
REATEA
S
UPPORTP
ORTALA
CCOUNT. . . . 5
P
REPAREAND
P
LACETHE
R
ACK. . . . 6
Chapter 2 – Install and Configure the
Spectra T50e Library
8
L
IBRARYI
NSTALLATION. . . . 9
Install the Library in a Rack. . . . 9
Remove the Shipping Lock . . . 12
Install the Tape Drives . . . 13
Connect the Cables . . . 14
C
ONFIGURETHE
L
IBRARY. . . . 14
AutoInstall the Option Activation Keys and Update the BlueScale Software . . . 14
Log In to the BlueScale User Interface . . . 15
Create a Partition . . . 19
Load Data and Cleaning Tape Cartridges . . . 20
C
ONFIGUREL
IBRARYS
ETTINGS. . . . 21
Configure Network Settings . . . 21
Configure Date and Time . . . 23
Create Additional Users . . . 24
Configure Mail Users . . . 27
Contents
Chapter 3 – Install and Configure the
Spectra BlackPearl Gateway
31
G
ATEWAYI
NSTALLATION. . . . 32
Install HBAs in the Gateway . . . 33
Install the Gateway in a Rack . . . 36
Connect the Cables . . . 42
C
ONFIGURETHE
B
LACKP
EARLG
ATEWAY. . . . 42
Power on the Gateway . . . 42 Log In to the BlackPearl User Interface . . . 43 Enter Activation Keys . . . 44 BlackPearl User Interface . . . 45 Configure Network Settings . . . 46 Activate Hardware Systems . . . 47 Set the Default Data Policy for the Administrator . . . 48 Create Users . . . 50 View S3 Credentials . . . 51 Create a Bucket . . . 52 Configure SMTP Settings . . . 53 Configure Mail Recipients . . . 54 Configure Date and Time . . . 56 Check if Tapes are Ready to be Used . . . 58
N
EXTS
TEPS. . . . 59
Appendix A – Installation Checklist
60
Appendix B – Recommended Settings
62
Tape Library Typical Settings . . . 62C
HAPTER
1
Prepare For Installation
This chapter describes the steps to take before installing and configuring the Spectra® T50e library and BlackPearl® gateway.
R
ELATED
I
NFORMATION
For more detailed information about the components of the solution, see the following resources: For additional information about the Spectra BlackPearl Deep Storage gateway, see the Spectra BlackPearl Deep Storage Gateway User Guide at: http://support.spectralogic.com/python/documents/ Spectra%20BlackPearl%20User%20Guide.pdf. For additional information about the Spectra Logic T50e Library, see the Spectra T50e Library User Guide at: http://support.spectralogic.com/ python/documents/T50e%20User%20Guide.pdf.C
REATE
A
S
UPPORT
P
ORTAL
A
CCOUNT
The Spectra Logic Technical Support portal provides access to the Knowledge Base, the current version of Spectra library and BlackPearl software, and additional service and support tools. You can also use the support portal to open or update a support incident and upload log files. If you do not yet have a portal account, access the Technical Support portal login page at support.spectralogic.com. On the home page, click Sign up for one now!. Enter the requested information to create your account and click Sign Up. When the account is approved, you will receive an email with a temporary password. Use your email address and the password provided in the email to log in to your account. Topic Prepare and Place the Rack page 6 Create a Support Portal Account page 5 Prepare and Place the Rack page 6
Prepare and Place the Rack
P
REPARE
AND
P
LACE
THE
R
ACK
Ensure that an appropriate rack is assembled and placed near the AC power outlets, and network and data connections. The T50e library and BlackPearl gateway are designed to fit in a standard 19‐inch (48.3‐cm), 4‐post rack. Keep the following in mind when selecting a rack: Check your rack’s specifications to make sure it will accommodate the weight and depth of the T50e and BlackPearl chassis. Notes: The use of a two‐post rack is not supported. An enclosed 19‐inch (48.3‐cm), four‐post rack is available for purchase from Spectra Logic. The rack has two doors and removable side panels. Contact Spectra Logic Sales for more information (see Contacting Spectra Logic on page 2). In earthquake prone areas, provide restraints as necessary. The SAS cables between the BlackPearl gateway and the T50e library are 3 meters long. It is best if the library and the gateway are installed in the same rack. Using a 4‐post rack that is at least 36 inches (91 cm) deep is recommended. Make sure that the distance between the mounting surfaces on the front and rear posts is at least 30 inches (76 cm). Allow approximately 3 inches (8 cm) of additional depth at the back of the rack for cable clearance.
Caution
The rack must be located on a level, hard-surfaced floor, such as cement or tile. Do not place the rack on a carpeted floor or anywhere else that poses risk for staticdischarge that could damage your gateway or its drives.
Specifications
T50e Library BlackPearl Gateway
Height 4U ‐ 7 in. (17.8 cm) 2U ‐ 3.5 in. (8.9 cm)
Width 17.5 in. (44.4 cm) 19 in. (48.3 cm)
Depth 31.6 in. (80.3 cm) 27.5 in. (69.9 cm)
Maximum Weight a
a. Weights are approximate.
108 lb (49.0 kg) b
b. Includes the chassis, the LCM (library control module), four half-height tape drives, two power supplies, and 47 cartridges.
55.9 lb (25.4 kg) c
Prepare and Place the Rack
If you are using an enclosed rack with a front door, identify the front of the rack and make sure that there is at least 2 inches (5 cm) of clearance between the front door frame and the front mounting posts, as shown in Figure 1. This clearance is needed to allow the front door to close over the front bezel of the BlackPearl gateway. If necessary, move the front mounting posts toward the back of the rack to provide the clearance.
See the Spectra BlackPearl Site Preparation Guide if you have questions on
preparing your site.
Figure 1 Ensure clearance between the rack’s front door and the front posts. 2 in. (5 cm), minimum
Front mounting
Door frame Door post
C
HAPTER
2
Install and Configure the
Spectra T50e Library
This chapter describes the steps for installing and configuring the Spectra T50e library for use with a BlackPearl gateway. For additional information about the Spectra Logic T50e Library, see the Spectra T50e Library User Guide. Spectra Logic Professional Services installs larger tape libraries and creates partitions. If the tape library is already installed and configured with at least one storage partition, then skip to Chapter 3 – Install and Configure the Spectra BlackPearl Gateway on page 31.
Topic Library Installation page 9 Install the Library in a Rack. page 9 Remove the Shipping Lock page 12 Install the Tape Drives page 13 Connect the Cables page 14 Configure the Library page 14 AutoInstall the Option Activation Keys and Update the BlueScale Software page 14 Log In to the BlueScale User Interface page 15 Create a Partition page 19 Load Data and Cleaning Tape Cartridges page 20 Configure Library Settings page 21 Configure Network Settings page 21 Configure Date and Time page 23 Create Additional Users page 24 Configure Mail Users page 27 Next Steps page 29
Library Installation Install the Library in a Rack.
L
IBRARY
I
NSTALLATION
Use these instructions to install the T50e library. Note: For ease of use, install the library near the center of the rack so you can easily access the front panel, the access port, and the magazines.Install the Library in a Rack.
Warning
The library is heavy (see product specifications for details). Use extreme caution and proper equipment when moving the library. Do not install components in thelibrary until it is secured in the rack.
WARNUNG Die Bibliothek ist schwer (siehe Produkt-Spezifikationen für Details). Seien Sie besonders vorsichtig und richtige Ausrüstung beim Bewegen der Bibliothek. Komponenten in der Bibliothek nicht installieren , bis er im Rack befestigt ist.
Important
Lift the library only by the sides — not by the front and back.Warning
The rails provided with the library are designed for a standard 4-post 19-inch(48 cm) rack. A 2-post rack will not support the weight of the library.
WARNUNG Die mit der Bibliothek vorgesehen Schienen sind für ein Standard- 4-Säulen- 19 inch (48 cm) Rack konzipiert . A 2- Pfosten-Rack wird nicht das Gewicht der Bibliothek.
Warning
To reduce the risk of personal injury or damage to equipment: Extend leveling feet to the floor.
Ensure that the full weight of the rack rests on the leveling jacks.
Install stabilizing feet on the rack.
Extend only one rack component at a time. Racks may become unstable if more
than one component is extended.
WARNUNG Um das Risiko von Verletzungen oder Beschädigungen der Geräte zu vermeiden:
Extend Nivellierfüße auf den Boden.
Stellen Sie sicher, dass das gesamte Gewicht des Racks muss auf den
Nivellierungsfüßen lasten .
Installieren Stabilisierungsfüße am Rack .
Verlängern Sie nur eine Rack-Komponente zu einem Zeitpunkt. Racks können
Library Installation Install the Library in a Rack.
The T50e rack‐mount kit contains the following components:
To perform the installation, you need the following tools: #2 Phillips screwdriver, magnetic if available
Level (recommended)
Install the Rails in the Rack
1. Position the left‐side rail assembly in the rack so that the front flange is behind the front screw holes in the rack. 2. Adjust the length of the rail assembly as necessary to fit the depth of the rack. Component Use Rail assemblies Qty = 2 Support the chassis in the rack. Each rail is pre‐assembled and consists of the following components: Adjustable slider Rails (2) M6 screws Qty = 16 (8 each) Attach the rail assemblies to the rack. Size used depends on rack type. M6 x 8 mm (small shoulder) M6 x 8 mm (large shoulder) Use the screws with the larger shoulder for racks with square holes. M5 x 12 screws Qty = 2 Secure the library mounting brackets to the rack. Rail Adjustable slider Front Back Shoulder
Library Installation Install the Library in a Rack. 3. Using a #2 Phillips screwdriver, install four M6 screws — two in the front and two in the rear — to secure the rail to the rack. Make sure that the front and back of the rail are attached to the rack at the same height on the front and back posts. Using a level simplifies the leveling procedure. Tighten the screws securely. Notes: Two sets of M6 screws are provided. The type you use depends on the type of rack you have. Use the screws with the larger shoulder for racks with square holes. To simplify the installation, have a second person support the rail while you install the screws. Leave the middle hole in each rail empty. You will use them when attaching the library’s mounting brackets to the rack.
4. Repeat Step 1 through Step 3 to install the right‐side rail. Make sure you install the right‐side rail at the same level as the left‐side rail. 5. Verify that the rail is level from front to back and the shelf formed by
the rails is level from left to right. Using a level is recommended. Figure 2 Install the rails in the rack.
Front of Rack Back of Rack Position rail Adjust to fit 1 2 3 behind front depth of rack Secure with screws Install rails with “flat” edge
in the front and the “angled” edge in the rear of the rack.
Simplified rack rail
Front Rear
Library Installation Remove the Shipping Lock
Mount the Library in the Rack
1. Lift the library onto the shelf formed by the rails.
2. Slide the library completely into the rack so that the mounting brackets are against the posts.
3. Using a #2 Phillips screwdriver, install one M5 screw in each mounting bracket to secure the library to the rack, as shown in Figure 3.
Remove the Shipping Lock
Follow these steps to remove the shipping lock:
1. Remove the label securing the shipping lock. 2. Pull the lock straight up and out of the library.
3. Place the label back over the opening in the top of the library.
Warning
The library is heavy (see product specifications for details). Use extreme caution andproper equipment when moving the library. Do not install components in the library until it is secured in the rack.
WARNUNG Die Bibliothek ist schwer (siehe Produkt-Spezifikationen für Details). Seien Sie besonders vorsichtig und richtige Ausrüstung beim Bewegen der Bibliothek. Komponenten in der Bibliothek nicht installieren , bis er im Rack befestigt ist.
Important
Do not install the rubber feet if you are installing the library in a rack. They aremeant for a tabletop installation only.
Figure 3 Secure the library to the rack (right side shown). Mounting bracket screw Post
Caution
Failure to remove the shipping lock before powering on the library can cause damage to the library.Caution
Moving the library after removing the shipping lock can cause damage to the internal components.Library Installation Install the Tape Drives
4. Store the lock in the tab at the back of the library.
Install the Tape Drives
Install the tape drives in the back of the library, from bottom to top. 1. The library ships with the bottom drive bay uncovered, ready for a half‐ height drive to be installed. Loosen the finger screws securing the cover plate (or plates) for each additional half‐height drive. 2. Remove the plate and set it aside. 3. Remove the tape drive and sled from its protective packaging. 4. While supporting the bottom of the drive sled, slide it into the empty drive bay. Push the drive sled in until it fits flush against the chassis. 5. Tighten the finger screws to secure the drive to the library. 6. Repeat for any additional drives.
Figure 4 The shipping lock must be removed before powering on the library.
1.Remove the label.
2.Remove the lock.
3.Replace the label.
4.Store the lock.
Important
Cover plates must remain installed over any empty drive bays.Figure 5 Install the tape drives. 2
Loosen screws 1
4
Remove plate
Install tape drive Remove tape drive 3
from packaging
Tighten screws 5
Configure the Library Connect the Cables
Connect the Cables
Use Figure 6 to help you connect the cables.
Power Connect the power cord to the library and to an outlet. If the library shipped with the optional redundant power supply, connect a second power cord to the redundant supply and to an outlet. Ethernet Connect an Ethernet cable into the Ethernet connector on the back of the library and connect the other end to the network. Note: SAS cables are installed after installing the BlackPearl gateway.
C
ONFIGURE
THE
L
IBRARY
AutoInstall the Option Activation Keys and Update the
BlueScale Software
The USB device that came in your document kit contains the activation keys for the options that you purchased, as well as the current release of the BlueScale software. Follow these steps to load the keys and update the library. 1. Insert the USB device into either USB port on the back of the library. Figure 6 Install power and network cables.Ethernet Power
Configure the Library Log In to the BlueScale User Interface 2. Press the front panel power button for two to three seconds. 3. Wait while the library performs its initial power‐on sequence, which takes approximately eight minutes. 4. Wait while the AutoInstall process automatically updates the library BlueScale software and installs the option activation keys. This takes approximately ten minutes. Note: The library reboots during the AutoInstall process. No action is required until the Login screen displays. 5. When the Login screen displays, remove the USB device from the library.
Log In to the BlueScale User Interface
After the power‐on sequence completes, the Login screen displays. The BlueScale Interface allows you to configure all aspects of the T50e library’s functionality. It can be accessed at the front panel or through the Remote Library Control (RLC) interface. To access the RLC interface enter the libraryʹs IP address in a browser on a computer connected to the same network as the library. The IP address of the library displays in the upper right corner of the touch screen operator panel. If the library does not have an IP address configured (see Configure Network Settings on page 21) or if it is not connected to an Ethernet network, 0.0.0.0 displays in this location.
Figure 7 Insert the USB device and press the power button. 1 Insert USB device
USB device
2 Press power button
Important
Do not remove the USB device until after the Login screen displays. Do not leave theConfigure the Library Log In to the BlueScale User Interface For a full description of the BlueScale interface, see “Introducing the BlueScale User Interface” in the Spectra T50e Library User Guide. 1. Using the stylus located in the document kit, touch the keyboard icon to expand the soft keyboard. Note: When not in use, store the stylus in the stylus holder to the right of the screen (see Figure 7 on page 15). 2. Touch (to select) the User box and type su (the default superuser). 3. Leave the password field blank and click Login. Note: If you are prompted to calibrate the touch screen, follow the instructions on the screen. You must use the stylus for the calibration procedure to complete successfully. 4. When the General Status screen displays, close the keyboard by touching its icon with the stylus.
Figure 8 Log into the BlueScale interface.
Figure 9 The General Status screen after login.
2 Type “su”
4
Click Login Wait for General 3
1 Touch to open keyboard Status screen su
Configure the Library Log In to the BlueScale User Interface
The General Status Screen
When you first log into the library, the General Status screen displays. Icons on this screen indicate the current status for the major library components. Moving the cursor over the name of the component highlights the component in the system graphic. From the General Status screen, click the MENU to display the General menu screen.
Menus
The options in the BlueScale user interface are divided into four menus. When you click the icon for one of the menus, its associated options display below it. When you are viewing a screen for one of the BlueScale options, clicking MENU displays the last menu screen you viewed. From there you can navigate to other menus to select additional options. The following menu screens are available: The General menu provides access to the most frequently used library screens including General Status, Inventory, Metrics, Import/Export, MLM (Media Lifecycle Management), and Robot Usage. The Configuration menu provides controls for configuring all aspects of the library’s operation including Partitions, DLM (Drive Lifecycle Management) or Drives, MLM, Settings, Option Keys, Mail Users, Network, and Date & Time. The Maintenance menu provides access to maintenance and troubleshooting options for the library and drives including AutoSupport, Utilities, Traces, MLM, and Package Update.Figure 10 Options on the General menu screen. General Security Configuration Maintenance menu menu menu menu Options on the General menu screen
Configure the Library Log In to the BlueScale User Interface
The Security menu provides access to options for managing users and for configuring and using the encryption feature for your library. It also indicates the user currently logged into the library and that user’s group.
Map of Options Available from the BlueScale Menu
Figure 11 Map of the options available from the BlueScale menu.
MENU
General Status S,A,O
Drives Status > Drives screen Inventory Status > Inventory screen Import/Export Status > Import/Export screen
General
MLM(Media Lifecycle Management)S,A,O
Power Consumption Storage Density
Open Door Bulk Load Bulk Unload Recycle(Encrypted Media)
Metrics S,A,O
Import/Export S,A,O
Save MLM Report
Inventory S,A,O
Inventory for(select partition) Source list (for a move) Process Queued Ejects
Destination
Destination list (for a move)
MLM Reports
Partitions (select partition or total library) Reports Media Health Remaining Capacity Load Count Write Errors Cleans Remaining Born On Date Exported Media Last Write Time Last Read Time
Move Queue
Move queue list Start Moves
MLM Details
Report All Media Lifecycle Data Report Selected Data
Robot Usage S,A,O
Robot Utilization
Switch Users S,A,O
Encryption S Encryption Configuration Encryption User Login Login
Logout
New (Add a New User) Edit (Existing User) Delete (Existing User)
Security
Edit Users S
Spectra SKLM Configure
–Single User Mode – Multi-User Mode
Check Key Files Import Key Add Key –Moniker Export Key Delete Key Notes:
1)Available at the library’s front panel touch screen only.
2) Do not use the Advanced Utilities unless instructed to by SpectraGuard®Support.
3)Requires a current BlueScale®Software
Support Key.
4)Available with BlueScale Encryption Professional edition only.
5)Requires LTO-4 or later generation Fibre Channel drives.
6)Requires LTO-5 or later generation Fibre Channel drives.
*= The factory default setting.
Feature Availability:This feature is available to this user type:
S) Superuser –Controls all aspects of library use, configuration, and security, including all encryption activities.
A) Administrator –Performs same actions as Superuser except for creating or editing library users and accessing encryption.
O) Operator –Moves, imports, and exports
cartridges.
Utilities Sor A
Basic Utilities
Calibrate Touch Screen Display Controller Environment Display EC Information Display Firmware Versions Force Log Flush Save Library Configuration
Pause PostScan (only visible when PostScan is running) Stop Discovery (only visible when
Discover Media is running)
Download DLM Database (remote access only)
Restore Library Configuration
Send Log Set Manage Profiles Configure Alarms Log Forwarding AutoSupport SorA Maintenance Package Update Sor A
Begin Library Update Begin Drive Update Manage Packages MLM Sor A Discover Media Manual PostScan Delete Records Download MLM Database
(remote access only)
Traces Sor A
Component Traces
Logical Library Trace Motion Trace Motion Geometry Motion Pools Motion Inventory Motion Options LCM Traces Can Log Error Log Action Log Connection Log GPIO Log Event Log Lock Log Web Server Log Message Log Inventory Log Kernel Log AutoSupport Log Encryption Log HHM Log MLM Log Advanced Utilities Configuration S: Drive IDs
C & S: Name & Media Type
Partitions(Cleaning or Storage)SorA
S: Spare Drives(assign to partition)
S: Partition Users
C & S: Save Library Configuration S: MLM Media Verification
Enable PreScan FullScan QuickScan
QuickScan using Global Spare
S: Encryption(if logged in) BlueScale Spectra SKLM
S: Exporter
Exporter Emulation
C & S: Storage (number of slots) S: Entry/Exit Port Mode S: Drives
S: Clean Partition (only if one exists)
C & S: Chambers and Drives
Enable Alerts(Load Count Discrepancies)
Remove
Clean Reset Replace
DLM(Drive Lifecycle Management) SorA
Library Name Refresh Rate Web Server Port
Online Access to Spectra Logic Email Auto-Configuration Save
Settings SorA
Enable SSL Details
Drive Details
Enable Alerts (Non-Certified Media)
Enable MLM
Enable Media AutoDiscovery Minimum Cleaning Passes Maximum Tape Loads Minimum Idle Minutes
MLM SorA
PostScan Blackout Periods
Date & Time SorA
Date Time
New (add an option key) Hardware ID
Option Keys Sor A
New(To, From, SMTP IP Address, Message Types)
Edit(To, From, SMTP IP Address, Message Types)
Delete
Mail Users SorA
Test
Setting (DHCP *or Static) (Static IP) Address, Subnet, Gateway
Network Sor A
Drive Traces
Manage Package Servers
Note: The BlueScale user interface changes as features are added or
Configure the Library Create a Partition
Create a Partition
A tape partition is a data storage target cabled to the BlackPearl gateway. Follow these steps to let the partition wizard create a single partition using all available slots and drives. To use the BlackPearl gateway’s Eject function, the library can only have one partition. To manually create a partition to not use all available slots or drives, or to use encryption or other advanced features, see “Configuring and Managing Partitions” in the Spectra T50e Library User Guide for instructions. 1. If you want to save the library configuration to a USB device after you create the partition (recommended), connect the device to a USB port on the LCM (library control module) and allow time for the device to mount before continuing (see Figure 7 on page 15).2. Using the stylus, select Menu > Configuration > Partitions. Select Automatically create a partition and then click New.
3. Let the wizard create the partition and then choose one option: Save Library Configuration to USB (recommended) Save Library Configuration to a previously defined mail recipient Don’t Save Library Configuration (not recommended) Note: Do not send the configuration to [email protected]. 4. Click Next and then click Save.
Important
The option to save the file to USB is only available if you connect a USB device tothe library’s USB port before you access the utilities.
Configure the Library Load Data and Cleaning Tape Cartridges
Load Data and Cleaning Tape Cartridges
Use the Bulk Load option to load the tape cartridges including at least one cleaning tape. Notes: Only load the number of cartridges matching your capacity license. The BlackPearl gateway automatically handles periodic tape drive cleaning, but can only complete the task if cleaning tapes are present in the library
1. Using the stylus, select Menu > General > Import/Export, and then click Bulk Load. Both left‐side magazines release. 2. Load cartridges in the left‐side magazines. a. Remove the bottom left magazine and set it on a stable surface. b. In the bottom left‐side magazine, load the cartridges sequentially, with the barcode label facing out, starting at slot 1 and skipping the access port. c. Reinsert the bottom left‐side magazine, and then, if the capacity license is greater than 11, repeat for the top left‐side magazine. 3. If your capacity license allows for more than 23 slots, do the following to install cartridges in the right side magazines. a. Click Continue. The left‐side magazines lock in place and the right‐ Figure 13 Load tape cartridges.
Slot 1 Access port slot
Important! The barcode labels must face out.
Important! Load cartridges
sequentially starting at slot 1.
Important! Replace the magazines in the same locations.
Top Top 2 3 4 7 11 8 23 20 12 24 5 6 15 9 10 16 19 27 32 36 44 28 47 35 31 39 40 43 1 50 49 48 Left-side magazines Bottom Right-side magazines Expansion slots Slot 1 Access port slot
Configure Library Settings Configure Network Settings b. Remove the bottom right magazine and set it on a stable surface. c. Load the cartridges sequentially with the barcode label facing out, starting at slot 24 in the bottom right‐side magazine . d. Reinsert the bottom right‐side magazine, and then, if necessary, repeat for the top right‐side magazine. 4. After you have loaded cartridges to fill all licensed slots, gently push each magazine into the library until it is fully seated and click Stop Importing. The library inventories the cartridges.
C
ONFIGURE
L
IBRARY
S
ETTINGS
It is vital to configure the following library settings before using it with the BlackPearl gateway. See “Configure Global Settings” in the Spectra T50e Library User Guide for information on configuring other, optional, library settings.
Configure Network Settings
Spectra Logic highly recommends that you connect the library to an Ethernet network and configure it for network access as described in this section. Network access lets you perform the following operations: Access the BlueScale web interface for remote management of the library using a standard web browser. Open support incidents or send ASLs (AutoSupport Logs) to Spectra Logic Technical Support for troubleshooting directly from the library. Automatically email system messages or reports to configured mail users. Automatically send a notification to a specified mail recipient when certain critical events occur. Download the latest BlueScale update package from Spectra Logic’s Support portal directly to the library. These functions are not available if you do not connect the library to an Ethernet network. The IP address of the library displays in the upper right corner of the touch screen operator panel. If the library does not have an IP address configured or if it is not connected to an Ethernet network, 0.0.0.0 displays in this location. Note: If you are accessing the library remotely through the BlueScale web interface, the library name, if configured, displays instead of the IP address. If the library name is not configured, the upper right corner of the screen is blank.
Configure Library Settings Configure Network Settings
Using DHCP Addressing
By default, the IP address for the Ethernet port on the LCM (Library Control Module) is set automatically using the Dynamic Host Configuration Protocol (DHCP). Notes: If you select DHCP addressing, the LCM must be connected to an Ethernet network that has a DHCP server to obtain an IP address. Do not select DHCP addressing if your network does not have a DHCP server.Using Static IP Addressing
If your network does not use DHCP, or if you want the library to have a fixed IP address, you can configure a static (fixed) IP address as described in this section. Using a static IP address ensures that you always know the IP address for the library and is highly recommended, especially if you plan to manage the library remotely using the BlueScale web interface.
Prepare the Library
Before configuring the network settings, make sure that you address the following requirements: The library is connected to an active link on the Ethernet network. A unique IP address is available on the network if you plan to use a static IP address. This address cannot be in use by another device. The DHCP server is configured on the network if you plan to use DHCP addressing.
Set the IP Addressing
Use the following steps to configure the library for Ethernet network access. 1. If necessary, click MENU to display the Menu screen. 2. Click Configuration to display the Configuration menu. 3. On the Configuration menu, click More Options (down arrow) to display additional configuration options.
Important
If you want to change the network settings of the library, make sure that the libraryConfigure Library Settings Configure Date and Time 4. Click Network. The Network screen displays. This screen changes depending on whether the library is configured to use DHCP or Static IP addressing. 5. Decide which type of addressing you want the library to use. DHCP (default setting)—The library is issued an IP address by the DHCP server. Static (highly recommended)—The library uses a fixed IP address. If you select static addressing, enter the following information: 6. Click Save to change the IP addressing. Note: The library’s IP address changes as soon as you click Save. As a result, if you are connected to the library through the BlueScale web interface the connection to the library is lost. Reconnect to the library using the new IP address. Log into the library to continue using the BlueScale web interface.
Configure Date and Time
Use the following steps to configure the library’s system clock. 1. If necessary, click MENU to display the Menu screen.
2. Click Configuration to display the Configuration menu.
3. On the Configuration menu, click More Options (down arrow) to display additional configuration options.
Figure 14 Use the Network screen to configure the IP addressing for the library.
For this field... Enter...
Address A valid IP address in the form nnn.nnn.nnn.nnn.
Subnet The subnet mask. The subnet mask must be a valid IP address in the form
nnn.nnn.nnn.nnn.
Gateway A valid network gateway address in the form nnn.nnn.nnn.nnn. Enter 0.0.0.0 for the Gateway if your network does not use a gateway.
Configure Library Settings Create Additional Users
4. Click Date & Time. The Date & Time screen displays showing the method currently selected for setting the date and time. Note: The values in the Date & Time counters do not wrap. For example, to change the month from December to January, click and hold the – button to decrement the month. 5. Use the + and – buttons to set the month, day, year, hour, and minute to display. Note: Instead of clicking the + or – button multiple times, you can click and hold the button to advance through the available values. 6. Click Save. 7. Click MENU to return to the Configuration menu.
Create Additional Users
There are three default users set up on the library: su (superuser),
administrator, and operator. By default, passwords are not set for the three default users. Use the following steps to add a new library user and assign that user to a user group.
1. If necessary, click MENU to display the Menu screen. Figure 15 Set the date and time for the library.
Configure Library Settings Create Additional Users
2. Click Security > Edit Users. The Edit Users screen displays.
3. Click New to display the New User screen.
Figure 16 Click New on the Edit Users screen to add a new user.
Configure Library Settings Create Additional Users 4. Complete the information on the New User screen. Note: User names and passwords can contain any combination of the numbers 0‐9, lower and upper case alphabetic characters (a‐z and A‐Z), and the at symbol (@), dash (‐), underscore (_), period (.), forward slash (/), and space characters. There is no limit to the length but that we recommend lengths of less than 2048 characters. 5. Click Save. The new user name and group assignment is added to the list of users on the Edit Users screen.
6. Repeat Step 3 on page 25 through Step 5 for each additional library user.
For this field... Enter...
User The name for the user.
Password
Retype Password
A password for the user; retype the password to confirm.
Notes:
For security, the text in the Password and Retype Password fields is shown as asterisks (*).
Though highly recommended, passwords are not required for any of the three user types.
User Type Select the group to which the user belongs.
Superuser ‐ Controls all aspects of the library’s configuration and operation, including defining other library users and assigning them to a user‐privilege group. Notes: The library requires a minimum of one superuser. You cannot delete the last member of the Superuser group. Only a user with superuser privileges can add, modify, or delete users. Only a user with superuser privileges can access and configure encryption features. Administrator ‐ Configures and uses the library. With the exception of creating or modifying library users and accessing the Encryption features, users in the Administrator group have the same privileges as users in the Superuser group. Operator ‐ Performs day‐to‐day operations. Users assigned to the Operator group can move, import, and export media, but cannot access the more sensitive library operations such as configuration, diagnostics, and security.
Configure Library Settings Configure Mail Users
Configure Mail Users
Mail users are the preconfigured recipients of email notifications generated by the library. The library can automatically send email notifications to selected mail users whenever a specified message type is generated. It is critical that administrators and superusers be set up to receive email notifications from the tape library so that messages about library issues are delivered in a timely manner. Operators can also be set up to receive emails, but without administrator or superuser login privileges they will not be able to correct problems with the archive system. The email includes attachments containing any system messages, traces, or diagnostic results associated with the notification. Note: You must configure the library’s IP address as described in Configure Network Settings on page 21 before you can configure mail recipients. 1. Log into the library as a user with superuser or administrator privileges. 2. If necessary, click MENU to display the Menu screen. 3. Click Configuration to display the Configuration menu. 4. Click Mail Users. The Mail Users screen displays. Note: If you have not configured any mail users, this screen only shows the default mail recipient for Spectra Logic autosupport. 5. Click Edit below [email protected] to add SMTP information or click New to add a mail user.
Figure 18 Use the Mail Users screen to configure mail recipients.
Important
You must edit the [email protected] mail user to configure the SMTPserver if you want to open an AutoSupport ticket directly from the library (see “Configuring and Using AutoSupport” in the in the Spectra T50e Library User Guide). This mail user is also used to send the ASL and HHM files that the library generates to Spectra Logic Technical Support when troubleshooting a problem.
Configure Library Settings Configure Mail Users 6. Enter or update the information for the mail user. For a new mail user, enter their information on the New Mail User screen. For an existing mail user, update their information on the Edit Mail User screen.
Figure 19 Enter or modify the information for the mail user.
For this field... Do the following...
To Enter the email address of the recipient. Be sure to use the full email address
using the standard email format, including the @ symbol.
Important: The email address cannot contain spaces or other
non-alphanumeric characters (for example, an ampersand, &). To include multiple addresses, leave a space between each address.
From Enter an alphanumeric string to uniquely identify the library (for example, the
name or location of the library).
Important: The string cannot contain spaces or most non-alphanumeric characters (for example, the & or the % symbols).
SMTP IP Address Enter the IP address of your SMTP server in the SMTP IP Address field. Use the standard IP address format nnn.nnn.nnn.nnn.
Next Steps Configure Mail Users
7. Click Save. The Mail Users screen redisplays (see Figure 18 on page 27). 8. Repeat Step 5 on page 27 through Step 7 on this page to configure or
modify additional email recipients. 9. Click Test for each new user to send a test email. 10.Click MENU to return to the Configuration menu.
N
EXT
S
TEPS
You are now ready to install the BlackPearl gateway (see Install and Configure the Spectra BlackPearl Gateway on page 31) or further configure the T50e library using one of the topics below. Configure MLM Media Lifecycle Management (MLM) is an exclusive feature of Spectra Logic libraries that allows users to track the health of the media in the library. When coupled with Spectra‐certified media, it gives users a powerful monitoring tool to avoid downtime or data loss caused by media reaching its end of life. See ʺConfiguring and Using Media Lifecycle Managementʺ in the Spectra T50e Library User Guide.Message Types Select the type(s) of messages that the mail user should receive by selecting one or more of the message types listed. Administrators and superusers should receive Fatal, Error, and Warning messages. Fatal—An error occurred that prevents the library from continuing operation. Immediate attention is required. Error—An error occurred that impacts the operation of the library. Determine the cause of the error and remedy as soon as possible. Warning—The library detected conditions that may impact operation. Determine the cause of the problem and remedy as soon as possible. Informational—Activities that generate system messages occurred. Notes: Selecting a message type automatically sends all messages of that type to the recipient as they are generated by the library. If no message type is selected, the library does not automatically send an email to the mail user. However, messages can still be sent to the mail user on an individual basis when traces or diagnostics are run. Do not select message types for the [email protected] mail recipient. This mail recipient is only used to receive AutoSupport ticket requests or ASL and HHM files that are generated by the library.
Next Steps Configure DLM Drive Lifecycle Management (DLM) is a powerful monitoring tool that allows users access to all aspects of the health of the drives in the library. Using the DLM screens, a user can find information about drive WWNs, drive health, error codes displayed on the drivesʹ single‐character display, and more. See ʺUsing Drive Lifecycle Managementʺ in the Spectra T50e Library User Guide.
Import/Export Media Using the import/export screen, users have physical access to the media within the library. This screen allows users to import and export media to and from an active partition, or to and from the configured entry/exit port. See “Using Cartridges in the Library” in the Spectra T50e Library User Guide.
Configure Library Settings Set a static IP address, set the date and time, configure mail users to receive alerts from the library, and configure library web server settings. See “Configure Global Settings” in the Spectra T50e Library User Guide.
Collect Logs & Use AutoSupport AutoSupport is an important feature in monitoring the health of the library. AutoSupport Logs (ASL) can be gathered and sent automatically to a designated mail user or directly to Spectra Logic Technical Support. See ‘Configuring and Using
AutoSupport” in the Spectra T50e Library User Guide.
Use the Support Portal Spectra Logic Technical Support maintains a portal for all support related services, as well as a database of Knowledge Base articles at http://support.spectralogic.com. For more information on creating an account and using the Support Portal see “Technical Support” in the Spectra T50e Library User Guide.
Backup the Library Configuration For recommendations and instructions for backing up and restoring the library configuration, see “Backing up the Library Configuration” in the Spectra T50e Library User Guide.
C
HAPTER
3
Install and Configure the
Spectra BlackPearl Gateway
This chapter describes the steps for installing and configuring the Spectra BlackPearl Deep Storage Gateway for use with the T50e library. For additional information about the Spectra Logic BlackPearl gateway, see the Spectra BlackPearl User Guide. Topic Gateway Installation page 32 Install HBAs in the Gateway page 33 Install the Gateway in a Rack page 33 Connect the Cables page 36 Connect the Cables page 42 Configure the BlackPearl Gateway page 42 Power on the Gateway page 42 Log In to the BlackPearl User Interface page 43 Enter Activation Keys page 44 BlackPearl User Interface page 45 Configure Network Settings page 46 Activate Hardware Systems page 47 Set the Default Data Policy for the Administrator page 48 Create Users page 50 View S3 Credentials page 51 Create a Bucket page 52 Next Steps page 59
Gateway Installation
G
ATEWAY
I
NSTALLATION
Use these instructions to install the BlackPearl gateway.
The BlackPearl rack‐mount kit contains the following components:
Warning
The Spectra BlackPearl 2U gateway weighs 55.9 lb (25.4 kg). Spectra Logic requires using two people, or using a lift to support the weight of the gateway whileinstalling it into, or removing it from a rack.
WARNUNG Die Spectra Black Pearl 2U Gateway wiegt 55,9 lb (25,4 kg). Spectra
Logic Erfordert mit zwei Personen, oder mit einem Lift, um das Gewicht des Gateways zu unterstützen, während der Installation in oder aus einem Rack zu entfernen.
Component # Required Use
2 Attach to the sides of the BlackPearl chassis. 2 Attach to the posts of the 19‐inch rack. The chassis‐mounted inner rack rails will slide into the outer rack rails. 4 Secure the inner rack rail to the chassis (4). 8 Attach the rail assemblies to the rack (8). 8 Used with the outer rail screws to attach the rail assemblies to the rack (8).
Inner rack rails
Outer rack rails
Inner rail screws
Outer rail screws
Gateway Installation Install HBAs in the Gateway To perform the installation, you need the following tools: Grounded anti‐static wristband #1 Phillips screwdriver #2 Phillips screwdriver, magnetic if available Level (recommended)
Install HBAs in the Gateway
Use the following instructions to install Host Bus Adaptor (HBA) cards in the BlackPearl gateway.
Ensure ESD Protection
The installation environment must be free of conditions that could cause electrostatic discharge (ESD). To protect the unit from ESD, follow these procedures when repairing or testing the product: Place a static protection mat on the work surface used while removing and installing components. Use a 1‐megohm resistor to ground the static protection mat. Wear a static protection wristband or grounding footstrap whenever you handle components that have been removed from their anti‐static bags. Connect the wristband to the static protection mat or to other suitable ESD grounding. Note: Keep all electronic components in anti‐static bags when not in use. 2 Secure the chassis to the rack (2). 4 (optional) Attach to the ends of the outer rack rails, allowing installation of the rack kit in a rack with circular mounting cutouts. If you are installing the rack kit in a circular cutout rack, see the Spectra BlackPearl Rack Mounting Instructions.
Component # Required Use
Chassis screws
Circular cutout rack adaptors
Caution
Any damage to the unit caused by failure to protect it from electrostatic discharge (ESD) voids the product warranty. To protect the product from damage, wear anGateway Installation Install HBAs in the Gateway
Install the HBAs
Use the instructions in this section to install an HBA in the chassis. 1. Press down on the two release latches and slide the cover toward the rear of the chassis to remove it. 2. Locate the slot where you want to install an HBA in the unit. Notes: Because the 2U chassis has a single CPU, only three of the six PCI slots are active. Make sure you install the HBA into one of the indicated slots, which are labeled on the motherboard as slots 1, 2, and 3. Some HBAs may already be installed. Figure 20 Release latches on the 2U chassis.
Figure 21 HBA locations in the BlackPearl 2U chassis.
Front of chassis
Front of chassis
PCI blanking plates
Gateway Installation Install HBAs in the Gateway 3. Using a #1 Phillips screwdriver, remove the single screw that secures the PCI blanking plate to the chassis. 4. Remove the HBA from its packaging. 5. Orient the HBA so that the card bracket faces the rear of the chassis and the edge connector is oriented down.
Figure 22 Remove the PCI blanking plate screw.
Figure 23 The 10 GigE HBA.
Gateway Installation Install the Gateway in a Rack 6. Guide the connectors on the HBA through the slot in the rear of the chassis. 7. Press down on the HBA to secure it in the socket on the motherboard. The card fits firmly in the socket. 8. Using a #1 Phillips screwdriver, install the bracket screw to secure the HBA to the chassis.
9. Repeat Step 2 on page 34 through Step 8 for any additional HBA(s) that need to be installed. 10.Install the chassis cover. a. Position the cover on top of the chassis with the hooks of the release latches facing toward the front of the chassis. b. While holding down the release latches (see Figure 20 on page 34), slide the cover toward the front of the chassis until it locks in place.
Install the Gateway in a Rack
Separate the Rails
If necessary, remove the inner rack rail section from the outer rack rail. 1. Orient the rack rail with the inner rail facing you. Push the end of the
inner rail near the hard stop towards the open end of the outer rail until the self‐locking latch engages.
Caution
Be careful not to damage the connectors on the HBA as you guide them through the slot in the rear of the chassis.Warning
Install the BlackPearl gateway in a standard 4-post, 19-inch (48.3-cm) rack. A 2-post rack will not support the weight of the gateway.WARNUNG Installieren Sie den BlackPearl -Gateway in einem Standard- 4-Säulen , 19-Zoll ( 48,3 cm ) Rack. A 2- Pfosten-Rack wird nicht das Gewicht des Gateways.
Figure 24 Location of the hard stop and open ends of the outer rack rail. Hard stop end Open end
Gateway Installation Install the Gateway in a Rack
2. Flip the rail assembly over so the outer rail is on top and the self‐ locking latch is facing you. Press the self‐locking latch toward the closest edge of the inner rail and then fully extract the inner rail from the outer rail.
Install the Inner Rails
1. Place the gateway on a sturdy, flat surface. 2. Orient the inner rail with the self locking latch facing you and the black plastic tab on the end of the rail oriented toward the front of the chassis. 3. Position the inner rack rail over the hooks extending out from the side of the chassis. The rail is keyed to only fit one way. 4. While pressing the inner rail against the side of the chassis, slide the inner rail towards the front of the chassis to engage the mounting hooks.
Figure 25 Press the latch toward the closest outer edge.
Figure 26 Install the inner rail. Hooks (12)
Rear of chassis Front
of chassis
Self-locking latch
Gateway Installation Install the Gateway in a Rack
5. Using a #2 Phillips screwdriver, secure the rail to the chassis using two screws.
6. Repeat Step 2 on page 37 through Step 5 for the other side.
Install the Outer Rail
If you are installing the rack kit in a circular cutout rack, see the Spectra BlackPearl Rack Mounting Instructions. 1. Determine the position of the rack mount kit in the rack. Figure 27 shows the relationship of the rack kit position in the rack and the resulting position of the chassis. 2. Position the outer rack rail at the desired height in the rack with the open end facing the front of the rack. Make sure the mounting hooks are behind the cut‐outs in the posts and face down. 3. Insert the mounting hooks on the open end of the rail into the cut‐outs in the front of the rack. This action also depresses the black tabs used to lock the rail in the rack.
Figure 27 Relationship between the rack kit position and the BlackPearl 2U chassis.
Figure 28 Insert the mounting hooks through the cut-outs in the rack. Rack kit BlackPearl 2U gateway Hooks Tab (depressed)
Gateway Installation Install the Gateway in a Rack
4. Press the outer rail down to lock the mounting hooks to the rack. The black tabs will pop through the holes in the front of the rack and lock in place with an audible click.
5. Repeat Step 2 on page 38 through Step 4 to attach the rear mounting hooks of the outer rack rail to the rear post of the rack. 6. Make sure that the outer rack rail is level. Using a level is recommended. 7. Using a #2 Phillips screwdriver, secure the outer rail to the rack. a. Install two outer rail screws and washers in the holes above and below the bottom mounting hook in the front mounting bracket to secure the rail to the front post (see Figure 29). b. Install two outer rail screws and washers in the upper and lower holes to secure the back of the outer rail to the rear post.
8. Repeat Step 2 on page 38 through Step 7 to attach the second outer rail to the other side of the rack.
9. Make sure the installed rails are level in relation to each other. Using a level is recommended.
Figure 29 Press the rail down to lock it into place. Hook
Tab (locked)
Screw holes
Gateway Installation Install the Gateway in a Rack
Slide the Chassis into the Rack
1. Pull the center section of the outer rails out of the rack until they are fully extended (see Figure 30). 2. Position the chassis in front of the rack rails and lift it so that the inner rails are at the same height as the extended sections of the outer rails attached to the rack. 3. Slide the chassis into the rack until the self‐locking latches engage.
Warning
The Spectra BlackPearl 2U gateway weighs 55.9 lb (25.4 kg). Spectra Logic requiresusing two people, or using a lift to support the weight of the gateway while installing it into, or removing it from a rack.
WARNUNG Die Spectra Black Pearl 2U Gateway wiegt 55,9 lb (25,4 kg). Spectra
Logic Erfordert mit zwei Personen, oder mit einem Lift, um das Gewicht des Gateways zu unterstützen, während der Installation in oder aus einem Rack zu entfernen.
Figure 30 Extend the outer rails and slide the chassis into rack. Extended outer rail Inner rail
Gateway Installation Install the Gateway in a Rack 4. While supporting the front of the chassis with one hand or a lift, press the self‐locking latches on both inner rails downward. Push the chassis the rest of the way into the rack until the mounting brackets on the front of the chassis are flush with the front posts of the rack. 5. Using a #2 Phillips screwdriver, install one chassis screw into the hole in the mounting bracket on each side of the chassis to secure the chassis to the rack. Do not over‐tighten the screw.
Figure 31 Press the self-locking latch downward.
Figure 32 Secure the chassis to the rack. Locking latch
Screw Mounting bracket
Configure the BlackPearl Gateway Connect the Cables
Connect the Cables
Connect the following cables. Power Connect two power cables to the gateway and to outlets. Ethernet Connect the included Ethernet cable from an active network over which a computer can access the gateway to the BlackPearl management port on the BlackPearl gateway. This port cannot be used for data transfer. Connect additional Ethernet cables from your network switch to one or all of the 10GBase‐T ports or the 10 GigE ports. Only one data connection is supported, but ports of the same type can be configured with link aggregation. SAS For each tape drive in the library, insert one end of a SAS cable into the BlackPearl host SAS HBA. Insert the other end into the tape drive (see Figure 6 on page 14).
C
ONFIGURE
THE
B
LACK
P
EARL
G
ATEWAY
Power on the Gateway
Gently press the power button on the front left‐side of the gateway.
Wait while the BlackPearl gateway completes its power‐on sequence, which takes approximately 5 to 10 minutes.
Figure 33 Connect cables to the rear panel. BlackPearl management port
1/10GBase-T 10 GigE
Ethernet
Rear panel of the BlackPearl 2U gateway Power
connectors (2) ports (2) ports (2) SAS
ports (4)
Figure 34 Press the power button to power on the gateway. Power button
Configure the BlackPearl Gateway Log In to the BlackPearl User Interface
Log In to the BlackPearl User Interface
1. Open a web browser on a computer on an active network that has access to the gateway. 2. Enter the IP address of the BlackPearl management port in the browser address bar using the default IP address, 10.0.0.2. Notes: If your data center already uses this address for another device, see “Configure The BlackPearl Management Port” in the Spectra BlackPearl User Guide. The BlackPearl user interface uses a secure connection. 3. Resolve the security certificate warning for the BlackPearl user interface. The warning displays because the BlackPearl gateway does not have a security certificate. Notes: This warning only appears if you did not resolve the security certificate warning. Consult your browser documentation for instructions on how to resolve the security certificate warning. If you choose not to resolve the warning, you receive the warning about the security certificate each time you access the BlackPearl user interface. The absence of the certificate does not affect functionality. 4. Enter the primary administrator username and password. The default username and password are both spectra, using all lowercase letters. Note: Only the primary administrator account can access the BlackPearl user interface. 5. Click > to log in.
Configure the BlackPearl Gateway Enter Activation Keys
Enter Activation Keys
Paper copies of the activation keys are included with new shipments. Use the instructions in this section to enter the activation keys in the BlackPearl user interface.
1. From the menu bar, select Support > Activation Keys. The Activation Keys window displays.
2. Select Action > New. The Enter Activation Key dialog box displays.
3. Enter a key, exactly as provided, in the Activation Key field and click Create to save the key on the gateway. The Activation Keys screen displays with the newly entered key listed.
4. If necessary, repeat Step 2 through Step 3 to add additional keys. Figure 36 The Activation Keys screen.
