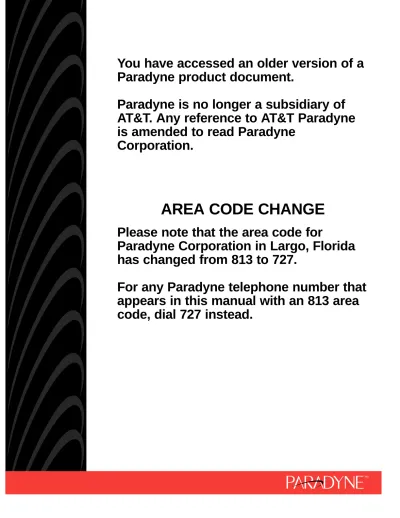

Paradyne is no longer a subsidiary of
AT&T. Any reference to AT&T Paradyne
is amended to read Paradyne
Corporation.
AREA CODE CHANGE
Please note that the area code for
Paradyne Corporation in Largo, Florida
has changed from 813 to 727.
For any Paradyne telephone number that
appears in this manual with an 813 area
code, dial 727 instead.
HP OpenView for Windows
User’s Guide
AT&T DCE Manager
for
HP OpenView for Windows
User’s Guide
Notice
This publication is protected by federal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of AT&T Paradyne Corporation, 8545 126th Avenue North, P.O. Box 2826, Largo, Florida 34649-2826.
AT&T Paradyne Corporation makes no representation or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Further, AT&T Paradyne Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of AT&T Paradyne Corporation to notify any person of such revision or changes.
Changes and enhancements to the product and to the information herein will be documented and issued as a new release to this manual.
A customer opinion form is provided at the front of this publication and your comments are appreciated. If the form has been removed, address comments to AT&T Paradyne Corporation, Technical Publications, 8545 126th Ave. N., P.O. Box 2826, Largo, Florida, 34649-2826. AT&T Paradyne may use or distribute any of the information supplied, as appropriate, without incurring any obligation whatsoever.
Trademarks
All products and services mentioned herein are the trademarks, service marks, registered trademarks or registered service marks of their respective owners.
Preface
H About This Guide . . . vii
H How to Use This Guide . . . vii
H Product-Related Documents . . . viii
H Reference Documents . . . viii
H Ordering Information . . . ix
1
Introduction
H What Does the AT&T DCE Manager Do? . . . 1-1
AT&T DCE Manager Features. . . 1-1 H SNMP Trap/MIB Information . . . 1-2 H Helpful Telephone Numbers. . . 1-2
2
Installation and Setup
H Getting Started . . . 2-1 H What Is in the Package?. . . 2-1 H Prerequisites Checklist . . . 2-1 H Installation Procedure . . . 2-2
Directories Created for Installation . . . 2-5
Aborting an Installation in Progress . . . 2-5 H Performing Setup . . . 2-5
Accessing the AT&T DCE Manager from HP OpenView. . . 2-6
What HP OpenView Functions Must Be Performed in Conjunction
with the AT&T DCE Manager? . . . 2-6
3
User Interface Conventions
H Windows Standards. . . 3-1 H Menu Hierarchy . . . 3-2
Accessing the AT&T DCE Manager Applications . . . 3-3 H AT&T DCE Manager Windows. . . 3-5
Set Button . . . 3-6
Get Button . . . 3-6
AutoGet Function . . . 3-6 H Use of Color . . . 3-6
Status Colors on Device View . . . 3-7
Modified Text. . . 3-7
Histogram Colors . . . 3-8
EIA Lead Colors . . . 3-8 H Use of Icons . . . 3-9
User Sites Icons . . . 3-9
HP OpenView Submap Icons. . . 3-9
Interface Icons . . . 3-10 H Selecting a Device and Its Interfaces . . . 3-10
Selecting Devices from Submaps to Perform Other Applications . . . 3-10
Selecting Interfaces on Device View . . . 3-11
Device Selection List . . . 3-12 H Field Selections . . . 3-12 H Entering Date and Time into a Field . . . 3-13
Date Calendar . . . 3-14 H Changing the Product Initialization File . . . 3-14
4
Creating DCE Submaps
H Why Create DCE Submaps? . . . 4-1 H Methods of Creating Submaps . . . 4-1 H Creating HP OpenView Network Submaps Using Autodiscovery . . . 4-2 H Viewing a List of Submaps . . . 4-2
User Sites Window . . . 4-3
Submap Icons. . . 4-4
Viewing Submap Names. . . 4-5 H Creating and Changing the DCE Submap List . . . 4-6
Submap Creation Rules . . . 4-6
Creating and Changing DCE Submap List Procedure. . . 4-7
Naming Submaps . . . 4-8 H Connecting Devices. . . 4-10 H Displaying DCE Submaps . . . 4-10
Viewing DCE Devices Based on Connectivity. . . 4-11
5
Configuring Your Device
H Hardware and Software Device Configuration . . . 5-1 H Collecting Device Hardware Configuration Information. . . 5-1 H Displaying Device Options . . . 5-2
Changing Device Options. . . 5-3 H Switch Configuration . . . 5-4 H Setting Channel Configurations . . . 5-6
6
Monitoring Devices
H Monitoring Methods . . . 6-1 H What to View in Your Network . . . 6-1 H Viewing DCE Submaps. . . 6-2 H Viewing a Device and Its Interfaces . . . 6-2
Selecting a Device Interface or Card . . . 6-4
Accessing Applications . . . 6-4
Displaying the Alarm Log . . . 6-4 H Viewing Detailed Status . . . 6-5 H Accessing the Performance Statistics of a Device . . . 6-6
What Statistics Can Be Collected? . . . 6-7
Viewing Performance Statistics . . . 6-8
Setting Time Intervals for Performance Statistics. . . 6-9
Saving Performance Statistics for Use by Statistical Products . . . 6-11
Exporting Performance Statistics to an Unformatted ASCII File . . . 6-12
Purging Performance Statistics from the Database . . . 6-14
7
Fault Isolation
H Diagnostic Tools . . . 7-1
Typical Fault Isolation Process . . . 7-1 H Monitoring EIA Leads . . . 7-2 H Performing a Device Test . . . 7-3 H Test Window . . . 7-5 H Using Loopback Modes . . . 7-7
Line Loopback (LLB) . . . 7-7
Payload Loopback (PLB) . . . 7-9
DTE Loopback (DLB) . . . 7-9
Repeater Loopback (RLB) . . . 7-10
Data Channel Loopback (DCLB). . . 7-10
Data Terminal Loopback (DTLB) . . . 7-11
Use of the Loopback Up Codes and Down Codes. . . 7-11 H Using Pattern Tests . . . 7-12
QRSS, 511, and 1-in-8 Patterns . . . 7-12 H Testing a Selected Device Interface . . . 7-13 H Retrieving Device Identity Information . . . 7-14
8
Troubleshooting
H Troubleshooting Table . . . 8-1 H Error Messages . . . 8-4 H File Maintenance . . . 8-6
DOS Backup . . . 8-6
New DOS Windows Backup. . . 8-6
Microsoft Access Backup . . . 8-6
GL
Glossary
About This Guide
This guide is intended for network operators who must install and use the AT&T DCE Manager for HP OpenView for Windows product. It is designed to be used in conjunction with the HP OpenView and Microsoft Windows documents. You need to be familiar with the functional operation of Data Communications Equipment (DCE) devices. You must also be familiar with the operation of Hewlett-Packard OpenView for Windows and Microsoft Windows.
How to Use This Guide
This guide contains all the information that you need to install and operate the DCE Manager on a daily basis.
Section Description
Chapter 1 Introduction. Provides a general overview of the product and its features.
Chapter 2 Installation and Setup. Provides installation prerequisites and procedures.
Chapter 3 User Interface Conventions. Contains the graphical conventions used by the DCE Manager which are in addition to those provided by HP OpenView for Windows and Microsoft Windows.
Chapter 4 Creating DCE Submaps. Describes the User Sites
application which is used for creating DCE submaps.
Section Description
Chapter 7 Fault Isolation. Provides information for isolating problems with DCE devices in your network using the Detailed Status, Device Test and Device Identity applications.
Chapter 8 Troubleshooting. Provides troubleshooting tips and error messages.
Glossary Defines acronyms and terms used in this guide. Index Lists key terms, acronyms, concepts, and sections in
alphabetical order.
Product-Related Documents
Document Number Document Title
HP OpenView for Windows (Workgroup Node Manager or SNMP Platform), User’s Guide
3150-A2-GB21 ACCULINK 315x Channel Service Unit, Operator’s Guide
3150-A2-GB22 ACCULINK 315x Channel Service Unit (includes Terminal User Interface), Operator’s Guide
3160-A2-GB21 ACCULINK 316x Data Service Unit/Channel Service Unit, Operator’s Guide
3160-A2-GB22 ACCULINK 316x Channel Service Unit (includes Terminal User Interface), Operator’s Guide
582-510-100 ACCULINK Access Controller, Reference Guide
Reference Documents
Internet Engineering Task Force (IETF) RFC 1213, MIB II
Internet Engineering Task Force (IETF) RFC 1229, Interface MIB II Extensions Internet Engineering Task Force (IETF) RFC 1317, RS-232-Like
Ordering Information
To order AT&T Paradyne documentation, please call 1-800-545-2354, extension 2222 or 1-813-530-8777.
To order AT&T documentation (for document number 582-510-100), please call 1-800-432-6600 or 1-317-322-6572.
1
What Does the AT&T
DCE Manager Do?
The AT&T DCE Manager for HP OpenView for Windows helps you manage AT&T DCE devices using Simple Network Management Protocol (SNMP).
The About dialog box, available from the AT&T DCE Manager menu, lists the current product release level and supported device model/card release information.
The AT&T DCE Manager runs in conjunction with the HP OpenView Manager for Windows 7.2, and uses Microsoft Windows Release 3.1 or Windows 95.
AT&T DCE Manager Features
The AT&T DCE Manager enhances your ability to manage devices by allowing you to:
H Create meaningful submaps for DCE devices based on location H Configure device parameters
H View device status graphically, including EIA status
H View device performance statistics in both a grid and histogram format H Perform fault isolation, including initiating device tests
H Display and modify channel configurations
SNMP Trap/MIB Information
For SNMP trap and Management Information Base (MIB) information for supported devices, refer to the applicable device manual.
Helpful Telephone Numbers
If you require technical assistance, call your local AT&T Customer Support representative, or the Customer Assistance Center at 1-800-237-0016 or 1-813-531-4373.
2
Getting Started
Before you can use your AT&T DCE Manager product you must: H Ensure that all prerequisites have been met
H Install the product on your PC
H Set up HP OpenView to be used in conjunction with the DCE Manager
What Is in the Package?
Please check that your AT&T DCE Manager for HP OpenView for Windows package contains the following in addition to this manual:
H Several 3 1/2 inch, 1.44 MB, double-sided, high density diskettes. The Software Abstract lists the number of diskettes that you should have. H One software license agreement card containing a serial number and a key
number.
H One AT&T DCE Manager Software Abstract.
Prerequisites Checklist
The AT&T DCE Manager works together with Microsoft Windows and HP OpenView for Windows to help you manage the devices in your network. You must have the skills, hardware and software required for Windows and HP OpenView to use the AT&T DCE Manager. Refer to the appropriate documents for these products’ requirements. In addition, the following are prerequisites to
Skills Prerequisites
- Microsoft Windows 3.1 or Windows 95 operating rules and conventions - HP OpenView for Windows operating rules and conventions
Software Prerequisites
- Microsoft Windows Release 3.1 or Windows 95 - HP OpenView for Windows 7.2C
Hardware Prerequisites
- 486 Series, 66 MHz or higher PC (or compatible computer)
- Hard disk with 15 MB of free space and a minimum of 14 Ms access time - 16 MB of RAM
- Super VGA (800 x 600 resolution) or higher with 256 colors - Video accelerator card
Installation Procedure
Before installing the AT&T DCE Manager, ensure that
H The prerequisites have been met (see Prerequisites Checklist) H HP OpenView has already been installed
H HP OpenView is not currently running (has been shut down)
To install the AT&T DCE Manager for HP OpenView for Windows software: 1. Insert Disk 1 into the disk drive.
2. Choose the Run option.
I f you are running . . . Then choose . . .
Windows 3.1 File, then Run from the Program
Manager.
Windows 95 The Start button, then Run.
3. Type A:\SETUP and click OK.
The installation initializes. Then, the following installation background window appears.
NOTE:
You can abort the installation at any time by clicking on the Exit button on this screen. See Aborting an Installation in Progress for more information.
The Welcome dialog box appears on the Installation Background window.
Click on . . . To . . .
Continue Continue the installation. The Registration dialog box appears.
Exit Abort the installation. The Exit Setup dialog box appears. See Aborting an Installation in Progress.
4. Register your AT&T DCE Manager software using the Registration dialog box. Then, click on Continue.
Registration Dialog Field Default Value
Name The name listed for Windows
registration. Or, the name listed on the last AT&T DCE Manager installation, if this is not the first attempt.
Company The company name listed for Windows registration. Or, the company name
Registration Dialog Field Default Value
Serial Number None. Type the 7-digit serial number listed on the software license agreement card.
Key Number None. Type the 7-character key number listed on the software license agreement card.
5. Type the name of the directory into which you want the AT&T DCE Manager files copied. The default path name is C:\OV\ATTDCE. See Directories Created for Installation for more information. At this point, the system checks for sufficient disk space.
6. Choose to either install or uninstall the software on the Type of Installation dialog box.
I f you choose . . . Then the product will be . . .
Install Installed on your PC. The Installation Background window will display the System Disk Usage, the RAM Usage, and the Diskette Read Usage.
Uninstall Removed from your system. All product directories will be removed from your PC. All references to the product will be removed from Windows and HP OpenView.
File transfer begins. The Transfer File dialog box appears. The percentage shown refers to the overall completion of the installation. The following HP OpenView files are updated and appropriate dialog boxes are displayed.
HP OpenView Files Updated Using These Files
XOVSRVR.INI XOVSRVR.XOV and (Family Type).XOV
OVFILES/DEVICES (Family Type).DEV
TRAPMGR/TRAPMGR.INI (Family Type).TDF
The <device>.ico files are placed in the Symbols directory.
Once the installation has successfully completed, a Completion dialog box appears. At this time, you can choose to customize the traps using the HP OpenView menu items Monitor and Customize Traps. See Modifying Device Trap Descriptions, and your HP OpenView manual for more information.
Directories Created for Installation
The following directories are appended to the directory created during installation:
Directory . . . Contains . . .
DATABASE Database file
BITMAPS Bitmaps used to draw graphics
HELP Product HELP files
EXE Executable software
STATS ESF performance statistics database
Aborting an Installation in Progress
1. You can abort a AT&T DCE Manager installation from either the Background Installation window or the Welcome dialog box.
To abort the installation from the . . . Click on . . .
Background Installation window at any time during the installation
Exit. The Exit Setup dialog box appears.
Welcome dialog box Exit. The Exit Setup dialog box appears.
2. Click Exit on the Exit Setup dialog box to confirm that you intend to abort the installation.
Performing Setup
Perform the following setup functions before using your AT&T DCE Manager: 1. Restart HP OpenView after installing the AT&T DCE Manager
2. Discover DCE devices using HP OpenView’s autodiscover feature.
3. Use HP OpenView to create connectivity submaps. See Connecting Devices Procedure
Accessing the AT&T DCE Manager from HP OpenView
Once you install the AT&T DCE Manager, the AT&T DCE Manager menu and all its associated sub-items are attached to the Control menu item on the HP OpenView menu bar. This menu is available the next time that you bring up HP OpenView.
What HP OpenView Functions Must Be Performed in Conjunction with the AT&T DCE Manager?
Since the AT&T DCE Manager works in conjunction with HP OpenView, there are some HP OpenView functions that you must perform either before or while you use the AT&T DCE Manager.
This AT&T DCE Manager function . . . Involves this HP OpenView function . . .
Selecting a DCE device for any AT&T DCE Manager function
Autodiscovery to give you a list of all discovered devices.
User Sites Autodiscovery to give you a list of all discovered devices.
Connectivity Add Toolbox to add lines.
Modifying Device Trap Descriptions
Although default customization for AT&T DCE Manager devices is done during installation, you may decide to modify the default values.
You can customize device traps (alarms) through HP OpenView using the Monitor and Customize Traps menu items, and selecting the device class
3
Windows Standards
The AT&T DCE Manager is designed to execute under: H Microsoft Windows Release 3.1
H Windows 95
The AT&T DCE Manager follows all Windows standards including graphical user interface (GUI) standards, use of buttons (Cancel, OK, etc.), and operation of the mouse while using the AT&T DCE Manager.
NOTE:
For Windows 3.1 users, you may experience a problem displaying complex device views due to a lack of Windows resources. If this occurs, close all unnecessary windows and reopen the display.
Menu Hierarchy
Upon installation, the AT&T DCE Manager menu is appended to the Control portion of the HP OpenView menu.
NOTE:
An error message appears if you select a menu item that cannot be performed for the selected device.
Portions of this menu are also available from the Application menu available from AT&T DCE Manager application windows.
Accessing the AT&T DCE Manager Applications
Access the AT&T DCE Manager applications using the most convenient method.
Access this application . . . From . . . To . . .
Configuration, including Channels, Options, and Switch Configuration
H The Control pull-down menu on the HP OpenView menu, or
H The Application menu on specific AT&T DCE Manager windows
Set, change and display the software options for the DCE devices.
Connectivity H The Control pull-down menu on the HP OpenView menu, or
H The Application menu on specific AT&T DCE Manager windows
Display connectivity maps that include the selected device.
Device View H The Control pull-down menu on the HP OpenView menu, or
H The Application menu on specific AT&T DCE Manager windows, or
H The HP OpenView map by double-clicking on a selected device
View the current operational status of a selected device and its interfaces.
EIA Leads H The Control pull-down menu on the HP OpenView menu, or
H The Application menu on specific AT&T DCE Manager windows
View the current status of EIA leads on data ports that support an RS232 interface.
Identity H The Control pull-down menu on the HP OpenView menu, or
H The Application menu on specific AT&T DCE Manager windows, or
H The HP OpenView map by clicking the right mouse button after selecting a device
View and modify general identification information about the selected device and its interfaces.
Access this application . . . From . . . To . . .
Status H The Control pull-down menu on the HP OpenView menu, or
H The Application menu on specific AT&T DCE Manager windows, or
H The HP OpenView map by clicking the right mouse button after selecting a device, or
H The Status button on the Device View window
View the current status values for interfaces on the selected device.
Test H The Control pull-down menu on the HP OpenView menu, or
H The Application menu on specific AT&T DCE Manager windows, or
H The Test button on the Device View window
Perform various tests on the interfaces of selected devices.
User Sites H The Control pull-down menu on the HP OpenView menu
View and arrange discovered devices into submaps.
Device Sync H The Control pull-down menu on the HP OpenView menu
Force an interrogation of the device hardware configuration.
Help H The Control pull-down menu on the HP OpenView menu, or
H The F1 key on any AT&T DCE Manager window, or
H The Help button on an application window
Display the AT&T DCE Manager online help.
About H The Control pull-down menu on the HP OpenView menu
Display AT&T DCE Manager information such as the current release level and the devices supported.
AT&T DCE Manager Windows
The AT&T DCE Manager windows use the following visual conventions. H Window icon
H Window captions
Application Device Name Device Model/Card
H Tabs
Tabs showing interface
Set Button
Use the Set button available on various AT&T DCE Manager windows to download data to the device once you have changed it.
H The Set button is disabled until you change some field.
H Once you modify a data field, that field changes color as a reminder to you to click on the Set button before closing the window (see Use of Color for more information).
H If you attempt to close a window containing a Set button without clicking on Set, a dialog box appears asking whether the data should be applied.
Get Button
Use the Get button available on various AT&T DCE Manager windows to request a retrieval of data from the device.
AutoGet Function
The AutoGet function automatically retrieves data when you first select an interface tab. This is the default. However, you may prefer to manually click on the Get button to retrieve data if you would rather not wait for an automatic data retrieval when you select a tab.
I f the AUTOGET option in the
ATTDCE.INI file is set to . . . Then data is . . .
NO Only retrieved when you click on the Get button.
YES Retrieved automatically the first time that you select the tab. This is the default.
Use of Color
A number of AT&T DCE Manager windows use color to communicate specific conditions about network devices.
H You can change the color assignments for most applications in the ATTDCE.INI file (see Changing the Product Initialization File). H Colors presented in this section are the default colors.
H Be aware that your AT&T DCE Manager colors will differ from HP OpenView standards if you have changed them from the defaults.
Status Colors on Device View
The Device View application offers device status in a graphical form (see Viewing a Device and Its Interfaces in Chapter 6, Monitoring Devices, for more
information about Device View). Colors are used on the Device View application to indicate:
H Operational status
Color on the individual interfaces reflects their operational status. The tab label is color-coded to the color of the most severe status on that tab. H Alarm status
The color of the Alarm Log button text is the same as the selected device’s icon on the HP OpenView map. See Displaying the Alarm Log in Chapter 6, Monitoring Devices, and your HP OpenView manual for more information about the Alarm Log.
All colors appearing on the Device View application are defined in the HP OpenView OVWIN.INI file, except for the test status. The AT&T DCE Manager uses yellow to indicate test status, which is the HP OpenView default color for a warning. See your HP OpenView manual for information on how to change these colors.
Modified Text
Windows with the Set button use color to indicate whether a data field can be changed, and if it has been changed. The colors are assigned in the ATTDCE.INI file. The following lists the default colors.
Default Color of Field Label Meaning
Black These fields are not modifiable
Blue Data in these fields can be changed
Red You have changed this data and have not yet applied it to the device (clicked on the Set button)
Histogram Colors
The AT&T DCE Manager allows you to present performance statistics in the form of a histogram. The graph error values are color-coded based on the colors assigned by column, left to right, in the ATTDCE.INI file. These colors are listed on the histogram tab in the Performance Statistics application. See Viewing Performance Statistics in Chapter 6, Monitoring Devices, for information about viewing a histogram.
Color Meaning
Pale Cyan Errored
Light Green Severely Errored
Sea Green Unavailable
Light Red Controlled Slip
Light Magenta Bursty
EIA Lead Colors
Use the EIA Leads application to view the status of the selected device’s ports supporting the RS232 interface. See Monitoring EIA Leads in Chapter 6, Monitoring Devices, for more information.
Color Meaning
Red Off – The port is not receiving this signal
Green ON – The port is receiving this signal
Use of Icons
The AT&T DCE Manager uses icons in several of its applications to represent devices and their interfaces.
User Sites Icons
The User Sites window displays a hierarchical list of the discovered devices organized hierarchically in outline form. The most commonly used User Sites icons are shown here. See Submap Icons in Chapter 4, Creating DCE Submaps, for a complete list of the User Sites icons.
Icon Meaning
A DCE site
A cabinet
A 3000 Series Carrier
HP OpenView Submap Icons
HP OpenView submap device icons display the device model number, the device type (card, multiplexer, standalone device, etc.), and the IP address. Examples include the following.
Icon Device
Standalone DCE device
IP-addressable carrier card device
Interface Icons
The icons representing interfaces on the Device View application are as follows.
Icon Interface
RJ11 connector
RJ48 connector
DB9
DB15
DB25
DB26
DB50
Generic connector representing individual data ports on an amphenol connector
Selecting a Device and Its Interfaces
Most AT&T DCE Manager applications require that you select a device/interface to use the application.
Selecting Devices from Submaps to Perform Other Applications
Select a device directly from its submap to perform other AT&T DCE Manager functions.
To select a device from a submap:
1. Click on the submap containing the device to make the submap active. 2. Click on the device to select it.
3. Choose the desired application from the AT&T DCE Manager pull-down menu. You can also choose the Identity, Status or Device View applications using one of the following shortcuts.
To select . . . Do this . . .
Identity or Status Choose the desired application from the right mouse button menu.
Device View Double-click on the selected device.
Selecting Interfaces on Device View
When the Device View window appears, you can select the device interface on which to perform other AT&T DCE Manager applications.
From the Device View window, click on the interface you wish to select.
Click on desired interface
The selected interface appears pushed in. The selected carrier slot appears raised.
Device Selection List
Certain AT&T DCE Manager applications display the Device Selection List, depending on the selected device and the requested function. Use this window to select a device and its installed card(s) and interface(s).
Select a device in the Device Name column and a list of associated cards appears in the Card column. Select a card in the Card column and a list of associated interfaces for the card appears in the Interface column. An interface appears gray if it cannot perform the requested function.
Field Selections
The Device Options, Device Identity and Device Status widows contain fields listing applicable configuration parameters for the selected device.
Certain options offer multiple choices for each field as selections. These fields are indicated by a drop down arrow.
Drop down arrow
Some of these fields also allow multiple selections (more than one choice per field). This is indicated by either:
H A scroll bar at the end of the field, or
For fields offering multiple selections, you can toggle the selection on and off by clicking on the selection in the drop down list box. See the following examples for fields allowing multiple selections.
Scroll bar Separator characters
See Changing the Product Initialization File for information on changing this option.
Entering Date and Time into a Field
For fields that require a date/time entry, use one of the following:
H Type the date/time using any format such as March 30, 1996, or 3/30/96, etc, followed by a tab. Pressing the Tab key validates your entry.
H Highlight the portion of date/time that is already displayed in the field (such as on the Purge Performance Statistics window), then use the arrows at the end of the field to scroll up or down.
Date Calendar
A date calendar is available for those fields requiring date information. Press F4 while in a date field and select the desired month, day, and year using the scroll bars.
NOTE:
You cannot enter the time using the date calendar. Time must be typed in separately.
Changing the Product Initialization File
The AT&T DCE Manager product initialization file is labeled ATTDCE.INI. Upon initialization, the ATTDCE.INI file is updated to reflect the root directory and all path entries. Use the standard Windows feature to modify this file.
The ATTDCE.INI file contains the following groups.
NOTE:
Group Definition Default
[DATABASE] DBNAME STATDBNAME
File path names. The full path of the database files [COLORS] MODIFYDATA=1 CHANGEDATA=4 STAT_COLOR1=9 STAT_COLOR2=10 STAT_COLOR3=11 STAT_COLOR4=12 STAT_COLOR5=13
The colors assigned to text appearing on the screen. See table below for the definition of the color numbers.
Modifiable data = blue Changed data = red
Status Colors: 1st level = pale cyan 2nd level = light green 3rd level = sea green 4th level = light red 5th level = light magenta
[TAB OPTIONS] AUTOGET
Get device data only from the Get button (NO). Or, get device data the first time the tab for the window is selected (YES). See Get Button and AutoGet Function for more
information.
YES
[TAB OPTIONS] SINGLELINE
Place all field selections for Device Options, Device Status and Device Identity on a single line (YES), or create a drop down arrow (NO). See the example in Field Selections.
YES
[DEVICE VIEW] POLLRATE
Number of seconds to wait before retrieving status.
60
[DEVICE SYNC] OVCLEANUP
During a device synchronization, all outdated objType/objName pairs are removed from the database.
YES
[DEVTEST] CMNDTIMEOUT
The number of seconds you must wait for a remote device to execute a test prior to starting a test on the local device.
Color Number Definition
0 black
1 blue
2 green
3 cyan
4 red
5 magenta
6 red brown
7 light gray
8 dark gray
9 pale cyan
10 light green
11 sea green
12 light red
13 light magenta
14 yellow
4
Why Create DCE Submaps?
Use DCE submaps to create a new set of submaps to help you picture the organization of your AT&T Paradyne DCE devices that are managed by the AT&T DCE Manager. It is important for device monitoring to be able to see the
relationships among the sites, cabinets, carriers and cards in your network. You can create submaps based on both physical and logical relationships between the devices.
Create DCE submaps based on: H Device function (such as all CSUs)
H Geographic location (such as all devices located at one site) H Network layout (such as devices connected physically or logically)
H Corporate organization (such as devices belonging to System Administrators)
Methods of Creating Submaps
HP OpenView creates hierarchical submaps during its layout operation based on the devices’ network addresses. The AT&T DCE Manager for HP OpenView for Windows product gives you the capability of adding to these submaps in two different ways:
H Connectivity submaps
The HP OpenView submap default does not show the physical connectivity of the devices in the network. However, HP OpenView does provide a feature that allows you to create connectivity submaps. Once you create DCE connectivity submaps, the AT&T DCE Manager enables you to find these
H DCE SITES submaps
The HP OpenView submap default does not show the geographical hierarchy of the devices in the network. The AT&T DCE Manager enables you to create submaps based on geographical hierarchy by using the User Sites
application.
NOTES:
It is recommended that you use the User Sites application to tell the AT&T DCE Manager where to place 3100 Series cards into a 3000 Series Carrier. This information that you enter via User Sites is used by the Device View application to accurately display the carrier view.
Only use the User Sites application to modify the DCE SITES submaps that you have created. If you make changes to these submaps using any other means, your changes may be lost the next time you use the User Sites application.
Creating HP OpenView Network
Submaps Using Autodiscovery
Before you create a submap, the devices must be autodiscovered by HP OpenView. During autodiscovery, the ALL NETS submap is created which contains a list of submaps, one for each network containing discovered devices. Refer to your HP OpenView manual for more information on the Autodiscovery feature.
NOTE:
Do not rename the ALL NETS submap or the User Sites application will not work correctly.
Viewing a List of Submaps
You use the AT&T DCE Manager to create, change, and view a list of DCE SITES submaps. You view submaps themselves using HP OpenView.
To view a hierarchical list of both the HP OpenView submaps and the AT&T DCE Manager submaps, use the User Sites window (see User Sites Window).
H The ALLNETS submap list consists of all discovered devices in the HP OpenView network.
H The DCE SITE submap list consists of all submaps that have been created for devices by the AT&T DCE Manager.
— If no DCE SITES submaps currently exist, the Sites section of the User Sites window is blank except for the DCE Sites site name.
— DCE SITES will always be the name of the first hierarchical site. See Creating and Changing the DCE Submap List if no submaps currently
User Sites Window
The User Sites window allows you to create submaps by placing device and site icons in their appropriate hierarchical location in a hierarchical list of submaps. Use the User Sites window to create, change and display the DCE SITES submap list. The User Sites Window also displays the HP OpenView submap list of all discovered devices in the network.
Access the User Sites application from: H The AT&T DCE Manager pull-down menu
The User Sites window appears.
Discovered Devices
section for HP OpenView submap names
Sites section for
DCE submap site names
Icons
section
AT&T Paradyne DCE site and device names are displayed here
Submap Icons
The submap names are listed hierarchically next to icons that represent their type (see the following table). Submap compound objects can have objects located hierarchically beneath them. To expand the compound object and display the objects beneath them, double-click on the compound object icon.
Icon Meaning
An unexpanded compound object containing other objects
An expanded compound object (its objects are displayed)
A compound object with no objects beneath it
An unsupported device
A supported standalone device
A supported carrier device
A supported multiplexer device
A DCE site
A cabinet
A 3000 Series Carrier
Viewing Submap Names
To view an outline of submaps from the User Sites window: 1. Choose User Sites from the AT&T DCE Manager menu. 2. The User Sites window appears.
To View . . . Double-click on . . .
A list of all devices discovered by HP OpenView
ALL NETS in the Discovered Devices section of the User Sites window.
Where any devices that have already been placed on a DCE SITES submap are located
DCE SITES in the Sites section of the User Sites window.
The following example shows a list of discovered devices and existing DCE submaps.
List of DCE submaps List of
discovered devices
Creating and Changing the
DCE Submap List
Use the User Sites window to initially create, rearrange, and display DCE SITES submaps in outline form (see Viewing a List of Submaps for more information on display).
To create submaps for devices managed by the AT&T DCE Manager in the Sites section of the User Sites window, drag icons from either the Discovered Devices or the Icons section and drop them in the desired position.
From the . . . Click on . . .
Discovered Devices section A device icon and drag it to the DCE SITES section.
Icons section The DCE site, cabinet or carrier icon and drag it to the DCE SITES section.
Sites section The desired icon and drag it to the trash can.
Slot to the carrier A device and move it to another location. Be sure that the new location is visible in the Sites section since the window does not scroll during the drag/drop operation.
Submap Creation Rules
Rules for dragging icons from the Discovered Devices section:
This type of device . . . Can only be placed onto . . .
Unsupported a site
Standalone a site
Card a carrier
Multiplexer a site
Rules for dragging icons from the Icons section:
This type of icon . . . Can only be placed onto . . .
Site a site
Creating and Changing DCE Submap List Procedure
To create and/or change the DCE SITES submap list for user sites:
1. Choose User Sites from the AT&T DCE Manager menu. The User Sites window appears.
2. Double-click on the ALL NETS icon in the Discovered Devices section of the User Sites window. A list of devices autodiscovered by HP OpenView appears.
3. Double-click on the DCE SITES icon in the Sites section. An outline of existing DCE SITES submaps appears. If no DCE SITES submaps currently exist, the Sites section of the User Sites window is blank except for the DCE SITES site name. DCE SITES will always be the name of the first hierarchical site.
4. Choose one of the following actions.
To . . . Click on . . .
Then drag the selected icon to the . . .
Add a site, cabinet, or carrier to an existing site or cabinet
Either the site, cabinet or carrier icon in the Icons section.
Desired DCE site icon (for cabinets and carriers) or cabinet icon (for carriers only). See Submap Creation Rules for more information. A dialog box appears asking you to name the site, carrier or cabinet submap. See Naming Submaps for more information.
Place a discovered device onto an existing submap
The desired icon under ALL NETS in the Discovered Devices section.
Desired DCE site icon. These objects will then appear gray in the ALL NETS submap.
Delete a device from the DCE SITES submap
The desired icon in the Sites section.
Trash can. All associated objects will be deleted from the DCE SITES submap as well. Deleted devices reappear (are no longer grayed out) in the ALL NETS submap.
5. After making changes to the DCE SITES submap list, choose one of the following.
Click on . . . To . . .
OK Save all your changes and close the application.
Save Save all changes that you made to the DCE Sites section of the User Sites window since the last save.
Restore Ignores all changes made to the DCE Sites section of the User Sites window up until the last Save request.
Cancel Close the User Sites window and disregard all changes made to the DCE Sites section since the last Save request.
Help Display the Help window.
Naming Submaps
When you place a site, cabinet or carrier icon onto a DCE site, a dialog box appears asking you to name that icon. Type 1–15 characters, then click on OK. This name then appears in the Sites section of the User Sites window (see the example on the next page).
NOTE:
HP OpenView allows you to use the same name for different object types. For example, you can have a site and a cabinet named Largo. However, it is recommended that you give each object type a unique name.
The following example places a carrier onto a DCE site.
Drag icon onto DCE site
Name the icon
Name appears in DCE SITES section
Connecting Devices
Connect devices in your submap to show a relationship between devices using the standard HP OpenView Connectivity feature. This relationship can be physical or logical. Be sure that you connect all supported devices to another object. Connectivity is used to identify the remote device to be selected for various device tests, such as Remote Line Loopback. See Chapter 7, Fault Isolation, for more information.
To create connectivity maps for your devices using the HP OpenView commands: 1. Use the Edit –>New Submap command to create a new submap.
2. Cut/paste DCE devices into the new submap.
3. Use Edit –> Add to add connection lines. Be sure to use the Connections button , or the connection will not be recognized.
You must connect devices before they will appear in the Test application’s remote Device Selection List box. See Device Selection List in Chapter 3, User Interface Conventions, for more information.
NOTE:
Do not use connectivity on the submaps created by the DCE Manager User Sites application since these connections will be deleted the next time that you request User Sites.
Displaying DCE Submaps
To display DCE submaps, use the standard HP OpenView feature of
double-clicking on compound icons in submaps. Displaying DCE SITES submaps allows you to monitor DCE devices based on geographical view. For example, when a device is in alert, all of its parent site, cabinet, and/or carrier objects will show the most severe alarm color. See Chapter 6, Monitoring Devices, for more information.
The following is an example of displaying a DCE SITES submap using HP OpenView.
Viewing DCE Devices Based on Connectivity
Use the Connectivity application to find connectivity maps based on the selected DCE device.
Access the Connectivity application from either:
H The AT&T DCE Manager menu on the pull-down menu, or H The Application menu on a specific window
The AT&T DCE Manager examines each submap for the selected device.
I f the selected device . . . Then . . .
Has a connection on one submap That submap appears.
Is located on more than one submap A list box appears asking you to select which submap to display.
Select submap to display and click on OK, or double-click on selection
5
Hardware and Software Device
Configuration
The AT&T DCE Manager receives hardware device configuration information, such as what interfaces are currently supported in the device:
H The first time that you request an application for that device H Every time that you select the Device Sync application
Three AT&T DCE Manager applications enable you to set software configuration information for your DCE devices:
H Device Options H Switch Configurations H Channel Configuration
Collecting Device Hardware
Configuration Information
The first time that you open a AT&T DCE Manager application on a discovered device, the AT&T DCE Manager interrogates the device for its hardware configuration. A dialog box appears to let you know that a synchronization is in progress to collect this information.
This is the only time that a device is interrogated for information unless you specifically request it using the AT&T DCE Manager Device Sync application. Use Device Sync anytime that you suspect that the hardware or firmware of a device has changed.
Access the Device Sync application from: H The AT&T DCE Manager pull-down menu
Displaying Device Options
A selected device’s configuration parameters appear on the Device Options window. A tab appears for each interface.
Access the Device Options application from: H The AT&T DCE Manager pull-down menu, or H The Application menu on a specific window
The Device Options window appears.
Information specific to the device’s interfaces appear on the tab for that interface. General information for the selected device appears on the General tab. Click on the appropriate tab to bring the desired information forward.
Options that you can change have labels that appear in blue. Once you have made a change, the label appears in red until you click on the Set button (see Changing Device Options).
Certain options offer multiple choices for each field as selections. These fields are indicated by a drop down arrow. Some of these fields also allow multiple
selections (more than one choice per field). This is indicated by either: H A scroll bar at the end of the field, or
H Multiple selections displayed on the same line separated by | and ended by || For fields offering multiple selections, you can toggle the selection on and off by clicking on it in the drop down list box.
Changing Device Options
4. Select the tab of the desired interface. The options for that interface appear. 5. Choose one of the option fields shown in blue to modify. All other options
displayed in black are read-only. 6. Click on the field you wish to change.
I f . . . Then . . .
A drop down arrow is displayed in the field
Click on the arrow to display a list box of possible choices. Select the desired option setting(s). For fields with multiple selections separated by a separator character, click on the option setting to select or deselect it.
Once you change a field, its label appears in red.
NOTE:
If you change an option that causes other options to become invalid and click on the Set button, either:
— The displayed value of the other options changes to Unavailable and the option becomes read-only, or
— The option is removed from display. 7. Click on Set to apply your changes to the device.
Switch Configuration
Use the Switch Configuration application to copy device configuration information from one configuration area to another.
Access the Switch Configuration application from: H The AT&T DCE Manager pull-down menu, or H The Application menu on a specific window
The Switch Configurations window appears.
To copy configuration information from one area to another:
1. Select the desired device (see Chapter 3, User Interface Conventions). 2. Choose Configuration from either the AT&T DCE Manager pull-down menu
or the Application menu.
3. Choose Switch Configuration from the Configuration pull-down menu. The Switch Configurations window appears.
4. Select the desired area in the Copy From/To column.
5. Click on the Set button. The device copies the configuration information from one area to another area.
Setting Channel Configurations
Use the Channel Configuration application to allocate the selected device’s channel configuration assignments. Allocate each one of the 24 Network T1 channels to either:
H One of 24 DTE T1 channels, or H One of the data ports
NOTE:
When you allocate a channel to a data port, port speed is accumulated using either 56 kbps or, if B8ZS is configured, 64 kbps.
Access the Channel Configuration application from: H The AT&T DCE Manager pull-down menu, or H The Application menu on a specific window
The Channel Configuration window appears.
Channel identifiers appear on the window as: H P for Port
H D for DTE channel H N for Network Channel
NOTE:
Some devices cannot return exact channel assignments. Therefore, each time that the Channel Configuration window is initially displayed, exact channel assignments may not be available. If this occurs, the system automatically assigns Dx and Nx to these channels.
Configuring Channels
Assign and modify channel connections for a selected device using the Channel Configuration window. Once a Network T1 channel is dropped into either a DTE T1 or data port position on the window, the device is configured immediately.
3. Choose Channels from the Configuration pull-down menu. The Channel Configuration window appears.
4. Perform one of the following actions.
To . . . To a . . . Do this . . .
Assign a Network T1 channel
Assign a DTE T1 channel
DTE T1 channel
Network T1 channel
Click on the channel position. Hold down the left mouse button and move the cursor. The cursor changes to a round circle with the selected channel position displayed in the center. Drag and drop to the desired channel position.
Assign a Network T1 or DTE channel
Data port Click on the channel position. Hold down the left mouse button and move the cursor. The cursor changes to a round circle with the selected channel position displayed in the center. Drag and drop to the desired data port. Note the accumulated port speed in the Port field.
Delete a channel connection
Click on the desired channel number and drag it to the trash can.
Delete a data port connection
Click on the desired channel number on the Network or DTE T1 port and drag it to the trash can.
6
Monitoring Methods
The AT&T DCE Manager enables you to monitor the DCE devices in your network by:
H Viewing the devices/interfaces and their status H Accessing performance statistics
H Monitoring EIA leads
What to View in Your Network
Monitor the AT&T Paradyne DCE devices in your network by viewing: H Geographically (viewing submaps)
H Graphically (viewing devices and their interfaces) H Alarm status (viewing device alarms)
H Device detailed status
Viewing DCE Submaps
Create submaps for your DCE devices (see Chapter 4, Creating DCE Submaps) so that you can monitor your devices based on a geographical view. Use HP OpenView to display the submaps you created. From this window, you can view the device alarms and select the device for other applications.
When a device appearing in a submap is showing an alarm, the device and all its parent objects (site, cabinet or carrier) display the most severe alarm color assigned in the alarms section of the OVWIN.INI file.
Viewing a Device and Its Interfaces
Use Device View to monitor devices through a graphical display. Access the Device View application from:
H The AT&T DCE Manager pull-down menu, or H The Application menu on a specific window, or H The selected device by double-clicking on it
The device view display varies depending on the type of device being viewed. All devices display at least the front graphical view. If the device has interface connections on its back panel, a back graphical view is also available.
The AT&T DCE Manager retrieves information from the selected device every 60 seconds, or whatever interval that you have set in the ATTDCE.INI file (see Changing the Product Initialization File in Chapter 3, User Interface Conventions). The hourglass appears on the screen while the device is being polled.
Each interface reflects the color assigned to its operational status in the OVWIN.INI file. See Status Colors on Device View in Chapter 3, User Interface Conventions. The tabs for each device view reflect color for the most severe interface status on that tab.
Click on the desired interface
I f the device is a . . .
Then the Device View will show the front and back view of . . .
Standalone model The device with the appropriate interfaces.
Carrier card All the devices within the appropriate carrier slot. The slot position is determined by how the devices are defined in the User Sites application (see Chapter 4, Creating DCE Submaps).
A multiplexer device All cards and their ports based upon the configuration data received by the device.
Selecting a Device Interface or Card
Select a device interface from its graphical display by clicking on the desired interface. A selected interface appears pushed in for all device views. Only one interface can be selected at any one time.
For a card, the selected card appears raised. Only one card can be selected at any one time.
Accessing Applications
You can access the other AT&T DCE Manager applications from the Device View window or display a log of alarms for the selected device.
Choose the desired application from the Application menu. For the Status, Test or Alarm Log function, just click on the appropriate button.
Displaying the Alarm Log
Click on the Alarm Log button to display the HP OpenView Alarm Log window for the device appearing in the device view. All alarms are filtered out except those for the selected device. The color of the text on the Alarm Log button is the same as the device’s icon color on the HP OpenView map (most severe alarm). See your HP OpenView manual for more information about the Alarm Log.
Viewing Detailed Status
The Status application provides detailed information on the status of a selected device and its interfaces. Click on the tab representing the desired interface to bring the information forward. The specific information displayed depends on the device selected.
Access detailed status from:
H The AT&T DCE Manager pull-down menu, or H The Application menu on individual windows, or H The Status button on any Device View window, or H The right mouse button on a DCE device icon
The Status window appears. The General tab contains the status of all the interfaces for that device. If specific information is available for an interface, that interface has its own tab.
Tabs
Accessing the Performance Statistics
of a Device
The AT&T DCE Manager allows you to display, record and retrieve performance statistics about the operation of interfaces using ESF framing. These ESF interfaces gather the information in 15-minute intervals for up to a total of 24 hours (96 intervals).
NOTE:
Performance statistics are only available for those interfaces using ESF framing. Verify that this interface is configured for ESF in the Framing field of the Device Options application (see Displaying Device Options in Chapter 5, Configuring Your Device).
Access the Performance Statistics application from: H The AT&T DCE Manager menu on the menu bar, or H The Application menu on a specific window
What Statistics Can Be Collected?
You can collect some or all of the following performance statistics, depending on the device selected:
H Errored seconds
H Severely errored seconds H Unavailable seconds H Controlled slip seconds H Bursty seconds
Viewing Performance Statistics
You can choose to view performance statistics as either: H Textual in a grid format (see the example below), or
H Graphical in a histogram format (see the example on the next page) This example shows a textual presentation of performance statistics (grid).
This example shows a graphical presentation of performance statistics (histogram).
The data is color-coded as defined in the ATTDCE.INI file (see Changing the Product Initialization File in Chapter 3, User Interface Conventions).
Setting Time Intervals for Performance Statistics
Use the Interval Selection portion of the Performance Statistics window to set the Least Recent and Most Recent intervals for retrieval of statistics. There can be up to 96 intervals available, covering a 24-hour time period in 15-minute segments. The up and down arrows scroll thorough the time shown to the right in 15-minute segments for the past 24 hours.
The total number of intervals that can be collected from the selected device appear in the Valid Intervals field. The date/time of the oldest available interval is also displayed here. This information comes from the device and cannot be changed.
Collect performance statistics for the past 2 3/4 hours on a selected device. 1. Select the desired device (see Chapter 3, User Interface Conventions). 2. Choose Performance Statistics from either the AT&T DCE Manager
pull-down menu or the Application menu. 3. Set the Least Recent interval to 11.
4. Set the Most Recent Interval to 1. Notice that the time is set to 2 1/2 hours later than the Least Least Interval. However, because the time reflects the beginning of an interval, data was collected until 1:35 p.m, providing you with 2 3/4 hours of data.
5. Click on the Get button to retrieve the statistics data from the device. 6. View the statistics in a grid on the current screen.
7. Click on the Histogram tab to view the statistics in a histogram.
Set Least Recent
Interval Set Most Recent Interval
Click on Get button
View Statistics
Click on
Saving Performance Statistics for Use by Statistical Products
The AT&T DCE Manager gives you the capability of saving performance statistics, which can be used by other statistical products such as Excel. Performance statistics are stored in the STATS Microsoft Access database in a table named ESF_STATISTICS.
NOTE:
Statistics are stored in the STATS database with a date/time stamp so that you can collect more than 24 hours (96 intervals) of data.
The following table presents the database schema that most Microsoft products such as Excel can directly access. If your statistical product cannot access this database schema, then use the Export function to export your performance statistics to an unformatted ASCII file (see Exporting Performance Statistics to an Unformatted ASCII File).
Column Name Access Type
Length
(Bytes) Remarks
device_name Text 65 None
ip_address Text 15 Formatted as NNN.NNN.NNN.NNN
date_time Date/Time 8 None
errored_secs Number 2 Recorded as an integer
severely_secs Number 2 Recorded as an integer
unavailable_secs Number 2 Recorded as an integer
controlled_slip_secs Number 2 Recorded as an integer
bursty_errored_secs Number 2 Recorded as an integer
To save performance statistics, click on the Save button on the Performance Statistics window.
Click on Save
Exporting Performance Statistics to an Unformatted ASCII File
The AT&T DCE Manager gives you the capability of exporting performance statistics recorded in the ESF_STATISTICS table to an unformatted ASCII file. Performance statistics are stored in the STATS database. The statistics are converted to an ASCII format separated by the column separator character that you define. Each row ends with a carriage return and line feed characters.
NOTE:
Statistics are stored with a date/time stamp so that you can export more than 24 hours (96 intervals) of data.
To export performance statistics:
1. Click on the Export tab in the Performance Statistics window. The Export window appears.
Export tab
2. Enter the following information. When the Export window appears, the available Date/Time appear in the appropriate fields.
Field Expected Input How to Enter
From Date/Time The beginning interval for exporting data.
Use any format to type in the date, or press F4 to use the Date Calendar. Type in the time.
To Date/Time The ending interval for exporting data.
Use any format to type in the date, or press F4 to use the Date Calendar. Type in the time.
File Name The fully qualified name of the file to contain the exported data, including drive and directory information.
Type the name or click on the Browse button to select an existing name.
Purging Performance Statistics from the Database
You are able to purge the statistical data recorded in the ESF_STATISTICS database.
To purge performance statistics:
1. Click on the Purge tab in the Performance Statistics window. The Purge window appears.
Purge tab
2. Enter the following information.
Field Expected Input How to Enter
From Date/Time The beginning interval for purging data.
Use any format to type in the date, or press F4 to use the Date Calendar. Type in the time.
To Date/Time The ending interval for purging data.
Use any format to type in the date, or press F4 to use the Date Calendar. Type in the time.
7
Diagnostic Tools
The AT&T DCE Manager provides the following tools for isolating problems with devices and their interfaces once they have been detected.
H Detailed Status – For displaying the status of the selected device and its interfaces.
H Device Identity – For displaying and modifying general information about a device and its interfaces.
H EIA Leads – For monitoring status of EIA leads on ports that support the RS232-like interface MIB (RFC 1317, RS-232-Like).
H Device Test – For performing various types of tests on the selected device’s interface(s).
Typical Fault Isolation Process
The following is an example of how you could use the AT&T DCE Manager fault isolation applications to aid you in solving problems with your devices.
1. You detect a problem with one of the DCE devices in your network. One way of detecting a problem is to view submaps to see if any device icons appear in an alarm color. Using the HP OpenView Alarm Log feature available through the AT&T DCE Manager Device View application is another way of detecting problems with a device (see Viewing a Device and Its Interfaces in Chapter 6, Monitoring Devices).
2. Use the AT&T DCE Manager Status application to view detailed status information about the selected device and its interfaces. Refer to Viewing Detailed Status in Chapter 6, Monitoring Devices, for more information.
4. Use the AT&T DCE Manager EIA Leads application to monitor the status of EIA leads on ports of the device that support the RS232 interface, if appropriate.
5. Use the AT&T DCE Manager Test application to run one or more tests on the selected device. Use the status information that you learned from the Status window to help you decide what test(s) to run.
Monitoring EIA Leads
Use the EIA Leads application to view the status of the EIA leads on the ports of the selected device that support the RS232 interface.
H Green = ON (receiving signal) H Red = off
H Gray = no status
The button on the window toggles between Stop and Start, allowing you to stop and restart data collection.
Access the EIA Leads application from:
H The AT&T DCE Manager menu on the menu bar, or H The Application menu on a specific window
The EIA Leads window appears.
Number of seconds since last retrieval of EIA data
Action Response
Click on the Stop button. Data collection stops. The EIA Leads screen freezes. The Stop button changes to Start.
Click on the Start button. Data collection resumes. The EIA Leads screen becomes active. The Start button changes to Stop.
Performing a Device Test
Use the AT&T DCE Manager Test application to perform diagnostic tests on the selected device interface. Both local and remote devices can be tested. The tests that are available depend upon the configuration of the device selected.
NOTE:
When doing any test on a remote device, if the diagnostics path (SNMP) is over the primary data path, you will lose diagnostics to the remote device.
The Test window appears for the selected interface. Each tab shows a standard graphical display of all available tests that you can perform on that interface. Interfaces with currently active tests display an active test icon on the tab. The Loopback Diagram tab displays the circuits for the selected device. Those circuits currently involved in a test appear to flash.
The following is an example of a loopback diagram.
Test Window
The following is an example of a test window.
Parameters button Activate/ Abort button Test Results display Remote display Name of selected test Local display Test selection buttons Remote Device button Remote Device/ Interface display Test selection buttons Parameters button Test Results display
The Test window differs depending on the interface selected. Possible display areas include:
H Name of Selected Test
Displays the name of the selected test. H Local Display
Displays the available tests for a selected local device’s interface. H Remote Display
