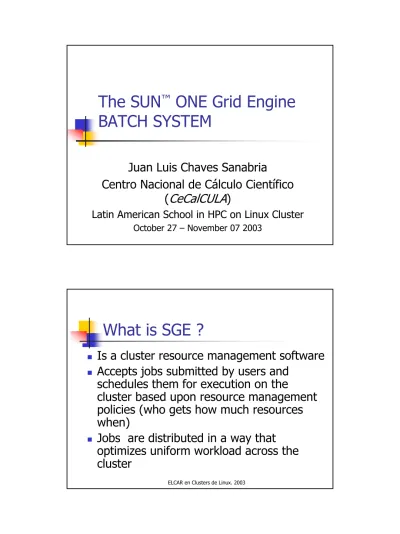

The SUN ONE Grid Engine BATCH SYSTEM

The SUN

_{ONE Grid Engine}

BATCH SYSTEM

Juan Luis Chaves Sanabria

Centro Nacional de Cálculo Científico

(

CeCalCULA

)

Latin American School in HPC on Linux Cluster

October 27 – November 07 2003

What is SGE ?

„

Is a cluster resource management software

„

Accepts jobs submitted by users and

schedules them for execution on the

cluster based upon resource management

policies (who gets how much resources

when)

„

Jobs are distributed in a way that

optimizes uniform workload across the

cluster

ELCAR en Clusters de Linux. 2003

Who develop SGE ?

„ SGE is developed by Sun Microsystems

„ http://www.sun.com/gridware „ http://gridengine.sunsource.net

„ SUN adquired Gridware. Developer of Distributed

Resource Management (DRM) software (July 2000)

„ SUN release SGE as a free downloable binary for

solaris and linux OS to facilitate deployment of compute farms.

„ Source code is available. Open source project to

enable the Grid Computing Model.

SGE 5.3 supported platforms

„ Compaq Tru64 Unix 5.0, 5.1

„ Hewlett Packard HP-UX 10.20, 11.00 „ IBM AIX 4.3.X

„ Linux x86, kernel 2.4, glibc ≥ 2.2

„ Linux Alpha/AXP, kernel 2.2, glibc ≥ 2.2 „ SGI IRIX 6.2 – 6.5

„ SUN Solaris (sparc) 2.6, 7, 8, 9 32-bit „ SUN Solaris (sparc) 2.6, 7, 8, 9 64-bit „ Sun Solaris (x86) 8

ELCAR en Clusters de Linux. 2003

How the System Operates ?

„ SGE accepts jobs requests for computer resources

(requeriment profile by each job)

„ Jobs requests are located in a holding area until

they can be executed

„ When are ready to be executed, the request is

forwarded to the adequate execution(s) device(s)

„ SGE manage the execution of the request „ Logs the record of their execution when it’s

finalized

SGE Components

„

Hosts:

„ Master (sge_qmaster y sge_schedd): control all

the SGE components and the overall cluster activity

„ Execution (sge_execd): authorized to execute

jobs through SGE

„ Administration: designated to carry out any

kind of administrative task for the SGE system

„ Submit: for submitting (qsub) and controlling

ELCAR en Clusters de Linux. 2003

SGE Components (2)

„

Queues:

„ A queue is a container for a class of jobs

(Batch/Parallel/Interactive/Checkpoint) allowed to execute on a particular host concurrently

„ Commands applied to a queue affect all jobs

associated with this.

SGE Components (3)

„

Queues (2):

„ Properties:

„ name: queue’s name

„ hostname: machine host of the queue

„ processors: in a multiprocessor system are the processors to which queue has access

„ qtype: type of jobs permited to run in this queue (Interactive, Batch, Parallel, Checkpointing)

„ slots: the numbers of jobs that can run concurrently in that queue

ELCAR en Clusters de Linux. 2003

SGE Components (4)

„

Queues (3):

„ Properties (2):

„ owner_lists: queue’s owners

„ user_lists: users o grups ids of those who may access the queue

„ xuser_lists: users o grups ids of those who may not access the queue

„ complex_list: indicate the complexs associated with the queue

„ complex values: assigns capacities as provided for this queue for certain complex attributes

SGE Components (5)

„

Complex: Set of features (resources)

associated with a queue, a hosts, or the

entire cluster that are known to SGE.

„

Cell: Each loosely separated SGE cluster,

with a different configuration and master

machine. The SGE_CELL environment

ELCAR en Clusters de Linux. 2003

SGE funcionality

„

Is controlled by four daemons:

„ sge_qmaster: control all the cluster’s

management and scheduling activities

„ Receive scheduling decisions from sge_schedd

„ Requets actions from sge_execd on the

execution hosts

„ Mantain tables about cluster status

„ sge_shadowd: daemon used if exist a host

backup (shadow master host) for the functionality of sge_qmaster

SGE functionality (2)

„ sge_schedd: mantain an up to date view of

the cluster’s status with the data provided by the sge_qmaster daemon. It :

„ Decide which jobs are forwarded to which

queues

„ Comunicate these decisions to the

sge_qmaster, who initiates the appropriate actions

ELCAR en Clusters de Linux. 2003

SGE funcionality (3)

„ sge_execd: is responsible for the queues

on its host and for the execution of the jobs in this queues .

„ It send information to the master host

(sge_qmaster) about jobs status or load on its host.

„ sge_commd: all the daemons

communicates among them through the communication daemons (one per host)

SGE functionality (4)

Using SGE

„ Depend of the user type executing the SGE

command.

„ SGE define four types of users:

„ Managers: Have full capabilities to manipulate SGE

„ Operators: Can execute all the commands like managers,

with the exception of making configuration changes to the SGE

„ Owners: Are defined by queue and can manipulate the

owned queues or jobs within them.

„ Users: Only can manage the owned jobs and only can use

queues or parallel environments where are authorized

Using SGE (2)

Own jobs only Own jobs only

Full Full

qhold

Own jobs only Own jobs only

Full Full qdel Shown only Shown only No system setup changes Full qconf

Own jobs only Own jobs only

Full Full

qalter

Own jobs only Own jobs only

Full Full qacct User Owner Operator Manager Command

ELCAR en Clusters de Linux. 2003

Using SGE (3)

Own jobs only Own jobs only

Full Full qrls Full Full Full Full qstat Full Full Full Full qsh Full Full Full Full qselect No configuration changes No configuration changes No system setup changes Full qmon

Own jobs only

Own jobs and owned queues only Full Full qmod User Owner Operator Manager Command

Submitting Jobs

„ ensure that in your .[t]cshrc or . bashrc no

commands are executed that need a terminal (tty)

„ bash, sh or ksh tty –s if [ $? = 0 ]; then stty erase ^H fi „ csh or tcsh tty –s if ( $status = 0 ) then stty erase ^H endif

ELCAR en Clusters de Linux. 2003

Submitting Jobs (2)

„

Prerequisites (2)

„ ensure that in your .[t]cshrc or .bashrc you

set executable search path and other SGE environmental conditions

„ csh or tcsh:

source <sge_root_dir>/default/common/settings.csh

„ bash, sh or ksh:

. <sge_root_dir>/default/common/settings.sh

Submitting Jobs (3)

„ specify what script should be executed qsub –cwd job_script

-cwd: run the job from the current working directory. (Default: $HOME) „ in the simplest case the job script contains

one line, the name of the executable

„ various examples in

<

sge_root_dir>

„ many options are available for qsub man qsub

ELCAR en Clusters de Linux. 2003

Submitting Jobs (4)

„ Example of a script file #!/bin/csh WORKDIR=/tmp/scratch/$USER DATADIR=$HOME/data mkdir -p $WORKDIR cp $DATADIR/input_data $WORKDIR cd $WORKDIR

executable < input_data > out_executable cp out_executable $DATADIR

rm –rf $WORKDIR

Submitting Jobs (5)

„

Output and Error redirection:

„ Default standard output filename:

„ <Job_name>.o<Job_id>

„ Can by changed with the –o option

„ Default standard error filename:

„ <Job_name>.e<Job_id>

„ Can by changed with the –e option

„

Active SGE comments in script files:

ELCAR en Clusters de Linux. 2003

Submitting Jobs (6)

„

Array Jobs:

„ Are parametrized executions of the same script „ SGE view them as an array of independent tasks

joined into a single job.

„

task_id

$SGE_TASK_ID to retrieve their own task index number and use it to access input data sets arranged for this task_id

Submitting Jobs (7)

„

Array Jobs (2):

„ Example:

„ qsub –l h_cpu=0:30:0 –t 2-10:2 script.sh input.data

„ Default standard output filename:

„ <Job_name>.o<Job_id>.<Task_id>

„ Default standard error filename:

„ <Job_name>.e<Job_id>.<Task_id>

„ Can be monitored and controlled as a total or by

Submitting Jobs (8)

Interactive Jobs:

„ Are executed on interactive queues „ Three ways are available:

„ qlogin: start a telnet-like sesion on a host choosed by SGE

„ qrsh: Is like rshor rloginUNIX commands

„ qsh: Is an xtermthat is brought up with the display set corresponding to the setting of the DISPLAY environment variable. If this variable is not set, the xterm is directed to the 0.0 screen of the X server on the host from which the interactive job was submitted.

DISPLAY can be set with the -displayoption.

Monitoring and Controlling

Jobs

„

qstat: show job/queue status

„ Whithout arguments show running/pending jobs „ -j show detailed information on running/pending

jobs

„ -f show submitted jobs and full listing of all queues

„

qhost: show job/host status

„ Whithout arguments show all execution host and

their configuration

„ -q show detailed information on queues at each

ELCAR en Clusters de Linux. 2003

Monitoring and Controlling

Jobs (2)

„

qdel: cancel jobs submitted through SGE

„ qdel <

job_id

„

qmod: suspend/unsuspend running jobs

„ qmod –s <

job_id

job_id

„

qhold: holds back pending jobs from

execution

„

qrls: releases jobs from holds previously

assigned to them

Parallel Jobs

„

Are submitted to run on parallel

environments

„

Parallel environments are procedures to

accomplish with requeriments needed

to run a specific parallel application

„

One parallel environment by each class

or type of parallel application

configured into the cluster

ELCAR en Clusters de Linux. 2003

Parallel Jobs (2)

„

qconf –ap <parallel environment name>

create a new parallel environment

„

qconf –spl

list all defined parallel environments

„

qconf –sp <parallel environment name>

show detailed information on the specified

parallel environtment name

Parallel Jobs (3)

„ Parallel environment example:

$ qconf -sp mpich pe_name mpich queue_list all slots 8 user_lists NONE xuser_lists NONE

start_proc_args /usr/local/sge/mpi/startmpi.sh -catch_rsh $pe_hostfile

stop_proc_args /usr/local/sge/mpi/stopmpi.sh allocation_rule $round_robin

control_slaves TRUE job_is_first_task FALSE

Parallel Jobs (4)

„ Script example:

#!/bin/csh #

# (c) 2002 Sun Microsystems, Inc. Use is subject to license terms. # # our name #$ -N MPI_calc_PI_Job # # pe request #$ -pe mpich 2-6 # #$ -v MPIR_HOME=/usr/local/mpich # # needs in # $NSLOTS

# the number of tasks to be used # $TMPDIR/machines

# a valid machine file to be passed to mpirun #

echo "Got $NSLOTS slots." #

$MPIR_HOME/bin/mpirun -np $NSLOTS -machinefile $TMPDIR/machines $HOME/MPI/cpi

Checkpointing

„ SGE support two class of checkpointing:

„ User level checkpointing

„ Operating system level checkpointing

„ Checkpointing environments must be defined

by each type of application with this support

„ When a checkpointing job is launched this

must be indicated using the –ckpt option of the qsub command

ELCAR en Clusters de Linux. 2003

Checkpointing (2)

„

Checkpointing environments are defined

in configuration files:

„ Define the operations to:

„ initiating a checkpoint generation

„ migrate a checkpoint job to another host

„ restart of a checkpointed application

„ As well as the list of queues which are

eligible for a check-pointing method.

Checkpointing (3)

„ Checkpoint environment file format:

ckpt_name <name>

interface user defined or os provided.

ckpt_command command to initiate the checkpoint.

migr_command command used during a migration of a checkpointing job from one host to another.

restart_command command used to restart a previously checkpointed application.

clean_command command used to cleanup after a checkpointed application has finished.

ckpt_dir where checkpoint file should be stored.

queue_list all or comma separated list of queues

signal Unix signal to be sent to a job to initiate a checkpoint generation

when when generate the checkpoints:

s(shutdown the node)

m(periodically, at the min_cpu_intervalinterval defined by the queue)

x(when the job gets suspended)

ELCAR en Clusters de Linux. 2003

SGE Administration

„ All administration activities on SGE are commited

through the qmon command

„ Basically:

„ qconf –a<h|q|s|…> <associated arguments>

„ qconf –d<h|q|e|conf|s|…> <associated arguments> „ qconf –m<q|conf|…> <associated arguments> „ qconf –s<h|s|sel|conf|…> <associated arguments>
