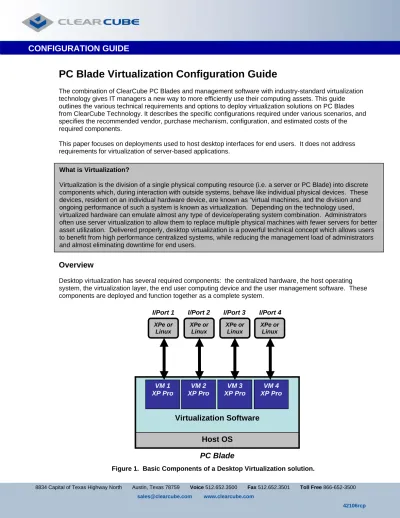

PC Blade Virtualization Configuration Guide

CONFIGURATION GUIDE

PC Blade Virtualization Configuration Guide

The combination of ClearCube PC Blades and management software with industry-standard virtualization technology gives IT managers a new way to more efficiently use their computing assets. This guide outlines the various technical requirements and options to deploy virtualization solutions on PC Blades from ClearCube Technology. It describes the specific configurations required under various scenarios, and specifies the recommended vendor, purchase mechanism, configuration, and estimated costs of the required components.

This paper focuses on deployments used to host desktop interfaces for end users. It does not address requirements for virtualization of server-based applications.

What is Virtualization?

Virtualization is the division of a single physical computing resource (i.e. a server or PC Blade) into discrete components which, during interaction with outside systems, behave like individual physical devices. These devices, resident on an individual hardware device, are known as “virtual machines, and the division and ongoing performance of such a system is known as virtualization. Depending on the technology used, virtualized hardware can emulate almost any type of device/operating system combination. Administrators often use server virtualization to allow them to replace multiple physical machines with fewer servers for better asset utilization. Delivered properly, desktop virtualization is a powerful technical concept which allows users to benefit from high performance centralized systems, while reducing the management load of administrators and almost eliminating downtime for end users.

Overview

Desktop virtualization has several required components: the centralized hardware, the host operating system, the virtualization layer, the end user computing device and the user management software. These components are deployed and function together as a complete system.

Figure 1. Basic Components of a Desktop Virtualization solution.

CONFIGURATION GUIDE

Component Details

A basic PC Virtualization deployment requires several discrete components:

Hardware Platform: ClearCube PC Blades are fully configurable for optimal user performance and are based on familiar PC components including Intel Pentium 4 processors, full-sized hard drives, standard memory, etc. For a four-user system ClearCube recommends Blades with 2 GB of memory for optimal performance.

Host Operating System: The host operating system runs directly on the physical computing hardware. Options for the host operating system include Microsoft Windows Server 2003, Linux (various

distributions), or a hypervisor that is built into the virtualization software (e.g. VMware ESX).

Virtualization Software: This specialized software allows administrators to create “virtual machines” that have specified behavior and characteristics. These virtual machines can be made to emulate a particular hardware device, which can then act as a platform for specific end user software.

User Operating System: This is the operating system presented through a remote connection to an end user device. This is typically Microsoft Windows XP Professional, although other operating systems (such as Linux) can also be made available to end users.

Access Device: With the Hardware Platform deployed in a central location away from the end user, some type of device is required to access the virtual machine / virtualization layer. An access device is typically an I/Port, but other devices can be used, including a tablet client, laptop, or even legacy desktop PC.

Figure 2: Management Components for ClearCube Desktop Virtualization solution

Host OS

Virtualization Software

Agent Agent Agent Agent

Agent Agent Agent Agent

Management

Console

CONFIGURATION GUIDE

Access Device Operating System: Access devices commonly have an operating system which is used as d

ser Connection Management Software

a platform for initiating and maintaining a communication session with the virtual machine. ClearCube sells I/Ports with either Microsoft Windows XP Embedded (XPe) or Linux. The essential function require of this access device OS is the ability to launch a session running Microsoft Remote Desktop Protocol (RDP), which is the protocol used to communicate back to the virtual machine.

U : ClearCube Sentral can be used to setup static or dynamic

ystem Management Software

connections between I/Ports, users and Virtual Machines. Administrators can also switch an I/Port user to a spare VM should they experience a problem. The Sentral I/Port agent presents the end-user with a login screen that automatically populates the target VM information configured in the Sentral management console. Auto discovery of I/Ports and VMs makes it easy to inventory and manage assets. In addition, an update feature deploys driver updates and new applications to I/Port groups.

S : All machines, both virtual and physical, must be identified, grouped, vide onsole is a centralized software dashboard that works in conjunction with

• tors a comprehensive set of

• ssis and host

ecommended Configurations

learCube recommends two options for PC Blade virtualization. Both configurations serve the essential

both configurations, end users access a Windows XP Professional operating system running on a virtual

end

he PC Blade hardware configuration should be at least a 2.8 GHz or higher Pentium 4 processor with 2 presented as available resources, monitored, and if necessary changed or otherwise maintained to pro a consistent platform for users.

• The ClearCube Sentral C

Sentral client instances that are installed on the VMs. Sentral manages Blade/VM assets by indicating health status and enabling configured alerts. Alerts are constructed and configured using an easy to use interface for monitoring a variety of parameters.

The ClearCube Sentral Dynamic Allocation module gives IT administra

features for managing their I/Port environments. Sentral can be used to setup static or dynamic connections between I/Ports, users, and Virtual Machines as described above.

The ClearCube Sentral Switching module is used to manage the main PC blade cha

blade hardware. Health of critical hardware components such as Blade and Chassis fans and power supplies as well as internal temperatures can be monitored to ensure uninterrupted operation of the whole system. Sentral’s powerful hardware remote control feature gives an administrator the capability to connect directly to any host Blade using ClearCube’s unique C/Port technology.

R

C

functions of creating and hosting the virtual machines and serving as an effective platform for end users. Customers will typically select their ideal configuration based on price, suitability to their applications, and available expertise (internal or external) with the technology options.

In

machine. The configurations are scalable to allow the addition of new users and blades, and to support the dynamic allocation of end user sessions to the available virtual machines in a blade group.

Administrators must be able to maintain full hardware and software control of the environment as users are not enabled to create and manage the virtual machines on their own.

T

CONFIGURATION GUIDE

Configuration 1: Microsoft Virtual Server

Component Provider/Product Acquisition Method Price:

Value and Method (actual or estimated)

Hardware Platform:

PC Blades (2.8 GHz P4 minimum with 2 GB of memory, No preinstalled OS) and chassis

ClearCube Technology ClearCube direct purchase or ClearCube reseller

Variable depending on configuration

Base OS Microsoft Windows

Server 2003 Standard Edition R2 Microsoft certified reseller or Microsoft Enterprise Agreement Variable depending on source; one required per PC Blade (List Price: $999)

Virtualization Software Microsoft Virtual Server 2005 R2

Free Download from Microsoft website1 Free User Operating System Microsoft Windows XP Professional

Full Packaged Product (FPP)

Microsoft distributor (ClearCube currently does not resell Windows XP Pro FPP)

List Price: $299 per license. FPP Licenses are fully transferable to new blades or users.

Access Device

(and Access Device OS)

ClearCube I/Port (Linux or Windows XPe)

ClearCube direct purchase or ClearCube reseller. OS comes pre-loaded on I/Port. Variable depending on configuration and operating system. User Management Software

ClearCube Sentral with Dynamic Allocation

ClearCube direct purchase or ClearCube reseller

One per I/Port List Price: $149 System Management Software, including: - Machine Management - Blade Management - Hardware Control

ClearCube Sentral with Dynamic Allocation and Switching

ClearCube direct purchase or ClearCube reseller

One per Blade (includes one Dynamic Allocation license for first I/Port connected) List Price: $299

1

Link to download: http://www.microsoft.com/windowsserversystem/virtualserver/software/default.mspx

Configuration 1: Example with 32 users

For 32 end users, the required components under Configuration 1 would be as follows:

Quantity Component

1 One ClearCube Chassis

8 PC Blades (recommended configuration of 3.0+ GHz processor and 1.0+ GB Ram) 8 Microsoft Windows Server 2003 base operating systems

8 Microsoft Virtual Server 2005 R2 (available at no charge) 32 Microsoft XP Professional FPP

32 ClearCube I/Ports with Linux or Microsoft XPe (OS included) 24 ClearCube Sentral Dynamic Allocation licenses

CONFIGURATION GUIDE

Configuration 2: VMware and Linux

Component Provider/Product Acquisition Method Price:

Value and Method (actual or estimated)

Hardware Platform:

PC Blades (2.8 GHz P4 minimum w/ 2 GB of memory, no pre-installed OS) & chassis

ClearCube Technology ClearCube direct purchase or ClearCube reseller

Variable depending on configuration

Base OS Linux (i.e. SuSe) Open source download Free;

maintenance/support provided by supplier at extra charge

Virtualization Software VMware Server

(currently in beta)

Free download Free;

Maintenance/support provided by supplier at extra charge User Operating System Windows XP Full Packaged Product (FPP) Microsoft distributor (ClearCube currently does not resell Windows XP FPP)

List Price: $299 per license. FPP Licenses are fully transferable to new blades or users.

Access Device (and

Access Device OS)

ClearCube I/Port with OS (Linux or Windows XP Embedded)

ClearCube direct purchase or ClearCube reseller. OS comes pre-loaded on I/Port. Variable depending on configuration and operating system. User Management Software

ClearCube Sentral with Dynamic Allocation

ClearCube direct purchase or ClearCube reseller

One per I/Port List Price: $149 System Management Software, including: - Machine Management - Blade Management - Hardware Control

ClearCube Sentral with Dynamic Allocation and Switching

ClearCube direct purchase or ClearCube reseller

One per Blade (includes one Dynamic Allocation license for first I/Port connected) List Price: $299

Configuration 2: Example with 32 users

For 32 end users, the required components under Configuration 2 would be as follows:

Quantity Component

1 One ClearCube Chassis

8 PC Blades (recommended configuration of 3.0+ GHz processor and 1.0+ GB Ram 8 Linux (SUSE or other) base operating systems

8 VMware Server software installations 32 Microsoft XP Professional FPP

32 ClearCube I/Ports with Linux or Microsoft XPe (OS included) 24 ClearCube Sentral Dynamic Allocation licenses

CONFIGURATION GUIDE

Possible Adjustments from Recommended Options

These basic configurations can be adjusted depending on end user requirements. These adjustments include:

Increased Users per Blade: Depending on customer requirements, administrators may deploy more than

the standard four users per blade. With higher numbers of users per blade performance levels must be monitored to ensure customer satisfaction. Fortunately, administrators may easily reconfigure the number of users that may connect to PC blades as needed.

Conversion to non-virtualized users: For power users, 1:1 configurations allow users to customize their

PC blade with unique applications or data which is not required by other users. Unlike PC blades, servers cannot economically be presented to users in a 1:1 fashion.
