Dynamic Channel Allocation Using Virtual

Machines for Cloud Sensor Networking

Environment

P.K.Kumaresan1, S.Senthil Kumar2, M Saravanan3, A.V.Ramesh Kumar4, S.G. Balakrishnan5

professor, Dept of CSE, VMKV Engg College, Salem, India1.

Assistant Professor, Dept of IT, VMKV Engg College, Salem, India 2

Associate Professor, Dept of IT, VMKV Engg College, Salem, India 3,4,5

ABSTRACT: Cloud computing allows business customers to scale up and down their resource usage based on needs. Many of the gains in the cloud model come from resource multiplexing through virtualization technology. In this work, present a system that uses virtualization technology to allocate data center resources dynamically based on application demands and support green computing by optimizing the number of servers in use. We introduce the concept of “skewness” to measure the unevenness in the multi-dimensional resource utilization of a server. By minimizing skewness, we can combine different types of workloads nicely and improve the overall utilization of server resources. We develop a set of heuristics that prevent overload in the system effectively while saving energy used. Trace driven simulation and experiment results demonstrate that our algorithm achieves good performance.

KEYWORDS: Cloud computing; virtual machines; sensor networking; multiplexing, Hybrid Multi-hop routing (HYMN)

I. INTRODUCTION

(2)

ISSN: 2319-8753

I

nternational

J

ournal of

I

nnovative

R

esearch in

S

cience,

E

ngineering and

T

echnology

II. LITERATURE REVIEW MULTI-HOP ROUTING ALGORITHMS FORWIRELESS SENSOR NETWORKS

In general, in order to maximize the WSN’s lifetime, the total power consumption of the network should be minimized while ensuring fair power consumption among nodes. Much effort has been focused on WSN multi-hop routing algorithms, and many algorithms have been proposed. These may be widely categorized as flat multi-hop routing algorithms and hierarchical multi-hop routing algorithms.

A. Flat multi-hop routing algorithms

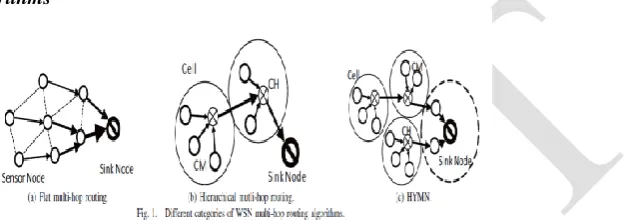

Fig. 1(a) shows an example of how flat multi-hop routing is used to send data
