Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per transistor V CEO

R1 = 10 kΩ, R2 = 47 kΩ

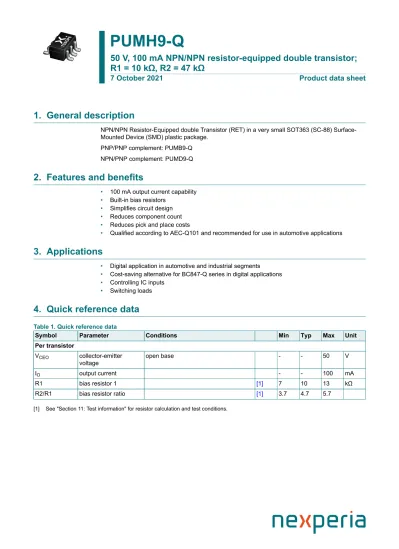

7 October 2021 Product data sheet

1. General description

NPN/NPN Resistor-Equipped double Transistor (RET) in a very small SOT363 (SC-88) Surface- Mounted Device (SMD) plastic package.

PNP/PNP complement: PUMB9-Q NPN/PNP complement: PUMD9-Q

2. Features and benefits

• 100 mA output current capability

• Built-in bias resistors

• Simplifies circuit design

• Reduces component count

• Reduces pick and place costs

• Qualified according to AEC-Q101 and recommended for use in automotive applications

3. Applications

• Digital application in automotive and industrial segments

• Cost-saving alternative for BC847-Q series in digital applications

• Controlling IC inputs

• Switching loads

4. Quick reference data

Table 1. Quick reference data

Symbol Parameter Conditions Min Typ Max Unit

Per transistor

V

collector-emitter

voltage open base - - 50 V

I

output current - - 100 mA

R1 bias resistor 1 [1] 7 10 13 kΩ

R2/R1 bias resistor ratio [1] 3.7 4.7 5.7

[1] See "Section 11: Test information" for resistor calculation and test conditions.

5. Pinning information

Table 2. Pinning information

Pin Symbol Description Simplified outline Graphic symbol

1 GND1 GND (emitter) TR1

2 I1 input (base) TR1

3 O2 output (collector) TR2

4 GND2 GND (emitter) TR2

5 I2 input (base) TR2

6 O1 output (collector) TR1

4 5 6

TSSOP6 (SOT363)

O1 I2 GND2

GND1 I1 O2

R2

TR1 TR2

R1

R2 R1

sym063

6. Ordering information

Table 3. Ordering information

Package Type number

Name Description Version

PUMH9-Q TSSOP6 plastic, surface-mounted package; 6 leads; 0.65 mm pitch;

2.1 mm x 1.25 mm x 0.95 mm body SOT363

7. Marking

Table 4. Marking codes

Type number Marking code[1]

PUMH9-Q H%9

[1] % = placeholder for manufacturing site code

8. Limiting values

Table 5. Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit

Per transistor

V

collector-base voltage open emitter - 50 V

V

collector-emitter voltage open base - 50 V

V

emitter-base voltage open collector - 6 V

positive - 40 V

V

input voltage

negative - -6 V

I

output current - 100 mA

P

total power dissipation T

≤ 25 °C [1] - 200 mW

Per device

P

total power dissipation T

≤ 25 °C [1] - 300 mW

T

junction temperature - 150 °C

T

ambient temperature -55 150 °C

T

storage temperature -65 150 °C

[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided, 35 μm copper, tin-plated and standard footprint.

T_amb (°C)

-75 -25 25 75 125 175

006aac749

200

100 300 400 P_tot (mW)

0

FR4 PCB, single-sided, 35 μm copper, tin-plated and standard footprint

Fig. 1. Per device: Power derating curve

9. Thermal characteristics

Table 6. Thermal characteristics

Symbol Parameter Conditions Min Typ Max Unit

Per transistor

R

thermal resistance from

junction to ambient in free air [1] - - 625 K/W

Per device

R

thermal resistance from

junction to ambient in free air [1] - - 417 K/W

[1] Device mounted on an FR4 PCB, single-sided, 35 μm copper, tin-plated and standard footprint.

006aac750

10^-5 10^-4 10^-2 10^-1 10 10²

tp (s)

10^-3 1 10³

10²

10 10³ Z_th(j-a)

(K/W)

1

duty cycle = 1 0.75 0.5 0.33

0.2 0.1

0.05 0.02 0.01 0

FR4 PCB, single-sided, 35 µm copper, tin-plated and standard footprint

Fig. 2. Per transistor: Transient thermal impedance from junction to ambient as a function of pulse duration;

typical values

10. Characteristics

Table 7. Characteristics

T

= 25 °C unless otherwise specified.

Symbol Parameter Conditions Min Typ Max Unit

Per transistor

V

collector-base

breakdown voltage I

= 100 µA; I

= 0 A 50 - - V

V

collector-emitter

breakdown voltage I

= 2 mA; I

= 0 A 50 - - V

I

collector-base cut-off

current V

= 50 V; I

= 0 A - - 100 nA

V

= 30 V; I

= 0 A - - 100 nA

I

collector-emitter cut-off

current V

= 30 V; I

= 0 A; T

= 150 °C - - 5 µA

I

emitter-base cut-off

current V

= 5 V; I

= 0 A - - 150 µA

h

DC current gain V

= 5 V; I

= 5 mA 100 - -

V

collector-emitter

saturation voltage I

= 5 mA; I

= 0.25 mA - - 100 mV

V

off-state input voltage V

= 5 V; I

= 100 µA - 0.7 0.5 V

V

on-state input voltage V

= 0.3 V; I

= 1 mA 1.4 0.8 - V

R1 bias resistor 1 [1] 7 10 13 kΩ

R2/R1 bias resistor ratio [1] 3.7 4.7 5.7

C

collector capacitance V

= 10 V; I

= 0 A; i

= 0 A; f = 1 MHz - - 2.5 pF f

transition frequency V

= 5 V; I

= 10 mA; f = 100 MHz [2] - 230 - MHz [1] See "Section 11: Test information" for resistor calculation and test conditions.

[2] Characteristics of built-in transistor

I_C (mA)

10^-1 1 10 10²

006aac784

10²

10 10³ hFE

1

(1) (2) (3)

V

= 5 V (1) T

= 100 °C (2) T

= 25 °C (3) T

= -40 °C

Fig. 3. DC current gain as a function of collector current; typical values

V_CE (V)

0 1 2 3 4 5

aaa-018582

0.04 0.06

0.02 0.08 0.1 I_C (A)

0

IB = 0.05 mA 0.10 mA 0.15 mA 0.20 mA 0.25 mA 0.30 mA 0.50 mA

0.35 mA 0.40 mA 0.45 mA

T

= 25 °C

Fig. 4. Collector current as a function of collector-

emitter voltage; typical values

I_C (mA)

10^-1 1 10 10²

10^-1 1

V_CEsat (V)

10^-2

(1) (3) (2)

I

/I

= 20 (1) T

= 100 °C (2) T

= 25 °C (3) T

= -40 °C

Fig. 5. Collector-emitter saturation voltage as a function of collector current; typical values

I_C (mA)

10^-1 1 10 10²

1 10

V_I(on) (V)

10^-1

(1) (2) (3)

V

= 0.3 V (1) T

= -40 °C (2) T

= 25 °C (3) T

= 100 °C

Fig. 6. On-state input voltage as a function of collector current; typical values

I_C (mA)

10^-1 1 10

006aac787

1 10

V_I(off) (V)

10^-1

(1) (2) (3)

V

= 5 V (1) T

= -40 °C (2) T

= 25 °C (3) T

= 100 °C

Fig. 7. Off-state input voltage as a function of collector current; typical values

V_CB (V)

0 10 20 30 40 50

006aac788

1 2 3 C_c (pF)

0

f = 1 MHz T

= 25 °C

Fig. 8. Collector capacitance as a function of collector-

base voltage; typical values

I_C (mA)

10^-1 1 10 10²

10² 10³

f_T (MHz)

10

f = 100 MHz T

= 25 °C V

= 5 V

Fig. 9. Transition frequency as a function of collector current; typical values of built-in transistor

11. Test information

Quality information

This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.

Resistor calculation

• Calculation of bias resistor 1 (R1)

• Calculation of bias resistor ratio (R2/R1)

R1

R2

GND I_I1; I_I2

n.c.

I_I3; I_I4

aaa-020082

Fig. 10. Per transistor: Resistor test circuit

Resistor test conditions

Table 8. Resistor test conditions

Test conditions

Type number R1 (kΩ) R2 (kΩ)

I

I

I

I

Per transistor

PUMH9-Q 10 47 90 μA 140 μA -55 μA -105 μA

12. Package outline

0.250.10 0.30.2

pin 1 index

1.3 0.65 2.22.0 1.35

1.15

2.21.8 1.1

0.8 0.450.15

1 2 3

4

6 5

14-10-03 Dimensions in mm

Fig. 11. Package outline TSSOP6 (SOT363)

13. Soldering

solder lands solder resist

occupied area solder paste

sot363_fr 2.65

2.35 0.4 (2×)

(2×)0.6 (4×)0.5

(4×)0.5

(4×)0.6 (4×)0.6

1.5

1.8

Dimensions in mm

Fig. 12. Reflow soldering footprint for TSSOP6 (SOT363)

sot363_fw solder lands solder resist occupied area

preferred transport direction during soldering

5.3

1.3 1.3

1.5

0.3

1.5 4.5

2.45

2.5

Dimensions in mm

Fig. 13. Wave soldering footprint for TSSOP6 (SOT363)

14. Revision history

Table 9. Revision history

Data sheet ID Release date Data sheet status Change notice Supersedes

PUMH9-Q v.2 20211007 Product data sheet - PUMH9-Q v.1

Modification: • Complete rework

• General description: added new lines at the end

• Pinning: Graphic symbol replaced

• Limiting values: deleted parameter I

• Characteristics: I

max limit is updated to 100 nA

• Characteristics: added new graphics

• Characteristics: replaced the figure 006aac785 with aaa-018586

• Characteristics: Updated the graphics conditions

• Characteristics: V

values is removed

• Test information: Included resistor calculation, resistor test circuit and resistor test condition

PUMH9-Q v.1 20210625 Product data sheet - -
