Portfolio :: Commercial Projects

1407 3rd Avenue North, Nashville, TN 37208

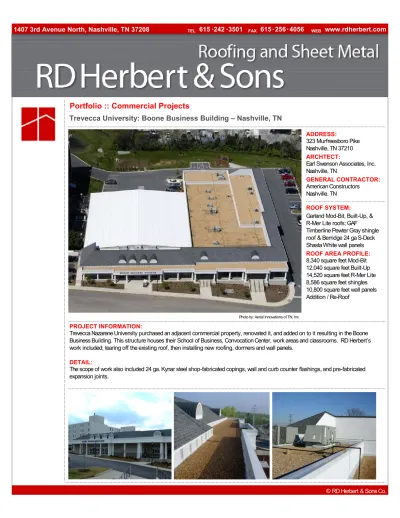

Trevecca University: Boone Business Building – Nashville, TN

PROJECT INFORMATION:

Trevecca Nazarene University purchased an adjacent commercial property, renovated it, and added on to it resulting in the Boone Business Building. This structure houses their School of Business, Convocation Center, work areas and classrooms. RD Herbert’s work included; tearing off the existing roof, then installing new roofing, dormers and wall panels.

DETAIL:

The scope of work also included 24 ga. Kynar steel shop-fabricated copings, wall and curb counter flashings, and pre-fabricated expansion joints.

ADDRESS:

323 Murfreesboro Pike Nashville, TN 37210

ARCHTECT:

Earl Swenson Associates, Inc. Nashville, TN

GENERAL CONTRACTOR:

American Constructors Nashville, TN

ROOF SYSTEM:

Garland Mod-Bit, Built-Up, & R-Mer Lite roofs; GAF Timberline Pewter Gray shingle roof & Berridge 24 ga S-Deck Shasta White wall panels

ROOF AREA PROFILE:

8,340 square feet Mod-Bit 12,040 square feet Built-Up 14,520 square feet R-Mer Lite 8,586 square feet shingles 10,800 square feet wall panels Addition / Re-Roof

(2)

.

Portfolio :: Commercial Projects

VUMC: Medical Research Building IV – Nashville, TN

Medical Research Building IV sits atop Langford Auditorium and Light Hall and provides more than 200,000 square feet of research area, as well as conference space and a soaring glass atrium spanning several floors. Begun in 2004 and dedicated in June 2008, this building features state-of-the-art facilities with an appealing design that encourages collaboration and connects the structures.

DETAIL:

This large, complex, multi-story project included a temporary roof, due to job phasing, 2-Ply Mod-Bit roof system and stainless steel metal work.

ADDRESS:

2215-B Garland Ave. Nashville, TN 37232

ARCHTECT:

Donald Blair & Partners Archi-tects, LLP New York, NY GENERAL CONTRACTOR: Turner Universal Brentwood, TN ROOF SYSTEM:

Garland BUR, Mod-Bit & R-Mer Lite; GAF Timberline Shingles; Berridge S-Deck Wall Panels

8,340 square feet Mod-Bit 12,040 square feet Built-Up 14,520 square feet R-Mer Lite 8,586 square feet shingles 10,800 square feet wall panels Addition / Re-Roof

(3)

Portfolio :: Commercial Projects

Schermerhorn Symphony Center – Nashville, TN

The Schermerhorn Symphony Center is an acoustical and architectural masterpiece built to house the Nashville Symphony, and was named in honor of the late Maestro Kenneth Schermerhorn. The 197,000-square-foot neo-classical inspired Schermerhorn Symphony Center opened in September of 2006.

DETAIL:

Our portion of work included fabricating approximately 2000 sheets of 20-oz copper into standing seam roofs over the main hall and three other smaller roofs. Low slope areas received built-up roofs. In addition, we installed wall panels at roof level changes. Associated metal flashings and architectural details for the roofs were fabricated from 20-oz copper. The custom fabricated 32-oz copper conductor heads collect rain water from each scupper and channel it through shop-fabricated round downspouts.

ADDRESS:

One Symphony Place Nashville, TN 37201

ARCHTECT:

David M. Schwartz/ Architectural Services, Inc Washington, D.C.

CONSULTING ARCHITECTS:

Earl Swensson Associates, Nashville, TN

Hastings Architecture Associates

Nashville, TN

American Constructors, Inc. Nashville, TN

ROOF SYSTEM:

Soprema Hot Asphalt Built-Up Roof & Standing Seam 20-oz Copper Roof

36,051 square feet New Construction

(4)

Portfolio :: Commercial Projects

Viridian Condominiums – Nashville, TN

Viridian, the 31-story luxury tower in the heart of downtown Nashville, was named Project of the Year 2007 by the Urban Land Institute. Viridian’s developers, Novare Group and Giarratana Development, built the 305 unit building on a half-acre site, the first high-rise residential development in Nashville’s urban core.

DETAIL:

Our company installed the roof system consisting of a substantial tapered insulation package, two layers of torched membrane and associated roof flashings. The extensive metal work for this project included shop-fabricated aluminum copings, wall flashings, gutters, and downspouts.

ADDRESS:

421 Church St Nashville, TN 37219

ARCHTECT:

Smallwood Reynolds Stewart & Stewart Atlanta, GA

R.J. Griffin & Co. Brentwood, TN

ROOF SYSTEM:

Soprema Mod-Bit 2-Ply Roofing System

(5)

Portfolio :: Commercial Projects

Icon in the Gulch – Nashville, TN

Icon construction finished in the summer of 2008, transforming the Gulch from an industrial hub into a residential community. The 22-story mixed-use development contains 417 condominium units and 26,000 square feet of commercial lease space, including restaurants, boutiques and cafes at street level. MarketStreet Enterprises and Bristol Development Group joined forces for this venture.

DETAIL:

This multi-story project included a 2-Ply torched-down Mod-Bit roof system, plaza and pool waterproofing systems. The entrance and the amenities canopies are pre-formed Berridge Tee-Panels. Substantial aluminum metal work included copings, counter flashings, and scuppers. ADDRESS: 600 12th Ave South Nashville, TN 37203 ARCHTECT: Ka Architecture Cleveland, OH GENERAL CONTRACTOR: Choate Construction Atlanta, GA ROOF SYSTEM:

(6)

Portfolio :: Commercial Projects

Rhythm at Music Row – Nashville, TN

This new 14 story upscale, urban condominium complex, located near world famous Music Row has access to downtown, the Gulch, Vanderbilt and many other Nashville landmarks. Housing 98 units with a fifth level amenities deck and convenient retail/office space at street level, residents should feel very comfortable in their urban space.

DETAIL:

Multiple levels of roofing and 1077 linear feet of shop-fabricated coping create levels of interest for this building. The roof is constructed from a 2-ply torched-down Mod-Bit roof. The scope of work additionally included metal counter flashings, a decorative ledge, gutters, and downspouts.

ADDRESS: 1510 Demonbreun Street Nashville, TN 37208 ARCHTECT: Wakefield Beasley and Associates Jacksonville, FL GENERAL CONTRACTOR: Choate Construction Atlanta, GA ROOF SYSTEM:

(7)

Portfolio :: Commercial Projects

Meharry Medical College – Nashville, TN

A major renovation for this research facility consisted of over 27,000 square feet of space devoted to clinical and biomedical research. The Center for Women’s Health Research opened in the Fall of 2006. This 10,000 square foot facility is the first of its kind devoted to addressing diseases which disproportionately affect women of color.

DETAIL:

Our workers removed the existing failing roof systems from multiple roof levels down to the existing concrete deck. A temporary roof was applied to keep the building dry during the complex phased demolition and construction. A Tremco 3-ply cold applied BUR roof system with aggregate surface finished the process. Associated metal work included 16 oz copper thru-wall flashing, scuppers, and gravel stop.

ADDRESS:

Center for Women's Health Research

1005 Dr. D.B. Todd Jr. Blvd. Nashville, TN 37208

ARCHTECT:

Gresham Smith and Partners Nashville, TN

Powell Building Group Goodlettsville, TN

ROOF SYSTEM:

Tremco Built-Up 3-ply cold applied roof

29,000 square feet Tear-Off / Re-Roof

(8)

Portfolio :: Commercial Projects

Municipal Auditorium – Nashville, TN

Nashville's multi-purpose entertainment venue plays host to a variety of special events including concerts, expositions, circuses, auto shows, conferences and much more. A 9,654 seat arena is the ideal facility for spectator events, while the 63,000 square foot exhibit hall is often filled with a variety of specialty expositions and conferences.

DETAIL:

The existing metal roof was power-washed, all joints and seams sealed, and a two-stage fluid-applied coating was spray applied. The coating seamlessly covers the existing metal roof, built in gutter and down into the drains. When applied properly, coating an existing roof will usually extend the life span of the roof by many years helping an owner get the most out of their roof investment.

ADDRESS:

417 4th Ave. North Nashville, TN 37219

OWNER:

Metropolitan Government of Nashville & Davidson County Nashville, TN

ROOF SYSTEM:

United Coatings white Elastomeric Coating

79,382 square feet Roof Coating

(9)

Portfolio :: Commercial Projects

Tennessee Correction Academy – Tullahoma, TN

This campus is the State of Tennessee's primary training and staff development center for the Department of Corrections. Each year, over 6,000 people attend one of the Academy's numerous pre-service, in-service, or specialized training schools.

DETAIL:

Our company did a complete tear-off and re-roof of two of the dormitory buildings on campus. One of the buildings required installing new plywood over the existing gypsum deck. Roof pitch created a challenge for our workers; 12/12 and 14/12. New metal copings, flashings, gutters, and downspouts were installed around the buildings.

ADDRESS:

1314 South Jackson St. Tullahoma, TN 37388

OWNER:

Tennessee Department of Finance & Administration Nashville, TN

ROOF SYSTEM:

GAF Timberline 30 Slate Blend architectural shingle roof

15,900 square feet Tear-Off / Re-Roof

(10)

Portfolio :: Commercial Projects

Central Wastewater Treatment Plant – Nashville, TN

The Central Wastewater Treatment Plant was built just north of downtown Nashville and began operation in 1958. In 2006, RD Herbert installed roofing systems on five structures as part of the Biosolids Management and Odor Control Expansion Project.

DETAIL:

The main roofing system on all buildings was EPDM fully adhered to a mechanically attached insulation system. The project included supplying wood decking and installing Berridge Tee-Panels on a section of mansard roofs. 24 ga. Kynar steel shop-fabricated flashings, copings, and trim completed the roofing and sheet metal work we performed on the project.

ADDRESS:

1815 Cement Plant Road Nashville, TN 37208

ARCHTECT:

Black & Veatch Nashville, TN GENERAL CONTRACTOR: Archer Western Contractors, Ltd. Atlanta, GA ROOF SYSTEM:

Carlisle 60 mil black EPDM roofs & Berridge 24 ga Forest Green Tee-Panel mansard roof

53,500 square feet EPDM 1,427 square feet Tee-Panel New Construction

(11)

Portfolio :: Commercial Projects

Richland Place – Nashville, TN

Richland Place is Nashville's premier retirement community for active seniors. For the comfort of the residents and to reduce costs, facility management chose to roof over the existing shingles rather than perform a complete tear off. RD Herbert additionally relined the built-in gutters with EPDM to extend their lifespan.

DETAIL:

The existing shingle roof remained intact and was covered with a 30-year laminate shingle. Typically, a roof-over involves reusing the existing sheet metal. Examples of metal reused on this project include the standing seam copper dormers and drip edge.

ADDRESS:

504 Elmington Ave. Nashville, TN 37205

ROOF SYSTEM:

Tamko Heritage 30

Weathered Wood shingle roof

70,800 square feet Roof Over Existing

(12)

Portfolio :: Commercial Projects

Harpeth Hall: Souby Hall – Nashville, TN

Formerly the P.M. Estes estate, Souby Hall housed the entire school when Harpeth Hall first opened in 1951. Named for Susan Souby, the first Head of School, Souby Hall is the heart of the Harpeth Hall campus. This building contains offices for the Head of School, Admissions, Communications, the bookstore, and the Business Office.

DETAIL:

RD Herbert tore off the existing slate, TPO and copper. The new roof consists of three roof types: Evergreen slate, copper flat lock and Carlisle TPO roofs. The scope of work also includes 16-oz copper built-in gutters, step flashings, drip edge, metal valleys, and counter flashings all fabricated and installed by our sheet metal shop.

ADDRESS:

3801 Hobbs Road Nashville, TN 37215

ROOF SYSTEM:

Evergreen Slate Unfading Red roof; Copper 16-oz flat lock roof & Carlisle 60 mil white TPO roof

3,600 square feet slate 600 square feet copper 1,300 square feet TPO Roof Replacement
