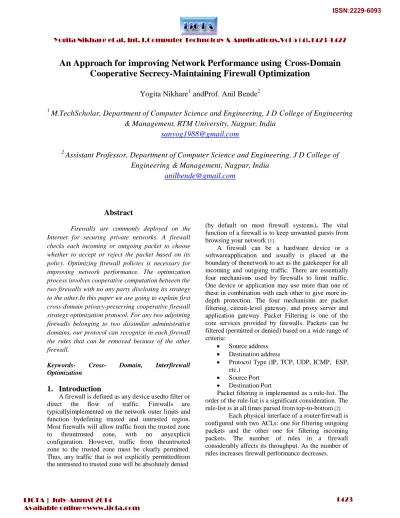

An Approach for improving Network Performance using Cross-Domain
Cooperative Secrecy-Maintaining Firewall Optimization
Yogita Nikhare
1andProf. Anil Bende
2 1M.TechScholar, Department of Computer Science and Engineering, J D College of Engineering
& Management, RTM University, Nagpur, India
[email protected]
2Assistant Professor, Department of Computer Science and Engineering, J D College of
Engineering & Management, Nagpur, India
[email protected]
Abstract
Firewalls are commonly deployed on the Internet for securing private networks. A firewall checks each incoming or outgoing packet to choose whether to accept or reject the packet based on its policy. Optimizing firewall policies is necessary for improving network performance. The optimization process involves cooperative computation between the two firewalls with no any party disclosing its strategy to the other.In this paper we are going to explain first cross-domain privacy-preserving cooperative firewall strategy optimization protocol. For any two adjoining firewalls belonging to two dissimilar administrative domains, our protocol can recognize in each firewall the rules that can be removed because of the other firewall.
Keywords- Cross- Domain, Interfirewall Optimization
1. Introduction
A firewall is defined as any device usedto filter or direct the flow of traffic. Firewalls are typicallyimplemented on the network outer limits and function bydefining trusted and untrusted region. Most firewalls will allow traffic from the trusted zone to theuntrusted zone, with no anyexplicit configuration. However, traffic from theuntrusted zone to the trusted zone must be clearly permitted. Thus, any traffic that is not explicitly permittedfrom
(by default on most firewall systems). The vital function of a firewall is to keep unwanted guests from browsing your network [1].
A firewall can be a hardware device or a softwareapplication and usually is placed at the boundary of thenetwork to act as the gatekeeper for all incoming and outgoing traffic. There are essentially four mechanisms used by firewalls to limit traffic. One device or application may use more than one of these in combination with each other to give more in-depth protection. The four mechanisms are packet filtering, circuit-level gateway, and proxy server and application gateway. Packet Filtering is one of the core services provided by firewalls. Packets can be filtered (permitted or denied) based on a wide range of criteria:
Source address
Destination address
Protocol Type (IP, TCP, UDP, ICMP, ESP, etc.)
Source Port
Destination Port
Packet filtering is implemented as a rule-list. The order of the rule-list is a significant consideration. The rule-list is at all times parsed from top-to-bottom [2].
Each physical interface of a router/firewall is configured with two ACLs: one for filtering outgoing packets and the other one for filtering incoming packets. The number of rules in a firewall considerably affects its throughput. As the number of rules increases firewall performance decreases.
Figure 1. Effect of the number of rules on the throughput
2. Cross-Domain Interfirewall
Optimization
No earlier work focuses on cross-domain privacy-preserving interfirewall optimization.We focus on removing interfirewall policy redundancies in a privacy-preserving way. Consider two adjacent firewalls 1 and 2 belonging to dissimilar administrative domains Net1 and Net2. Let F1 indicate the policy on firewall 1’s outgoing interface to firewall 2 and F2 indicate the policy on firewall 2’s incoming interface from firewall 1. For a rule r in F2, if all the packets that match r but do not match any rule over r in F2 are discarded by F1, rule r can be removed because such packets never come to F2. We call rule r an interfirewall redundant rule with respect to F1 [1].
Figure 2 illustrates interfirewall redundancy, where two adjoining routersbelong to dissimilar administrative domains CSE and EE.
Figure 2. Example interfirewall redundant rules.
3. Related Work
Prior work on firewall optimization did not consider minimizing and maintaining the privacy of firewall policies.
Firewall policy management is a difficult chore due to the complexity andinterdependency of policy rules. This is further studied by thecontinuous
evolution of network and system environments. The process of configuring a firewall is tedious and error prone. Therefore, efficient mechanisms and tools for policy management are vital to the success of firewalls.
3.1Limitation of Prior work
Prior work focuses on intrafirewall optimization or interfirewall optimization within one administrative domain, where privacy of firewall policies is not considered. In intrafirewall it contains only the single firewall, where optimization is done and in interfirewall it includes two firewalls but they are in one network and optimization is done without any privacy preserving.
But no prior work focuses on interfirewall optimization between more than one administrative domains and major concern is that firewall policies are not known to each other so that privacy is preserved. Also in the previous work numbers of rules in the firewall are not the concern. The number of rules in a firewall significantly affects its throughput.
4. Proposed Plan
In this paper, we have proposed four modules: Module 1: Login window for authentication for administrator.
Module 2: Setting of rules of firewall and redundancy removal in the intrafirewall.
Module 3: Redundancy removal using Pohlig-Hellman commutative encryption algorithm in interfirewall.
Module 4: Analysis and Testing.
The configuration for proposed system is shown in the figure 3.
No Yes Reject Accept Reject Accept
Figure 3. Data Flow chart of two administrative domains
Terminologies used in the above figure are: N1- Network 1(Administrative domain 1) N2- Network 2(Administrative domain 2) F1- Firewall 1
F2- Firewall 2
1. In the login window for authentication, we have created GUI for authentication of administrator. Also we have created firewall model in which we have made application and added the different parameters for the rules of the firewall i.e. Incoming and outgoing rules.
2. Then we will set the incoming and outgoing rules of firewalls using parameters like source IP, destination IP, source port, destination port, protocol type and action.And then we will remove intrafirewall redundant rules i.e. overlapping rules in individual firewall.
3. In the third module, we have usedPohlig-Hellman Commutative encryption algorithm to remove redundant rules ininterfirewall i.e. the rules of firewall 2 with respect to firewall 1.
The algorithm works as follows:
In Firewall policy, packet may match many rules havingdissimilar decisions.
To resolve these conflicts, firewalls employ first match semantics where the decision of the packet is the decision of the first rule that packet matches.
Input: Sets of rules
Output: Few rules which are redundant with
respect to FW1
4. In the analysis part we have done the evaluation of proposed system and our approach i.e. the algorithm which we have proposed in this paper which is different than the existing system as it requires minimum processing time than the existing system as the number of rules decreases. We have tested this result on the two synthetic firewalls i.e. firewall1 of one administrative domain and firewall2 of second administrative domain.
5. Implementation Details
The project is different from the existing system in such a way that, in existing system the algorithm used for removing the rules consists of four steps i.e. prefix conversion, prefix family construction, prefix numericalization and comparison. So, it requires more time to remove rules.
So for reducing this processing time we proposed the same algorithm and make changes in that algorithm in such a way that without using the above four steps the privacy is preserved and no firewall can access the rules of other firewall.
In this algorithm, we use private keysfor encryption in each administrative domains and works like diffiehellman key exchange algorithm.
The snapshots of the implementation of the algorithm are as follows:
Figure 4. Outgoing rules of firewall1 START LOGIN STOP N1 send packet F1 Outgoing Rule STOP F2 Incoming Rule STOP N2 receive packet STOP
Figure5. Incoming rules of firewall2
Figure 6.Intrafirewall redundant rule is removed in firewall1
Figure 7. Final output showing removal of redundant rules using PHA algorithm
6. Analysis Of System
Now, the analysis is done by showing the graphs, two graphs are shown which shows the processing time of algorithm.
In the first evaluation as the number of rules more the processing time is also more in both proposed and our approach. But as the number of rules is minimized the processing time is also minimized in both the cases.
And our approach requires less processing time as number of rules is removed without disclosing policies to each other, hence this is the best approach for maintaining privacy as well as removing the redundant rules.
The graphs are as follows:
Figure 8. Evaluation 1 when number rules are more
Figure 9. Evaluation 2 when number of rules is less
7. Conclusion And Future Work
Hence by using cross-domain cooperative privacy preserving protocol we have identified and remove the redundant rules in firewall 1 with respect to firewall 2 without disclosing policies to each other. But again we have identified and remove the redundant rules in the same way in firewall 2 with respect to firewall
1.As redundant rules are removed the network performance is improved. The response time is also improved and the communication cost and processing time is reduced.
As our current protocol i.e. privacy preserving cooperative firewall optimization protocol cannot operate on Network Address Translation (NAT) devices between the two adjacent firewalls. If we relate our protocol to such cases then it will furnish some remarkable results.
8. References
[1] Fei Chen, BezawadaBruhadeshwar, and Alex X. Liu, “Cross-Domain Privacy-Preserving CooperativeFirewall
Optimization”, IEEE/ACM TRANSACTIONS ON
NETWORKING, VOL. 21, NO. 3, JUNE 2013.
[2] ArunaDevi.R, PON Arivanandham, “Interfirewall Optimization across AdministrativeDomains for Enabling Privacy Preserving andSecurity”, (IJCSIT) International
Journal of Computer Science and Information Technologies,
Vol. 4 (6) , 2013, 808-812
[3] E. Al-Shaer and H. Hamed, “Discovery of policy anomalies in distributed firewalls”, in Proc. IEEE
INFOCOM, 2004, pp. 2605–2616.
[4] J. Cheng, H. Yang, S. H.Wong, and S. Lu, “Design and implementation of cross-domain cooperative firewall” ,in
Proc. IEEE ICNP, 2007, pp. 284–293.
[5] M. G. Gouda and A. X. Liu, “Structured firewall design”,Comput.Netw., vol. 51, no. 4, pp. 1106–1120, 2007. [6] A. X. Liu and F. Chen, “Collaborative enforcement of firewall policies in virtual private networks”, in Proc. ACM
PODC, 2008, pp. 95–104.
[7] A. X. Liu and M. G. Gouda, “Complete redundancy removal for packet classifiers in TCAMs”, IEEE Trans.
Parallel Distrib. Syst., vol. 21, no. 4, pp. 424–437, Apr.
2010.
[8] A. X. Liu, C. R. Meiners, and Y. Zhou, “All-match based complete redundancy removal for packet classifiers in TCAMs”, in Proc. IEEEINFOCOM, 2008, pp. 574–582. [9] A. X. Liu, E. Torng, and C. Meiners, “Firewall compressor: An algorithm for minimizing firewall policies”, in Proc. IEEE INFOCOM, 2008.
[10] S. C. Pohlig and M. E. Hellman, “An improved algorithm for computing logarithms over GF(p) and its cryptographic significance”,IEEETrans. Inf. Theory, vol. IT-24, no. 1, pp. 106–110, Jan. 1978.
[11] L. Yuan, H. Chen, J. Mai, C.-N.Chuah, Z. Su, and P. Mohapatra, “Fireman: A toolkit for firewall modeling and analysis”, in Proc. IEEES&P, 2006, pp. 199–213.
