Segment SOHO/ SMB SOHO/ SMB SOHO/ SMB SOHO/ SMB. OS Embedded Linux Embedded Linux Embedded Linux Embedded Linux

(1)

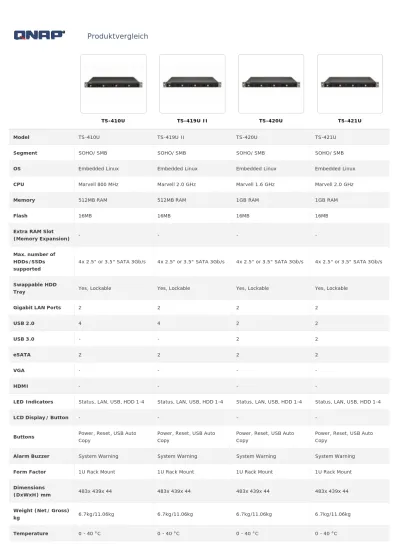

TS-410U TS-419U II TS-420U TS-421U

Model TS-410U TS-419U II TS-420U TS-421U

Segment SOHO/ SMB SOHO/ SMB SOHO/ SMB SOHO/ SMB

OS Embedded Linux Embedded Linux Embedded Linux Embedded Linux

CPU Marvell 800 MHz Marvell 2.0 GHz Marvell 1.6 GHz Marvell 2.0 GHz

Memory 512MB RAM 512MB RAM 1GB RAM 1GB RAM

Flash 16MB 16MB 16MB 16MB

Extra RAM Slot

(Memory Expansion) - - -

-Max. number of HDDs/SSDs supported

4x 2.5" or 3.5" SATA 3Gb/s 4x 2.5" or 3.5" SATA 3Gb/s 4x 2.5" or 3.5" SATA 3Gb/s 4x 2.5" or 3.5" SATA 3Gb/s

Swappable HDD

Tray Yes, Lockable Yes, Lockable Yes, Lockable Yes, Lockable

Gigabit LAN Ports 2 2 2 2

USB 2.0 4 4 2 2

USB 3.0 - - 2 2

eSATA 2 2 2 2

VGA - - -

-HDMI - - -

-LED Indicators Status, LAN, USB, HDD 1-4 Status, LAN, USB, HDD 1-4 Status, LAN, USB, HDD 1-4 Status, LAN, USB, HDD 1-4

LCD Display/ Button - - -

-Buttons Power, Reset, USB Auto

Copy

Power, Reset, USB Auto Copy

Alarm Buzzer System Warning System Warning System Warning System Warning

Form Factor 1U Rack Mount 1U Rack Mount 1U Rack Mount 1U Rack Mount

Dimensions

(DxWxH) mm 483x 439x 44 483x 439x 44 483x 439x 44 483x 439x 44

Weight (Net/ Gross)

kg 6.7kg/11.06kg 6.7kg/11.06kg 6.7kg/11.06kg 6.7kg/11.06kg

Temperature 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C

(2)

Humidity 0 - 90% R.H 0 - 90% R.H 0 - 90% R.H 0 - 90% R.H Power Supply

Specification

External Power Adapter, Input: 100-240V AC, 50/60Hz, Output: 250W, 47-63Hz, 3.5A

External Power Adapter, Input: 100-240V AC, 50/60Hz, Output: 250W, 47-63Hz, 3.5A Power Consumption: Sleep Mode 15W 12W 15W 12W Power Consumption: In Operation 29W 33W 29W 33W

Power Off

(Wake-On-LAN/WOL) - - -

-Power Consumption:

Power Off 0.05W 0.05W 0.05W 0.05W

File System:

Internal Hard Drive EXT3, EXT4 EXT3, EXT4 EXT3, EXT4 EXT3, EXT4

File System: External Hard Drive

EXT3, EXT4, NTFS, FAT32, HFS+

Network Client Platform

Windows XP/ Vista/ Windows 7/8, Windows Server 2003/ R2, 2008/R2, 2012, Mac OS X, Linux, UNIX

Microsoft Network

(CIFS/ SMB) Yes Yes Yes Yes

Mac (AFP v3.3) Yes Yes Yes Yes

Linux (NFS v3) Yes Yes Yes Yes

Internet (HTTP) Yes Yes Yes Yes

File Transfer

Protocol (FTP) Yes Yes Yes Yes

Secure Internet

(HTTPS) Yes Yes Yes Yes

WebDAV Yes Yes Yes Yes

TCP/ IP Yes Yes Yes Yes

Fixed/ Dynamic IP

Address Yes Yes Yes Yes

Port Trunking

Balance-rr (Round-Robin) ,Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing), Balance-alb (Adaptive Load Balancing)

Multi-IP Settings Yes Yes Yes Yes

DHCP Server Yes Yes Yes Yes

Dynamic DNS Yes Yes Yes Yes

(3)

Network Service Discovery (UPnP & Bonjour)

UPnP & Bonjour UPnP & Bonjour UPnP & Bonjour UPnP & Bonjour

Virtual LAN (VLAN) - - -

-Wireless LAN via

USB Wi-Fi Adapter Yes Yes Yes Yes

Service Binding Based on Network Interfaces

Yes Yes Yes Yes

IP Filter Yes Yes Yes Yes

Encrypted Remote

Replication Yes Yes Yes Yes

Hot-swappable Yes Yes Yes Yes

Bad Blocks Scan Yes Yes Yes Yes

HDD S.M.A.R.T. Yes Yes Yes Yes

File System Check Yes Yes Yes Yes

PC-less RAID Setup via LCD Panel for First-time Installation (Touch-N-Go) - - - -FIPS 140-2 Validated AES 256-bit Volume-based Encryption - - - -External Drive

Encryption Yes Yes Yes Yes

Built-in iSCSI Target

Service Yes Yes Yes Yes

Virtual Disk (iSCSI

Initiator) Yes Yes Yes Yes

RAID Recovery Yes Yes Yes Yes

Online RAID

Capacity Expansion Yes Yes Yes Yes

Online RAID Level

Migration Yes Yes Yes Yes

RAID10+ hot spare - - -

-RAID10 Yes Yes Yes Yes

RAID 6+ hot spare - - -

-RAID 6 Yes Yes Yes Yes

RAID 5+ Spare Yes Yes Yes Yes

RAID 5 Yes Yes Yes Yes

(4)

RAID 0 Yes Yes Yes Yes

JBOD Yes Yes Yes Yes

Single Disk Yes Yes Yes Yes

Global Hot Spare Yes Yes Yes Yes

Bitmap Support Yes Yes Yes Yes

NAS Discovery Tool QNAP Qfinder for Windows, Mac, and Linux

QNAP Qfinder for Windows, Mac, and Linux

iSCSI Target Yes Yes Yes Yes

iSCSI LUN

Snapshot/Backup Yes Yes Yes Yes

Multi-LUN per

Target Yes Yes Yes Yes

LUN Mapping & LUN

Masking Yes Yes Yes Yes

SPC-3 Persistent

Reservation (iSCSI) Yes Yes Yes Yes

MPIO (iSCSI) Yes Yes Yes Yes

MC/S (iSCSI) Yes Yes Yes Yes

Virtual Disk Drive

(via iSCSI Initiator) Yes Yes Yes Yes

Storage Plug & Play

(iSCSI & Samba Yes Yes Yes Yes

Web File Manager Yes Yes Yes Yes

FTP over SSL/ TLS

(Explicit) Yes Yes Yes Yes

FTP Passive mode with Port Range Setup

Yes Yes Yes Yes

Unicode Support Yes Yes Yes Yes

Share Folder Level

ACL Support Yes Yes Yes Yes

Windows ACL Yes Yes Yes Yes

Advanced Folder Permission with Subfolder ACL Support for CIFS/ SMB, AFP, FTP and Web File Manager

Yes Yes Yes Yes

Users quota setting Yes Yes Yes Yes

FTP bandwidth

control Yes Yes Yes Yes

Backup to external

(5)

Real-time Remote

Replication (RTRR) Yes Yes Yes Yes

RTRR Max. Number of Jobs

8 8 8 8

Encrypted Remote

Replication Yes Yes Yes Yes

Remote Replication Yes Yes Yes Yes

Client backup software: NetBak Replicator (Windows)

Yes Yes Yes Yes

USB

One-Touch-Copy Yes Yes Yes Yes

Apple Time Machine

Support Yes Yes Yes Yes

Could Storage

Backup Yes Yes Yes Yes

Microsoft Active Directory (AD) Authentication

Yes Yes Yes Yes

LDAP Server Yes Yes Yes Yes

LDAP Client Yes Yes Yes Yes

Domain Users Login via CIFS/SMB, AFP, FTP and Web File Manager

Yes Yes Yes Yes

3rd Party Backup Software Support

Veeam Backup & Replication, ARCserve Backup, Acronis True Image, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper (backup)

Veeam Backup & Replication, ARCserve Backup, Acronis True Image, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper (backup) Alert Notification

(Email, SMS, Windows Live Mesenger)

Yes Yes Yes Yes

Smart fan Yes Yes Yes Yes

LED display/ alarm

buzzer Yes Yes Yes Yes

System software

upgrade Yes Yes Yes Yes

Support network

time protocol Yes Yes Yes Yes

Network Recycle Bin for file deletion via CIFS/SMB and AFP with retention time and file-type filter

Yes Yes Yes Yes

(6)

Schedule Power On/

Off (15 settings) Yes Yes Yes Yes

Web-based GUI for System

Administration

Yes Yes Yes Yes

SNMP (v2 & v3) Yes Yes Yes Yes

Real-time SystemResource Monitor

Yes Yes Yes Yes

Firmware Live

Update Yes Yes Yes Yes

Save and restore

configuration Yes Yes Yes Yes

LCD Panel

Configuration - - -

-Reset button (admin password & network settings)

Yes Yes Yes Yes

Display online users Yes Yes Yes Yes

Display system log/

alert/ error Yes Yes Yes Yes

File-level Connection

logs Yes Yes Yes Yes

Display all DHCP assignment information

Yes Yes Yes Yes

Send logs to a remote syslog server

Yes Yes Yes Yes

UPS Support Yes Yes Yes Yes

Network UPS with

SNMP Manaement Yes Yes Yes Yes

USB Printer (Max 3) Yes Yes Yes Yes

PHP Yes Yes Yes Yes

MySQL Yes Yes Yes Yes

Telnet login Yes Yes Yes Yes

SSH login Yes Yes Yes Yes

Multimedia Station Yes Yes Yes Yes

Photo Station Yes Yes Yes Yes

Music Station Yes Yes Yes Yes

iTunes Server Yes Yes Yes Yes

(7)

-TV Station Yes Yes Yes Yes AirPlay (QiTunesAir

QPKG)

Yes Yes Yes Yes

DLNA Media Server Yes Yes Yes Yes

Supported Music Format via DLNA

mp3, m4a, m4a (ALAC), m4b, 3gp, apl, ac3, m1v, m4v, mov, aac, amr, awb, wav, pcm, lpcm, mp1, mp2, aif, aiff, aifc, snd, wma, ogg, flac

Supported Photo Format via DLNA

jpg, jpe, jpeg, tiff, tif, gif, png, bmp

Supported Video Format via DLNA

wmv, asf, vdr, avi, xvid, divx, flv, mpg, mpe, mts, m2ts, m2t, mpeg, spts, m2p, m2v, mp2t, mp2p, mpg2, dvr-ms, vob

wmv, asf, vdr, avi, xvid, divx, flv, mpg, mpe, mts, m2ts, m2t, mpeg, spts, m2p, m2v, mp2t, mp2p, mpg2, dvr-ms, vob Supported Playlist

Format via DLNA m3u, m3u8, wpl, pls m3u, m3u8, wpl, pls m3u, m3u8, wpl, pls m3u, m3u8, wpl, pls Download Station

(BT/Magnet Link/ HTTP/FTP download)

Yes Yes Yes Yes

Remote download management software (QGet)

Yes Yes Yes Yes

Surveillance Station

Pro Yes Yes Yes Yes

Max Number of Cameras

Default: 1, Max.: 8 (optional license purchase)

Mobile Surveillance App for iOS & Android

Vmobile Vmobile Vmobile Vmobile

Max USB Webcam for liveview or snapshot (QUSBCam QPKG)

1 (up to 640x480, 2FPS) 1 (up to 640x480, 2FPS) 1 (up to 640x480, 2FPS) 1 (up to 640x480, 2FPS)

Syslog Server Yes Yes Yes Yes

Antivirus Yes Yes Yes Yes

RADIUS Server Yes Yes Yes Yes

TFTP Server with

PXE Booting Yes Yes Yes Yes

Mail Server Xmail (QPKG) Xmail (QPKG) Xmail (QPKG) Xmail (QPKG)

VPN Server (PPTP +

OpenVPN) Yes (Max clients: 15) Yes (Max clients: 15) Yes (Max clients: 15) Yes (Max clients: 15) MyCloudNAS Remote

Access and File Sharing

(8)

MyCloudNAS Connect Utility for Windows

Yes Yes Yes Yes

3rd Party Cloud Storage

Amazon S3, ElephantDrive, Google Drive and Symform

Amazon S3, ElephantDrive, Google Drive and Symform Mobile Apps for iOS

& Android Qfile, Qmanager, Qmobile Qfile, Qmanager, Qmobile Qfile, Qmanager, Qmobile Qfile, Qmanager, Qmobile

QPKG Center Yes Yes Yes Yes

VMware Ready® - - -

-Citrix Ready - - -

-Microsoft Hyper-V

Compatibility - - -

-FCC Yes Yes Yes Yes

CE Yes Yes Yes Yes

Max. Number of

Users 4096 4096 4096 4096

Max. Number of User

Groups 512 512 512 512 Max. Number of Share Folders 512 512 512 512 Max. Number of Concurrent Connections 256 256 256 256 Batch Creation of

Users Yes Yes Yes Yes

Language

English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hugarian, Romanian, Thai, Portuguese/Brazil, Greek
