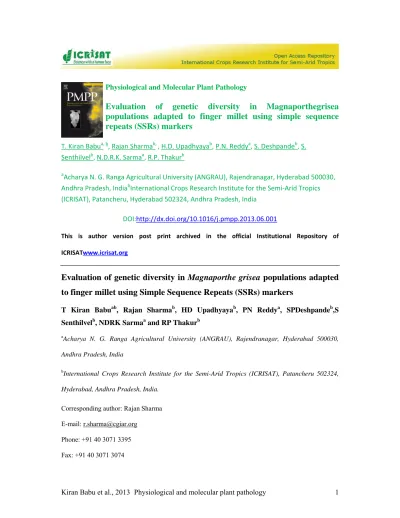

Physiological and Molecular Plant Pathology
Evaluation of genetic diversity in Magnaporthegrisea
populations adapted to finger millet using simple sequence
repeats (SSRs) markers
T. Kiran Babua, b, Rajan Sharmab, , H.D. Upadhyayab, P.N. Reddya, S. Deshpandeb, S. Senthilvelb, N.D.R.K. Sarmaa, R.P. Thakurb
a
Acharya N. G. Ranga Agricultural University (ANGRAU), Rajendranagar, Hyderabad 500030, Andhra Pradesh, IndiabInternational Crops Research Institute for the Semi‐Arid Tropics (ICRISAT), Patancheru, Hyderabad 502324, Andhra Pradesh, India
DOI:http://dx.doi.org/10.1016/j.pmpp.2013.06.001
This is author version post print archived in the official Institutional Repository of
ICRISATwww.icrisat.org
Evaluation of genetic diversity in Magnaporthe grisea populations adapted
to finger millet using Simple Sequence Repeats (SSRs) markers
T Kiran Babuab, Rajan Sharmab, HD Upadhyayab, PN Reddya, SPDeshpandeb,S Senthilvelb, NDRK Sarmaa and RP Thakurb
a
Acharya N. G. Ranga Agricultural University (ANGRAU), Rajendranagar, Hyderabad 500030, Andhra Pradesh, India
b
International Crops Research Institute for the Semi-Arid Tropics (ICRISAT), Patancheru 502324, Hyderabad, Andhra Pradesh, India.
Corresponding author: Rajan Sharma E-mail: [email protected]
Phone: +91 40 3071 3395 Fax: +91 40 3071 3074
ABSTRACT
Finger millet blast caused by Magnaporthe grisea(anamorph: Pyricularia grisea) is a great threat to finger millet production worldwide. Genetic diversity and population structure of 72M. griseaisolates collected from finger millet (56), foxtail millet (6), pearl millet (7) and rice (3) frommajor crop growing areas inIndiawas studied using 24 SSR markers. None of the SSRs detected polymorphism in the M. grisea isolates from pearl millet. Seventeen SSR markers were polymorphicin the 65 non pearl millet isolates anddetected 105 alleles, of which one was rare, 83 common, 9 frequent and 12 most frequent. A model-based population structure analysis of the genomic data identified two distinct populations with varying levels of ancestral admixtures among the 65M. griseaisolates. Analysis of molecular variance (AMOVA)indicated that 52% of the total variation among the isolates used in this study was due to differences between the pathogen populations adapted to different hosts, 42% was due to differences in the isolates from the same host, and the remaining 6% due to heterozygosity within isolates. High genetic variability present in M. grisea isolates calls for the continuous monitoring of M. grisea populations anticipating blast resistance breakdown in finger millet cultivars grown in India.
Key words:Genetic diversity, Simple sequence repeats, Magnaporthe grisea, Eleusine coracana
Highlights:
Seventeen of the 24 SSR markers were polymorphic and detected 105 alleles in the 65 Magnaporthegriseaisolates.
Cluster analysis of SSR data classified the isolates into three major groups that corresponded with the host specificity.
A model-based population structure analysis identified two distinct populations with varying levels of ancestral admixtures.
1.0. Introduction
Finger millet (Eleusine coracana L. Gaertn) is a widely grown grain cereal in the semi-arid areas of East and southern Africa and South Asia under varied agro-climatic conditions [1]. Finger millet is being increasingly recognized as apromising source of micronutrients and protein [2] forweak and immune-compromised people [3]. Besides energy, it contributes to alleviating micronutrient and protein malnutrition also called ‘hidden hunger’ affecting half of the world’s population, especially women and pre-school children in most countries of Africa and South-east Asia [4]. Malnutrition due to protein deficiency is alsofound at alarming rates in the Indian subcontinent [5]. Although finger millet is tolerant to many biotic and abiotic stresses, the crop is severely affected by blast disease caused by an ascomycete fungus Magnaporthe grisea (Hebert) Barr. (anamorph: Pyricularia grisea (Cooke) Sacc.), which is very prominent among the constraints that affect yield, utilization and trade of finger millet within East Africa and South Asia [6,7]. Many of the widely grown landraces and high yielding varieties are susceptible to blast with yield losses of 10-50% being common [3] and losses canbe as high as 80-90% in the endemic areas [8]. The disease affects the crop at all growth stages from seedling to grain formation, withpanicle blast being the most destructive form of the disease [9,10]. M. grisea is pathogenic to more than 50 graminaceous hosts including food security crops such as rice, wheat, finger millet, pearl millet and foxtail millet [11,12]. Despitethewide host range of the pathogen, M. grisea populations mainly exist as host-specific (adapted) forms, capable of infecting a single host [13,14]. While some researchers have demonstrated successful infection of a host by anisolatefrom a different host under experimental conditions [15,16], others failed to confirm the results [13].
In thecase of finger millet, blast management through host resistance is very economical and relevant for the resource-poor and marginal farmers who cannot afford other methods of disease control such as use of expensive chemical fungicides. However,
resistance breakdown is a greatchallenge while breeding for blast resistance in finger millet because of pathogenic variation in M. grisea. It is important not only to develop cultivars with durable resistance, but also to monitor virulence change in the pathogen populations to anticipate resistance breakdown in existing finger millet cultivars, and to designstrategies to sustain cultivation of high yielding,farmer and consumer preferred cultivars [17]. Lack of knowledge on the pathogen adapted to finger millet in India has hindered efforts towards identification and development of resistant cultivars adapted to local agro-ecological conditions. Consequently, research efforts have focused on understanding the M. grisea population structure by combining modern molecular-biotechnological approaches with traditional pathological assays. Substantial work has been done in the rice-blast pathosystem, whereas such studies are very limited for the finger millet-blast pathosystem[3,7,14]. In order to measure genetic variability more precisely, molecular markers thatprovide an unbiased estimate of total genomic variation and have the potential to minimize errors due to sampling variance have been developed [18]. Furthermore, determination of fungal genetic diversity based on molecular markers is reliable as it is independent of culture conditions. DNA fingerprinting techniques have created new tools for the molecular analysis of M. oryzae populations [19] and this is equally applicable to M. grisea populations adapted to finger millet.
Assessment of genetic diversity in M. grisea from different crops has mostly relied on use of clones of the transposon MGR as a probe to detectrestriction fragment length polymorphism (RFLP), which is an expensive and time-consuming approach. Simple sequence repeats (SSRs) or microsatellites are PCR-based molecular markers, which may be more desirable for population genetic analysis because this approach makes it simpler to obtain accurate polymorphic data due to co dominance. Besides, these markers are highly reproducible, locus-specific, multi-allelic and abundant in animal, plant and
microbialgenomes [20]. Although generation of SSR markers is a time-consuming, labor-intensive and expensive task, several SSR markers have already been developed for M. grisea infecting rice [21–24]. However, SSRs have not been used to investigate pathogen populations adapted to finger millet. Prior few studies have examinedgenetic diversity in finger millet-infecting populations of M. griseausing MGR-RFLP [14], AFLP [3] and RAPD markers [7]. Here, we analyzedfinger millet infecting populations of M. grisea, collected from Andhra Pradesh, Bihar and Karnataka, India along with M. grisea isolates from pearl millet, foxtail millet and rice using SSR markers to (i) assess extent of genetic diversity in finger millet-infecting populations of M. grisea (ii) investigate genetic relatedness amongM. grisea populations adapted to finger millet, foxtail millet, pearl millet and rice
.
2.0. Material and Methods
2.1. Pathogen isolates
Blast infected (leaf, neck and finger) samples of finger millet, foxtail millet and rice were collected from Vizianagaram, Patancheru, and Nandyal in Andhra Pradesh, Mandya and Naganahalli in Karnataka, and Dholi in Bihar, India during 2008-10 rainy seasons (Table 1). In addition, seven M. grisea isolates from four major pearl millet growing states in India – Rajasthan, Haryana, Maharashtra and Uttar Pradesh [25] were also included in this study (Table 1). Isolations of M. grisea were made from the blast-infected tissue on oatmeal agar medium (rolled oats 50 g, agar 15 g, distilled water 1 L) and incubated at 25±1°C for 15 days. After incubation, a dilute spore suspension (3×103 spores/ml) was prepared in sterile double-distilled water and plated onto 4% water agar in Petri plates. Single germinating conidia were marked after 10-12 h of incubation under a microscope and transferred to test tubes containing oatmeal agar for further studies.
Isolates of M. grisea were grown in 2X yeast extract glucose (YEG) medium [14] in shake culture for 7-10 days at 25°C. Mycelia were harvested by filtration through Whatman filter paper No. 1, dried on blotting papers and ground to a fine powder in liquid nitrogen with a pre-cooled pestle and mortar. Genomic DNA was extracted from 200 mg of powdered mycelium of each isolate using CTAB (cetyltrimethylammonium bromide) method as suggested by Viji et al. [14]. The quantity and quality of the extracted DNA was assessed by running the DNA on 1% agarose gel, stained with ethidium bromide and photographed under UV illumination.
2.3. SSR genotyping
Twenty-four SSR markers (Pyrms7-8, Pyrms 15-16, Pyrms33-34, Pyrms37-38, Pyrms 39-40, Pyrms41-42, Pyrms 43-44, Pyrms 45-46, Pyrms47-48, Pyrms 59-60, Pyrms 61-62, Pyrms 63-64, Pyrms 67-68, Pyrms 77-78, Pyrms 81-82, Pyrms 83-84, Pyrms 87-88, Pyrms 93-94, Pyrms 99-100, Pyrms 101-102, Pyrms 107-108, Pyrms 109-110, Pyrms 115-116 and Pyrms125-126) [22] were used for analyzing the SSR diversity in M. griseaisolates (Table 2). The forwardprimers were synthesized by adding M13-forward primer sequence (5’CACGACGTTGTAAAACGAC3’) at the 5’end of each primer. PCR was performed in 5 μl reaction volume with final concentrations of 5 ng of DNA, 2.5 mM MgCl2, 0.2 mM of dNTPs, 1X PCR buffer, 0.006 pM of M13-tailed forward primer, 0.09 pM of M13-Forward primer labeled with either 6-Fam or Vic or Ned or Pet (Applied Biosystems), 0.09 pM of reverse primers and 0.1 U of Taq DNA polymerase (SibEnzyme Ltd., Russia) in a GeneAmp® PCR System 9700 thermal cycler (Applied Biosystems, USA) with the following cyclic conditions: initial denaturation at 94˚C for 3 min then 10 cycles of denaturation at 94˚C for 1 min, annealing at 61˚C for 1 min (temperature reduced by 1˚C for each cycle) and extension at 72˚C for 1 min. This was followed by 40 cycles of denaturation at 94˚C for 1
min, annealing at 54˚C for 1 min and extension at 72˚C for 1 min with the final extension of 10 min at 72˚C. The PCR products were tested for amplification on 1.2% agarose.
Based on their expected amplicon size and/or dye, PCR products were pooled together along with internal size standard (GeneScan™ 500 LIZ® from Applied Biosystems) and capillary electrophoresis was carried out using ABI 3730xl Genetic Analyzer (Applied Biosystems, USA). Raw data produced from theABI 3730xl Genetic Analyser was analysed using Genemapper software (Applied Biosystems, USA) and fragment size was scored in base pairs (bp) based on the relative migration of the internal size standard.
2.4. Determination of allele frequency and diversity analysis
The alleles for each SSR locus across the samples were scored in terms of fragment length of the PCR amplified product in base pairs and used to calculate the basic statistics such as polymorphic information content (PIC), allelic richness as determined by a total number of the detected alleles, major allele frequency (MAF), number of alleles per locus, gene diversity (GD), heterozygosity (H) and occurrence of unique, rare, common, frequent and most frequent alleles using PowerMarker version 3.25 [26].These estimates were performed across all the M. grisea isolates, and separately among isolates from different hosts. Unique alleles are those that are present in one isolate or one group of isolates but absent in other isolates or group of isolates. Rare alleles are those whose frequency is ≤ 1% in the investigated isolates. Common alleles have>1%-20% frequency while those occurring with >20 -50% and >50% frequencies were classified as frequent alleles and most frequent alleles, respectively.
2.5. Unweighted Neighbor-joining tree
The allelic data were converted into a binary matrix using the scores 1/0 for presence/ absence of the allele. A similarity matrix was generated from the binary data using Jaccard
similarity coefficient in the SIMQUAL program to cluster the isolates usingNTSYS-pc package [27].
2.5. Analysis of molecular variance (AMOVA)
Analysis of molecular variance for theM. grisea isolates from different hosts collected from different locations was performed using the software ARLEQUIN [28].
2.6. Population structure analysis
A set of 17 SSR markers were used to dissect the population structure ofM. grisea isolates from finger millet, foxtail millet and rice. In order to infer the population structure of theM. grisea isolates without considering the host origin, the analysis was performed using the software package STRUCTURE version 2.3.4(http://pritch.bsd. uchicago.edu/structure.html) [29]. This method uses multilocus genotypes to infer the fraction of an isolate’s genetic ancestry that belongs to a population for a given number of populations (K). The program STRUCTURE implements a model based clustering method for inferring population structure using isolate data consisting of unlinked markers to identify k clusters to which the program then assigns each individual isolate. To determine most appropriate K value, burn-in Markov Chain Monte Carlo (MCMC) replication was set to 300,000 and data were collected over 200,000 MCMC replications in each run. Three independent runs were performed setting the number of population (K) from 2 to 15 using a model allowing for admixture and correlated allele frequencies. The basis of this kind of clustering method is the allocation of individual genotypes to K clusters in such a way that linkage equilibrium isvalid within clusters, whereas this kind of equilibrium is absent between clusters. The K value was determined by LnP(D) in STRUCTURE output based on the rate of change in LnP(D) between successive K. The model choice criterion to detect the most probable value of K was ΔK, which is an ad hoc quantity related to the second-order change in the log probability of data (Ln P(D)) with
respect to the number of clusters inferred by Structure [30].The MCMC chain was run multiple times, using a correlated allele frequency model (prior mean = 0.01, prior SD = 0.05 and Lambda = 1.0) in the advance option of the STRUCTURE version 2.3.4.
3.0. Results
3.1. Polymorphic SSRs among M. grisea isolates
For assaying allelic diversity in 72 M. grisea isolates, a total of 24 SSR markers were used. However, only 17 (74%) produced clear, scorable and polymorphic markers among M. grisea isolates from different hosts and locations (3 pairs amplifieda product in all 72 isolates). The remaining seven (26%) primer pairs (Pyrms 33-34, Pyrms 39-40, Pyrms 43-44, Pyrms 81-82, Pyrms 83-84, Pyrms 101-102 and Pyrms 115-116) were found monomorphic in allM. grisea isolates. None of the primer pairs detected polymorphism in pearl millet infecting M. griseapopulations, butonly three SSR markers (Pyrms 47-48, Pyrms 63-64 and Pyrms 67-68) amplified DNA frompearl millet isolates.Thus, isolates from pearl millet were excluded from further study. One SSR marker (Pyrms 43-44) amplified onlyfoxtail millet isolates. A high level of polymorphism was observed for 17 SSRs in the 65 isolates of M. grisea from finger millet, foxtail millet and rice (Table 1); thus, these SSRs and isolates were selected for further studies (Table 2).
3.2. Allelic richness and diversity in M. grisea
The 17 polymorphic SSR markers detected total 105 alleles in the 65 M. grisea isolates assayed. The number of alleles per locus ranged from 2 (Pyrms 37-38) to 13 (Pyrms 15-16) with an average of 6.18 alleles/locus (Table 2). The allele size ranged from 119 to 384 bp. The polymorphic information content (PIC) values varied from 0.205 (Pyrms 37-38) to 0.805 (Pyrms 67-68) with an average of 0.486/marker. Three markers Pyrms 15-16, Pyrms 61-62 and Pyrms 67-68 were highly polymorphic. Gene diversity, defined as the probability
that two randomly chosen alleles from the population are different, varied from 0.232 (Pyrms 37-38) to 0.827 (Pyrms 67-68), with an average of 0.517. A very low level of heterozygosity (0.000 to 0.046) was detected in M. grisea isolates but for Pyrms 45-46 which detected 0.586 heterozygosity. Seven SSR loci detected no heterozygosity while nine detected <0.05 heterozygosity.
Of the 105 alleles detected in M. grisea isolates, only one was rare, 83 common, 9 frequent and 12 were most frequent. Common alleles were detected at all 17 SSR lociranging from 1 (Pyrms 37-38) to 12 (Pyrms15-16) with an average of 4.88 alleles per locus while frequent alleles ranged from 1 to 2 with an average of 0.52frequent alleles per locus. Most frequent alleles were detected atall the SSR loci except Pyrms 15-16, Pyrms 47-48, Pyrms 59-60, Pyrms 61-62 and Pyrms 67-68 with an average of 0.70 alleles per locus (Table 2).
3.3. Diversity in M. grisea populations adapted to different hosts
Of the 105 alleles detected in the 65 M. grisea isolates, 75 (one rare, 51 common, 10 frequent and 13most frequent)were from fifty-six fingermillet isolates, 44 (22 common, 12 frequent and 10 most frequent alleles) from six foxtail millet isolates and 15 most frequent alleles from three rice isolates (Table 3). The number of alleles per locus in finger millet isolates ranged from 2 to 13 with an average of 4.41 alleles; whereas in foxtail milletisolates, it ranged from 1 to 4 with an average of 2.75.The PIC value ranged from 0.067 to 0.759 (average 0.369) in finger millet isolates, 0.0 to 0.620 (average 0.420) in foxtail millet isolates and 0.0 to 1.0 (average 0.062) in rice isolates.
3.4. Genetic variability among M. grisea isolates from different hosts
Cluster analysis classified the isolates into three major groups that corresponded with the host specificity of the isolates (Fig. 1). However, there was an exception to this correspondence; two finger millet isolates (FMP1 and FMV20) were placed in
group,otherwiseconstituted by foxtail millet isolates. Overall topology of the dendrogram indicated the presence of three lineages in M. grisea species complex infecting different hosts. Several subgroups were observed for populations from finger and foxtail millet indicating high genetic variability within and between different host-limited forms of M. grisea. Of the 56 isolates from finger millet, 53 were clustered together in one group, whereas the other 2 were grouped together with foxtail millet isolates,and one isolate (FMP7), althoughsharing slight below 50% similarity was still most closely associated with thefinger millet group.
As all but two of the isolates were clustered in host-specific groups, all the SSR allelic data were inspected to determine host-specific alleles. Three SSR loci (Pyrms 15-16, Pyrms 37-38, Pyrms 63-64)showed alleles unique to finger millet-infecting isolates. In terms of locations-specific alleles among the isolates, five SSR loci (Pyrms 45-46, Pyrms 59-60, Pyrms 61-62, Pyrms 87-88, Pyrms 125-126) showed unique alleles for the isolates from Mandya, and one SSR marker (Pyrms 47-48)detected a unique allele for the isolates from Vizianagaram.
3.5. Analysis of molecular variance (AMOVA)
Analysis of molecular variance (AMOVA) indicated that 52% of the total variation among the isolates used in this study was due to differences between the pathogen populations adapted to different hosts, 42% was due to differences in the isolates from the same host, and the remaining 6% due to heterozygosity within isolates.
3.6. Genetic structure of M. grisea isolates
Analysis of 65 M. grisea isolates for population structure using a model-based approach providedevidence for the presence of significant population structure inM. grisea and identified two genetically distinct groups or admixtures within the M. grisea isolates
from different hosts. The model-based simulation of population structure using SSRs showed the estimated likelihood values being variable among different runs (K= 2–15).However, inference of the exact value of K (gene pool) was not straightforward because theestimated LnP(D) values increased continuously tillK = 15 (Fig. 2A), although aplateau started developing at K=8. There were abrupt changes in LnP(D) value between K = 5 and K = 6; K = 6 andK = 7;K = 7 and K = 8. The model choice criterion to detect the most probable value of K was ΔK (Fig. 2B).The highest value of ΔKfor this data set was found atK = 2 (Fig. 2B). This suggested that the set of isolates was partitioned into two groups (subpopulations), which corresponded to the host origin with a few exceptions (Fig. 3). According to the membership pattern when K = 2, group 2 was the largest with 54 (83%) isolates representing only finger millet from different locations. Group 1 was represented by 11 isolates which included all the foxtal millet and rice isolates, and two finger millet isolates (FMP1 and FMV20).
4.0. Discussion
We evaluated 24 SSR markers reported by Kaye et al. [22]for assaying the molecular diversity in M. grisea populations adapted to different hosts. The polymorphism detected by selectedSSRs in M. grisea was quite high and thus can be used as an efficient tool for genetic diversity studies. The percentage of polymorphic SSRs observed here is very close to that reported by Kaye et al. [22] and by Zheng et al. [23] among M. grisea isolates from rice. In contrast, Suzuki et al. [24] observed very low levels of polymorphisms in the M. grisea isolates collected in Japan and concluded that the field isolates collected in recent years probably were genetically similar and belonged to a limited number of lineages [31].
The number of alleles per locus in the present study was positively correlated with gene diversity (r = 0.83, P < 0.01) and common alleles (r = 0.98, P<0.01). Positive relationships observed between allele size range and the amount of variation at SSR loci (as
measured by allele/locus and gene diversity) indicated that SSR loci with large allele range show greater variation. It has been suggested that SSR polymorphism results from two different mechanisms: slippage during replication and unequal crossing over [32]. Occurrence of both mating types in M. grisea populations infecting finger millet has been reported in India [14]. Therefore,thepolymorphisms detected in our study could havebeen generated both because of unequal crossing over and by replication slippage.The number of repeats of a SSR marker is a useful predictor of its possible polymorphism [33].Wefound that SSRs with longer repeat motifs were less polymorphic (Table 2). Similar observations were madeby Zheng et al. [23] in M. grisea populations adapted to rice.
The polymorphic SSR markers in the present study detected 2 to 13 alleles with an average of 6.18 alleles per locus. Variable number of alleles per locus has been reported in previous studies on M. grisea populations [22,23,24]. Variation in allele number observed in the present study and that reported in the earlier studies could be due to the large population size and the sampling strategy used to recover isolates in these areas as well as the extent of genetic variation in the isolates[34]. Similarly, variation in the PIC valueswas observed in our study and those reported earlier. The higher gene diversity value in the present study can be attributed to the diverse M. grisea isolates collected from different hosts and locations [22]. Nevertheless, the reported PIC values for these SSR primer pairs may be useful in selecting comparatively more informative markers for assessment of molecular diversity in M. grisea isolates from India or elsewhere.
We found that the isolates originatingfrom different plant parts (leaf and neck blast) of the same finger millet genotype were randomly distributed in the dendrogram, while some of the isolates from the infected neck and fingers of the same genotypes were grouped in one cluster. These results indicate that multiple independent infections occur on the same plant and an infection may progress to the finger from the neck and vice versa. These observations
also indicate that there are no strains specific to leaf, neck or finger blast[35]. In addition, finger millet varieties have shown a consistent reaction to different forms of blast, with limited exceptions [9,36]. Diversity in pathogen populations has also been reported to be higher within field and between cultivars rather than between sub-populations from leaf and panicle in rice [37].
A high degree of variation was observed within the isolates from the same host, especially among isolates from finger millet where a large number of isolates were collected.Several clusters of the isolates from finger millet were observed in the dendrogram depicting genetic variation among the isolates from the same host. Similar results have been documented by Singh and Kumar [7]. In general, isolates from same host were grouped together; however, two finger millet isolates (FMP1 and FMV20) shared SSR profile and clustered along with foxtail millet isolates indicating potential for gene flow occurring between pathogen populations adapted to two different hosts. These findings are in agreement with Rathouret al. [38] who suggested the possibility of gene flow between the M. griseapopulations infecting finger millet and jungle rice. Evidence also exists for genetic recombination between the M. grisea infecting rice and finger millet in the Indian Himalayas [39,40] where both the hosts have been growing sympatrically for centuries. In contrast, Vijiet al. [14] reported that the blast fungus collected from rice and finger millet did not cross-infect and also gave different fingerprint patterns based on MGR-DNA fingerprinting. In the present study, the DNA polymorphism did not reflect the geographical distribution of isolates. Similar observations were reported by Xia et al. [41]for rice blast and Takanet al. [3]for finger millet blast, though in some cases importance of geographical regions has been correlated [42].
An insight into the structure of M. grisea populations from different hosts and locations is valuable in enhancing our understanding of the biology of the pathogen and
potentially adaptive genotypic diversity in the species. Model-based population structure analysis of M. grisea did not reveal any location/region specific grouping of isolates. However, most of the isolates were grouped based on their host with a few exceptions. All the isolates from rice and foxtail millet were grouped together in Group 1 along with two finger millet isolates (FMP1 and FMV20). Group 2 consisted of mostly genetically similar isolates from finger millet with a few exceptions (Fig. 3) showing some admixture. These included two isolates each from Nandyal (FMNd34 and FMNd48) and Patancheru (FMP7 and FMP12). These differences in population structure among isolates within the same species and geographic regions are likely related to differences in evolutionary history and ecology [34]. Similar observations were made by Tosaet al. [43] who found that Oryza and Setaria isolates shared two avirulence genes PWT1 and PWT2 and were genetically closer to each other.
In finger millet-blast system, resistance breeding has proven to be difficult; however, efforts are being made for the genetic improvement of finger millet especially for blast resistance[3,17]. Present study provides some insight into the biology of M. grisea adapted to finger millet and its relationship with the pathogen populations adapted to rice and foxtail millet. The genetic diversity observed in the finger millet adapted populations of M. grisea might be indicative of variation for pathogenicity as well. Thus, understanding the pathogenic nature of the populations belonging to different lineages will help forming the framework for finger millet blast management programs especially through host plant resistance.
Acknowledgments
The authors gratefully acknowledge the financial support from the BMZ/GTZ project on “Sustainable conservation and utilization of genetic resources of two underutilized crops-finger millet and foxtail millet-to enhance productivity, nutrition and income in Africa and
Asia” funded by the Federal Ministry for Economic Cooperation and Development (BMZ), Germany to carry out this work.
References
[1] Dida MM, Wanyera N, Dunn MLH, Bennetzen JL, Devos KM. Population structure and diversity in finger millet (Eleusine coracana) germplasm. Trop Plant Biol 2008;1:131–141.
[2] Malleshi NG, Klopfenstein CF. Nutrient composition, amino acid and vitamin contents of malted sorghum, pearl millet, finger millet and their rootlets. Int J Food Sci Nutr 1998;49:415–422.
[3] Takan JP, Chipili J, Muthumeenakshi S, Talbot NJ, Manyasa EO, Bandyopadhyay R, Sere Y, Nutsugah SK, Talhinhas P, Hossain M, Brown AE, Sreenivasaprasad S. Magnaporthe oryzae populations adapted to finger millet and rice exhibit distinctive patterns of genetic diversity, sexuality and host interaction. Mol Biotechnol 2012;50(2):145-158.
[4] Underwood RA. Overcoming micronutrient deficiencies in developing countries: is there a role for agriculture? Food Nutr Bull 2000;21:356–360.
[5] Prasad R. Zinc biofortification of food grains in relation to food security and alleviation of zinc malnutrition. Curr Sci 2010;98:1300–1304.
[6] Lenne JM, Takan JP, Mgonja MA, Manyasa EO, Kaloki P, Wanyera N. Finger millet blast management: A key entry point for fighting malnutrition and poverty in East Africa. Outlook Agr 2007;36:101–108.
[7] Singh Y, Kumar J. Study of genomic fingerprints profile of Magnaporthe grisea from finger millet (Eleusine coracana) by random amplified polymorphic DNA-polymerase chain reaction (RAPD-PCR). Afr J Biotechnol 2010;9(46):7798–7804.
[8] Vishwanath S, Sanne Gowda S, Seetharam A, Shankare Gowda BT. Reaction to blast disease of released and pre-released varieties of finger millet from different states. Millet Newsletter 1986;5:31.
[9] Takan JP, Akello B, Esele P, Manyasa EO, Obilana AB, Audi PO. Finger millet blast pathogen diversity and management in East Africa: A summary of project activities and outputs. International Sorghum and Millets Newsletter2004;45:66-69. [10] Babu TK, Thakur RP, Upadhyaya HD, Narayan Reddy P, Sharma R, Girish AG,
Sarma NDRK. Resistance to blast (Magnaporthe grisea) in a mini-core collection of finger millet germplasm. Eur J Plant Pathol 2013;135:299-311.
[11] Ou SH. Rice Diseases, 2nd ed. Commonwealth Mycological Institute, Kew, Surrey, UK; 1985.
[12] Rossman AY, Howard RJ, Valent B. Pyricularia grisea the correct name for the rice blast disease fungus. Mycologia 1990;2:509–512.
[13] Todman AK, Pawar DR, Joshi MH. Host reactions to finger millet blast (Pyricularia grisea Sacc.) Mysore J Agr Sci 1994;28:45-46.
[14] Viji G, Gnanamanickam SS, Levy M. DNA polymorphisms of isolates of Magnaporthe grisea from India that are pathogenic to finger millet and rice. Mycol Res 2000;104(2):161-167.
[15] Mackill AO, Bonman JM. New hosts of Pyricularia oryzae. Plant Dis 1986;70:125– 127.
[16] Kumar A, Singh RA. Differential response of Pyricularia grisea isolates from rice, finger millet and pearl millet to media, temperature, pH and light. J Mycol Plant Pathol 1995;25(3):238-242
[17] Mgonja MA, Lenne JM, Manyasa E, Sreenivasaprasad S. Finger Millet Blast Management in East Africa: Creating opportunities for improving production and
utilization of finger millet. International Crops Research Institute for the Semi-Arid Tropics. Patancheru 502 324, Andhra Pradesh, India. 2007;46, ISBN: 978-92-9066-505-2.
[18] Spooner DM, Tivang J, Nienhuis J, Miller JT, Douches DS, Contreras MA. Comparison of four molecular markers in measuring relationships among the wild potato relatives Solanum section Etuberosum (subgenus Potatoe). Theor Appl Genet 1996;92:532–540.
[19] Levy M, Correa FJ, Zeigler RS, Xu S, Hamer JE. Genetic diversity of the rice blast fungus in a disease nursery in Columbia. Phytopathol 1993;83:1427–1433.
[20] Maroof MAS, Biyashev RM, Yang GP, Zhang Q, Allard RW. Extraordinarily polymorphic microsatellite DNA in barley: species diversity, chromosomal locations, and population dynamics. Proc. Natl. Acad. Sci. USA 1994;91:5466– 5470.
[21] Brondani C, Brondani RPV, Garridon LR, Ferreira ME. Development of microsatellite markers for genetic analysis of Magnaporthe grisea. Genet Mol Biol 2000;23:753–762.
[22] Kaye C, Milazzo J, Rozenfeld S, Lebrun MH, Tharreau D. 2003. The development of simple sequence repeat (SSR) markers for Magnaporthe grisea and their integration into an established genetic linkage map. Fungal Genet Biol2003;40:207-214.
[23] Zheng Y, Zhang G, Lin F, Wang Z, Jin G, Yang L, Wang Y, Chen X, Xu Z, Zhao X, Wang H, Lu J, Lu G, Wu W. Development of microsatellite markers and construction of genetic map in rice blast pathogen Magnaporthe grisea. Fungal Genet Biol2008;5(10):1340-1347.
[24] Suzuki F, Suga H, Tomimura K, Fuji S, Arai M, Koba A, Nakajima T. Development of simple sequence repeats markers for Japanese isolates of Magnaporthe grisea. Mol Ecol Resour 2009;9:588-590.
[25] Sharma R, Upadhyaya HD, Manjunatha SV, Rai KN, Gupta SK, Thakur RP. Pathogenic variation in the pearl millet blast pathogen, Magnaporthe grisea and identification of resistance to diverse pathotypes. Plant Dis 2013;97(2):189–195. [26] Liu K, Muse SV. PowerMarker: Integrated analysis environment for genetic marker
data. Bioinformatics 21 (9): 2128-2129. Software version 3.25. 2005. http://www.powermarker.net.
[27] Rohlf FJ. NTSYS: numerical taxonomy and multivariate analysis system version 5.1. Stoney Brook, NY: State University of New York; 2005.
[28] Excoffier L, Laval G, Schneider S. Arlequin ver. 3.0: An integrated software package for population genetics data analysis. Evolutionary Bioinformatics Online 2005;1:47-50.
[29] Hubisz MJ, Falush D, Stephens M, Pritchard JK. Inferring weak population structure with the assistance of sample group information. Mol Ecol Resour 2009; 9:1322–1332.
[30] Evanno G, Regnaut S, Goudet J. Detecting the number of clusters of individuals using the software STRUCTURE: a simulation study. Mol Ecol 2005; 14:2611– 2620.
[31] Suzuki F, Arai M, Yamaguchi J. DNA fingerprinting of Pyricularia grisea by rep-PCR using single primers designed from the terminal inverted repeat of each of the transposable elements Pot2 and MGR586. Gen Plant Pathol 2006;72:314–317.
[32] Li YC, Korol AB, Fahima T, Beiles A, Nevo E. Microsatellites: genomic distribution, putative functions and mutational mechanisms: a review. Mol Ecol 2002;11:2453–2465.
[33] Yang GP, Maroof MAS, Xu CG, Zhang Q, Biyashev RM. Comparative analysis of microsatellite DNA polymorphism in landraces and cultivars of rice. Mol. General Genet 1994;245:187–194.
[34] Varshney R, Pande S, Kannan S, Mahendar T, Sharma M, Gaur P, Hoisington D. Assessment and comparison of AFLP and SSR based molecular genetic diversity in Indian isolates of Ascochyta rabiei, a causal agent of Ascochyta blight in chickpea (Cicer arietinum L.). Mycol Prog 2009;8(2):87-97.
[35] Pande S, Mukuru SZ, King SB, Karunakar RI. Biology of and resistance to finger millet blast in Kenya and Uganda. In: Mukuru SZ, King SB, editors. Proceedings of the eighth EARSAM regional workshop on sorghum and millets, Sudan: ICISAT, Andhra Pradesh, India; 1995, p. 83–92.
[36] Somashekhara YM, Viswanath S, Anilkumar TB. Evaluation of finger millet [Eleusine coracana (L.) Gaertn] cultivars for their reactions to blast (Pyricularia grisea Sacc). Trop Agr 1991;68:231-234.
[37] Silva GB, Prabhu AS, Filippi MCC, Trindade MG, Araujo LG, Zambolim L. Genetic and phenotypic diversity of Magnaporthe oryzae from leaves and panicles of rice in commercial fields in the State of Goias, Brazil. Trop Plant Pathol 2009;34(2):71–76.
[38] Rathour R, Sharma R, Sharma V. Genetic differentiation of rice and non-rice populations of Magnaporthe grisea from North-Western Himalayas using native protein and isozyme polymorphisms. J Phytopathol 2006;154:641–647.
[39] Zeigler RS. Recombination in Magnaporthe grisea. Annu Rev Phytopathol 1998;36:249-276.
[40] Kumar J, Nelson RJ, Zeigler RS. Population structure and dynamics of Magnaporthe grisea in the Indian Himalayas. Genetics 1999;152:971-984.
[41] Xia JQ, Correll JC, Lee FN, Marchetii MA, Rhodes DD. DNA fingerprinting to examine microgeographic variation in the Magnaporthe grisea (Pyricularia grisea) populations in two rice fields in Arkansas. Phytopathol 1993;83:1029-1035.
[42] Sharma TR, Chauhan RS, Singh BM, Sagar V, Paul R, Rathour R. RAPD and virulence analyses of Magnaporthe grisea rice populations from north- western Himalayan region of India. J Phytopathol 2002;50:649–656.
[43] Tosa Y, Uddin W, Viji G, Kang S, Mayama S. Comparative genetic analysis of Magnaporthe oryzae isolates causing gray leaf spot of perennial ryegrass turf in the United States and Japan. Plant Dis 2007;91:517-524.
Figure captions
Fig. 1.Dendrogram depicting the genetic relationship among 65 isolates of M. grisea from different hosts based on SSR data.
Fig. 2.(A) Log-likelihood of the data (n = 65), L (K), as a function of K (number of groups used to stratify the sample). (B) Values of ΔK, with its modal value used to detecttrue K of the group (K = 2). For each K value, at least three independent runs were considered and averaged over the replicates.
Fig. 3.Ancestries of 65 isolates estimated from 17 SSR loci using STRUCTURE version 2.3.4. Different colors represent subpopulations (or groups) in Magnaporthe grisea isolates from finger millet, foxtail millet and rice. The height of each bar represents the probability of isolates belonging to different groups. Group 1 included all foxtail millet and rice blast isolates, and two finger millet isolates (FMP1 and FMV20); Group 2 included remaining finger millet isolates.
Table 1
Origin ofMagnaporthe griseaisolates used in the study.
Identity Host Cultivar Year Isolated from Place of collection
FMP1 Finger millet VL 149 2008 Neck ICRISAT, Patancheru, Andhra Pradesh
FMP2 Finger millet VR 708 2009 Neck ICRISAT, Patancheru, Andhra Pradesh
FMP3 Finger millet IE 518 2009 Finger ICRISAT, Patancheru, Andhra Pradesh
FMP4 Finger millet IE 588 2009 Neck ICRISAT, Patancheru, Andhra Pradesh
FMP5 Finger millet IE 2322 2009 Finger ICRISAT, Patancheru, Andhra Pradesh
FMP6 Finger millet IE 2323 2009 Finger ICRISAT, Patancheru, Andhra Pradesh
FMP7 Finger millet IE 2354 2008 Finger ICRISAT, Patancheru, Andhra Pradesh
FMP8 Finger millet IE 2517 2008 Neck ICRISAT, Patancheru, Andhra Pradesh
FMP9 Finger millet IE 3038 2009 Neck ICRISAT, Patancheru, Andhra Pradesh
FMP10 Finger millet IE 3470 2009 Finger ICRISAT, Patancheru, Andhra Pradesh
FMP11 Finger millet IE 4545 2009 Neck ICRISAT, Patancheru, Andhra Pradesh
FMP12 Finger millet IE 6154 2009 Finger ICRISAT, Patancheru, Andhra Pradesh
FMP13 Finger millet IE 6473 2009 Finger ICRISAT, Patancheru, Andhra Pradesh
FMV14 Finger millet VL 149 2009 Neck ARS, Vizianagaram, Andhra Pradesh
FMV15 Finger millet PSE 110 2009 Finger ARS, Vizianagaram, Andhra Pradesh
FMV16 Finger millet VR 708 2009 Finger ARS, Vizianagaram, Andhra Pradesh
FMV17 Finger millet VR 943 2009 Neck ARS, Vizianagaram, Andhra Pradesh
FMV18 Finger millet IE 196 2009 Finger ARS, Vizianagaram, Andhra Pradesh
FMV19 Finger millet IE 501 2009 Neck ARS, Vizianagaram, Andhra Pradesh
FMV20 Finger millet IE 1299 2008 Neck ARS, Vizianagaram, Andhra Pradesh
FMV21 Finger millet IE 2322 2009 Neck ARS, Vizianagaram, Andhra Pradesh
FMV22 Finger millet IE 3270 2009 Neck ARS, Vizianagaram, Andhra Pradesh
FMV23 Finger millet IE 3470 2009 Finger ARS, Vizianagaram, Andhra Pradesh
FMV24 Finger millet IE 4750 2009 Leaf ARS, Vizianagaram, Andhra Pradesh
FMV25 Finger millet IE 4759 2008 Neck ARS, Vizianagaram, Andhra Pradesh
FMNd27 Finger millet VR 708 2009 Finger RARS, Nandyal, Andhra Pradesh
FMNd28 Finger millet IE 501 2009 Neck RARS, Nandyal, Andhra Pradesh
FMNd29 Finger millet IE 518 2009 Neck RARS, Nandyal, Andhra Pradesh
FMNd30 Finger millet IE 588 2009 Finger RARS, Nandyal, Andhra Pradesh
FMNd31 Finger millet IE 3270 2008 Neck RARS, Nandyal, Andhra Pradesh
FMNd32 Finger millet IE 3470 2009 Finger RARS, Nandyal, Andhra Pradesh
FMNd33 Finger millet IE 4545 2009 Neck RARS, Nandyal, Andhra Pradesh
FMNd34 Finger millet IE 5525 2008 Leaf RARS, Nandyal, Andhra Pradesh
FMNd35 Finger millet IE 5788 2008 Leaf RARS, Nandyal, Andhra Pradesh
FMNd36 Finger millet IE 5843 2008 Leaf RARS, Nandyal, Andhra Pradesh
FMNd37 Finger millet IE 6055 2008 Leaf RARS, Nandyal, Andhra Pradesh
FMNd38 Finger millet IE 6165 2008 Leaf RARS, Nandyal, Andhra Pradesh
FMM39 Finger millet MR 6 2009 Neck ZARS, Mandya, Karnataka
FMM40 Finger millet IE 518 2009 Finger ZARS, Mandya, Karnataka
FMM41 Finger millet IE 588 2009 Neck ZARS, Mandya, Karnataka
FMM42 Finger millet IE 2790 2009 Neck ZARS, Mandya, Karnataka
FMM43 Finger millet IE 3470 2009 Finger ZARS, Mandya, Karnataka
FMM44 Finger millet IE 5177 2008 Finger ZARS, Mandya, Karnataka
FMM45 Finger millet IE 6165 2009 Leaf ZARS, Mandya, Karnataka
FMM46 Finger millet IE 6165 2009 Finger ZARS, Mandya, Karnataka
FMM47 Finger millet IE 6337 2009 Node ZARS, Mandya, Karnataka
FMNg48 Finger millet MR 6 2009 Leaf OFRS, Naganahalli, Mysore, Karnataka
FMNg49 Finger millet IE 518 2009 Neck OFRS, Naganahalli, Mysore, Karnataka
FMNg50 Finger millet IE 2572 2009 Leaf OFRS, Naganahalli, Mysore, Karnataka
FMNg51 Finger millet IE 2572 2009 Neck OFRS, Naganahalli, Mysore, Karnataka
FMNg52 Finger millet IE 2572 2009 Finger OFRS, Naganahalli, Mysore, Karnataka
FMNg53 Finger millet IE 4545 2009 Neck OFRS, Naganahalli, Mysore, Karnataka
FMNg54 Finger millet IE 6154 2009 Leaf OFRS, Naganahalli, Mysore, Karnataka
FMD56 Finger millet IE 2857 2008 Neck RAU, Dholi, Bihar
FxMP57 Foxtail millet ISe 376 2009 Leaf ICRISAT, Patancheru, Andhra Pradesh
FxMNd58 Foxtail millet ISe 1541 2008 Leaf RARS, Nandyal, Andhra Pradesh.
FxMV59 Foxtail millet ISe 376 2008 Leaf ARS, Vizianagaram, Andhra Pradesh
FxMV60 Foxtail millet ISe 376 2009 Leaf ARS, Vizianagaram, Andhra Pradesh
FxMM61 Foxtail millet ISe 376 2009 Leaf ZARS, Mandya, Karnataka
FxMM62 Foxtail millet ISe 1541 2009 Leaf ZARS, Mandya, Karnataka
RM 63 Rice Vijaya 2009 Leaf ZARS, Mandya, Karnataka
RM 64 Rice Vijaya 2010 Leaf ZARS, Mandya, Karnataka
RM 65 Rice Vijaya 2010 Leaf ZARS, Mandya, Karnataka
Pg 21 Pearl millet Unknown hybrid 2009 Leaf Farmers field, Jalna, Maharashtra
Pg 37 Pearl millet Nandi 3 2009 Leaf Farmers field, Aurangabad, Maharashtra
Pg 39 Pearl millet ICMB 95222 2009 Leaf Hissar, Haryana
Pg 41 Pearl millet ICMB 95444 2009 Leaf ARS, Durgapura, Jaipur, Rajasthan
Pg 43 Pearl millet Unknown hybrid 2009 Leaf Aligarh, Uttar Pradesh
Pg 45 Pearl millet ICMB 95444 2009 Leaf ICRISAT, Patancheru, Andhra Pradesh
Pg 118 Pearl millet Unknown hybrid 2010 Leaf Rewari, Haryana
ICRISAT: International Crops research Institute for the Semi-Arid Tropics; A.P: Andhra Pradesh; ARS: Agricultural Research Station; RARS: Regional Agricultural Research Station; ZARS: Zonal Agricultural Research Station; OFRS: Organic Farming Research Station
Table 2
Allele composition, polymorphic information content (PIC), gene diversity and heterozygosity (%) of 17 SSR primers in 65 isolates of M. grisea from finger millet, foxtail millet and rice.
Marker Primer sequence (5’→3‘ ) Source SSR type Allele composition MAF PIC Gene diversity Heterozygosity Allelic richness Size range (bp) Rare (1%) Common (≤20%) Frequent (21-50%) Most frequent (>50%) Pyrms 7 and 8 gcaaataacataggaaaacg agaaagagacaaaacactgg
Full BAC (70-15) (CT/GA)29 7 123-179 0 6 - 1 0.600 0.558 0.593 0.000
Pyrms 15 and 16 ttcttccatttctctcgtcttc cgattgtggggtatgtgatag EST (P12) (CT/GA)20 13 151-200 0 12 1 - 0.379 0.785 0.803 0.031 Pyrms 37 and 38 accctacccccactcatttc aggatcagccaatgccaagt BAC end (70-15) (CA/GT)6 + (CT/GA)12 2 213-217 0 1 - 1 0.866 0.205 0.232 0.018 Pyrms 41 and 42 aacgtgacaatgtgagcagc
gccatgttctaaggtgctgag BAC end (70-15) (CT/GA)16 6 119-193 1 4 - 1 0.830 0.286 0.300 0.015
Pyrms 45 and 46
ccactttatagcccacccagt ctcttttctcgcaggaggtg
BAC end (70-15) (TA/AT)11 4 214-223 0 2 1 1 0.569 0.473 0.554 0.586
Pyrms 47 and 48
tcacatttgcttgctggagt agacagggttgacggctaaa
BAC end (70-15) (TA/AT)15 6 182-206 0 4 2 - 0.369 0.647 0.700 0.031
Pyrms 59 and 60
ttctcagtaggcttggaattga cttgattggtggtggtgttg
BAC end (70-15) (TA/AT)12 3 183-212 0 2 1 - 0.864 0.217 0.238 0.000
tggattacagaggcgttcg
Pyrms 63 and 64
ttgggatcttcggtaagacg gccgacaagacactgaatga
BAC end (70-15) (CT/GA)15 4 169-183 0 3 - 1 0.800 0.316 0.341 0.031
Pyrms 67 and 68 agcaagcaggagatgcagac gtttggctggcaagacagtt SSR library (Guy11) (CA/GT)17 9 191-233 0 7 2 - 0.246 0.805 0.827 0.046 Pyrms 77 and 78 gaagtattgcacacaaacac gctttcggcaagcctaatc SSR library (Guy11) (CA/GT)24 8 162-240 0 7 - 1 0.564 0.606 0.636 0.000 Pyrms 87 and 88 Agacttgttactcgggtcttga ccagatgtcactcccctgta
BAC end (70-15) (TGC/ACG)12 4 180-195 0 3 - 1 0.646 0.483 0.529 0.000
Pyrms 93 and 94 Cctcgactccttcaccaaaa cggagagctcaggaagagg Est (70-15) (ATC/TAC)12.5 5 214-235 0 4 - 1 0.769 0.373 0.392 0.000 Pyrms 99 and 100 Caccactttatggcgcagt acctaggtaggtatacatgttgtt
BAC end (70-15) (ACC/TGG)20 4 195-238 0 3 - 1 0.769 0.357 0.385 0.031
Pyrms 107 and 108 Gcagcaagcagcaatatcag gtggatatcgaaggccaagg SSR library (Guy11) (GA/CT)10 8 344-384 0 6 1 1 0.592 0.558 0.596 0.015 Pyrms 109 and 110 Tacagtgggagggcaaagag ccagatcgagaagggggtat SSR library (Guy11) (TG/AC)12 8 192-225 0 7 - 1 0.562 0.611 0.640 0.016 Pyrms 125 and 126 Ctctccggccaagattga ggttgttgggagaaagaacg
Full BAC (70-15) (CAA/GTT)32 4 133-190 0 3 - 1 0.868 0.225 0.237 0.000
Total 105 - 1 83 9 12 - - - -
Mean 6.18 - 0.05 4.88 0.52 0.70 0.629 0.486 0.517 0.048
Table 3
Summary statistics of 17 SSR markers in 65 isolates of M. grisea from finger millet, foxtail millet and rice.
Statistics Overall
M. grisea isolates from
Finger millet Foxtail millet Rice
Sample size 65 56 6 3
Total number of alleles 105 75 44 15
No. of alleles per locus 6.18 (2-13) 4.41 (2-13) 2.75 (1-4) 0.9 Gene diversity 0.517 (0.232-0.827) 0.402 (0.069-0.790) 0.477 (0-0.667) 0.06 (0-1.0) Heterozygosity 0.048 (0-0.586) 0.053 (0-0.642) 0.010 (0-0.167) 0 PIC 0.486 (0.205-0.805) 0.369 (0.067-0.759) 0.420 (0-0.620) 0.062 (0-1.00) Rare alleles 1 1 0 0 Common alleles 83 51 22 0 Frequent alleles 9 10 12 -
Most frequent alleles 12 13 10 15
FMD56 FMP2 FMP8 FMM39 FMM44 FMM46 FMNg51 FMNg52 FMM40 FMNd28 FMNd33 FMNg49 FMNg50 FMNg54 FMP4 FMNg55 FMNd29 FMM42 FMNd31 FMP11 FMP3 FMP5 FMP9 FMV25 FMNd38 FMNd30 FMNd32 FMNd34 FMNd27 FMV21 FMV24 FMV15 FMV16 FMV18 FMM45 FMM47 FMNd36 FMV14 FMV17 FMV22 FMNg53 FMNg48 FMP12 FMM41 FMV19 FMP13 FMM43 FMP10 FMV23 FMV26 FMNd35 FMNd37 FMP6 FMP7 R63 R64 R65 FMP1 FMV20 FxMV60 FxMNd58 FxMP57
