106 106 364 364 4 4 110 110 260 260 98 98 118 118 355 355 353 353 354 354 115 115 1 1 255 255 253 253 3 3 130 130 84 84 254/2 254/2 254/1 254/1 280/1 280/1 8 86 6 9966 101 101 100 100 102 102 103 103 105 105 361 361 105/15 105/15 119/8 119/8 119/7 119/7 119/8 119/8 119/1/9 119/1/9 119/1/8 119/1/8 126/1 126/1 119 119..119/800119/800 119/1/4 119/1/4 119/1/3 119/1/3 108 108 47 47 800 800 45 45 44 44 43 43 800/8 800/8 800/7 800/7 800/9 800/9 119/12 119/12 119/14 119/14 119/11 119/11 261 261 119/13 119/13 256 256 131 131 119/10 119/10 119/1/11 119/1/11 119/1/10 119/1/10 119/9 119/9 125 125 125/8 125/8 127 127 26 26 118 118 801/2 801/2 801 801 250 250 82 82 362 362 360 360 365 365 363 363 120 120 119/1/6 119/1/6 119/800/16 119/800/16 119/800/15 119/800/15 119/800/14 119/800/14 119/800/13/1 119/800/13/1 2 2 146 146 145 145 280/2 280/2 251 251 83 83 252 252 140 140 354 354 355 355 353 353 280/3 280/3 119/7/1 119/7/1 119/7/2 119/7/2 119/6 119/6 119/6/1 119/6/1 119/6/2 119/6/2 119/1/6 119/1/6 CP2 CP2 F 01G 000 000 F 01G 000 000

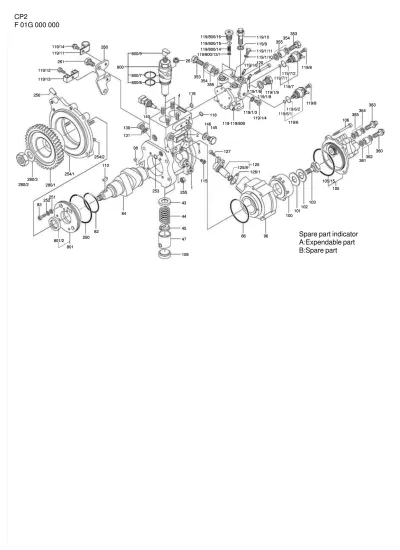

Spare part indicator
Spare part indicator
A:Expendable part
A:Expendable part
B:Spare part
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS 1 2469403187 PUMP HOUSING B 1 2 2469403374 NAMEPLATE B 1 3 2469403104 NAIL B 2 4 2469403395 NUMBER PLATE B 1 26 2469403060 NUT B 4 43 2469403061 SPRING SEAT B 2 44 2469403062 COMPRESSION SPRING B 2 45 2469403063 SPRING SEAT B 2 47 2469403269 TAPPET B 2 82 2469403065 ORING A 1
83 2469403039 TORX FILLISTER SCREW B 4
84 2469403199 CAMSHAFT B 1
86 2469403152 ORING A 1
96 2469403319 BEARING END PLATE B 1
98 2469403026 WOODRUFF KEY A 1
100 2469403180 INTERNAL GEARED WHEEL B 1
101 2469403035 WASHER A 1
102 2469403036 CONICAL SPRING WASHER A 1
103 2469403038 HEXAGON SCREW A 1
105 0440020062 GEARPUMP B 1
105/15 2440210044 O RING A 1 Order from AA. See note below.
106 2469403130 TORX FILLISTER SCREW B 4
108 2469403066 PLUG A 2 110 2469403203 WOODRUFF KEY A 1 115 2469403067 PLUG A 2 118 2469403070 SEALRING A 2 119 2469403204 METERING UNIT(Assy) B 1 119/800 2469403262 HOUSING B 1 119/1/3 2469403178 GASKET A 1 119/1/4 2469403058 SCREW PLUG B 1 119/800/13/1 2469403106 SHIM B 2 t=0.05 119/800/13/1 2469403107 SHIM B 2 t=0.1 119/800/13/1 2469403108 SHIM B 2 t=0.2 119/800/13/1 2469403109 SHIM B 2 t=0.3 119/800/14 2469403075 VALVE SPRING B 2 119/800/15 2469403074 O RING A 2 119/800/16 2469403073 SCREW PLUG B 2
119/1/6 2469403208 FLOW THROTTLE B 2 Orifice ƒÓ 0.53
119/1/6 2469403209 FLOW THROTTLE B 2 Orifice ƒÓ 0.515, Slit mark
119/1/8 2469403177 GASKET A 1
119/1/9 2469403056 SCREW PLUG B 1
119/1/10 2469403053 GASKET A 1
119/1/11 2469403054 SCREW PLUG B 1
119/6 0281002422 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/6/1 1280210800 O RING A 1 Order from AA. See note below.
119/6/2 1280210801 O RING A 1 Order from AA. See note below.
119/7 0281002423 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/7/1 1280210800 O RING A 1 Order from AA. See note below.
119/7/2 1280210801 O RING A 1 Order from AA. See note below.
119/8 2469403072 TORX FILLISTER SCREW B 2
119/9 2469403179 GASKET A 1
119/10 2469403747 OVER FLOW VALVE B 1
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS
119/12 2469403211 BOLT B 1
119/13 2469403078 CLIP B 1
119/14 HEXAGON SCREW Z 1 Order via Mitsubishi (No.MF140002)
120 2469403076 TORX FILLISTER SCREW B 4
125 0261210151 SPEED SENSOR B 1 Order from AA. See note below.
125/8 2260210310 O RING A 1 Order from AA. See note below.
126/1 2469403127 SHIM B 1 t=0.1
126/1 2469403128 SHIM B 1 t=0.3
126/1 2469403268 SHIM B 1 t=0.4
127 2469403072 TORX FILLISTER SCREW B 1
130 2469403118 SCREW PLUG B 1
131 2469403119 GASKET A 1
140 0281002311 TEMPERATURE SENSOR B 1 Order from AA. See note below.
145 2469403120 SCREW PLUG B 1 146 2469403057 GASKET A 1 250 2469403213 ORING A 1 251 2469403053 GASKET A 4 252 2469403214 SHIM B 4 253 2469403215 ORING B 1
254/1 FLANGE PLATE Z 1 Order via Mitsubishi (No.ME181111)
254/2 STUD Z 4 Order via Mitsubishi (No.MF404548)
255 NUT Z 4 Order via Mitsubishi (No.MF434105)
256 2469403222 PLUG B 1
260 BRACKET Z 1 Order via Mitsubishi (No.ME351092)
261 HEXAGON SCREW Z 2 Order via Mitsubishi (No.ME039098)
280/1 GEAR Z 1 Order via Mitsubishi (No.ME181264)
280/2 HEXAGONNUT Z 1 Order via Mitsubishi (No.MH004075)
280/3 WASHER Z 1 Order via Mitsubishi (No.MF450013)
353 2469403229 EYEBOLT B 2 354 2469403094 GASKET A 4 355 2469403230 COLLAR B 2 360 2469403229 EYEBOLT B 1 361 2469403094 GASKET A 2 362 2469403230 COLLAR B 1 363 2469403231 EYEBOLT B 1 364 2469403094 GASKET A 2 365 2469403230 COLLAR B 1
800 2469403353 HIGH PRESSURE ASSY A 2
800/7 2469403022 SEAL RING A 1
800/8 2469403154 SEAL RING A 1
800/9 2469403024 CAP B 2
801 2469403763 BEARING END PLATE B 1
801/2 2469403198 RADIAL SEAL A 1
Note:
106 364 4 110 260 98 118 355 353 354 115 1 255 253 3 130 84 254/2 254/1 280/1 86 96 101 100 102 103 105 361 105/15 119/8 119/7 119/8 119/1/9 119/1/8 126/1 119.119/800 119/1/4 119/1/3 108 47 800 45 44 43 800/8 800/7 800/9 119/12 119/14 119/11 261 119/13 256 131 119/10 119/1/11 119/1/10 119/9 125 125/8 127 26 118 801/2 801 250 82 362 360 365 363 120 119/1/6 119/800/16 119/800/15 119/800/14 119/800/13/1 2 146 145 280/2 251 83 252 140 354 355 353 280/3 119/7/1 119/7/2 119/6 119/6/1 119/6/2 119/1/6 CP2 F 01G 000 001
Spare part indicator A:Expendable part B:Spare part
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS 1 2469403187 PUMP HOUSING B 1 2 2469403374 NAMEPLATE B 1 3 2469403104 NAIL B 2 4 2469403394 NUMBER PLATE B 1 26 2469403060 NUT B 4 43 2469403061 SPRING SEAT B 2 44 2469403062 COMPRESSION SPRING B 2 45 2469403063 SPRING SEAT B 2 47 2469403269 TAPPET B 2 82 2469403065 ORING A 1
83 2469403039 TORX FILLISTER SCREW B 4
84 2469403199 CAMSHAFT B 1
86 2469403152 ORING A 1
96 2469403319 BEARING END PLATE B 1
98 2469403026 WOODRUFF KEY A 1
100 2469403180 INTERNAL GEARED WHEEL B 1
101 2469403035 WASHER A 1
102 2469403036 CONICAL SPRING WASHER A 1
103 2469403038 HEXAGON SCREW A 1
105 0440020062 GEARPUMP B 1
105/15 2440210044 O RING A 1 Order from AA. See note below.
106 2469403130 TORX FILLISTER SCREW B 4
108 2469403066 PLUG A 2 110 2469403203 WOODRUFF KEY A 1 115 2469403067 PLUG A 2 118 2469403070 SEALRING A 2 119 2469403204 METERING UNIT(Assy) B 1 119/800 2469403262 HOUSING B 1 119/1/3 2469403178 GASKET A 1 119/1/4 2469403058 SCREW PLUG B 1 119/800/13/1 2469403106 SHIM B 2 t=0.05 119/800/13/1 2469403107 SHIM B 2 t=0.1 119/800/13/1 2469403108 SHIM B 2 t=0.2 119/800/13/1 2469403109 SHIM B 2 t=0.3 119/800/14 2469403075 VALVE SPRING B 2 119/800/15 2469403074 O RING A 2 119/800/16 2469403073 SCREW PLUG B 2
119/1/6 2469403208 FLOW THROTTLE B 2 Orifice ƒÓ 0.53
119/1/6 2469403209 FLOW THROTTLE B 2 Orifice ƒÓ 0.515, Slit mark
119/1/8 2469403177 GASKET A 1
119/1/9 2469403056 SCREW PLUG B 1
119/1/10 2469403053 GASKET A 1
119/1/11 2469403054 SCREW PLUG B 1
119/6 0281002422 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/6/1 1280210800 O RING A 1 Order from AA. See note below.
119/6/2 1280210801 O RING A 1 Order from AA. See note below.
119/7 0281002423 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/7/1 1280210800 O RING A 1 Order from AA. See note below.
119/7/2 1280210801 O RING A 1 Order from AA. See note below.
119/8 2469403072 TORX FILLISTER SCREW B 2
119/9 2469403179 GASKET A 1
119/10 2469403747 OVER FLOW VALVE B 1
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS
119/12 2469403211 BOLT B 1
119/13 2469403078 CLIP B 1
119/14 HEXAGON SCREW Z 1 Order via Mitsubishi (No.MF140002)
120 2469403076 TORX FILLISTER SCREW B 4
125 0261210151 SPEED SENSOR B 1 Order from AA. See note below.
125/8 2260210310 O RING A 1 Order from AA. See note below.
126/1 2469403127 SHIM B 1 t=0.1
126/1 2469403128 SHIM B 1 t=0.3
126/1 2469403268 SHIM B 1 t=0.4
127 2469403072 TORX FILLISTER SCREW B 1
130 2469403118 SCREW PLUG B 1
131 2469403119 GASKET A 1
140 0281002311 TEMPERATURE SENSOR B 1 Order from AA. See note below.
145 2469403120 SCREW PLUG B 1 146 2469403057 GASKET A 1 250 2469403213 ORING A 1 251 2469403053 GASKET A 4 252 2469403214 SHIM B 4 253 2469403215 ORING B 1
254/1 FLANGE PLATE Z 1 Order via Mitsubishi (No.ME351361)
254/2 STUD Z 4 Order via Mitsubishi (No.MF404548)
255 NUT Z 4 Order via Mitsubishi (No.MF434105)
256 2469403222 PLUG B 1
260 BRACKET Z 1 Order via Mitsubishi (No.ME351092)
261 HEXAGON SCREW Z 2 Order via Mitsubishi (No.ME039098)
280/1 GEAR Z 1 Order via Mitsubishi (No.ME181264)
280/2 HEXAGONNUT Z 1 Order via Mitsubishi (No.MH004075)
280/3 WASHER Z 1 Order via Mitsubishi (No.MF450013)
353 2469403229 EYEBOLT B 2 354 2469403094 GASKET A 4 355 2469403230 COLLAR B 2 360 2469403229 EYEBOLT B 1 361 2469403094 GASKET A 2 362 2469403230 COLLAR B 1 363 2469403231 EYEBOLT B 1 364 2469403094 GASKET A 2 365 2469403230 COLLAR B 1
800 2469403353 HIGH PRESSURE ASSY A 2
800/7 2469403022 SEAL RING A 1
800/8 2469403154 SEAL RING A 1
800/9 2469403024 CAP B 2
801 2469403763 BEARING END PLATE B 1
801/2 2469403198 RADIAL SEAL A 1
Note:
106 364 4 110 260 98 118 355 353 354 115 1 255 253 3 130 84 254/2 254/1 280/1 86 96 101 100 102 103 105 361 105/15 119/8 119/7 119/8 119/1/9 119/1/8 126/1 119.119/800 119/1/4 119/1/3 108 47 800 45 44 43 800/8 800/7 800/9 119/12 119/14 119/11 261 119/13 256 131 119/10 119/1/11 119/1/10 119/9 125 125/8 127 26 118 801/2 801 250 82 362 360 365 363 120 119/1/6 119/800/16 119/800/15 119/800/14 119/800/13/1 2 146 145 280/2 251 83 252 140 354 355 353 280/3 119/7/1 119/7/2 119/6 119/6/1 119/6/2 119/1/6 CP2 F 01G 000 00H
Spare part indicator A:Expendable part B:Spare part
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS 1 2469403187 PUMP HOUSING B 1 2 2469403374 NAMEPLATE B 1 3 2469403104 NAIL B 2 4 2469403413 NUMBER PLATE B 1 26 2469403060 NUT B 4 43 2469403061 SPRING SEAT B 2 44 2469403062 COMPRESSION SPRING B 2 45 2469403063 SPRING SEAT B 2 47 2469403269 TAPPET B 2 82 2469403065 ORING A 1
83 2469403039 TORX FILLISTER SCREW B 4
84 2469403199 CAMSHAFT B 1
86 2469403152 ORING A 1
96 2469403319 BEARING END PLATE B 1
98 2469403026 WOODRUFF KEY A 1
100 2469403180 INTERNAL GEARED WHEEL B 1
101 2469403035 WASHER A 1
102 2469403036 CONICAL SPRING WASHER A 1
103 2469403038 HEXAGON SCREW A 1
105 0440020062 GEARPUMP B 1
105/15 2440210044 O RING A 1 Order from AA. See note below.
106 2469403130 TORX FILLISTER SCREW B 4
108 2469403066 PLUG A 2 110 2469403203 WOODRUFF KEY A 1 115 2469403067 PLUG A 2 118 2469403070 SEALRING A 2 119 2469403204 METERING UNIT(Assy) B 1 119/800 2469403262 HOUSING B 1 119/1/3 2469403178 GASKET A 1 119/1/4 2469403058 SCREW PLUG B 1 119/800/13/1 2469403106 SHIM B 2 t=0.05 119/800/13/1 2469403107 SHIM B 2 t=0.1 119/800/13/1 2469403108 SHIM B 2 t=0.2 119/800/13/1 2469403109 SHIM B 2 t=0.3 119/800/14 2469403075 VALVE SPRING B 2 119/800/15 2469403074 O RING A 2 119/800/16 2469403073 SCREW PLUG B 2
119/1/6 2469403208 FLOW THROTTLE B 2 Orifice ƒÓ 0.53
119/1/6 2469403209 FLOW THROTTLE B 2 Orifice ƒÓ 0.515, Slit mark
119/1/8 2469403177 GASKET A 1
119/1/9 2469403056 SCREW PLUG B 1
119/1/10 2469403053 GASKET A 1
119/1/11 2469403054 SCREW PLUG B 1
119/6 0281002422 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/6/1 1280210800 O RING A 1 Order from AA. See note below.
119/6/2 1280210801 O RING A 1 Order from AA. See note below.
119/7 0281002423 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/7/1 1280210800 O RING A 1 Order from AA. See note below.
119/7/2 1280210801 O RING A 1 Order from AA. See note below.
119/8 2469403072 TORX FILLISTER SCREW B 2
119/9 2469403179 GASKET A 1
119/10 2469403747 OVER FLOW VALVE B 1
119/11 CLIP Z 1 Order via Mitsubishi (No.MH020808)
119/12 2469403211 BOLT B 1
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS
119/14 HEXAGON SCREW Z 1 Order via Mitsubishi (No.MF140002)
120 2469403076 TORX FILLISTER SCREW B 4
125 0261210151 SPEED SENSOR B 1 Order from AA. See note below.
125/8 2260210310 O RING A 1 Order from AA. See note below.
126/1 2469403127 SHIM B 1 t=0.1
126/1 2469403128 SHIM B 1 t=0.3
126/1 2469403268 SHIM B 1 t=0.4
127 2469403072 TORX FILLISTER SCREW B 1
130 2469403118 SCREW PLUG B 1
131 2469403119 GASKET A 1
140 0281002311 TEMPERATURE SENSOR B 1 Order from AA. See note below.
145 2469403120 SCREW PLUG B 1 146 2469403057 GASKET A 1 250 2469403213 ORING A 1 251 2469403053 GASKET A 4 252 2469403214 SHIM B 4 253 2469403215 ORING B 1
254/1 FLANGE PLATE Z 1 Order via Mitsubishi (No.ME351361)
254/2 STUD Z 4 Order via Mitsubishi (No.MF404548)
255 NUT Z 4 Order via Mitsubishi (No.MF434105)
256 2469403222 PLUG B 1
260 BRACKET Z 1 Order via Mitsubishi (No.ME351092)
261 HEXAGON SCREW Z 2 Order via Mitsubishi (No.ME039098)
280/1 GEAR Z 1 Order via Mitsubishi (No.ME181264)
280/2 HEXAGONNUT Z 1 Order via Mitsubishi (No.MH004075)
280/3 WASHER Z 1 Order via Mitsubishi (No.MF450013)
353 2469403229 EYEBOLT B 2 354 2469403094 GASKET A 4 355 2469403230 COLLAR B 2 360 2469403229 EYEBOLT B 1 361 2469403094 GASKET A 2 362 2469403230 COLLAR B 1 363 2469403231 EYEBOLT B 1 364 2469403094 GASKET A 2 365 2469403230 COLLAR B 1
800 2469403353 HIGH PRESSURE ASSY A 2
800/7 2469403022 SEAL RING A 1
800/8 2469403154 SEAL RING A 1
800/9 2469403024 CAP B 2
801 2469403763 BEARING END PLATE B 1
801/2 2469403198 RADIAL SEAL A 1
Note:
CP2 F 01G 000 00L 106 364 4 110 260 98 118 353 357 356 358 115 1 255 253 3 130 84 254/2 254/1 280/1 86 96 101 100 102 103 105 361 105/15 119/8 119/7 119/8 119/1/9 119/1/8 126/1 119.119/800 119/1/4 119/1/3 108 47 800 45 44 43 800/8 800/7 800/9 119/12 119/14 119/11 261 119/13 256 131 119/10 119/1/11 119/1/10 119/9 125 125/8 127 26 801/2 801 250 82 362 360 365 363 120 119/1/6 119/800/16 119/800/15 119/800/14 119/800/13/1 2 280/2 251 83 252 140 354 355 280/3 119/7/1 119/7/2 119/6 119/6/1 119/6/2 118 146 145 119/1/6
Spare part indicator A:Expendable part B:Spare part
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS 1 2469403187 PUMP HOUSING B 1 2 2469403374 NAMEPLATE B 1 3 2469403104 NAIL B 2 4 2469403438 NUMBER PLATE B 1 26 2469403060 NUT B 4 43 2469403061 SPRING SEAT B 2 44 2469403062 COMPRESSION SPRING B 2 45 2469403063 SPRING SEAT B 2 47 2469403269 TAPPET B 2 82 2469403065 ORING A 1
83 2469403039 TORX FILLISTER SCREW B 4
84 2469403199 CAMSHAFT B 1
86 2469403152 ORING A 1
96 2469403319 BEARING END PLATE B 1
98 2469403026 WOODRUFF KEY A 1
100 2469403180 INTERNAL GEARED WHEEL B 1
101 2469403035 WASHER A 1
102 2469403036 CONICAL SPRING WASHER A 1
103 2469403038 HEXAGON SCREW A 1
105 0440020064 GEARPUMP B 1
105/15 2440210044 O RING A 1 Order from AA. See note below.
106 2469403130 TORX FILLISTER SCREW B 4
108 2469403066 PLUG A 2 110 2469403203 WOODRUFF KEY A 1 115 2469403067 PLUG A 2 118 2469403070 SEALRING A 2 119 2469403204 METERING UNIT(Assy) B 1 119/800 2469403262 HOUSING B 1 119/1/3 2469403178 GASKET A 1 119/1/4 2469403058 SCREW PLUG B 1 119/800/13/1 2469403106 SHIM B 2 t=0.05 119/800/13/1 2469403107 SHIM B 2 t=0.1 119/800/13/1 2469403108 SHIM B 2 t=0.2 119/800/13/1 2469403109 SHIM B 2 t=0.3 119/800/14 2469403075 VALVE SPRING B 2 119/800/15 2469403074 O RING A 2 119/800/16 2469403073 SCREW PLUG B 2
119/1/6 2469403208 FLOW THROTTLE B 2 Orifice ƒÓ 0.53
119/1/6 2469403209 FLOW THROTTLE B 2 Orifice ƒÓ 0.515, Slit mark
119/1/8 2469403177 GASKET A 1
119/1/9 2469403056 SCREW PLUG B 1
119/1/10 2469403053 GASKET A 1
119/1/11 2469403054 SCREW PLUG B 1
119/6 0281002422 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/6/1 1280210800 O RING A 1 Order from AA. See note below.
119/6/2 1280210801 O RING A 1 Order from AA. See note below.
119/7 0281002423 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/7/1 1280210800 O RING A 1 Order from AA. See note below.
119/7/2 1280210801 O RING A 1 Order from AA. See note below.
119/8 2469403072 TORX FILLISTER SCREW B 2
119/9 2469403179 GASKET A 1
119/10 2469403747 OVER FLOW VALVE B 1
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS
119/12 2469403211 BOLT B 1
119/13 2469403078 CLIP B 1
119/14 HEXAGON SCREW Z 1 Order via Mitsubishi (No.MF140002)
120 2469403076 TORX FILLISTER SCREW B 4
125 0261210151 SPEED SENSOR B 1 Order from AA. See note below.
125/8 2260210310 O RING A 1 Order from AA. See note below.
126/1 2469403127 SHIM B 1 t=0.1
126/1 2469403128 SHIM B 1 t=0.3
126/1 2469403268 SHIM B 1 t=0.4
127 2469403072 TORX FILLISTER SCREW B 1
130 2469403118 SCREW PLUG B 1
131 2469403119 GASKET A 1
140 0281002311 TEMPERATURE SENSOR B 1 Order from AA. See note below.
145 2469403120 SCREW PLUG B 1 146 2469403057 GASKET A 1 250 2469403213 ORING A 1 251 2469403053 GASKET A 4 252 2469403214 SHIM B 4 253 2469403215 ORING B 1
254/1 FLANGE PLATE Z 1 Order via Mitsubishi (No.ME351361)
254/2 STUD Z 4 Order via Mitsubishi (No.MF404548)
255 NUT Z 4 Order via Mitsubishi (No.MF434105)
256 2469403222 PLUG B 1
260 BRACKET Z 1 Order via Mitsubishi (No.ME351092)
261 HEXAGON SCREW Z 2 Order via Mitsubishi (No.ME039098)
280/1 GEAR Z 1 Order via Mitsubishi (No.ME181264)
280/2 HEXAGONNUT Z 1 Order via Mitsubishi (No.MH004075)
280/3 WASHER Z 1 Order via Mitsubishi (No.MF450013)
353 EYE BOLT Z 1 Order via Mitsubishi (No.ME355534)
354 2469403094 GASKET A 3 355 2469403230 COLLAR B 2 356 2469403229 EYEBOLT B 1 357 2469403094 GASKET A 2 358 2469403230 COLLAR B 1 360 2469403229 EYEBOLT B 1 361 2469403094 GASKET A 2 362 2469403230 COLLAR B 1 363 2469403231 EYEBOLT B 1 364 2469403094 GASKET A 2 365 2469403230 COLLAR B 1
800 2469403353 HIGH PRESSURE ASSY A 2
800/7 2469403022 SEAL RING A 1
800/8 2469403154 SEAL RING A 1
800/9 2469403024 CAP B 2
801 2469403763 BEARING END PLATE B 1
801/2 2469403198 RADIAL SEAL A 1
Note:
106 364 4 110 260 98 118 355 353 354 115 1 255 253 3 130 84 254/2 254/1 280/1 86 96 101 100 102 103 105 361 105/15 119/8 119/7 119/8 119/1/9 119/1/8 126/1 119.119/800 119/1/4 119/1/3 108 47 800 45 44 43 800/8 800/7 800/9 119/12 119/14 119/11 261 119/13 256 131 119/10 119/1/11 119/1/10 119/9 125 125/8 127 26 118 801/2 801 250 82 362 360 365 363 120 119/1/6 119/800/16 119/800/15 119/800/14 119/800/13/1 2 146 145 280/2 251 83 252 140 354 355 353 280/3 119/7/1 119/7/2 119/6 119/6/1 119/6/2 119/1/6 CP2 F 01G 000 00U
Spare part indicator A:Expendable part B:Spare part
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS 1 2469403187 PUMP HOUSING B 1 2 2469403374 NAMEPLATE B 1 3 2469403104 NAIL B 2 4 2469403413 NUMBER PLATE B 1 26 2469403060 NUT B 4 43 2469403061 SPRING SEAT B 2 44 2469403062 COMPRESSION SPRING B 2 45 2469403063 SPRING SEAT B 2 47 2469403269 TAPPET B 2 82 2469403065 ORING A 1
83 2469403039 TORX FILLISTER SCREW B 4
84 2469403199 CAMSHAFT B 1
86 2469403152 ORING A 1
96 2469403319 BEARING END PLATE B 1
98 2469403026 WOODRUFF KEY A 1
100 2469403180 INTERNAL GEARED WHEEL B 1
101 2469403035 WASHER A 1
102 2469403036 CONICAL SPRING WASHER A 1
103 2469403038 HEXAGON SCREW A 1
105 0440020062 GEARPUMP B 1
105/15 2440210044 O RING A 1 Order from AA. See note below.
106 2469403130 TORX FILLISTER SCREW B 4
108 2469403066 PLUG A 2 110 2469403203 WOODRUFF KEY A 1 115 2469403067 PLUG A 2 118 2469403070 SEALRING A 2 119 2469403204 METERING UNIT(Assy) B 1 119/800 2469403262 HOUSING B 1 119/1/3 2469403178 GASKET A 1 119/1/4 2469403058 SCREW PLUG B 1 119/800/13/1 2469403106 SHIM B 2 t=0.05 119/800/13/1 2469403107 SHIM B 2 t=0.1 119/800/13/1 2469403108 SHIM B 2 t=0.2 119/800/13/1 2469403109 SHIM B 2 t=0.3 119/800/14 2469403075 VALVE SPRING B 2 119/800/15 2469403074 O RING A 2 119/800/16 2469403073 SCREW PLUG B 2
119/1/6 2469403208 FLOW THROTTLE B 2 Orifice ƒÓ 0.53
119/1/6 2469403209 FLOW THROTTLE B 2 Orifice ƒÓ 0.515, Slit mark
119/1/8 2469403177 GASKET A 1
119/1/9 2469403056 SCREW PLUG B 1
119/1/10 2469403053 GASKET A 1
119/1/11 2469403054 SCREW PLUG B 1
119/6 0281002422 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/6/1 1280210800 O RING A 1 Order from AA. See note below.
119/6/2 1280210801 O RING A 1 Order from AA. See note below.
119/7 0281002423 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/7/1 1280210800 O RING A 1 Order from AA. See note below.
119/7/2 1280210801 O RING A 1 Order from AA. See note below.
119/8 2469403072 TORX FILLISTER SCREW B 2
119/9 2469403179 GASKET A 1
119/10 2469403747 OVER FLOW VALVE B 1
119/11 CLIP Z 1 Order via Mitsubishi (No.MH020808)
119/12 2469403211 BOLT B 1
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS
119/14 HEXAGON SCREW Z 1 Order via Mitsubishi (No.MF140002)
120 2469403076 TORX FILLISTER SCREW B 4
125 0261210151 SPEED SENSOR B 1 Order from AA. See note below.
125/8 2260210310 O RING A 1 Order from AA. See note below.
126/1 2469403127 SHIM B 1 t=0.1
126/1 2469403128 SHIM B 1 t=0.3
126/1 2469403268 SHIM B 1 t=0.4
127 2469403072 TORX FILLISTER SCREW B 1
130 2469403118 SCREW PLUG B 1
131 2469403119 GASKET A 1
140 0281002311 TEMPERATURE SENSOR B 1 Order from AA. See note below.
145 2469403120 SCREW PLUG B 1 146 2469403057 GASKET A 1 250 2469403213 ORING A 1 251 2469403053 GASKET A 4 252 2469403214 SHIM B 4 253 2469403215 ORING B 1
254/1 FLANGE PLATE Z 1 Order via Mitsubishi (No.ME351361)
254/2 STUD Z 4 Order via Mitsubishi (No.MF404548)
255 NUT Z 4 Order via Mitsubishi (No.MF434105)
256 2469403222 PLUG B 1
260 BRACKET Z 1 Order via Mitsubishi (No.ME351092)
261 HEXAGON SCREW Z 2 Order via Mitsubishi (No.ME039098)
280/1 GEAR Z 1 Order via Mitsubishi (No.ME181264)
280/2 HEXAGONNUT Z 1 Order via Mitsubishi (No.MH004075)
280/3 WASHER Z 1 Order via Mitsubishi (No.MF450013)
353 2469403229 EYEBOLT B 2 354 2469403094 GASKET A 4 355 2469403230 COLLAR B 2 360 2469403229 EYEBOLT B 1 361 2469403094 GASKET A 2 362 2469403230 COLLAR B 1 363 2469403231 EYEBOLT B 1 364 2469403094 GASKET A 2 365 2469403230 COLLAR B 1
800 2469403353 HIGH PRESSURE ASSY A 2
800/7 2469403022 SEAL RING A 1
800/8 2469403154 SEAL RING A 1
800/9 2469403024 CAP B 2
801 2469403763 BEARING END PLATE B 1
801/2 2469403198 RADIAL SEAL A 1
Note:
106 364 4 110 260 98 118 353 357 356 358 115 1 255 253 3 130 84 254/2 254/1 280/1 86 96 101 100 102 103 105 361 105/15 119/8 119/7 119/8 119/1/9 119/1/8 126/1 119.119/800 119/1/4 119/1/3 108 47 800 45 44 43 800/8 800/7 800/9 119/12 119/14 119/11 261 119/13 256 131 119/10 119/1/11 119/1/10 119/9 125 125/8 127 26 801/2 801 250 82 362 360 365 363 120 119/1/6 119/800/16 119/800/15 119/800/14 119/800/13/1 2 280/2 251 83 252 140 354 355 280/3 119/7/1 119/7/2 119/6 119/6/1 119/6/2 118 146 145 119/1/6 CP2 F 01G 000 00V
Spare part indicator A:Expendable part B:Spare part
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS 1 2469403187 PUMP HOUSING B 1 2 2469403374 NAMEPLATE B 1 3 2469403104 NAIL B 2 4 2469403438 NUMBER PLATE B 1 26 2469403060 NUT B 4 43 2469403061 SPRING SEAT B 2 44 2469403062 COMPRESSION SPRING B 2 45 2469403063 SPRING SEAT B 2 47 2469403269 TAPPET B 2 82 2469403065 ORING A 1
83 2469403039 TORX FILLISTER SCREW B 4
84 2469403199 CAMSHAFT B 1
86 2469403152 ORING A 1
96 2469403319 BEARING END PLATE B 1
98 2469403026 WOODRUFF KEY A 1
100 2469403180 INTERNAL GEARED WHEEL B 1
101 2469403035 WASHER A 1
102 2469403036 CONICAL SPRING WASHER A 1
103 2469403038 HEXAGON SCREW A 1
105 0440020064 GEARPUMP B 1
105/15 2440210044 O RING A 1 Order from AA. See note below.
106 2469403130 TORX FILLISTER SCREW B 4
108 2469403066 PLUG A 2 110 2469403203 WOODRUFF KEY A 1 115 2469403067 PLUG A 2 118 2469403070 SEALRING A 2 119 2469403204 METERING UNIT(Assy) B 1 119/800 2469403262 HOUSING B 1 119/1/3 2469403178 GASKET A 1 119/1/4 2469403058 SCREW PLUG B 1 119/800/13/1 2469403106 SHIM B 2 t=0.05 119/800/13/1 2469403107 SHIM B 2 t=0.1 119/800/13/1 2469403108 SHIM B 2 t=0.2 119/800/13/1 2469403109 SHIM B 2 t=0.3 119/800/14 2469403075 VALVE SPRING B 2 119/800/15 2469403074 O RING A 2 119/800/16 2469403073 SCREW PLUG B 2
119/1/6 2469403208 FLOW THROTTLE B 2 Orifice ƒÓ 0.53
119/1/6 2469403209 FLOW THROTTLE B 2 Orifice ƒÓ 0.515, Slit mark
119/1/8 2469403177 GASKET A 1
119/1/9 2469403056 SCREW PLUG B 1
119/1/10 2469403053 GASKET A 1
119/1/11 2469403054 SCREW PLUG B 1
119/6 0281002422 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/6/1 1280210800 O RING A 1 Order from AA. See note below.
119/6/2 1280210801 O RING A 1 Order from AA. See note below.
119/7 0281002423 SOLENOID OPERATED VALVE B 1 Order from AA. See note below.
119/7/1 1280210800 O RING A 1 Order from AA. See note below.
119/7/2 1280210801 O RING A 1 Order from AA. See note below.
119/8 2469403072 TORX FILLISTER SCREW B 2
KEY NO. BOSCH NO. PART NAME SPARE PARTS QTY REMARKS
119/10 2469403747 OVER FLOW VALVE B 1
119/11 CLIP Z 1 Order via Mitsubishi (No.MH020808)
119/12 2469403211 BOLT B 1
119/13 2469403078 CLIP B 1
119/14 HEXAGON SCREW Z 1 Order via Mitsubishi (No.MF140002)
120 2469403076 TORX FILLISTER SCREW B 4
125 0261210151 SPEED SENSOR B 1 Order from AA. See note below.
125/8 2260210310 O RING A 1 Order from AA. See note below.
126/1 2469403127 SHIM B 1 t=0.1
126/1 2469403128 SHIM B 1 t=0.3
126/1 2469403268 SHIM B 1 t=0.4
127 2469403072 TORX FILLISTER SCREW B 1
130 2469403118 SCREW PLUG B 1
131 2469403119 GASKET A 1
140 0281002311 TEMPERATURE SENSOR B 1 Order from AA. See note below.
145 2469403120 SCREW PLUG B 1 146 2469403057 GASKET A 1 250 2469403213 ORING A 1 251 2469403053 GASKET A 4 252 2469403214 SHIM B 4 253 2469403215 ORING B 1
254/1 FLANGE PLATE Z 1 Order via Mitsubishi (No.ME351361)
254/2 STUD Z 4 Order via Mitsubishi (No.MF404548)
255 NUT Z 4 Order via Mitsubishi (No.MF434105)
256 2469403222 PLUG B 1
260 BRACKET Z 1 Order via Mitsubishi (No.ME351092)
261 HEXAGON SCREW Z 2 Order via Mitsubishi (No.ME039098)
280/1 GEAR Z 1 Order via Mitsubishi (No.ME181264)
280/2 HEXAGON NUT Z 1 Order via Mitsubishi (No.MH004075)
280/3 WASHER Z 1 Order via Mitsubishi (No.MF450013)
353 EYE BOLT Z 1 Order via Mitsubishi (No.ME355534)
354 2469403094 GASKET A 3 355 2469403230 COLLAR B 2 356 2469403229 EYEBOLT B 1 357 2469403094 GASKET A 2 358 2469403230 COLLAR B 1 360 2469403229 EYEBOLT B 1 361 2469403094 GASKET A 2 362 2469403230 COLLAR B 1 363 2469403231 EYEBOLT B 1 364 2469403094 GASKET A 2 365 2469403230 COLLAR B 1
800 2469403353 HIGH PRESSURE ASSY A 2
800/7 2469403022 SEAL RING A 1
800/8 2469403154 SEAL RING A 1
800/9 2469403024 CAP B 2
801 2469403763 BEARING END PLATE B 1
801/2 2469403198 RADIAL SEAL A 1
Note:
