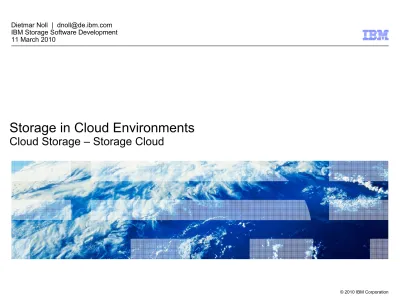

Storage in Cloud Environments

Cloud Storage – Storage Cloud

Dietmar Noll | dnoll@de.ibm.com

IBM Storage Software Development

11 March 2010

(2)

Objectives

ƒ

Understand the role of storage in cloud environments

ƒ

Understand the storage-related requirements / goals in a cloud, both from

the consumer and from the provider perspective

ƒ

Know the different solution approaches available today to implement

storage in cloud environments

(3)

Introduction

Requirements

Implementation Options

(4)
(5)

Cloud Goals

ƒ

First and foremost, clients want a lower cost option

ƒ

They also want to only pay for what they use.

ƒ

And they want to get it fast, when they need it.

ƒ

Finally, they want it to be really easy to manage.

Monitor & Manage

Services & Resources

Cloud

Administrator

Datacenter

Infrastructure

Service Catalog,

Component

Library

Service Consumers

Component Vendors/

Software Publishers

Publish & Update

Components,

Service Templates

IT Cloud

Access

Services

(6)

Why is storage so relevant in the cloud environment?

Data Growth is Exponential

2003 2006 2010

0.8 GB/

person

128 GB/

person

24 GB/

person

The World’s

total data

per person.

Digital Information

Created, Captured,

Replicated WW

2006: 180 exabytes

2007: 280 exabytes

...

2011: 1800 exabytes

(1800 billion gigabytes)

Expected compound annual

growth rate is almost

60%

Variety of Information

Information Technology

holds the promise of

bringing a variety of new

types of information to the

people who need it

Volume of Data

Data is growing exponentially

Velocity of Change

Acquisitions

Mergers

Consolidations

ILM, Data Retention

initiatives

Sources:

IDC, Worldwide Disk Storage Systems 2007-2011 Forecast Update, Doc #209490

IDC Whitepaper: The Diverse and Exploding Digitall Universe, March 2008

(7)

Why is storage so relevant in the cloud environment?

The Information Tidal Wave Continues...

External disk shipments & price (History & Forecast)

319 382 600 870 1403 2217 3402 5341 8360 13184 20786 32838 $96.93 $58.27 $34.90 $24.46 $15.93 $11.11 $7.71 $5.22 $3.48 $2.30 $1.51 $0.99 0 5000 10000 15000 20000 25000 30000 35000 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 0 20 40 60 80 100 120 PB $/GB

Hard Drives are CHEAP!

Yes, it’s a good thing that the

price of disk drives keeps

coming down because we’re

going to need a lot more of

them to hold all that data.

Buy more disk?

More floor space?

More power requirements?

More people?

More skills?

More technologies?

What’s our strategy?

Leverage an integrated

management approach,

providing smart support

to better utilize the

storage environment

Source: IDC 2008 DC, 2008

(8)

Globally, storage requirement is 80% file-based unstructured data,

and growing

ƒ Explosion of data, transactions, and

digitally-aware devices

strains IT

infrastructure and operations. Storage

capacity is doubling every 18 months.

ƒ

Majority of this data is unstructured

file-based,

such as user files, medical images,

web and rich media content, growing at

63%

ƒ

Block storage, while still well suited for

existing OLTP/database workloads, is not

where majority of strategic analytics-based

applications and strategic storage initiatives

are being deployed

Source: IDC, State of File-Based Storage Use in Organizations: Results from IDC's 2009 Trends in File-Based Storage Survey: Dec 2009: Doc # 221138

Worldwide Storage Capacity Shipped by

Segment, 2008–2013

(9)

Primary Workloads for Storage Clouds

Web Content

Store

Collaboration

Data & General

File Storage

Energy &

Geo-Sciences

High Performance

Analytics

Digital Media

Hyper-scalable storage for large Web 2.0

stores and for other vendors looking to

build their own Cloud/SaaS applications

General purpose file storage environments

where clients are challenged with the

manageability of current NAS systems

Energy exploration and geo-sciences

require huge addressable namespaces and

very high performance.

Business applications such as financial

services interested in cloud deployments

with single namespace

High performance, simplified management

for widely varying use cases in digital

media environments.

CAE

Auto / Aero / Electronics design processes

experiencing rapid file-centric storage

growth as simulation expands.

Retail Banking & Financial Markets

Chemical & Petroleum

(10)

Cloud Computing Reference Architecture Overview

Cloud Storage Focus

Cloud Service Developer

Cloud Service Provider

Security & Resiliency

Service Development

Tools

Common Cloud Management Platform

OSS – Operational Support Services

Operational-level functionality for management of Cloud Services

BSS – Business Support Services

Business-level functionality for management of Cloud Services

Cloud Services

IT capability provided to Cloud Service Consumer

(Virtualized) Infrastructure – Server, Storage, Network, Facilities

Infrastructure for hosting Cloud Services and Common Cloud Management Platform

Cloud Service Consumer

Partner Clouds

Consumer In-house IT

File Storage Systems

Block Storage Systems

Backup Systems

Archiving Systems

SAN Connectivity

Storage Provisioning

Storage Monitoring and

Event Management

Capacity and Performance

Management

Storage Virtualization

Management

(11)
(12)

Storage-related Requirements

Consumer Perspective

“Pay as you go”

“Elasticity”

“Simplicity”

ƒ Reduce Costs

– Reduce CAPEX and OPEX

– Increase Efficiency through

virtualization and optimization

– Flexible sourcing

ƒ Manage Risk

– Security

– Resiliency

– Compliance

ƒ Improve Service

– Higher Quality

– Higher Availability

– Higher Flexibility

(13)

Storage-related Requirements

Consumer Perspective

ƒ Reduce Costs

– Reduce CAPEX and OPEX

– Increase Efficiency through

virtualization and optimization

– Flexible sourcing

ƒ Manage Risk

– Security

– Resiliency

– Compliance

ƒ Improve Service

– Higher Quality

– Higher Availability

– Higher Flexibility

ƒ Reduce Information Management Costs

– Reduce/avoid investments in storage HW and SW

– Leverage latest virtualization technology and

efficient processes

– Avoid vendor dependencies

ƒ Manage Storage-related Risks

– Ensure physical and logical security

– Leverage backup and disaster recovery skills and

technologies

– Ensure information retention periods and

accessibility

ƒ Improve Storage Services

– Provide service based on application requirements

– Leverage storage availability (HA) skills and

technologies

– Quickly react on requests without dependency on

own HW/SW.

(14)

Storage-related Requirements

Provider Perspective

ƒ Multi-Tenancy

– Provide appropriate management separation for the storage

environment while still allowing integrated management of all storage aspects

ƒ Security

– Prevent (logically and physically) unauthorized access or even modification to

data stored in the environment

ƒ High Availability

– Ensure the data can be accessed according to the needs at any time

ƒ Utilization

– Optimally leverage the assets available in the infrastructure to avoid

unnecessary investments

ƒ Monitoring

– Achieve situation awareness about the health of the environment and react on

events in the environment

(15)

Storage-related Requirements

Provider Perspective - continued

ƒ Metering

– Capture information about the environments capabilities (storage

capacity, performance, etc.) and usage and keep historical records of it

ƒ Reporting

– Allow visualization and analysis of the data collected about the storage

environment to be used for regular reports, problem determination, etc.

ƒ Planing

– Combine the information about the current and historic environment as

well as other sources to plan future changes to the environment to

optimize ROI

ƒ Automation

– Achieve a high level of automation of configuration tasks to minimize

OPEX.

(16)

Defining Requirements for Storage Services

Service Level Categories – Service Level Objectives

ƒ Accessability

– Initial Access Time

– Data Sharing

– Requires Access Transparency

– May Out Of Space Duration

ƒ Availability

– Availability Period

– Planned Downtime

– Max. Unplanned Downtime Aggregate

– Max Unplanned Downtime Per Instance

– Recovery Point Objective (RPO)

– Recovery Time Objective (RTO)

– Consistency

– Number of Copies

– Number of Versions

– Retain Deleted

ƒ Performance

– Avg. I/O Rate

– Avg. Data Throughput

ƒ Retention / Compliance

– Immutability

– Disposal

– Durability

– Retention Period

ƒ Security

– Accountability

– Integrity

– Authenticity

– Confidentiality

– Physical Security

(17)

Defining Requirements for Storage Services

Service classes / SLA templates to allow simple classification

ƒ Accessability

ƒ Availability

ƒ Performance

ƒ Consistency

ƒ Retention / Compliance

ƒ Security

ƒ

Accessability

ƒ

Availability

ƒ

Performance

ƒ

Consistency

ƒ

Retention / Compliance

ƒ

Security

Service Class “Platinum”

Service Class “Platinum”

Service Class “Gold”

Service Class “Gold”

Service Class “Silver”

Service Class “Silver”

Service Class “Bronze”

(18)
(19)

Storage Approaches

Block Storage – File Storage | DAS – SAN – NAS

FC Network

LAN

Block Storage

File Storage

DAS

SAN

NAS

ATA SATA SAS SCSI FCP FCoE iSCSI NFS SMB/CIFS FTP SCP

(20)

Traditional Storage Overview

Type/Technology

Type/Technology

Benefits

Benefits

Constraints

Constraints

Application

Application

Media – CD/DVD/Diskettes…

cheap, convenient, portable, compatible, long life, ….

low capacity, moderate speed, ….. Archiving, distribution, migration, local sharing, ….

HD - Internal/External most common form of storage, high speed

limited capacity, local environment storage in single computer

Tape low cost, portability, unlimited capacity

Slow/uneasy recovery of individual files/groups of files

data archiving, low-budget businesses, offsite storage DAS - Direct-Attached

Storage

simplicity, low initial cost, ease of management

individual server, admin, and data transfer in network env.

Data sharing, backup, archiving, app sharing

Disk Library high speed, capacity, availability not quickly accessible as DAS "write once, read rarely“ Data

RAID - Redundant Array of Independent Disks

high speed, capacity, availability, reliability

security & fault tolerance

recovery could be difficult high cost for system optimization

swap files

Internet Service Providers redundant storage SAN - Storage Area

Network

large block data storage Reliability, availability, fault

tolerance, scalability

high cost lack of standardization management complexity

large databases applications need bandwidth

mission-critical applications NAS – Network-Attached

Storage

multi-client fast file access easy file sharing, replication,

redundancy, consolidation

Less convenient than SAN for moving large blocks of data

data backup data archiving redundant storage Fibre Channel for data

transmission in SAN

gigabit speed large data xfer flexible distance btw devices

high cost

management complexity

see SAN

iSCSI for IP-based data transmission in SAN

IP protocols longer distance than Fibre

Slower than Fibre management complexity

(21)

Computer

Management

System

OSS

Computer

Virtualized

Computer

Operating System

Applications

Infrastructure

Storage in the Cloud

Implementation Approaches and Management

Block

Storage

File

Storage

Data

Services

Data

Path

Storage

Management

System

Mgmt. Path Mgmt. Path M a na ge men t Pa th Different interfaces used for application level / infrastructure

level data access Integration between

different management domains to coordinate

operations

Additional management path needed to give

applications/operating systems control over certain

aspects of storage management

(22)

Data Management in Cloud Storage

Cloud Storage

Online Storage

Mirror

Copies

Backup

Copies

Archive

Copies

Meta Data

&

Policies

Storage

Management

System

Primary copy of data managed, which the application is using during its normal

operation.

Supplemental data about the data managed as well as

policies related to the management of this data

Multiple copies managed by the

cloud to fulfill SLAs

(23)

Storage Technologies in Cloud Storage

Storage Virtualization

(24)

Storage Technologies in Cloud Storage

Block Storage Virtualization

Virtualized

Block Storage

Large number of direct connections make management complex and

inefficient

Distinct storage systems mean separation of resources, which leads to

imbalanced utilization

Changes to the storage systems have direct impact

on the storage consumers, potentially causing downtime

Virtualization hides complexity of the environment to ease

management from a consumer perspective, increase utilization and decrease dependency Virtualizer needs to have

appropriate scalability and redundancy characteristics Virtualized environment reduces dependencies and increases performance and availability

(25)

Block Storage Virtualization – IBM SAN Volume Controller

How does it work?

Backend Volumes

Unmanaged Disks

MDisks Groups

Virtual Disks

Logical Volumes

Managed Disks

(26)

Block Storage Virtualization – IBM SAN Volume Controller

Dynamic Infrastructure Support

Dynamically scale performance

9

For performance sensitive applications,

dynamically add more performance to your

existing capacity by adding controller pairs

9

…or mix with additional capacity…

Dynamically scale capacity

9

For high capacity applications such as archive,

dynamically add capacity by adding

disk enclosures

9

…or mix with additional performance…

Scale capacity in tiers

9

Implement a tiered storage infrastructure…

9

…with common management interfaces and

software functions

(27)

Storage Technologies in Cloud Storage

File Storage Virtualization

Virtualized

File Storage

Same problems as seen for block storage: high dependency/complexity, reduced utilization/availability Additional complexity

due to high number of entities, identity management and high

dynamics

Equivalent approach to achieve the same goals

as seen for block storage: increased utilization, reduced

dependencies, improved availability

(28)

File Storage Virtualization – IBM SoNAS

How does it work?

>

….. ….. ...

scale

out

scale

out

/home/appl/data/web/important_big_spreadsheet.xls /home/appl/data/web/big_architecture_drawing.ppt /home/appl/data/web/unstructured_big_video.mpg /home /appl /data /web /home/appl/data/web/important_big_spreadsheet.xls /home/appl/data/web/big_architecture_drawing.ppt /home/appl/data/web/unstructured_big_video.mpg

IBM Scale Out NAS

Policy Engine

Global Namespace

Note:

all three files,

in same directory,

but each allocated to

different

physical

storage pool

Data striped across

all disks in storage

pool.

High performance,

tuning,

auto-load balancing

Tier 1: SAS drives Tier 2: 1TB SATA drives Tier 3: 2TB SATA drives

Interface nodes Interface nodes Interface nodes Storage nodes Storage nodes

>

Storage nodes Logical Physic al

(29)

File Storage Virtualization – IBM SoNAS

Dynamic Infrastructure Support

Dynamically scale performance

9

For performance sensitive applications,

dynamically add more performance to your

existing capacity by adding controller pairs

9

…or mix with additional capacity…

Dynamically scale capacity

9

For high capacity applications such as archive,

dynamically add capacity by adding

disk enclosures

9

…or mix with additional performance…

Scale capacity in tiers

9

Implement a tiered storage infrastructure…

9

…with common management interfaces and

software functions

(30)

Storage Cloud Offering Examples

Name

Name

Description

Description

Google Docs Allows users to upload documents, spreadsheets and presentations to Google's data servers. Users can edit files using a Google application. Users can also publish documents so that other people can read them or even make edits. Web e-mail providers like Gmail, Hotmail and Yahoo! Mail store e-mail messages on their own servers. Users can access their e-mail from

computers and other devices connected to the Internet.

Web Digital Image sites Sites like Flickr and Picasa host millions of digital photographs. Their users create online photo albums by uploading pictures directly to the services' servers.

Facebook Social networking sites like Facebook and MySpace allow members to post pictures and other content. All of that content is stored on the respective site's servers.

Amazon S3

Amazon S3 A storage service that let low to high end subscribers store, retrieve, and share data objects that are application agnostic. Web Service API access. Customer examples include saving personal data to Web startups, offering online services,

back up databases or store archival data.

A storage service that let low to high end subscribers store, retrieve, and share data objects that are application agnostic. Web Service API access. Customer examples include saving personal data to Web startups, offering online services,

back up databases or store archival data. Nirvanix SDN

Nirvanix SDN Managed cloud storage for the enterprise. Stores, delivers, and processes storage requests in system selected location of network of storage nodes. CloudNAS application and Web Service API access. Customer examples include off-site data

protection, Tier-N storage, distributed content and collaboration, and embedded storage

Managed cloud storage for the enterprise. Stores, delivers, and processes storage requests in system selected location of network of storage nodes. CloudNAS application and Web Service API access. Customer examples include off-site data

protection, Tier-N storage, distributed content and collaboration, and embedded storage VMWare & Dell

VMWare & Dell Integrated compute and storage infrastructures for cloud services. Virtualze Storage within Cloud Computing Infrastructures using VMware vSphere 4.0 and Dell EqualLogic iSCSI SANs

Integrated compute and storage infrastructures for cloud services. Virtualze Storage within Cloud Computing Infrastructures using VMware vSphere 4.0 and Dell EqualLogic iSCSI SANs

IBM Smart Business Storage Cloud IBM Smart Business

Storage Cloud

Scalable NAS solution provided a client and its partner network. Customers store, retrieve, and share information in a private environment that drives efficiency, standardization and best practices while retaining greater customization and

control.

Scalable NAS solution provided a client and its partner network. Customers store, retrieve, and share information in a private environment that drives efficiency, standardization and best practices while retaining greater customization and

control.

(31)
(32)

Integration of Storage Management into Service Management

IBM CONFIDENTIAL 32

Visibility of ….

… all elements and services

in the storage infrastructure

Control of ….

… changes to the storage

infrastructure

Automation of ….

… common actions in the

storage infrastructure to

reduce administration costs

ƒ Storage Infrastructure

Topology Visualization

ƒ Storage Infrastructure

Reporting

ƒ Storage Infrastructure

Health / Event

Monitoring

ƒ Consistent execution of

provisioning operations

ƒ Raise alerts based on

events and conditions in

the infrastructure

ƒ Continuous

configuration checking

ƒ Smart selection of target

entity of control

provisioning operations

ƒ Continuous optimization

of storage infrastructure

ƒ Problem Determination

(Root Cause Suspect

Identification)

(33)

Storage Management in the Cloud

Functional Areas

ƒ Discovery & Categorization

– Identify entities in storage

environment and collect

information about them

– Identify capabilities based on data

collected

– Change Management

ƒ Reporting & Metering

– Provide access to information

about storage infrastructure

entities and items

– Correlate data to allow metering

at various levels, like per

application, per user, etc.

– Keep historical data to allow

usage based charging

ƒ Monitoring & Problem Determination

– Receive events from storage infrastructure

and evaluate for relevance / importance

– Constantly check monitored entities for

abnormal conditions and SLA violations

– Support identification of problem root

causes and corrective actions

ƒ Provisioning & Optimization

– Support autonomic provisioning of storage

resources

– Provide “intelligence” to de-couple service

request from storage infrastructure, e.g.

TPC planners

– Continuously optimize storage infrastructure

for efficient SLA-compliant resource usage

(34)

Storage Management in the Cloud

Direct Functional Coverage

Cloud Service Developer Cloud Service Provider

Common Cloud Management Platform

Virtualized Infrastructure – Server, Storage, Network, Facilities

Cloud Service Consumer Partner Clouds Customer In-house IT Consumer Administrator Consumer Business Manager Developer

Service Business Manager Service Operations Manager

Cloud

Services

User Interface Consumer End user API Software-as-a-Service Platform-as-as-Service Infrastructure-as-a-Service Business-Process-as-a-Service

Metering, Analytics & Reporting

Service Provider Portal

Service Development Tools Service Definition Tools Image Creation Tools Configuration Mgmt Offering Mgmt Order Mgmt Accounting & Billing

Customer Mgmt Entitlements

Contract Mgmt ReportingSLA

Pricing & Rating

Peering & Settlement Subscriber Mgmt

Service Offering Catalog Invoicing

Service Automation Management

Virtualization Mgmt Provisioning

Monitoring &

Event Management IT Asset & License Management

Service Request Management

IT Service Level Management Image Lifecycle Management

Capacity & Performance Management Incident, Problem &

Change Management

BSS Business Support

System Service Dev

elo

pment Portal

API

Service De

liver

y Portal OSSOperational Support System

Service Transition Manager

Service Security Manager

Security & Resiliency

Service Delivery Catalog Service Templates

Components with red frame are directly related to functional coverage for storage

For the other components, the storage management contributes to some extent, but there

(35)

In

fr

a

s

tr

u

c

tu

re

S

er

vic

e I

n

st

an

ce

Infrastructure

Entity

Storage Management in the Cloud

Levels of Context

Asset &

Configuration

Data

Best Practices,

Compliance

Rules &

Policies

Performance

Data & Event

Information

ƒ Storage management in the

cloud needs to relate

information about the current

infrastructure with the targets

for the infrastructure

ƒ This has to happen at various

levels of context to realize

visibility, control and

automation concurrently

ƒ This “knowledge” of the

environment and the

requirements/goals is applied

to support the service

management during

provisioning as well as

(36)

Storage in Cloud Environments

Summary

ƒ

Almost any non-trivial cloud-based workload also needs

appropriate storage available, although in general the cloud

consumer should not consciously notice the complexity in

storage management.

ƒ

The storage management has to be closely integrated into the

overall service management to achieve cloud goals from a

provider perspective.

ƒ

Most of the cloud-based workload will be file storage or

application storage/storage service, but block storage is also

needed for certain workloads and storage management needs

to expose the same level of functionality for all approaches.

ƒ

Technology for implementing the I/O path is available today,

while the integrated and consolidated storage management

still needs to evolve.

(37)

Thank you!

For more information, please visit:

ibm.com/cloud

Or contact me at:

Figure

Updating...

References
