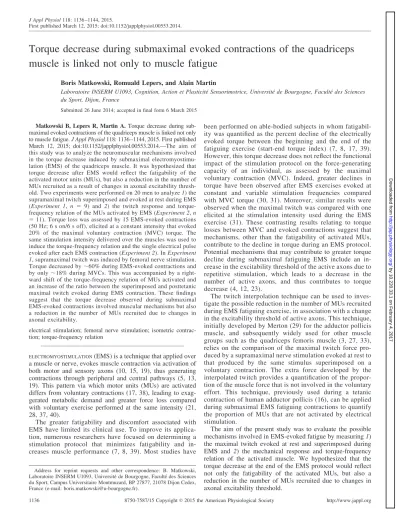

Torque decrease during submaximal evoked contractions of the quadriceps
muscle is linked not only to muscle fatigue
Boris Matkowski, Romuald Lepers, and Alain Martin
Laboratoire INSERM U1093, Cognition, Action et Plasticité Sensorimotrice, Université de Bourgogne, Faculté des Sciences du Sport, Dijon, France
Submitted 26 June 2014; accepted in final form 6 March 2015
Matkowski B, Lepers R, Martin A. Torque decrease during sub-maximal evoked contractions of the quadriceps muscle is linked not only to muscle fatigue. J Appl Physiol 118: 1136 –1144, 2015. First published March 12, 2015; doi:10.1152/japplphysiol.00553.2014.—The aim of this study was to analyze the neuromuscular mechanisms involved in the torque decrease induced by submaximal electromyostimu-lation (EMS) of the quadriceps muscle. It was hypothesized that torque decrease after EMS would reflect the fatigability of the activated motor units (MUs), but also a reduction in the number of MUs recruited as a result of changes in axonal excitability thresh-old. Two experiments were performed on 20 men to analyze 1) the supramaximal twitch superimposed and evoked at rest during EMS (Experiment 1, n ⫽ 9) and 2) the twitch response and torque-frequency relation of the MUs activated by EMS (Experiment 2, n ⫽ 11). Torque loss was assessed by 15 EMS-evoked contractions (50 Hz; 6 s on/6 s off), elicited at a constant intensity that evoked 20% of the maximal voluntary contraction (MVC) torque. The same stimulation intensity delivered over the muscles was used to induce the torque-frequency relation and the single electrical pulse evoked after each EMS contraction (Experiment 2). In Experiment 1, supramaximal twitch was induced by femoral nerve stimulation. Torque decreased by⬃60% during EMS-evoked contractions and by only ⬃18% during MVCs. This was accompanied by a right-ward shift of the torque-frequency relation of MUs activated and an increase of the ratio between the superimposed and posttetanic maximal twitch evoked during EMS contraction. These findings suggest that the torque decrease observed during submaximal EMS-evoked contractions involved muscular mechanisms but also a reduction in the number of MUs recruited due to changes in axonal excitability.
electrical stimulation; femoral nerve stimulation; isometric contrac-tion; torque-frequency relation
ELECTROMYOSTIMULATION(EMS) is a technique that applied over
a muscle or nerve, evokes muscle contraction via activation of both motor and sensory axons (10, 15, 19), thus generating contractions through peripheral and central pathways (5, 13, 19). This pattern via which motor units (MUs) are activated differs from voluntary contractions (17, 38), leading to exag-gerated metabolic demand and greater force loss compared with voluntary exercise performed at the same intensity (21, 28, 37, 40).
The greater fatigability and discomfort associated with EMS have limited its clinical use. To improve its applica-tion, numerous researchers have focused on determining a stimulation protocol that minimizes fatigability and in-creases muscle performance (7, 8, 39). Most studies have
been performed on able-bodied subjects in whom fatigabil-ity was quantified as the percent decline of the electrically evoked torque between the beginning and the end of the fatiguing exercise (start-end torque index) (7, 8, 17, 39). However, this torque decrease does not reflect the functional impact of the stimulation protocol on the force-generating capacity of an individual, as assessed by the maximal voluntary contraction (MVC). Indeed, greater declines in torque have been observed after EMS exercises evoked at constant and variable stimulation frequencies compared with MVC torque (30, 31). Moreover, similar results were observed when the maximal twitch was compared with one elicited at the stimulation intensity used during the EMS exercise (31). These contrasting results relating to torque losses between MVC and evoked contractions suggest that mechanisms, other than the fatigability of activated MUs, contribute to the decline in torque during an EMS protocol. Potential mechanisms that may contribute to greater torque decline during submaximal fatiguing EMS include an in-crease in the excitability threshold of the active axons due to repetitive stimulation, which leads to a decrease in the number of active axons, and thus contributes to torque decrease (4, 12, 23).
The twitch interpolation technique can be used to inves-tigate the possible reduction in the number of MUs recruited during EMS fatiguing exercise, in association with a change in the excitability threshold of active axons. This technique, initially developed by Merton (29) for the adductor pollicis muscle, and subsequently widely used for other muscle groups such as the quadriceps femoris muscle (3, 27, 33), relies on the comparison of the maximal twitch force pro-duced by a supramaximal nerve stimulation evoked at rest to that produced by the same stimulus superimposed on a voluntary contraction. The extra force developed by the interpolated twitch provides a quantification of the propor-tion of the muscle force that is not involved in the voluntary effort. This technique, previously used during a tetanic contraction of human adductor pollicis (16), can be applied during submaximal EMS fatiguing contractions to quantify the proportion of MUs that are not activated by electrical stimulation.
The aim of the present study was to evaluate the possible mechanisms involved in EMS-evoked fatigue by measuring 1) the maximal twitch evoked at rest and superimposed during EMS and 2) the mechanical response and torque-frequency relation of the activated muscle. We hypothesized that the torque decrease at the end of the EMS protocol would reflect not only the fatigability of the activated MUs, but also a reduction in the number of MUs recruited due to changes in axonal excitability threshold.
Address for reprint requests and other correspondence: B. Matkowski, Laboratoire INSERM U1093, Université de Bourgogne, Faculté des Sciences du Sport, Campus Universitaire Montmuzard, BP 27877, 21078 Dijon Cedex, France (e-mail: [email protected]).
First published March 12, 2015; doi:10.1152/japplphysiol.00553.2014.
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
MATERIALS AND METHODS
Subjects
Twenty healthy men (Experiment 1: n ⫽ 9, age 27.4 ⫾ 6.9 yr, height 176.0⫾ 5.1 cm, weight 70.7 ⫾ 7.1 kg; Experiment 2: n ⫽ 11, age 26.4⫾ 5.7 yr, height 179.1 ⫾ 5.8 cm, weight 76.3 ⫾ 7.0 kg; mean⫾ SD) volunteered to participate in the present study and were tested before, during, and after fatiguing contractions elicited by EMS. None of them had any known neurological or neuromuscular disorder. Each individual was informed about the experimental procedures and possible risks and provided informed consent prior participating in the study. The University of Burgundy Committee on Human Research approved the protocol. The study adhered to the policies outlined in the Declaration of Helsinki.
Torque Measurements
Mechanical measurements were performed using an isokinetic dynamometer (Biodex, Shirley, NY) in an isometric mode. The axis of the dynamometer was aligned with the flexion-extension axis of rotation for the knee, and a strap attached the lever arm to the shank. The upper body was restrained with two crossover shoulder harnesses and a belt across the abdomen. Experiments were performed on the right (dominant) leg with knee and hip joint angles of 90°. Subjects were asked to cross their arms over the chest during the testing procedure.
Electromyostimulation
EMS of the quadriceps muscle was applied with a high-voltage (maximum 400 V), constant-current stimulator (DS7A; Digitimer, Hertfordshire, UK) to evoke repeated tetanic contractions. Two large electrodes were placed on the anterior aspect of the thigh. The cathode (10⫻ 5 cm; Compex, Ecublens, Switzerland) was placed distally at 10 cm above the upper border of the patella over vastus lateralis (VL), vastus medialis (VM) and rectus femoris (RF) muscles. The anode (10⫻ 5 cm) was placed ⬃5 cm below the inguinal ligament. A pulse duration of 1 ms was used and the current was set so that a 50-Hz stimulation elicited 20% of the MVC torque developed before the fatiguing exercise (see below). The required current (range: 26 – 68 mA) caused only mild discomfort and no noticeable voluntary con-tractions during EMS-evoked concon-tractions. For the second experi-ment, this intensity was also used to induce a single twitch after each EMS-evoked contraction, and the torque-frequency relation was re-corded before and after the fatiguing exercise.
Femoral Nerve Stimulation
The femoral nerve was stimulated with a second constant-current stimulator (DS7A; Digitimer, Hertfordshire, UK) to evoke maximal single twitches during (superimposed twitch) and after EMS-evoked contractions. The femoral nerve was stimulated with a 1-ms pulse using a cathode ball electrode (0.5 cm diameter) pressed into the femoral triangle by the same experimenter during all testing sessions. The anode was a 10⫻ 5 cm rectangular electrode (Compex, Ecublens, Switzerland) located in the gluteal fold opposite the cathode. The stimulus current was considered maximal when an increase in the current no longer increased the amplitude of the twitch torque or the peak-to-peak amplitude of the compound muscle action poten-tials (M-wave; see below). The current intensity was increased by 25%, and this supramaximal stimulus intensity was used through-out the experiment (range: 60 –90 mA).
Electromyography
Electromyographic (EMG) signals were recorded in VL, VM, and RF muscles using pairs of silver-silver chloride electrodes (10 mm diameter; 20 mm between electrodes; Controle Graphique Medical, Brie-Comte-Robert, France) positioned over each muscle according to
the European Union recommendations for surface electromyography known as SENIAM. The recording sites were adjusted in pilot testing to detect the greatest M-wave amplitude at a given intensity for each knee extensor muscle (33). The reference electrode was attached to the patella of the left knee. The skin was abraded and cleaned with alcohol to minimize resistance between the two electrodes (⬍5 k⍀). EMG signals were amplified with a bandwidth frequency ranging from 15 Hz to 2 kHz (common mode rejection ratio ⫽ 90 dB; impedance input⫽ 100 M⍀; gain ⫽ 1,000). EMG signals and torque measurements were digitized online at a sampling frequency of 2 kHz and stored for analysis with commercially available software (Tida, Heka Elektronik, Lambrecht/Pfalz, Germany).
Experimental Protocols
Two different experimental protocols were used (Fig. 1). Experiment 1. The first protocol (n⫽ 9) was intended to determine the influence of EMS-evoked fatiguing contractions on superimposed and maximal posttetanic twitches evoked by stimulation of the fem-oral nerve at supramaximal intensity. Subjects performed a warm-up that included⬃10 brief nonfatiguing submaximal contractions with the knee extensor muscles. After a 2-min rest, subjects began the experimental protocol.
Before and after the fatiguing contractions, subjects performed 5-s MVCs with knee extensors. They were asked to contract their knee extensor muscles as forcefully as possible for 5 s. A supramaximal single pulse stimulus to the motor nerve was delivered when the torque plateau was reached (superimposed twitch), as well as 2 s after the end of the MVC (potentiated twitch). Investigators provided strong verbal encouragement during each MVC. Before the EMS exercise, subjects performed two MVCs separated by a 2-min rest period, whereas only one MVC was performed after the exercise.
The fatiguing task comprised 15 EMS-evoked contractions via electrodes applied over the quadriceps muscles. The current intensity used in the experiment produced 20% of the MVC developed prior to EMS exercise. This intensity was kept constant throughout the exper-iment. Each contraction lasted for 6 s interspaced by 6 s of rest. A single-pulse supramaximal stimulus of the femoral nerve was deliv-ered in the middle of each evoked contraction, as well as and during each resting period (2 s after the contraction) (Fig. 1A). The super-imposed supramaximal nerve stimulation was evoked during the 20-ms interpulse interval at 7 ms after the beginning of the interval. This 7-ms interpulse interval avoided the collision between ortho-dromic and antiortho-dromic volleys generated by the supramaximal stim-ulus delivered over the motor nerve and the 50-Hz stimulation delivered over the muscle, respectively. At the muscle level, this 7-ms interpulse interval gives, depending on the muscle considered, a mean stimulation frequency of⬃100 Hz for the MUs activated by EMS (see Methodological Considerations).
Experiment 2. The second experiment (n⫽ 11) was designed to assess fatigability during EMS-evoked contractions and its influence on the posttetanic twitch and the torque-frequency relation evoked at the stimulation intensity used during the EMS exercise. Subjects began the experimental protocol 2 min after the warm-up as previ-ously described (see Experiment 1).
Before and after the fatiguing contractions, neuromuscular tests composed of voluntary and evoked contractions were performed. As for Experiment 1, subjects performed MVCs of the knee extensors lasting 5 s. A supramaximal stimulus was delivered when the torque plateau was reached (superimposed twitch), as well as 2 s after the end of the MVC (potentiated twitch).
In addition to the MVCs, the torque-frequency relation (Fig. 1B) was established by randomly evoking 1-s contractions with EMS at a stimulus frequency of 5, 10, 15, 20, 30, 40, 50, 60, 75, and 100 Hz, with 6-s rest periods between each frequency. The current intensity, applied via electrodes placed over the muscles, was set at the intensity that evokes a stimulation frequency of 50 Hz, 20% of the MVC
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
recorded before EMS exercise. This stimulation intensity corre-sponded to that used for EMS exercise and was kept constant before and after the fatiguing exercise, as well as across the frequencies. As for the first experiment, the fatiguing task was induced by 15 EMS-evoked contractions lasting 6 s and interspaced by 6 s of rest (Fig. 1B). During this rest period and 2 s after the end of the contraction, a single electrical pulse was delivered at the current intensity that was used during EMS contraction, i.e. corresponding to a stimulation intensity that elicited 20% MVC prior to EMS exercise.
Data Analysis
Before and after the fatigue test. MVC torque was considered as the peak torque attained during the contraction. Before the fatigu-ing task, the MVC producfatigu-ing the highest torque was considered. The superimposed twitch was analyzed as the amplitude of the electrically evoked twitch from the torque developed just before the stimulation to the peak of the superimposed twitch. Potentiated twitch peak amplitude was assessed from the maximal amplitude of the twitch evoked in the relaxed muscle. Maximal voluntary activation level (VAL) was estimated during the MVCs according to the following formula:
VAL⫽
冉
1⫺superimposed twitch amplitude potentiated twitch amplitude冊
⫻ 100 Peak-to-peak amplitude, duration, latency, and area of maximal M-waves (Mmax) were analyzed for VL, VM, and RF muscles fromthe potentiated twitch. Mmaxlatency was defined as the time between
the stimulus artifact to the onset of the M-wave. This analysis was performed for both experiments.
For Experiment 2, the torque-frequency relation was established by measuring the peak torque developed during the 1-s evoked contrac-tion.
Fatigue test. For both experiments, measurement of EMS-evoked torque was based on the average torque elicited during the 6-s evoked contractions. The torque loss from the 1stto the 15thEMS contraction
was considered as an index of muscle fatigability. Posttetanic twitch
amplitude in response to nerve (Experiment 1) and muscle (Experi-ment 2) stimulation recorded during the 6-s rest period was analyzed after each of the 15 EMS-evoked contractions. For Experiment 1, the superimposed twitch evoked during each EMS contraction was ana-lyzed as the amplitude of the electrically evoked twitch from the torque that developed just before supramaximal nerve stimulation (artifact stimulus on EMG trace) to the peak of the superimposed twitch. To obtain an estimation of the proportion of the muscle not activated by the stimulation during the EMS-evoked contraction, a muscle activation level (MAL) was estimated by the same formula used for VAL, but for MAL, the potentiated twitch was replaced by the posttetanic twitch, i.e. the twitch evoked after each EMS contrac-tion.
For Experiment 1, peak-to-peak amplitude, duration, latency, and area of Mmaxassociated with the posttetanic twitch evoked by
supra-maximal nerve stimulation were analyzed for the 1stand the 15thEMS
contraction for VL, VM, and RF muscles.
For Experiment 2, the latency of the M-wave associated with the twitch evoked at EMS intensity was analyzed after the 1st EMS
contraction. Due to the proximity of the site of stimulation and detection over the muscle, it was possible to analyze the M-wave latency only on a limited number of subjects (n⫽ 6 for VL, n ⫽ 9 for VM, n⫽ 8 for RF).
Methodological Considerations
One methodological issue with the use of superimposed supramaxi-mal stimuli evoked at the nerve on submaxisupramaxi-mal EMS contractions evoked at the muscle, is to avoid the collision of the orthodromic volleys generated by the supramaximal stimulus with the antidromic volleys generated by EMS. To avoid this, the delay between EMS stimulation and nerve stimulation (7-ms interpulse interval) was chosen to be longer than the time needed for the antidromic volleys, initiated by EMS, to reach the site of femoral nerve stimulation (calculated to be 3.66⫾ 2.67, 3.23 ⫾ 1.11, and 1.51 ⫾ 2.72 ms for VL, VM, and RF, respectively). This time is shorter than the 7-ms interpulse interval used here, suggesting that in the present study, the
A
15 blocks of EMS contractions with post-tetanic twitch Knee extensors MVC Knee extensors MVC Knee extensors MVC 120s 120s 2s 2s 300s2s 2s s 0 8 1 6s 4s 2s Warm-up 2s 2sB
Warm-up 120s 120s 2s s 0 8 1 300s 6s 2s 4s 15 blocks of EMS contractions with post-tetanic twitch Knee extensors MVC 10 blocks of stimulation evoked by EMS (5, 10, 15, 20, 30, 40, 50, 60, 75 and 100 Hz) Knee extensors MVC Knee extensors MVC 6s 3s 1s 3s 1s 3s s 2 s 2 s 2 10 blocks of stimulation evoked by EMS (5, 10, 15, 20, 30, 40, 50, 60, 75 and 100 Hz) 300s 2s 2sFig. 1. Schematic description of the tests performed during the two experiments. In both experiments, subjects performed maximum voluntary contractions (MVCs) before and after 15 contractions evoked by electromyostimulation (EMS). A supramaximal stimulus was applied to the femoral nerve during and 2 s after each MVC in both experiments. A: stimulation of the femoral nerve was superimposed in the middle and 2 s after each fatiguing-evoked contraction (15 EMS-evoked contractions). B: the torque-frequency relation was measured before and after the fatiguing contractions by evoking brief contractions with one of 10 frequencies: 5, 10, 15, 20, 30, 40, 50, 60, 75, and 100 Hz. A single stimulus was also delivered to the muscles after each fatiguing-evoked contraction (15 EMS-evoked contractions). Continuous arrow, nerve stimulation; dotted arrow, muscle stimulation.
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
supramaximal superimposed twitch to EMS contractions was not contaminated by antidromic collisions. The latency difference (added to the 7-ms delay between EMS and femoral nerve stimulation) was also used to estimate the stimulation frequency at which the MUs were activated by both nerve and muscle stimulations (117, 98, and 94 Hz, for RF, VM, and VL, respectively). These frequencies were close to the maximal frequency used to determine the torque-frequency relation induced by EMS.
Statistical Analysis
One-way repeated measures ANOVA and post hoc Tukey tests were used to assess fatigue-induced changes in the evoked torque, and amplitude of the superimposed and posttetanic twitches. Paired t-tests were used to compare the ratio between superimposed and posttetanic twitch amplitude, MVC torque, potentiated twitch amplitude, VAL, and M-wave amplitude, duration, latency, and area before and after the fatiguing stimulations. Paired t-tests were used to compare MAL and M-wave amplitude, duration, latency, and area between the 1stand 15th
fatiguing stimulations. Two-way repeated measures ANOVA and post hoc Tukey tests were used to assess fatigue-induced changes in the torque-frequency relation. A Wilcoxon test was used to assess change in MVC torque and potentiated twitch amplitude across the two experiments. A significance level of P⬍ 0.05 was used to identify statistical significance. Statistical analyses were performed using Sta-tistica software for Windows (Statsoft version 6.1; StaSta-tistica, Tulsa, OK). Data are reported as means⫾ SD within the text and tables and as means⫾ SE in the figures.
RESULTS
MVC and EMS-Evoked Changes
The mean torque achieved in Experiment 1 during the 1st evoked contraction was 56.8 ⫾ 18.8 Nm, and this decreased rapidly during the subsequent evoked contractions (Fig. 2). Torque was significantly depressed (P ⬍ 0.001) after the 3rd contraction and declined by⬃60% of the initial value at the 15thcontraction. A similar decrease in torque was observed in Experiment 2 (Fig. 4), when it was significantly (P ⬍ 0.001) depressed by the 4thcontraction and decreased by⬃62% of its initial value at the 15thcontraction (Fig. 4C).
MVC torque (Table 1) decreased by 14.2⫾ 6.9% of initial torque after the fatiguing contractions in Experiment 1 (P ⬍ 0.001) and by 19.4⫾ 8.1% (P ⬍ 0.001) in Experiment 2. The decline in evoked torque was similar for the two experiments (P ⫽ 0.15). The EMS-evoked torque decreased by 61.1 ⫾ 14.6% across the two experiments, compared with a reduction of 17.6 ⫾ 8.0% in MVC torque. There was no association between the decrease in EMS-evoked torque and MVC torque in either experiment (Fig. 3).
VAL was estimated from the stimuli superimposed on the MVCs during both experiments (Table 1), and there were no changes after the fatiguing EMS-evoked contractions (P ⬎ 0.05). In contrast, potentiated twitch torque decreased by 12.2 ⫾ 10.5% (P ⬍ 0.01) after the fatiguing contractions in
0 20 40 60 80 100 120 140 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
EMS-evoked contraction number
T o rq ue ( % f ir s t c o nt ra c tion) EMS-evoked torque
Superimposed twitch amplitude Post tetanic twitch amplitude
*** *** ***
C
A
To rque (Nm ) 0 40 60 20 Time (s) 0 4 2 6 8 10 12B
Time (s) 0 4 2 6 8 10 12Fig. 2. First set of experiments: Representative records from the start and end of fatigue induced by repeated tetanic contractions. The records show the 1st(A)
and last (15th, B) tetanic (50 Hz) contractions induced by submaximal EMS with superimposed and posttetanic twitches elicited by nerve stimulation. C: data
(means⫾ SE, n ⫽ 9) from these experiments. Filled triangles, EMS-evoked torque; filled circles, superimposed twitch amplitude; open circles, posttetanic twitch amplitude. ***P⬍ 0.001, significantly different from the 1stEMS-evoked contraction.
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
Experiment 1 and by 24.9 ⫾ 8.9% (P ⬍ 0.001) after the fatiguing contractions in Experiment 2 (Table 1). The decrease was greater in Experiment 2 (P ⫽ 0.02).
There were small but statistically significant changes in Mmaxamplitude but not area for RF and for amplitude and area for VL and RF in Experiment 2 (Table 2). No changes were found in Mmax duration and latency.
Fatiguing Contractions
The large decrease in EMS-evoked torque after the 15th contraction was accompanied by an increase in superimposed twitch amplitude and a decrease in posttetanic twitch. Mean data from the nine subjects participating in this set of experi-ments are shown in Fig. 2C. The amplitude of the superim-posed twitch was 26.6⫾ 4.9 Nm in the 1stevoked contraction. It then increased, being significantly larger (P ⬍ 0.001) from the 5thblock until the last evoked stimulation, reaching⬃120% of the 1stevoked contraction. The posttetanic twitch amplitude started at 42.1⫾ 3.8 Nm after the 1stEMS-evoked contraction and significant decreased from the 5th until the last block (⬃10%, P ⬍ 0.001).
To characterize the MUs activated during the submaximal EMS protocol, a single electrical pulse delivered at the stim-ulation intensity used during the EMS protocol was delivered after each EMS-evoked contraction (posttetanic twitch). Figure 4C shows a large decrease in posttetanic twitch during the fatiguing contraction, which was accompanied by a decrease in EMS-evoked torque. The posttetanic twitch amplitude was 7.51 ⫾ 3.83 Nm after the 1stcontraction. It was significantly depressed from the 3rdblock until the end of fatiguing stimu-lation (64.9⫾ 8.9%, P ⬍ 0.001). A linear relation was found between the evolution of EMS-evoked torque and posttetanic twitch, parallel to the line of identity, indicating similar de-clines in posttetanic twitch amplitude and EMS-evoked torque (r⫽ 0.98; Fig. 5).
From the superimposed and posttetanic twitches obtained during the first experiment (at supramaximal intensity), MAL was calculated for the 1stand the 15thcontractions evoked by EMS. MAL was 36.3 ⫾ 9.0% for the 1stevoked contraction and decreased to 14.3⫾ 7.8% for the 15thevoked contraction (⫺59.9%, P ⬍ 0.001).
The torque-frequency relationship was analyzed before and after the fatiguing protocol with the EMS parameters, i.e. the same pulse width and stimulation intensity used during fatigu-ing exercise. Torque decreased at all stimulation frequencies
after the fatiguing contractions (Fig. 6A). The torque produced at 50 Hz was similar (P ⫽ 0.78) before and during the 1st contraction. However, the decrease in torque differed between the end of the fatiguing contraction (which decreased by ⬃60%) and the torque-frequency test (which decreased by ⬃40%, P ⬎ 0.001), indicating that some recovery had oc-curred before the torque-frequency test. Normalization of the data indicated a rightward shift of the torque-frequency relation after the fatiguing stimulation (Fig. 6B).
Statistical analysis of the Mmaxparameters associated with the posttetanic twitch evoked by supramaximal nerve stimula-tion at the 1st and 15th EMS contractions (Experiment 1) revealed a significant decline in amplitude for VM and RF muscles (⫺10.3 ⫾ 12.0% and ⫺14.9 ⫾ 14.3%, respectively; P ⬍ 0.05) and area for VM muscle (⫺16.0 ⫾ 19.8%, P ⬍ 0.05), whereas M-wave duration increased in RF muscle (⫹17.6 ⫾ 11.4%, P ⬍ 0.01). Regardless of the muscles considered, maximal M-wave latency did not differ between the start and end of the EMS exercise (Table 2).
DISCUSSION
The present study examined 1) the maximal twitch evoked at rest and superimposed during EMS, and 2) the mechanical response and torque-frequency relation of the active muscle. The results showed that fatigability elicited by EMS-evoked contractions was accompanied by a decrease in both MVC torque (18%) and the torque elicited by EMS (⬃60%). The adjustments included a rightward shift of the torque-frequency relation and a decrease in muscle activation level recorded during the EMS exercise. These results suggest that the torque decrease observed during submaximal EMS-evoked contrac-tions involved muscular mechanisms, but also a reduced num-ber of MUs recruited by the stimulation, likely due to changes in axonal excitability.
MVC and EMS-Evoked Changes
The submaximal EMS used in the present study induced a marked torque decrease of ⬃60% after only 15 contractions. Table 1. Maximal voluntary contraction torque, potentiated
twitch amplitude at rest, and voluntary activation level of the knee extensors muscles before and after EMS-evoked
contraction
Experiment 1 Experiment 2
Before After Before After
MVC, Nm 242.7⫾ 48.5 208.8 ⫾ 46.6† 218.1 ⫾ 37.5 175.8 ⫾ 34.8† Tw pot,
Nm
65.4⫾ 11.1 57.2⫾ 10.1* 60.5⫾ 11.9 46.0⫾ 12.9† VAL, % 92.6⫾ 5.8 93.4⫾ 3.8 94.5⫾ 5.0 92.7⫾ 5.7
MVC, maximal voluntary contraction torque; Tw pot, potentiated twitch amplitude at rest; VAL, voluntary activation level. Values are means⫾ SD. *P⬍ 0.01, †P ⬍ 0.001; significantly different from the before value.
Fig. 3. No correlation was found between MVC loss and EMS-evoked torque loss in the first (r⫽ 0.45) and second (r ⫽ 0.002) experiments.
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
Previous studies have already demonstrated comparable decreaes in torque after submaximal evoked contractions when the stimu-lation intensity was kept constant during the entire exercise (e.g. 7, 8). This torque decrease is generally attributed to the unnatural order in which MUs are activated by EMS (25). Indeed, it is now well known that during EMS with a wide pulse, muscle fibers are
recruited through motor axon depolarization, as well as through activation of spinal motor neurons by the afferent volley evoked by the stimulus (13, 19). Because EMS performed over the muscle belly generated contractions predominantly through the direct activation of the motor axons (6) and considering that faster contracting MUs tend to have lower axonal excitability threshold Table 2. M-wave properties for vastus lateralis, vastus medialis, and rectus femoris muscles before and after EMS-evoked contraction for both experiments and after the 1stand last EMS-evoked contraction in Experiment 2
Amplitude, mV Duration, ms Latency, ms Area, mV/ms
Before After Before After Before After Before After
Experiment 1 VL 6.95⫾ 3.60 6.92⫾ 3.64 7.58⫾ 2.15 7.69⫾ 2.48 6.86⫾ 0.55 6.85⫾ 0.64 0.135⫾ 0.119 0.142⫾ 0.130 VM 8.00⫾ 2.38 7.56⫾ 2.17 7.14⫾ 1.93 6.97⫾ 1.66 6.81⫾ 0.75 6.91⫾ 0.80 0.174⫾ 0.092 0.147⫾ 0.088 RF 4.71⫾ 1.65 4.30⫾ 1.37† 9.35⫾ 1.02 9.85⫾ 1.79 3.99⫾ 0.65 4.05⫾ 0.63 0.048⫾ 0.036 0.044⫾ 0.030 1st 15th 1st 15th 1st 15th 1st 15th VL 7.03⫾ 3.98 6.90⫾ 3.78 7.79⫾ 2.54 7.85⫾ 2.37 6.80⫾ 0.55 6.91⫾ 0.52 0.142⫾ 0.135 0.148⫾ 0.134 VM 9.15⫾ 2.55 8.24⫾ 2.64* 7.14⫾ 2.26 7.25⫾ 1.75 6.73⫾ 0.77 6.91⫾ 0.81 0.205⫾ 0.122 0.184⫾ 0.133* RF 4.56⫾ 1.57 3.87⫾ 1.46† 8.51⫾ 1.13 10.01⫾ 1.66† 3.99⫾ 0.65 4.11⫾ 0.65 0.042⫾ 0.033 0.037⫾ 0.031
Before After Before After Before After Before After
Experiment 2
VL 12.23⫾ 3.82 10.45⫾ 2.91* 7.22⫾ 1.96 7.18⫾ 1.42 7.44⫾ 2.03 7.46⫾ 1.89 0.348⫾ 0.209 0.256⫾ 0.166* VM 8.54⫾ 3.17 8.53⫾ 2.93 6.53⫾ 1.16 6.18⫾ 0.98 6.76⫾ 0.95 6.80⫾ 0.73 0.224⫾ 0.135 0.188⫾ 0.103 RF 5.68⫾ 3.26 5.16⫾ 3.11* 7.79⫾ 2.19 8.13⫾ 2.52 4.87⫾ 2.28 4.87⫾ 2.29 0.099⫾ 0.108 0.076⫾ 0.101* VL, vastus lateralis; VM, vastus medialis; RF, rectus femoris. Values are means⫾ SD. *P ⬍ 0.05, †P ⬍ 0.01; significantly different from the 1stEMS-evoked contraction.
0 20 40 60 80 100 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
EMS-evoked contraction number
T o rque e v ok e d by E M S ( % )
Post tetanic twitch amplitude (EMS) EMS-evoked torque ***
C
To rque (N m ) 0 40 60 20 Time (s) 0 4 2 6 8 10 12 Time (s) 0 4 2 6 8 10 12B
A
Fig. 4. Second set of experiments: Representative records from the start and end of fatigue induced by repeated tetanic contractions. The records show the 1st
(A) and last (15th, B) tetanic (50 Hz) contraction induced by submaximal electromyostimulation (EMS) with EMS-evoked posttetanic twitches. C: tetanic (filled
triangles) and posttetanic twitches (open circles) torque induced by submaximal EMS decreased in parallel during fatiguing stimulation. Values (means⫾ SE, n ⫽ 11) were normalized to the 1stcontraction; initial values for tetanic and twitch torque were 42.3⫾ 11.9 and 7.5 ⫾ 3.8 Nm, respectively. ***P ⬍ 0.001, significantly
different from the 1stcontraction.
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
compared with slower contracting MUs (35), it is tempting to suggest that the submaximal EMS used in the present study has mainly activated the fast-twitch MUs (see also 17, 20).
Despite the limited number of contractions (15 evoked contractions), the MVC torque loss (⬃18%) induced here by EMS is consistent with that reported in previously human quadriceps muscle (9, 14, 21, 24, 37, 41). In combination with this MVC torque loss, the decrease in potentiated peak twitch, the small but significant changes in maximal M-wave ampli-tude and area, and the unchanged VAL suggest that the mecha-nisms underlying the observed fatigue are due to the impairment of processes located in the muscle. Candidate mechanisms include altered muscle contractility related to Ca2⫹ kinetics beyond the membrane cell (2) and changes in muscle excitability linked to impaired Na⫹/K⫹pump function (18).
Consistent with this interpretation, the reduction in twitch amplitude elicited at the stimulation intensity used during EMS was linearly related to the decrease in EMS-evoked torque (31). The decrease in twitch torque was accompanied by a shift in the torque-frequency relation. Our results demonstrate a torque decrease at all frequencies and a rightward shift in the torque-frequency relation after the fatiguing exercise. The decreased torque observed at the higher tested frequency (100 Hz) could be explained by 1) a reduced number of active cross-bridges and/or 2) a decreased in force produced by each one, whereas a rightward shift of the relation is more related to decreased myofilaments Ca2⫹ sensitivity (34, 36). These re-sults indicate that physiological processes within the muscle are responsible for much of the fatigue induced by submaximal EMS and are in accordance with previous studies that have demonstrated that such exercise had a significant impact on the maximal torque-generating capacity of the subjects (11, 31, 32, 41).
The declines in EMS-elicited torque (⬃60%) and EMS twitch evoked during the fatiguing contraction (⬃62%) were greater than the reduction in MVC torque (⬃20%) and the
potentiated twitch (⬃20%). Moreover, there was no correlation between the decreases in EMS-elicited torque and MVC torque or the maximal twitch evoked by nerve stimulation and the twitch elicited at muscle level at the stimulation intensity used during the EMS exercise. The lack of association between these different outcomes was likely due to the muscle mass that was activated, which was only 36% for EMS during the fatiguing contraction compared with 93% during the MVC. Fatiguing Contraction
To estimate changes in the proportion of MUs activated during the fatiguing contraction, supramaximal stimulation was applied to the femoral nerve during (superimposed twitch) and after (posttetanic twitch) each EMS contraction. Superim-posed and posttetanic twitches changed differently during the fatiguing contraction, the superimposed twitch was increased to⬃120% of the initial value, whereas the posttetanic twitch decreased to ⬃90% of the 1stposttetanic twitch. As a conse-quence, the MAL demonstrated a significant decrease by ⬃60% from the start to the end of the fatiguing exercise, indicating that the number of MUs activated by EMS at the end of the exercise was reduced.
A possible mechanism to explain the opposing changes in the amplitudes of the evoked responses could be an increase in the excitability threshold of the motor axons due to repetitive activation. Trains of electrical stimuli can increase the excit-0 20 40 60 80 100 0 20 40 60 80 100
Post tetanic twitch (% )
EM S-e v o k e d T o rq u e ( % )
Fig. 5. A linear correlation was found between EMS-evoked torque and posttetanic twitch (r⫽ 0.98). 0 20 40 60 80 100 0 25 50 75 100 Pre Post Frequency (Hz) To rq u e ( % )
B
0 20 40 60 80 100 0 20 40 60 Pre Post Frequency (Hz) To rq u e ( N m )A
Fig. 6. Torque-frequency relation obtained by submaximal EMS obtained before and after fatiguing contractions. Data (means ⫾ SE, n ⫽ 11) are presented as absolute (A) and relative (B; 100 Hz torque set to 100%) values. Filled circles, before fatigue; open circles, after fatigue.
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
ability threshold of motor axons at the site of stimulation (4, 12, 22, 23) as a result of axonal hyperpolarization (22, 23). However, these motor axons can be recruited by supramaximal nerve stimulation and thus contribute to an increased superim-posed twitch. Such an interpretation is consistent with the greater decrease in posttetanic twitch amplitude elicited at the muscle level with the stimulation intensity used during the EMS exercise than that observed for the maximal twitch amplitude evoked by supramaximal nerve stimulation (⬃5.1 Nm vs.⬃3.8 Nm).
However, another possible mechanism that may explain the divergent changes in the amplitude of the evoked responses could be the submaximal stimulus rate (50 Hz) used during EMS compared with the rate used for the superimposed twitch. Indeed, at the muscle level, superimposed nerve stimulation was elicited at 100 Hz (seeMATERIALS AND METHODS). Consid-ering the torque-frequency relation, the increase in the rate of stimulation from 50 to 100 Hz for the MUs that are both activated by EMS and supramaximal nerve stimulation leads to an increase in torque of⬃15% before the EMS exercise. At the end of EMS, and due to the rightward shift in the torque-frequency relation, the difference in torque production between 50 and 100 Hz was⬃22%. The ⬃7% difference (⬃0.9 Nm) explains only ⬃15% of the increase in superimposed twitch (⬃5.9 Nm) obtained at the end of the EMS-evoked fatigue. Thus the greater part of the MAL decrease (85%) is likely due to activity-dependent changes in axonal excitability leading to a reduction in the number of MUs activated during the EMS exercise. This phenomenon, that reduced muscle activation from⬃36% at the start to ⬃14% at the end of EMS, seems to be the main contributor to the torque decrease observed after the submaximal EMS exercise, thus explaining the greater declines in EMS-elicited torque (60%) compared with MVC torque (20%).
To conclude, the present study showed that the reduction in force produced by a submaximal EMS protocol (⬃60%) was accompanied by a lesser decrease in MVC torque (⬃18%). Despite a rightward shift in the torque-frequency relation, a reduction in the number of MUs activated due to changes in excitability threshold of motor axons is likely a major mech-anism responsible for the greater torque loss during evoked contractions compared with voluntary contractions. These findings suggest that caution is required when interpreting decreases in EMS-elicited torque in term of voluntary torque capacity. Indeed, changes in the excitability threshold of the active axons due to repetitive stimulation that lead to a de-crease in the number of active MUs must be taken into account when comparing different EMS protocols, especially when stimulation parameters are modulated (width pulse, frequency). ACKNOWLEDGMENTS
We thank Y. Ballay for technical assistance and the volunteers who participated in the study. We acknowledge J.R. Gould, Pr. R.M. Enoka, and anonymous reviewers for helpful comments on a draft of the manuscript.
DISCLOSURES
No conflicts of interest, financial or otherwise, are declared by the authors.
AUTHOR CONTRIBUTIONS
B.M., R.L., and A.M. conception and design of research; B.M. and A.M. performed experiments; B.M. analyzed data; B.M., R.L., and A.M. interpreted results of experiments; B.M. prepared figures; B.M. and A.M. drafted
manu-script; B.M., R.L., and A.M. edited and revised manumanu-script; B.M., R.L., and A.M. approved final version of manuscript.
REFERENCES
1. Allen GM, Gandevia SC, McKenzie DK. Reliability of measurements of muscle strength and voluntary activation using twitch interpolation. Mus-cle Nerve 18: 593–600, 1995.
2. Allen DG, Westerblad H. Role of phosphate and calcium stores in muscle fatigue. J Physiol 536: 657–665, 2001.
3. Behm DG, St-Pierre DM, Perez D. Muscle inactivation: assessment of interpolated twitch technique. J Appl Physiol 81: 2267–2273, 1996. 4. Bergmans J, Michaux J. Hyperpolarization evoked in single human
nerve fibres by rhythmically repeated tetanizations. Arch Int Physiol Biochim 78: 569 –570, 1970.
5. Bergquist AJ, Clair JM, Lagerquist O, Mang CS, Okuma Y, Collins
DF. Neuromuscular electrical stimulation: implications of the
electrically-evoked sensory volley. Eur J Appl Physiol 111: 2409 –2426, 2011. 6. Bergquist AJ, Wiest MJ, Collins DF. Motor unit recruitment when
neuromuscular electrical stimulation is applied over a nerve trunk com-pared with a muscle belly: quadriceps femoris. J Appl Physiol 113: 78 –89, 2012.
7. Binder-Macleod SA, Russ DW. Effects of activation frequency and force on low-frequency fatigue in human skeletal muscle. J Appl Physiol 86: 1337–1346, 1999.
8. Binder-Macleod SA, Scott WB. Comparison of fatigue produced by various electrical stimulation trains. Acta Physiol Scand 172: 195–203, 2001.
9. Black CD, McCully KK. Muscle injury after repeated bouts of voluntary and electrically stimulated exercise. Med Sci Sports Exerc 40: 1605–1615, 2008.
10. Blair EA, Erlanger J. A comparison of the characteristics of axons through their individual electrical responses. Am J Physiol 106: 524 –564, 1933.
11. Boerio D, Jubeau M, Zory R, Maffiuletti NA. Central and peripheral fatigue after electrostimulation-induced resistance exercise. Med Sci Sports Exerc 37: 973–978, 2005.
12. Bostock H, Bergmans J. Post-tetanic excitability changes and ectopic discharges in a human motor axon. Brain 117: 913–928, 1994. 13. Collins DF. Central contributions to contractions evoked by tetanic
neuromuscular electrical stimulation. Exerc Sport Sci Rev 35: 102–109, 2007.
14. Deley G, Millet GY, Borrani F, Lattier G, Brondel L. Effects of two types of fatigue on the VO2 slow component. Int J Sports Med 27:
475–482, 2006.
15. Fang ZP, Mortimer JT. A method to effect physiological recruitment order in electrically activated muscle. IEEE Trans Biomed Eng 38: 175–179, 1991.
16. Gandevia SC, McNeil CJ, Carroll TJ, Taylor JL. Twitch interpolation: superimposed twitches decline progressively during a tetanic contraction of human adductor pollicis. J Physiol 591: 1373–1383, 2013.
17. Gregory CM, Bickel CS. Recruitment patterns in human skeletal muscle during electrical stimulation. Phys Ther 85: 358 –364, 2005.
18. Hicks A, McComas AJ. Increased sodium pump activity following repetitive stimulation of rat soleus muscles. J Physiol 414: 337–349, 1989. 19. Hultman E, Sjoholm H, Jaderholm-Ek I, Krynicki J. Evaluation of methods for electrical stimulation of human skeletal muscle in situ. Pflugers Arch 398: 139 –141, 1983.
20. Jubeau M, Gondin J, Martin A, Sartorio A, Maffiuletti NA. Random motor unit activation by electrostimulation. Int J Sports Med 28: 901–904, 2007.
21. Jubeau M, Sartorio A, Marinone PG, Agosti F, Van Hoecke J, Nosaka
K, Maffiuletti NA. Comparison between voluntary and stimulated
con-tractions of the quadriceps femoris for growth hormone response and muscle damage. J Appl Physiol 104: 75–81, 2008.
22. Kiernan MC, Lin CS, Burke D. Differences in activity-dependent hyperpolarization in human sensory and motor axons. J Physiol 558: 341–349, 2004.
23. Kiernan MC, Mogyoros I, Burke D. Differences in the recovery of excitability in sensory and motor axons of human median nerve. Brain 119: 1099 –1105, 1996.
24. Lieber RL, Kelly MJ. Torque history of electrically stimulated human quadriceps: implications for stimulation therapy. J Orthop Res 11: 131– 141, 1993.
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
25. Maffiuletti NA. Physiological and methodological considerations for the use of neuromuscular electrical stimulation. Eur J Appl Physiol 110: 223–234, 2010.
26. Maffiuletti NA, Minetto MA, Farina D, Bottinelli R. Electrical stimu-lation for neuromuscular testing and training: state-of-the art and unre-solved issues. Eur J Appl Physiol 111: 2391–2397, 2011.
27. Matkowski B, Place N, Martin A, Lepers R. Neuromuscular fatigue differs following unilateral vs bilateral sustained submaximal contractions. Scand J Med Sci Sports 21: 268 –276, 2011.
28. McNeil CJ, Murray BJ, Rice CL. Differential changes in muscle oxygenation between voluntary and stimulated isometric fatigue of human dorsiflexors. J Appl Physiol 100: 890 –895, 2006.
29. Merton PA. Voluntary strength and fatigue. J Physiol 123: 553–564, 1954.
30. Neyroud D, Dodd D, Gondin J, Maffiuletti NA, Kayser B, Place N. Wide-pulse-high-frequency neuromuscular stimulation of triceps surae induces greater muscle fatigue compared with conventional stimulation. J Appl Physiol 116: 1281–1289, 2014.
31. Papaiordanidou M, Billot M, Varray A, Martin A. Neuromuscular fatigue is not different between constant and variable frequency stimula-tion? PloS One 9: e84740, 2014.
32. Papaiordanidou M, Guiraud D, Varray A. Kinetics of neuromuscular changes during low-frequency electrical stimulation. Muscle Nerve 41: 54 –62, 2010.
33. Place N, Maffiuletti NA, Ballay Y, Lepers R. Twitch potentiation is greater after a fatiguing submaximal isometric contraction performed at short vs. long quadriceps muscle length. J Appl Physiol 98: 429 –436, 2005.
34. Place N, Yamada T, Bruton JD, Westerblad H. Interpolated twitches in fatiguing single mouse muscle fibres: implications for the assessment of central fatigue. J Physiol 586: 2799 –2805, 2008.
35. Rodriguez-Falces J, Place N. Recruitment order of quadriceps motor units: femoral nerve vs. direct quadriceps stimulation. Eur J Appl Physiol 113: 3069 –3077, 2013.
36. Sweeney HL, Bowman BF, Stull JT. Myosin light chain phosphorylation in vertebrate striated muscle: regulation and function. Am J Physiol Cell Physiol 264: C1085–C1095, 1993.
37. Theurel J, Lepers R, Pardon L, Maffiuletti NA. Differences in cardio-respiratory and neuromuscular responses between voluntary and stimu-lated contractions of the quadriceps femoris muscle. Respir Physiol Neurobiol 157: 341–347, 2007.
38. Thomas CK, Nelson G, Than L, Zijdewind I. Motor unit activation order during electrically evoked contractions of paralyzed or partially paralyzed muscles. Muscle Nerve 25: 797–804, 2002.
39. Thomas CK, Griffin L, Godfrey S, Ribot-Ciscar E, Butler JE. Fatigue of paralyzed and control thenar muscles induced by variable or constant frequency stimulation. J Neurophysiol 89: 2055–2064, 2003.
40. Vanderthommen M, Duteil S, Wary C, Raynaud JS, Leroy-Willig A,
Crielaard JM, Carlier PG. A comparison of voluntary and electrically
induced contractions by interleaved 1H- and 31P-NMRS in humans. J Appl Physiol94: 1012–1024, 2003.
41. Zory R, Boerio D, Jubeau M, Maffiuletti NA. Central and peripheral fatigue of the knee extensor muscles induced by electromyostimulation. Int J Sports Med 26: 847–853, 2005.
by 10.220.33.1 on February 4, 2017
http://jap.physiology.org/
