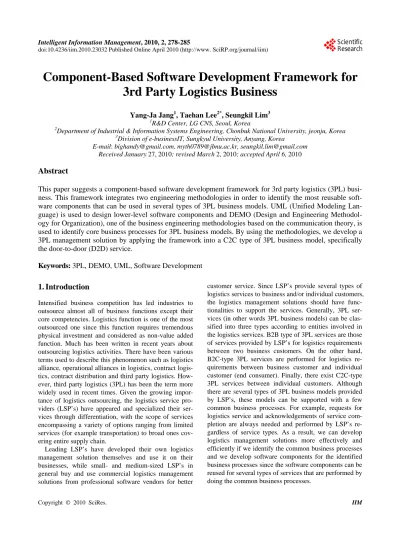

Component-Based Software Development Framework for

3rd Party Logistics Business

Yang-Ja Jang1, Taehan Lee2*, Seungkil Lim3 1

R&D Center, LG CNS, Seoul, Korea

2

Department of Industrial & Information Systems Engineering, Chonbuk National University, jeonju, Korea

3

Division of e-businessIT, Sungkyul University, Anyang, Korea

E-mail: bighandy@gmail.com, myth0789@jbnu.ac.kr, seungkil.lim@gmail.com Received January 27, 2010; revised March 2, 2010; accepted April 6, 2010

Abstract

This paper suggests a component-based software development framework for 3rd party logistics (3PL) busi-ness. This framework integrates two engineering methodologies in order to identify the most reusable soft-ware components that can be used in several types of 3PL business models. UML (Unified Modeling Lan-guage) is used to design lower-level software components and DEMO (Design and Engineering Methodol-ogy for Organization), one of the business engineering methodologies based on the communication theory, is used to identify core business processes for 3PL business models. By using the methodologies, we develop a 3PL management solution by applying the framework into a C2C type of 3PL business model, specifically the door-to-door (D2D) service.

Keywords: 3PL, DEMO, UML, Software Development

1. Introduction

Intensified business competition has led industries to outsource almost all of business functions except their core competencies. Logistics function is one of the most outsourced one since this function requires tremendous physical investment and considered as non-value added function. Much has been written in recent years about outsourcing logistics activities. There have been various terms used to describe this phenomenon such as logistics alliance, operational alliances in logistics, contract logis-tics, contract distribution and third party logistics. How-ever, third party logistics (3PL) has been the term more widely used in recent times. Given the growing impor-tance of logistics outsourcing, the logistics service pro-viders (LSP’s) have appeared and specialized their ser-vices through differentiation, with the scope of serser-vices encompassing a variety of options ranging from limited services (for example transportation) to broad ones cov-ering entire supply chain.

Leading LSP’s have developed their own logistics management solution themselves and use it on their businesses, while small- and medium-sized LSP’s in general buy and use commercial logistics management solutions from professional software vendors for better

Y. J. JANG ET AL. 279

In this paper, we suggest a component-based software development framework for 3rd party logistics (3PL) business. This framework integrates two engineering methodologies in order to identify the most reusable software components that can be used in several types of 3PL business models. UML (Unified Modeling Lan-guage), known as de facto standard for object-oriented software design, is used to design lower-level software components. DEMO (Design and Engineering Method-ology for Organization), one of the business engineering methodologies based on the communication theory [1,2], is used to identify core business processes for 3PL busi-ness models. We develop a 3PL management solution by applying the framework into a C2C type of 3PL business model, specifically the door-to-door (D2D) service.

2. 3

Party Logistics Management Solution

Structure

3rd Party Logistics Management Solution is the software needed by 3PL for planning, executing, and controlling the logistics activities. The solution can be categorized by the levels of component granularity within the busi-ness component approach. The categories are addressed in order, from finest-grained to most coarse-grained. They are as follows:

1) Distributed component: It has a well- defined run-time interfaces and a runrun-time network address. Also, it has a specific internal structure into which those ob-ject-oriented programming language classes fit or plug. 2) Business component:A component that implements a single autonomous business concept, vendor as an ex-ample. It usually consists of one or more distributed components that together address the various aspects of distribution required by the business component.

3) System-level component: A group of business com- ponents that cooperate to deliver the cohesive set of functionality required by a specific business need. When a business component system is encapsulated by being provided with clean interfaces designed so that the sys-tem as a whole can be treated as a black box, then it be-comes a component in its own right: for example, as a vendor management system [3].

Figure 1 shows the relationship between the three dif-ferent level components. We propose the development process of the logistics management solution component in the next section.

3.

Solution Development Process

A business model can be defined as architecture for product, service, and information flow, including a de-scription of business players, their roles, and revenue sources. For example, some of the most popular reve- nue-generating models adopted by companies are e-tail

Component

System-Level Component

Business Component

Distributed Component

Figure 1. Solution component taxonomy.

model (online retailing) and online auction. The logistics business model also can be defined as a subset of general business models and it has changed very quickly in con-formity with the velocity of the logistics business change. As information technology has to support the specific business model, we designate the solution development process in sequence from the business modeling to com-ponent system development. Figure 2 is a development process flow diagram.

3.1. Business Modeling

When developing the logistics management system, an important activity is to design a business model. The purpose of a business model is to describe the funda- mental business aspects of the system to be built. Thus, a

Logistics Chain Business Modeling

Logisstics chain Business Model

DEMO: Business Process Modeling

Interaction Model _{Configuration} System

Business Information Modeling Solution Requirement Analysis

Use Case Model

Component Identification

Component Interface Specification

Component Development/Assembly

Component System Business type model Detailed Transaction

Specification

D2D Model

Sender LSP Receiver

Parcel/Money Parcel

Pickup Delivery

E-tail Model

Customer

LSP

e-tailer Sales

Order / Money _{Sales(Order,Money)}

Product/Money

Supplier Money

Track and Trace Delivery

Product

Sales Transfer

Pickup

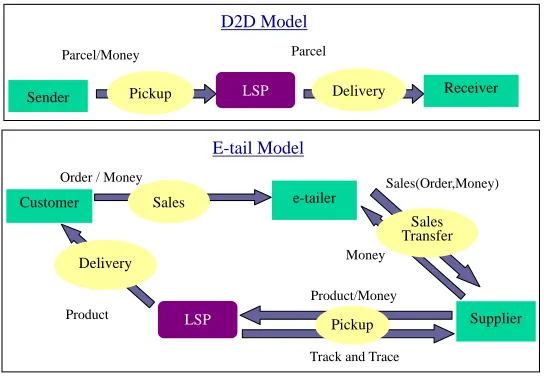

Figure 3. Business model representation.

business model describes which actors are involved, what the actors offer each other, and what activities they perform [4]. The central concept in a business model is that of value, and the model described how value is ex-changed between actors in a network view. Figure 3

describes the door-to-door (D2D) logistics business model and the e-tail model.

Following Gordijn et al. [4], we identity the following basic notions of a business model:

 Actor ( A )-A set of actor types

 Value Object (VO) -A set of value object types. A value object is a service or a thing that is of value to one or more actors

 Value Transfer (VT) -A set of value transfer types. A value transfer is the transfer of a value object from one actor to another actor.

 Value Exchange (VE) -A set of value exchange types. value exchange consists of two value transfers. The intuition is that a value exchange consists of two reciprocal acts one actor providing another actor with something of value and receiving something of value in return.

In a D2D model, a sender and LSP exchanges a parcel and money and the LSP transfers the parcel to a receiver.

3.2. Business Process Modeling

DEMO (Dynamic Essential Modeling of Organization) is a business process modeling methodology developed by Reijswoud and Dietz, in Delft University of Technology [1,2]. This methodology offers a conceptual framework that is suited as a starting point and basis for modeling information systems and or process modeling [5-8]. The theoretical foundation of DEMO is called the Order- Execution-Result-paradigm, OER paradigm in short.

This paradigm basically states that it is possible to ac-quire an understanding of an organization that is fully abstracted from any kind of realization. What is left of the knowledge about an organization after separating out all realization aspects is called its essence, i.e., the essen-tial business process for the organization to conduct its own business.

In a D2D logistics business model, we identify four essential interaction business processes with the external actors and twelve internal business processes as shown in

Figure 4. For example, business process T04 can be de-fined as "Pickup person: requests: Customer: Parcel fee <PO> is paid" in OER notation.

In the course of process modeling, the detailed infor-mation transaction and data manipulation needs can be specified in the table format shown in Table 1. It is used for the information modeling in the conceptual manner.

Then, we reflect the system boundary specified by the business process model and the essential internal busi-ness processes in DEMO to identify the system-level components shown in Figure 5. The system consists of four modules categorized by function and each module consists of several system-level components.

3.3. Business Process Modeling

Y. J. JANG ET AL. 281

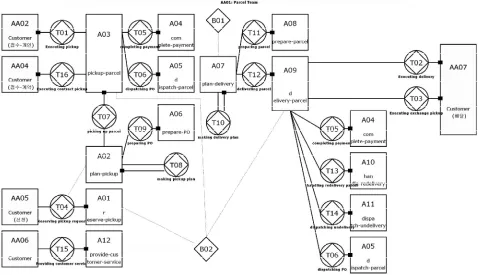

Figure 4. Business process model of D2D.

Logistics Cahin Management System (D2D, E-tail)

Pick-Up Module

Pick-Up Planning Component

Pick-Up Execution Component

Payment Component

Delivery Module Request Module

Pick-Up Post-processing Component

Pick-Up Pre-processing Component

Delivery Planning Component

Delivery Execution Component

Payment Component

Delivery Post-processing Component

Delivery Pre-processing Component

Shipping Component

Reservation Component

Customer Service Module

Customer Service Component

Monitoring Component

Order Management

Component

Figure 5. Logistics management system component for D2D.

3.4. Business Information Modeling

The business process description introduces a number of terms, such as reservation, order, and customer, which we need to get clear about. We can construct a mind map that relates these and other important terms, business concept. And we identify business types by converting the business concept. Business types have their unique business identities and they are independent information objects not having enforcing relationships with other objects [9].

The business type model is represented in Figure 6 by a UML class diagram which contains the specific business

information that must be held being specified.

3.5. Component Identification

Table 1. Detailed data and information transaction specification for business process T4.

Level Initiator Executor Result

E Customer requests post office Pickup-request <PO> is reserved

I Customer requests enter-pickup-info(call center) Pickup-request-info <PO> is received

I Customer requests manage-pickup-fee(call center) Pickup-fee-request <PO> is received

I manage-pickup-fee (call

center) requests compute-pickup-fee(call center) Pickup-fee-request <PO> is received

I compute-pickup-fee (call

center) requests receive-pickup-fee(call center) Estimated-pickup-fee <PO> is received

I receive-pickup-fee (call center) requests Customer Estimated-pickup-fee <PO> is received

I Customer requests manage-available-time(call center) Pickup-available-time-request <PO> is

received

I manage-available-time (call

center) requests compute-available-time(call center)

Pickup-available-time-request <PO> is received

I compute-available-time (call

center) requests receive-pickup-available(call center) Available-time-info <PO> is received

I manage-pickup-available (call

center) requests Customer Available-time-info <PO> is received

I Customer requests manage-pickup-reservation(call center) Selected-time-info <PO> is received

I manage-pickup-reservation (call

center) requests Customer Pickup-reservation-info <PO> is received

I manage-pickup-reservation (call

center) requests

manage-store-pickup-reservation(call

center) Pickup-reservation-info <PO> is received

D manage-store-pickup-reservation _{(call center)} requests store-pickup-reservation(call center) Pickup-reservation-info <PO> is stored

D manage-pickup-reservatio n (call

center) requests PLIIS

Pickup-reservation-info <PO> is trans-ported

D manage-pickup-reservation (call

center) requests pickup-parcel

Pickup-reservation-info <PO> is trans-ported

I Customer requests manage-cancel-reservation(call center) Reservation-cancel-info-request <PO> is

received

I manage-cancel-reservation (call

center) requests Customer Reservation-cancel-info <PO> is received

I manage-cancel-reservation (call

center) requests

manage-store-cancel-reservation(call

center) Reservation-cancel-info <PO> is received

D manage-store-cancel-reservation

Y. J. JANG ET AL. 283 Employee EmpNo ID Name RegNo Tel OperationRecord Date Distance GasFee Vehicle ID VehicleNo Type Capacity PDA ID GPSModelName CDMANo MemorySize TrInfoSendCycle PickupPlan Date SeqNo SchedTime DeliveryPlan Date SeqNo SchedTime ExpressMan WorkDay StartTime EndTime Type Delivery RegNo ReceiveDate ReceiverName ReceiverAddr SenderName SenderAddr RedeliveryNo Pickup RegNo ReceiveDate ReceiverName ReceiverAddr Fee District ID Addr RequestOrder PostCode ReqNo ReqDate ReqName ReqAddr AddressBook Name ZipCode Addr Tel Mobile ContractCustomer Name ApprovalNo ContractFee Customer ID PWD CustomerType Name ZIPCode Address Tel

Figure 6. Business type model.

Employee

O peratio nRecord

IRateMgt RateTable IAddrCorrectEngineMgt AddrCorrectEngine ISeqGenEngineMgt SeqGenEngine IReservationEngineMgt ReservationEngine IPickupPlanMgt IDeliveryPlanMgt IDeliveryMgt Vehicle PDA PickupPlan DeliveryPlan IExpressManMgt IPickupMgt Delivery IDistrict Mgt ExpressMan Pickup District IRequestOrderMgt ICustomerMgt RequestOrder AddressBook Con trac tCust ome r

Customer

IM ana geCu stomer

IManageAddrBook

IManageRequestOrder

IM akeRe serv atio n IManageFileFormat IEnterRetunOrder IEnterExchangeOrde r IPrintLabel ICancelReservation IInquireTrack&TraceInfo IInquireResults ShippingManager

Entity Component Process Component

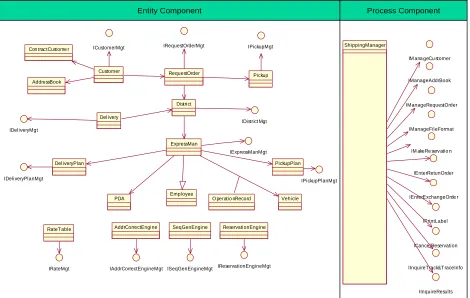

Figure 8. Component system development framework.

and which information can stand alone [9]. Generally, we create one business interface for each core type in the business type model. Each business interface manages the information represented by the core type. We call these entity components. The process component and entity component is described in Figure 7.

3.6. Component Development and Assembly

Component systems adhere to the principle of divide and conquer for managing complexity and component reus-ability. Component reusability does not mean that the-same component can be reused in any other systems but also indicates that the component can be replaced by another component with the same interface specification as the business process changes. We propose the in-ter-linked hierarchical component system development framework from the business modeling, in which the process modeling is the core process, to the component development and assembly. The framework is shown in

Figure 8. A new or reengineered system can be assem-bled into by business components from the business-component registry and repository. Also new or revised components may be managed in the component registry and repository.

4.

Concluding Remarks

Logistics business is expected to be developed into a logistics web stage, in which the LSP’s are partners col-laborating for business effectiveness and efficiency. In this stage, the logistics business model can be generated,

changed, united and disappeared more quickly than now. Being in collusion with this trend, component based de-velopment methodology for logistics business is required to support the various business models.

This study has a significance to suggest the framework to examine the components to support the business model and can be used to develop the multi-stage or web-stage logistics management solution.

6. References

[1] V. E. van Reijswoud and J. L. G. Dietz, “DEMO Model-ing Handbook,” Vol. 1, Department of Information Sys-tems, Delft University of Technology, 1999.

[2] J. L. G. Dietz and H. B. F. Mulder, “Realizing Strategic Reengineering Objectives with DEMO,” Proceedings of the International Symposium on Business Process Mod-eling, 1996.

[3] P. Herzum and O. Sims, “Business Component Factory: A Comprehensive Overview of Component-Based De-velopment for the Enterprise,” OMG Press, 2000. [4] J. Gordijn, J. M. Akkermans and J. C. Vliet, “Business

Modeling is not Process Modeling,” Proceeding of eCOM2000 workshop in 19th International Conference on Conceptual Modeling, 2000.

[5] P. Jayaweera, P. Johannesson and P. Wohed, “From Business Model to Process Pattern in e-commerce,” Pro-ceedings of the Sixth International Workshop on the Lan-guage-Action Perspective on Communication Modeling, 1999.

Y. J. JANG ET AL. 285

[7] J. L. G. Dietz, “The Deep Structure of Business Proc-esses,” Communications of the ACM, Vol. 49, No. 5, 2006.

[8] P. Green and M. Rosemann, “Integrated Process model-ing: An Ontological Evaluation, Information Systems,”

Vol. 25, No. 2, 2000, pp. 73-87.
