SOuNdSOAk
®Acoustical Wall, Baffle,
and Diffuser Systems
Wall
SyStemS
Sound Design
Soundsoak
®Acoustical
Wall, Baffle, and
Diffuser Systems
effectively control
unwanted noise.
The key feature of
our engineered wall
systems is an
acoustical inner core
(either mineral fiber or
fiberglass) covered with
your choice of woven fabric,
composed fabric or easy-care
vinyl. Soundsoak acoustical wall
panels absorb 50% to 90% of the sound striking
the surface – 3 to 6 times the sound absorption
of fabric-covered gypsum board typically used.
Plus, Soundsoak minimizes sound transmission
from space to space for increased
speech
privacy.
Design Flexibility
Soundsoak Acoustical Wall Systems are available in a wide range of sizes, including custom 4' wide panels. Fabric-wrapped edge details and special, made-to-order panel sizes are also available as custom options. Woven and composed fabrics or vinyl finishes complement today’s interiors and coordinate with Soundsoak Baffles and Diffusers. Chair Rail accessories are available in a variety of finishes to provide more design and durability options for your Soundsoak installation.

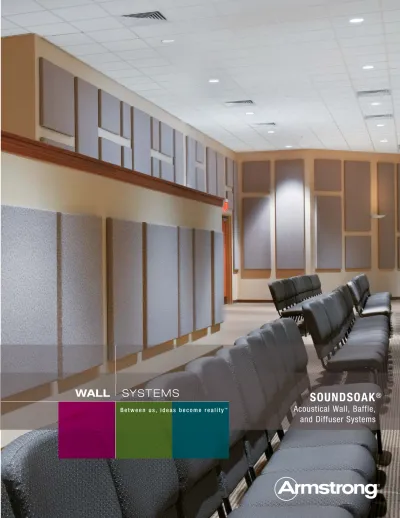

Cover photo: Custom Soundsoak® Walls in Guilford
Block Party Canyon fabric with Mitered edge detail Base wall Spline Perforated mineral fiber or fiberglass substrate Fabric or vinyl finish J-molding
Acoustical Performance
Two types of substrate or acoustical core options are available for wall panels – fiberglass and mineral fiber.
• Fiberglass for superior sound absorption in situations like perimeter walls in open plan applications
• Mineral fiber for excellent acoustical performance in closed offices and places desiring the practicality of a tackable surface Other acoustical options:
• Diffuser accessories for ceilings and walls blend sound for improved acoustics
• Baffles for exposed structure areas reduce reverberation time Wall Mount Barrel Sound Diffusers in Soundsoak FR-701 Quartz fabric Soundsoak Acoustical Wall System in Lido Oak Bluffs with white
Sustainable
Soundsoak woven fabrics are constructed from 100% post-consumer recycled materials. The substrate’s recycled composition is:
• Mineral fiber – 65% • Fiberglass – 52%
Soundsoak can contribute towards a number of LEED®
categories for commercial interiors, new construction and schools. For more details, see our sustainable design sheet available online. Standard Soundsoak wall panels meet the Collaborative for High Performance Schools (CHPS) low-emitting materials criteria. The following is a list of standard Soundsoak products that apply:
• Soundsoak 60 Wall Panels (all sizes and colors with the following fabric and vinyl surfaces:
FR-701, Lido, Carrara, Spinel, Zirconia, Rhythms, Soundsoak, Signature Vinyl, Classic Vinyl)
• Soundsoak 85 Wall Panels (maximum of 340 square feet of wall coverage in standard classroom – all sizes and colors with the following fabric surfaces: FR-701, Lido, Carrara, Spinel, Zirconia, Rhythms, Soundsoak)
Broad Application
Sound control panels are ideal for use in commercial, institutional and educational buildings – anywhere noise reduction and sound privacy are a concern. They can be used in any room or hallway, even exit corridors or stairwells. Unlike ordinary fabric covered wall panels, Soundsoak can be used in buildings without sprinklers.
Easy Installation
Soundsoak wall panels are easy to install over existing walls or directly to studs with minimal workplace disruption. Standard panel widths are 24" and 30" and heights are 6', 8', 9' and 10'. Custom sizes include 4' wide panels. Impact corners are available to shield from collisions. Standard J-moldings simplify installation. Standard 2' x 4' Soundsoak Baffles are easy to install with the adjustable hanging kit.
Custom Capabilities
Increase your design flexibility with made-to-order panels. Custom Soundsoak offers special sizes, thicknesses, edge details and fabric-wrapped corners that can be tailored to specific project needs. In addition, a wide variety of fabric options can be used on Custom Soundsoak panels. Custom Baffles are available in sizes up to 4' x 8'.
Custom Mitered Edge Detail Custom Edge Details
Sound Advice
Study after study shows unwanted noise as the major
cause of reduced employee effectiveness, high stress and
declining job satisfaction. The problem is loud and clear
when you realize that 98% of the noise striking a hard
wall surface (such as drywall) bounces back into the room
creating reverberations that disturb, disrupt and distract.
Whether it be for reasons of employee productivity or
speech privacy, every commercial, institutional and
educational building needs to control excess sound.
Acoustical ceilings frequently aren’t enough and covering
walls with carpet or fabric just doesn’t get the job done.
Custom Soundsoak® Wall System in Custom Carnegie Strie fabric with Beveled
Sound Investment
Armstrong Soundsoak
®Acoustical Systems
are a smart investment in productivity. People
work harder and more efficiently when not
disturbed by unwanted noise. In fact, in many
environments, speech privacy has become a
mandate. Soundsoak offers
environmentally-friendly, easy-to-install acoustical wall, baffle,
and diffuser systems that are very affordable.
Ceilings Pyramid Sound Diffusers
Soundsoak Baffles
15% 20% 25% 30% 35% 40% 45% 50% 55% 60% 65% 75% 80% 85% 90% 95% 70% 100% armstrong.com/soundsoak
Contact your Armstrong representative at 1 877 ARMSTRONG. You can also browse our website for:
• Standard and custom product information • Real time selection and specification tools • Contacts – reps, where to buy, who will install • Online catalog, submittal pages and CAD details • Literature and samples
1 877 ARMSTRONG (276-7876)
• Customer Service Representatives,
7:45 a.m. to 5:00 p.m. EST, Monday through Friday • TechLine – Technical information
8 a.m. to 5:30 p.m. EST, Monday through Friday FAX 1-800-572-8324 or email: [email protected] • For rich, acoustical, and sustainable wood wall solutions,
consider WoodWorks® Walls (available in Channeled, Ekos®,
Grille and Linear options); visit armstrong.com/woodworks for more information
• For translucent wall solutions, consider Infusions® Partitions
or Walls; visit armstrong.com/infusions for more information • For custom Infusions, Soundsoak, and WoodWorks panels,
visit armstrong.com/walls or call 1 877 ARMSTRONG and select options 1-1-4 to work with the Architectural Specialties project management team
