A study of the factors affecting pigment distribution in latex paints

(1)

A Study of the Factors Affecting

Pigment Distribution in Latex

Paints

Roger Francis Graham Brown

A thesis submitted to University College London

for the degree of Doctor of Philosophy.

Work carried out at the laboratories of

Paint Research Association, Teddington, UK.

UCL

A u gust 1997

(2)

INFORMATION TO ALL U SE R S

The quality of this reproduction is d ep en d en t upon the quality of the copy subm itted.

In the unlikely even t that the author did not sen d a com plete manuscript

and there are m issing p a g e s, th e se will be noted. Also, if material had to be rem oved, a note will indicate the deletion.

uest.

ProQ uest 10017442

Published by ProQ uest LLC(2016). Copyright of the Dissertation is held by the Author.

This work is protected against unauthorized copying under Title 17, United S ta tes C ode. Microform Edition © ProQ uest LLC.

ProQ uest LLC

789 East E isenhow er Parkway P.O. Box 1346

(3)

Ac k n o w l e d g e m e n t s.

G ratitu d e is expressed to the E uropean U nion and th e consortium of

in d u stria l sponsors providing funding for th e BRITE-EURAM project

“H igh Perform ance W aterborne Coatings”.

The a u th o r also w ishes to th a n k the following people: Professor David

W illiams for his supervision and guidance; D r Chris C arr for

overseeing th e work on a day to day basis; M r Jo h n Bernie for

arran g in g funding for postg rad u ate study; M r Mike Taylor for the

com puter program and m any stim u latin g discussions; M r C hris Seah

for help w ith statistics and analysis of results; and D r Yvonne

K ershaw w ithout whom it is doubtful th a t th is th esis would have been

(4)

The distrib u tio n of pigm ent particles w ithin a decorative gloss p a in t is

of g reat im portance in providing opacity an d high gloss. L atex p ain ts

differ from solventborne p a in ts in th e w et sta te in a n u m b er of ways.

One fu n d am en tal difference is th a t th e volume occupied by th e latex

particles cannot be occupied by th e pigm ent particles and th e shape of

th is excluded volume varies as the size ratio of pigm ent an d latex

changes. Also, th ere is com petition betw een latex an d pigm ent

surfaces to adsorb surface active species added to provide colloidal

stability an d rheological control in a latex p ain t. The geometric effect

of varying th e particle size ratio w as modelled using b in ary m ixtures

of chem ically sim ilar latices stabilised w ith th e sam e su rfactan t. It

w as found th a t dispersion of the pigm ent m odelling latex particles

w as im proved in th e dry film as the size ratio of latex particles to

m odel pigm ent particles decreased. Sim ultaneous com puter

sim ulation of bin ary dispersions using h a rd sphere po ten tials

generated th e sam e conclusions. T here w as good num erical agreem ent

betw een th e two sets of resu lts once th e effect of volume concentration

of th e model pigm ent particles h ad been m athem atically corrected for.

Study of system s containing real pigm ent particles showed th a t

geometric effects predicted by modelling were still valid w ithin the

size range studied. Physico-chemical effects associated w ith varying

surface a re a ratio s were not observed. Some chem ical effects were also

evaluated. D ifferent pigm ent grades were studied w ith differing

surface tre a tm e n ts. The type and levels of additives w ere also varied.

I t w as found th a t pigm ent distribution changed radically from grade

to grade in otherw ise sim ilar form ulations. The types and levels of

additives required to prom ote good pigm ent dispersion w as very

(5)

Ab b r e v ia t io n s.

A bbreviations commonly used th roughout th is th esis are listed below.

%SS P ercentage of single spheres.

AA Acryhc acid.

ANoVA A nalysis of variance.

AOT Aerosol OT (sodium dioctylsulfosuccinate).

APS Am m onium persulfate.

BA B utyl acrylate.

cmc C ritical m icellar concentration.

CPVC C ritical pigm ent volume concentration.

CTR Controlled tem p eratu re room.

DLVO D eryaguin, L andau, Verwey and Overbeek.

HEC H ydroxyethyl cellulose.

HLB Hydrophilic-lipophilic balance.

HSVC H ard solids volume concentration.

k-B ar W ire wound apphcator bar.

MEK M ethyl ethyl ketone (butanone).

MEET M inim um tem p eratu re of film form ation.

MMA M ethyl m ethacrylate.

NAD Non aqueous dispersion.

PCS Photon correlation spectroscopy.

PMMA Poly (m ethyl m ethacrylate).

PRA P a in t R esearch Association.

PS Poly (styrene).

PVC Pigm ent volume concentration.

RH R elative hum idity.

SANS Sm all angle n eu tro n scattering.

SEM Scanning electron microscope/microscopy.

TEM T ransm ission electron microscope/microscopy.

Tg G lass tran sitio n tem p eratu re.

UI U niversal indicator.

(6)

Symbols used w ithin th is th esis are listed below.

r S h ear stress.

To Yield stress.

6 Angle betw een incident and observed radiation.

(f) Volume fraction of spheres.

p.. E stim ates of coefficients for effects of variables x-, and

interactions

y Viscosity.

Viscosity of th e continuous m edium .

y^ Reduced viscosity, /

y ^ Viscosity a t infinite sh ear rate.

X W avelength of rad iatio n scattered.

77 Refractive index.

rj^ Relative refractive index, T]Jrj^.

cTp„ Interfacial tension betw een polymer and w ater.

p D ensity of polymer.

^ S hear rate.

% o Solids content, assum ing no conversion of m onom er to

polymer, expressed as a percentage.

E xperlm entalty determ ined solids content, expressed as a percentage.

%„„„ M ass of m onomer in th e in itial recipe, expressed as a

percentage.

% SS Single sphere fraction, expressed as a percentage.

b N um ber of confoundings to be perform ed.

d Particle diam eter.

d f D esired final latex particle diam eter.

ds D iam eter of latex seed particles.

dop, O ptim um particle diam eter for scatter.

Ef S cattering efficiency.

F Reflectivity ratio.

Fa M agnitude of capillary forces prom oting coalescence.

F g M agnitude of forces resistin g deform ation.

/ Single sphere fraction.

h HSVC, volume concentration of h a rd spheres.

/ S cattered in ten sity of radiation.

(7)

It T otal in ten sity of scattered light.

j Time dependent creep compliance function.

M f F in al m ass of latex particles.

m„, M ass of m onomer required.

rris M ass of seed particles required.

Ne N um ber of experim ents.

N Is Average density of discs in two dim ensions.

n N um ber of particles already p resen t in q u a d ra t i.

n, N um ber of levels of variables.

n. N um ber of q u a d ra ts considered.

n ('•) R adial distribution function w ith distance from th e particle

centre.

p PVC, pigm ent volume concentration, expressed as a fraction.

p (y ) Probability of an additional particle, y, being placed in

q u a d ra t i.

Po(o-> ^-) Probability of no particle centres being located w ith in a distance r of a specific particle centre.

PFC.W PVC in the w et state.

R Particle radius.

R, Reflectance from film i.

Roo Reflectance from a film of infinite thickness.

r D istance from a particle centre.

S O verall sc atter coefficient.

Sc C alculated sc atter coefficient.

S„ Flooding corrected (nominal) sc atter coefficient.

Si S catter coefficient for film i.

Tg^ G lass tran sitio n tem p eratu re of a copolymer.

u Com positional fraction of a polym er w ith in a copolymer.

V PVC, pigm ent volume concentration, expressed as a

percentage.

Vp Volume of a particle.

Vp,g Volume concentration of pigm ent.

Vrcs^sot. Volume concentration of resin and solvent.

V^cer Volume concentration of w ater.

V N um ber of variables.

Xi Particle size variable.

HSVC, b a rd solids volume concentration variable.

%4 S u rfactan t concentration variable.

Xi T hickener concentration variable.

Zi Film thickness of film i.

(8)

Page

Title Page. 1

Acknowledgements. 2

A bstract. 3

Abbreviations. 4

Symbols. 5

Table of C ontents. 7

1). Introduction. 12

1.1). Background. 1 2

1.1.1). W hat is a Latex? 14

1.2). Problem s Associated w ith L atex Coatings. 16

1.2.1). Incom plete Coalescence. 17

1.2.2). Rheology Control. 21

1.2.3). Pigm ent Flocculation. 24

1.3). Aim of th e Study. 31

1.4). Notes on the Project 'H igh Perform ance W aterborne 33

Coatings'.

1.5). A B rief Guide to This Thesis. 33

1.6). References for C hapter 1. 34

2). Control of Particle Size in Em ulsion Polym erisation. 40

2.1). Introduction. 40

2.1.1). Theory of Particle Form ation. 41

2.2). Polym erisation Strategy. 45

2.3). G eneral Procedure. 47

2.4). R esults and Discussion. 48

2.4.1). C hanging Particle Size by Inducing Secondary 48

Nucléation.

2.4.2). S u rfactan t Policy Investigation. 53

2.4.3). Two Step Polym erisation. 55

2.4.4). R efinem ent of Polym erisation Techniques. 58

2.4.4.1). G reater Control of Particle Size. 58

2.4.4.2). Control of L atex Solids Content. 59

(9)

3). E valuation of D istinguishable Latices. 64

3.2). System s Considered. 65

3.2.1). Mixed C hlorinated and Non C hlorinated Particles. 6 6

3.2.2). Mixed Conducting and Non Conducting Particles. 6 6

3.2.3). Mixed Stained and U n stain ed Particles. 70

3.2.3.1). P rep aratio n of Stainable Particles. 70

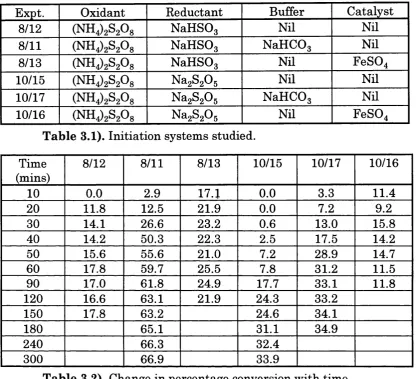

3.2.3.1.1). Redox In itiate d Em ulsion Polym erisation. 70

3.2.3.1.2). Studies of th e R ate of Seed 73

Polym erisation.

3.2.3.1.3). P rep aratio n of Latices C ontaining 40% 77

Solids.

3.2.3.1.4). P rep aratio n of Latices C ontaining 79

Isoprene.

3.2.3.2). Scanning E lectron Microscopy E xperim ents. 84

3.2.3.3) Prelim inary T ransm ission Electron Microscopy 87

Experim ents.

3.2.4). Mixed Film Form ing and Non Film Form ing 90

Particles.

3.2.4.1). P rep aratio n of Film Form ing Latices. 90

3.2.4.2). Prelim inary Experim ents. 92

3.3). F u rth e r Developm ent of Selected System . 94

3.3.1). M anual E nhancem ent of Im ages. 98

3.4). Problem s Observed w ith U nthickened L atex M ixtures. 101

3.4.1). Investigation of the Problem Observed w ith 104

U nthickened M ixtures.

3.4.1.1). A ssessm ent of C oncentration of P articles a t 105

A ir an d S u b strate Interfaces.

3.4.1.2). A ssessm ent of G ravitational Effects. 107

3.4.1.3). Film Thickness Effects. 108

3.4.1.4). A ssessm ent of Cross-Sections. 109

3.4.1.5). Conclusions. 1 1 0

3.5). P relim in ary E xperim ents - Thickened L atex M ixtures. I l l

3.6). O verall Conclusions for D istinguishable Latices. 113

4). Studies of Physical Model System s. 118

4.2). A nalysis of S p atial Co-ordinates. 1 2 0

4.2.1). C alculation of Percentage of Non C lustered 1 2 1

Spheres.

4.2.2). C luster Allocation. 1 2 2

4.2.3). V erification th a t Random D istributions w ere 126

O btained.

4.3). S tudies of the D istribution of Non Film Form ing 129

(10)

4.3.1.1.1). Effects of V ariables on P ercentage Single 133 Spheres.

4.3.1.1.2). A ssessm ent of R andom ness of 140

D istributions.

4.3.2). E valuation of V ariables for Film s C ast From 141

Thickened L atex M ixtures.

4.3.2.1). E xperim ental Design. 143

4.3.2.2). R esults and Analysis. 145

4.3.2.3). Discussion of Significance. 149

4.3.2.4). Conclusions. 156

4.4). Studies of the D istribution of Non Film Form ing 156

Particles in Cross Sections of Coalesced Films.

4.4.1). Prelim inary Experim ents. 157

4.4.2). E xperim ental Design. 161

4.4.3). R esults for Studies of Film Cross-Sections. 163

4.4.3.1). Film s C ast from Thickened L atex M ixtures. 163

4.4.3.2). Film s C ast from Non Thickened L atex 164

M ixtures.

4.4.4). A nalysis and Discussion. 165

4.4.4.1). Film s C ast from Thickened L atex M ixtures. 166

4.4.4.2). Film s C ast from Non Thickened L atex 169

M ixtures.

4.4.5). Com parison of R esults for Sections W ith R esults 173

for Surfaces.

4.4.6). Conclusions. 174

4.5). Effects of V ariables on T heoretical S catter Efficiency. 174

4.5.1). Surfaces of Film s C ast from U nthickened L atex 176

M ixtures.

4.5.2). Surfaces of Film s C ast from Thickened L atex 182

M ixtures.

4.5.3). Sections of Film s C ast from Thickened L atex 185

M ixtures.

4.5.4). Sections of Film s C ast from U nthickened L atex 188

M ixtures.

4.6). O verall Conclusions for Physical Models. 191

5). C om puter Sim ulation Studies. 197

5.2). Theory of O peration of the Com puter Model. 198

5.2.1). In itia l G eneration of Packings - Random P arking. 198

5.2.2). Increasing the Packing Fraction - Scaling Down 199

(11)

5.2.3). Removing Overlaps G enerated by th e Scaling 199 Process.

5.2.4). Moving Tow ards a Random ised E quilibrium S tate 200

- The Monte Carlo Shaker.

5.3). G eneration of Dense Random Packings. 201

5.4). O btaining R esults from the C om puter Model. 203

5.4.1). Effect o f ‘C ritical G ap’. 205

5.5). E valuation of th e Effect of L atex Particle Size on 207

Pigm ent Single C rystal Fraction.

5.5.1). R esults and Discussion. 208

5.5.1.1). Com parison of Com puter S im ulation and 210

Physical Model Results.

5.5.1.1.1). D erivation of a Correction F actor for 211

P igm ent Volume Concentration.

5.5.1.1.2). C orrelation Betw een C om puter 214

Sim ulation and Physical Models.

5.6). F u rth e r Functionality of the C om puter Model. 216

5.6.1). Polydisperse Pigm ent Particles. 217

5.6.2). Non H ard Sphere Potentials. 217

5.7). Conclusions. 218

6). Studies on Pigm ented System s. 2 2 1

6.1.1). Possible Factors Affecting Pigm ent D ispersion. 2 2 2

6.2). Selection and C haracterisation of M aterials. 224

6.2.1). Pigm ents. 224

6.2.2). Latices. 226

6.2.3). Additives. 228

6.2.4). M aterials Not Selected. 229

6.3) E valuation of th e Effects of V ariables. 230

6.3.1). E xperim ents Perform ed. 230

6.3.2). R esults. 236

6.3.2.1). T reatm en t of Results. 236

6.3.3). Discussion. 237

6.3.3.1). C o n trast Ratio. 238

6.3.3.1.1). Pigm ent RCL-6. 238

6.3.3.1.2). Pigm ent TR92. 239

6.3.3.1.3). Pigm ent RCL-628. 240

0.3.3.2). Gloss. 240

6.3.3.2.1). Pigm ent RCL-6. 240

6.3.3.2.2). Pigm ent TR92. 241

6.3.3.2.3). Pigm ent RCL-628. 242

6.3.3.3). Flocculation G radient. 243

6.3.3.3.1). Pigm ent RCL-6. 243

(12)

6.3.3.4.2). Pigm ent TR92. 245

6.3.3.4.3). Pigm ent RCL-628. 246

6.5). Recom mendations. 247

7). O verall Conclusions and Recom m endations. 251

7.1). Sum m ary. 251

7.3). Com parison of D ifferent System s Studied. 254

7.4). Recom mendations. 254

Appendix A). D etails of E xperim ental In stru m en tatio n an d 256

M aterials.

Appendix B). E xperim ental D etails of L atex Syntheses. 259

Appendix C). E xperim ental D etails of P rep aratio n of Film s 282

From Latex M ixtures.

Appendix D). E xperim ental D etails of P rep aratio n of 293

Pigm ented Films.

Appendix E). Tables of R esults for Pigm ented System s. 297

T hroughout th is thesis, the term ‘resin ’ is used to imply any polym eric

of th e latex form ulations and th e paints, w h eth er they be cross-linked

or otherw ise. The tru e definition of ‘resin ’ is th a t which im plies a

cross-linked m atrix.

T hroughout th is thesis, the term ‘concentration’ is used to imply

loadings in the specific system. Thus, the correct u n its (mol dm-3) are

not alw ays used. This is in line w ith conventional practice in the

(13)

1). In t r o d u c t io n,

1.1). Background.

From w hen early m an p ain ted pictures on th e w alls of caves, h u m an s

have used p a in ts to decorate, protect and inform. In th e m odern

world a diverse range of p a in ts is now available w ith properties

tailored to su it the application for which th e p a rtic u la r p a in t is used.

Figures for W est E uropean p a in t consum ption in th e late 1980's are

broken down in Table 1.1k From Table 1.1 it can be seen th a t

decorative p a in ts account for nearly 50% of to ta l p a in t consum ption.

In 1989 in terio r gloss p a in ts accounted for approxim ately 19%^ of the

to ta l dem and for decorative paints.

Y ear 1985 1987 1989

T otal consum ption ('000 tonnes)^ 4,366 4,913 5,224

M arket share of types of p a in t (%)

Decorative p a in ts (professional) 31.83 32.00 33.70

Decorative p a in ts (retail) 16.37 16.50 16.80

T ran sp o rt coatings 8.45 9.21 8.92

Wood finishes 8.53 7.26 7.05

Coil coatings 6 . 0 0 6.15 6.25

C an coatings 7.35 7.38 7.42

O ther production line p ain ts 1 2 . 1 1 12.83 1 1 . 0 0

Pow der coatings 2.25 2.35 2.60

A nti corrosives 3.25 3.07 3.16

M arine p ain ts 2.40 2.17 2.06

All other 1.36 1.08 1.04

T a b le 1.1). W est E uropean p a in t consum ptionk

High gloss p a in ts have trad itio n ally been form ulated using organic

solvents. The resin is dissolved in th e solvent which evaporates to

leave a continuous film. W ith environm ental considerations coming

to the fore th e acceptability of using solvent based p a in ts is being

(14)

organic compound (VOC) content of such p ain ts. As well as w ider

environm ental consequences, the h e alth h a za rd posed to w orkers by

organic solvents is u n d er scrutiny. There is therefore a large am ount

of ex tern al p ressu re on the coatings in d u stry to develop altern ativ es

which are environm entally and toxicologically more acceptable th a n

the solventborne system s currently available. A n u m ber of

technologies are em erging which m arkedly reduce th e volume of

organic solvents which evaporate during drying. Exam ples of these

technologies can be found in high solids coatings^, powder coatings^

and radiation-cured coatings®. A fu rth er possible altern ativ e is to use

an 'environm entally friendly' solvent as the continuous m edium , in

o ther words coatings should be form ulated using w ater as the

'solvent'. As well as m inim ising environm ental im pact and

decreasing toxicity th ere are fringe benefits from using w ater based

paints. These include the ease of cleaning up equipm ent after use

and low fiam m ability of the vapour during application.

In w aterborne coatings the resin m ay eith er be dissolved in, or be

p resen t as a discrete phase dispersed in w ater. W ater soluble resins

generally suffer from resid u al w ater sensitivity after drying"^. As

p ain ts are often used for protection as well as decoration it is

im p o rtan t th a t the w a ter sensitivity of the final film is kept to a

m inim um . In latex system s th e resin is p resen t as a dispersion of

tiny beads suspended in the aqueous phase an d can be essentially

hydrophobic in n atu re. L atex system s therefore ap p ear to offer an

attractiv e route to the form ation of tough w a ter re s ista n t films from

w ater based form ulations. However, latex system s are not w ithout

(15)

RFG B ro w n P h D T h e sis

1.1.1 ). What is a Latex?

A latex is sim ilar to a n em ulsion in th a t th e dispersed phase is

p resen t as tin y particles suspended in th e continuous phase.

However, while an em ulsion is a m ixture of immiscible liquids, a

latex is a colloidal dispersion of a solid w ithin a liquid. Initially, latex

w as used as a term for the sap from th e ru b b er p la n t Hevea

Brasiliensis^. The sap consists of a dispersion of n a tu ra l ru b b er in

w ater. Strictly the m edium m u st be w a ter an d latex can th u s be

defined as a colloidal dispersion of polym er particles in w ater.

Colloidal dispersions of polym er particles in organic solvents are

classified as non aqueous dispersions^ (NAD's) instead.

In itial synthetic latices in the 1920's were redispersions of n a tu ra l

ru b b er in wateri®. By the late 1930's, latices of synthetic polym ers

w ere being p rep ared as replacem ents for n a tu ra l ru b b er on a large

scale by em ulsion polym erisation^i. Typically diam eters of resin

particles in latices are of the order of 0.1pm. A commercially

p rep ared latex will contain approxim ately 50% by w eight of resin.

Hence the interfacial a re a is extrem ely large an d a m echanism for

stabilising th is interface m u st exist. The latex can be ren d ered stable

e ith er th ro u g h charge repulsion, steric stabilisation or depletion

effects.

C harged groups m ay be p resen t 'on' th e latex particle surface arising

from in itiato r residues eith er d i r e c t l y o r indirectly th ro u g h

subsequent reactions (e.g. hydrolysis, oxidation) of th ese residues^^.

C harged groups a t th e surface m ay also arise from sim ilar reactions

w ith groups along the polym er backbone^^ A lternatively th e charge

(16)

such as surface active agents^^ (surfactants) or more generally

adsorbing charged p o l y m e r s(dispersants).

Steric stabilisation m ay be provided by the incorporation of non ionic

su rfactan ts Steric stab ilisers contain a hydrophobe an d a non ionic

bydropbibc group such as a poly(etbylene oxide) chain. Close

approach of th e particles is hindered by the steric bulk of the

hydrophilic chaini^. C hain length of each com ponent in the

su rfactan t is im p o rtan t so as to m ain tain th e correct hydrophilic-

lipophilic balance 19 (HLB) while also gen eratin g the desired steric

effect. If th e len g th of th e hydrophilic chain is too short th e n th e

steric hindrance is not g reat enough to p rev en t close approach of the

particles. If th e chain is too long th en chain en tan g lem en ts become

possible betw een adjacent particles^o.

Depletion stabilisation^i is achieved th ro u g h th e addition of high

m olecular w eight w ater soluble polym er a t high enough

concentration to yield th e correct osmotic effect. As two particles

come together, the polym er in the gap becomes concentrated w ith

respect to th e bulk m edium . An osmotic tendency for th e m edium to

diffuse into th e gap is therefore generated an d the particles become

separated. If th e concentration of the soluble polym er is too low, the

probability of a polym er chain residing in th e gap betw een two

approaching p articles becomes slight. The polym er in th e gap

therefore becomes dilute w ith respect to the bulk m edium , the

osmotic tendency is for the m edium to diffuse out of th e gap and

(17)

RFG B ro w n P h D T h esis

1.2h Problems Associated with Latex Coatings.

There are a num ber of problem s associated w ith latex c o a t i n g s ^ ^

which are listed below.

i. Coalescence during drying m ay not occur completely,

which can lead to film defects.

ii. In the absence of additives, rheology in th e w et sta te is

inapt. This is because th e form ulation exhibits a sim ilar

rheological profile to th a t of th e continuous m edium , i.e. w ater.

iii. Pigm ent flocculation can lead to loss of gloss an d opacity

and can possibly cause film defects.

iv. S u rfactan ts used for stabilising th e pigm ent dispersion

or latex can lead to foaming. This can lead to film defects in the form o f ’pin-holes'.

V . The kinetics of drying are affected by th e relative

hum idity of the environm ent. Hence in hum id clim ates the coating m ay tak e days or even w eeks to dry.

vi. 'F lash ru stin g ' of m etallic su b stra te s m ay occur due to

w a ter being in contact w ith the su b stra te during drying.

For in terio r gloss p ain ts, the m ost im p o rtan t of these problem s are

the problem s associated w ith coalescence, rheology an d pigm ent

flocculation, which are discussed in g reater d etail below. Foam ing

rem ains a problem b u t can be overcome by th e incorporation of a

defoaming agent^^ to reduce the surface tension of any foam formed

th u s m aking it less stable. Defoaming agents are p ro p rietary

products often based on hydrocarbon blends. The effect of relative

hum idity on drying is also a problem b u t th is is an in h ere n t property

of w aterborne p ain ts an d can only be modified by th e u tilisatio n of

c o s o l v e n t s ^ s . This compromises the environm ental benefits of using

w aterborne technology. It is hoped th a t for in terio r p a in ts the

(18)

1.2.1). Incomplete Coalescence.

For conventional solventborne coatings, the continuous m edium in

the w et sta te is a solution of the resin in th e solvent. Hence,

providing th ere is enough resin to bind th e coating together, if th e

w et film is continuous the dry film left behind after evaporation of

the solvent will also be continuous. For latex coatings, in the w et

state, the resin is dispersed in the continuous phase as opposed to

being p a rt of it. Hence as the w ater evaporates and th e to ta l volume

of the system decreases, the packing fraction of the resin particles

will increase u n til critical packing occurs. On evaporation of fu rth e r

w ater, a continuous film will only be formed if the resin particles flow

out to fill th e voids which th e w ater leaves behind.

The m echanism of coalescence w as first studied by B radford et. al.^^

who described the process m athem atically as th e sin terin g of

particles in th e dry state. Brown^^ was th e first w orker to realise the

im portance of polym er-w ater interfacial tension in th e coalescence

process. Brown^? also specified a simple criterion (1.1) upon which

film form ation could be based:

(1.1)

Where:

Fcis th e m agnitude of capillary forces prom oting coalescence;

F g is th e m agnitude of forces resisting deform ation of the

polymer.

This leads to th e im p o rtan t realisation th a t as the coating dries

eith er the polym er particles flow out to form a film or th ey do not.

W hether coalescence occurs or not depends on th e m agnitude of the

(19)

m odulus of th e resin which will depend upon th e tem p era tu re of

drying and th e glass tran sitio n tem p eratu re (Tg) of th e polymer.

Mason^s reports th a t for a given tem p eratu re, Tg is th e m ost

im p o rtan t p a ra m e te r in determ ining w h eth er film form ation will

occur. Conversely, for a given resin, tem p eratu re is th e m ost

im p o rtan t p a ra m e te r governing film form ation. This im plies the

concept of a m inim um film form ing tem p era tu re (MFFT)^^ for latices,

which is now widely accepted. M FFT can be defined as th a t

tem p eratu re above which a latex dries to give a tra n s p a re n t film free

of defects^®.

Brown27 actually postu lated th ree possible events depending upon

th e m odulus of the resin. H ard resins have a Tg which is

significantly higher th a n am bient tem p eratu re. Upon drying h a rd

resins will not coalesce and the final coating will be discontinuous,

consisting of m any tiny polymer spheres. Soft resins have a Tg which

is th e sam e or lower th a n am bient tem p eratu re. These resins

coalesce completely upon drying to give a continuous film. The

in term ed iate sta te involves resins which have a Tg close to though

slightly higher th a n the am bient tem p eratu re. A lthough the particles

undergo deform ation during drying, electron m ic ro sc o p y sh o w s the

film as a packing of hexagonal particles. Hence th e film form ed is not

tru ly continuous and poor b a rrie r properties can arise due to poor

adhesion (autohésion) betw een particles. It m u st however be noted

th a t the hom ogeneity of such p artially coalesced films im proves w ith

tim e^2 beyond w hen drying is complete. Hence th e case p o stu lated by

B radford et. al.^^ can still be of use in considering th is fu rth er

g rad u al coalescence. A more rigorous tre a tm e n t of th e levelling of

viscoelastic films after drying is provided by K eunings and

(20)

polymer air interfacial tension is reta rd ed by elastic behaviour of the

polymer. Hence polym ers of high elastic m odulus will exhibit poorer

film form ing properties and will also undergo g rad u al coalescence

more slowly. Hence th e theories of Brown^^ an d Bradford^® reinforce

each other as proposed by V a n d e r h o f f ^ ^

A nother phenom enon arising from using resins of in term ed iate

h ard n ess is th a t of m ud cracking. Brown^? sta te d th a t if the

deform ation of the particles is g reat enough to allow p a rtia l

coalescence b u t not g reat enough to dissipate the stresses arising

during drying th en m ud cracking will occur. The stresses occur

because of th e volume contraction of th e to ta l coating as the w ater

evaporates beyond critical packing of th e resin. A more detailed

account of m ud cracking is provided by B i e r w a g e n ^ ^

The m ost recent criterion for film form ation (1.2) is th a t of Eckersley

and Rudin^^. This is based on a viscoelastic model for th e polym er

spheres.

1 34 (T

< p w _(1.2)

R

Where:

j^ |/jis th e tim e dependent creep compliance of th e resin;

(T^„is th e polymer w a ter interfacial tension;

R is th e rad iu s of the particles.

From a qualitative point of view, the inequality expressed above (1.2)

will be more easily satisfied if the resin exhibits a high creep

compliance. In other words, film form ation will occur if stress on the

(21)

function of th e m odulus of th e polymer and will be more easily

satisfied by th e use of 'soft' resins.

All theories are in agreem ent th a t soft resin s will show b e tte r film

form ing properties. U nfortunately, the final film is usually required

to be tough an d reasonably durable. This im plies th a t the resin used

m u st not be too soft or the film will be too easily dam aged an d will

not re ta in its properties for long. If h a rd resin s are to be used th is

will jeopardise the film form ing ability of th e latex.

One way around th is is to use a h a rd e r resin an d to use a

p l a s t i c i s e r ^ G to lower the Tg of the polym er so th a t film form ation can

occur effectively. One problem associated w ith plasticisers is th a t the

Tg of the resin is p erm an en tly reduced so th a t the toughness of the

film is compromised. A fu rth er problem is th a t if the p lasticiser is not

totally compatible w ith the polym er th e n surface defects m ay occur

as the plasticiser is exuded to th e surface^^.

An effective m ethod of using h a rd e r resins to produce tougher films

while reta in in g good film form ing properties is to use coalescing

agents^"^. These can be considered as 'tra n sie n t plasticisers'.

Coalescing agents show lim ited volatility and will have left th e

coating after a prolonged period of tim e. Hence the m echanical

properties of the film after th e coalescing ag en t h as evaporated

depend upon the m echanical properties of th e unplasticised resin.

The im provem ent in film form ing quality will depend upon th e

m agnitude of the plasticising action which th e coalescing agent has

and also on th e p artitio n in g of the ag en t betw een w a te r and th e

polymer. By correct form ulation it is possible to achieve the film

form ing properties of a soft polym er while th e m echanical properties

(22)

m ajor draw back of using coalescing agents is th a t th ey contribute

strongly to th e VOC content of w ater-based coatings. Also, coalescing

ag en ts can som etim es rem ain in the film in significant

concentrations for a y ear or more^^>^^. This re ta rd s th e block

resistance of th e coating: heavy objects cannot be stood on shelves

coated w ith such p ain ts u n til th e coalescent h a s left th e film^o.

1.2.2). Rheology Control.

In the absence of additives, the rheology of latices can be modelled as

a dispersion of h a rd spheres. A num ber of models have been proposed

over the years, the first being th a t of Einstein^i as show n in

E quation 1.3.

y = / o ( l +2.5(g)) (1.3)

Where:

y is the viscosity;

Yq is th e viscosity of the continuous m edium ;

(j) is th e volume fraction of h a rd spheres.

Strictly speaking, E instein's model is only valid for extrem ely dilute

dispersions though it is possible to model certain system s up to 60%

solids by a rb itra ry ad ju stm en t of the volume fraction c o e f f i c i e n t ^ ^

O th er models have been proposed. For exam ple. Mooneyes obtained

a n em pirical equation (1.4) based on rheological studies of relatively

concentrated dispersions.

(23)

A liquid is defined as exhibiting N ew tonian flow if the sh e ar stress

across th e liquid is directly proportional to th e ra te a t which the

liquid is sheared. The constant of proportionality is th e viscosity of

the liquid. This is expressed m athem atically below (1.5).

® = - (1.5)

y

Where:

CO is the sh ear rate;

r is the sh ear stress;

Y is the viscosity.

Asbeck and Casson^^ plotted the square root of viscosity versus the

reciprocal of the square root of sh ear rate. A stra ig h t line is obtained

the gradient of which is the yield stress w ith th e in tercep t being the

viscosity a t infinite sh e ar rate. This is shown in E quation 1.6. Hence,

for N ew tonian flow, a plot of vs co~^'^ will produce a stra ig h t line

of zero gradient indicating th a t viscosity is co n stan t an d th a t th ere is

no yield point.

(1.6)

Where:

Y is the viscosity;

Y^ is the viscosity a t infinite sh e ar rate;

Fq is the yield stress;

CO is the sh ear rate.

The rheological models shown above in E quations 1.3 an d 1.4 show

(24)

assum e th a t, in the absence of any rheology modifiers, latex

dispersions w ill show rheological properties sim ilar to a N ew tonian

liquid. In reality th is is not the easels as sh e ar can cause the

particles to pack together more efficiently th u s increasing th e free

volume of th e system and decreasing th e viscosity. However, th is

effect is not g reat enough to be commercially useful. D ifferent

chem ical groups on th e surface of the latex particles can also cause

deviations from N ew tonian b e h a v i o u r i ^ fu rth e r com plicating the

issue.

Commercial p a in ts require a very specific rheological profile. The

general req u irem en t is for a p a in t to exhibit considerable

pseudoplasticity or sh e ar th in n in g behaviour. E xplained more

simply, th is m eans th a t p ain ts m u st have low viscosity a t high sh ear

rate s to allow easy application while a t low sh e ar th e viscosity m ust

be high to prevent 'sagging' before th e p a in t is dry. I t is im p o rtan t

th a t th e viscosity a t low shear ra te s is not too high so th a t a certain

am ount of levelling can occur prior to drying th u s rem oving brush-

m arks. In practice p ain ts are often thixotropic in n a tu re as well

m eaning th a t the viscosity decreases to a certain lim iting value w ith

tim e a t a constant sh ear rate. The viscosity th e n increases again

w hen th e source of sh e ar is removed. Gillespie"*® h a s developed a

model (1.7) for dispersions exhibiting pseudoplasticity b u t not

(25)

RFG B r o w n P h D T h e sis

= (1-7)

W here:

/ is th e ratio of the N ew tonian viscosity of th e dispersion to

th e viscosity of the continuous medium;

(j) is th e volume concentration of dispersed spheres;

Argis a constant experim entally found to alw ays be g reater

th a n th e E in stein coefficient of 2.5;

kpi^ a constant which depends on th e m ean dynam ic

aggregation.

S hear th in n in g behaviour is induced by the addition of rheology

m odifiers called associative thickeners because of the m echanism by

which they work. A lthough th e flow properties of m icellar solutions

of thickeners are Newtonian^'^, w hen added to a latex or pigm ent

dispersion a loose netw ork is formed th ro u g h hydrophobic

associations'^®. On sh e ar th is loose stru ctu re is broken down an d the

form ulation is m arkedly pseudoplastic. The loose stru c tu re is quickly

reform ed once sh e ar is removed. Hence the correct rheology can be

im p arted to th e coating.

A problem connected w ith associative thickeners is th a t by forcing

pigm ent particles to in teract th ere m ay be a deleterious effect on

pigm ent dispersion^^. This effect m ay be p artially offset by the

increase in viscosity m aking it more difficult for pigm ent to settle out

over time^®.

1.2.3). Pigment Flocculation.

P a in ts are applied in stead of varn ish es if the role is to hide as well as

to protect. I t is therefore im p o rtan t th a t a decorative p a in t is capable

(26)

p a in t to m ask the layer u n d e rn e ath is know n as opacity. The opacity

of a p a in t is determ ined by how m uch of a n incident light beam

p e n etrates to th e su b stra te and is subsequently reflected to the

observer. This is governed by the ability of th e coating to absorb light

or to scatter it before it can be reflected from th e su b strate. In w hite

p a in ts pigm ented w ith tita n iu m dioxide very little h g h t is absorbed

by th e pigm ent and the opacity is a function of the in ten sity of

scatter. The raw scatterin g power of a pigm ent can be calculated

from refractive indices using Fresnel's^i equation (1.8).

F

(1.8)

Where:

F is th e reflectivity ratio;

77 is refractive index. The subscripts 1 and 2 refer to the

continuous m edium an d the pigm ent respectively.

Hence the higher the refractive index of the scatterin g particles, the

greater the scatterin g will be. This explains th e dom inance of

tita n iu m dioxide as a w hite pigm ent. Rutile tita n iu m dioxide h as a

refractive index of 2.70. This is higher th a n th a t of th e a n atase

crystal form (ti=2.55) an d m uch higher th a n th a t of zirconium oxide

(r|=2.40) w hich is the next strongest scatterin g w hite pigm ent.

Scattering is also a function of particle size an d particle s p a c i n g ^ ^

theory for scatterin g of light by sm all particles w as developed by

S tru tt^3,54 (later Lord Rayleigh). For Rayleigh scattering, th e size of

the particles h ad to be sm all com pared to the w avelength of light

(27)

sam e size as th e w avelength of scattered light provided th a t the

refractive index of these larger particles w as sim ilar to th a t of the

m edium in which th ey were dispersed. Rayleigh scatterin g is

expressed in E quation 1.9.

Where:

/ is th e scattered intensity;

/ois th e incident intensity;

Km is constant;

Fpis th e volume of a scattering particle;

is th e relative refractive index of the particles com pared to

the medium;

X is th e w avelength of the incident light;

0 is th e angle betw een the incident an d observed beam s.

Hence for a given angle of viewing, a given relative refractive index

and a given w avelength of incident rad iatio n th e light scattered by a

single particle is proportional to the square of the volume of the

particle (1.1 0):

W here:

R is th e rad iu s of the particles.

The scatter by u n it volume of m ateria l will be proportional to the

intensity scattered by each particle m ultiplied by the num ber of

(28)

scatterin g species the num ber per u n it volume is inversely

proportional to the volume of each particle. Hence th e to ta l scattered

light will be proportional to th e cube of the particle rad iu s (1.1 1).

(

1 1 1

)

^ P

W h ere/r is th e to ta l in ten sity of scattered light.

In practice, above a certain concentration of scatterin g bodies the

increase in opacity w ith increasing volume concentration becomes

non linearis, a ttrib u te d to dependent scatterings^.

As scatterin g is a feature of interfaces, for macroscopic sc a tte r (i.e.

scatterin g by large particles) th e am ount of light scattered by a large

particle will be a function of its surface areals (1.1 2). Hence,

analogous to th e arg u m en t above, th e sc atter per u n it volume will be

dependent on th e num ber of particles per u n it volume. For a given

volume concentration th is will be a function of the reciprocal volume

of each particle. It therefore follows th a t the to ta l am ount of light

scattered will be proportional to th e reciprocal rad iu s of the particles

(1.13).

I

(

1

.

12

)

(1.13)

Hence absolute scatterin g from dispersed particles will alw ays

(29)

volume concentration of scatterin g particles, if the particles are

sufficiently large th e n th e to ta l scatter from u n it volume of sam ple

will decrease as the particle size increases. At sm all p article size, the

to tal scatter will increase w ith increasing particle size. It

qualitatively follows th a t th ere will be an optim um particle size

w here the two effects are m ost effectively balanced. T his h^^pens-to^

occur w hen th e diam eter of the scatterin g particles is approxim ately

h a lf the w avelength of the incident l i g h t R e l a t i v e refractive indices

also have an effect and E quation 1.14 m ay be used^o.^i to determ ine

the optim um particle diam eter for m axim um sc atter from a given

volume concentration of particles.

Where:

dop, is th e optim um particle d iam eter for efficient scattering;

and ri - \ Tj

OC = —Y---, w ith ( 7 7 = - f ) •

The subscripts 1 and 2 denote th e m edium an d pigm ent respectively.

The pigm ent in a p a in t is a large proportion of the raw m aterials cost

in m anufacture. It is therefore im portant, purely from a comm ercial

standpoint, to m axim ise the efficiency of pigm ent utilisation. For

m axim um sc atter from the m inim um am ount of pigm ent it is

im p o rtan t th a t th e size of the pigm ent particles in th e film is

(30)

The size of pigm ent particles in a final film is governed by two

factors. The p rim ary factor is the crystal size of th e pigm ent. C rystal

size is determ ined by the m anufacturing process conditions and is

therefore out of the control of the p a in t form ulator. Pigm ent

m an u factu rers aim to supply pigm ents w ith m ean cry stal sizes of the

order of 0.25pm, th is being approxim ately h a lf the w avelength of

green light (555nm), the w avelength a t which the eye is m ost

sensitive^2 The second factor affecting p igm ent particle size is the

degree of dispersion. As the crystal size of the pigm ent is optim ised

by the pigm ent m anufacturer, the degree of dispersion becomes the

m ost im p o rtan t p a ra m eter in determ ining the particle size

distribution in the final film. As pigm ent particles flocculate the

m ean size will rise an d to ta l scatterin g from the film will decrease.

It h as been observed th a t in conventional gloss p a in ts a m axim um of

35% of pigm ent is p resen t as single discrete c r y s t a l s ® ^ This is

optimistic, it being suggested th a t th e sectioning technique used in

p rep arin g sam ples for assessm ent created artificially good

dispersion. A more realistic figure for the percentage of pigm ent

existing as single crystals would be 20-25%^®. In latex p ain ts, it is

generally o b s e r v e d ® ^ th a t th e degree of pigm ent clustering is m uch

g reater th a n in a solvent based gloss paint. This m ay be p artly

a ttrib u ta b le to excluded volume effects. In a conventional

solventborne coating, in the w et state, the pigm ent volume

concentration (PVC) is expressed in E quation 1.15. The analogous

PVC for a latex based p a in t in the w et sta te is expressed in E quation

(31)

RFG B r o w n P h D T h e sis

y .

For solvent borne: PVC^^,=—---- ^ --- (1-15)

p ig resi-solv

V .

For latex based: PVC^^,=—— ^ — (1.16)

p ig water

W here the subscript: p ig indicates pigm ent; res indicates resin;

solv indicates organic solvent; and water is obviously w ater.

From E quations 1.15 and 1.16 it is a p p aren t th a t th e pigm ent is

dispersed in a sm aller volume in the latex based system . As drying

proceeds, th e PVC of pigm ent in w ater in a la te x h a se d system

increases very sharply. As fu rth er w a ter evaporates, th e pigm ent-

w ater interfaces are eith er replaced by pigm ent-resin interfaces or

pigm ent-air interfaces. In a solvent borne coating, th e m edium

surrounding the pigm ent gradually becomes richer in resin as the

solvent evaporates. Hence both the m echanism of drying and th e

geometry of the system are different up u n til th e point w hen all the

solvent or w a ter h as evaporated. It is obvious th a t any flocculation in

the w et sta te will be passed on to the dry film, however it is

suggested®^ th a t th e g reatest p a rt of flocculation in th e final film

arises during the drying process. It is therefore hoped th a t by

studying system s w ith different geometries, it will be possible to

m inim ise th e effects of excluded volume.

There are o th er problem s associated w ith pigm ent flocculation.

Flocculation can lead to m arked heterogeneities u n d er th e film

surface, which can cause a loss of gloss®^. Large flocculates can b reak

the surface of a film th u s m aking th e film less effective as a barrières

and leading to a fu rth er loss of gloss. Finally, if flocculation is severe

(32)

the critical pigm ent volume concentration (CPVC)®® m ay be breached

on a localised basis. This leads to areas of th e film being powdery and

non continuous, an d these areas will show practically no b a rrie r

properties a t all.

1.3). Aim of the Study.

The aim of th is study w as to evaluate factors affecting the

distribution of pigm ent particles in latex based p ain ts.

L atex p a in ts an d solvent based p ain ts are sim ilar in th a t th e volume

occupied by the resin is excluded to the pigm ent. A m ajor difference,

however, is th a t the to tal num ber of possible conform ations which

the excluded volume can take is very m uch more lim ited in th e w et

sta te for latex p ain ts w hen compared to solvent based p ain ts. This

effect is aggravated during drying as the w et film approaches critical

packing and pigm ent particles m ay be forced to g eth er into clusters.

T his imposes a fun d am en tal geometric co n strain t on achievable

levels of pigm ent dispersion in latex p ain ts which is not p resen t in

solvent based paints.

It w as intended to evaluate th is fundam ental geom etric co n strain t in

model system s w here competitive interactions have been m inim ised

and by com puter sim ulation using b ard spheres. I t w as hoped th a t by

m inim ising competitive interactions it would be possible to

determ ine th e b est practical distribution achievable w ith in the

geometric constraints. Knowledge gained would th e n be teste d in

model p a in ts containing latex polymer, tita n iu m dioxide pigm ent,

d isp ersan ts and rbeology modifiers. F u rth e r physico-chemical effects

(33)

The study w ith pigm ents w as confined to tita n iu m dioxide as th is is

by far th e m ost commonly used. A range of grades w ith different

surface tre a tm e n ts were considered however.

It w as intended to establish guidelines for achieving im proved levels

of pigm ent dispersion in latex paints.

W ork reported in this thesis uses m ixtures of latices to model a

m ixture of latex and pigm ent particles. S patial co-ordinates of non

coalesced particles w ithin a coalesced film are obtained. A single

sphere fraction is calculated analogous to single cry stal fraction used

in the lite ra tu re as a m easure of dispersion®® ®^. The effect of varying

size ratios and concentration ratios on th is property is evaluated.

To the best of the au th o r’s knowledge, evaluation of th e fu n d am en tal

physical constraints on pigm ent dispersion imposed by particle

packing effects h as not been reported previously.

L atex m ixtures have previously been studied to determ ine stru ctu re

fa c to rs ® ^ e ffe c ts on film f o r m a t i o n ' l l and effects on rbeology^®.

Blends of latices containing different sized particles have also been

used to yield fast drying high solids d i s p e r s i o n s ' ^ ^ while h a rd latex

particles have been mixed into films cast from soft latex particles to

improve the m echanical properties'^®'^®. A ttem pts were also m ade to

characterise clustering of the h a rd spheres by tu rb id ity

m easurem ents in these systems'^®'^® b u t not by analysis of sp atial co

ordinates an d not as a specific function of latex size ratio.

To the b est of the au th o r’s knowledge, previous use of latex m ixtures

outlined above®^'^®, much of which w as published subsequent to th is

work being performed, h as not extended as far as the study described

(34)

1.4). Notes on the Project *Hiah Performance Waterborne

Coatings'.

The above nam ed project w as p artially funded by th e E uropean

U nion u n d er th e 'BRITE' scheme (Basic R esearch in In d u stria l

Technologies, Europe). The rem aining funds were provided by

in d u stria l sponsors, the w ishes of whom were considered in the

choice of m aterials for study. The research project w as a collaborative

venture betw een the P a in t R esearch Association (FRA) and four

other research institutes'^'^ ®® in different E uropean countries. The

problem s of film form ation an d correct rbeology for application were

studied e l s e w h e r e A detailed study of com petitive adsorption

effects w as also m ade elsewhere®®. The role of FRA w as to study the

problem s related to pigm entation of latex coatings. As the work was

carried out w ithin a research group, not all th e work reported w as

physically carried out by th e author. W here th is w as th e case it is

indicated by reference.

1.5). A Brief Guide to This Thesis.

C hapter 1 h as provided a review of some of th e fu n d am en tal

problem s associated w ith latex p ain ts. The aim s of th e study and

how it w as intended to achieve these w as described in Section 1.3.

Figm ent clustering in latex p ain ts w as modelled by com puter

sim ulation of bin ary packings of h a rd spheres and by physical

m ixtures of distinguishable particles. A theoretical correction for

volume concentration effects w as derived and resu lts from both types

of model w ere compared. In th is thesis, physical model system s are

described first followed by com puter model results. A pplication to

pigm ented form ulations of th e resu lts obtained from m odelling is

(35)

C hapters 2 an d 3 describe development of th e physical model

system s. C hapter 2 provides details of a m ethod for controlling

particle size in em ulsion polym erisation. C hapter 3 provides details

of evaluation of latex m ixtures where different types of latex particle

could be distinguished by electron microscopy. C h ap ter 4 th e n

describes the p rep aratio n and evaluation of films cast from latex

m ixtures. R esults obtained from such films are presented.

C hapter 5 describes the operation of the com puter model an d resu lts

obtained by sim ulation. A theoretical correction factor for volume

concentration effects is derived. R esults from sim ulation are th en

com pared to resu lts from C hapter 4.

C hapter 6 describes the p rep aratio n of simple p ain ts containing

tita n iu m dioxide pigm ent. The validity of resu lts obtained in

C hapters 4 and 5 was tested.

C hapter 7 sum m arises th e w ork perform ed, conclusions m ade and

offers recom m endations for the form ulation of latex p a in ts w ith

improved pigm ent distribution.

E xperim ental details of latex synthesis and p rep a ratio n of m ixtures

are supplied in Appendices A-D. T abulated resu lts obtained for

pigm ented system s are p resen ted in Appendix E.

1,6). References for Chapter 1.

^ "A profile of the West European paint industry." 9th Edn. Pub.

Information Research Ltd. (London, 1990). p.67.

(36)

3 Ref. 1, p.62.

4 RF Storey in "Surface Coatings 1". Eds. AD Wilson, JW Nicholson, H J

Prosser. Pub. Elsevier Applied Science. (London, 1987). Chapter 3, pp69-70.

® TA Misev. "Powder Coatings: Chemistry and Technology". Pub. John

Wiley and Sons Ltd. (Chichester, 1991). Chapter 1, ppl-3.

3 E Levine. Modern Paint & Coatings. 1983, 73(8), 26.

CA Finch. Chem. Ind. 1981(22), 800.

3 F Marchionna, "Latex and its industrial apphcations". Pub. Rubber Age

Publishing Co. (New York, 1933). Preface, p.xxi.

9 JV Dawkins, SA Shakir in "Polymer Latexes". Eds. ES Daniels, ED Sudol,

MS El-Aasser. ACS Symp. Ser. 492. (1992). Chapter 27, p432.

10 CP Flint. "Chemistry and Technology of Rubber Latex", Pub. Chapman

and Hall Ltd. (London, 1938). Chapter 12, p 677.

H Barron. "Modern Synthetic Rubbers", Pub. Chapman and Hall Ltd.

(London, 1942). Chapter 2, pp 26-7.

J Hearn, RH Ottewill, JN Shaw. Br. Polym. J. 1970, 2, 116.

13 JW Goodwin, J Hearn, CC Ho, RH Ottewill. Br. Polym. J. 1973, 5, 347.

1^ O Quadrat, J. Snuparek. Prog. Org. Coatings. 1990, 18, 207.

1^ WC Mast, LT Smith, CH Fisher. Ind. Eng. Chem. 1945, 37, 365.

13 A Bouvy. Polym. Paint Col. J. 1994, 184, 540.

1^ HH Wang, HH Chu. Polym. Bull. 1990, 24, 207.

13 B Vincent, PF Luckham, FA Waite. J. Coll. Int. Sci. 1980, 73(2), 27.

(37)

20_{L Richter, D VoUhardt.}_{Coll. & Surf.}_{1995, 95, 113.}

21 DH Napper in “Polymeric Stabilisation of Colloidal Dispersions.” Pub.

Academic Press. (London, 1983). Chapter 1, pplO-14..

22 Y Adachi, MAC Stuart, R Fokkink. J. Coll. Int. Sci. 1994, 167, 346.

23 CA Mumme-Young, JC Padget, PJ Moreland. Polym. Paint. Col. J. 1988,

178(4211), 228.

24 Oil and Colour Chemists' Association of Austraha Publication, "Surface

Coatings", Vol. I, 2nd. Edn. Pub. Chapman and Hall. (London, 1983).

Chapter 30, pp373-4.

2G Ref. 24, pp376-7.

23 RE Dillon, LA Matheson, EB Bradford. J. Coll. Sci. 1951, 6, 108.

2"^ GL Brown. J. Polym. Sci. 1956, 22, 423.

23 G Mason. Br. Polym. J. 1973, 5, 101.

29 DP Jensen, LW Morgan. J. App. Polym. Sci. 1991, 42, 2845.

30 ASTM D2354-91.

31 JC Padget in "Additives for water based coatings". Ed. DR. Karsa. BSC

Special Pub. (London, 1989). Chapter 1, p.21.

32 JWVanderhoff. Br. Polym. J. 1970, 2, 161.

33 R Keunings, DW Boulsfield. J. Non Newtonian Fluid Meek. 1987, 22,

219.

34 GP Bierwagen. J. Coatings Tech. 1979, 51(658), 117.

35 ST Eckersley, A Rudin. J. Coatings Tech. 1990, 62(780), 89.

(38)

37 EP Cruz. Europ. Coatings J. 1991(4), 204.

38 d a Sullivan. J. Paint Tech. 1975, 47(610), 60.

39 A Toussaint. Private communication.

^*9 H Toivonen. J. Oil Col. Chem. Assoc. 1984, 77(8), 213.

JG Oldroyd in "Rheology of Disperse Systems." Ed. CC Mill. Pub.

Per gammon Press. (London, 1959). Chapter 1, p3.

42 GWS Blair. "Elementary Rheology." Pub. Academic Press. (London,

1969). Chapter 8, p46.

43 M Mooney. J. Coll. Sci. 1946, 1, 195.

44 N Casson in "Rheology of Disperse Systems." Ed. CC Mill. Pub.

Pergammon Press. (London, 1959). Chapter 5, pp96-100.

45 KL Hoy. Proc. 7th. Internat. Conf. Org. Coatings Sci. Tech. (Athens,

1981), 211.

43 T Gillespie in "Rheology of Emulsions." Ed. P Sherman. Pub. Pergammon

Press. (London, 1963). pp 115-116.

47 A Karunasena, JE Glass. Proc. ACS. Division Polym. Mat. Sci. Eng.

1989, 61, 544.

48 HN Naé, RH Bank. Rheology. 1991(Octoher), 170.

49 RR Blakey. Polym. Paint Col. J. 1984, 174(4127), 664.

59 RR Blakey. J. Paint Tech. 1971, 43(559), 65.

51 DB Judd. J. Res. Nat. Bureau Standards. 1942, 29, 329.

52 L Cutrone. J Coatings Tech. 1986 58(736), 83.

(39)

^4 JW Strutt. Phil. Mag. 1871, 41, 274.

Lord Rayleigh. Proc. Roy. Soc. 1910-11, 84, 25.

J Temperley, MJ Westwood, MR Hornby, LA Simpson. Proc. XXth

FATIPEC Congress. (Nice, 1990), 330.

S Fitzwater, JW Hook. J. Coatings Tech. 1985 57(721), 39.

IL Fabelinski. "Molecular Scattering of Light." Translated by RT Beyer.

Pub. Plenum Press. (New York, 1968). Chapter 1, pp60-63.

DH Clewell. J. Optical Soc. Am. 1941, 31, 521.

PB Mitton. “Opacity, Hiding Power and Tinting Strength.” in “The

Pigment Handbook, Vol III.” Ed. TO Patton. Pub. John Wiley & Sons Inc.

(New York, 1973). Chapter III-D-c, pp 289-293.

JH Nobbs. Private communication.

RWG Hunt. "Measuring Colour." Pub. Ellis Horwood Ltd. (Chichester,

1987). Chapter 2, pp32-34.

MR Hornby, RD Murley. J. Oil Col. Chem. Assoc. 1969, 52, 1035.

A Brisson, A Haber. J. Coatings Tech. 1991, 63(794), 59.

DJ Rutherford, LA Simpson. Double Liason. 1984 31(348), 17.

WK Asbeck, M Van Loo. Ind. Eng. Chem. 1949, 41, 1470

P Bartlett, RH Ottewill, PN Pusey. J. Chem. Phys. 1990, 93, 1299.

68 P Bartlett, RH Ottewill. J. Chem. Phys. 1992, 96, 3306.

69 P Bartlett, RH Ottewill. Langmuir. 1992, 8, 1919.

(40)

JM Guerts, M Lammers, AL German. Coll. & Surf. A* Physicochem. &

Eng. Aspects. 1996, 108(2/3), 295.

72 JL Keddie, P Meridith, RAL Jones, AM Donald. Langmuir. 1996, 12,

3793.

73 BE Rodriguez, EW Kaler. Langmuir. 1992, 8, 2382.

74 AJP Buckmann et. al. Double Liaison. 1995, 475, III.

75 J Feng, MA Winnik, RR Shivers, B Clubb. Macromol. 1995, 28, 7671.

76 MA Winnik, J Feng. J. Coatings Tech. 1996, 68(852), 39.

77 FORBAIRT, The Irish Science and Technology Agency, Glasnevin,

Dublin 9, Ireland.

78 CoRI, Coatings Research Institute, Avenue Pierre Holoffe, B-1342

Limelette, Belgium.

79 tNO, Centre for Coatings Research, Schoemakerstraat 97, PO Box 6034,

2600 JA DELFT, The Netherlands.

86 YKI, Institute for Surface Chemistry, Drottning Kristinas vag 45, PO

(41)

2). C o n t r o l o f P a r t i c l e S ize in E m u ls io n

P o ly m e r is a tio n .

The objective of work described in th is ch ap ter w as to develop a

simple technique for p rep arin g latices of different, p redeterm ined

particle size.

2,1). Introduction,

To study th e effect th a t the size ratio of latex to pigm ent particles

has on dispersion quality, it w as necessary to p rep are a series of

latices w ith different particle sizes. There are m any exam ples in the

lite ra tu re describing techniques for controlling particle size in

em ulsion polymerisation^-®. U nfortunately, solids contents of the

system s described are generally less th a n 20%. Latices used in

form ulating p a in ts typically have solids contents of 40% or greater^.

Hence, while th e inform ation available in the lite ra tu re aids

u n d erstan d in g of th e em ulsion polym erisation system , it w as

necessary to develop a process for controlling particle size in more

concentrated system s. A m ethod w as developed which allows the

simple p rep aratio n of concentrated (up to 50%) latices of

(42)

2.1.1). Theory of Particle Formation.

Following th e w ork of H arkins^ ^ io, S m ith an d Ewart^^ published the

first widely accepted theory of em ulsion polym erisation in 1948

based on experim ents perform ed w ith styrene. The th ree cases

postu lated are listed below.

Case I: N um ber of radicals p er particle is m uch sm aller

th a n unity.

Case II: N um ber of radicals p er particle is approxim ately

0.5.

Case III: N um ber of radicals per particle is m uch larg er th a n

unity.

It w as found^i th a t the rate of em ulsion polym erisation of styrene

was dependent on the su rfactan t concentration (3/5^^® power). This

was related to the num ber of micelles p resen t a t the s ta r t of th e

reaction and also the num ber of particles subsequently formed. At

higher soap concentrations, more micelles will be p resen t a t th e s ta rt

of the reaction leading to the form ation of more p rim ary polym er

particles. For th is to affect th e rate, th e n u m ber of polym erisation

loci m u st depend on the num ber of particles present. This p resen ts a

good arg u m en t for micelles being the locus of polym erisation initially

and particles swollen w ith adsorbed m onom er being th e locus

subsequently. The locus of polym erisation will tra n sfe r from being in

micelles to being in particles w hen all the soap th a t w as p resen t as

micelles h a s been adsorbed on th e surface of th e particles. Harkins^^

calculated th a t th is occurred a t some point betw een 10-20%

conversion for a 5% soap concentration. The H ark in s description is

modelled by Sm ith-Ew art^i Case II w here th e num ber of

(43)

the num ber of particles present, the figure of 0.5 being a rb itra ry to a

certain extent. Hence the ideas of H ark in s were verified for styrene

and a m echanism for em ulsion polym erisation w as form ulated.

The basic concepts of classical em ulsion polym erisation as envisaged

by H ark in s are th a t th ere are initially th ree p h ases present:

bulk monomer: th is is immiscible w ith w a ter an d provides a reservoir of m onomer for subsequent polym erisation;

w ater: th is is the reaction m edium , and th e in itiato r compound is p resen t dissolved in the aqueous phase. A sm all am ount of m onomer will also be dissolved in the aqueous phase;

m onom er solubilised in su rfa ctan t micelles: above th e "critical m icellar concentration" (cmc) the su rfa ctan t will he p resen t as micelles providing lipophilic m icrophase regions w ith in the micelle for which the m onomer will have high affinity. Hence m onom er will be tak e n up from the bulk p hase by the

su rfa ctan t micelles.

On heating, the in itiato r (containing some form of peroxide bond, e.g.

potassium persulfate) dissociates to form radicals. These radicals

in itiate polym erisation w ithin a micelle. As th e polym er chain grows

it becomes solid and the su rfactan t becomes adsorbed a t the polymer-

w ater interface. This continues u n til th ere are no more micelles

p resen t an d a large num ber of very sm all particles are p resen t w ith

su rfactan t adsorbed a t the surface. A num ber of these sm all p articles

may aggregate so as to decrease the surface a re a to volume ratio of

the system . This stage is term ed nucléation an d will continue u n til

the surface charge density on the particles is g reat enough to

m ain tain stability. It is possible th a t th e su rfa ctan t concentration
