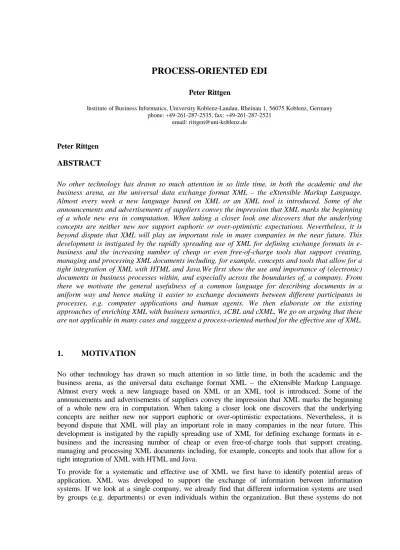

PROCESS-ORIENTED EDI

(1)

Peter Rittgen

Institute of Business Informatics, University Koblenz-Landau, Rheinau 1, 56075 Koblenz, Germany phone: +49-261-287-2535, fax: +49-261-287-2521

email: [email protected]

Peter Rittgen ABSTRACT

No other technology has drawn so much attention in so little time, in both the academic and the business arena, as the universal data exchange format XML – the eXtensible Markup Language. Almost every week a new language based on XML or an XML tool is introduced. Some of the announcements and advertisements of suppliers convey the impression that XML marks the beginning of a whole new era in computation. When taking a closer look one discovers that the underlying concepts are neither new nor support euphoric or over-optimistic expectations. Nevertheless, it is beyond dispute that XML will play an important role in many companies in the near future. This development is instigated by the rapidly spreading use of XML for defining exchange formats in e-business and the increasing number of cheap or even free-of-charge tools that support creating, managing and processing XML documents including, for example, concepts and tools that allow for a tight integration of XML with HTML and Java.We first show the use and importance of (electronic) documents in business processes within, and especially across the boundaries of, a company. From there we motivate the general usefulness of a common language for describing documents in a uniform way and hence making it easier to exchange documents between different participants in processes, e.g. computer applications and human agents. We then elaborate on the existing approaches of enriching XML with business semantics, xCBL and cXML. We go on arguing that these are not applicable in many cases and sugggest a process-oriented method for the effective use of XML.

1. MOTIVATION

No other technology has drawn so much attention in so little time, in both the academic and the business arena, as the universal data exchange format XML – the eXtensible Markup Language. Almost every week a new language based on XML or an XML tool is introduced. Some of the announcements and advertisements of suppliers convey the impression that XML marks the beginning of a whole new era in computation. When taking a closer look one discovers that the underlying concepts are neither new nor support euphoric or over-optimistic expectations. Nevertheless, it is beyond dispute that XML will play an important role in many companies in the near future. This development is instigated by the rapidly spreading use of XML for defining exchange formats in e-business and the increasing number of cheap or even free-of-charge tools that support creating, managing and processing XML documents including, for example, concepts and tools that allow for a tight integration of XML with HTML and Java.

To provide for a systematic and effective use of XML we first have to identify potential areas of application. XML was developed to support the exchange of information between information systems. If we look at a single company, we already find that different information systems are used by groups (e.g. departments) or even individuals within the organization. But these systems do not

(2)

exist in complete isolation: they support sub-processes that eventually contribute to achieving a common goal. To do so they have to share information.

Within one organization we might think about the ‘ideal solution’, i.e. rebuilding these information systems so that they all share a common information model, e.g. an object model (Frank, 1998). This would provide us with a high semantical level of integration and the applications could then simply communicate these objects directly without the need of conversion to another format. This could be done e.g. on the basis of the common object request broker architecture CORBA. But in some situations this alternative might not be available due to budget restrictions etc. In these cases we might want to “integrate” the systems on a lower semantical level by exchanging well-defined documents between them. But even then we need a “common understanding” of these documents.

An even more compelling need for exchangig documents arises when we consider the fact that today fewer and fewer companies operate on their own and more and more enterprises engage in building virtual networks to do electronic commerce. Buliding a common information system for the network is impossible, so integration has to be achieved via documents.

But how can this be done? Different information systems typically manage data in a different way: they use different formats (syntax) and they often attribute different meanings to similar or identical items (e.g. fields) or use the same field for different concepts (semantics). To exchange information in the form of documents, the participants have to agree on

1. a common format (document type) and, more importantly, on

2. a common understanding of a class of documents, i.e. a reference semantics.

XML is about to become the de-facto standard for the first issue (see section 2). But the second issue is typically neglected in the XML literature. Approaches aiming in that direction, i.e. adding business semantics to XML, are discussed in section 3. We argue that these lack important features, for example: abstraction, flexibility and the support of “customer-specific” documents. So in order to define reasonable document types and to instantiate them with the appropriate data we have to take into account the business processes generating and processing the information contained in the documents. How this can be done is described in section 4.

2. XML – EXTENSIBLE MARKUP LANGUAGE

XML has ist roots in the Standard Generalized Markup Language, or SGML, which was developed by Goldfarb, Mosher and Lorie at the IBM Laboratories during the 70s (Goldfarb and Rubinsky, 1990). The objective behind the development of SGML was a device and system-independent language for describing the logical structure of a document, or more specific a document class or type. SGML is a metalanguage, that is, a means of formally describing a language, in this case, a markup language. Historically, the word markup has been used to describe annotation or other marks within a text intended to instruct a compositor or typist how a particular passage should be printed or laid out such as wavy underlining to indicate boldface, special symbols for passages to be omitted or printed in a particular font and so forth.

XML is a subset of SGML. A detailed description can be found in (Goldfarb and Prescod, 2000). XML differs other markup languages (such as HTML) in at least 3 respects:

• the markup is descriptive (i.e. contains no code);

• the concept of a document type;

• system independence.

A descriptive markup system uses markup codes which simply provide names to categorize parts of a document. Markup codes such as <para> or \end{list} simply identify a portion of a document and assert of it that “the following item is a paragraph,” or “this is the end of the most recently begun list,”

(3)

etc. Secondly, XML introduces the notion of a document type, and hence a document type definition (DTD). Documents are regarded as having types, just as other data processed by computers do. The type of a document is formally defined by its constituent parts and their structure. The definition of a report, for example, might be that it consisted of a title and possibly an author, followed by an abstract and a sequence of one or more paragraphs. Anything lacking a title, according to this formal definition, would not formally be a report.

If documents are of known types, a parser can be used to process a document claiming to be of a particular type and check that all the elements required for that document type are indeed present and correctly ordered. More significantly, different documents of the same type can be processed in a uniform way. Programs can be written which take advantage of the knowledge encapsulated in the document structure information, and which can thus incorporate a richer functionality. A DTD for a breakfast menu might, for example, look like this:

<!ELEMENT breakfast-menu ( food+ ) >

<!ELEMENT food ( name, price, description, calories ) > <!ELEMENT name ( #PCDATA ) >

<!ELEMENT price ( #PCDATA ) > <!ELEMENT description ( #PCDATA ) > <!ELEMENT calories ( #PCDATA ) >

It declares that a breakfast menu consists of several food items (hence the +). Each food element contains the elements name, price description and calories. These are also called the attributes of food because they are of the basic type #PCDATA (string), i.e. they are not subdivided further. Regard that XML has only one simple type so there is no way of preventing “hundred” from appearing as a calorie value instead of 100. An example document of this type, i.e. an actual menu conforming to this DTD might be:

<breakfast-menu> <food>

<name>Belgian Waffles</name> <price>$5.95</price>

<description>two of our famous Belgian Waffles with plenty of maple syrup</description> <calories>650</calories>

</food> …

</breakfast-menu>

Well-formedness, that is correctness of the syntactical structure, and validity, i.e. conformance to the DTD, can be checked automatically by a parser. The following XML document is not well-formed: <food>

<name>Belgian Waffles</food> <price>$5.95

</name>

because the scopes of food and name cross and the price field is not terminated. The next example is well-formed but it does not conform to the DTD above and is hence not valid because the value of the price is not of basic type and the text field is not part of the DTD:

<food>

<text> Belgian Waffles </text>

<price> <dollars> 5.95 </dollars> <euros> 6.20 </euros> </price> </food>

(4)

3. EXTENSIONS OF XML FOR E-COMMERCE

Ever since XML was introduced as a universal data exchange format many companies have tried to build upon it an infrastructure for the exchange of business documents in particular. Two important approaches investing XML with business-oriented semantics are cXML by Ariba and xCBL by CommerceOne. We are going to sketch them here briefly. For a more detailed account we refer the reader to (Frank, 2000).

cXML (commerce XML) aims at product catalogues and orders. Catalogues come in a static and a dynamic form both with the same content but the latter supporting navigation through the products with a conventional WWW browser. cXML is specified as a set of XML document types which allows for a syntactical check by one of the numerous XML tools. But the semantics has to be validated by specific cXML tools. Existing standards for product details are used such as the product codes and measurement units defined by the United Nations and the ISO Language Code. The details of cXML can be found under http://www.cXML.org/. cXML is documented in the User Guide (Ariba, 2000) which currently defines 23 document types such as Contract, OrderRequest and OrderResponse accompanied by examples. It is not supported by a graphical notation so the reader is forced to deal with XML code to understand the semantics of the document types. As an example for a cXML document we show the particulars of a purchase order:

cXML is a proprietary approach but the tools are (at the moment) easily accessible and cheap. Unfortunately it is limited to specific documents (catalogues and orders) only. And although these certainly account for the majority of documents actually sent they represent only a small percentage of existing document types. With the other, less frequently used, types a standardization is less attractive. Here a different approach is more promising (see section 4). cXML also severely restricts the definition of a document’s semantics because - as in XML - the only elementary data type is the string. Numbers, dates, currencies etc. are all encoded as strings and hence threaten to violate the integrity of the information systems of buyer and seller. Moreover, it is not possible to add features to the documents that are only relevant to some of the companies participating in the Ariba marketplace. xCBL (XML Common Business Library) (CommerceOne, 2000) is a more ambitious effort that not only aims at data exchange but also at supporting E-business applications. Consequently xCBL offers a richer semantics than cXML by introducing an additional layer between XML and xCBL, the so-called schema language SOX. A schema language is a metagrammar for defining the syntactic structure and partial semantics of XML document types. This can be used to partially incorporate semantical features into a language like XML. Two major schema languages for XML are SOX and XML Schema.

SOX (Schema for object-oriented XML) has been specified by Commerce One. It can be found under http://www.w3.org/TR/NOTE-SOX/. It is defined as an XML DTD and it enriches XML with

(5)

“object-oriented” features (although the important feature of encapsulation was not considered). Nevertheless, SOX represents a notable improvement over XML because SOX allows for the specification of schemata. Just as an XML document has to conform to its DTD, a SOX document has to adhere to its schema. But while XML only provides a check for syntactic validity, a SOX document can also be verified with regard to certain semantical aspects because the set of predefined data types can be augmented by user-defined data types. Moreover, a schema can be specialized from an existing one. Finally, SOX also supports a kind of polymorphism because you can use an instance of a subtype of an element where the corresponding schema requires the supertype. SOX has been submitted to the W3 consortium but the emerging standard, the XML Schema Language, is likely to divert from SOX. In this case CommerceOne plans a new issue of xCBL based on XML Schema. To summarize, SOX extends the language of DTDs by supporting:

• An extensive (and extensible) set of datatypes,

• Inheritance among element types,

• Namespaces,

• Polymorphic content,

• Embedded documentation and

• Features to enable robust distributed schema management.

All of these features are supported with strong type-checking and validation. A SOX schema is also a valid XML instance according to the SOX DTD, enabling the application of XML content management tools to schema management. The XML Schema Language aims at the same target as SOX but without considering object-oriented features.

xCBL itself is defined as a set of SOX schemas. It contains 55 data types, 11 document type elements (PurchaseOrder, PurchaseOrderResponse, PriceCatalog, ProductCatalog etc.) and more than 300 elements on subordinate levels such as “sections” which correspond to parts of a document (e.g. OrderHeader). The library can be extended by new elements. Beyond the definition of common concepts CommerceOne also provides for an integration on instance level required by certain interorganizational business processes. This is done via “agencies” which manage unique keys for certain product types. It ensures that all participating business partners use the keys in the same way.

PurchaseOrder

OrderHeader ListOfOrderDetail OrderSummary

Fig. 1: Structure of a purchase order in xCBL

Document types in xCBL are described with the help of a graphical representation (see Fig. 1) and also in the form of corresponding XML code annotated by explanatory text in natural language. So for an order detail we have e.g.:

Repeating element OrderDetail

OrderDetail Information about a line item in an order. BaseItemDetail General information about the line item.

LineItemNum int The line number on which the item appears in the order.

SubLineItemNum (optional) int Further identifies the item’s position within the order.

SupplierPartNum (optional) The supplier’s part number for the item. PartNum

Agency

@AgencyID AgencyCode: the agency that assigned the part number. For a list of

agency names, see AgencyCode on page 153. If the agency that assigned the part number is not included in this

(6)

list, specify an AgencyID of "Other" and use the @AgencyOther attribute to specify the agency’s actual name.

PartID string The unique identifier for the part.

PartIDExt (optional) string The part number extension.

BuyerPartNum (optional) The buyer’s part number for the item. …

Compared to cXML, xCBL offers significant advantages. The higher semantical level due to SOX improves maintenance and integrity of the library. This is supported by organizational measures such as a certified registration database. This ensures a certain level of quality of proposed and accepted extensions to the library. On the negative side the participating companies put their investments in xCBL infrastructure at risk if the new standard for schema languages differs significantly from SOX. 4. A PROCESS-ORIENTED METHOD FOR THE EFFECTIVE USE OF XML The applicability of both cXML and xCBL is limited to the exchange of predefined goods for money between medium to large companies. The documents are specified to such detail that no flexibility remains for small to medium companies which are typically highly specialized and hence require documents that are likewise specialized to their specific needs. Moerover neither approach supports business transactions other than the standard buy/sell type. But many businesses engage into other forms of cooperation. For example, two companies might agree that the one develops products and the other produces them (and yet a third might market and distribute them). The documents that have to be exchanged here (blue prints, production schedules etc.) are frequently beyond standardization. In addition, approaches such as cXML and xCBL can never handle documents found in project-like settings, i.e. in a one-time cooperation launched for a specific purpose. What we need in these cases is an approach to design documents according to the business process under consideration. The following sections elaborate this idea.

4.1. Event-driven Method Chain

The process modeling language EMC is based on the Event-driven Process Chains (EPCs) of ARIS. Although this language exhibits some shortcomings we do not reject it outright because it has proved its ease of use in practice: it is the preferred choice of consultants and large IT departments, and it is a must for companies introducing SAP. Hence a process language based on EPCs has a better chance of being accepted by the practitioner than some completely new artefact. After some necessary syntactical changes (Rittgen 1999), we put together these modEPCs, classes with their attributes and resources thus arriving at the Event-driven Method Chain (EMC). Its syntax is shown in Fig. 2. A detailed description of EMC can be found in (Rittgen 2000).

(7)

The function of a modEPC is now performed by some object and hence called the service (or method) provided by this object. Apart from this, the process part of an EMC, consisting of events, methods, connectors and control flow arcs (dashed arrows), follows exactly the syntax of modEPCs. The object classes involved in providing the service are linked via a double-headed, solid arrow. A class can have attached to it a list of attributes. Classes are also called the internal resources required by a service because they form an integral part of the information system. An external resource is denoted by an oval. It is connected via a solid line to the method requiring it.

Fig. 3: An example EMC for a web application

Fig. 3 shows a part of the EMC for the order processing within some web application. We assume that the process is fully automated, i.e. it requires no external resources. Upon the arrival of an order, it has to be entered into the system. This service is provided by the class order but it involves also the class customer because the respective customer has to be recorded in the order. Note: the fact that the service enter order is provided by order and not by customer is not represented in the EMC. But this information, more generally any assignment of services to classes, is vital for the following design phase and hence should be expressed in the object model (see Fig. 4). According to the EMC, the

(8)

attributes of order are order id (e.g. a number) and items (a list of ordered items and quantities). These attributes also constitute the skeleton of the respective class definition in the object model (see Fig. 4). After entering the order, it is checked for validity. The outcome of this check is represented by the occurrence of either the event “order OK” or the event “order not OK”. The XOR split denotes that these events are mutually exclusive. In the case of an invalid order, a refusal of the order is generated and sent via email. The items of a valid order, i.e. the software packages ordered by the customer, are delivered (e.g. via ftp) and the bill is prepared. After this, further processing may occur. Note that no attributes are specified for the class refusal. The reason might be that the modeler could not think of appropriate attributes and hence left this to the later stage of developing the object model.

Fig. 4: Object model for the example (in MEMO-OML)

On the basis of this EMC, an initial object model can be specified without further thinking: it simply consists of all classes and their respective attributes as found in the EMC. After this, the following steps yield a complete object model:

1. assigning services to objects: from the classes involved in a service, the one providing it has to be selected. There the service is recorded.

2. finding missing attributes: each class is thoroughly examined to check whether attributes have been forgotten e.g. because they are not necessary in the context of the current EMC. This step is best performed after all EMCs for the application lie before us.

(9)

3. identifying potentials for generalization: classes sharing common attributes or services are potential candidates for generalization inheriting these attributes from a common super-class. 4. establishing associations between classes: if more than one class is involved in providing a

service, there is usually an association between the involved classes.

Starting with the initial object model for the EMC of Fig. 3, we assign the services to classes as indicated in Fig. 4. The EMC gave no attributes for refusal. Looking at actual orders, bills and refusals stored in our file cabinet, we find that a refusal contains some explanatory text and that all letters carry a date. We update the classes accordingly (step 2), and we generalize them to the super-class document with attribute date (step 3). In the last step, we discover that customer and order are involved in enter order, which leads us to establish an association places between them, where a customer can place arbitrarily many orders (0..n) but an order is placed by exactly one customer (1..1). The black triangle indicates the reading direction: customer places order. In a similar way, bill and refusal are connected to order.

Please observe that the redundancy of having some of the information present in both EMC and object model (e.g. classes, attributes and services) helps to check inter-model consistency and thus serves model integration. The resulting object model is then an ideal starting point for the definition of document types in XML.

4.2. Example

The following example illustrates the process described so far. It shows how the DTD templates can be generated for a specific business process. Imagine two companies in a supplier-customer relation with frequent and large transactions. They both decide to handle the future exchange of documents electronically to speed up the delivery and payment processes, to cut on administrative and inventory costs and to have both constant and up-to-date information for inventory control and other controlling purposes. Because appropriate tools are readily available they choose XML as an exchange format.

delivery w/ del. note place order check delivery check invoice pay invoice check order make out invoice enter payment

item

exists ?

ordered item = delivered item = item on del. note

ordered amount= delivered amount= amount on del. note

item on del.note = item on invoice, correct price? amount on del.note = amount on invoice Customer Supplier

Fig. 5: Interorganizational business process

In this scenario a typical procedure would be to list all required documents and to specify them with a conceptual modeling language such as ERM (Entity-Relationship Model) (Chen, 1979). This ERM would then serve directly as the basis for defining the DTDs. But employing this approach there is no way to decide whether all information required by the business processes of both partners is present

(10)

and, most of all, if each attribute/field is understood in the same way by the people or information systems responsible for the execution of the individual activities. Common ambiguities include:

• origin and destination of information/data

• intended use

• format of data

• meaning of blank fields

• etc.

To prevent such ambiguities we have to know where the information is produced and where it is used, i.e. the business processes generating and “consuming” it. So we have to develop a process model first. Fig. 5 shows a part of an example process in EMC notation. It depicts the order processing on both sides, the supplier side (lower chain) and the customer side (upper chain).

delivered item = item on del. note

XOR next item on delivery note finished item delivered? compare

delivery & note

compare order & note

correct amount?

end of item list?

delivered amount= amount on del. note

no

yes

Fig. 6: Subprocess “check delivery”

Now, if we want to design the XML documents exchanged between customer and supplier we need to know more about the subprocesses: what exactly does “check delivery” mean? If we ask the manager of the purchase department, he will tell us that this entails two sub-subprocesses: first comparing the delivery note against the delivery (which is done by the warehouseman), and then comparing the delivery note with the actual order by a purchase clerk (see Fig. 6, left side). An interview with the warehouseman reveals that the first process is further subdivided as indicated on the right side of Fig. 6.

(11)

If we go on detailing the remaining subprocesses we will finally identify all information required by the subprocesses and hence we can derive the structure of the documents that are exchanged. Fig. 5 shows the relevant information revealed by the detailed modeling.

Now, the information present in the “annotated” EMC of Fig. 5 represents a guideline for designing the DTDs for all involved XML documents. For example, for the validity check of the order we have to assess whether the ordered items belong to the range of supplied products. For that we need the item number and/or its description on the order. Now, to verify the delivery against the order we proceed in two steps as suggested by Fig. 6 because the warehouseman has no access to orders and the clerk from purchasing never sees the actual delivery. Hence we need an intermediate document that accompanies the delivery and is passed on to the purchase department, the delivery note. In order to check the delivery against the note, we compare the items and amounts on the note (which consequently must be listed there) with the ones actually delivered. To verify that all delivered items have indeed been ordered and that the amounts are correct (step two), the same information belongs on the order. In addition, the fact that we have to compare the delivery note against the order also tells us that the delivery note has to refer to the corresponding order, e.g. by containing the order number.

item exists ?

del. item = item on d.n. order item = item on d.n.

amounts equal

amounts equal compare d.n. & invoice <order> <order #> <item> <item #> <description> <amount> <deliveryNote> <dn #> <order #> <item> <item #> <description> <amount> Fig. 7: DTDs for the example process

Putting these pieces together we arrive at the DTDs shown in Fig. 7. The same is done to design the DTD for the invoice and other possible documents involved in the ordering process.

Now, modeling all involved business processes in detail may seem a lot of work to do when we just have in mind to design the structure of exchanged documents. But apart from the apparent advantages in building well-structured and flexible documents, the modeling gives us additional benefits: it points at potentially inefficient processes and helps us to determine how to improve these processes. The models guide us in reengineering the current processes and documents and in adapting the organization and the IT infrastructure accordingly.

In our example, we might ask why we need the delivery note at all in an EDI setting. It was originally motivated by the fact that the warehouseman does not have access to IT infrastructure. A revised version of this process might remove not only the delivery note and its exchange but also the necessity of a second check in the purchase department.

5. CONCLUSION

We started with the assumption that XML plays an increasingly important role as a standard in exchanging documents both within a company and between companies. Many providers of e-commerce infrastructure such as Ariba and CommerceOne rely on it as a basis for defining electronic commercial documents such as orders and invoices. But the structure of these documents is rigid and cannot be adapted to a company’s needs. Moreover only standard buy-sell transactions are supported.

(12)

We argue that structure and content of a document depend heavily on the way this document is used, i.e. on the business processes producing and utilizing the document. As core processes vary from company to company so do the relevant documents. We therefore suggest that the definition of the document types is done after, and based on, the modeling of the relevant business processes. In order to achieve this aim we introduced a method to describe business processes as an EMC annotated by details of the information required for each step of the process. Such a model can then be transformed semi-automatically into an object model and from there into a set of DTDs. This approach makes sure that all necessary information is incorporated in some document and that the document’s structure is tailored specifically to the needs of the process to be supported.

REFERENCES

ARIBA (2000). cXML User’s Guide. Version 1.1, 2000 (www.cXML.org)

CHEN, P.P. (1979). The Entity-Relationship Model - Toward a Unified View of Data. In Chu, W.W.; Chen, P.P.: Tutorial: Centralized and Distributed Data Base Systems, initially presented at the 1st International Conference on Distributed Computing Systems, 1.-4. Oktober 1979, Huntsville, Alabama, IEEE Computer Society, Long Beach CA, pp. 166-193.

COMMERCEONE (2000). Common Business Library. Version 2.0.1, (http://www.commerceOne .com/xml/).

FRANK, U. (1998). The Memo Object Modelling Language (MEMO-OML), Report 10, Institute of Business Informatics, Koblenz.

FRANK, U. (2000). Vergleichende Betrachtung von Standardisierungsvorhaben zur Realisierung von Infrastrukturen für das Business (Comparison of Standardization Efforts Towards E-Business Infrastructures), Report 22, Institute of E-Business Informatics, Koblenz.

GOLDFARB, C.F. and PRESCOD, P. (2000). The XML Handbook, 2nd edition, Prentice Hall, Upper Saddle River NJ.

GOLDFARB, C. and RUBINSKY, Y. (1990). The SGML Handbook, Clarendon Press, Oxford. RITTGEN, P. (1999). Modified EPCs and Their Formal Semantics. Report 19, Institute of Business

Informatics, Koblenz.

RITTGEN, PETER (2000). EMC - A Modeling Method for Developing Web-based Applications, International Conference of the International Resources Management Association (IRMA) 2000, Anchorage, Alaska, USA, May 21 – 24, Idea Group Publishing, Hershey, pp. 135-140.
