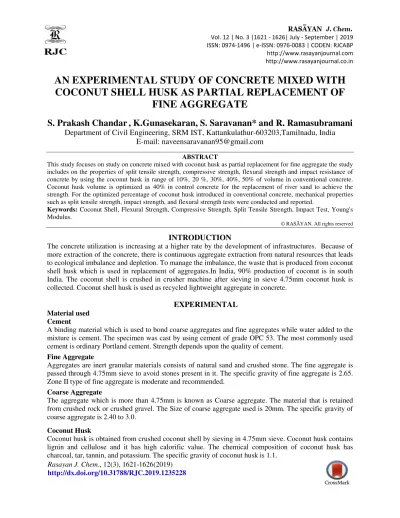

ISSN: 0974-1496 | e-ISSN: 0976-0083 | CODEN: RJCABP http://www.rasayanjournal.com http://www.rasayanjournal.co.in
Rasayan J. Chem., 12(3), 1621-1626(2019) http://dx.doi.org/10.31788/RJC.2019.1235228
AN EXPERIMENTAL STUDY OF CONCRETE MIXED WITH COCONUT SHELL HUSK AS PARTIAL REPLACEMENT OF
FINE AGGREGATE
S. Prakash Chandar , K.Gunasekaran, S. Saravanan* and R. Ramasubramani
Department of Civil Engineering, SRM IST, Kattankulathur-603203,Tamilnadu, India E-mail: [email protected]
ABSTRACT
This study focuses on study on concrete mixed with coconut husk as partial replacement for fine aggregate the study includes on the properties of split tensile strength, compressive strength, flexural strength and impact resistance of concrete by using the coconut husk in range of 10%, 20 %, 30%, 40%, 50% of volume in conventional concrete.
Coconut husk volume is optimized as 40% in control concrete for the replacement of river sand to achieve the strength. For the optimized percentage of coconut husk introduced in conventional concrete, mechanical properties such as split tensile strength, impact strength, and flexural strength tests were conducted and reported.
Keywords: Coconut Shell, Flexural Strength, Compressive Strength, Split Tensile Strength, Impact Test, Young's Modulus.
© RASĀYAN. All rights reserved
INTRODUCTION
The concrete utilization is increasing at a higher rate by the development of infrastructures. Because of more extraction of the concrete, there is continuous aggregate extraction from natural resources that leads to ecological imbalance and depletion. To manage the imbalance, the waste that is produced from coconut shell husk which is used in replacement of aggregates.In India, 90% production of coconut is in south India. The coconut shell is crushed in crusher machine after sieving in sieve 4.75mm coconut husk is collected. Coconut shell husk is used as recycled lightweight aggregate in concrete.
EXPERIMENTAL Material used
Cement
A binding material which is used to bond coarse aggregates and fine aggregates while water added to the mixture is cement. The specimen was cast by using cement of grade OPC 53. The most commonly used cement is ordinary Portland cement. Strength depends upon the quality of cement.
Fine Aggregate
Aggregates are inert granular materials consists of natural sand and crushed stone. The fine aggregate is passed through 4.75mm sieve to avoid stones present in it. The specific gravity of fine aggregate is 2.65.
Zone II type of fine aggregate is moderate and recommended.
Coarse Aggregate
The aggregate which is more than 4.75mm is known as Coarse aggregate. The material that is retained from crushed rock or crushed gravel. The Size of coarse aggregate used is 20mm. The specific gravity of coarse aggregate is 2.40 to 3.0.
Coconut Husk
Coconut husk is obtained from crushed coconut shell by sieving in 4.75mm sieve. Coconut husk contains lignin and cellulose and it has high calorific value. The chemical composition of coconut husk has charcoal, tar, tannin, and potassium. The specific gravity of coconut husk is 1.1.
Fig.-1: Coconut Shell Husk Design mix
In design mix for plain and reinforced concrete IS 456-2000 is used for reference of concrete mixes. M25 grade mix is used with a ratio of 1:1:2 and the water-cement ratio is 0.50.
Casting of Specimen
The specimens are cast and the test should be conducted to know the flexural strength, compression test, split tensile test, impact test are tested with conventional and replacement of coconut-shell husk. Cube molds size of 150×150×150 mm, cylinder molds of 150×300mmand for flexural beam 100×100×500mm.This specimen is tested in the intervals of 3, 7, 28 days.
Curing of Specimen
Curing of a specimen is done to achieve two main factors considering to maintain a stable temperature and to prevent loss of moisture content in a specimen. The optimum curing temperature of the specimen is 20ºC. The specimen is done curing to achieve strength.
Compression Strength Test
The concrete specimens of size 150×150×150 mm of control concrete and replacement of coconut shell husk were tested under compression for 3, 7 and 28 days and the readings were tabulated. Compressive strength is given by load to the area as shown in Fig.-4.
Fig.-2: Moulds for Cubes Fig.-3: Cast Specimen
Fig.-4: Compressive Strength Testing on Cube
Table-1: Compression Strength Test
Mix type
Replacement of Coconut shell husk in
(%)
Density Kg/m3
Compressive strength N/mm2 3rdday 7thday 28thday
Control Concrete 0 2480 15.4 20.8 29.12
Coconut shell husk concrete
10% 2462 15.1 19.3 29.0
20% 2401 14.6 18.6 28.7
30% 2370 13.9 18.1 27.56
40% 2323 13.7 17.8 26.13
50% 2301 12.6 16.2 24.8
Fig.-5: Graphical Representation of Compression Strength Test Results
Split Tensile Strength Test
The conventional concrete specimens and replaced specimen of size 150×300 mm are tested under split tensile strength shown in Fig.-6. At the center of the cylinder specimen, the tensile loads are applied. The formula for split tensile strength is Fα = 2P/πdl. Where P- load is given to the specimen, l and d are denoted as length and diameter of the specimen.
Fig.-6: Testing on a Specimen
Table-2: Split Tensile Strength Test Results 0
5 10 15 20 25 30 35
0% 10% 20% 30% 40% 50%
Compression strength N/mm2
Percentage replacement of coconut shell husk
3rd day 7th day 28th day
Mix Type
Replacement of Coconut Shell
Husk in (%)
Split Tensile Strength N/mm2
3rd day 7th day 28th day
Control concrete 0% 2.66 2.93 4.6
Coconut shell husk concrete
10% 2.57 2.81 4.2
20% 2.31 2.59 3.63
30% 2.12 2.45 3.27
40% 2.07 2.32 2.85
50% 2.01 2.20 2.49
Flexural Strength Test
The specimen was taken and the center to center distance is marked and kept under loading at the center point in compression testing machine. At some point, it gets cracked and the readings are noted as shown in Fig.-7.
Fig.-7: Graphical Representation of Split Tensile Strength Test Results
Fig.-8: Testing of Flexural Beams
Table-3: Flexural Strength Test Results
Mix Type
Replacement of Coconut Shell Husk in (%)
Flexural Strength N/mm2
3rd day 7th day 28th day
Control concrete 0% 2.84 4 5.65
Coconut shell husk concrete
10% 2.72 3.72 5.13
20% 2.54 3.24 4.7
30% 2.13 2.8 4.13
40% 1.66 2.5 3.8
50% 1.64 2.4 3.5
Fig.-9: Graphical Representation of Flexural Strength Test
Impact Resistance Test
The specimen was placed at the center of impact testing machine above which metal ball is placed on which continuous hammering was done until it gets a break as shown in Fig.-9.
0 5 10 15
0% 10% 20% 30% 40% 50%
Flexural tensile strength N/mm2
Percentage replacement of coconut shell husk
28th day 7th day 3rd day 0
5 10 15
0% 10% 20% 30% 40% 50%
Split tensile strength N/mm2
Percentage replacement of coconut shell husk…
28th day 7th day 3rd day
Fig.-10: Testing of Concrete Disc Table-4: Impact Resistance Test
Mix Type
Replacement of Coconut Shell
Husk in (%)
Impact Resistance Test
3rd day 7th day 28th day Initial Final Initial Final Initial Final
Control concrete 0% 45 49 51 56 75 83
Coconut shell husk concrete
10% 24 27 55 58 86 102
20% 55 59 64 69 112 124
30% 56 61 92 95 145 152
40% 53 57 80 89 160 164
50% 66 73 91 96 149 156
Fig.-11: Graphical Representation of Impact Resistance Test Results
CONCLUSION
• The replacement of fine aggregate as a coconut shell husk of 10%, 20%, 30%, 40%, 50% compared with the conventional concrete, it is found to have same the strength with minor decrease when the percentage replacement of husk has been increased.
• The optimum replacement of fine aggregate by coconut shell husk is 40%.
• Due to the use of coconut shell husk, we can save the natural resource by replacing instead of river sand.
• By implementing the replacement of fine aggregate by coconut shell husk, it will reduce the total construction cost.
• From the environment point of view, the coconut shell obtained as raw waste is reused in the production of concrete as fine aggregate.
ACKNOWLEDGMENT
This study was supported and grant of permission to use the lab facilities was given by SRM Institute of Science and Technology, Chennai.
REFERENCES
1. S. Prakash Chandar, K.Gunasekaran, K. Prasanth et al, Rasayan Journal of Chemistry, 11, 702(2018), DOI:10.7324/RJC.2018.1123003.
2. S. Prakash Chandar, K. Gunasekaran, V. P. Nabeel Babu et al, Rasayan Journal of Chemistry, 11, 640(2018), DOI:10.7324/RJC.2018.1123011.
3. S. Prakash Chandar, K. Gunasekaran, N. Sai Sandeep et al, Rasayan Journal of Chemistry,10, 528(2017), DOI:10.7324/RJC.2017.1021636.
0 100 200
0% 10% 20% 30% 40% 50%
Impact resistance
Percentage replacement of coconut shell husk
28th day 7th day
3rd day
4. R. Ramasubramani, K. S. Sathyanarayanan et.al, Rasayan Journal of Chemistry, 9, 706(2016).
5. K. Divya Krishnan, P. T. Ravichandran, V. K. Gandhimathi, Rasayan Journal of Chemistry, 10, 600(2017), DOI:10.7324/RJC2017.1021677.
6. S. Prakash Chandar, K. Gunasekaran, K.S.Satyanarayanan et.al, European Journal of Environment and Civil Engineering, DOI:10.1080/19648189.2017.1418435.
7. K. Gunsekaran, S. Prakash Chandar, R. Annadurai et.al, European Journal of Environmental and Civil Engineering, DOI:10.1080/19648189.2016.1144540.
8. V. Sumitha, P. T. Ravichandran, Divya Krishnan K., International Journal of Engineering &
Technology, 7, 411(2018), DOI: 10.14419/ijet.v7i2.11507.
[RJC-5228/2019]
