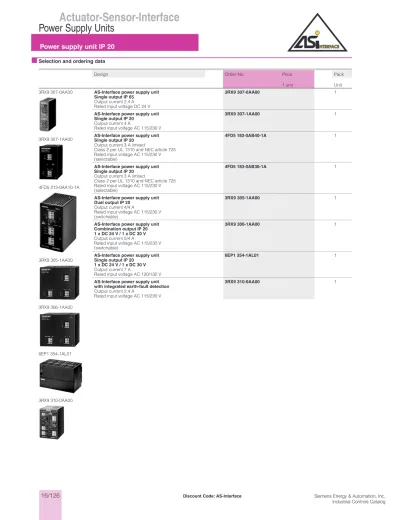

Selection and ordering dataDesign Order No. Price Pack
1 unit Unit
3RX9 307-0AA00
3RX9 307-1AA00
4FD5 213-0AA10-1A
3RX9 305-1AA00
3RX9 306-1AA00
6EP1 354-1AL01
3RX9 310-0AA00
AS-Interface power supply unit Single output IP 65
Output current 2.4 A Rated input voltage DC 24 V
3RX9 307-0AA00 1
AS-Interface power supply unit Single output IP 20
Output current 4 A
Rated input voltage AC 115/230 V
3RX9 307-1AA00 1
AS-Interface power supply unit Single output IP 20
Output current 3 A limited
Class 2 per UL 1310 and NEC article 725 Rated input voltage AC 115/230 V (selectable)
4FD5 183-0AB40-1A 1
AS-Interface power supply unit Single output IP 20
Output current 3 A limited
Class 2 per UL 1310 and NEC article 725 Rated input voltage AC 115/230 V (selectable)
4FD5 183-0AB30-1A 1
AS-Interface power supply unit Dual output IP 20
Output current 4/4 A
Rated input voltage AC 115/230 V (switchable)
3RX9 305-1AA00 1
AS-Interface power supply unit Combination output IP 20 1 x DC 24 V / 1 x DC 30 V Output current 5/4 A
Rated input voltage AC 115/230 V (switchable)
3RX9 306-1AA00 1
AS-Interface power supply unit Single output IP 20
1 x DC 24 V / 1 x DC 30 V Output current 7 A
Rated input voltage AC 120/130 V
6EP1 354-1AL01 1
AS-Interface power supply unit with integrated earth-fault detection Output current 2.4 A
Rated input voltage AC 115/230 V
3RX9 310-0AA00 1
■
Technical dataAS-Interface power supply unit Single output IP 20
Output current 2.4 A 3RX9 307-0AA0
Output current 4 A 3RX9 307-1AA0
Output current 3.3 A
4FD5 213-0AA10-1A
Rated input voltage in V AC 115/230 (selectable) AC 115/230 AC 230/400 (repositionable)
Input Single-phase AC Single-phase AC Single- and two-phase AC
• Range selection by changeover switch by plug 1
• Voltage range in V AC 195 ... 253 / 102 ... 132 AC 197 ... 430
• Overvoltage strength EN 61 000-4-1
• Mains buffering in ms at Ie Rated > 20 > 20 at 230 V; > 60 at 400 V
• Mains frequency rated value I range in Hz 50/60/47 ... 63
• Built-in input fuse in A T 2 T 5 (not accessible) T 3 (not accessible)
• Recommended m.c.b (IEC 898) in mains supply circuit
– from 16 characteristic C
Output
• Stabilized floating DC voltage acc. to AS-Interface specification
yes
• Rated voltage Ua Rated in V DC 30
• Total tolerance in V DC 29.5 ... 31.6
• Residual ripple in mVpp (0 ... 10 kHz, AS-i+/AS-i-)
< 300
• Spikes in mVpp
(10 ... 500 kHz, AS-i+/AS-i-)
< 50
• Operational display green LED
• Rated current value Ia Rated in A 2.4 (power boost: 2.8) 4 (power boost: 4.5) DC 3.3 (power boost: DC 4) Efficiency/power loss
• Efficiency at Ua Rated, Ia Rated in % approx. 85
• Power loss at Ua Rated, Ia Rated in W approx. 10 approx. 18 approx. 15
Protective and monitoring functions
• Overvoltage protection of outputs no
• Current limitation in A > 2.8 > 4.5 > 5
• Short-circuit protection yes
Safety
• Primary/secondary isolation SELV to EN 60 950 SELV to EN 60 950
(in preparation)
SELV to EN 60 950
• Safety class (EN 60 950/IEC 950) I
• Protection IP 20
• Approvals CE, UL, ship building CE, UL, CSA (in preparation) CE, UL (in preparation)
EMC
• Emitted interference EN 50 081-1
• Noise immunity EN 50 082-2
Operational data
• Ambient temperature range in °C –25 ... +55 –45 ... +55
• Transport and storage temperature range in °C –25 ... +60 –45 ... +80
• Humidity class max. 80% rel. humidity
Mechanical data
• Input connection Cage Clamp connection (0.8 ... 2.5 mm2)
• Output connection AS-Interface + Cage Clamp connection (0.8 ... 2.5 mm2)
• Output connection AS-Interface - Cage Clamp connection (0.8 ... 2.5 mm2)
• Output connection shield S Cage Clamp connection (0.8 ... 2.5 mm2) –
• Output connection Ground – – Cage Clamp terminals
(0.8 ... 2.5 mm2)
• Dimensions (W x H x D) in mm 46 × 110 × 136 75 × 135 × 107 75 × 135 × 103
• Weight in kg approx. 0.8 1 1.15
■
Technical dataAS-Interface power supply unit Dual output IP 20
2 × DC 30 V 3RX9 305-1AA00
Combination output IP 20 1 × DC 24 V / 1 × DC 30 V
3RX9 306-1AA00
Output current in A 4/4 5/4
Input voltage in V AC 115/230 (selectable)
Input Single-phase AC
• Range selection by changeover switch
• Input voltage range in V AC 195 ... 253 / 102 ... 132
• Overvoltage strength EN 61 000-4-1
• Mains buffering in ms at Ie Rated > 20
• Mains frequency rated value I range in Hz 50/60/47 ... 63
• Built-in input fuse in A T 5 (not accessible)
Output
• Stabilized floating DC voltage acc. to AS-Interface specification
yes
• Rated voltage Ua Rated in V 2 x DC 30 DC 30/DC 24
• Total tolerance DC 29.5 ... 31.6 DC 29.5 ... 31.6/DC 24 ± 2 %
• Residual ripple in mVpp
(0 ... 10 kHz, AS-Interface+/AS-Interface-)
< 300
• Spikes in mVpp
(10 ... 500 kHz, AS-Interface+/AS-Interface-)
< 50
• Operational display green LED
• Rated current value Ia Rated in A 2x4 4/5
Efficiency/power loss
• Efficiency at Ua Rated, Ia Rated in % approx. 85
• Power loss at Ua Rated, Ia Rated in W approx. 36 Protective and monitoring functions
• Overvoltage protection of outputs no
• Current limitation in A > 4 (power boost 4.5) > 4/> 5 (power boost 4.5 / 5.5)
• Short-circuit protection yes
Safety
• Primary/secondary isolation SELV to EN 60 950 SELV to EN 60 950 (in preparation)
• Safety class (EN 60 950/IEC 950) 1
• Protection IP 20
• Approvals CE, UL, CSA CE, UL, CSA (in preparation)
EMC
• Emitted interference EN 50 081-1
• Noise immunity EN 50 082-2
Operational data
• Ambient temperature range in °C –45 ... +55
• Transport and storage temperature range in °C –45 ... +60
• Humidity class max. 80% rel. humidity
Mechanical data
• Input connection Cage Clamp connection (0.8 ... 2.5 mm2)
• Output connection AS-Interface + Cage Clamp connection (0.8 ... 2.5 mm2)
• Output connection AS-Interface - Cage Clamp connection (0.8 ... 2.5 mm2)
• Output connection shield S Cage Clamp connection (0.8 ... 2.5 mm2)
• Dimensions (W x H x D) in mm 150 x 135 x 107
• Weight in kg approx. 2
• Mounting Snap-on mounting onto standard rail DIN EN 50 022-35 x 7.5 mm
■
Technical dataAS-Interface power supply unit Single output IP 20
6EP1 354-1A01
with integrated earth-fault detection
3RX9 310-0AA00
Output current in A 7 2.4
Rated input voltage in V AC 120 ... 230 AC 115/230
Input
• Range selection by variable range input by changeover switch
• Voltage range in V AC 93 ... 264 / DC 110 ... 350 AC 195 ... 253 / 102 ... 132
• Overvoltage strength VDE 0160 Limiting curve W2 EN 61 000-4-1
• Mains buffering in ms at Ie Rated < 20 at 93/187 V > 20
• Mains frequency rated value I range in Hz 0/50/60/47 ... 63
• Built-in input fuse in A T 6.3 (not accessible) T 2
• Recommended circuit-breakers (IEC 898) in A 16 with Characteristic C or 8 with Characteristic B – Output
• Stabilized floating DC voltage acc. to AS-Interface specification
yes
• Rated voltage Ua Rated in V DC 30
• Total tolerance DC 29.5 ... 31.6
• Residual ripple in mVpp
(0 ... 10 kHz, AS-Interface+/AS-Interface-)
< 300
• Spikes in mVpp
(10 ... 500 kHz, AS-Interface+/AS-Interface-)
< 50
• Operational display green LED
• Rated current value Ia Rated in A 7 2.4 (power boost: 2.8)
Efficiency/power loss
• Efficiency at Ua Rated, Ia Rated in % > 85
• Power loss at Ua Rated, Ia Rated in W < 37 10
Protective and monitoring functions
• Overvoltage protection of outputs yes no
• Current limitation in A from approx. 7.4 > 2.8
• Short-circuit protection Stabilized current characteristic approx. 7.4 A
yes
Safety
• Primary/secondary isolation SELV to EN 60 950
• Safety class (EN 60 950/IEC 950) Class I to IEC 536 1
• Protection IP 20 to EN 60 529 IP 20
• Approvals CE, UL/cUL CE, UL, CSA (in preparation)
EMC
• Emitted interference EN 50 081-1, EN 55 022 Cl. B EN 50 081-1
• Noise immunity EN 50 082-2
Operational data
• Ambient temperature range in °C 0 ... +55 –25 ... +55
• Transport and storage temperature range in °C –25 ... +85 –25 ... +60
• Humidity class F to DIN 40 040 max. 80% rel. humidity
Mechanical data
• Input connection 1 terminal each for 0.5 ... 2.5 mm2 Cage Clamp connection (0.5 ... 2.5 mm2)
• Output connection AS-Interface + 3 terminals for 0.5 ... 2.5 mm2 Cage Clamp connection (0.5 ... 2.5 mm2)
• Output connection AS-Interface - 3 terminals for 0.5 ... 2.5 mm2 Cage Clamp connection (0.5 ... 2.5 mm2)
• Output connection shield S 2 terminals for 0.5 ... 2.5 mm2 Cage Clamp connection (0.5 ... 2.5 mm2)
• Dimensions (W x H x D) in mm 200 × 125 × 135 92 × 110 × 136
• Weight in kg 1.8 1.1
• Mounting for snap-on mounting onto standard rail
DIN EN 50 022-35 × 15 mm and S7 rail
Snap-on mounting onto standard rail DIN EN 50 022-35 x 7.5 mm
■
Dimension drawings3RX9 307-0AA00 3RX9 307-1AA00
3RX9 305-1AA00, 3RX9 306-1AA00 3RX9 310-0AA00
6EP1 354-1AL01 105
54,6
45
135 135
107
75 g_nsa_xx_00121b
135
107 150
g_nsa_xx_00122b
ABCDEF GH
105+1 90+1
54,6
7
SIEMENS
135+1
max. 110
ASi AS-i
_ _
_
Suitable for mounting onto EN 50022-35x...
standard mounting rail
Fuse 250 V/2 A
LED display
g_nsa_de_00123b
SITOP SIEMENS
power AS-I 6EP1 354-1AL01 OK
VOLTAGE SELECTOR
200 135
36125
g_nsa_de_00124b
