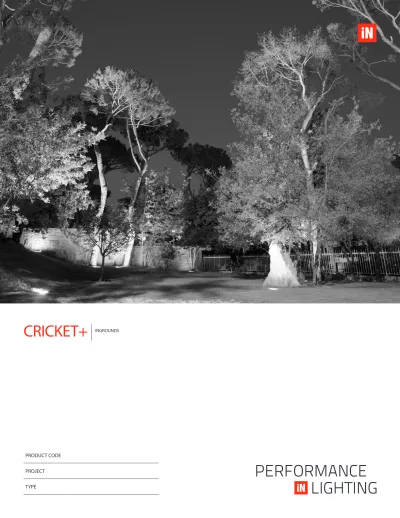

PRODUCT CODE PROJECT TYPE

(1)

INGROUNDS

CRICKET+ |

PRODUCT CODE

(2)

PRONTO

Light sculpts the surrounding area to emphasize the meticulous planning that has gone into every piece of architecture. Aesthetics and function combine to create products that will satisfy the needs of the most ambitious of projects. Lighting becomes an integral part of the creative and design process, shaping nuances by highlighting texture and detail, becoming part of the construction process by perfectly complementing its architectural design.

Urban environments, roads, infrastructure, sporting venues, to name just a few. These are complex areas that call for an integrated lighting approach, parking lots, squares, green areas, every space that makes up the urban environment requires the right level of lighting, for a safer environment. Smart buildings and a variety of engineered lighting options provide the best results.

All products are covered by a 5-year warranty, provided that they are used and maintained according to instructions.

Focus on quality, safety and product lifetime/longevity are the essential objectives of PERFORMANCE iN LIGHTING.

For additional information, email [email protected]

PERFORMANCE iN LIGHTING offers a wide range of quick ship fixtures through the Pronto Program and a host of options to fit within the unique budget of your next project.

2

(3)

INDEX

4

CRICKET+ 10 6

CRICKET+ 15 8

CRICKET+ 20

INGROUNDS

(4)

4

CRICKET+ 10

4 ß √ r c d g D

CRICKET+

10

Ø 4^1/8”

(Ø 105 mm)

1/8”

(3 mm) 3^1/8”

(79 mm) 3^1/4”

(82 mm)

Ø 4^1/8”(Ø 105 mm)

In-ground series. Fixtures consist of:

¬ Copper-free die-cast corrosion-resistant aluminum housing and trim.

¬ Copper-free die-cast corrosion-resistant aluminum housing.

¬ AISI 316 stainless steel trim.

¬ Extra-clear, tempered, silk-screened, flat glass diffuser.

¬ Frosted, tempered, silk-screened, flat glass diffuser (C/

EW versions).

¬ Custom molded, anti-aging gasket(s).

¬ Stainless steel external hardware.

¬ Custom MCPCB utilized to maximize heat dissipation and promote long LED life.

¬ High-transmittance transparent optics.

¬ Circular Intensive beam angle (C/I).

¬ Circular Medium beam angle (C/M).

¬ Diffuse light emission (C/EW).

¬ Input voltage: 120-277 V (50 / 60 Hz), integral driver.

¬ Pre-wired factory sealed cable for external electrical connection included.

¬ Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.

¬ Thermoplastic compression-molded rough-in kit to be ordered separately.

¬ For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.

¬ Frosted (FRST) and Non-Slip (NS) glass option available - add suffix to any part number.

¬ Consult factory for additional optic options.

¬ Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non- cataloged CCT (Kelvin) options including static colors.

¬ Product meets Buy American Act requirements within ARRA.

¬ 5-year warranty.

N AN-96 / Iron gray / Textured B INOX / Stainless steel / Matt

Please visit our web site www.performanceinlighting.com for the latest updated versions available.

Standard finishes:

Other optional finishes.

Add finish suffix to any part number: ex: BK-81 o BK-81 / Black / Textured

I GR-94 / Aluminum metallic / Textured T WH-87 / White / Textured

Z RB-10 / Iron rust / Textured

(5)

Ø 6^1/4”

(Ø 158 mm)

Ø 6^1/4”(Ø 158 mm) 4^1/4”

(108 mm) 1^7/8”

(47 mm) Ø 3^13/16”

(Ø 97 mm)

Ø 3^13/16” (Ø 97 mm)

3109879

CRICKET+ 10 C/I

WATTAGE DLC VOLTAGE CRI KELVIN OPTIC OPTIC

BEAM LIGHTSOURCE

LUMEN OUTPUT LUMINAIRE

LUMEN OUTPUT L B LIFETIME FINISH PART NUMBER

High Power LEDS 120-277 V

6 W - 100/277 V 80 4000 - 8° 475 lm 446 lm 90 10 94000 h N ⁰⁷³⁰⁷⁷

6 W - 100/277 V 80 3000 - 8° 475 lm 415 lm 90 10 94000 h N ⁰⁷³⁰⁷¹

6 W - 100/277 V 80 4000 - 8° 475 lm 446 lm 90 10 94000 h B ⁰⁷³⁰⁷⁸

6 W - 100/277 V 80 3000 - 8° 475 lm 415 lm 90 10 94000 h B ⁰⁷³⁰⁷²

CRICKET+ 10 C/M

BEAM LIGHTSOURCE

6 W - 100/277 V 80 4000 - 30° 475 lm 436 lm 90 10 94000 h N ⁰⁷³⁰⁷⁹

6 W - 100/277 V 80 3000 - 30° 475 lm 406 lm 90 10 94000 h N ⁰⁷³⁰⁷³

6 W - 100/277 V 80 4000 - 30° 475 lm 436 lm 90 10 94000 h B ⁰⁷³⁰⁸⁰

6 W - 100/277 V 80 3000 - 30° 475 lm 406 lm 90 10 94000 h B ⁰⁷³⁰⁷⁴

CRICKET+ 10 C/EW

BEAM LIGHTSOURCE

6 W - 100/277 V 80 4000 - 88° 475 lm 277 lm 90 10 94000 h N ⁰⁷³⁰⁸¹

6 W - 100/277 V 80 3000 - 88° 475 lm 258 lm 90 10 94000 h N ⁰⁷³⁰⁷⁵

6 W - 100/277 V 80 4000 - 88° 475 lm 277 lm 90 10 94000 h B ⁰⁷³⁰⁸²

6 W - 100/277 V 80 3000 - 88° 475 lm 258 lm 90 10 94000 h B ⁰⁷³⁰⁷⁶

REQUIRED FOR INSTALLATION

DESCRIPTION FINISH PART NUMBER

CRICKET+ 10

Recessed fixing kit 3109879

OPTIONAL ACCESSORIES

CRICKET+ 10

Brass trim ring A ^3114130

(6)

6

CRICKET+ 15

4 ß ¨ √ r c d g a D

CRICKET+

15

Ø 7 ^1/2” (Ø 190 mm) Ø 7 ^1/2”

(Ø 190 mm)

5 ^1/4”

(133 mm)

3/16”

(5 mm) 5 ^13/16”

(145 mm)

¬ Copper-free die-cast corrosion-resistant aluminum AISI 316 stainless steel covered trim.

¬ Asymmetric 5° Wallwash light distribution (A5/W).

¬ Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.

¬ Pre-wired cable connects luminaire with WATER- STOP connection system, suitable for through wiring.

Included cable glands accept cables from Ø0.35" up to Ø0.63".

¬ 5-year warranty.

(7)

CRICKET+ 15 A/M

BEAM LIGHTSOURCE

High Power LEDS 120-277 V - Dimmable 0-10 V

14 W - 100/277 V 80 4000 - 30° 1403 lm 717 lm 90 10 94000 h N ⁰⁷³¹¹¹

14 W - 100/277 V 80 3000 - 30° 1300 lm 671 lm 90 10 94000 h N ⁰⁷³¹⁰⁵

14 W - 100/277 V 80 4000 - 30° 1403 lm 717 lm 90 10 94000 h B ⁰⁷³¹¹²

14 W - 100/277 V 80 3000 - 30° 1300 lm 671 lm 90 10 94000 h B ⁰⁷³¹⁰⁶

CRICKET+ 15 C/I

BEAM LIGHTSOURCE

14 W - 100/277 V 80 4000 - 8° 1403 lm 1069 lm 90 10 94000 h N ⁰⁷³¹⁰⁷

14 W - 100/277 V 80 3000 - 8° 1300 lm 1000 lm 90 10 94000 h N ⁰⁷³¹⁰¹

14 W - 100/277 V 80 4000 - 8° 1403 lm 1069 lm 90 10 94000 h B ⁰⁷³¹⁰⁸

14 W - 100/277 V 80 3000 - 8° 1300 lm 1000 lm 90 10 94000 h B ⁰⁷³¹⁰²

CRICKET+ 15 C/M

BEAM LIGHTSOURCE

14 W - 100/277 V 80 4000 - 30° 1403 lm 1203 lm 90 10 94000 h N ⁰⁷³¹⁰⁹

14 W - 100/277 V 80 3000 - 30° 1300 lm 1125 lm 90 10 94000 h N ⁰⁷³¹⁰³

14 W - 100/277 V 80 4000 - 30° 1403 lm 1203 lm 90 10 94000 h B ⁰⁷³¹¹⁰

14 W - 100/277 V 80 3000 - 30° 1300 lm 1125 lm 90 10 94000 h B ⁰⁷³¹⁰⁴

REQUIRED FOR INSTALLATION

CRICKET+ 15

13 9/16” (345 mm)

Ø 6 1/2” (Ø 165 mm) 10 1/4”

(261 mm)

6 11/16”

(170 mm) 4 3/4”

(120 mm) Ø 1” (Ø 25 mm)

13” (330 mm)

(8)

8

CRICKET+ 20

4 ß ¨ √ r c d g a D

CRICKET+

20

Ø 10 ^5/8” (Ø 270 mm) Ø 10 ^5/8”

(Ø 270 mm)

5 ^9/16”

(141 mm)

3/16”

(5 mm) 5 ^11/16”

(145 mm)

¬ Copper-free die-cast corrosion-resistant aluminum AISI 316 stainless steel covered trim.

¬ Asymmetric 5° Wallwash light distribution (A5/W).

¬ Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.

¬ Pre-wired cable connects luminaire with WATER- STOP connection system, suitable for through wiring.

Included cable glands accept cables from Ø0.35" up to Ø0.63".

¬ 5-year warranty.

(9)

CRICKET+ 20 A/M

BEAM LIGHTSOURCE

26 W - 120/277 V 80 4000 - 30° 2940 lm 1916 lm 90 10 94000 h N ⁰⁷³¹⁴¹

26 W - 120/277 V 80 3000 - 30° 2724 lm 1793 lm 90 10 94000 h N ⁰⁷³¹³⁵

26 W - 120/277 V 80 4000 - 30° 2940 lm 1916 lm 90 10 94000 h B ⁰⁷³¹⁴²

26 W - 120/277 V 80 3000 - 30° 2724 lm 1793 lm 90 10 94000 h B ⁰⁷³¹³⁶

CRICKET+ 20 C/I

BEAM LIGHTSOURCE

26 W - 120/277 V 80 4000 - 8° 2940 lm 2326 lm 90 10 94000 h N ⁰⁷³¹³⁷

26 W - 120/277 V 80 3000 - 8° 2724 lm 2177 lm 90 10 94000 h N ⁰⁷³¹³¹

26 W - 120/277 V 80 4000 - 8° 2940 lm 2326 lm 90 10 94000 h B ⁰⁷³¹³⁸

26 W - 120/277 V 80 3000 - 8° 2724 lm 2177 lm 90 10 94000 h B ⁰⁷³¹³²

CRICKET+ 20 C/M

BEAM LIGHTSOURCE

26 W - 120/277 V 80 4000 - 30° 2940 lm 2536 lm 90 10 94000 h N ⁰⁷³¹³⁹

26 W - 120/277 V 80 3000 - 30° 2974 lm 2373 lm 90 10 94000 h N ⁰⁷³¹³³

26 W - 120/277 V 80 4000 - 30° 2940 lm 2536 lm 90 10 94000 h B ⁰⁷³¹⁴⁰

26 W - 120/277 V 80 3000 - 30° 2974 lm 2373 lm 90 10 94000 h B ⁰⁷³¹³⁴

REQUIRED FOR INSTALLATION

CRICKET+ 20

Ø 9 5/8” (Ø 244 mm) Ø 11 1/4”

(Ø 285 mm)

13 3/4”

(350 mm)

(10)

17112021
