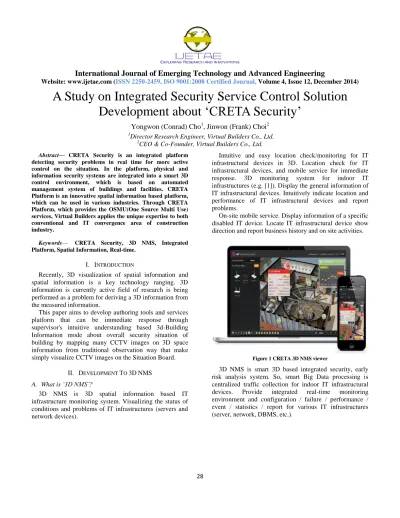

A Study on Integrated Security Service Control Solution

Development about ‘CRETA Security’

Yongwon (Conrad) Cho

1

, Jinwon (Frank) Choi

2

1

Director Research Engineer, Virtual Builders Co., Ltd.

2_{CEO & Co-Founder, Virtual Builders Co., Ltd.}

Abstract— CRETA Security is an integrated platform

detecting security problems in real time for more active control on the situation. In the platform, physical and information security systems are integrated into a smart 3D control environment, which is based on automated management system of buildings and facilities. CRETA Platform is an innovative spatial information based platform, which can be used in various industries. Through CRETA Platform, which provides the OSMU(One Source Multi Use) services, Virtual Builders applies the unique expertise to both conventional and IT convergence area of construction industry.

Keywords— CRETA Security, 3D NMS, Integrated Platform, Spatial Information, Real-time.

I. INTRODUCTION

Recently, 3D visualization of spatial information and spatial information is a key technology ranging. 3D information is currently active field of research is being performed as a problem for deriving a 3D information from the measured information.

This paper aims to develop authoring tools and services platform that can be immediate response through supervisor's intuitive understanding based 3d-Building Information mode about overall security situation of building by mapping many CCTV images on 3D space information from traditional observation way that make simply visualize CCTV images on the Situation Board.

II. DEVELOPMENT TO 3DNMS A. What is ‘3D NMS’?

3D NMS is 3D spatial information based IT infrastructure monitoring system. Visualizing the status of conditions and problems of IT infrastructures (servers and network devices).

Intuitive and easy location check/monitoring for IT infrastructural devices in 3D. Location check for IT infrastructural devices, and mobile service for immediate response. 3D monitoring system for indoor IT infrastructures (e.g. [1]). Display the general information of IT infrastructural devices. Intuitively indicate location and performance of IT infrastructural devices and report problems.

On-site mobile service. Display information of a specific disabled IT device. Locate IT infrastructural device show direction and report business history and on site activities.

Figure 1 CRETA 3D NMS viewer

3D NMS is smart 3D based integrated security, early risk analysis system. So, smart Big Data processing is centralized traffic collection for indoor IT infrastructural devices. Provide integrated real-time monitoring environment and configuration / failure / performance / event / statistics / report for various IT infrastructures (server, network, DBMS, etc.).

(2)

International Journal of Emerging Technology and Advanced Engineering

29

TABLE I

SMART Big Data PROCESSING

Construction of traffic collection servers for indoor IT

infrastructures

 Construction of qualified system for communication problems and malicious code detection

 Anticipative detection for external hacking(APT) attempts

 Communication history collecting sensors for verification

Reinforcing online/offline detection and

analysis

 Analysis of network communication in accordance with failure/malware detection

 Analysis of network traffic flow and L7 protocols

 Risk factors monitoring in physical space

Monitoring internal attacks against terminals for business

use

 Analysis of internal users based on the source IP

 C&C Geo-map tracking

 Analysis of communication history and identification of network asset for malware infected computers

Provide 3D monitoring system for quick response

 Monitoring/analysis of malware and network communication history in real-time

 Search/analysis of a Past history/audit data through BIG Data management solution

Operator to centered 3D integrated control scenario. Recognition of events using visualized 3D model (Immediate and accurate respond using Mash-up method). Figure 2 is a variety of event view.

Figure 2 3D NMS view of event

Integrated management of most IT infrastructures resources and security information. Network communication failure monitoring. Real-time problem monitoring. Problem levels display.

Occurrence time and duration. Remote management of system. Security inspection for internal/external work history. Remote power control of systems. Problem recovery. Network traffic monitoring. Inflow / outflow of information of network device with SNMP. Monitoring of real-time In / Out traffic information. Access / security control for access control by authorization. Detection and protection for various wired / wireless threats. Position tracking for AP station. Failure notification setting of problems. Alarm type setting. Video security system management for 3D based CCTV / sensors monitoring. CCTV image notification / alarm connected with sensor data. Automated 3D intelligence patrol.

B. What is ‘CRETA Security’?

Through development of wireless technology (web, mobile and etc.). The Internet of Things can be applied to buildings. From each story of a building to a section of a city, cities and spaces require various security related services. Virtual Builders realizes integration of various systems related to security and safety in 3D space (e.g. [2]). ‘CRETA Security’ have to 4 main functions. CCTV preview for optimization (e.g. [3]). First, prior to place actual cameras, position and screen of the cameras can be virtually shown to find appropriate place for install. Second, 3D intelligence automated patrol. Monitoring through moving patterns and location of objects in accordance with pre-identified rule-set. Third, access detection sensor monitoring. Connected to access detection sensors, CCTV screen will be automatically highlighted. When intrusion is detected. And last, 3D space based security monitoring. By freely moving and rotating in 3D space, spatial situation could be intuitively recognized for better decision making.

(3)

International Journal of Emerging Technology and Advanced Engineering

30 ‘CRETA Security’ is manager platform. Space based CCTV / sensors management and link service (PC / Web application). Check location of installed CCTV /sensor through field investigation and document (e.g. [4]). Link status information database collected from other systems to POI with attribute data. Placement of sensor icons in 3D space. Arrange POI such as fire detector and CCTV cameras in 3D. Place major information with symbols for efficient management of various information.

Figure 4 ‘CRETA Security’ Manager (Korea Ver.)

‘CRETA Security’ viewer is CCTV monitoring, intrusion monitoring and detection sensor monitoring (e.g. [5]). First, CCTV monitoring is capable of monitoring positions and screens of CCTV installed in 3D. Second, intrusion monitoring is attaching individual sensors to visitors / workers. Alarm goes off when unauthorized access is detected by motion sensors. Third, detection sensor monitoring is capable of monitoring positions and present status of tire detectors in 3D.

We have to system operating samples. Table II is explanation about system samples.

TABLE II SYSTEM SAMPLE

CCTV/sensors alarm notification

 Problem-detected location is highlighted in red on the main dash board

 Detailed information is shown on the right section

 Move into 3D drawing of the location

 The sensors are highlighted in red  Zoom in to the location of

fire/unauthorized access

 The nearby CCTV screen pops up Emergency notification  Emergency broadcast through IP

broadcasting system Evacuation(blockage)

guidance

 Emergency staircases/exits shown  Automated guidance for

evacuation/blocking Result reporting

 All the information from the beginning is recorded and stored in the database (video, voice, sensor detection history)

III. TEST RESULT

‘CRETA Security’ is 3D spatial information based security visualization system. Easy to find the spatial positions of numerous CCTV cameras. Be able to understand the status of how congested and expected moving path of people. Virtual placement simulation for CCTV cameras. In case of emergency, the place or space are quickly and easily recognizable.

(4)

International Journal of Emerging Technology and Advanced Engineering

31

Figure 6 Example of guidance

Existing CCTV security system is simple split-screen feature. Unidentifiable spatial position of a screen. Monitoring functions only and screen layout cannot be changed. Sensor network information can’t be visualized.

Extensibility to various integrated and converged construction IT services.

First, facility management. Management of ground/underground facilities through GIS. Capable of 3D simulation for construction of new facilities, extension of existing facilities, etc. Analysis relations between among facilities (sunshine, view, ventilation, etc.). Second, architectural space management. Space management of structures and facilities through 3D visualization. 3D simulation for modification of space and status management. 3D simulated management for placement of facilities, furniture, human resources, etc. Third, space analysis. Analysis for space per area/person. Analysis for spatial topology. Analysis for energy consumption by space.

Distance to emergency exit. Simulation for emergency. Fourth, work management. Work management by facilities and equipment. Accumulation and utilization of work simulation data. Interference and redundancy check for work. Work history management/search by space/equipment. Fifth, equipment control. Equipment control by USN (Ubiquitous Sensor Network). Status detection and remote control. Sixth, material management. Location and inventory management for materials. Visualization for material inventory management. Seventh, security / access control. Check visitors by space linked with access control system. Tracking position of workers. Eighth, connected CCTV. CCTV monitoring by spatial position and real-time site management. Warning broadcast in case of unauthorized access is detected. Work status check and real-time monitoring. Ninth, mobile management. Facility inspection: Facility inspection and information management by PDA and RFID reader. Work management: Standard work check (PM, A/S, etc.), work instruction, work results management, and energy reading. Material management and material inventory management. Tenth, emergency response. Evacuation in case of emergency (fire, explosion, etc.). Simulation for evacuation using 3D avatar models. Establish emergency response and suppression strategy using 3D spatial information. Centralized process management, site management, to remote work order management through real-time communication. Eleventh, management information. Provide visualized statistics in 3D space for better decision making. Twelves, customer service & work request management. Customer service through internet and on-site kiosk. Capable of locate offices/officers on duty.

(5)

International Journal of Emerging Technology and Advanced Engineering

32

Figure 7 CRETA Security Application

Figure 7 is pre-analysis of spaces and equipment management issue and 3D spatial information based intuitive integrated management solution. Construction of customized integrated spatial information management service taking into account expansion of management area and future needs.

IV. CONCLUSIONS

Using spatial information has been being expanded. This study has both technical knowledge and professional technique to respond to the trend. We offer many kinds of products to help people to use and manage spaces more easily. 3D Spatial information-based intuitive monitoring system. Combining wireless networks, web and mobile-based application with cities will result in real-time building interconnections. From floor scale to block scale in city, buildings and cities may follow different types of services and functions for security. As following this, ‘CRETA Security’ provides a unified security system integrated security system with the technologies of Virtual Builders based on spatial information in 3D.

‘CRETA Security’ helps to convert physical spaces into 3D modeling data and is interlocked with a variety of different types of VMS (Video Management System) and DVR (Digital Video Recorder) providing real-time events. Moreover, different types of sensors related to security such as for access control, RTLS (Real Time Location System) and fire alarming would be enabled in it.

Acknowledgement

This research was supported by a grant (11 High-tech G11) from Architecture & Urban Development Research Program funded by Ministry of Land, Infrastructure and Transport of Korean government.

REFERENCES

[1] I.S. Kim, and H.S. Shin, A Study on Development of Intelligent CCTV Security System based on BIM, The Journal Of Korean Institute Of Communications And Information Sciences, pp. 789-796, No. 6, Vol. 5, 2011.

[2] Y.W. Cho, and J.W. Choi, A Study on User Participation based Outdoor & Indoor Spatial Information Building, International Journal of Computer and Communication Engineering, ISSN 2010-3743, 2014.

[3] Y.W. Cho, and J.W. Choi, A Study on LBS Technique Make for CRETA LBS Platform Service, International Journal of Signal Processing Systems, ISSN 2315-4535, 2014.

[4] Y.W. Cho, J.W. Choi, and S.Y. Cho, A Study on User Participation based Outdoor & Indoor Spatial Information Building, International Journal of Information and Electronics Engineering, pp. 375-379, ISSN 2010-3719, 2014.

[5] J.H. Park, Y.D. Shin, G.R. Jang, and M.H. Baek, A Study on Mapping of 3D Spatial Information for Modeling of Indoor Space, The Journal of Korean Institute Of Spatial Information, pp. 84-89, 2011.
