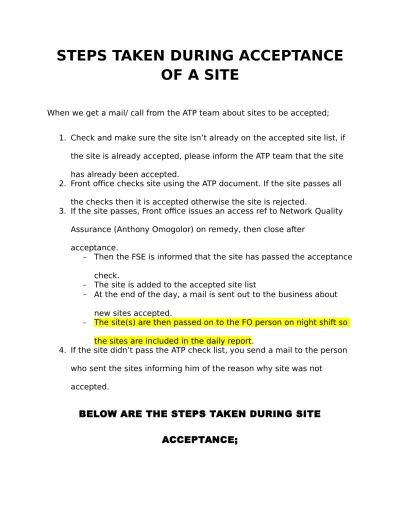

STEPS TAKEN DURING ACCEPTANCE

OF A SITE

When we get a mail/ call from the ATP team about sites to be accepted;

1. Check and make sure the site isn’t already on the accepted site list, if

the site is already accepted, please inform the ATP team that the site

has already been accepted.

2. Front office checks site using the ATP document. If the site passes all

the checks then it is accepted otherwise the site is rejected.

3. If the site passes, Front office issues an access ref to Network Quality

Assurance (Anthony Omogolor) on remedy, then close after

acceptance.

- Then the FSE is informed that the site has passed the acceptance

check.

- The site is added to the accepted site list

- At the end of the day, a mail is sent out to the business about

new sites accepted.

-

The site(s) are then passed on to the FO person on night shift so

the sites are included in the daily report.

4. If the site didn’t pass the ATP check list, you send a mail to the person

who sent the sites informing him of the reason why site was not

accepted.

BELOW ARE THE STEPS TAKEN DURING SITE

ACCEPTANCE;

(2)

Check if Adjust is possible from SMO.

(3)

NOTE: ALL COMMAND ARE PRINTED IN RED ITALIC

Check if the site is having connectivity through Moshell

ejazm@ojapp3>

amos u0354

U0354>lt all Connected to 10.49.34.17 (SubNetwork=ONRM_RootMo_R,SubNetwork=APRNC1,MeContext=U0354-Ericsson_HQ,ManagedElement=1) Connected to 10.49.34.17 (SubNetwork=ONRM_RootMo_R,SubNetwork=APRNC1,MeContext=U0354-Ericsson_HQ,ManagedElement=1)

Last MO: 1473. Loaded 1473 MOs. Total: 1474 MOs.

Check if there are any alarms on site.

(4)

U0354-Ericsson_HQ> alt

100517-10:39:05 10.49.34.17 7.1 RBS_NODE_MODEL_L_10_9 stopfile=/tmp/14822 Connecting to 10.49.34.17:56834 (CorbaSecurity=OFF, corba_class=2,

jarcorb=R1C01, jacsec=R1C01, jacoms=R51EL14)

Trying file=/home/ejazm/moshell_logfiles/logs_moshell/tempfiles/20100517-103151_14795/ior14795

Resolving the alarm service in OMS... Simple Alarm Client initialized... Starting to retrieve active alarms Nr of active alarms are: 0

================================================== ======================

Sever Specific Problem Cause Mo-Reference

================================================== ======================

>>> Total: 0 Alarms (0 Critical, 0 Major)

Check if License is loaded on site

U0354-Ericsson_HQ> license key

100517-10:40:23 10.49.34.17 7.1 RBS_NODE_MODEL_L_10_9 stopfile=/tmp/14822 Trying password from ipdatabase file: /home/moshell2/moshell/sitefiles/ipdatabase... $ license key

Feature Id : CXC4030552

Describtion : FAJ121905; RabCombination052 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030569

(5)

Start Date : 2010-03-02 Stop Date : 9999-12-31 Feature Id : CXC4030568

Describtion : FAJ121148; RabCombination068 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030567

Describtion : FAJ121148; RabCombination067 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4020003

Describtion : FAJ121968; FlexibleScheduler Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4020002

Describtion : FAJ121903; HSDPA16qam Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4020001

Describtion : FAJ121967; DynHSPDSCHCodeAllocation Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030518

Describtion : FAJ121980; RabCombination018 Start Date : 2010-03-02

(6)

Feature Id : CXC4030027

Describtion : FAJ1211114; HSDPA Service Indicator Start Date : 2010-03-02

Stop Date : 2010-03-28 Feature Id : CXC4030516

Describtion : FAJ121905; RabCombination016 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030001

Describtion : FAJ121801; HsdpaMobilityPhase1 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030532

Describtion : FAJ121981; RabCombination032 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030531

Describtion : FAJ121980; RabCombination031 Start Date : 2010-03-02

Stop Date : 9999-12-31

Feature Id : CXC4030530

Describtion : FAJ121981; RabCombination030 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030529

(7)

Describtion : FAJ121981; RabCombination029 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030528

Describtion : FAJ121980; RabCombination028 Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030026

Describtion : FAJ1211114; EUL Service Indicator Start Date : 2010-03-02

Stop Date : 2010-03-28 Feature Id : CXC4020005

Describtion : FAJ121970; EnhancedUplink Start Date : 2010-03-02

Stop Date : 9999-12-31 Feature Id : CXC4030553

Describtion : FAJ121905; RabCombination053 Start Date : 2010-03-02

Stop Date : 9999-12-31

Capacity Id : CXC4010071/4003

Describtion : FAJ121073; WCDMA RBS key for Downlink c Start Date : 2010-03-02

Stop Date : 9999-12-31 Capacity Level : 128

(8)

Capacity Id : CXC4010071/4002

Describtion : FAJ121072; WCDMA RBS key for Uplink cap Start Date : 2010-03-02

Stop Date : 9999-12-31 Capacity Level : 224

Hard Limit : 224

Capacity Id : CXC4021004

Describtion : FAJ1211157; EulE-DCH-CE-ladder Start Date : 2010-03-02

Stop Date : 2010-03-28 Capacity Level : 1

Hard Limit : 1

Capacity Id : CXC4021007

Describtion : FAJ1210450, FAJ1210451, FAJ1210452; NumE Start Date : 2010-03-02

Stop Date : 9999-12-31 Capacity Level : 4

Hard Limit : 4

Capacity Id : CXC4021005

Describtion : Enhanced Uplink Introduction Package; 1 Start Date : 2010-03-02

Stop Date : 9999-12-31 Capacity Level : 1

Hard Limit : 1

(9)

Describtion : FAJ1210396, FAJ1210397, FAJ1210398, FAJ1 Start Date : 2010-03-02 Stop Date : 9999-12-31 Capacity Level : 32 Hard Limit : 32 Capacity Id : CXC4021001

Describtion : FAJ1210399, FAJ1210400, FAJ1210401; HSDP Start Date : 2010-03-02 Stop Date : 9999-12-31 Capacity Level : 10 Hard Limit : 10

U0354-ERICSSON_HQ>

invh

120302-12:50:09 10.49.34.17 8.0h RBS_NODE_MODEL_M_1_33 stopfile=/tmp/10625 ================================================== ================================================== =================================SMN APN BOARD

SWALLOCATION S GREEN YELLO RED c/p d CPU PRODUCTNUMBER REV SERIAL MO

================================================== ================================================== ================================= 0 1 CBU1 Main_CBU 1 ON 16HZ OFF 84% 47% 15% ROJ1192209/1 R5E TU8B990936 1,Slot=1 0 2 ET-MFX RBS_ETMFX 1 ON OFF OFF 0% ROJ1192315/2 R1A TU8GG25752 1,Slot=2

0 4 RAX11 RBS_RAXB 1 ON 16HZ OFF 2% ROJ1192187/8 R1C C820814309 1,Slot=4 (RaxR2 32CE)

0 5 RAX11 RBS_RAXB 1 ON 16HZ OFF 1% ROJ1192187/8 R1C TU8G607735 1,Slot=5 (RaxR2 32CE)

0 6 RAX11 RBS_RAXB 1 ON 16HZ OFF 1% ROJ1192187/8 R1C TU8G579793 1,Slot=6 (RaxR2 32CE)

(10)

0 7 RAX11 RBS_RAXB 1 ON 16HZ OFF 2% ROJ1192187/8 R1C TU8G579519 1,Slot=7 (RaxR2 32CE)

0 8 RAX11 RBS_RAXB 1 ON 16HZ OFF 1% ROJ1192187/8 R1C C820814370 1,Slot=8 (RaxR2 32CE)

0 9 RAX RBS_RAXB 1 ON 16HZ OFF 5% ROJ1192187/10 R1D TU89238210 1,Slot=9 (RaxR2 128CE)

0 10 TX6HS-06 RBS_TXB 1 ON 16HZ OFF 12% ROJ1192254/6 R1F TU8GT91656 1,Slot=10 (HsTx60 384CE)

0 11 TX6HS-06 RBS_TXB 1 ON 16HZ OFF 13% ROJ1192254/6 R1F TU8GT91493 1,Slot=11 (HsTx60 384CE)

0 12 RUIF RBS_RUIFB 1 ON 16HZ OFF 19% ROJ1192245/2 R2A AE53201614 1,Slot=12

---

---================================================== ================================================== =================================XPBOARD ST GREEN YELLO RED PRODUCTNUMBER REV SERIAL/NAME MO

================================================== ================================================== =================================FCU 1 ON 16HZ OFF BGM1361002/1 R1D BJ31036770 AuxPlugInUnit=2

FU12 1 ON 16HZ OFF KRC11817/1 R2D TU8F040624 RbsSubrack=FU1,RbsSlot=2,AuxPlugInUnit=1 (2.1GHz)

FU12 1 ON 16HZ OFF KRC11817/1 R2D TU8F040627 RbsSubrack=FU1,RbsSlot=4,AuxPlugInUnit=1 (2.1GHz)

FU12 1 ON 16HZ OFF KRC11817/1 R2D TU8F040620 RbsSubrack=FU1,RbsSlot=6,AuxPlugInUnit=1 (2.1GHz) RU22 1 ON 16HZ OFF KRC11818/6 R2B CB4B111085 RbsSubrack=RU1,RbsSlot=2,AuxPlugInUnit=1 (2.1GHz 60W 10MHz) RU22 1 ON 16HZ OFF KRC11818/6 R2B CB4B111008 RbsSubrack=RU1,RbsSlot=4,AuxPlugInUnit=1 (2.1GHz 60W 10MHz) RU22 1 ON 16HZ OFF KRC11818/6 R2B CB4B111086 RbsSubrack=RU1,RbsSlot=6,AuxPlugInUnit=1 (2.1GHz 60W 10MHz)

(11)

ASC 1 ON 16HZ OFF KRY11242/3 R1G TR44525926 SectorAntenna=1,AuxPlugInUnit=1

RETU 1 N/A N/A N/A KRY12163/1 R1A CS54309610 SectorAntenna=1,AuxPlugInUnit=2

ASC 1 ON 16HZ OFF KRY11242/4 R1D TR45970975 SectorAntenna=2,AuxPlugInUnit=1

RETU 1 N/A N/A N/A KRY12163/1 R1A CS54309607 SectorAntenna=2,AuxPlugInUnit=2

ASC 1 ON 16HZ OFF KRY11242/3 R1G TR44525940 SectorAntenna=3,AuxPlugInUnit=1

RETU 1 N/A N/A N/A KRY12163/1 R1A CS54309603 SectorAntenna=3,AuxPlugInUnit=2 --- ---================================================== ================================================== =================================MO SMN PRODUCT PRODUCTNUMBER REV SERIAL/NAME DATE transmissionType maxPwr fanConfiguration

================================================== ================================================== =================================Subrack=1 0 Subrack ROJ605116/1 * DigSubrack ATM_TRANSMISSION 1000W

NO_CPP_FAN --- ---================================================== ================================================== =================================MO SMN PRODUCT PRODUCTNUMBER REV SERIAL/NAME DATE activeSwitchPlane

switchState

================================================== ================================================== =================================Subrack=1 0 Backplane ROJ 605 116/1 R1B X911097384 20060823 SWITCH_PLANE_A 11L

(12)

---

---================================================== ================================================== ===========

ExtSr SMN ISLGroup/Link ST Slot/Port(MS) Slot/Port(ES) PortState ================================================== ================================================== =========== ================================================== ================================================== =================================KeyId FeatureName licenseState featureState (NodeB or RbsLocalCells)

================================================== ================================================== =================================CXC4010071/4005 StandardizedTma 1 1 CXC4010071/4006 StandardizedRet 1 1 CXC4020001 HsdpaDynamicCodeAllocation 1 1 1 1 1 1 1 CXC4020002 16Qam 1 1 CXC4020003 HsdpaFlexibleScheduler 1 1 CXC4020005 EnhancedUplinkIntroduction 1 CXC4020008 HsdpaIncrementalRedundancy 0 0 0 0 0 0 0 CXC4020010 RttPositioning 1 CXC4020011 Eul2msTti 0 0 CXC4020012 Mimo 0 0 0 0 0 0 0 CXC4020013 EnhancedLayer2 1 1 1 1 1 1 1 CXC4020014 64Qam 1 1 CXC4020015 MbmsIubEfficiency 0 0

(13)

CXC4020016 Grake 0 0 CXC4020018 4wayRxDiversity 0 0 0 0 0 0 0 CXC4020020 DlPowerControlEul 0 0 CXC4020022 ConfigurableCarrierBandwidth 0 CXC4020023 HsdpaImprovedLinkAdaptation 0 0 CXC4020025 FDpchSrbOnHsdpa 0 0 0 0 0 0 0 CXC4020026 Cpc 0 0 0 0 0 0 0 CXC4020028 HsdpaMinBitRate 0 0 CXC4020029 HsdpaMc 0 0 0 0 0 0 0 CXC4020030 PerHarqProcessGrant 0 0 CXC4020031 RetCascading 0 0 CXC4020032 HsdpaMcInactCtrl 0 0 0 0 0 0 0 CXC4020035 DualTmaSupport 0 0 CXC4030037 DualStackIub 0 0 ================================================== ================================================== =================================KeyId CapacityName licenseState licenseCapacity available/max (NodeB or RbsLocalCells)

================================================== ================================================== =================================CXC4010071/4002 RbsChannelElementsUplink 1 288 288 CXC4010071/4003 RbsChannelElementsDownlink 1 128 512 CXC4021001 NumHsPdschCodes 1 15 15 15 15 15 15 15 CXC4021002 NumHsdpaUsers 1 64 64 64 64 64 64 64 CXC4021007 NumEulUsers 1 32 16 16 16 16 16 16 CXC4021008 Num40WPowerAmplifiers 0 0

(14)

CXC4021009 Num60WPowerAmplifiers 0 0 CXC4021010 NumCarriers 0 0

U0354-ERICSSON_HQ>

st plug

120302-12:51:55 10.49.34.17 8.0h RBS_NODE_MODEL_M_1_33 stopfile=/tmp/10625 ================================================== =================================

Proxy Adm State Op. State MO

================================================== =================================

60 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=6,PlugInUnit=1 74 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=2,PlugInUnit=1 106 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1 187 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=9,PlugInUnit=1 200 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=5,PlugInUnit=1 215 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=10,PlugInUnit=1 238 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=11,PlugInUnit=1 261 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=8,PlugInUnit=1 274 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=4,PlugInUnit=1 289 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=7,PlugInUnit=1 302 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=12,PlugInUnit=1 319 1 (UNLOCKED) 1 (ENABLED) Equipment=1,RbsSubrack=RU1,RbsSlot=4,AuxPlugInUnit=1 335 1 (UNLOCKED) 1 (ENABLED) Equipment=1,RbsSubrack=RU1,RbsSlot=6,AuxPlugInUnit=1 349 1 (UNLOCKED) 1 (ENABLED) Equipment=1,RbsSubrack=RU1,RbsSlot=2,AuxPlugInUnit=1

362 1 (UNLOCKED) 1 (ENABLED) Equipment=1,AuxPlugInUnit=2 374 1 (UNLOCKED) 1 (ENABLED)

(15)

379 1 (UNLOCKED) 1 (ENABLED) Equipment=1,SectorAntenna=3,AuxPlugInUnit=1 403 1 (UNLOCKED) 1 (ENABLED) Equipment=1,RbsSubrack=FU1,RbsSlot=6,AuxPlugInUnit=1 409 1 (UNLOCKED) 1 (ENABLED) Equipment=1,RbsSubrack=FU1,RbsSlot=2,AuxPlugInUnit=1 416 1 (UNLOCKED) 1 (ENABLED) Equipment=1,RbsSubrack=FU1,RbsSlot=4,AuxPlugInUnit=1 443 1 (UNLOCKED) 1 (ENABLED) Equipment=1,SectorAntenna=1,AuxPlugInUnit=1 449 1 (UNLOCKED) 1 (ENABLED) Equipment=1,SectorAntenna=1,AuxPlugInUnit=2 485 1 (UNLOCKED) 1 (ENABLED) Equipment=1,SectorAntenna=2,AuxPlugInUnit=2 489 1 (UNLOCKED) 1 (ENABLED) Equipment=1,SectorAntenna=2,AuxPlugInUnit=1 ================================================== ================================= Total: 24 MOs

U0763-48_Community_Road>

cabx

120302-12:57:54 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080 . ================================================== ================================================== =

SMN APN BOARD GREEN YELLOW RED PRODUCT NR REV DATE SERIAL NR TEMP COREMGR

================================================== ================================================== =

0 1 DUW2001 ON OFF OFF KDU127161/2 R3B 20100921 CB4E485833

(16)

---================================================== ==============

SMN ProductNr Rev Name Date SerialNr

================================================== ==============

0 SXK1098604/1 * Subrack Radio Subrack

---================================================== ================================================== ================= ===========

SMN APN PORT BOARD GREEN YELLOW RED PRODUCT NR REV DATE SERIAL NR

================================================== ================================================== ================= ===========

0 1 port_0_dev_7 RUW steady 16hz off KRC11840/2 R2B 20100921 CB4E489921

0 1 port_0_dev_7/port_0_dev_10 ASC steady 16hz off KRY11242/4 R1E 20100905 CC42012463

0 1 port_1_dev_8 RUW steady 16hz off KRC11840/2 R2B 20100921 CB4E485505

0 1 port_1_dev_8/port_0_dev_11 ASC steady 16hz off KRY11242/4 R1E 20100905 CC42012484

0 1 port_2_dev_9 RUW steady 16hz off KRC11840/2 R2B 20100921 CB4E489798

0 1 port_2_dev_9/port_0_dev_12 ASC steady 16hz off KRY11242/4 R1E 20100923 CC42197998

---

(17)

120302-12:53:39 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080

================================================== =================================

Proxy Adm State Op. State MO

================================================== ================================= 147 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTer m=pp2 149 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTer m=pp1 150 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTer m=pp4 153 1 (UNLOCKED) 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTer m=pp3 ================================================== ================================= Total: 4 MOs

U0763-48_Community_Road>

st ima

120302-12:53:42 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080 ================================================== =================================

Proxy Adm State Op. State MO

================================================== =================================

(18)

15 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1 42 1 (ENABLED) TransportNetwork=1,ImaGroup=1-1-ima1 43 1 (ENABLED) TransportNetwork=1,ImaGroup=1-1-ima1,ImaLink=2 44 1 (ENABLED) TransportNetwork=1,ImaGroup=1-1-ima1,ImaLink=1 45 1 (ENABLED) TransportNetwork=1,ImaGroup=1-1-ima1,ImaLink=4 46 1 (ENABLED) TransportNetwork=1,ImaGroup=1-1-ima1,ImaLink=3 ================================================== ================================= Total: 6 MOs

Check error on the E1s at site

U0763-48_Community_Road>

lpdiff e1

120302-12:53:50 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080 .

waiting 24 seconds before next check...

=================================================================== ============================================== MO Counter DiffValue =================================================================== ============================================== Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp2 pmEs 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp2 pmSes 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp2 pmUas 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp1 pmEs 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp1 pmSes 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp1 pmUas 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp4 pmEs 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp4 pmSes 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp4 pmUas 0

(19)

Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp3 pmEs 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp3 pmSes 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp3 pmUas 0 =================================================================== ============================================== Total: 4 MOs

Added 4 MOs to group: pdiff_group

OR

U0763-48_Community_Road>

lpget e1

120302-12:56:28 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080 =================================================================== ============================================== MO Attribute Value =================================================================== ============================================== Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp2 currentPmRegister s[3] = pmEs=0 pmUas=0 pmSes=0

Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp2 pmEs 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp2 pmSes 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp2 pmUas 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp1 currentPmRegister s[3] = pmEs=0 pmUas=0 pmSes=0

Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp1 pmEs 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp1 pmSes 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp1 pmUas 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp4 currentPmRegister s[3] = pmEs=0 pmUas=0 pmSes=0

Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp4 pmEs 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp4 pmSes 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp4 pmUas 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp3 currentPmRegister s[3] = pmEs=0 pmUas=0 pmSes=0

Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp3 pmEs 0

(20)

Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp3 pmSes 0 Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=pp3 pmUas 0 =================================================================== ============================================== Total: 4 MOs

Check if the site is on Correct Software Package (W10/W11).

U4639-Enugu_Switch>

cvls

100517-10:48:33 10.50.39.145 7.1 RBS_NODE_MODEL_L_5_6 stopfile=/tmp/20707 ================================================== ==============================

100517-10:48 CV Name Upgrade Package

================================================== ============================== Startable: electricaltilt_correction CXP9012959/1_R6BN03 Loaded: CXP9012959_1_R6BN03_290110_TNloaded CXP9012959/1_R6BN03 Executing: electricaltilt_correction CXP9012959/1_R6BN03 Last created: electricaltilt_correction CXP9012959/1_R6BN03 ---Current UpgradePkg: UpgradePackage=CXP9012959_R6BN03 CXP9012959/1_R6BN03

Ask FSE guy responsible for acceptance to do test calls with you and

check with him if he is able to browse.

Check if all E1s are added to Synch.

U0763-48_Community_Road>

get synch

120302-13:01:01 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080 =================================================================== ==============================================

(21)

10 TransportNetwork=1,Synchronization=1 =================================================================== ============================================== SynchronizationId 1 degradationIsFault 0 (DEGR_NOT_FAULT) nodeSystemClock 2 (LOCKED_MODE) syncRefActivity i[8] = 2 1 1 1 1 1 1 1 syncRefPriority i[8] = 1 2 3 4 0 0 0 0 syncRefStatus i[8] = 3 3 3 3 0 0 0 0 syncReference [8] = >>> syncReference = Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=p p1 >>> syncReference = Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=p p2 >>> syncReference = Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=p p3 >>> syncReference = Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,ExchangeTerminal=1,E1PhysPathTerm=p p4 >>> syncReference = >>> syncReference = >>> syncReference = >>> syncReference = userLabel =================================================================== ============================================== 673 SwManagement=1,LoadModule=synchronization =================================================================== ============================================== LoadModuleId synchronization deviceLoaderInformation deviceLoaderName fileFormat jar fileState 1 (INSTALLED) isDirectory false loadModuleFilePath /c/java/CXC1721218_R71CG10.jar loaderType 2 (JVM) moppletEntries s[0] = oseProgramHeapSize 0 oseProgramLoadClass 500 (APPLICATION) oseProgramPoolSize 0 otherLoaderName preLoad 0 (NO) productData Struct{5} >>> 1.productNumber = CXC1721218 >>> 2.productRevision = R71CG10 >>> 3.productName = synchro >>> 4.productInfo = synchro

(22)

>>> 5.productionDate = 20100426 programMustBeSingleton false reliableProgramLabel reservedByUpgradePackage true userLabel =================================================================== ============================================== 1251 NodeBFunction=1,RbsSynchronization=1 =================================================================== ============================================== RbsSynchronizationId 1 masterTu 1 (PLUG_IN_UNIT_REF1) nodeIsStable true nodeIsSynchronized true plugInUnitRef1 Subrack=1,Slot=1,PlugInUnit=1 plugInUnitRef2 timDeviceRef1 Subrack=1,Slot=1,PlugInUnit=1,TimDeviceSet=1,TimDevice=1 timDeviceRef2 userLabel =================================================================== ============================================== Total: 3 MOs

Check if same trafficdescriptors are used for all VCs in RBS and RNC.

Note: Below trafficdescriptors should be used for 4 E1 sites.

U0763-48_Community_Road>

lst atm

120302-13:02:40 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080

================================================== =================================

Proxy Adm State Op. State MO

================================================== ================================= 15 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1 16 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1 17 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1 18 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc40

(23)

19 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc39 20 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc38 21 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc33 22 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc37 23 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc36 24 1 (ENABLED) TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc32 1175 1 (ENABLED) IpOam=1,Ip=1,IpAtmLink=1 1178 0 (DISABLED) IpOam=1,Ip=1,IpAtmLink=2 ================================================== =================================

U0763-48_Community_Road>

pr vc

120302-13:04:27 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080 ================================================== ================================= Proxy MO ================================================== ================================= 12 TransportNetwork=1,Aal5TpVccTp=1 14 TransportNetwork=1,Aal5TpVccTp=bda 18 TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc40 19 TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc39 20 TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc38 21 TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc33

(24)

22 TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc37 23 TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc36 24 TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc32 27 TransportNetwork=1,Aal5TpVccTp=bca 31 TransportNetwork=1,Aal5TpVccTp=bqa 35 TransportNetwork=1,Aal2PathVccTp=ba1 41 TransportNetwork=1,Aal5TpVccTp=2 47 TransportNetwork=1,Aal2PathVccTp=ba2 ================================================== ================================= Total: 14 MOs

U0763-48_Community_Road>

lget

TransportNetwork=1,AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc atm

120302-13:04:40 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080 ================================================== ================================================== ============= MO Attribute Value ================================================== ================================================== ============= AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc40 atmTrafficDescriptorId AtmTrafficDescriptor=U4 AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc39 atmTrafficDescriptorId AtmTrafficDescriptor=C2P7940 AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc38 atmTrafficDescriptorId AtmTrafficDescriptor=U3P1000M160

(25)

AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc33 atmTrafficDescriptorId AtmTrafficDescriptor=U3M20 AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc37 atmTrafficDescriptorId AtmTrafficDescriptor=U3P1000M160 AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc36 atmTrafficDescriptorId AtmTrafficDescriptor=U3P1000M160 AtmPort=1-1-ima1,VplTp=vp1,VpcTp=1,VclTp=vc32 atmTrafficDescriptorId AtmTrafficDescriptor=U3M20 ================================================== ================================================== ============= Total: 7 MOs

Also check Traffic descriptor on the RNC

OJRNC1>

lst .b763

120302-13:07:02 10.49.32.1 8.0h RNC_NODE_MODEL_L_1_119 stopfile=/tmp/13215 ================================================== =================================

Proxy Adm State Op. State MO

================================================== ================================= 172 1 (ENABLED) TransportNetwork=1,Aal5TpVccTp=b763qa 357 1 (ENABLED) TransportNetwork=1,Aal2Sp=1,Aal2Ap=b763 600 1 (ENABLED) TransportNetwork=1,AtmCrossConnection=b763oam1 611 1 (ENABLED) TransportNetwork=1,UniSaalTp=b763qa 1115 1 (ENABLED) TransportNetwork=1,Aal5TpVccTp=b763ca

1742

1 (UNLOCKED) 1 (ENABLED) TransportNetwork=1,Aal2PathVccTp=b763a2 1756 1 (ENABLED) TransportNetwork=1,Aal5TpVccTp=b763da

(26)

2421 1 (ENABLED)

TransportNetwork=1,AtmCrossConnection=b763oam2

3238 1 (ENABLED) TransportNetwork=1,UniSaalTp=b763ca 3507 1 (ENABLED) TransportNetwork=1,UniSaalTp=b763da

3760 1 (UNLOCKED) 1 (ENABLED) TransportNetwork=1,Aal2PathVccTp=b763a1 ================================================== ================================= Total: 11 MOs

OJRNC1>

lget 1742

120302-13:07:36 10.49.32.1 8.0h RNC_NODE_MODEL_L_1_119 stopfile=/tmp/13215 ================================================== ================================================== ============= 1742 TransportNetwork=1,Aal2PathVccTp=b763a2 ================================================== ================================================== ============= Aal2PathVccTpId b763a2 aal2PathId 2 aal2PathOwner true aal2QoSAvailableProfiles 12 (CLASS_C_D) aal2QoSProfileId Aal2QosProfile=ad10boff administrativeState 1 (UNLOCKED) alarmReport 2 (ALARM_LOC) availabilityStatus 0 (NO_STATUS) continuityCheck false counterActivation false

(27)

counterMode 6 (PM_MODE_FPM_BR) nomPmBlocksize 1024 (NOM_PM_BLKSIZE_2_10) operationalState 1 (ENABLED) remoteBlockingState 1 (REMOTELY_UNBLOCKED) reservedBy Aal2Sp=1,Aal2Ap=b763,Aal2PathDistributionUnit=1 timerCu 10 userLabel b763a2 vclTpId

AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc4

40 ================================================== ================================================== ============= Total: 1 MOs

OJRNC1>

lget AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc4

atm

120302-13:07:53 10.49.32.1 8.0h RNC_NODE_MODEL_L_1_119 stopfile=/tmp/13215 ================================================== ================================================== ============= MO Attribute Value ================================================== ================================================== ============= AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc438 atmTrafficDescriptorId AtmTrafficDescriptor=U3P1000M160 AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc433 atmTrafficDescriptorId AtmTrafficDescriptor=U3M20

(28)

AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc439 atmTrafficDescriptorId AtmTrafficDescriptor=C2P7940 AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc432 atmTrafficDescriptorId AtmTrafficDescriptor=U3M20 AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc437 atmTrafficDescriptorId AtmTrafficDescriptor=U3P1000M160 AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc440 atmTrafficDescriptorId AtmTrafficDescriptor=U4 AtmPort=ES-4-27-1,VplTp=vp1,VpcTp=1,VclTp=vc436 atmTrafficDescriptorId AtmTrafficDescriptor=U3P1000M160 ================================================== ================================================== ============= Total: 7 MOs

Note: The traffic descriptor on the NodeB site must thesame with

the one on the RNC

Check if correct naming convention is used for Iub and Utrancell names on

RNC for sites having different names e.g UOG2017-Awoyaya,

UIM0049-Akwakuma_Rd_Umuonyeala.

Iub and cell name should be as below: Iub Name: UOG2017-Awoyaya

Cell A: UtranCell=2017U Cell B: UtranCell=2017V Cell C: UtranCell=2017W

Normally all other sites will have the same naming convention as previously used.

Iub Name: Iub_U0349-Market_street_shomolu Cell A: UtranCell=349GA

(29)

Cell C: UtranCell=349GC

Check RbsId on Node B and RNC Run get iubrbsId on node Bs

Run get iublink=iub_U6339 rbsId on RNC

OJRNC1>

get iublink=iub_U0763 rbsId

120302-13:14:35 10.49.32.1 8.0h RNC_NODE_MODEL_L_1_119 stopfile=/tmp/13215 ================================================== ================================================== ============= MO Attribute Value ================================================== ================================================== ============= IubLink=Iub_U0763-48_Community_Road rbsId 763 ================================================== ================================================== ============= Total: 1 MOs

Check for VSWR value ( the value in RED must be above 16dB )

U0763-48_Community_Road>

lh asc dbg vswr 0 get -k

120302-13:16:08 10.49.46.217 8.0h RBS_NODE_MODEL_M_1_43 stopfile=/tmp/15080

Checking available boards on node...

Created following board-groups: all, allp, mp, bp, tu, coremp, ommp, scb, sxb, scx, sccpmp, et, etmfg, etmfx, aal2ap, aal2ncc, aal2cpsrc, aal2rh, xp, rax, tx, ru, ru[0-6], asc, asc[0-6].

(30)

>>> Type "bp" to view available board-groups and "bp <group>" to view group contents.

================================================== ===========================================

$ lhsh 000100/port_0_dev_7/port_0_dev_10 dbg vswr 0 get -k

0001p0d7/port_0_dev_10: VSWR, device 0: data = 21.911953 dB - (real)

================================================== ===========================================

$ lhsh 000100/port_1_dev_8/port_0_dev_11 dbg vswr 0 get -k

0001p1d8/port_0_dev_11: VSWR, device 0: data = 27.968615 dB - (real)

================================================== ===========================================

$ lhsh 000100/port_2_dev_9/port_0_dev_12 dbg vswr 0 get -k

0001p2d9/port_0_dev_12: VSWR, device 0: data = 27.899019 dB - (real) $

Check Channel Element( NB: When the license capacity is less than the hardware, then there is a mismatch)

NB:

UED2062-HTN_Omoeobaria_Street_Benin> get . channel

120602-21:55:32 10.49.160.153 9.0c RBS_NODE_MODEL_M_1_43 stopfile=/tmp/5340 ================================================== ================================================== ============= MO Attribute Value ================================================== ================================================== ============= NodeBFunction=1 availableRbsChannelElementsDownlink 705

(31)

NodeBFunction=1 availableRbsChannelElementsUplink 384 NodeBFunction=1 licenseCapacityRbsChannelElementsDownlink 384 NodeBFunction=1 licenseCapacityRbsChannelElementsUplink 384 NodeBFunction=1 licenseStateRbsChannelElementsDownlink 1 (ENABLED) NodeBFunction=1 licenseStateRbsChannelElementsUplink 1 (ENABLED) ================================================== ================================================== ============= Total: 1 MOs UED2062-HTN_Omoeobaria_Street_Benin>

Check Node B Log of Alarms

U0763-48_Community_Road>

lga

U0763-48_Community_Road>

lge

Run lga and lge on node B and bring to the attention any alarms on the alarm log.

The site should not has repeated alarm from the lga

and lge output

(32)

Send a mail to OSS to include the accepted node B on OSS

alarm list supervision.

Figure

Updating...

References

Related subjects :
