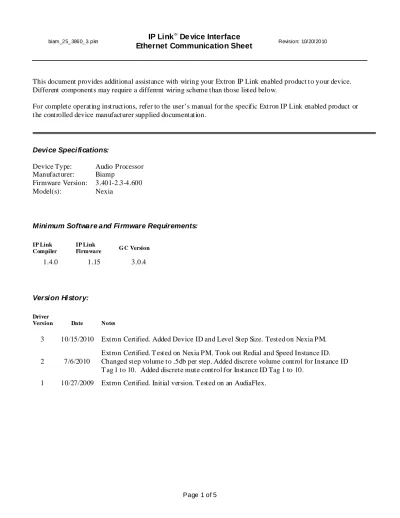

This document provides additional assistance with wiring your Extron IP Link enabled product to your device. Different components may require a different wiring scheme than those listed below.
For complete operating instructions, refer to the user’s manual for the specific Extron IP Link enabled product or the controlled device manufacturer supplied documentation.
Minimum Software and Firmware Requirements:
IP Link Compiler IP Link Firmware G C Version 1.4.0 1.15 3.0.4 Version History: Driver
Version Date Notes
3 10/15/2010 Extron Certified. Added Device ID and Level Step Size. Tested on Nexia PM.
2 7/6/2010
Extron Certified. T ested on Nexia PM. Took out Redial and Speed Instance ID. Changed step volume to .5db per step. Added discrete volume control for Instance ID T ag 1 to 10. Added discrete mute control for Instance ID Tag 1 to 10.
1 10/27/2009 Extron Certified. Initial version. T ested on an AudiaFlex.
Device Specifications:
Device Type: Audio Processor Manufacturer: Biamp
Firmware Version: 3.401-2.3-4.600 Model(s): Nexia
Page 2 of 5 Driver Notes:
In order to use the MLC226/104 IP Plus/System 5 IP/T LP 700 volume knobs, configure the “ Scaled Volume” command on the volume knob in Global Configurator.
Nexia uses an Instance ID number to specify the exact DSP block to be controlled. Custom names
(Instance ID T ags) may be assigned to DSP blocks, and used in lieu of Instance ID numbers within NTP (Nexia Text Protocol) command strings. Instance ID T ags may be up to 32 characters, but may not start with a number. If the Instance ID Tag includes spaces, it must be double-quote delimited ("Instance ID T ag") when used in a command string.
The Instance ID numbe r (and Instance ID Tag) can be found by first making sure the “Prope rties” attribute of a control block is enable d by right-clicking the DSP block and sele cting "Prope rties". Then hove r ove r the “Property Sheet” tab on the le ft and both identifie rs are available in the DSP Attributes 1 tab.
To simplify instance ID tag naming within the drive r, a capital lette r and a numbe r are use d as the Instance ID Tag for a varie ty of control blocks.
The following Nexia configuration blocks correspond to the following driver commands:
Command Name
Tag
Letter Tag Range
Corresponding Nexia Control Block
Dial Keypad D 1 ~ 16 TC - Dialer (Double Click) Logic State L 1 ~ 32 Logic State
Mute M 1 ~ 32 Mute
Auto Answer
Phone Input Level I 1 ~ 16 TC - Receive (Double Click) Receive Mute
Phone Output Level
Transmit Mute O 1 ~ 16 TC - Transmit Preset Recall N/A N/A Preset Button
Hook D 1 ~ 16 TC – Dialer (This logic resides in the Dialer block, use this command to hang up.
Scaled Volume V 1 ~ 16 Level
Volume V 1 ~ 16 Level
For example, in order to configure “ Scaled Volume” to a MLC 226 IP front panel volume knob, drag and drop “ Scaled Volume” on to the knob itself and configure “ Volume Instance ID T ag X” and “ Volume Channel X” to a separate button. T hen in the Audia configuration software, drag and drop a “Level Control” from the “Processing Library” to the grid, then click the “Property Sheet” tab -> “ DSP Attributes 1” tab and enter in “ VX” in the instance ID tag text field.
Page 3 of 5 Control Commands & States:
De vice ID 1 to 5
Dial Keypad1 0-9 * #
Pause Redial Flash
Dial Keypad Instance ID Tag 1-16
Hook On Off
Logic State 0 1
Logic State Channel 1-16
Logic State Instance ID Tag 1-32
Mute On Off
Mute Channel 1-16
Mute Instance ID Tag 1-32
Mute Inst ID Tag 1 to 10 Ch 1 & 22
On Off
Phone Input Le vel Up Down
Phone Le vel Instance ID Tag 1-16
Phone Output Le vel Up Down
Pre set Re call 1-128
Re ceive Mute On Off
Scale d Volume 0 to 100 in steps of 1
Spee d Dial 1-16
Transmit Mute On Off
Vol Inst ID Tag 1 to 10 Ch 1 & 23
-100 ~ 12 at 0.5 dB
Vol Inst ID Tag 1 to 10 Ch 1 & 2 Ste p3
Up
Down
Vol Ste p Size 0.5
1 to 5
Volume (Discre te) -100 to 12 in steps of 0.5
Page 4 of 5
Volume -100 ~ 12 at 0.5 dB
Volume Channel 1-16
Volume Instance ID Tag 1-32
Status Available:
Connection Status Connected Disconnected
Hook On Off
Logic State 0 1
Mute On Off
Mute Inst ID Tag 1 to 10 Ch 1 & 22
On Off
Re ceive Mute On Off
Scale d Volume 0 to 100 in steps of 1
Transmit Mute On Off
Vol Inst ID Tag 1 to 10 Ch 1 & 23
-100 ~ 12 at 0.5 dB
Volume (Discre te) -100 to 12 in steps of 0.5
1. These commands only available with model that support teleconference feature.
2. These are discrete control commands and status of the Mute instance ID T ag from M1 to M10 for channel 1 and channel 2. T hese Instance ID T ags are hard coded in the driver thus need to be set in the Nexia
software and are the same as Mute. It purposes is to provide discrete status.
3. These are discrete control commands and status of the Volume instance ID T ag from V1 to V10 for channel 1 and channel 2. These Instance ID T ags are hard coded in the driver thus need to be set in the Nexia software and are the same as Volume. It purposes is to provide discrete status.
Page 5 of 5 Ethernet Driver Configuration Description:
Notes for the Device: Network communication:
When configuring the Ethernet driver, be sure device settings match that of the GC configuration.
Port Type : Ethernet
Default Port: 23 Multi-Connection Capable : Yes Port Changeable : No Logon C re dentials Supporte d: No
