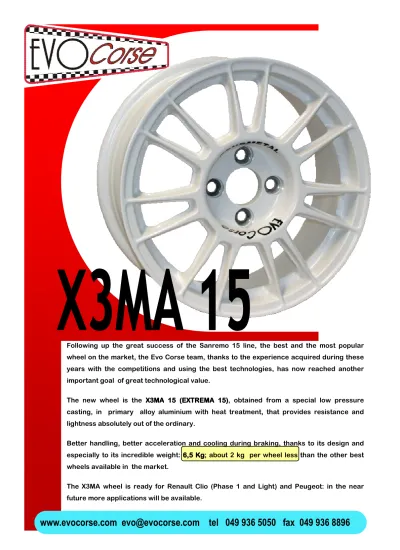

Following up the great success of the Sanremo 15 line, the best and the most popular wheel on the market, the Evo Corse team, thanks to the experience acquired during these years with the competitions and using the best technologies, has now reached another important goal of great technological value.
The new wheel is the X3MA 15 (EXTREMA 15)X3MA 15 (EXTREMA 15)X3MA 15 (EXTREMA 15)X3MA 15 (EXTREMA 15), obtained from a special low pressure casting, in primary alloy aluminium with heat treatment, that provides resistance and lightness absolutely out of the ordinary.
Better handling, better acceleration and cooling during braking, thanks to its design and especially to its incredible weight: 6,5 Kg6,5 Kg6,5 Kg6,5 Kg; about 2 kg per wheel less than the other best wheels available in the market.
The X3MA wheel is ready for Renault Clio (Phase 1 and Light) and Peugeot: in the near future more applications will be available.
Following up the great success of the Sanremo line, the best and the most popular wheel on the market, the Evo Corse team, thanks to the experience acquired during these years with the competitions and using the best technologies, has now reached another important goal of great technological value.
The last creature is the X3MA FORGED (EXTREMA)X3MA FORGED (EXTREMA)X3MA FORGED (EXTREMA)X3MA FORGED (EXTREMA), an aluminum forged wheel, available in 18” and 19” diameter, made with a special aircraft alloy forged and spinned, with lightness and strength absolutely not conventional.
X3MA is fully CNC machined, from an unique hot forged blank, using 8000 tons presses in order to guarantee the best mechanical properties. It is available in two configurations (maxi brake and maxi offset) with monolock system or conventional fixing studs.
Better handling, better acceleration and cooling during the braking, great stiffness and strength, thanks to its design and especially to its incredible weight, starting from 8,5 Kg8,5 Kg8,5 Kg8,5 Kg;
Available in different application and sizes for Porsche, Ferrari, BMW, superstar trophy and all professional racing application.
Available with following sizes, design and ET range
Diameter Width Min. ET Max. ET
18 8,0 26 61 18 8,5 29 68 18 8,5 8 43 18 9,5 33 68 18 9,5 8 43 18 10,0 33 68 18 10,0 8 43 18 11,0 21 55 18 12,0 9 70 18 13,0 22 82 18 13,5 24 84 19 8,0 29 58 19 8,5 26 63 19 8,5 10 40 19 9,0 41 69 19 9,0 8 44 19 9,5 20 53 19 10,0 27 63 19 10,0 10 39 19 10.5 33 68 19 11,0 23 51 MAXI OFFSET
Diameter Width Min. ET Max. ET
18 8,0 -9 62 18 8,5 -1 59 18 9,0 5 65 18 10,0 18 78 18 11,0 31 91 19 8,0 4 62 19 8,5 12 70 19 9,0 18 76 19 10,0 31 89 19 10,5 37 95 19 11,0 44 102 19 12,5 63 121 MAXI BRAKE
X3MA Forged Maxi Offset
X3MA Forged Maxi Brake
www.evocorse.com [email protected] tel +39 049 936 5050 fax +39 049 936 8896
ET values for minimum and maximum displayed in thesetables are only for reference: for a correct feasibility evaluation, our engineers can give a confirmation only after a complete evaluation of all characteristic datas of the car.
Another element added to the already wide range of models and sizes,
manufactured by EvoCorse; Olympia15 a wheel for gravel rally in light
aluminum alloy, available in size 15 "x 6.5 with a strength/weight ratio at
the top of their class.
Experience gained through years of battle on the gravel roads around
the world and advanced manufacturing technology, have shifted once
again higher the bar of challenge for competitors.
The design has been studied in detail, in order to have the material only
in the necessary positions and remove any unnecessary detail:
technology and essentiality for maximum performance.
The profile of the rim allows the use of larger multi-piston brakes, with a
focus on the fitting of the tires for the gravel masters.
Available from June 2014 on the request, in a variety of applications:
pre-orders are welcome.
www.evocorse.com [email protected] tel +39049 936 5050 fax +39049 936 8896
Size 6,5Jx15”Minimum ET 0 Maximum ET 28 Min PCD 98x4 Max PCD 120x5
Weight depending on the application, from 7,9 to 8,5 kg Standard color : White
Available colors: Silver, gold, Anthracite, mat black Use: Gravel Rally, even heavy duty
Material: Light aluminium alloy with heat treatment T6 Steel inserts: 60° taper included
A new challenge accepted by the EVO Corse team: following up the great success of the SanremoCorse and superlight X3MA line, thanks to the experience acquired during these years with the competitions, Evo Corse is investing again in circuit racing.
The last creature is the X3ma-Zero: a light aluminum alloy wheel, available in 15”x 8, with absolutely not conventional lightness and strength: extreme, like its name! Experience and technology bring this wheel to a higher level compared to the best magnesium wheels on the market, but with a much more aggressive price.
Better handling, better acceleration and cooling during the braking, great stiffness and strength, thanks to its design and especially to its incredible weight, starting from 5,9Kg;
Available form June 2014 in BMW, VW and Ford application, but deliverable on demand in many more different applications: pre-orders are welcome.
Minimum ET 0 Maximum ET 40 Min PCD 98x4 Max PCD 120x5 Standard application: 8x15 ET 0 PCD 100x4—108x4
8x15 ET 20 PCD 100x4—108x4
Una nuova sfida è stata accettata dal team EVO Corse: in seguito al grandissimo successo della linea SanremoCorse e superleggera X3ma, grazie all’esperienza acquisita in questi anni di competizioni, Evo Corse ha deciso di investire nuovamente nelle gare su pista.
L’ultima creatura si chiama X3ma-Zero: una ruota in lega leggera di alluminio, disponibile nella misura da 15”x 8, con una leggerezza e resistenza decisamente fuori dal comune: estrema, come dice il nome stesso.
Esperienza e tecnologia hanno innalzato questa ruota ad un livello più alto delle migliori ruote in magnesio nel mercato, ma con un prezzo decisamente più aggressivo.
Migliore controllo e accelerazione, raffreddamento durante la frenata, incredibile rigidezza e resistenza, grazie al suo design e specialmente al suo peso piuma, a partire da 5,9 Kg;
Disponibile da Giugno 2014 in applicazioni BMW, VW and Ford , ma consegnabile su richiesta in moltissime altre applicazioni: i pre-ordini sono graditi.
Minimo ET=0 Massimo ET=40 Min PCD 98x4 Max PCD 120x5 Applicazioni Standard: 8x15 ET 0 PCD 100x4—108x4
8x15 ET 20 PCD 100x4—108x4
www.evocorse.com [email protected] tel +39 049 936 5050 fax +39 049 936 8896
A new challenge accepted by the EVO Corse EVO Corse EVO Corse EVO Corse team: : : : following up the great success of the SanremoCorse line, the best and the most popular racing wheel on the market, thanks to the experience acquired during these years with the competitions and using the best technologies for design and production, Evo Corse is entering in the monoplace circuit racing.The last creature is the FORMULAFORMULAFORMULAFORMULACorseCorseCorseCorse: an aluminum wheel, available in 13” sizes form 8,5 and 9 for the front wheel and 10-10,5 for the rear wheel, with lightness and strength absolutely not conventional.
Experience and technology made this wheel at the same level as best magnesium wheels on the market, but with a price much more aggressive.
Better handling, better acceleration and cooling during the braking, great stiffness and strength, thanks to its design and especially to its incredible weight, starting from 3,9 Kg3,9 Kg3,9 Kg3,9 Kg;
Available now in Dallara F3 Dallara F3 Dallara F3 Dallara F3 application, but deliverable on demand in many different applications, all absolutely monolockmonolockmonolockmonolock.
Available with following sizes
and ET range
APPLICATIONS
Diameter Width Min. ET Max. ET
13 8,5 -12 12
13 9,0 -12 12
13 10,0 7 31
13 10,5 7 31
FORMULA
Corse
Call us for an offer ET values for minimum and maximum displayed in these
tables are only for reference: for a correct feasibility evaluation, our engineers can give a confirmation only after a complete evaluation of all characteristic datas of the car.
