PIPING LEGEND GATE VALVE NEEDLE VALVE BALL VALVE GLOBE VALVE PLUG VALVE STOP COCK OS & Y GATE VALVE AUTOMATIC CONTROL VALVE (PNEUMATIC)

(1)

DESIGN CONDITIONS

OUTDOORS VENTILATION INDOOR ELEVATION SUMMER 92.9°F DB / 62.8°F WB WINTER 5.1°F DB COOLING 75°F HEATING 70°F PER 2018 WSMC

1890 FT ABOVE SEA LEVEL LOCATION SPOKANE, WA

EVAPORATION 65.2°F WB/ 86.9°F MCDB ACID RESISTANT WASTE

ARW ACID RESISTANT WASTE BDD BACKDRAFT DAMPER BFP BACKFLOW PREVENTER BHP BRAKE HORSEPOWER BG BELOW GROUND BTU BRITISH THERMAL UNIT BTUH BRITISH THERMAL UNITS/HOUR

C CENTIGRADE

CC COOLING COIL CD CEILING DIFFUSER CFM CUBIC FEET PER MINUTE CG CEILING GRILLE

CLG CEILING

CMU CONCRETE MASONRY UNIT CM CONDENSATE METER

CO CLEANOUT

CO2 CARBON DIOXIDE CONC CONCRETE CONT CONTINUATION

CU COPPER

CUH CABINET UNIT HEATER DB DECIBLE or DRY BULB ø DIAMETER or PHASE DDC DIRECT DIGITAL CONTROL DIA DIAMETER

DIM DIMENSION

DN DOWN

DOAS DEDICATED OUTSIDE AIR SYSTEM DPS DIFFERENTIAL PRESSURE SWITCH DPR DAMPER

DWG DRAWING EA EXHAUST AIR

EAT ENTERING AIR TEMPERATURE EF EXHAUST FAN

EG EXHAUST GRILLE ELEC ELECTRIC or ELECTRICAL ELEV ELEVATION

EMCS ENERGY MANAGEMENT CONTROL SYSTEM

ESP EXTERNAL STATIC PRESSURE EWT ENTERING WATER TEMPERATURE EXH EXHAUST

EXIST EXISTING (E) EXISTING

F FAHRENHEIT

FA FACE AREA or FREE AREA FCO FLOOR CLEANOUT FCU FAN COIL UNIT

FD FLOOR DRAIN or FIRE DAMPER FFD FUNNEL FLOOR DRAIN FF FINAL FILTER

FLR FLOOR

FP FIRE PUMP

FPC FIRE PUMP CONTROLLER FPM FEET PER MINUTE FPS FEET PER SECOND FSD FIRE/SMOKE DAMPER FT FOOT or FEET FV FACE VELOCITY GA GAGE or GAUGE GAL GALLON GALV GALVANIZED GPH GALLONS PER HOUR GPM GALLONS PER MINUTE HC HEATING COIL HP HORSE POWER

HR HOUR

HTG HEATING

HVAC HEATING, VENTILATION AND AIR CONDITIONING HWG HIGH WALL GRILLE HWR HIGH WALL REGISTER

HZ HERTZ

I.D. INSIDE DIAMETER I.E. INVERT ELEVATION IN INCH or INCHES

KW KILOWATT

KWH KILOWATT HOUR

MAU MAKEUP AIR UNIT MAX MAXIMUM

MBH 1000 BRITISH THERMAL UNITS PER HOUR MCA MAXIMUM CICUIT AMPACITY

MCC MOTOR CONTROL CENTER MECH MECHANICAL

MFR MANUFACTURER MIN MINIMUM MISC MISCELLANEOUS

MOP MAXIMUM OVERCURRENT PROTECTION MUA MAKE UP AIR

MTD MOUNTED

MTG MOUNTING N/A NOT APPLICABLE N/C NORMALLY CLOSED N/O NORMALLY OPEN NC NOISE CRITERIA N.I.C. NOT IN CONTRACT NPT NATIONAL PIPE THREAD NTS NOT TO SCALE

OBD OPPOSED BLADE DAMPER O/C ON CENTER

OD OUTSIDE DIAMETER OPNG OPENING

OW OILY WASTE

ELECTRICAL, STRUCTURAL, MECHANICAL, OR ARCHITECTURAL REQUIREMENTS SHALL BE PROVIDED AT NO ADDITIONAL EXPENSE TO THE OWNER. 4. DRAWINGS ARE DIAGRAMMATIC IN NATURE AND DO NOT ATTEMPT TO SHOW ALL REQUIRED OFFSETS. COORDINATE WITH OTHER TRADES AND PROVIDE

ALL NECESSARY OFFSETS. REFER TO ARCHITECTURAL AND STRUCTURAL DRAWINGS FOR CONSTRUCTION DETAILS.

5. REFER TO PROJECT MANUAL (SPECIFICATIONS) FOR ADDITIONAL REQUIREMENTS. PLANS AND SPECIFICATIONS SHALL BE TAKEN TOGETHER. PROVIDE ALL WORK CALLED FOR IN EITHER. IN CASE OF CONFLICT BETWEEN SPECIFICATIONS AND PLANS THE MORE STRINGENT SHALL APPLY.

6. ALL EQUIPMENT AND MATERIAL ON THE JOB SITE PRIOR TO INSTALLATION SHALL BE COVERED AND PROTECTED FROM RAIN, DIRT, DUST, AND DAMAGE. 7. VERIFY PHYSICAL DIMENSIONS OF EQUIPMENT TO ENSURE THAT ACCESS CLEARANCES CAN BE MET. COORDINATE FINAL EQUIPMENT LOCATIONS W/

GENERAL CONTRACTOR AND OTHER TRADES TO ALLOW FOR REQUIRED MECHANICAL EQUIPMENT CLEARANCES.

8. PROVIDE NEC CODE MINIMUM HORIZONTAL AND VERTICAL WORKING CLEARANCES FOR ALL ELECTRICAL PANELS AND EQUIPMENT. OFFSET MECHANICAL WORK AS REQUIRED.

9. CONTRACTOR IS RESPONSIBLE FOR VERIFICATION OF INSTALLATION STANDARDS AND CONSTRUCTION CONDITIONS. CONTRACTOR SHALL FIELD VERIFY ALL DIMENSIONS AND EXISTING CONDITIONS PRIOR TO SHOP FABRICATION AND/OR FIELD INSTALLATION. DISCREPANCIES BETWEEN EXISTING

CONDITIONS AND THE CONSTRUCTION DRAWINGS SHALL BE CALLED TO THE ATTENTION OF THE ENGINEER.

10. ALL MECHANICAL EQUIPMENT, MATERIALS, AND INSTALLATION SHALL BE PROVIDED BY THE CONTRACTOR. ALL EQUIPMENT SHALL BE COMPLETE, INSTALLED, AND FULLY FUNCTIONAL PRIOR TO FINAL ACCEPTANCE OF THE WORK.

11. INSTALL ALL EQUIPMENT PER MANUFACTURERS RECOMMENDATIONS AND REQUIREMENTS. ANY CONFLICTS BETWEEN THE MANUFACTURERS DOCUMENTATION AND THE CONTRACT DOCUMENTS SHALL BE BROUGHT TO THE ATTENTION OF THE ENGINEER.

12. DO NOT ALLOW ANY WORK TO BE COVERED UP OR ENCLOSED UNTIL INSPECTED, TESTED AND APPROVED BY OWNER'S REPRESENTATIVE OR AUTHORITY HAVING JURISDICTION.

13. MECHANICAL EQUIPMENT SHALL NOT BE USED FOR TEMPORARY HEAT DURING CONSTRUCTION.

GENERAL HVAC NOTES

1. CONTRACTOR TO PROVIDE TRANSITION TO CONNECT TO ALL MECHANICAL EQUIPMENT. PROVIDE FLEXIBLE CONNECTION ON INTAKE AND DISCHARGE OF ALL MECHANICAL EQUIPMENT.

2. DRAWINGS ARE DIAGRAMMATIC IN NATURE AND DO NOT ATTEMPT TO SHOW ALL REQUIRED OFFSETS. COORDINATE WITH OTHER TRADES AND PROVIDE ALL NECESSARY OFFSETS.

3. 24"x24" ACCESS DOORS SHALL BE PROVIDED FOR ALL MECHANICAL EQUIPMENT LOCATED ABOVE GYPSUM BOARD CEILINGS. ALL FINAL ACCESS DOOR LOCATIONS SHALL BE APPROVED BY ARCHITECT PRIOR TO INSTALLATION.

GENERAL PLUMBING NOTES

1. PROVIDE ALL LABOR, MATERIALS, AND EQUIPMENT NECESSARY TO CONSTRUCT A COMPLETE, OPERATIONAL PLUMBING SYSTEM FOR THE ENTIRE PROJECT AS SHOWN ON THESE DRAWINGS, INCLUDING ALL NECESSARY FEES AND PERMITS.

2. THE ENTIRE INSTALLATION SHALL CONFORM TO THE MOST RECENTLY ADOPTED REQUIREMENTS OF THE PLUMBING CODE, AND ALL OTHER APPLICABLE CITY, COUNTY, STATE, AND FEDERAL CODES AND REGULATIONS IN EFFECT AT THE DATE OF THE BID. CONFORM TO ANY CODES, RULES, REGULATIONS AND REQUIREMENTS THAT THE PROJECT OWNER HAS.

3. PRIOR TO FABRICATION AND INSTALLATION, THE CONTRACTOR SHALL COORDINATE THE INSTALLATION OF ALL PLUMBING WORK WITH ALL OTHER TRADES INCLUDING THE MECHANICAL CONTRACTOR, FIRE PROTECTION CONTRACTOR, ELECTRICAL CONTRACTOR, GENERAL CONTRACTOR, AND ANY CONTRACTOR HIRED DIRECTLY BY THE OWNER. WHERE CONFLICTS MAY OCCUR, THEY SHALL BE RESOLVED PRIOR TO INSTALLATION.

4. THE WORKING DRAWINGS ARE DIAGRAMMATIC. BECAUSE OF THE SMALL SCALE OF THE DRAWINGS, THEY DO NOT SHOW EVERY OFFSET, BEND OR ELBOW NECESSARY FOR THE COMPLETE INSTALLATION IN THE SPACE PROVIDED. ALL LOCATIONS FOR PLUMBING EQUIPMENT AND PIPING SHALL BE CHECKED AND COORDINATED WITH THE ARCHITECTURAL, MECHANICAL, STRUCTURAL AND ELECTRICAL DRAWINGS.

5. ALL EQUIPMENT SHALL BE INSTALLED IN STRICT ACCORDANCE WITH THE EQUIPMENT MANUFACTURER'S RECOMMENDATIONS. PROVIDE ALL FITTINGS, TRANSITIONS, VALVES, WORKING CLEARANCES, AND OTHER DEVICES AND ACCESSORIES REQUIRED FOR A COMPLETE, WORKABLE INSTALLATION. 6. PROVIDE PROPER PROVISIONS FOR EXPANSION OR MOVEMENT OF ALL PIPING.

7. PROVIDE WATER HAMMER ARRESTORS (SHOCK ABSORBERS) AT ALL PIPE LOCATIONS WHERE VALVE CLOSURES MAY CAUSE WATER HAMMER OR RESULT IN EXCESSIVE PIPE VIBRATION OR MOVEMENT. (EXAMPLES INCLUDE FLUSH VALVES, SENSOR FAUCETS, AND WASHING MACHINES).

8. PROVIDE CLEANOUTS AS REQUIRED BY CODE, INCLUDING END OF RUNS. 3-WAY AUTO. CONTROL VALVE (PNEUMATIC)

BALANCE VALVE

BALANCE VALVE (AUTOMATIC)

HOSE BIBB CHECK VALVE

PRESSURE RELIEF VALVE

STRAINER WITH BLOW DOWN (1) STRAINER

UNION

BUTTERFLY VALVE

MOTORIZED (M) OR SOLENOID (S) VALVE

3-WAY MOTORIZED (M) OR SOLENOID (S) VALVE

PRESSURE REGULATOR PRESSURE REDUCING VALVE

AUTOMATIC CONTROL VALVE (PNEUMATIC) OS & Y GATE VALVE

WATER HAMMER ARRESTOR (PLAN) WATER HAMMER ARRESTOR (ELEV.) FLOOR CLEAN OUT

ROOF OVERFLOW DRAIN ROOF DRAIN

FLOOR DRAIN

PRESSURE GAUGE W/ COCK & SIPHON

ANCHOR FLEX COUPLING

BASKET STRAINER

PUMP (ARROWHEAD INDICATES FLOW DIRECTION)

THERMOMETER (LIQUID IN GLASS)

PRESSURE GAUGE W/ COCK DIAL THERMOMETER PT PLUG

THERMOWELL

REDUCER, CONCENTRIC

COLD WATER MAKE-UP SPRING CHECK VALVE

AIR VENT C - COIN M - MANUAL A - AUTOMATIC H - HIGH VOLUME REDUCER, ECCENTRIC

FIRE DEPT. CONNECTION STOP COCK

HOSE QUICK DISCONNECT HOSE THREAD DRAIN VALVE (1) HOSE THREAD DRAIN BALL VALVE (1)

WALL CLEANOUT

FLOOR SINK

(1) INDICATES TO PROVIDE W/ END CAP.

EMERGENCY EYEWASH/SHOWER EMERGENCY EYEWASH SHOWER BLIND FLANGE FLANGES T

FUSIBLE OIL SAFETY VALVE

YARD CLEAN OUT BACKFLOW PREVENTER PIPE UP PIPE DOWN TEE UP TEE DOWN ELBOW TEE CAP FLOW METER M CDS CDR

CONDENSER WATER SUPPLY CONDENSER WATER RETURN M

M

A

T&P RELIEF VALVE

ALL SYMBOLS AND ABBREVIATIONS DO NOT NECESSARILY APPEAR ON DRAWINGS

CHANGE OF DUCT SIZE

TRANSITION END TAP

A ≤ 15° FOR DUCTS W/ AIR VELOCITY OVER 1,500 FPM. A ≤ 30° FOR DUCTS W/ AIR VELOCITY UNDER 1,500 FPM

DUCT ELBOWS

ACCESS PANEL (TYPICAL) REQUIRED FOR RETURN & EXHAUST DUCTS

NOTE: OFFSETS (TO AVOID OBSTRUCTIONS) ARE

REQUIRED BUT ARE NOT NECESSARILY SHOWN ON THE PLANS.

(OBTAIN PRIOR APPROVAL FOR ALL RETURN & EXHAUST LOCATIONS)

OFFSETS

TURNING VANES R=1/2W FOR DUCTS W/ AIR

VELOCITY UNDER 1,500 FPM

R=W FOR DUCTS W/ AIR VELOCITY OVER 1,500 FPM AND ALL DUCTS UPSTREAM OF TERMINAL UNITS

TURNING VANES 45° OR 90° RADIUS ELBOWS

HEATING COIL

LINEAR SLOT DIFFUSER

BASEBOARD W/ COVER UNIT HEATER (HORIZONTAL) VAV IDENTIFICATION

45°

ROUND OR RECTANGULAR

ROUND DUCT RUNOUT TO SINGLE DIFFUSER OR GRILLE ONLY

45°

D

W

D=1/2W, BUT NOT MORE THAN 12"

(1/3W PERMITTED IF AIR VELOCITY UNDER 3,000 FPM)

A

CONICAL SPIN-IN OR TRANSITION TO AT LEAST 70% GREATER THAN AREA OF SMALLER DUCT. SEE MAX TRANSITION ANGLE.

A

W

12"x12" ACCESS PANEL ON BOTTOM OF DUCT UPSTREAM OF TURNING VANES, REQUIRED FOR RETURN AND EXHAUST DUCTS

OTHER HVAC SYMBOLS

AIR FLOW OUT AIR FLOW IN THERMOSTAT HUMIDISTAT

SUPPLY AIR (S/A) TERMINAL

RETURN AIR (R/A) TERMINAL

FLEX DUCT OR FLEX PIPE SWITCH

#

FT

MBH GPM

BASEBOARD IDENTIFICATION DIFFUSER IDENTIFICATION VAV-# MOTORIZED DAMPER FIRE/SMOKE DAMPER SMOKE DAMPER

CHANGE IN DUCT SIZE AND/OR SHAPE

ROUND DUCT IN INCHES DUCT DROP IN DIRECTION OF ARROW

FIRE DAMPER VOLUME DAMPER

DUCT RISE IN DIRECTION OF ARROW

ACOUSTIC LINED DUCT INSULATED DUCT

RECTANGULAR DUCT TURNED UP/SECTION

RECTANGULAR DUCT

TURNED DOWN/HIDDEN SECTION RECTANGULAR DUCT

TURNED DOWN/HIDDEN SECTION RECTANGULAR DUCT TURNED UP/SECTION 18ø M 20x12 ROUND DUCT TURNED UP/SECTION ROUND DUCT

TURNED DOWN/HIDDEN SECTION

ROUND DUCT TURNED UP/SECTION

ROUND DUCT

TURNED DOWN/HIDDEN SECTION

R

D

RECTANGULAR DUCT TURNED UP/SECTION

RECTANGULAR DUCT

TURNED DOWN/HIDDEN SECTION ROUND DUCT

TURNED UP/SECTION

ROUND DUCT

TURNED DOWN/HIDDEN SECTION EXHAUST AIR (E/A)

TERMINAL CO2 SENSOR

(ONLY PERMITTED FOR AIR VELOCITY UNDER 1,500 FPM)

DUCT RISE/DROP/SECTION

SUPPLY AIR (S/A) - CROSS

RETURN AIR (R/A) - SLASH

EXHAUST AIR (E/A) - WYE

OUTSIDE AIR (O/A) - REVERSE WYE A ≤ 15° FOR DUCTS W/ AIR

VELOCITY OVER 1,500 FPM. A ≤ 30° FOR DUCTS W/ AIR VELOCITY UNDER 1,500 FPM R

A

CO2

T

H

S

?

18ø

W

R R=1/2W FOR DUCTS W/ AIR VELOCITY UNDER 1,500 FPM

R=W FOR DUCTS W/ AIR VELOCITY OVER 1,500 FPM AND ALL DUCTS UPSTREAM OF TERMINAL UNITS CO SENSOR

CO

NOX SENSOR

NOX

GENERAL

THERMOSTAT. ADJACENT NUMBER INDICATES TERMINAL UNIT CONTROLLED HUMIDISTAT SENSOR CO2 SENSOR CO2 T H S PLUMBING FIXTURE TAG

NOTES:

XX-X

SPECIFIC TO LOCATION INDICATED. A. NOTE APPLIES TO ENTIRE SHEET.

EXISTING NEW (E) (N)

LINETYPES

EXISTING (THIN) NEW (MEDIUM)

POINT OF CONNECTION (POC) 1

EXISTING TO BE DEMOLISHED DESIGNATOR HAS SCHEDULED VALUES, SEE MECHANICAL

SCHEDULES. XX-X

x

SD DUCT SMOKE DETECTOR SP DUCT STATIC PRESSURE

D DRAIN

HWS HWR

HEATING WATER SUPPLY HEATING WATER RETURN CW

HPS HPR

HEAT PUMP LOOP SUPPLY HEAT PUMP LOOP RETURN CWS

CWR

CHILLED WATER SUPPLY CHILLED WATER RETURN

G GAS

SHEET INDEX

MECHANICAL LEGENDS, ABBREVIATIONS AND NOTES SCHEDULES

PARTIAL MECHANICAL BASEMENT FLOOR DEMO PLAN PARTIAL MECHANICAL MEZZANINE DEMO PLAN PARTIAL MECHANICAL ROOF DEMO PLAN

PARTIAL MECHANICAL BASEMENT FLOOR NEW PLAN PARTIAL MECHANICAL MEZZANINE NEW PLAN PARTIAL MECHANICAL ROOF NEW PLAN SECTIONS & ELEVATIONS

SECTIONS & ELEVATIONS SEQUENCE OF OPERATION SEQUENCE OF OPERATION MECHANICAL DETAILS HEAT TRACE DETAILS M-001 M-002 M-101 M-102 M-103 M-201 M-202 M-203 M-301 M-302 M-401 M-402 M-501 M-502 DWG. NO. TITLE

2018 WSEC GENERAL NOTES

1. ALL MOTORS SIZED FROM 1/12 HP TO 1 HP SHALL BE ELECTRONICALLY COMMUTATED (EC) MOTORS OR SHALL HAVE A MINIMUM EFFICIENCY OF 70 PERCENT (IN ACCORDANCE WITH DOE 10 CFR 431). MOTORS SHALL ALSO BE EQUIPPED WITH MEANS TO ADJUST MOTOR SPEED PER 2018 WSEC C405.8.

2. IN ACCORDANCE WITH C405.8 OF THE 2018 WSEC ALL ELECTRIC MOTORS SHALL MEET THE MINIMUM EFFICIENCY REQUIREMENTS OF TABLES C405.8(1) THROUGH C405.8(4)

3. FAN MOTORS SHALL BE THE SMALLEST AVAILABLE MOTOR SIZE GREATER THAN FAN BHP UNLESS OTHERWISE NOTED PER 2018 WSEC C403.8.2. 4. ALL MOTORS SHALL BE ENERGY EFFICIENT MOTORS MEETING NEMA STANDARD MG-1 EXCEPT THOSE INCLUDED IN PACKAGED EQUIPMENT WITH

EFFICIENCY RATED AS A WHOLE UNIT.

5. HEATING AND COOLING LOADS HAVE BEEN PERFORMED PER ASHRAE STANDARDS.

6. HVAC EQUIPMENT SIZED NO LARGER THAN THE NEXT LARGEST UNIT AVAILABLE ABOVE THE CALCULATED HEATING/COOLING LOADS PER 2018 WSEC C403.3.1.

7. CONTROLS TO USE A 5°F MINIMUM DEADBAND BETWEEN HEATING AND COOLING PER 2018 WSEC C403.4.1.2. 8. AUTOMATIC SETBACK/SHUTOFF: PROVIDE WITH DDC CONTROL SYSTEM AS PER 2018 WSEC C403.4.2.2.

9. AUTOMATIC START AND STOP CONTROLS: PROVIDE WITH AUTOMATIC START AND STOP CONTROLS AS PER 2018 WSEC C403.4.2.3. 10. HEAT PUMP (UNITARY, AIR COOLED) MICROPROCESSOR CONTROLS: PROVIDE PER 2018 WSEC C403.4.1.1.

11. PROVIDE HYDRONIC BALANCING DEVICES IN ALL HEATING AND COOLING COILS AS REQUIRED BY 2018 WSEC C408.2.2.2.

12. ALL HYDRONIC PIPING THAT SERVES AS PART OF A HEATING OR COOLING SYSTEM SHALL BE INSULATED IN ACCORDANCE WITH TABLE C403.10.3 OF THE 2018 WSEC. ALL GLASS FIBER PREFORMED PIPE INSULATION SHALL MEET ASTM C547.

13. MOTORS THAT ARE 7.5 HP OR LARGER SHALL BE EQUIPPED WITH VARIABLE SPEED DRIVES OR OTHER MEANS OF CONTROLS TO PROVIDE FAN MOTOR DEMAND OF NO MORE THAN 30 PERCENT OF DESIGN WATTAGE AT 50 PERCENT AIR VOLUME AND 1/3 MAXIMUM STATIC PRESSURE; 50 PERCENT OF DESIGN WATER FLOW FOR PUMPS.

14. ALL HVAC EQUIPMENT SHALL MEET MINIMUM EFFICIENCY REQUIREMENTS INDICATED IN TABLES C403.3.2(1) THROUGH C403.3.2(12). WHERE MULTIPLE RATING REQUIREMENTS EXIST, THE EQUIPMENT SHALL SATISFY ALL STATED REQUIREMENTS.

PROJECT SCOPE SUMMARY

REPLACE IN-KIND HEATING HOT WATER DISTRIBUTION PUMPS. INCLUDE VFD'S WITH NEW HEATING HOT WATER PUMPS. RE-USE HEATING HOT WATER DISTRIBUTION PIPING TO THE GREATEST EXTENT POSSIBLE.

REPLACE CONDENSER WATER PUMP WITH A NEW PUMP SIZED TO HANDLE INCREASED FLOW RATE. PROVIDE VFD WITH NEW PUMP.

REPLACE EXISTING HOT WATER BOILER WITH NEW BOILER IN SAME LOCATION. INSTALL EXISTING BURNER AND GAS TRAIN ON NEW BOILER. CONTROLS CONTRACTOR TO INTEGRATE NEW PUMPS, BOILER, AND COOLING TOWERS TO EXISTING BUILDING MANAGEMENT SYSTEM RE-USING EXISTING POINTS.

WORK PHASING

CONTRACTOR SHALL PHASE AND STAGE THE CONSTRUCTION WORK AS DESCRIBED BELOW. COORDINATE ALL PHASING AND STAGING WITH STA PRIOR TO INITIATING WORK. SUBMIT DETAILED PHASING WORK PLAN TO STA AND CEI FOR REVIEW.

1. ISOLATE THE EXISTING BOILER FROM THE HEATING HOT WATER LOOP AND DEMO THE BOILER FIRST. THE SECOND BOILER MUST REMAIN OPERATIONAL AT ALL TIMES.

2. ISOLATED AND REMOVE ONE OF THE HEATING HOT WATER PUMPS SCHEDULED TO BE REPLACED. THE SECOND PUMP MUST REMAIN OPERATIONAL WITH THE SECOND BOILER AT ALL TIMES.

3. INSTALL THE NEW BOILER AND NEW PUMP. FLUSH THE SYSTEM IN SECTIONS AS TO MAINTAIN THE SYSTEM OPERATIONAL. 4. OPEN THE HEATING HOT WATER LOOP TO THE NEW PUMP AND PROCEED TO ISOLATE THE SECOND PUMP.

5. REPLACE THE SECOND HEATING HOT WATER PUMP. FLUSH SECTION APPROPRIATELY, THEN PROCEED TO OPEN THE SECOND PUMP TO THE LOOP.

6. ONCE THE BOILER AND TWO HEATING HOT WATER PUMPS HAVE BEEN REPLACED, THEN REPLACEMENT OF COOLING TOWER AND CONDENSER WATER PUMPS CAN INITIATE.

7. DRAIN THE CONDENSER WATER LOOP SYSTEM OR ISOLATE THE SYSTEM AS NEEDED. ISOLATE THE EXISTING HEAT PUMPS TO PREVENT DEBRIS INTRUSION.

8. DEMO THE EXISTING COOLING TOWER AND CONDENSER WATER PUMP.

9. INSTALL NEW COOLING TOWER AND CONDENSER WATER PUMP, THEN FLUSH THE SYSTEM.

10. REFILL THE WATER LOOPS WITH APPROPRIATE CONCENTRATION OF GLYCOL-WATER SOLUTION AS SCHEDULED OR INDICATED ON PLANS.

CONTRACTOR PHASING NOTES

1. CONTRACTOR TO SUBMIT CONSTRUCTION PHASING PLAN TO STA AND STA MUST ACCEPT PHASING PLAN PRIOR TO START OF WORK. 2. CONSTRUCTION PHASING TO PLACE PRIORITY ON BOILER #1 REPLACEMENT AND BOILER SHOULD BE REPLACED BEFORE OTHER

EQUIPMENT REPLACEMENT.

3. PLAZA HEATING SYSTEM, BOILER #2 AND AT LEAST ONE OF THE HEATING WATER PUMPS TO BE REPLACED SHOULD REMAIN OPERATIONAL AT ALL TIMES DURING CONSTRUCTION.

4. HEATING WATER PUMP REPLACEMENT SHOULD BE PHASED SO THAT ONE PUMP REMAINS OPERATIONAL AT ALL TIMES.

5. COOLING TOWER DEMOLITION AND NEW TOWER CONSTRUCTION TO BE PHASED AS NOT TO DISRUPT STA PLAZA, STREET AND SIDEWALK OPERATION.

6. COOLING TOWER, PUMP AND BOILER REPLACEMENT, CRANE OPERATIONS AND CONSTRUCTION LAYDOWN IS NOT TO DISRUPT STA PLAZA OPERATIONS. DATE CHECKED DRAWN PROJ. NO. COFFMAN ENGINEERS C A B D D C B A

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 5 :4 8 P M 07/06/2021 CEI CEI 200465

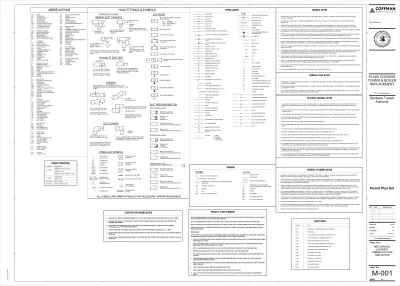

M-001

MECHANICAL

LEGENDS,

ABBREVIATIONS

AND NOTES

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

(2)

FLA MCA MOCP VOLTS Ø CT-1 NW ROOF CONDENSER WATER BAC/VFL-024-32J CLOSED LOOP

FLUID COOLER 110 90 80 68 4" / 4" 30%EG 1 7.50 17,160 1 0.50 94 3.00 1-1/2" 17.7 22 30 460 3 11ft x 4ft x 7.5ft 5,750 1,2,3,4,5,6,7 NOTES:

1. SHIPPING WEIGHT: 4,000 LBS.

2. PROVIDE WITH “BALTIGUARD PLUS” INTEGRAL VFD FAN SPEED CONTROL OR EQUIVALENT. PANEL SHIPPED LOOSE. INSTALL AS PER OEM INSTALLATION MANUAL AND COMPLIANT TO LOCAL CODE. POWER WIRING BY EC, CONTROLS WIRING BY CC.

3. PROVIDE WITH SINGLE POINT CONNECTION CONTROL PANEL. SCCR RATING OF 20K. 460V/3PH MAIN POWER INPUT, STEPDOWN TRANSFORMER WITH INTEGRAL FUSE BLOCK, 120V ANCILLARY POWER TO CHEM FEED, LEVEL CONTROL & MISC CONTROL REQUIREMENTS 4. PROVIDE WITH RESILIENT PAD VIBRATION ISOLATION SELECTED BY EQUIPMENT MANUFACTURER. REFER TO SPECIFICATIONS FOR ADDITIONAL INFORMATION.

5. PROVIDE NEMA-4 OUTDOOR RATED ENCLOSURE PANEL, SINGLE POINT POWER CONNECTION WITH MAIN DISCONNECT. PANEL SIZE AND WEIGHT TO BE CONFIRMED BY CONTRACTOR. 6. LEFT HAND UNIT CONFIGURATION. CONTRACTOR TO VERIFY PRIOR TO ORDERING UNIT.

7. INCLUDE START-UP AND COMMISSIONING SUPPORT AS PART OF BID.

SEISMIC AND VIBRATION CONTROL

SEISMIC RESTRAINT PROVISIONS

TAG EQUIPMENT LEVEL RESTRAINTS BASE

VIBRATION ISOLATOR

TYPE

FLEXIBLE

CONNECTORS DEFLECTION_(IN)

SEISMIC SUPPORTS ARE REQUIRED FOR THIS PROJECT FOR ALL MECHANICAL AND ELECTRICAL EQUIPMENT AND DISTRIBUTION SYSTEMS. SEISMIC RESTRAINT CALCULATIONS MUST BE PROVIDED BY THE PRODUCT MANUFACTURER FOR ALL CONNECTIONS OF EQUIPMENT TO THE STRUCTURE. ALL RESTRAINING DEVICES SHALL HAVE TESTING DATA TO VALIDATE MAXIMUM RESTRAINT RATINGS. PREAPPROVALS BASED ON INDEPENDENT TESTING ARE PREFERRED TO PREAPPROVALS BASED ON CALCULATIONS. CALCULATIONS (INCLUDING THE COMBINING OF TENSILE AND SHEAR LOADING) TO SUPPORT SEISMIC RESTRAINT DESIGNS MUST BE STAMPED BY A REGISTERED PROFESSIONAL ENGINEER LICENSED IN WASHINGTON. THE ENGINEERING ANALYSIS MUST INDICATE CALCULATED DEAD LOADS, STATIC SEISMIC LOADS, AND CAPACITY OF MATERIALS UTILIZED FOR CONNECTIONS TO EQUIPMENT STRUCTURE. ANALYSIS MUST DETAIL ANCHORING METHODS, BOLT DIAMETER, EMBEDMENT, AND/OR WELDED LENGTH.

P-1 HEATING WATER PUMP BASEMENT B A 4 Y 2"

P-2 HEATING WATER PUMP BASEMENT B A 4 Y 2"

P-6 CONDENSING WATER PUMP MEZZANINE B A 4 Y 2"

CT-1 COOLING TOWER ROOF EXISTING EXISTING EXISTING Y EXISTING

ALL SEISMIC RESTRAINT DEVICES SHALL BE DESIGNED TO ACCEPT, WITHOUT FAILURE, THE FORCES PRESCRIBED PER THE ASCE 7-05 ACTING THROUGH THE EQUIPMENT CENTER OF GRAVITY. OVERTURNING MOMENTS MAY EXCEED FORCES AT GROUND LEVEL AND MAY BE RESISTED BY SEISMIC RESTRAINTS, SUPPORT, OR ANCHORAGE. ANCHORAGE TO CONCRETE MUST HAVE AN ICC TESTING REPORT THAT ADHERES TO THE REQUIREMENTS OF THE 2015 IBC AND MUST BE RATED FOR SEISMIC RESTRAINT IN CRACKED CONCRETE USING THE APPROPRIATE REDUCTION FACTORS PER ACI 318 APPENDIX D. ACCEPTABLE ANCHORS INCLUDE THE HILTI KWIK BOLT TZ AND SIMPSON STRONG BOLT WEDGE ANCHORS OR HILTI HIT-RE 500-SD AND SIMPSON SET XP EPOXY ANCHORS. EPOXIES ARE NOT ACCEPTABLE FOR USE IN OVERHEAD APPLICATIONS.

PLUMBING PIPING NOTE 5

BOILER 1 HEATING WATER BOILER BASEMENT A

HWS/HWR HEATING WATER SUPPLY/RETURN BASEMENT 3 NOTE 7

ASCE 7-10 SEISMIC DESIGN CRITERIA

SEISMIC DESIGN CATEGORY "D" RISK CATEGORY II

SITE CLASS "D"

SEISMIC IMPORTANCE FACTOR FOR BUILDING, I = 1.0

COMPONENT RESPONSE MODIFICATION AND AMPLIFICATION FACTORS SHALL BE DETERMINED IN ACCORDANCE WITH ASCE 7-10, TABLE 13.6-1.

DESIGN SPECTRAL RESPONSE ACCELERATION AT SHORT PERIODS (0.2 SECOND): SDS = 0.334 G.

DESIGN SPECTRAL RESPONSE ACCELERATION AT 1-SECOND PERIOD: SD1 = 0.180 G.

RESTRAINTS

BASE TYPE

NOTES

A = ANCHOR A = ISOLATOR ATTACHED TO EQUIPMENT DIRECTLY 1. CONCRETE PAD MASS TO EQUAL AT LEAST 75% OF EQUIPMENT AM = ANCHOR SPECIFIED BY EQUIPMENT MANUFACTURER B = STRUCTURAL STEEL RAILS OR BASE 2. NR=NOT REQUIRED, NA=NOT APPLICABLE

B = RESTRAINING BASE WITH SNUBBER C = CONCRETE INERTIA BASE 3. PIPING TO BE BRACED LATERALLY A MINIMUM OF EVERY 40' AND LONGITUDINALLY EVERY 80' REGARDLESS OF SEISMIC REQUIREMENTS.

Y = REQUIRED PER SPECIFICATION 23 05 40 D = CURB-MOUNTED BASE

ISOLATOR TYPE

4. SEE SPECIFICATION SECTION 23 05 40 FOR DESCRIPTION AND REQUIREMENTS OF BASES, ISOLATORS, AND RESTRAINTS.

1. PAD: RUBBER, GLASS FIBER 4. RESTRAINED SPRING ISOLATOR 5. RESTRAIN PIPING IN ACCORDANCE WITH 23 05 48. 2. RUBBER ISOLATOR, FLOOR OR HANGER 5. THRUST RESTRAINT 6. EQUIPMENT VENDOR TO DETERMINE DEFLECTION

3. SPRING ISOLATOR, FLOOR OR HANGER 6. AIR SPRING 7. SPRING HANGER ABOVE BOILER FOR THERMAL EXPANSION.

GAS-FIRED HYDRONIC BOILER SCHEDULE

TAG LOCATION SERVES MANUFACTURER/_MODEL

BOILER PERFORMANCE

FLUID

CONNECTIONS (IN) UNIT POWER

REQUIREMENTS OPER._WT. (LBS) REMARKS INPUT (MBh) OUTPUT (MBh) EFF. % EWT_(F) LWT_(F) FLOW_(GPM) WPD (FT_WC) FUEL GAS HWS HWR GAS

VENT V/PH MCA MOCP

BOILER 1 BASEMENT BUILDING WEIL McCLAAIN 1288 3773 3162 83.1 160 180 250 10 30% PG NA (1) 6"

(3) 5" 14" NA NA NA 7,260

BURNER IS EXISTING, POWER CONNECTION AND GAS CONNECTION ARE EXISTING ON THE BURNER. FLOW CAN BE 500 GPM IF BOILERS ARE OPERATED IN SERIES. BURNER RATE WILL BE LIMITED. PROVIDE WITH PRESSURE SAFETY VALVE SET AT 50 PSIG.

RANGE AND

USAGE (°F)

Conductivity

Btu·in./(h·ft²·°F)b

MEAN RATING

TEMPERATURE,

°F

<1

1 to <1-1/2

1-1/2 to <4

4 to <8

≥8

>350

0.32 - 0.34

250

4.5

5

5 251-350

0.29 - 0.32

200

3

4

4.5

4.5 201-250

0.27 - 0.30

150

2.5

3

3 141-200

0.25 - 0.29

125

1.5

2

2 105-140

0.21 - 0.28

100

1

1.5

1.5 40-60

0.21 - 0.27

75

0.5

1

1 <40

0.20 - 0.26

75

0.5

1

1.5

a. _{For piping smaller than 1-1/2 inch (38mm) and located in partitions within conditioned spaces, reduction of} these thicknesses by 1 inch (25 mm) shall be permitted (before thickness adjustment required in footnote b) but not to a thickness less than 1 inch (25 mm).

b. _{For insulation outside the stated conductivity range, the minimum thickness (T) shall be determined as follows:} T = r {(1+t/r)^K/k -1}

where:

T = minimum insulation thickness, r = actual outside radius of pipe,

t = insulation thickness listed in the table for applicable fluid temperature and pipe size,

K = conductivity of alternate material at mean rating temperature indicated for the applicable fluid temperature (btu x in/h x ft2 x °F) and

k = the upper value of the conductivity range listed in the table for the applicable fluid temperature.

c. _{For direct-buried heating and hot water system piping, reduction of these thicknesses by 1-1/2 inches (38 mm)} shall be permitted )before thickness adjustment required in footnote b but not to thicknesses less than 1 inch (25 mm).

VARIABLE FREQUENCY DRIVE SCHEDULE

TAG LOCATION EQUIPMENT SERVED MANUFACTURER / MODEL

MOTOR DATA BYPASS (Y/N) DISCONNECT/ FUSES (Y/N) NEMA

ENCLOSURE SIMULT. MOTOR_{OPER. (Y/N)} _{SELECTOR (Y/N)}CONTACTOR _{REACTOR (Y/N)}INPUT LINE _{REACTOR (Y/N)}OUTPUT LINE NOTES MOTOR

QTY

MOTOR HP

EA VOLTS/ PH

VFD-1 BOILER_ROOM P-1 _ACH580ABB/ 1 25 460/3 Y Y 1 N N Y N 1,2,3

VFD-2 BOILER_ROOM P-2 _ACH580ABB/ 1 25 460/3 Y Y 1 N N Y N 1,2,3

VFD-3 2ND FLOOR

MEZZ. P-6

ABB/

ACH580 1 10 460/3 Y Y 1 N N Y N 1,2,3

NOTES:

1. PROVIDE WITH ETHERNET ADAPTER 2. PROVIDE WITH UL TYPE 1 ENCLOSURE.

3. ELECTRICAL AND ELECTROMECHANICAL COMPONENTS OF THE VARIABLE FREQUENCY DRIVE (VFD) SHALL NOT CAUSE ELECTROMAGNETIC INTERFERENCE TO ADJACENT ELECTRICAL OR ELECTROMECHANICAL EQUIPMENT WHILE IN OPERATION. PER SPEC UFGS 262923

HVAC PUMP SCHEDULE

MODEL IMP. HEAD MOTOR MOTOR ELECTRICAL WEIGHT

TAG SERVICE MFR NUMBER TYPE SIZE GPM FT H20 FLUID RPM SPEED VOLTS PHASE HP _(LBS) NOTES

P-1 HEATING WATER BELL&GOSSETT e-1510-4GC END SUCTION 11.125 502 120 30% P.G. 1770 CONSTANT 460 3 25 520 1, 2, 3, 4, 6

P-2 HEATING WATER BELL&GOSSETT e-1510-4GC END SUCTION 11.125 502 120 30% P.G. 1770 CONSTANT 460 3 25 520 1, 2, 3, 4, 6

P-6 CONDENSER WATER BELL&GOSSETT e-1510-1.5AD END SUCTION 5.5 110 120 30% E.G. 3600 CONSTANT 460 3 10 318 2, 3, 5, 6

NOTES:

1. P-1 AND P-2 ARE REDUNDANT AND SHALL ALTERNATE OPERATION.

2. PREMIUM EFFICIENCY, INVERTER DUTY RATED MOTOR. VARIABLE FREQUENCY DRIVE PROVIDED BY CONTROLS, INSTALLED BY E.C. PROVIDE SHAFT GROUNDING BY AEGIS IF NOT INCLUDED WITH PUMP. 3. PUMP SHALL HAVE SILICON CARBIDE ON VITON SEALS.

4. PROVIDE SUCTION DIFFUSER, MODEL #: GF-3X/GF-3Z 5. PROVIDE SUCTION DIFFUSER, MODEL #: DB-3X/DB-3Z 6. MC TO ALIGN PUMPS PRIOR TO STARTUP.

DATE CHECKED DRAWN PROJ. NO. COFFMAN ENGINEERS C A B D D C B A

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 5 :4 8 P M 07/06/2021 CEI CEI 200465

M-002

SCHEDULES

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

(3)

A

B

B.1

B.1 C

C

3.1

4

5

5 PUMP ROOM

P010

MECHANICAL

P031

BOILER ROOM

P011

STAIR LOBBY

P014S

STAIR 1

P012

1

5

4

6

4

7

2

(E) 4" G

3

8

(E ) 6" G

8

(E) 6" HWS (E) BURNER TYP (E) BOILER 1 (E) BOILER 2 (E) 4" G 2" GAS TRAIN

(E) GAS FLUE

9

10

11

AREA OF WORK DATE CHECKED DRAWN PROJ. NO. COFFMAN ENGINEERS C A B D D C B A

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 5 :5 0 P M 07/06/2021 CEI CEI 200465

M-101

PARTIAL

MECHANICAL

BASEMENT FLOOR

DEMO PLAN

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

1/4" = 1'-0"

PARTIAL MECHANICAL BASEMENT FLOOR DEMO PLAN

BASEMENT KEYPLAN

GENERAL NOTES

1. THE DRAWINGS HAVE BEEN PREPARED USING STA PROVIDED RECORD DRAWINGS AND THROUGH FIELD OBSERVATIONS. VERIFY EXISTING CONDITIONS AS THEY APPLY TO THIS PROJECT PRIOR TO BID.

2. EXISTING WORK IS SHOWN WITH LIGHT LINES AND DEMO WORK IS SHOWN HATCHED, TYP.

3. CONTRACTOR SHALL COORDINATE ANY SHUT DOWN OF SYSTEMS WITH STA. 4. CONTRACTOR SHALL BE RESPONSIBLE FOR DISPOSAL OF ALL ITEMS THE STA DOES

NOT WISH TO RETAIN FOR FUTURE USE.

5. ALL EXISTING TPO ROOFING NEEDS TO BE PROTECTED FROM DAMAGE AT ALL TIMES. ANY REQUIRED REPAIRS DUE TO DAMAGE CAUSED BY THE WORK,

CONTRACTOR, SUBCONTRACTORS, MATERIAL SUPPLIERS ARE THE RESPONSIBILITY OF THE CONTRACTOR.

6. CONTRACTOR IS RESPONSIBLE FOR ALL FALL PROTECTION MEANS AND METHODS REQUIRED TO PERFORM WORK.

7. CONTRACTOR TO COORDINATE STORAGE AND STAGING OF ALL EQUIPMENT AND MATERIALS WITH STA.

8. BOILER PIPING, NEW VALVES AND DRAFT DAMPER ARE TO BE INSTALLED

IMMEDIATELY AFTER PIPING DEMOLITION IN ORDER TO MINIMIZE THE SHUTDOWN OF BOILER 2. BOILER 2 IS TO BE AVAILABLE FOR USE EXCEPT FOR BRIEF PERIODS WHEN HEATING IS NOT REQUIRED AND AS SCHEDULED WITH STA. SEE DRAWING M-201 FOR NEW VALVE AND DRAFT DAMPER LOCATIONS.

SHEET NOTES

DEMO EXISTING HEATING HOT WATER PUMPS BACK TO FLANGES. ALL PIPING AND VALVES TO REMAIN. PREP FOR RECONNECTION TO NEW PUMPS. DEMO EXISTING SUCTION DIFFUSER.

BURNER AND GAS TRAIN TO BE REMOVED AND SAVED FOR REINSTALLATION ON NEW BOILER.

REMOVE (E) BOILER. HOUSEKEEPING PAD TO REMAIN.

REMOVE 6"HWS PIPING. PIPING CAN BE REMOVED BACK TO NEAREST COUPLING. SEE GENERAL NOTE 8.

REMOVE TEES AND BUTTERFLY VALVES. SEE GENERAL NOTE 8. REMOVE HWS PIPING AND 6" BUTTERFLY VALVE IN RISER.

REMOVE PIPE FOR INSTALLATION OF NEW TEE AND VALVE. PIPING CAN BE REMOVED BACK TO NEAREST COUPLING. SEE GENERAL NOTE 8.

GAS PIPING TO REMAIN.

REMOVE BOILER BREECHING TO TEE FITTING. SEE GENERAL NOTE 8.

EXISTING CONCRETE PAD TO BE RE-USED OR EXTENDED AS REQUIRED TO SERVICE NEW PUMP.

DEMO EXISTING CONTROL WIRING AND CONDUIT ASSOCIATED WITH PUMP OR RE-USE IF IN GOOD CONDITION.

1

0 1' 2' 3' 4' 6' 8' 12'

2

3

4

5

6

7

8

9

10

11

(4)

A

B

B.1

B.1 C

C

5

6

7

8

(E) P-6 4" H R S 4" H R R (E) MULTIZONE #3 (E) MULTIZONE #4 (E) HX-2

ACCESS DOOR TO MEZZANINE MECHANICAL ROOM 3" CONDENSER WATER SUPPLY/ RETURN

₂

3" CONDENSER WATER SUPPLY/ RETURN

₂

1 ₂

3

4

5

EXISTING HEAT EXCHANGER AND AIR SEPARATOR TO REMAIN AREA OF WORK DATE CHECKED DRAWN PROJ. NO. COFFMAN ENGINEERS C A B D D C B A

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 5 :5 1 P M 07/06/2021 CEI CEI 200465

M-102

PARTIAL

MECHANICAL

MEZZANINE DEMO

PLAN

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

1/4" = 1'-0"

PARTIAL MECHANICAL MEZZANINE DEMO PLAN

MEZZANINE KEYPLAN

SHEET NOTES

DEMO EXISTING PUMP P-6. RE-USE PIPING AND VALVES AND PREP FOR CONNECTION TO NEW PUMP. DEMO EXISTING SUCTION DIFFUSER.

EXISTING PIPING TO REMAIN FOR RE-USE.

CONTRACTOR TO FIELD VERIFY ADEQUATE SPACE REQUIREMENTS FOR REMOVAL OF OLD PUMP.

EXISTING CONCRETE PAD TO BE RE-USED OR EXTENDED AS REQUIRED TO SERVICE NEW PUMP.

DEMO EXISTING CONTROL WIRING AND CONDUIT ASSOCIATED WITH PUMP OR -RE-USE IF GOOD CONDITION.

1

2

0 1' 2' 3' 4' 6' 8' 12'

3

4

5 GENERAL NOTES

(5)

A

B

B.1

B.1 C

C

1

2

3

3.1

4

(E) CU-1 EXISTING COOLING TOWER TO REMAIN (E) CT-2

3

6

4

EXISTING COOLING TOWER BASE RAILS ATTACHED TO STRUCTURAL

2

EXISTING COOLING TOWER TO BE REPLACED

1

EXISTING COOLING TOWER STRUCTURAL ROOF SUPPORT

5

7 SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 5 :5 2 P M 07/06/2021 CEI CEI 200465

M-103

PARTIAL

MECHANICAL ROOF

DEMO PLAN

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

1/4" = 1'-0"

PARTIAL MECHANICAL ROOF DEMO PLAN

ROOF KEYPLAN

SHEET NOTES

DEMO EXISTING COOLING TOWER.

RE-USE AND REFURBISH EXISTING COOLING TOWER MOUNTING RAILS AND

STRUCTURAL BASE. SEE COOLING TOWER STRUCTURAL BASE AND EXISTING EXPOSED PIPING REFURBISHMENT NOTE.

DEMO EXISTING COOLING TOWER DRAIN AND BLOW DOWN PIPING BACK TO A FOOT ABOVE EXISTING ROOF LEVEL PENETRATION . PREP DRAIN PIPE TO RECONNECT NEW COOLING TOWER DRAIN.

DISCONNECT EXISTING 3" DIAMETER CONDENSER WATER LINES AT EXISTING COOLING TOWER AND REMOVE PIPES BACK TO A FOOT ABOVE ROOF SERVICE.

INSTALLING CONTRACTOR TO COORDNATE DEMO OF EXISTING COOLING TOWER WITH STA. ANY CRANE LAY-DOWN SHALL BE A MINIMUM 20' FROM BUILDING EDGE AND ANY SIDEWALK. TRAFFIC DISRUPTIONS SHALL BE OUTSIDE OF REGULAR STA PLAZA HOURS OF OPERATION AND MOST LIKELY AT NIGHT.

DISCONNECT EXISTING MAKEUP WATER LINE AT COOLING TOWER AND PREP CONNECTION FOR REUSE. REUSE PIPE, HOSE SPIGOT, WATER HAMMER ARRESTOR, AND RPBP.

DEMO EXISTING CONTROLS WIRING AND ELECTRICAL CONDUIT ASSOCIATED WITH EXISTING COOLING TOWER.

1

2

3

4

5

6 COOLING TOWER STRUCTURAL BASE AND EXISTING EXPOSED

PIPING REFURBISHMENT NOTE

1. PREPARE ALL DAMAGED/MISSING PAINT PER SSPC-SP 15, COMMERCIAL GRADE POWER TOOL CLEANING. THE PREPARED AREA SHALL EXTEND AT LEAST 2 INCHES INTO ADJACENT TIGHTLY ADHERING, INTACT COATING. PROVIDE ONE PRIMER COAT OF MILL WHITE COLOR, SHERWIN WILLIAMS MACROPOXY 646 FAST CURE EPOXY OR EQUIVALENT. PROVIDE TWO COATS OF SHERWIN WILLIAMS SHER-LOXANE 800 HIGH-PERFORMANCE EPOXY SILOXANE HYBRID OR EQUIVALENT. EACH COAT SHALL HAVE A MINIMUM THICKNESS OF 4.7 MILS AND SHALL BE FULLY CURED PRIOR TO

APPLICATION OF SECOND COAT. MATCH COLOR OF EXISTING STRUCTURAL BASE PAINT.

0 1' 2' 3' 4' 6' 8' 12'

7 GENERAL NOTES

(6)

A

B

B.1

B.1 C

C

3.1

4

5

5 PUMP ROOM

P010

MECHANICAL

P031

BOILER ROOM

P011

STAIR LOBBY

P014S

STAIR 1

P012

P-1 P-2

1

VFD-1 VFD-2

10

6" H W S 6" H W S 6" HWS (E) 4" G (E ) 6" G 6" HWS

7 ₇

7

(E) 6" HWS (E) 6" HWS

5

E X IS T IN G N E W E X IS T IN G N E W (E) 4" G 5" HWS 5" HWS 5" HWS 6" H W S 6" H W S (E ) 6" H W S

2

(E) GAS FLUE

EXISTING NEW EXISTING NEW EXISTING NEW

9

6

EXISTING NEW

3

(N) BOILER 1 (E) BOILER 2

(E) GAS TRAIN RELOCATED/ REINSTALLED NEW EXISTING

4

8

2 M-302 1 M-302 3 M-302 (E ) 2" G (E) BURNER RELOCATED/INSTALLED ON BOILER EXISTING NEW

4

DRAFT DAMPER

7 SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 5 :5 4 P M 07/06/2021 CEI CEI 200465

M-201

PARTIAL

MECHANICAL

BASEMENT FLOOR

NEW PLAN

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

SHEET NOTES

1

0 1' 2' 3' 4' 6' 8' 12' 1/4" = 1'-0"

PARTIAL MECHANICAL BASEMENT FLOOR NEW PLAN

BASEMENT KEYPLAN

PROVIDE NEW HEATING WATER PUMP. INSTALL ON EXISTING HOUSEKEEPING PAD AND CONNECT TO EXISTING PIPING AND VALVES. FURNISH WITH VFD AND END-SUCTION DIFFUSER. MOUNT PER MANUFACTURER'S INSTRUCTIONS.

INSTALL BOILER ON EXISTING HOUSEKEEPING PAD. INSTALL EXISTING BURNER ON NEW BOILER . RE-INSTALL GAS TRAIN AND CONNECT TO BURNER.

CONNECT NEW 6" PIPING TO EXISTING. TIE IN CAN BE MADE AT NEAREST COUPLING. SEE GENERAL NOTE 8.

INSTALL NEW 6" TEE IN EXISTING PIPE. SEE GENERAL NOTE 8. INSTALL NEW TEES AND BUTTERFLY VALVES. SEE GENERAL NOTE 8.

CONTRACTOR SHALL REUSE EXISTING CONCRETE PAD. EXTEND AND PATCH PAD AS NEEDED TO ALLOW FOR PROPER INSTALLATION OF NEW PUMPS.

ROUTE NEW BOILER BREECHING TO EXISTING TEE FITTING. PROVIDE NEW DRAFT DAMPER AT TIE IN POINT. SEE NOTE 8.

PROVIDE NEW VFD FOR HEATING WATER PUMP. MOUNT TO WALL PER MANUFACTURERS RECOMMENDATIONS AND PROVIDE MINIMUM 42" OF CLEARANCE ALONG FRONT OF UNIT. CONTRACTOR TO VERIFY MOUNTING HEIGHT BASED ON AVAILABLE SPACE ON THE WALL.

2

3

4

5

6

7

8

9

10 GENERAL NOTES

8. BOILER PIPING, NEW VALVES AND DRAFT DAMPER ARE TO BE INSTALLED

IMMEDIATELY AFTER PIPING DEMOLITION IN ORDER TO MINIMIZE THE SHUTDOWN OF BOILER 2. BOILER 2 IS TO BE AVAILABLE FOR USE EXCEPT FOR BRIEF PERIODS WHEN HEATING IS NOT REQUIRED AND AS SCHEDULED WITH STA. SEE DRAWING M-201 FOR NEW VALVE AND DRAFT DAMPER LOCATIONS.

(7)

A

B

B.1

B.1 C

C

5

6

7

8

(N) P-6 4" H R S 4" HRR (E) MULTIZONE #3 (E) MULTIZONE #4 (E) HX-2

ACCESS DOOR TO MEZZANINE MECHANICAL ROOM 3" CONDENSER WATER SUPPLY/ RETURN

₂

1 ₂

VFD-3

3

4 SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 5 :5 5 P M 07/06/2021 CEI CEI 200465

M-202

PARTIAL

MECHANICAL

MEZZANINE NEW

PLAN

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

1/4" = 1'-0"

PARTIAL MECHANICAL MEZZANINE NEW PLAN

MEZZANINE KEYPLAN

0 1' 2' 3' 4' 6' 8' 12'

SHEET NOTES

INSTALL NEW PUMP P-6 AND END SUCTION DIFFUSER. RE-CONNECT EXISTING PIPING TO NEW PUMP AND RE-USE EXISTING VALVES.

EXISTING PIPING TO REMAIN FOR RE-USE.

PROVIDE NEW VFD FOR CONDENSER WATER PUMP. MOUNT TO WALL PER

MANUFACTURERS RECOMMENDATIONS AND PROVIDE MINIMUM 42" OF CLEARANCE ALONG FRONT OF UNIT. CONTRACTOR TO VERIFY MOUNTING HEIGHT BASED ON AVAILABLE SPACE ON THE WALL.

CONTRACTOR SHALL REUSE EXISTING CONCRETE PAD. EXTEND AND PATCH PAD AS NEEDED TO ALLOW FOR PROPER INSTALLATION OF NEW PUMPS.

1

2

3

4 GENERAL NOTES

CONTRACTOR, SUBCONTRACTORS, MATERIAL SUPPLIERS ARE THE RESPONSIBILITY OF THE CONTRACTOR..

(8)

A

B

B.1

B.1 C

C

1

2

3

3.1

4

(E) CU-1 EXISTING COOLING TOWER STRUCTURAL ROOF SUPPORT

EXISTING COOLING TOWER BASE RAILS ATTACHED TO STRUCTURAL SUPPORT (N) CT-1

7

(E) CT-2 A P P R O X IM A T E L Y 4 2 '-0 "' F R O M T H E B U IL D IN G E D G E EXISTING COOLING TOWER TO REMAIN

2

3

5

1 M-301 2 M-301 4" BFW FLUID IN/OUT 3 M-301 3" CONDENSER WATER

SUPPLY & CONDENSER WATER RETURN (WITH NEW 3" BUTTERFLY VALVES, TEMP & PRESSURE GAUGES AND MANUAL AIR VENTS IN VERTICAL)

8

11

EXISTING WALKWAY PADS NEW WALKWAY PADS NEW WALKWAY PAD EXISTING WALKWAY PADS

PANEL WITH SINGLE ELECTRICAL POINT OF CONNECTION TO POWER CT-1 PROVIDED BY COOLING TOWER VENDOR. MOUNT ON HOT DIPPED GALVANIZED UNISTRUT, SEE 2 & 3/M301 & 4/M501.

4

1-1/2" CW MAKE-UP (N) ISOLATION VALVE (N) SOLENOID VALVE

1

9

10

2" MPT OVERFLOW 2" MPT DRAIN 3" DRAIN

6

11

NEW WALKWAY_PADS

42" CLEARANCE IN FRONT OF PANEL

12

12 SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 5 :5 7 P M 07/06/2021 CEI CEI 200465

M-203

PARTIAL

MECHANCIAL ROOF

NEW PLAN

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

SHEET NOTES

INSTALL NEW COOLING TOWER AND VIBRATION ISOLATORS ON EXISTING RAILS. REUSE BOLT HOLES TO THE MAXIMUM EXTENT POSSIBLE.

REUSE AND REFURBISH EXISTING COOLING TOWER STRUCTURAL BASE. SEE COOLING TOWER STRUCTURAL BASE AND EXISTING EXPOSED PIPING REFURBISHMENT NOTE. REUSE AND REFURBISH EXISTING COOLING TOWER MOUNTING RAILS. SEE COOLING TOWER STRUCTURAL BASE AND EXISTING EXPOSED PIPING REFURBISHMENT NOTE. EXTEND EXISTING 3" DIAMETER CONDENSER WATER LINES TO NEW COOLING TOWER CONNECTION POINT. INSTALL 4" TRANSITIONS TO CONNECT TO NEW COOLING TOWER INLET/OUTLET. REUSE EXISTING CONDENSER WATER LINES, INSULATION AND ROOF PENETRATIONS TO THE MAXIMUM EXTENT POSSIBLE. PATCH ROOF AND INSTALL NEW PIPE INSULATION, AS NECESSARY.

INSTALLING CONTRACTOR TO COORDINATE INSTALLATION OF NEW WITH STA. ANY CRANE LAY-DOWN SHALL BE A MINIMUM 20' FROM BUILDING EDGE AND ANY SIDEWALK. TRAFFIC AND SIDEWALK DISRUPTIONS SHALL BE OUTSIDE OF REGULAR STA PLAZA HOURS OF OPERATION AND MOST LIKELY AT NIGHT.

EXTEND EXISTING MAKEUP WATER LINE TO NEW COOLING TOWER. REUSE EXISTING PIPE, HOSE SPIGOT AND WATER HAMMER ARRESTOR IN PLACE. INSTALL NEW FILL WATER SOLENOID VALVE. PATCH ROOF AND INSTALL NEW PIPE INSULATION AS NECESSARY.

REUSE EXISTING DRAIN PIPE AND EXTEND TO NEW COOLING TOWER DRAIN AND BLOW DOWN CONNECTION POINTS.

HEAT TRACE CW MAKE-UP LINE. SEE SHEET M502 FOR HEAT TRACE DETAILS. CONTRACTOR TO PROVIDE SHOP DRAWINGS OF COOLING TOWER INSTALLATION TO ENGINEER OF RECORD FOR REVIEW AND APPROVAL.

CONTRACTOR TO COMPARE NEW COOLING TOWER PIPING CONNECTION LOCATIONS TO EXISTING PIPE ROUTING AND VERIFY ANY MODIFICATIONS THAT NEED TO BE MADE TO EXISTING PIPING IN ORDER TO CONNECT TO NEW COOLING TOWER. IF COOLING TOWER IS DIFFERENT FROM SCHEDULED BASIS OF DESIGN, CONTRACTOR TO CONFIRM IF MODIFICATIONS TO EXISTING PIPING ARE NECESSARY AND SUBMIT TO ENGINEER OF RECORD FOR REVIEW AND APPROVAL.

CONTRACTOR TO VERIFY IF ADDITIONAL WALKWAY PADS ARE REQUIRED AND PROVIDE AS NECESSARY TO EXTEND ALONG LENGTH OF EQUIPMENT.

SUPPORT ALL PIPING FROM ROOF AS NEEDED.

1

2

3

4

5

6

7 COOLING TOWER STRUCTURAL BASE AND EXISTING EXPOSED

PIPING REFURBISHMENT NOTE

1. PREPARE ALL DAMAGED/MISSING PAINT PER SSPC-SP 15, COMMERCIAL GRADE POWER TOOL CLEANING. THE PREPARED AREA SHALL EXTEND AT LEAST 2 INCHES INTO ADJACENT TIGHTLY ADHERING, INTACT COATING. PROVIDE ONE PRIMER COAT OF MILL WHITE COLOR, SHERWIN WILLIAMS MACROPOXY 646 FAST CURE EPOXY OR EQUIVALENT. PROVIDE TWO COATS OF SHERWIN WILLIAMS SHER-LOXANE 800 HIGH-PERFORMANCE EPOXY SILOXANE HYBRID OR EQUIVALENT. EACH COAT SHALL HAVE A MINIMUM THICKNESS OF 4.7 MILS AND SHALL BE FULLY CURED PRIOR TO

APPLICATION OF SECOND COAT. MATCH COLOR OF EXISTING STRUCTURAL BASE PAINT.

0 1' 2' 3' 4' 6' 8' 12'

1/4" = 1'-0"

PARTIAL MECHANICAL ROOF NEW PLAN

ROOF KEYPLAN

8

9

10

11 GENERAL NOTES

12

(9)

ROOF LEVEL

149' - 5 3/4"

(E) CT-2

3" CONDENSER WATER SUPPLY & 3" CONDENSER WATER RETURN

EXISTING COOLING TOWER STRUCTURE TO REMAIN

EXISTING COOLING TOWER RAIL STRUCTURE TO REMAIN 1-1/2" CW MAKE-UP 3" DRAIN 1-1/2" CW MAKE-UP 2" OVERFLOW 2" DRAIN

NEW ISOLATION VALVE

NEW SOLENOID VALVE

MANUAL AIR VENTS, TYP

NEW BUTTERFLY VALVES, TYP

NEW TEMP & PRESSURE GAUGES, TYP

ROOF LEVEL

149' - 5 3/4"

M-301

(N) CT-1

3" CONDENSER WATER SUPPLY & 3" CONDENSER WATER RETURN

EXISTING COOLING

TOWER STRUCTURE TO REMAIN

EXISTING COOLING TOWER RAIL STRUCTURE TO REMAIN

3" DRAIN

1-1/2" CW MAKE-UP

2" OVERFLOW

2" DRAIN

(N) PANEL WITH SINGLE ELECTRICAL POINT OF CONNECTION TO POWER CT-1 PROVIDED BY COOLING TOWER

VENDOR. MOUNT ON HOT DIPPED GALVANIZED UNISTRUT. WT OF PANEL = 300#

(N) P1000 STRUT, TYP 2

(N) P1325 ANGLE W/(1) 1/2" DIA BOLT TO (E) WF BEAM AND (2) CHANNEL NUTS TO UNISTRUT, TYP TOP AND BOTTOM

4 '-0 " M A X TEMPERATURE & PRESSURE GAUGE, TYP

MANUAL AIR VENT, TYP

3.1

4 ROOF LEVEL

149' - 5 3/4"

3.1

4

2 M-301 (N) CT-1 3" CONDENSER WATER SUPPLY & 3" CONDENSER

WATER RETURN EXISTING COOLING _{TOWER STRUCTURE}

TO REMAIN

EXISTING COOLING TOWER RAIL STRUCTURE TO REMAIN

(E) CT-2

PANEL WITH SINGLE ELECTRICAL POINT OF CONNECTION TO POWER CT-1 PROVIDED BY COOLING TOWER

VENDOR. MOUNT ON HOT DIPPED GALVANIZED UNISTRUT, SEE 2/M301 & 4/M501

MANUAL AIR VENT, TYP

TEMP & PRESSURE GAUGES, TYP

1-1/2" CW MAKE-UP

PROVIDE TWO HORIZONTAL MEMBERS P1000 HOT DIPPED GALVANIZED UNISTRUT

(N) P1325 ANGLE W/(2) CHANNEL NUTS

TO EACH UNISTRUT, VERTICAL AND HORIZONTAL TYP TOP AND BOTTOM 4 PLACES

(N) CT-1

3" CONDENSER WATER SUPPLY &

3" CONDENSER WATER RETURN

1-1/2" CW MAKE-UP

2" MPT &

2" MPT OVERFLOW

DRAINS

MANUAL AIR VENT, TYP

TEMP & PRESSURE

GAUGES, TYP

(E) CT-2

(N) WALKWAY PADS

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 6 :0 8 P M 07/06/2021 CEI CEI 200465

M-301

SECTIONS &

ELEVATIONS

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

1/2" = 1'-0" M-301

SECTION

1 M-301 1/2" = 1'-0"

SECTION

2 1/2" = 1'-0" M-301

SECTION

3

M-301

ISOMETRIC VIEW

4

(10)

MAIN LEVEL 98' - 0" MAIN LEVEL 98'-0"

LEVEL - FOOTING TOP 77'-8" (N) BOILER#1 22ø E/A UP 6" HWS (E ) 4" G (E ) 4" G (E) BURNER, REINSTALLED ON BOILER 28ø E/A UP (E) 2" G (E) GAS TRAIN 6x5 REDUCER 5"FNPT CONNECTION, (3) PLACES PROVIDE LOW POINT DRAIN 6"HWR HEADER

MANUAL AIR VENT BREECHING CONNECTION (N) DRAFT DAMPER

₂

1

(E) CONCRETE PAD

(N) GAS PIPING FOR RELOCATED BURNER CONNECTION.

MAIN LEVEL 98'-0"

LEVEL - FOOTING TOP 77'-8" (N) BOILER#1

(E) BURNER

(E) GAS TRAIN

6" HWS 5" H W S 5" H W S 6" HWS 28ø E/A UP 22ø E/A UP (E) (E) 2" G (E ) 4" G 5" H W S 2" G 14" BOILER BREECHING CONNECTION

1

DRAFT DAMPER

2

MAIN LEVEL 98' - 0"

B.1

MAIN LEVEL 98'-0"

LEVEL - FOOTING TOP 77'-8"

(N) BOILER#1 (E) BURNER (E) GAS TRAIN

5" HWS

(N) 2" GAS PIPING BETWEEN (E) GAS TRAIN AND (E) BURNER

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 6 :2 9 P M 07/06/2021 CEI CEI 200465

M-302

SECTIONS &

ELEVATIONS

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

1/2" = 1'-0" M-302

SECTION

1 1/2" = 1'-0" M-302

SECTION

2 1/2" = 1'-0" M-302

SECTION

3 M-302

ISOMETRIC VIEW

4 (N) BOILER #1 (E) BOILER #2

(E) GAS TRAIN

(E) BURNER (E) 2"G (N) 2"G (E) 28"EXHAUST (N) 22"EXHAUST (N) 5"HWS (N) 5"HWS (N) 5"HWS (N) 6"HWS

SHEET NOTES

VALVE TO BE INSTALLED IN A BRIEF OUTAGE WHEN BOILER 2 CAN BE SHUT DOWN. BOILER 1 CAN THEN BE INSTALLED WITH BOILER 2 IN OPERATION. INSTALL DRAFT DAMPER IN A BRIEF OUTAGE WHEN BOILER 2 CAN BE SHUT DOWN. BOILER 1 CAN THEN BE INSTALLED WITH BOILER 2 IN OPERATION.

1

2

(11)

T

NONE

HOT WATER PLANT SYSTEM DIAGRAM

SCALE:

NONE

DOAS AND CONDENSER WATER PLANT (CT-2, HX-1, P-6) SYSTEM DIAGRAM

SCALE:

BOILER #1 XX S/S STATUS XX HWR T2 2CS 4 C S BOILER #2 XX S/S STATUS XX 4 C S HWS T1 2CS 2C 2CS CR1 R1 P-1 P-2 2C 2CS CR2 R2 4CS DM1 COMBUSTION AIR DAMPER CONTROL CDS T2 2CS 2C 2CS CR1 R1 HS 4CS V-2 AB A B HR HX-1 P-6 BWS-4 BW-C 2C 2CS CR2 R2 2C 2CS 2C LOW R6 R5 CR1 T3 2CS BWS-4 BW-C CDR SCOPE OF WORK

-HEATING HOT WATER PUMPS

REPLACE INSTRUMENTS AS NEEDED AND PROVIDE NEW WIRING TO INTEGRATE NEW EQUIPMENT TO EXISTING DDC CONTROLLER. REUSE EXISTING POINTS.

SCOPE OF WORK - CONDENSER WATER PUMP

REPLACE INSTRUMENTS AS NEEDED AND PROVIDE NEW WIRING TO INTEGRATE NEW EQUIPMENT TO EXISTING DDC CONTROLLER. REUSE EXISTING POINTS.

AND PROVIDE NEW WIRING TO INTEGRATE NEW EQUIPMENT TO EXISTING DDC CONTROLLER. REUSE EXISTING POINTS.

SCOPE OF WORK -HOT WATER BOILER

REPLACE INSTRUMENTS AS NEEDED AND PROVIDE NEW WIRING TO INTEGRATE NEW EQUIPMENT TO EXISTING DDC CONTROLLER. REUSE EXISTING POINTS. NEW BOILER NEW PUMP NEW PUMP VFD (N) VFD (N) VFD (N) NEW PUMP NEW COOLING TOWER

HOT WATER PLANT (E) SEQUENCE FOR REFERENCE

HOT WATER PLANT SEQUENCE OF OPERATION.

1. GENERAL

A. THE HOT WATER SYSTEM SERVES 2-PIPE AND 4-PIPE FAN COILS, UNIT HEATERS, MULTI-ZONE UNITS, AND 4-PIPE ROOFTOP UNITS.

B. THE BUILDING AUTOMATION SYSTEM SHALL ENABLE AND STAGE THE BOILERS PER CONTROL CONTRACTOR PROVIDED SEQUENCE TO MAINTAIN THE ACTIVE LOOP HOT WATER TEMPERATURE SETPOINT.

C. PROVIDE OFFSETS, DEAD BANDS, TIME DELAYS AND SAFETIES FOR FULLY FUNCTIONAL AND OPTIMIZED SYSTEM THAT LIMITS SHORT CYCLING. 2. HOT WATER SYSTEM OPERATION

A. THE HOT WATER SYSTEM SHALL BE ENABLED WHENEVER OUTSIDE AIR TEMPERATURE IS LESS THAN 65 DEGREES FAHRENHEIT AND AT LEAST ONE HOT WATER VALVE IS OPEN TO ANY DEGREE.

B. HOT WATER SYSTEM TO BE ENABLED A MINIMUM OF 30 MINUTES TO PREVENT SHORT CYCLING OF EQUIPMENT. C. BOILERS

a. THE BOILERS SHALL BE OPERATED IN A LEAD/LAG CONFIGURATION. THE LEAS BOILER SHALL CHANGE WEEKLY BASED ON RUNTIME. b. THE BOILERS SHALL BE ENABLED AND STAGED TO MAINTAIN 180 DEGREES FAHRENHEIT HOT WATER SUPPLY TEMPERATURE. c. THE COMBUSTION AIR DAMPERS SHALL BE OPEN WHENEVER ANY BOILER IS ENABLED.

D. CIRCULATION PUMPS

a. THE HOT WATER CIRCULATION PUMPS SHALL BE COMMANDED TO OPERATE WHENEVER THE HEATING WATER SYSTEM IS ENABLED.

b. HEATING WATER PUMPS SHALL OPERATE IN A DUTY/ STANDBY CONFIGURATION, ALTERNATING WEEKLY BASED ON RUNTIME. IF THE LEAD PUMP FAILS TO START, ENABLE THE STANDBY PUMP AND SEND AN ALARM.

c. THE LEAD HEATING WATER PUMP SHALL OPERATE FOR 5 MINUTES AFTER THE HEATING WATER SYSTEM HAS BEEN DISABLED TO DISSIPATE BOILER HEAT.

3. ALARMING

A. "HOT WATER SUPPLY TEMPERATURE OUTSIDE OF SET POINT": GENERATE AN ALARM WHEN THE HEATING WATER SUPPLY TEMPERATURE IS NOT WITHIN 20 DEGREES FAHRENHEIT OF SET POINT. TIME DELAY SHALL BE OBSERVED AFTER A CHANGE IN COMMAND TO AVOID NUISANCE ALARMS. B. "HOT WATER PUMP FAILURE": GENERATE AN ALARM WHEN A HEATING WATER PUMP STATUS DOES NOT MATCH THE COMMAND.

C. "BOILER ALARM" GENERATE AN ALARM WHEN ANY BOILER ALARM STATUS IS TRIPPED.

DOAS AND CONDENSER WATER PLANT (E) SEQUENCE FOR REFERENCE

DOAS AND CONDENSER WATER PLANT SEQUENCE OF OPERATION.

1. GENERAL

A. CONDENSER WATER SYSTEM AND DOAS UNIT SERVE WATER-SOURCE HEAT PUMPS. REFER TO SEPARATE SEQUENCE OF OPERATION FOR ADDITIONAL INFORMATION.

B. PROVIDE OFFSETS, DEAD BANDS, TIME DELAYS AND SAFETIES FOR A FULLY FUNCTIONAL AND OPTIMIZED SYSTEM THAT LIMITS SHORT CYCLING. 2. CONDENSER WATER SYSTEM

A. THE CONDENSER WATER PUMP SHALL BE ENABLED WHEN ASSOCIATED HEAT PUMPS ARE OPERATING IN OCCUPIED MODE, OR WHEN ANY HEAT PUMP IS CALLING FOR HEATING OR COOLING IN OCCUPIED MODE.

B. THE CONDENSER WATER SYSTEM SHALL BE ENABLED FOR A MINIMUM OF 30 MINUTES TO PREVENT SHORT CYCLING OF EQUIPMENT.

C. IF THE CONDENSER WATER TEMPERATURE FALLS BELOW 60 DEGREES FAHRENHEIT, THE HEAT EXCHANGER CONTROL VALVE SHALL MODULATE TO MAINTAIN A MINIMUM 60 DEGREES FAHRENHEIT CONDENSER WATER TEMPERATURE.

D. IF THE CONDENSER WATER TEMPERATURE RISES ABOVE 80 DEGREES FAHRENHEIT, ENABLE THE COOLING TOWER IN THE FOLLOWING MANNER TO MAINTAIN A MAXIMUM 80 DEGREES FAHRENHEIT CONDENSER WATER TEMPERATURE:

a. FIRST STAGE: ENABLE BASIN PUMP AND COOLING TOWER FAN AT LOW SPEED. b. SECOND STAGE: ENABLE BASIN PUMP AND COOLING TOWER FAN AT HIGH SPEED. 3. DIRECT OUTSIDE AIR SYSTEM (DOAS)

A. THE DOAS UNIT SHALL BE ENABLED ON THE SAME OCCUPIED OPERATING SCHEDULE AS THE ASSOCIATED WATER-SOURCE HEAT PUMPS. B. THE HOT WATER CONTROL VALVE SHALL BE MODULATED TO PROVIDE 65 DEGREES FAHRENHEIT SUPPLY AIR TEMPERATURE.

C. THE DOAS UNIT SHALL BE DISABLED DURING MORNING WARM UP AND MORNING COOL DOWN MODE.

D. DOAS WAS LEFT DISABLED THROUGH DDC AT PROJECT CLOSEOUT. TAB CONTRACTOR DETERMINED THAT DOAS WAS NOT NEEDED TO PROVIDE MINIMUM AIRFLOW TO HP UNITS.

4. EXHAUST FANS

A. EF-6 AND EF-7 MONITOR STATUS ONLY. 5. ALARMING

A. "CONDENSER WATER SUPPLY TEMPERATURE OUTSIDE OF SET POINT": GENERATE AN ALARM WHEN THE CONDENSER WATER SUPPLY TEMPERATURES IS MORE THAN 5 DEGREES FAHRENHEIT ABOVE THE HIGH LIMIT OR 5 DEGREES FAHRENHEIT BELOW THE LOW LIMIT FOR AT LEAST 5 MINUTES.

B. "CONDENSER WATER PUMP FAILURE" : GENERATE AN ALARM WHEN THE CONDENSER WATER PUMP STATUS DOES NOT MATCH THE COMMAND (CALL TO RUN FAIL).

C. "CHANGE FILTER": GENERATE AN ALARM WHEN THE DOAS UNIT FILTER SWITCH IS TRIPPED. AT TIME OF PROJECT, NO FILTER RACK INSTALLED ON THE DOAS. PRESSURE SWITCH IS INSTALLED FOR FUTURE.

D. "SUPPLY FAN FAILURE": GENERATE AN ALARM WHEN THE DOAS SUPPLY FAN STATUS DOES NOT MATCH THE COMMAND (CALL TO RUN FAIL). 1. THE CONTROL DIAGRAMS AND DESCRIPTIONS OF OPERATION SHOWN ON THIS PLAN HAVE BEEN TAKEN FROM THE EXISTING CONTROLS

DRAWING SET PREVIOUSLY DEVELOPED BY ATS INLAND NW. THE INTENT IS TO ALLOW FOR THE NEW CONTROLS CONTRACTOR TO GET FAMILIAR WITH THE EXISTING POINTS ASSOCIATED WITH EACH EQUIPMENT BEING REPLACED. THE DESCRIPTION OF OPERATION SHOW ON THESE SHEETS IS THE EXISTING CONTROLS LOGIC THAT IS CURRENTLY IMPLEMENTED AND IS FOR REFERENCE ONLY.

2. THE CONTROLS CONTRACTOR SHALL INTEGRATE THE EXISTING POINTS SHOWN ON THESE DIAGRAMS TO THE NEW FLUID

COOLER,CONDENSER WATER PUMP, HEATING BOILER, AND HEATING HOT WATER PUMPS. CONTROLS CONTRACTOR SHALL CHECK ALL POINTS DISPLAY AT THE USER FRONT END TO MATCH EXISTING.

3. CONTROLS CONTRACTOR SHALL SUBMIT SHOP DRAWINGS FOR ENGINEERING REVIEW.

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 6 :2 9 P M 07/06/2021 CEI CEI 200465

M-401

SEQUENCE OF

OPERATION

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

(12)

NONE

WATER-SOURCE HEAT PUMP HP-2 DIAGRAM

SCALE:

NONE

WATER-SOURCE HEAT PUMP HP-3 THRU 6 DIAGRAM (TYP 4)

SCALE:

DM1 4 C S RETURN AIR OUTSIDE AIR REMOTE CONDENSER COIL F IL T E R 8 C S 2 C S CR2 2CS T2 2 MS/TP MSTP SEGMENT TO OTHER VLC'S 3CS T1 SPACE SENSOR SUPPLY AIR LOW VOLTAGE SECTION SUPPLY FAN 2CS CR1 VL03 2 C S DP1 HI LO DM1 4 C S RETURN AIR OUTSIDE AIR REMOTE CONDENSER COIL F IL T E R 8 C S 2 C S CR2 2CS T2 2 MS/TP MSTP SEGMENT TO OTHER VLC'S 3CS T1 SPACE SENSOR SUPPLY AIR LOW VOLTAGE SECTION SUPPLY FAN 2CS CR1 VL03 2 C S DP1 HI LO DP T T DP T T

WATER-SOURCE HEAT PUMP (E) SEQUENCE FOR REFERENCE

WATER-SOURCE HEAT PUMP SEQUENCE OF OPERATION (HP-1 THRU HP-6).

1. GENERAL

A. EACH PUMP OPERATES IN ANY ONE OF FOUR MODELS: MORNING WARM UP, MORNING COOL DOWN, OCCUPIED, OR UNOCCUPIED. B. OCCUPIED AND UNOCCUPIED TIME OF DAY SCHEDULE FOR EACH HEAT PUMP IS PROVIDED.

2. OCCUPIED MODE

A. THE SUPPLY FAN OPERATES CONTINUOUSLY. B. TEMPERATURE CONTROL

a. THE COMPRESSOR OPERATES IN COOLING OR HEATING MODE AS NECESSARY TO MAINTAIN OCCUPIED ZONE TEMPERATURE SETPOINTS. b. ON A CALL FOR HEATING OR COOLING, A 30 SECOND TIME DELAY IS PROVIDED BEFORE COMPRESSOR ENABLEMENT TO ENSURE CONDENSER

WATER PUMP FLOW IS ESTABLISHED. C. DIRECT OUTSIDE AIR UNIT INTERBLOCK

a. THE DOAS UNIT ASSOCIATED WITH THE HEAT PUMP OPERATES ON A STAND-ALONE SCHEDULE. D. DAMPER CONTROL

a. HP-1: THE OUTSIDE AIR DAMPER IS FIXED POSITION AND WILL NOT BE CONTROLLED, VENTILATION TO BE PROVIDED WHEN ASSOCIATED DOAS IS ENABLED.

b. HP-2 THRU HP-6: THE OUTSIDE AIR DAMPER OPENS TO MINIMUM POSITION WHEN THE UNIT IS ENABLED IN OCCUPIED MODE. 3. UNOCCUPIED MODE

A. THE SUPPLY FNA IS OFF AND OUTSIDE AIR DAMPER CLOSED (IF APPLICABLE). B. THE ASSOCIATED DOAS UNIT IS ENABLED OR DISABLED ON A SEPARATE SCHEDULE. C. THE COMPRESSOR IS DISABLED.

D. IF THE ZONE TEMPERATURE FALLS BELOW THE UNOCCUPIED MODE HEATING SETPOINT, FOLLOW THE MORNING WARM UP SEQUENCE UNTIL ZONE TEMPERATURE IS 2 DEGREES FAHRENHEIT ABOVE UNOCCUPIED MODE HEATING SETPOINT.

E. IF THE ZONE TEMPERATURE RISES ABOVE THE UNOCCUPIED MODE COOLING SETPOINT, FOLLOW THE MORNING COOL DOWN MODE SEQUENCE UNTIL ZONE TEMPERATURE IS 2 DEGREES FAHRENHEIT BELOW UNOCCUPIED MODE COOLING SETPOINT.

4. MORNING WARM UP/ COOL DOWN MODE

A. AN OPTIMAL START PROGRAM IS PROVIDED THAT USE THE OUTSIDE AIR TEMPERATURE AND ZONE TEMPERATURE TO DETERMINE START TIME SO THAT THE OCCUPIED ZONE TEMPERATURE SETPOINT IS ACHIEVED 15 MINUTES PRIOR TO OCCUPANCY.

B. THE SUPPLY FAN RUNS CONTINUOUSLY.

C. THE COMPRESSOR IS ENABLED IN HEATING OR COOLING MODE AS NEEDED TO MEET OCCUPIED ZONE TEMPERATURE SETPOINT. D. THE ASSOCIATED DOAS UNIT REMAIN DISABLED ACCORDING TO ITS OWN OPERATING SCHEDULE.

5. ALARMS

A. "LOW ZONE TEMPERATURE ALARM": GENERATE AN ALARM WHEN THE ZONE TEMPERATURE IS 5 DEGREES FAHRENHEIT BELOW SETPOINT FOR 15 MINUTES.

B. "HIGH ZONE TEMPERATURE ALARM": GENERATE AN ALARM WHEN THE ZONE TEMPERATURE IS 5 DEGREES FAHRENHEIT ABOVE SETPOINT FOR 15 MINUTES.

C. "SUPPLY FAN FAILURE": GENERATE AN ALARM WHEN THE SUPPLY FAN IS COMMANDED ON, BUT STATUS IS NOT PROVEN AFTER 30 SECONDS (CALL TO RUN FAIL).

D. "COMPRESSOR FAILURE": GENERATE AN ALARM WHEN THE COMPRESSOR IS COMMANDED ON, BUT THE STATUS IS NOT PROVEN AFTER 30 SECONDS (CALL TO RUN FAIL).

E. "CHANGE FILTER": GENERATE AN ALARM WHEN THE DIRTY FILTER SWITCH IS TRIPPED.

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 6 :2 9 P M 07/06/2021 CEI CEI 200465

M-402

SEQUENCE OF

OPERATION

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

(13)

1-1/2" MAKE-UP WATER SPRAY PUMP, INERNAL TO CT-1 CT-1 WHA-3

VACUUM BREAKER ARRESTOR, SIOUX CHIEF MODEL 657-FD. INSTALL WITHIN 1'-0" OF VALVE.

TO DRAIN CW SUPPLY N.C. S S 3" CONDENSER WATER SUPPLY 2" OVERFLOW DRAIN 2" DRAIN 3" DRAIN ROUTE TO DRAIN IN MECHANICAL ROOM IN MECHANICAL ROOM 3" CONDENSER WATER RETURN CW D (E) RPBP NOTE:

CONTRACTOR TO REUSE EXISTING RPBP. IF NOT EXISTING PROVIDE NEW RPBP AND HEAT TRACE LOCATED ON ROOF. CONTRACTOR TO INTEGRATE NEW SOLENOID VALVE TO NEW COOLING LOWER CONTROL PANEL.

MANUAL AIR VENTS AT HIGH POINTS TEMPERATURE & PRESSURE GAUGES, TYP NC NC NO NO NO (E)BOILER-2 BOILER-1 (E)EXPANSION TANK (E)AIR SEPARATOR (E)P-1 (E)P-2 (E) DICHARGE TO 30% PG FEEDER MAKEUP FROM 30% PG FEEDER 6" H W S 6"HWR NC 6"HWS 5" 5" 5" 6"HWR 6"HWR 6"HWR NOTES:

1. VALVES SHOWN NORMALLY OPEN (NO) OR NORMALLY CLOSED (NC) ARE SHOWN FOR OPERATION WITH FLOW THROUGH THE BOILERS IN SERIES.

2. VALVES POSITIONS CAN BE CHANGED TO OPERATE THE BOILERS IN PARALLEL. 3. RECONNECT NEW BOILER CONTROLS TO EXISTING CONTROL SYSTEM. 4. BOILER TO FIRE TO MAINTAIN 170 DEGREES F HEATING WATER SUPPLY.

NO

3/4" DRAIN WITH HOSE FITTING, TYP

SAFETY VALVE DISCHARGE TO BE TO BARREL PROVIDED BY OWNER. DO NOT ROUTE TO FLOOR DRAIN, TYPICAL. FLEXIBLE CONNECTOR

VIBRATION ISOLATION (TYP)

BUTTERFLY SHUT-OFF VALVE

REMOVE START-UP STRAINER AFTER 48 HOURS OF PUMP OPERATION

SUCTION DIFFUSER B&G #GF-3X/GF-3Z

ALLOW ROOM FOR STRAINER REMOVAL

PROVIDE ADDITIONAL ADJUSTABLE SUPPORT ROD

PROVIDE DRAIN ON PUMP CASING WHERE TAPPING IS AVAILABLE

DRAIN BALL VALVE W/ HOSE CONN.

VIBRATION ISOLATOR W/ SEISMIC

RESTRAINTS (TYPICAL) LUBRICATE PUMP PRIOR TO

START-UP IN ACCORDANCE WITH MFR'S INSTRUCTIONS STRUCTURAL BASE 1/2" BALL VALVES PRESSURE GAUGE 60 PSI RANGE

INSTALL IN PUMP FLANGE TAPPING OR PIPE CLOSE TO

PUMP BEFORE ANY VALVE OR FITTING NON-SLAM CHECK VALVE

HOUSEKEEPING PAD

REDUCER

(N) PANEL WITH SINGLE ELECTRICAL

POINT OF CONNECTION TO POWER CT-1

PROVIDED BY COOLING TOWER VENDOR.

MAX WT OF PANEL = 300#

(N) P1325 ANGLE W/(1) 1/2" DIA BOLT

TO (E) WF BEAM

AND (2) CHANNEL NUTS TO

UNISTRUT, TYP TO P & BOTTOM

(N) P100 STRUT, TYP

NOTES:

1. ALL UNITRUT TO BE HOT DIPPED GALVANIZED.

2. TOUCH UP ALL PAINT AT NEW BOLT HOLES IN EXISTING BEAM.

EXISITNG COOLING TOWER

STRUCTURE TO REMAIN

(N) CT-1

SHEET NO:

SHEET TITLE:

C E E /2 0 2 1 3 :0 6 :3 6 P M 07/06/2021 CEI CEI 200465

M-501

MECHANICAL

DETAILS

Permit Plan Set

PLAZA COOLING

TOWER & BOILER

REPLACEMENT

Spokane Transit

Authority

701 W Riverside Ave

NTS M-501

COOLING TOWER DETAIL

2

12" = 1'-0" M-501

BOILER PIPING SCHEMATIC

3 NO SCALE

M-501

CONDENSER AND HEATING WATER PUMPS DETAIL

1

M-501

ISOMETRIC VIEW

4
