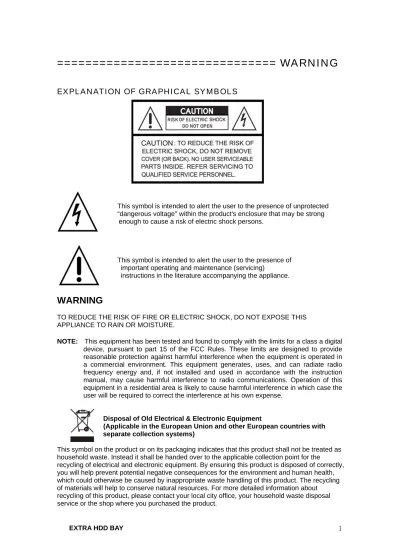

=============================== WARNING

=============================== WARNING

EXTRA HDD BAY 1

EXPLANATION OF GRAPHICAL SYMBOLS

This symbol is intended to alert the user to the presence of unprotected

“dangerous voltage" within the product's enclosure that may be strong enough to cause a risk of electric shock persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

NOTE: This equipment has been tested and found to comply with the limits for a class a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Disposal of Old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,

you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. The recycling

of materials will help to conserve natural resources. For more detailed information about

recycling of this product, please contact your local city office, your household waste disposal

service or the shop where you purchased the product.

PRECAUTION ============================

2 USER’S MANUAL

■ There is possibility of electric shock inside of the EXTRA HDD BAY. Please avoid opening the unit, if you are not qualified service personnel.

■ Use the EXTRA HDD BAY in the reference temperature and the humidity in the specification.

■ While the EXTRA HDD BAY is under removing, storing or using, please avoid any vibration, drop or strike.

■ Do not store under the direct sunlight or near by heating.

■ Avoid dropping any electrifiable unit into the holes for circulating air.

■ Before connect the power cord, please select correct voltage, whether 230VAC or 115VAC.

WARNING

■ When the EXTRA HDD BAY is operating with the DVR, do not pull out the power cord, cap cord and any of cables. In case of top cover opening or any purpose needed to be power off, turn the power switch off at the front panel of DVR first, and then pull out the electric cord and other cables. If not, the recorded data can be lost and the system can not be worked again properly.

■ In case of HDD exchanging due to HDD damage, exchange it to the same place and

do the same connection.

====================== TABLE OF CONTENT

DIGITAL VIDEO RECORDER ³

PACKING DETAIL ………. 4

LOCATION OF PARTS ………. 5

FRONT ……….… 5

REAR………...………. 6

INSTALLATION ………. 7

SPECIFICATION ………... 8

HDD INSTALLATION PROCESS ……….. 9

1. Opening the top case……….…..….. 9

2. Taking out the HDD power cable……….... 10

3. Taking put the HDD supporter……….... 12

4. Assembling the HDD to the HDD supporter……….... 14

5. HDD system setting………..…. 15

5-1 Ex) Samsung electronics made………...… 15

5-2 Ex) Western digital made……….…15

6. Installation of HDD supporter………...….. 18 7. Top case closing………..….

4 5 5 6 7 8 9 9 11 12 14 15 15

16

18

20

PACKING DETAIL =========================

4 USER’S MANUAL

♦ HDD BAY PACKING DETAIL

1. HDD BAY: 1PC 2. USB CABLE

3. POWER CORD: 1PC

4. GROUNDING CONDUCTOR: 1PC

5. SCREW (BH/4X6) FOR RACK MOUNT: 4PCS

6. RACK MOUNT: 2PCS

7. SCREW (5W/32-32) FOR HDD INSTALLATION: 40PCS 8. USERS MANUAL

1. HDD BAY

2. USB CABLE 3. POWER CORD 4. GROUNDING CONDUCTOR

5. SCREW (BH/4X6) FOR RACK MOUNT 6. RACK MOUNT 7. SCREW (5W/32-32) FOR HDD INSTALLATION

8. USERS MANUAL

========= LOCATION OF PARTS AND CONTROL

DIGITAL VIDEO RECORDER ⁵

♦ FRONT PANEL CONTROL

◈ LED INFORMATION

When the power of DVR is turned on, ○ ² POWER LED will be on and ○ ¹ ACCESS LED will be off and then each number of HDD LEDs will be on and off in green color and then in red color in the order of HDD No. 1 to No.10. And then All HDD LEDs will be on and off in orange color.

* LED in Green color.

1. Green LED will be on when a HDD is properly installed.

2. Green LED will be off when playback.

* LED in Red color.

1. Red LED will be on when a HDD error happened.

2. Red LED will be off during recording.

* LED in Orange color

1. LED will be on and off in green and then orange color when backup.

2. Orange LED will be off when recording and playback.

Port Name Description

○

ACCESS LED HDD processing indication.

○

RX / TX Receive data / Transmit data

○

POWER LED Power ON/OFF indication.

○

~○

HDD 01 ~ HDD10 HDD access status indication.

○ 1 ○ ² ○ 3 ○ 4 ~ ○

LOCATION OF PART AND CONTROL ==========

6 USER’S MANUAL

♦ REAR PANEL CONTROL

Port Name Description

① INPUT USB input port

② SERIAL For debugging

③ ETHERNET 10/100 Mbps Ethernet/xDSL port

④ OUTPUT USB output port

⑤ GROUNDING Grounding port

⑥ POWER IN Power inlet

⑦ POWER OUT Power outlet

⑧ POWER SELECT 230VAC/115VAC power selection switch

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

=========================== INSTALLATION

DIGITAL VIDEO RECORDER ⁷

♦ INSTALLATION

◈ INSTALLATION PROCESS.

1. Turn the power of DVR off 2. Install HDDs into HDD BAY.

3. Connect the USB 2.0 cable and the Grounding conductor between DVR and Extra HDD Bay.

4. Connect the 68pins SCSI cable between DVR and Extra HDD Bay.

5. Connect the each power cord to DVR and HDD Bays.

6. Turn the power of DVR on

• Rear panel of DVR

• Rear panel of HDD BAY

SPECIFICATION ==========================

8 USER’S MANUAL

♦ SPECIFICATION

1. LED DISPLAY

- Red / Green / Orange

2. HDD

- Maximum Capacity 10pcs - HDD Type EIDE - Minimum Speed 7200RPM

- Seek time Faster than 9.0ms avg.

3. CONNECTORS - USB 2.0 Cable

4. ELECTRICAL

- Power Source 230VAC /115VAC

5. ENVIRONMENTAL

- Operating Temperature 0C to 40C - Storage Temperature -10C to 60C - Humidity 30 to 90%

6. PHYSICAL

- Dimension 420(W) X 390(D) X 93(H) mm

- Weight Approximately 6.4kg (without Hard Disk installed)

7. ACCESORIES

- GROUNDING CONDUCTOR - RACK MOUNT

- SCREW (BH/4X6) FOR RACK MOUNT - USB 2.0 CABLE

- POWER CORD

- SCREW (5W/32-32) FOR HDD INSTALLATION

- USER’S MANUAL

=========================== INSTALLATION

DIGITAL VIDEO RECORDER ⁹

♦ HDD INSTALLATION PROCESS

NOTE

This HDD BAY is recommended to install 10pcs of HDD in initial installation.

When the EXTRA HDD BAY is operating with the DVR, do not pull out the power cord, cap cord and any of cables. In case of top cover opening or any purpose needed to be power off, turn the power switch off at the front panel of DVR first, and then pull out the electric cord and other cables. If not, the recorded data can be lost and the system can not be worked again properly.

In case of HDD exchanging due to HDD damage, exchange it to the same place and do the same connection.

1. Opening the top case

Screw down 2 points at the left side of top cover

Screw down 2 points at the right side of top cover

INSTALLATION ===========================

10

Screw down 3 points at the back side of top cover

Hold the back side of top case and lift it up straddling its wings as indicated.

=========================== INSTALLATION

DIGITAL VIDEO RECORDER ¹¹

2. Taking out the HDD power cable and 40pins flat cable

Pull out the HDD power cable (2 points)

Pull out the 40pins flat cable ( 5 points )

The Picture is as above after taking out the cables.

INSTALLATION ===========================

12

3. Taking out the HDD supporter

Turn the HDD BAY over. The 20 points of screws are tied up between bottom case and 5pcs of HDD supporter.

Screw down 20 points.

Turn over the HDD BAY again as indicated direction.

=========================== INSTALLATION

DIGITAL VIDEO RECORDER ¹³

Pull out the HDD supporters of 01, 03 to the indicated direction and take them out.

Pull out the HDD supporters of 02, 04, 05 to the indicated direction and take them out.

(Caution: Take care the PCB damage when pulling out)

INSTALLATION ===========================

14

4. Assembling the HDD to the HDD supporter

(EX. Western Digital made)

Mount the HDD to the HDD supporter as above.

(EX. SamSung Electronics Co. made)

Mount the HDD to the HDD supporter as above

Screw up between HDD supporter and HDD (4points of both side)

=========================== INSTALLATION

DIGITAL VIDEO RECORDER ¹⁵

5. HDD system setting

5-1. Ex. Samsung Electronics made

Refer to the setting position on the surface of HDD

The upper HDD is set as “master” and below HDD is set as “slave”.

Refer to the “JUMPER SETTING” information on the HDD.

The HDD is set as “master”. Refer to the “JUMPER SETTING” information on the HDD.

EX. DUAL HDD Setting

EX. SINGLE HDD Setting

INSTALLATION ===========================

16

5-2. Ex. Western digital made

Refer to the setting position on the surface of HDD.

The upper HDD is set as “master” and below HDD is set as “slave”.

Refer to the “JUMPER SETTING” information on the HDD.

The HDD is set as “factory default” for 1pc of HDD setting.

Refer to the “JUMPER SETTING” information on the HDD.

EX. DUAL HDD Setting

EX. SINGLE HDD Setting

=========================== INSTALLATION

DIGITAL VIDEO RECORDER ¹⁷

The HDD is set as “single” for 1pc of HDD setting.

Refer to the “JUMPER SETTING” information on the HDD.

EX. SINGLE HDD Setting

INSTALLATION ===========================

18

6. Installation of HDD supporter

Note the sliding hole at the bottom case.

Note the sliding pin of HDD supporter will be jointed into the sliding hole at the bottom case.

Note the sliding holes at the bottom.

=========================== INSTALLATION

DIGITAL VIDEO RECORDER ¹⁹

Note the sliding pins of the HDD supporter will be jointed into the sliding holes.

Joint the HDD supporters of 02, 04, 05 through the sliding holes of the bottom as indicated direction.

Joint the HDD supporters of 01,03 to the bottom as indicated direction.

INSTALLATION ===========================

20

Turn over the HDD BAY as indicated direction.

Screw up 20points.

7. Top case closing

Hold the back side of top case and put it down straddling its wings as indicated.

And screw up 7points.
