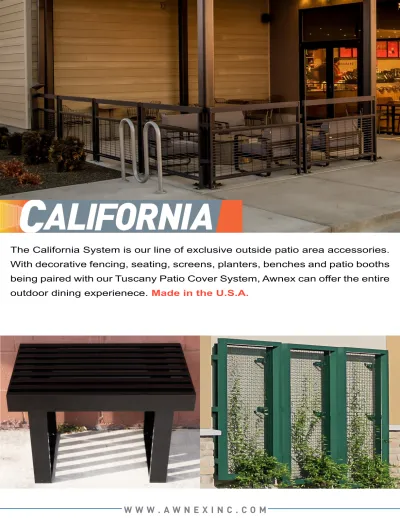

The California System is our line of exclusive outside patio area accessories.
With decorative fencing, seating, screens, planters, benches and patio booths
being paired with our Tuscany Patio Cover System, Awnex can offer the entire
Standard Sizes
Features & Benefits
•100% Aluminum construction • 2” square posts
• 1” square pickets
• 1” x 2” upper and lower rails • Formed hand rail
• Cast aluminum post caps and floor flanges
• 60” Standard length per section
• 100% Aluminum construction means no rust!
• Three standard styles
• Quick & Easy quoting, as simple as counting posts and fence sections
STYLE OPTIONS
Mediterranean
Colonial
French Quarter
Our decorative fencing product offers three standard styles: Colonial, Mediterranean and French Quarter. However, custom options are available to meet your design intent. Our decorative fencing system is constructed of 100% aluminum, insuring zero rust. Finished with a durable powder coat finish, leaving it looking great for years to come.
FOOTING OPTIONS
Core-drilled post for Egress Code Compliance
Bolted foot plate option (Not Egress Code Compliant) FENCING
TABLES
Single
Adding comfortable and stylish outdoor seating is now easier than ever. Both of our shaded and unshaded options are 100% aluminum construction with stainless steel benches and tabletops. For the shaded tables, we also offer optional perforated screen patterns. Custom colors and sizes are available.
TABLE Double Shaded - Single STANDARD SIZES 8’ - 7” 5’ - 6” 2’ - 6” Shaded - Single 8’ - 7” 3’ 2’ - 6” 1’ - 6” Single Double
SHADED TABLE STANDARD SIZES
3’ 5’ 2” 5’ 2” 1’ 4” 2’ 6” 1’ 6” 24” 62” 30”
SCREENS
Whether you are looking for privacy, a decorative element or adding greenery, Awnex can assist in developing your design intent. Our screen systems are durable and flexible with custom options available. Designed to be used in the interior or the exterior, these can help finish off a space.
GREEN SCREENS & WALL SCREENS
PRIVACY SCREENS
WALL BRACKET
ANCHOR BRACKET TO THE WALL
CAULK & SEAL
BLOCKING NEEDED
1/4” NUT W/ LOCK WASHER, LEXCO 1/8” SS CABLE 8” 40” 48” (2) #10 X 3/4” S.S. TEK SCREWS 1” X 2” X 1/8” CHANNEL EXTRUSION 5” 2” BRICK WALL
CAULK & SEAL SHIMS MAY BE NEEDED
SIDING WALL
1/4” NUT W/ LOCK WASHER, LEXCO 1/8” SS CABLE 8” 40” 48” 4” squ X .250” alum plate 2” squ X .125” wall tube 1-1/2” squ X .125” wall tube welded to frame
Green Screen Wall Screen
Wall Mount
WALL BRACKET
CAULK & SEAL SHIMS MAY BE NEEDED
(2) #10 X 3/4” S.S. TEK SCREWS 1” X 2” X 1/8” CHANNEL EXTRUSION 5” 2”
PLANTER BOXES Sizes Sizes • 24” L x 12” W x 12” H • 36” L x 12” W x 12” H • 36” L x 18” W x 18” H • 48” L x 12” W x 24” H • 48” L x 12” W x 36” H • 24” L x 12” W x 12” H • 24” L x 12” W x 18” H • 36” L x 12” W x 12” H • 36” L x 18” W x 24” H
Our planter boxes are the perfect accessories for your outdoor space. All of our planters are made from 100% aluminum and have a powder coated finish. With the option of rectangle or corner shapes, with or without drainage holes and your choice of one of our six standard colors, you can customize the planters to perfectly fit your space.
RECTANGLE
CORNER
SPECIFICATIONS
• 100% aluminum construction • Optional drainage holes • Planters sit on 1’ riser • Powder coated finish • Available in 6 colors
COLORS
Copper Silver Medium
Bronze
BENCHES
STYLE OPTIONS
Series 100 Series 200 Series 300
STANDARD SIZES Series 100 17 x 60 17 x 30 Series 200 19 x 60 19 x 30 Series 300 19 x 60 19 x 30
Our benches make the perfect addition to any indoor or outdoor space. Made of 100% aluminum construction, our benches have the option to be either free standing or anchored to the ground, depending on what best fits the space. All of our benches have a baked enamel powder coated finish with custom colors and sizes available.
SPECIFICATIONS
• 100% aluminum construction
• Baked enamel powder coated finish
• Free standing or anchored to the ground
• Standard colors available • Custom sizes and colors
available 30” 17” 19” 60” 17” 19” 60” 19” 19” 19” 19” 30” 19” 19” 60” 30” 19” 19”
PATIO BOOTH ISOMETRIC VIEW STANDARD SIZES BACK SCREEN BENCHES TABLE PARTITIONS
Our patio booths provide a stylish and comfortable seating area, perfect for outdoor dining. We offer a large variety of colors and custom screen designs that will help customize any patio area into something unique . Our patio booths come in single and double style ensuring that they will fit any size outsdoor space.
SPECIFICATIONS
• Double style, 50” deep x 68” wide x 56” tall
• Single style, 26” deep x 68” wide x 56” tall
• 100% aluminum construction
• Powder Coated Baked Enamel Finish • Large color selection available • Large laser cut screen patterns
available
• Custom designs avaiable
50”
68”
LIGHT POLES
At Awnex, we have made adding lighting to any outdoor space easy with our light poles. Our simplistic design makes them easy to install and adds a quick solution to any lighiting problems.
LIGHT POLE DETAILS
2” x 2” x .090” ALUM TUBE LIGHT POLE HEIGHT 10’ PLASTIC CAP 1 1/2” 3”
OPENING FOR CORD (TOP) DETAIL OPENING FOR CORD (BOTTOM) DETAIL
3”
